TECHNICAL & SERVICE MANUAL
Note:
•This manual describes
only service data of the
indoor units.
R410A
Indoor unit
[Model Name]
TPKFYP008HM142A
TPKFYP012HM142A
TPKFYP015HM142A
TPKFYP018HM142A
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
April 2019
No. OCHT515
INDOOR UNIT
CONTENTS
1. PART NAMES AND FUNCTIONS .......... 2
2. SPECIFICATION ................................... 10
3. OUTLINES AND DIMENSIONS............ 12
4. WIRING DIAGRAM............................... 13
5. REFRIGERANT SYSTEM DIAGRAM........14
6. MICROPROCESSOR CONTROL......... 15
7. TROUBLESHOOTING .......................... 21
8. DISASSEMBLY PROCEDURE ............. 28
PARTS CATALOG (OCBT515)

32 3
OCHT515
1PART NAMES AND FUNCTIONS
1-1. Indoor unit
Filter Air intake
Louver Air outlet Vane
Use the specied refrigerant only
Never use any refrigerant other than that specied.
Doing so may cause a burst, an explosion, or re when the unit is being used, serviced, or disposed of.
Correct refrigerant is specied in the manuals and on the spec labels provided with our products.
We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.

3
OCHT515 3
1-2. Wireless remote controller
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOT AVAILABLE
CHECK TEST RUN
°C
AMPM
AMPM
°F
VANE CONTROL button
Used to change the airflow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
Changes left/right airflow direction.
(Not available for this model.)
MODE SELECT button
Used to switch the operation mode between
cool, dry, fan, heat and auto mode.
CHECK-TEST RUN button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
button
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
*In case the outdoor unit is cool only type,
the heat and auto mode are not available.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of airflow is indicated.
display
Blinks when model is selected.
display
display
CHECK and TEST RUN display indicate that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which
operation mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch is
set, the air conditioner will be automatically
stopped at the preset time.
AUTO START (ON timer): when this switch is
set, the air conditioner will be automatically
started at the preset time.
MODEL SELECT
CHECK TEST RUN
SET TEMP. display indicates the set
temperature.
Lights up while the signal is transmitted to
the indoor unit when the button is pressed.

4 55
OCHT515

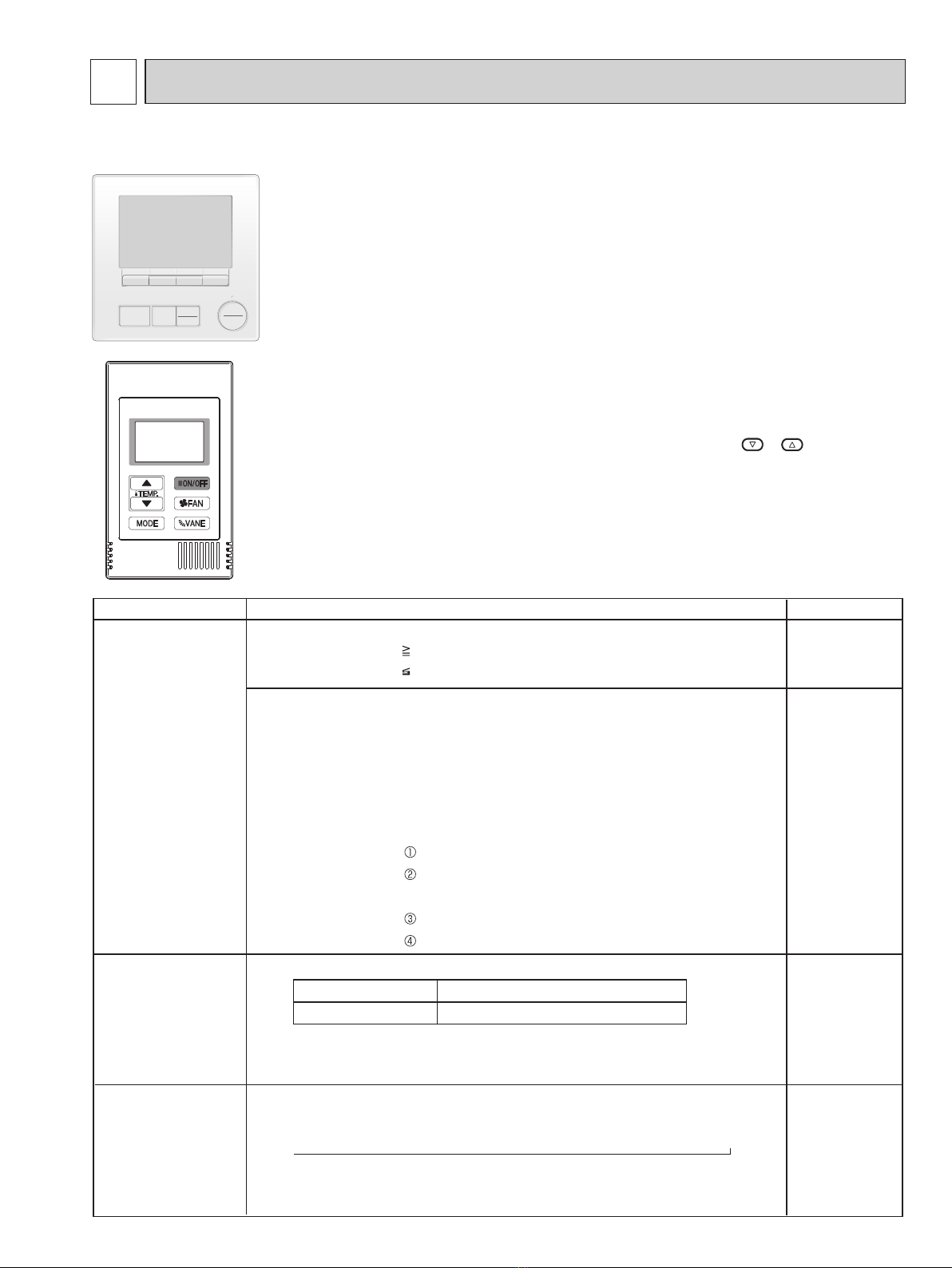

1-3. Wired Remote Controller <TAR-40MAA>
Function buttons
MENU
ON
OFF
RETURN SELECT
HOLD
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
The functions of the function buttons change depending on the
screen.
Refer to the button function guide that appears at the bottom of
the LCD for the functions they serve on a given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to turn ON/OFF the indoor unit.
This lamp lights up in green while the unit is in operation. It blinks
while the remote controller is starting up or when there is an error.
1[ON/OFF] button 6ON/OFF lamp
Press to save the setting.
When the Main menu is displayed, pressing this button will
enable/disable the HOLD function.
Main display: Press to change the operation mode.
Menu screen: The button function varies with the screen.
2 [SELECT/HOLD] button
7 Function button [F1]
Press to return to the previous screen. Main display: Press to decrease temperature.
Main menu: Press to move the cursor left.
Menu screen: The button function varies with the screen.
3[RETURN] button 8Function button [F2]
4[MENU] button
9Function button [F3]
Press to bring up the Main menu.
Main display: Press to increase temperature.
Main menu: Press to move the cursor right.
Menu screen: The button function varies with the screen.
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time de-
pending on the screen.
Main display: Press to change the fan speed.
Menu screen: The button function varies with the screen.
5Backlit LCD
0Function button [F4]
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main Main menu
Energy saving
Main display:
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Main menuMain display
Menu screen
7 8 9 0
7 8 9 0
7 8 9 0
Function guide
Controller interface

55
OCHT515
The main display can be displayed in two different modes: “Full” and “Basic”. The initial setting is “Full”. To switch to the “Basic”
mode, change the setting on the Main display setting. (Refer to operation manual included with remote controller.)
<Full mode> <Basic mode>
All icons are displayed for explanation.
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Main menu.
1Operation mode
2Preset temperature
3Clock
4Fan speed
Functions of the corresponding buttons appear here.
5 Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the lter reset function is centrally controlled.
Indicates when lter needs maintenance.
1Room temperature
Appears when the buttons are locked.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy saving
mode. (Will not appear on some models of indoor units)
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature (1).
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Appears when an energy saving operation is performed us-
ing a “3D i-see Sensor” function.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
Indicates the vane setting.
6
7
8
9
0
2
4
5
7
8
9
)
!
Fri
Mode Temp. Fan
Room
Cool Set temp. Auto
83
83
1
2
3
4
5
6
78
90
1
2 34 5 6 7 8
9
)
@
!
#
$
Display
Appears when the On/Off timer or Auto-off timer function is enabled.
3
appears when the timer is disabled by the centralized control system.
appears when the HOLD function is enable.
6
Appears while the outdoor units are operated in the silent mode.
@
Appears for a certain period of time when a centrally-con-
trolled item is operated.
#Centrally controlled
An check code appears during the preliminary error.
$Preliminary error display
Fri
Cool
Mode Temp. Fan
Set temp. Auto
$
83
5
4
3
2
1
#

6 77
OCHT515
Not all functions are available on all models of indoor units.
Energy saving

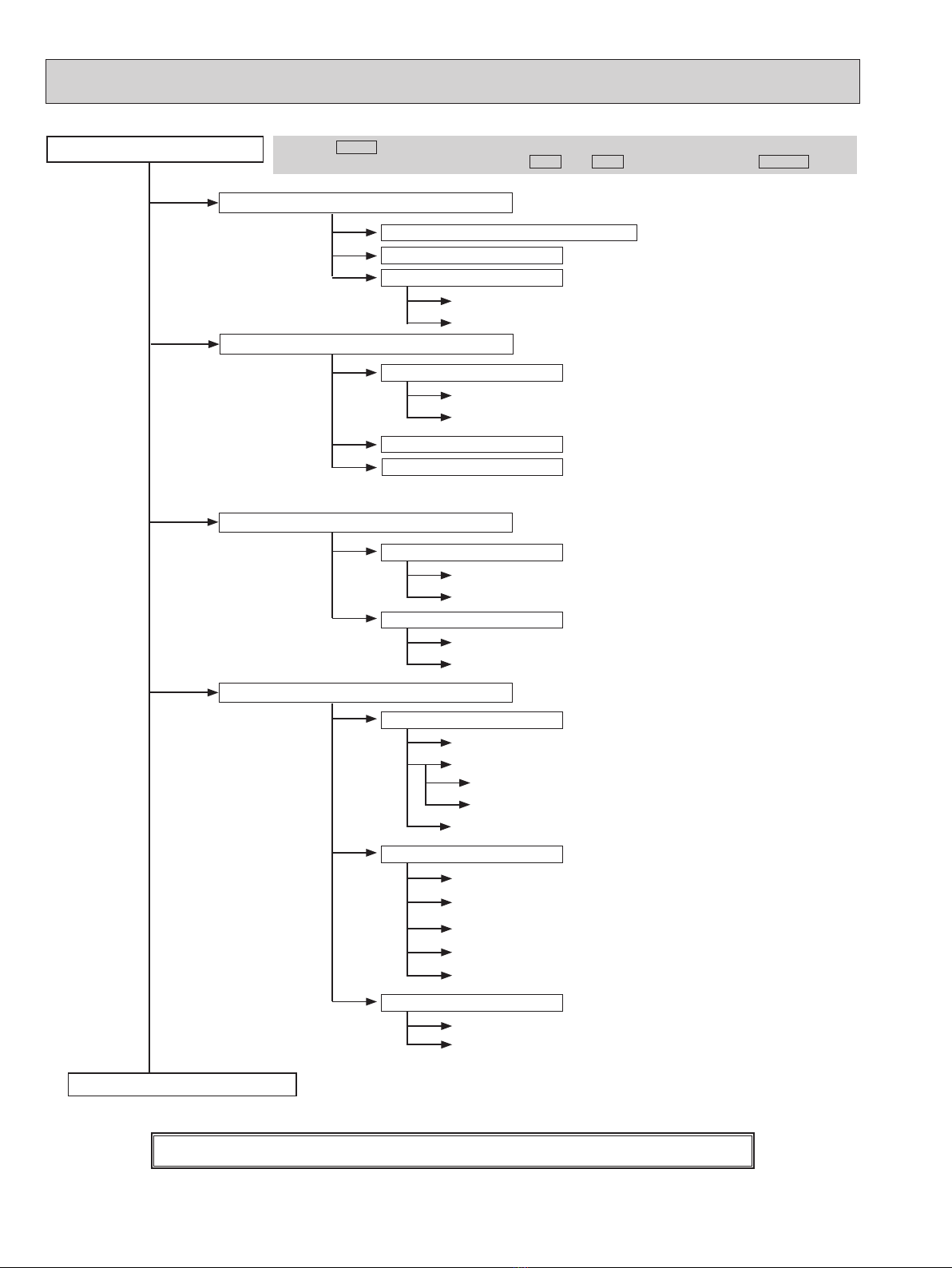

Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Operation
Initial setting menu
Manual vane angle
ON/OFF timer
Auto return
Clock
Main/Sub
Temp. range
Auto-OFF timer
Schedule
Daylight saving time
Clock
Administrator password
Operation locked
3D i-see Sensor
High power
Vane · Louver · Vent. (Lossnay)
Comfort
Timer
Energy saving
Basic setting
Display setting
Operation setting
Restriction
Weekly timer
OU silent mode
Black and white inversion setting
Timer menu
Main display
Display details
Contrast • Brightness
Language selection
Auto mode
Setback mode
Continue to the next page.

77
OCHT515
Maintenance menu
Service menu
Drain pump test run
Serial No. input
Lossnay
Diagnosis
Initialize remote controller
Remote controller information
Initialize maintenance info.
Test run
Model name input
Function setting
Error history
Maintenance password
Dealer information input
Error information
Test run menu
Maintenance information
Filter information
Cleaning
Settings menu
Check menu
Other menu
Auto descending panel
Descending operation
Self check
Descending adjustment
Remote controller check
Continue from the previous page.
Not all functions are available on all models of indoor units.

8 99
OCHT515
Main menu list
Continue to the next page.
*1 Clock setting is required.
*233.8°F (1°C) increments.
Main
menu Setting and display items Setting details
Operation Vane · Louver · Vent.
(Lossnay)
Use to set the vane angle.
• Select a desired vane setting from 5 different settings.
Use to turn ON/OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Comfort Manual
vane angle
Use to x each vane angle.
3D i-see Sensor Use to set the following functions for 3D i-see Sensor.
• Air distribution • Energy saving option • Seasonal airow
Timer Timer ON/OFF timer *1Use to set the operation ON/OFF times.
• Time can be set in 5-minute increments.
Auto-Off
timer
Use to set the Auto-Off time.
• Time can be set to a value from 30 to 240 in 10-minute increments.
Weekly timer *1, *2Use to set the weekly operation ON/OFF times.
• Up to 8 operation patterns can be set for each day.
(Not valid when the ON/OFF timer is enabled.)
OU silent mode *1Use to set the time periods in which priority is given to quiet operation of
outdoor units over temperature control. Set the Start/Stop times for each day
of the week.
•Select the desired silent level from "Normal," "Middle," and "Quiet."
Energy
saving
Restriction Temp. range *2Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation lock Use to lock selected functions.
• The locked functions cannot be operated.
Energy
saving
Auto return *2Use to get the units to operate at the preset temperature after performing
energy saving operation for a specied time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
(This function will not be valid when the preset temperature ranges are restricted.)
Schedule *1Set the start/stop times to operate the units in the energy saving mode for
each day of the week, and set the energy saving rate.
• Up to 4 energy saving operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy saving rate can be set to a value from 0% or 50 to 90% in 10% increments.

99
OCHT515
Main
menu Setting and display items Setting details
Initial
setting
Basic
setting
Main/Sub When connecting 2 remote controllers, one of them needs to be designated as
a sub controller.
Clock Use to set the current time.
Daylight
saving time
Set the daylight saving time.
Administrator
password
The administrator password is required to make the settings for the following
items.
• Timer setting • Energy saving setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Display
setting
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The initial setting is "Full."
Black and white
inversion setting
Use to invert the colors of the display, turning white background to black and
black characters to white.
Display details Make the settings for the remote controller related items as necessary.
Clock: The initial settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set the Auto mode display or Only Auto display.
Contrast •
Brightness
Use to adjust screen contrast and brightness.
Language
selection
Use to select the desired language.
Operation
setting
Auto mode Whether or not to use the Auto mode can be selected by using the button.
This setting is valid only when indoor units with the Auto mode function are
connected.
Setback mode Whether or not to use the Setback mode can be selected by using the button.
This setting is valid only when indoor units with the Setback mode function
are connected.
Mainte-
nance
Error information Use to check error information when an error occurs.
• Check code, error source, refrigerant address, unit model, manufacturing number,
contact information (dealer's phone number) can be displayed.
(The unit model, manufacturing number, and contact information need to be
registered in advance to be displayed.)
Filter information Use to check the lter status.
• The lter sign can be reset.
Cleaning Auto
descending
panel
Use to lift and lower the auto descending panel (Optional parts).
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input maintenance Select "Input maintenance Info." from the Service menu to bring up the
Maintenance information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input • Initialize
maintenance info.
Settings Function setting Make the settings for the indoor unit functions via the remote controller as
necessary.
LOSSNAY setting This setting is required only when the operation of CITY MULTI units is
interlocked with LOSSNAY units.
Check
Error history
Display the error history and execute "delete error history".
Diagnosis Self check: Error history of each unit can be checked via the remote controller.
Remote controller check: When the remote controller does not work properly, use
the remote controller checking function to troubleshoot the problem.
Other Maintenance
password
Use to change the maintenance password.
Initialize remote
controller
Use to initialize the remote controller to the factory shipment status.
remote controller
information
Use to display the remote controller model name, software version, and serial
number.

1110 11
OCHT515
2SPECIFICATION
2-1. Specications
Service Ref. TPKFYP008HM142A TPKFYP012HM142A TPKFYP015HM142A TPKFYP018HM142A
Power source 1-phase 208-230 V, 60 Hz
Cooling capacity *1 kW 2.3 3.5 4.4 5.3
(Nominal) *1 Btu/h 8,000 12,000 15,000 18,000
Power input kW 0.03 0.03 0.03 0.03
Current input A 0.30 0.30 0.30 0.30
Heating capacity *2 kW 2.6 4.0 5.0 5.9
(Nominal) *2 Btu/h 9,000 13,500 17,000 20,000
Power input kW 0.03 0.03 0.03 0.03
Current input A 0.30 0.30 0.30 0.30
External nish Plastic, MUNSELL (1.0Y 9.2/0.2)
External dimension
H × W × D
in 11-5/8 × 35-3/8 × 9-13/16
mm 295 × 898 × 249
Net weight kg (lb) 13(29)
Heat exchanger Cross Fin (Aluminum n and copper tube)
FAN Type × Quantity Line ow fan × 1
External static
press.
Pa 0
mmH2O0
Motor type DC motor
Motor output kW 0.030
Driving mechanism Direct drive
Airow rate
(Low-Mid-High)
m³/min 9 - 10.5 - 11.7 9 - 10.5 - 12
L/s 150 - 175 - 195 150 - 175 - 200
cfm 320 - 370 - 413 320 - 370 - 425
Noise level (Low-Mid-High)
(measured in anechoic room) dB <A> 34 - 39 - 43 36 - 41 - 45
Insulation material Polyethylene sheet
Air lter PP honeycomb
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410A, CITY MULTI
Diameter of
refrigerant
pipe
Liquid in (mm) 1/4 (6.35) Flare
Gas in (mm) 1/2 (12.7) Flare
Field drain pipe size in (mm) O.D. 16 (5/8)
Standard
attachment
Document Installation Manual, Installation Book
Accessory -
Optional
parts
External heater adapter PAC-YU25HT
Remarks Installation Details on foundation work, insulation work, electrical wiring, power source switch, and other items
shall be referred to the Installation Manual.
Note: *1. Nominal cooling conditions *2. Nominal heating conditions Unit converter
Indoor: 80°F D.B./67°F W.B. (26.7°C D.B./19.4°C W.B.) 70°F D.B(21.1°C D.B.) kcal/h = kW × 860
Btu/h = KW × 3,412
cfm = m3/min × 35.31
Ib = kg/0.4536
*Above specication data is
subject to rounding variation.
Outdoor: 95°F D.B. (35°C D.B.) 47°F D.B./43°F D.B. (8.3°C D.B./6.1°C D.B.)
Pipe length: 25ft (7.6 m) 25ft (7.6 m)
Level difference: 0 ft (0 m) 0 ft (0 m)
* Due to continuing improvement, above specication may be subject to change without notice.

11
OCHT515 11
TPKFYP008/012/015HM142A
External static pressure: 0Pa
Power source: 208/230V, 60Hz
* Measured in anechoic room.
OCTAVE BAND PRESSURE LEVEL (dB) 0dB = 20
µPa
3.3 ft (1m)
Measurement location
Wall
Unit
TPKFYP012HM142A
TPKFYP015HM142A
TPKFYP018HM142A
34-39-43
36-41-45
Sound level dB (A)
Sound level at anechoic room: Low-Middle-High
Service Ref.
TPKFYP008HM142A
Approximate minimum
audible limit on
continuous noise
High speed
Low speed
3.3 ft
(1m)
OCTAVE BAND CENTER FREQUENCIES(Hz)
TPKFYP018HM142A
External static pressure: 0Pa
Power source: 208/230V, 60Hz
OCTAVE BAND PRESSURE LEVEL (dB) 0dB = 20
µPa
OCTAVE BAND CENTER FREQUENCIES(Hz)
Approximate minimum
audible limit on
continuous noise
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC60
NC50
NC40
NC30
NC20
High speed
Middle speed
Low speed
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC60
NC50
NC40
NC30
NC20
2-2. Electrical parts specications
2-3. Sound levels
2-4. NC curves
Service Ref.
Parts name Symbol TPKFYP008HM142A TPKFYP012HM142A TPKFYP015HM142A TPKFYP018HM142A
Room temperature
thermistor TH21 Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Liquid pipe thermistor TH22 Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Gas pipe thermistor TH23
TH24 Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Fuse (Indoor
controller board) FUSE 250V 3.15A
Fan motor MF 8-pole OUTPUT 28W
RCOJ30-CK
Vane motor
(with limits switch) MV MSFBC20 DC12V
Linear expansion
valve LEV DC12V Stepping motor drive
Port ø3.2 (0~2000pulse)
Power supply
terminal block TB2 (L1, L2, GR) 250V 20A
Transmission
terminal block TB5 (M1, M2, S) 250V 20A
MA-remote controller
terminal block TB15 (1, 2) 250V 10A

12 13
OCHT515
OUTLINES AND DIMENSIONS
3
1/2F ( [ 12.7)
1/4F (
[ 6.35)
Refrig-
erart
Piping
Drain hose
Gas pipe
Liquid pipe
[2-1/2~[3-1/8
([65~[80)
[2-1/2~[3-1/8
([65~[80)
Through hole
Sleeve
(purchased locally)
Center measurement hole [3/32( [ 2.5)
5/32(3.8)
2-1/4(58)
0
Wall hole for
left rear piping
Knockout hole for
rear piping
2-3/4×12-3/16(70×310)
Wall hole for
right rear piping
77-
[ 3/16( [ 5.1)
Tapping
screw hole
4-[5/16([9) Bolt hole Mount board
Indoor unit outline
0
5/8(16)
9-15/16(253.5)
9-1/8(232.5)
1-1/16(28.5)
1-9/16(41)
3-1/16(78.5)
4-1/16(103.5)
4-9/16(116)
6-1/2(166)
7(178.5)
8(203.5)
3-9/16(91)
13/16(21.8)
9-1/16(231.5)
10-3/4(273.2)
0
1-1/4(32.7)
2-9/16(66)
2-1/16(53.5)
5(128.5)
6(153.5)
3/4(20)
9/16(15)
14-5/8(372.3) 14(356.3) 12-7/8(237.5) 11-7/16(291.5) 10-3/8(265) 9-5/16(238) 8-13/16(225) 7-13/16(200)
4-7/8(125)
2-3/4(70)
9/16(15)
14-5/8(372.3) 14(356.3) 12-7/8(327.5) 10-3/8(265) 11-7/16(291.5) 7-13/16(200) 8-13/16(225) 4-7/8(125) 2-3/4(70) 0
17-5/8(449)
7-9/16(193.5)
7-1/16(180.3)
6-9/16(167)
5-1/2(140)
4-1/2(115)
6-13/16(174)
8-3/8(213)
9-5/16(238)
10-15/16(278.3)
15-1/2(394)
11-1/16(281)
17-5/8(449)
0
Emergency operation switch
(cooling/heating)
Terminal block for
MA-remote controller
Terminal block for transmission
Front side(Grille open)
Terminal block for power supply
17-15/16(457)Gas pipe
21-3/16(539)Liquid pipe
6-5/8(169)
6-3/16(158)
15-3/4(400)Drain hose 7-3/16(184)
Required space(Indoor unit)
Air inlet
Air inlet
Air outlet
Min.1-31/32(50)
Min.9-13/16(250)
Min.5-7/8(150)
Min.8-5/8
(220)
Min.1-31/32(50)
Min.1/4(7)
Knockout hole for piping
D
2-3/16(56)
2-11/16(69)
3/16(6)
1-11/16(43)
C
2-3/16(56)7/16(12.5)
1-11/16(43)
B
1-3/4(46)
2-5/16(60)
2-5/16(59)
1-11/16(43)
A
1-11/16(43)
1-3/4(46)
2-3/16(56)
3/16(6)
A
Knockout hole
for right piping
Right side
Mount board
3/16(5)9-3/4(249)
Top side
15-3/16(387)
7-1/2(192)
7-3/4(197)
23-9/16(599)
CB
Operation lamp DEFROST/STAND BY lamp
Receiver
Louver(manual)
Vane(auto)
Knockout hole
for lower piping
Knockout hole
for lower piping
Under side
5/16(8)
24-1/16(612)
D
Knockout hole
for left piping
Left side
Front side
6-1/16(155)
2-1/8
(55)
27-1/16(688)
11-9/16(295)
35-5/16(898)
[ 5/8 ( [ 16) I.D
TPKFYP008HM142A
TPKFYP012HM142A
TPKFYP015HM142A
TPKFYP018HM142A
Unit: inch (mm)

13
OCHT515
WIRING DIAGRAM4
TPKFYP008HM142A
TPKFYP012HM142A
TPKFYP015HM142A
TPKFYP018HM142A

14 15
OCHT515
5REFRIGERANT SYSTEM DIAGRAM
Strainer (#50mesh)
Strainer (#100mesh)
Strainer1 (#50mesh)
Strainer2 (#100mesh)
Heat exchanger
Room temparature thermistor TH21
Gas pipe thermistor TH23
Liquid pipe thermistor TH22
Linear expansion valve
Gas pipe
Liquid pipe
Flare connection
Gas pipe
Liquid pipe
TPKFYP008/012/015/018HM142A
ø1/2 (12.7)
ø1/4 (6.35)
Item
Service Ref.
Unit: inch (mm)
Gas pipe thermistor TH24
Refrigerant flow in cooling
Refrigerant flow in heating
TPKFYP008HM142A
TPKFYP012HM142A
TPKFYP015HM142A
TPKFYP018HM142A

15
OCHT515
6MICROPROCESSOR CONTROL
INDOOR UNIT CONTROL
6-1. COOL OPERATION
Control modes Control details
1-1. Thermostat function (Function to prevent restarting for 3 minutes)
• Room temperature Set temperature + 2°F
···Thermo ON
• Room temperature Set temperature ···Thermo OFF
1-2. Anti-freeze control
Condition to detect: When the liquid pipe temp. (TH22) is 32°F or less in 16
minutes from compressors start up, anti-freeze control
starts and the thermo OFF.
Condition to release: The timer which prevents reactivating is set for 3 minutes,
and anti-freeze control is cancelled when any one of the
following conditions is satisfied.
Liquid pipe temp. (TH22) turns 50°F or above.
The condition of the thermo OFF has become complete
by thermostat, etc.
The operation has changed to a mode other than COOL.
The operation stopped.
By the remote controller setting (switch of 3 speeds+Auto)
When [Auto] is set, fan speed is changed depending on the value of:
Room temperature - Set temperature
2. Fan
1. Temperature
adjustment function
Remarks
Type Fan speed notch
[Low], [Mid], [High], [Auto]
3 speeds + Auto type
→
(1)The initial vane setting for COOL mode will be the horizontal position.
(2)Vane position:
Horizontal →Downward A →Downward B →Downward C→Downward D→Swing→Auto
(3)Restriction of the downward vane setting
When setting the downward vane A, B, C or D in [Mid], [Low] or [Auto] of the fan
speed notch, the vane changes to horizontal position after 1 hour have passed.
3. Vane
(up/down vane
position change)
· "ONLY 1 Hr"
appears on the
wired remote
controller.
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display COOL.
3 Press the TEMP. button to set the set temperature.
NOTE: The set temperature changes 1°F when the or button
is pressed one time. Cooling 67 to 87°F
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display COOL.
3 Press [F2] [F3] button to set the set temperature.
NOTE: The settable temperature range varies with the model of
outdoor units and remote controller.
MENU ON
OFF
RETURN SELECT
HOLD
.

16 17
OCHT515
Control modes Control details
1-1. Thermostat function (Function to prevent restarting for 3 minutes)
Setting the Dry thermo by the thermostat signal and the room temperature (TH21).
Dry thermo ON Room temperature Set temperature + 2°F
Dry thermo OFF Room temperature Set temperature
1-2. Freeze prevention control
No control function
Indoor fan operation controlled depending on the compressor conditions.
1. Temperature
adjustment function
Room
temperature
3 min passed since starting operation
Thermostat signal
Room temperature (T1)
Dry thermo
ON
time (min)
Dry thermo
OFF
time (min)
Less than 64°F
Over 64°F
ON
OFF
T1 83°F
83°F > T1 79°F
79°F > T1 75°F
75°F > T1
Unconditional
9 3
73
53
3 3
10
3
Dry thermo OFF
2. Fan
Note: Fan speed change is not allowed during DRY operation.
Dry thermo Fan speed notch
Excluding the following
Room temp. < 64°F
ON
OFF
[Low]
[Low]
Stop
3. Vane
(up/down vane
position change)
Settings are the same in DRY operation as they are in COOL operation.

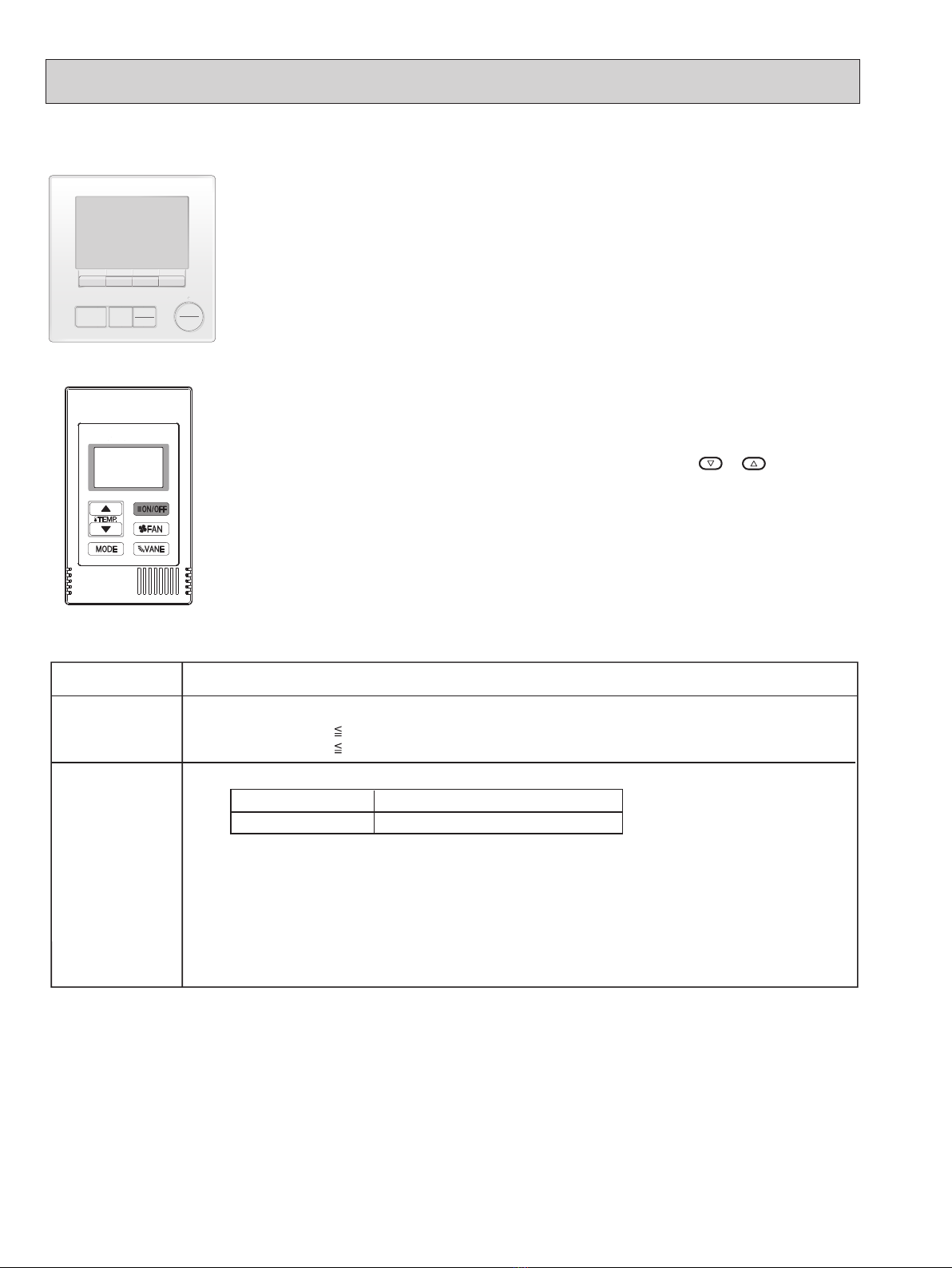

6-2. DRY OPERATION
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display DRY.
3 Press the TEMP. button to set the set temperature.
NOTE: The set temperature changes 1°F when the or
button is pressed one time. Dry 67 to 87°F
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display DRY.
3 Press [F2] [F3] button to set the set temperature.
MENU ON
OFF
RETURN SELECT
HOLD
.

17
OCHT515
Control modes Control details
Set by remote controller.
When [Auto] is set, fan speed becomes [Low].
Remarks
1. Fan
Type Fan speed notch
3 speeds + Auto type [Low], [Mid], [High], [Auto]
2. Vane
(up/down vane
position change)
Same as the control performed during the COOL operation, but with no restriction
on the vane's downward blow setting
· Settings are the
same in DRY
operation as
they are in
COOL operation.
6-3. FAN OPERATION
MENU ON
OFF
RETURN SELECT
HOLD
.
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display FAN.
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display FAN.

18 19
OCHT515
Control modes Control details
1. Temperature
adjustment function
2. Fan
To be continued on the next page.
By the remote controller setting (switch of 3 speeds+Auto)
When [Auto] is set, fan speed is changed depending on the value of:
Set temperature - Room temperature
Give priority to under-mentioned controlled mode
2-1. Hot adjust mode
2-2. Residual heat exclusion mode
2-3. Thermo OFF mode (When the compressor off by the thermostat)
2-4. Cool air prevention mode (Defrosting mode)
Type Fan speed notch
[Low], [Mid], [High], [Auto]
3 speeds + Auto type
1-1. Thermostat function (Function to prevent restarting for 3 minutes)
•
Room temperature Set temperature -2°F ···Thermo ON
•
Room temperature Set temperature ···Thermo OFF

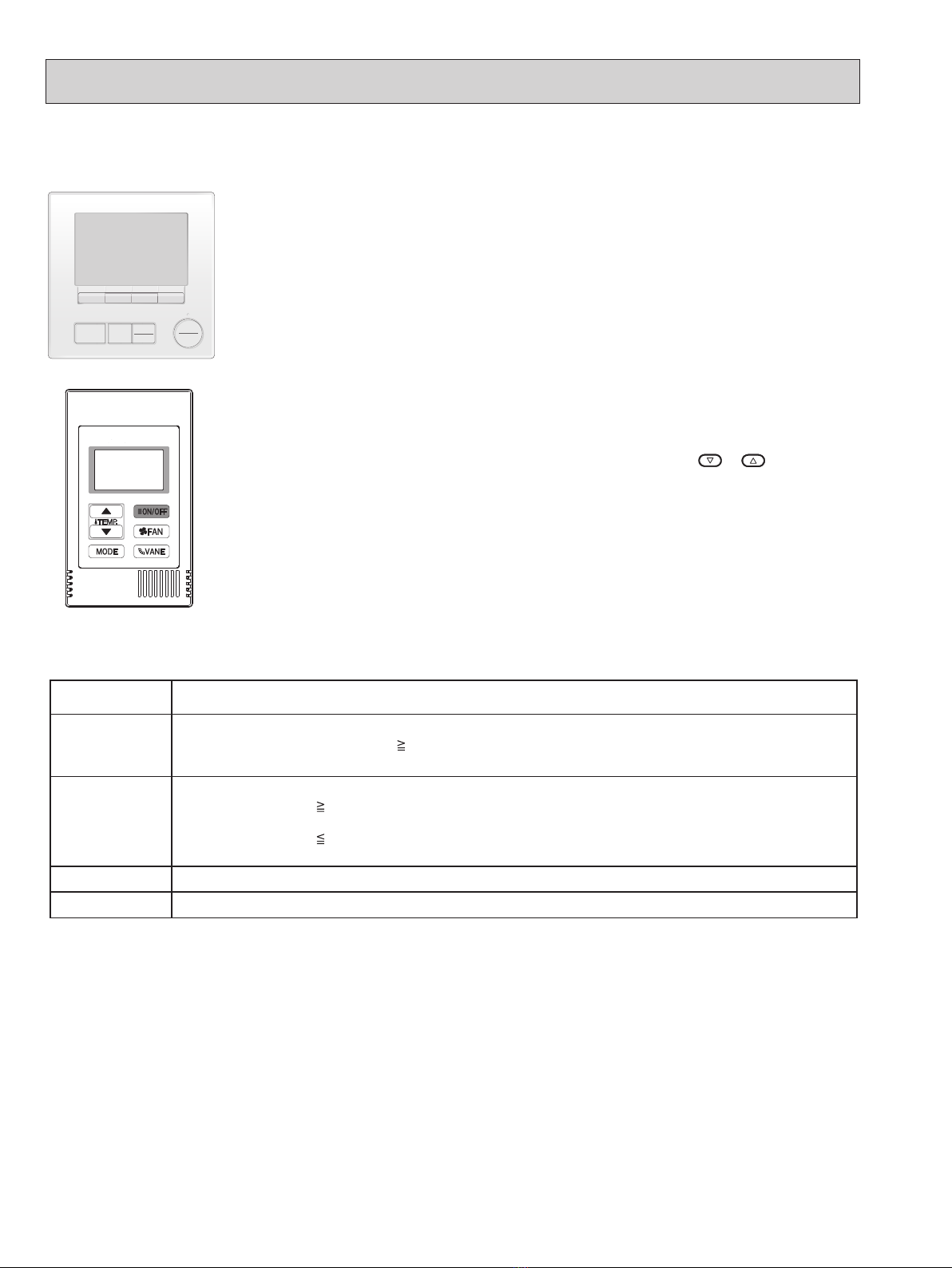

6-4. HEAT OPERATION
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display HEAT.
3 Press the TEMP. button to set the set temperature.
NOTE: The set temperature changes 1°F when the or
button is pressed one time. Heating 63 to 83°F
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display HEAT.
3 Press [F2] [F3] button to set the set temperature.
NOTE: The settable temperature range varies with the model of
outdoor units and remote controller.
MENU ON
OFF
RETURN SELECT
HOLD
.

19
OCHT515
→
Control modes Control details
2. Fan
Remarks
2-3. Thermo OFF mode
When the thermostat function changes to OFF, the indoor fan operates in
[Extra low].
2-4. Heat defrosting mode
The indoor fan stops.
(1) Initial setting: OFF → HEAT···[last setting]
When the last setting is [Swing] ··· [Downward D]
When changing the mode from exception of HEAT to HEAT operation
···[Downward D]
(2) Vane position:
Horizontal →Downward A →Downward B →Downward C→Downward D→Swing→Auto
(3) Restriction of vane position
The vane is horizontally fixed for the following modes.
(The control by the remote controller is temporally invalidated and control by
the unit.)
•Thermo OFF
•Hot adjust [Extra low] mode
•Heat defrost mode
3. Vane control
(Up/down vane
position change)
From the preceding page.
2-1. Hot adjust mode
The fan controller becomes the hot adjust mode for the following conditions.
When starting HEAT operation
When the thermostat function changes from OFF to ON
When HEAT defrosting operation is released
A: Hot adjust mode starts.
B: 5 minutes have passed since the condition A or the indoor liquid pipe
temperature reached 95°F or more.
C: 2 minutes have passed since the condition B. (Terminating the hot adjust mode)
ACB
[Extra Low]
[Low]
Set fan speed by the remote controller
Hot adjust mode *1
2-2. Residual heat exclusion mode
When the condition changes the auxiliary heater ON to OFF (thermostat or
operation stop, etc), the indoor fan operates in [Low] mode for 1 minute.
· This control is
same for the
model without
auxiliary heater.
*1
"STAND BY"
will be displayed
during the hot
adjust mode.

2120 21
OCHT515
Control modes Control details
HEAT mode for room temperature < Set temperature
COOL mode for room temperature Set temperature
(1) HEAT mode → COOL mode
Room temperature Set temperature + 3°F and 3 min has passed.
(2) COOL mode → HEAT mode
Room temperature Set temperature - 3°F and 3 min has passed.
1. Initial value of
operation mode
2. Mode change
Operates as it would in COOL operation.
3. COOL mode
Operates as it would in HEAT operation.
4. HEAT mode
6-5. AUTO OPERATION [AUTOMATIC COOL/HEAT CHANGE OVER OPERATION]
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display AUTO.
3 Press the TEMP. button to set the set temperature.
NOTE: The set temperature changes 1°F when the or
button is pressed one time. Automatic 67 to 83°F
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display AUTO.
3 Press [F2] [F3] button to set the set temperature.
NOTE: The settable temperature range varies with the model
of outdoor units and remote controller.
MENU ON
OFF
RETURN SELECT
HOLD
.
