MITSUBISHI ELECTRIC
E1041 and E1043
Installation manual
MA00818C 2008-07 English

Foreword
Mitsubishi Electric, MA00818C
Installation manual for the E1000 series operator panels
Foreword
The E1000 operator panel is developed to satisfy the demands of human-machine
communication. Built-in functions such as displaying and controlling text, dynamic
indication, time channels, alarm and recipe handling are included.
The operator panel work, for the most part, in an object-oriented way, making it easy
to understand and use. The configuration operation of the panel is made in a person-
al computer, using the configuration tool E-Designer. The project is then transferred
and stored in the operator panel.
The operator panel can be connected to many types of automation equipment, such
as PLCs, servos or drives. In this manual the expression “the controller“ is used as a
general term for the connected equipment.
This manual explains how to install the operator panel. Please refer to the reference
manual for further information.
© Mitsubishi Electric, MA00818C, 2008-07
The information in this document is subject to change without notice and is provided as available at the time
of printing. The manufacturer reserves the right to change any information without updating this publication.
The manufacturer assumes no responsibility for any errors that may appear in this document.
Read the entire installation manual prior to installing and using this equipment.
Only qualified personnel may install, operate or repair this equipment. The manufacturer is not responsible
for modified, altered or renovated equipment.
Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use
the equipment properly in their specific applications.
Persons responsible for the application and the equipment must themselves ensure that each application is in
compliance with all relevant requirements, standards and legislation in respect to configuration and safety.
Only parts and accessories manufactured according to specifications set by The manufacturer may be used.
THE MANUFACTURER SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
INSTALLATION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT,
CONTRACT, OR OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR,
REPLACEMENT, OR REFUND OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICABLE
REMEDY SHALL BE AT THE SOLE DISCRETION OF THE MANUFACTURER.

Table of Contents
Mitsubishi Electric, MA00818C
Table of Contents
1 Safety Precautions................................................................................. 5
1.1 UL and cUL Installation ................................................................... 5
1.2 General ............................................................................................. 6
1.3 During Installation............................................................................ 6
1.4 During Use ....................................................................................... 7
1.5 Service and Maintenance................................................................... 7
1.6 Dismantling and Scrapping............................................................... 7
2 Installation ........................................................................................... 9
2.1 Space Requirements .......................................................................... 9
2.2 Installation Process............................................................................ 9

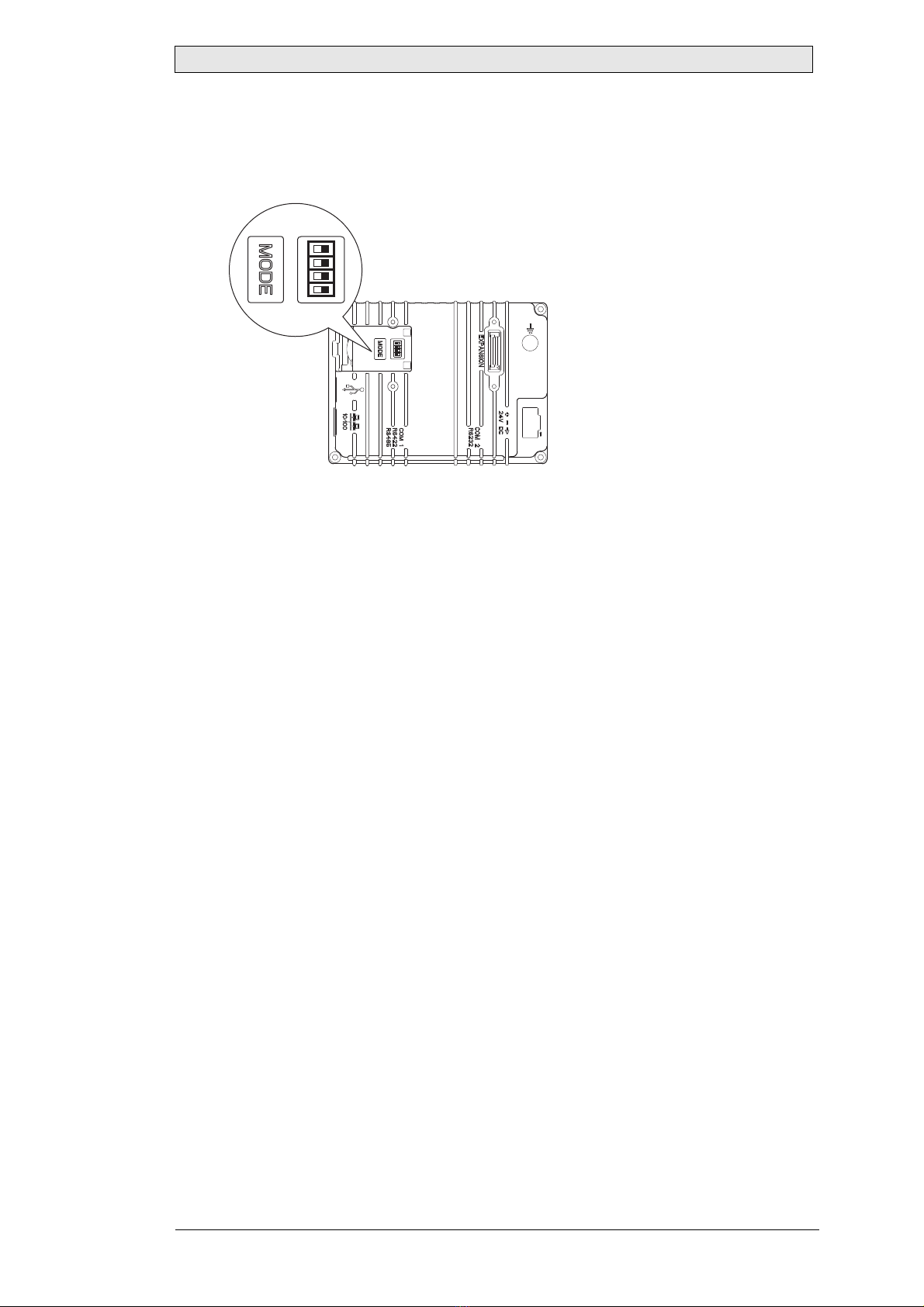

2.2.1 Mode Switches ................................................................................................ 11
2.2.2 Connections to the Controller......................................................................... 11
2.2.3 Other Connections and Peripherals ................................................................. 11
3 Technical Data ................................................................................... 13
4 Chemical Resistance ........................................................................... 15
4.1 Metal Casing................................................................................... 15
4.2 Touch Screen and Overlay.............................................................. 15
4.2.1 Autotex F157/F207 ......................................................................................... 15
4.2.2 Touch Screen Surface ...................................................................................... 16
4.2.3 Autoflex EB ..................................................................................................... 16
5 Operator Panel Drawings ................................................................... 17

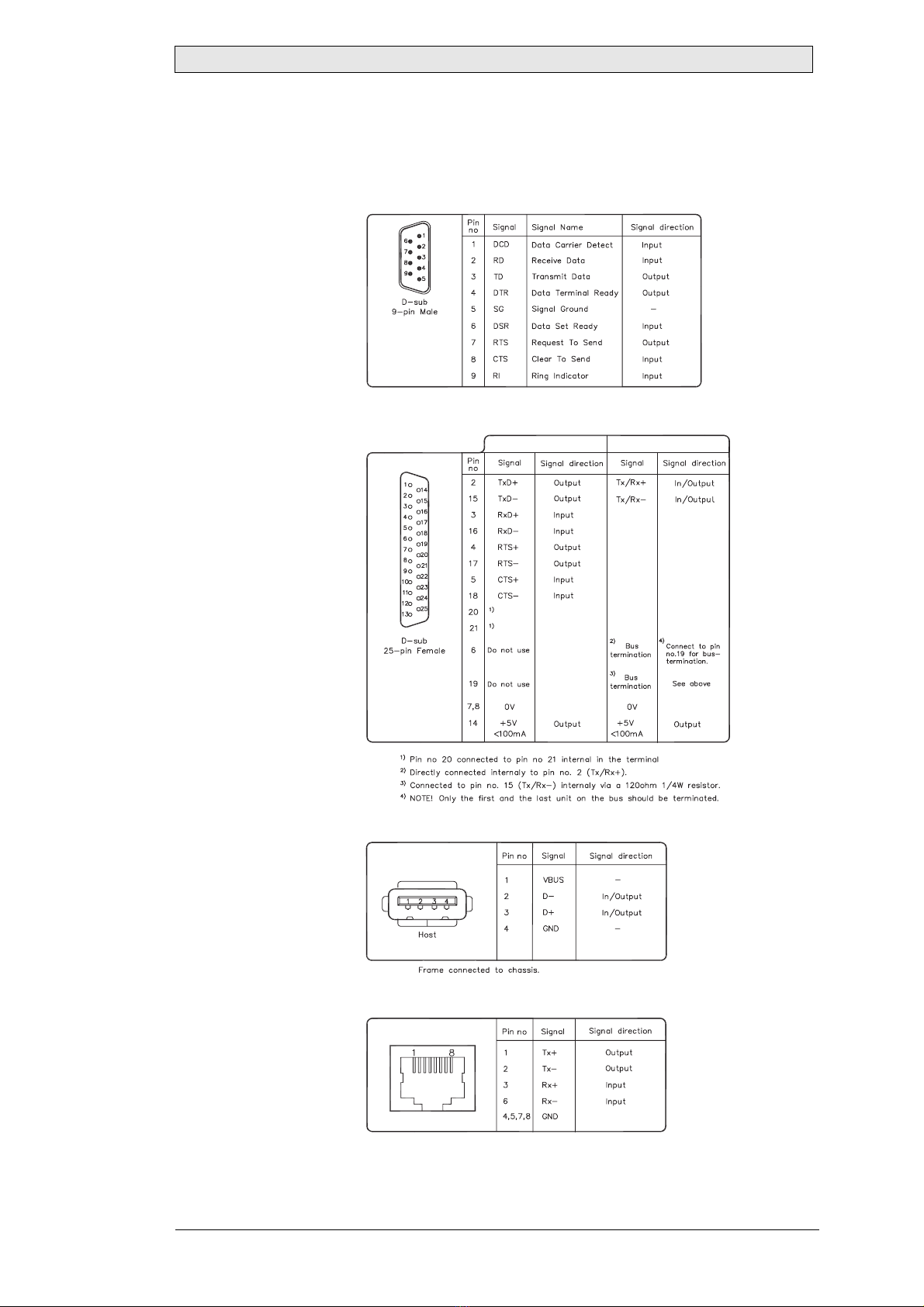

5.1 Communication Ports..................................................................... 17

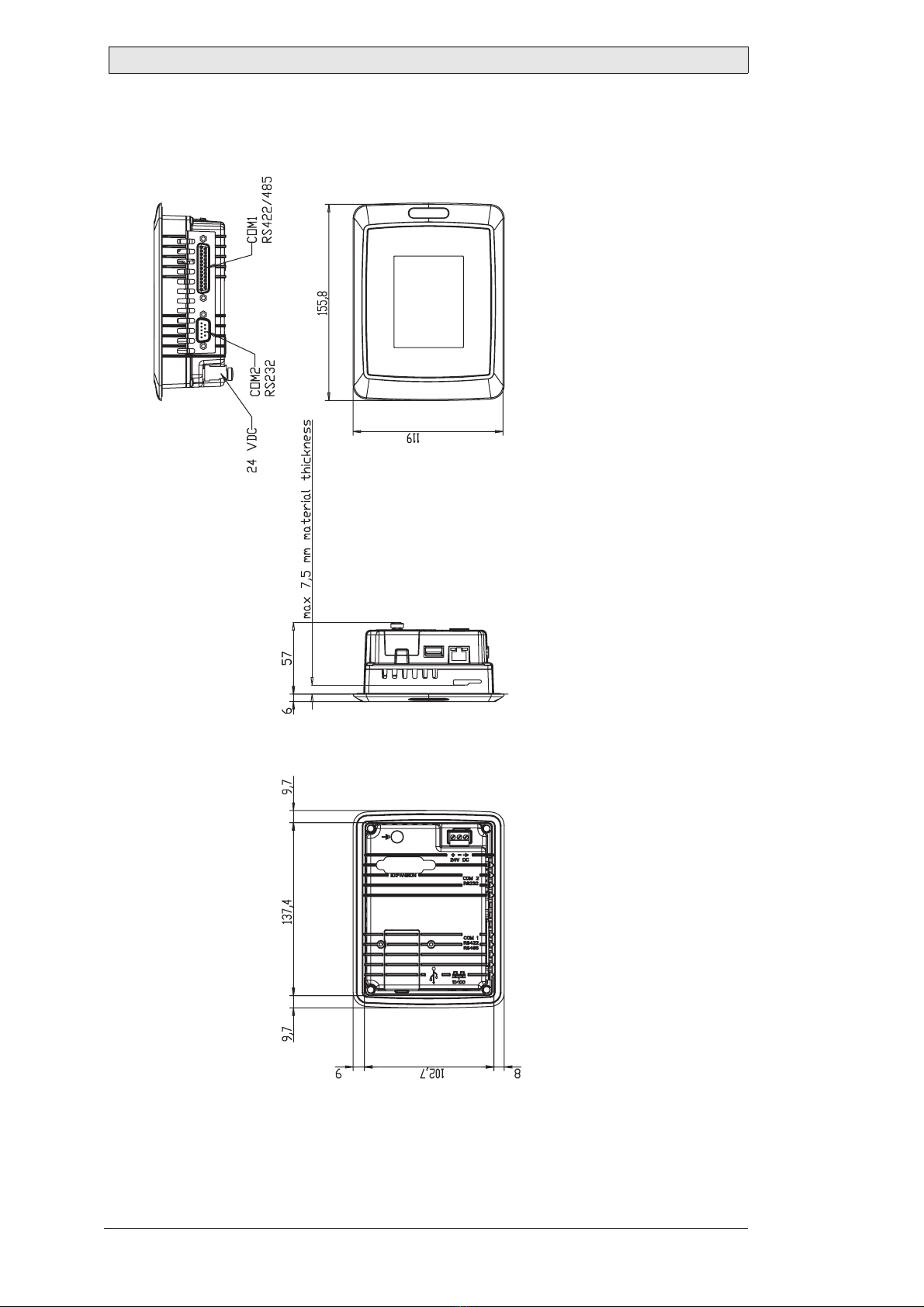

5.2 E1041/E1043 Outline .................................................................... 18
6 Additional Installation Tips................................................................ 19
6.1 Grounding the Operator Panel ....................................................... 19
6.2 Ethernet Connection in the Panel ................................................... 20
6.3 To Achieve Better EMC Protection ................................................ 21
6.4 Ambient Temperature..................................................................... 22
6.5 Safety .............................................................................................. 23
6.7 Cable and Bus Termination RS485................................................. 25

Table of Contents
Mitsubishi Electric, MA00818C

Safety Precautions
Mitsubishi Electric, MA00818C 5
1 Safety Precautions
Both the installer and the owner and/or operator of the operator panel must read and
understand this installation manual.
1.1 UL and cUL Installation
– This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D
OR non-hazardous locations only. [Combinations of equipment in your system
are subject to investigation by the local Authority Having Jurisdiction at the time
of installation.]
– Maximum ambient temperature 40 °C when mounted horizontal or 50 °C when
mounted vertical.
– WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless
power has been removed or the area is known to be non-hazardous.
– For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – AVANT DE
DECONNECTER L’EQUIPEMENT, COUPER LE COURANT OU
S’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON DANGEREUX.
– WARNING – EXPLOSION HAZARD - Substitution of components may
impair suitability for Class I, Division 2.
– For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – LA
SUBSTITUTION DE COMPOSANTS PEUT RENDRE CE MATERIEL
INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I,
DIVISION 2.
– WARNING – EXPLOSION HAZARD – only UL and cUL approved expansion
units are allowed to be connected to the port designated “EXPANSION”. At the
moment there are no such units evaluated or allowed.
– WARNING – EXPLOSION HAZARD - Do not replace expansion unit unless
power has been switched off or the area is known to be non-hazardous.
– This product contains battery, this must only be changed in an area known to be
non-hazardous. Permitted types are shown in the section Technical Data.
– For use on a flat surface of a type 4X enclosure indoor use only.
– To make wiring connections to the power supply connector, use an AWG 28-12
cable and a tightening torque of min. 0.5 Nm.

Safety Precautions
6Mitsubishi Electric, MA00818C
1.2 General
– Read the safety precautions carefully.
– Check the delivery for transportation damage. If damage is found, notify the
supplier as soon as possible.
– Do not use the operator panel in an environment with high explosive hazards.
– The supplier is not responsible for modified, altered or reconstructed equipment.
– Use only parts and accessories manufactured according to specifications of the
supplier.
– Read the installation and operating instructions carefully before installing, using
or repairing the operator panel.
– Never allow fluids, metal filings or wiring debris to enter any openings in the
operator panel. This may cause fire or electrical shock.
– Only qualified personnel may operate the operator panel.
– Storing the operator panel where the temperature is lower/higher than
recommended in this manual can cause the LCD display liquid to congeal/become
isotopic.
– The LCD display liquid contains a powerful irritant. In case of skin contact, wash
immediately with plenty of water. In case of eye contact, hold the eye open, flush
with plenty of water and get medical attention.
– The figures in this manual serves an illustrative purpose. Because of the many
variables associated with any particular installation, the supplier cannot assume
responsibility for actual use based on the figures.
– The supplier neither guarantees that the operator panel is suitable for your
particular application, nor assumes responsibility for your product design,
installation or operation.
1.3 During Installation
– The operator panel is designed for stationary installation on a plane surface, where
the following conditions are fulfilled:
• no high explosive risks
• no strong magnetic fields
• no direct sunlight
• no large, sudden temperature changes
– Install the product according to the accompanying installation instructions.
– Ground the product according to the accompanying installation instructions.
– Only qualified personnel may install the operator panel.
– Separate the high voltage, signal and supply cables.
– Make sure that the voltage and polarity of the power source is correct before
connecting the product to the power outlet.
– Peripheral equipment must be appropriate for the application and location.

Safety Precautions
Mitsubishi Electric, MA00818C 7
1.4 During Use
– Keep the operator panel clean.
– Emergency stop and other safety functions may not be controlled from the
operator panel.
– Do not use too much force or sharp objects when touching the keys, touch screen
etc.
1.5 Service and Maintenance
– Only qualified personnel should carry out repairs.
– The agreed warranty applies.
– Before carrying out any cleaning or maintenance operations, disconnect the
equipment from the electrical supply.
– Clean the display and surrounding front cover with a soft cloth and mild
detergent.
– Replacing the battery incorrectly may result in explosion. Only use batteries
recommended by the supplier.
1.6 Dismantling and Scrapping
– The operator panel or parts thereof shall be recycled according to local regulations.
– The following components contain substances that might be hazardous to health
and the environment: lithium battery, electrolytic capacitor and display.

Safety Precautions
8Mitsubishi Electric, MA00818C

Installation
Mitsubishi Electric, MA00818C 9
2 Installation

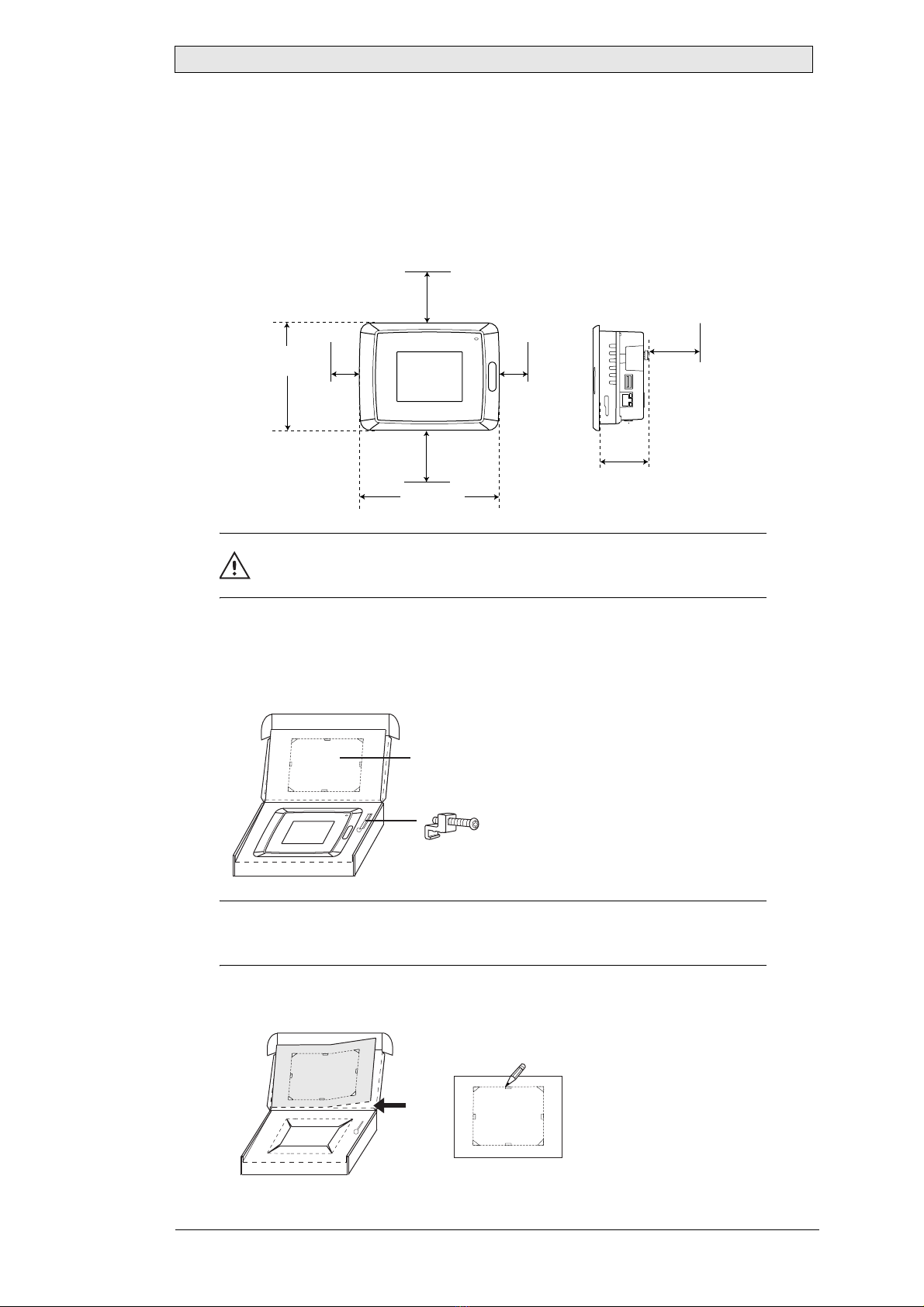

2.1 Space Requirements
– Installation plate thickness: 1.5 - 7.2 mm (0.06 - 0.28 inch)
– Space requirements when installing the operator panel:
Caution
The openings on the enclosure are for air convection. Do not cover these
openings.
2.2 Installation Process
1. Unpack and check the delivery. If damage is found, notify the supplier.
Note:
Place the operator panel on a stable surface during installation.
Dropping it or letting it fall may cause damage.
2. Place the panel cut out where the operator panel is to be situated, draw along the
outer sides of the holes and cut according to the markings.
57 mm
119 mm
155.8 mm
100 mm
(4.0 inch)
100 mm
(4.0 inch)
50 mm
(2.0 inch)
50 mm
(2.0 inch)
100 mm
(4.0 inch)
(2.24 inch)
(6.13 inch)
(4.69 inch)
x4
Panel cut out 139 x 105 mm
(5.47 x 4.13 inch)

Installation
10 Mitsubishi Electric, MA00818C

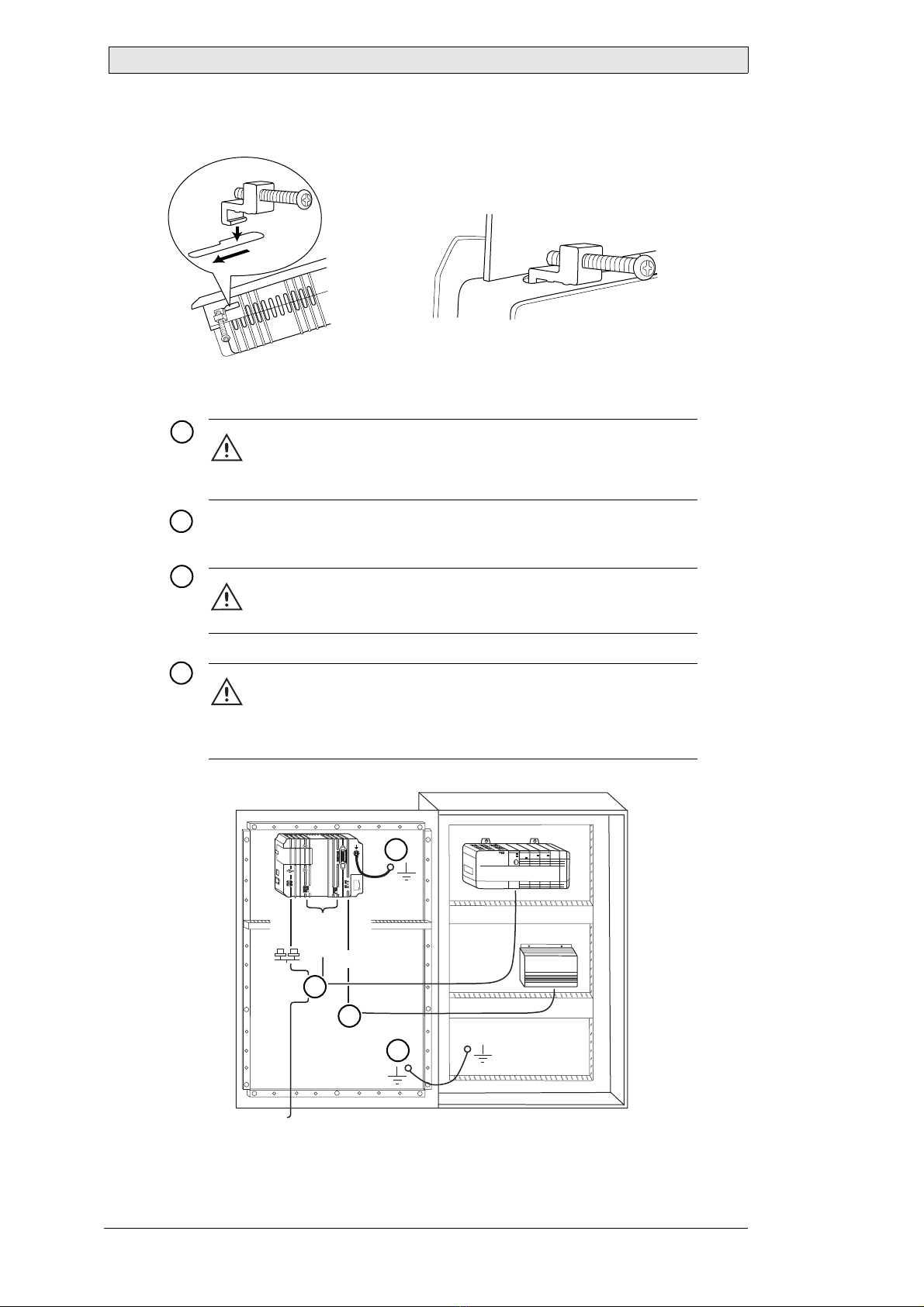

3. Secure the operator panel in position, using all the fastening holes and the
provided brackets and screws:
4. Connect the cables in the specified order.
Use an M5 screw and a grounding conductor (as short as possible)
with a cross-section of minimum 2.5 mm2.
5. Carefully remove the laminated film over the operator panel display, to avoid
static electricity that could damage the panel.
x 4
0.5 - 1.0 Nm
B
C
D
ACaution
Ensure that the operator panel and the controller system have the
same electrical grounding (reference voltage level), otherwise errors
in communication may occur.
Caution
- Use only shielded communication cables.
- Separate high voltage cables from signal and supply cables.
Caution
- The operator panel must be brought to ambient temperature
before it is started up. If condensation forms, ensure that the
operator panel is dry before connecting it to the power outlet.
- Ensure that the voltage and polarity of the power source is correct.
24V DC
RS422/
RS485
RS232
24V DC
A
D
Controller
Power
B
Ethernet
C

Installation
Mitsubishi Electric, MA00818C 11
2.2.1 Mode Switches
All mode switches must be in OFF position during operator panel use.
The mode switches should not be touched unless by qualified personell.
2.2.2 Connections to the Controller
For information about the cables to be used when connecting the operator panel to
the controller, please refer to the help file for the driver in question.
2.2.3 Other Connections and Peripherals
Cables, peripheral equipment and accessories must be suitable for the application
and its environment. For further details or recommendations, please refer to the
supplier.
1234
ON DIP
1234
ON DIP

Installation
12 Mitsubishi Electric, MA00818C

Technical Data
Mitsubishi Electric, MA00818C 13
3TechnicalData
Parameter E1041 E1043
Front panel,
W x H x D 155.8 x 119 x 6 mm
Mounting
depth 57 mm (157 mm including clearance)
Front panel
seal IP 66
Rear panel
seal IP 20
Touch
screen
material
Touch screen: Polyester on glass, 1 million finger touch operations.
Overlay: Autotex F157/F207 *.
Reverse side
material Powder-coated aluminum
Weight 0.6 kg
Serial port
RS422/
RS485
25-pin D-sub contact, chassis-mounted female with standard locking screws
4-40 UNC.
Serial port
RS232C 9-pin D-sub contact, male with standard locking screws 4-40 UNC.
Ethernet Shielded RJ 45
USB Host type A (USB 1.1), max output current 500 mA
Flash
memory for
application
12 MB (incl. fonts)
Real time
clock ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C
Temperature coefficient: 0.004 ppm/°C2
Real time
clock
battery
CR2450 (UL and cUL: Sanyo or Panasonic)
Minimum lifetime: 3 years
Power
consumption
at rated
voltage
Normal: 0.15 A
Maximum: 0.35 A
Display TFT-LCD.
320 x 240 pixels, 64K colors.
LED backlight lifetime at the
ambient temperature of
+25 °C: >10,000 h.
TFT-LCD.
320 x 240 pixels, 16 greyscales.
LED backlight lifetime at the
ambient temperature of
+25 °C: >10,000 h.
Active area
of display,
W x H
70.1 x 52.6 mm
Fuse Internal DC fuse, 2.0 AT, 5 x 20 mm
Power
supply +24 V DC (20 - 30 V DC). Power supply connector. CE: The power supply must conform with the requirements according to IEC
60950 and IEC 61558-2-4.
UL and cUL: The power supply must conform with the requirements for class
II power supplies.
Ambient
temperature Vertical installation: 0 ° to +50 °C Horizontal installation: 0 ° to +40 °C
Storage
temperature -20 °to +70 °C

Technical Data
14 Mitsubishi Electric, MA00818C
Relative
humidity 5 - 85 % non-condensed
CE approvals Noise tested according to EN61000-6-3 emission and EN61000-6-2 immunity.
UL, cUL
approvals
(when
product or
packing is
marked)
UL 1604 Class I, Div 2 / UL 508 / UL 50 4x indoor use only
DNV Yes
NEMA 4x indoor use only
* See section Chemical Resistance for more information.
Parameter E1041 E1043

Chemical Resistance
Mitsubishi Electric, MA00818C 15
4 Chemical Resistance
4.1 Metal Casing
The frame and casing material is powder-coated aluminum. This powder paint
withstands exposure to the following chemicals without visible change:
The powder paint shows limited resitance to the following chemicals at room
temperature:
The powder paint shows little or no resistance to the following chemicals at room
temperature:
4.2 Touch Screen and Overlay
4.2.1 Autotex F157/F207
Autotex F157 or F207 covers the overlay surrounding the touch screen.
Solvent Resistance
Autotex F157/F207 withstands exposure of more than 24 hours duration under DIN
42 115 Part 2 to the following chemicals without visible change:
Acetic acid 10% Phosphoric acid 4%
Citric acid 10% Phosphoric acid 10%
Diesel Sea water
Distilled water Sodium chloride 2%
Edible oil Sodium chloride 20%
Fuel oil Sulphuric acid 20%
Hydrogen peroxide 3% Tap water
Butanol Nitric acid 3%
Hydrochloric acid 5% Nitric acid 10%
Isopropyl alcohol Phosphoric acid 43%
Na-hypochlorite 10% Turpentine
Note:
If exposure to any of the above chemicals is demanded, it is recommended to first test
the chemical on an “invisble” spot of the metal casing.
Acetic acid, conc. Methyl-ethyl ketone Toluene
Acetone Nitric acid 30% Trichlorethylene
Ammonia 5% Phenol Xylene
Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol
Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol
Acetonitrile Diesel Downey / Lenor1Phosphoric acid (<30%)
Ajax / Vim in solution Ethanol Potassium ferricyanide
Alkalicarbonate solution1Glycerine Potassium hydroxide (<30%)
Ammonia (<40%)1Glycol Pure Turpentine

Chemical Resistance
16 Mitsubishi Electric, MA00818C
Autotex withstands DIN 42 115 Part 2 exposure of up to 1 hour duration to glacial
acetic acid without visible change.
Autotex is not resistant to high pressure steam at over 100 °C or the following
chemicals:
Outdoor Use
In common with all polyester based films Autotex F157/F207 is not suitable for use
in conditions of long term exposure to direct sunlight.
4.2.2 Touch Screen Surface
The touch screen surface on the panel withstands exposure to the following solvents
without visible change:
4.2.3 Autoflex EB
It is recommended to use the Autoflex EB touch display protection film, that can be
ordered from the manufacturer.
Solvent Resistance
Autoflex EB withstands exposure to the same chemicals as Autotex F157 or F207
according to section Autotex F157/F207.
Outdoor Use
In common with all polyester based films Autoflex EB is not suitable for use in
conditions of long term exposure to direct sunlight.
Acetic acid (<50%) Gumption1SBP 60/951
Ariel powder in solution1Hydrochloric acid (<36%) Sulfuric acid (<10%)
Bleach1Linseed oil Tomato ketchup
Castor oil Methanol Trichloroacetic acid (<50%)
Caustic soda (<40%)1Nitric acid (<10%) White Spirit
Cutting oil Paraffin oil Windex1
Cyclohexanol Persil powder in solution1Wisk
Diacetone alcohol Petroleum spirit1-
1 Extremely faint glossing of the texture was noted.
Concentrated mineral acids Benzyl alcohol
Concentrated caustic solution Methylene chloride
Solvents Time
Acetone 10 minutes
Isopropanol 10 minutes
Toluene 5 hours

Operator Panel Drawings
Mitsubishi Electric, MA00818C 17
5OperatorPanelDrawings
5.1 Communication Ports
Drawing No. S-05005, Date 2004-10-27
RS-232
RS-422
RS-422/485 RS-485
Ethernet
USB

Operator Panel Drawings
18 Mitsubishi Electric, MA00818C
5.2 E1041/E1043 Outline
Drawing No. P-06593, Date 2005-10-05

Additional Installation Tips
Mitsubishi Electric, MA00818C 19
6 Additional Installation Tips
When experiencing communication problems in for example noisy environments or
when operating close to temperature limits, the following recommendations are to be
noticed.
6.1 Grounding the Operator Panel
1. The operator panel’s mounting clamps do not provide a secure grounding con-
nection between the panel and the device cabinet.
2. Connect a 2.5 mm2wire between the operator panel’s quick-connect plinth and
the panel chassis.
3. Connect a 6 or 4 mm2wire or grounding braid between the panel’s chassis and
the closest grounding point on the door.
4. Connect a strong but short grounding braid between the door and the device
cabinet.
5. Twist the cables onto the 24 V DC feed.
6. A ferrite core suppresses disturbances to the 24 V feed.
2 turns around the ferrite core provide 4 times the suppression of 1 turn.
3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Remember:
The grounding wires should be short and the conductor should have a large area.
A long, thin grounding wire has a very high impedance (resistance) at high frequencies
and will not guide disturbances to the ground.
Multi-wire conductors are better than single wire conductors with the same area.
A braided conductor wire with the same area is even better.
The best is a short, thick grounding braid.
1
2
3
4
5
6
Door
Operator panel
Ferrite core
Mounting plate in the cabinet
Power supply
24 V DC

Additional Installation Tips
20 Mitsubishi Electric, MA00818C

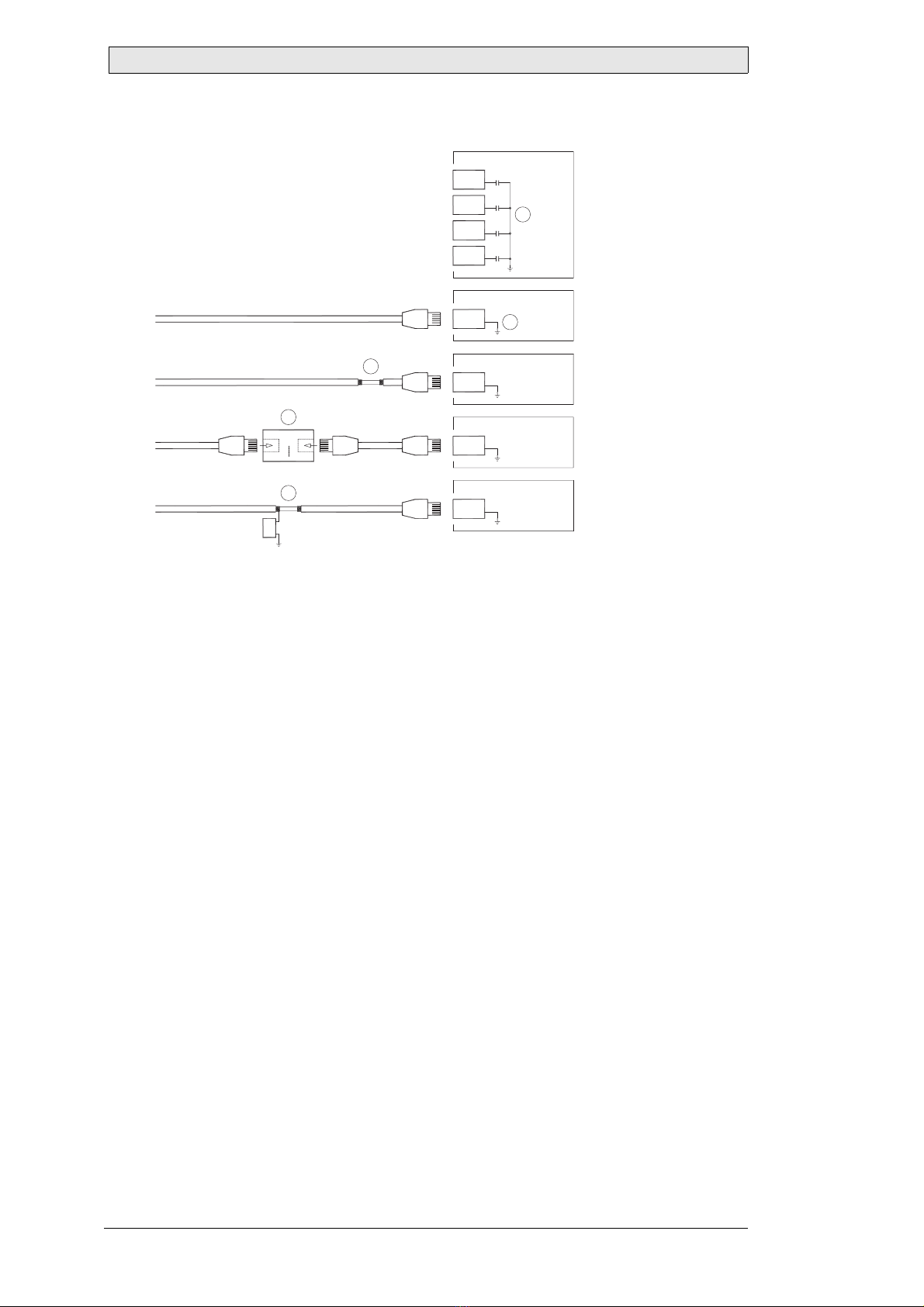

6.2 Ethernet Connection in the Panel
1. In some industrial units for Ethernet, the RJ45 contact’s shield is connected to
the chassis via a capacitor.
2. The operator panel’s Ethernet shield is directly connected to the chassis.
Check whether the other Ethernet unit has its shield directly grounded or grounded
via a capacitor.
In many cases, connecting the shielded Ethernet cabling to the chassis at both ends
is inappropriate. Hum or grounding loops can occur. Unshielded cabling may even
result in fewer communication errors.
A good solution may be to use a shielded Ethernet cable,but to connect the shield at
one end only.
3. One option is to break the shield.
4. A more elegant method is to expand the shielded Ethernet cabling with a piece
of unshielded Ethernet cable.
5. You can ground the shield via an external 0.1 uF/250 V plastic capacitor. This
will connect the HF transients to the ground.
1
2
3
4
5
5351
1-1
2-2
3-3
8-8
Industrial Ethernet
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
Operator panel
Operator panel
Operator panel
Operator panel
Shielded Short and
unshielded
0.1 uF
250 V
