Mitsubishi Electric GOT 900 User manual

GOT Series
Human Machine Interface
Operating Manual (Introductory)
GOT900
INDUSTRIAL AUTOMATION
MIT
SU
BI
S
HI ELE
C
TRI
C
MIT
SU
BI
S
HI ELE
C
TRI
C
Art.-Nr.: 136208
01 08 2000
SH-080116-A

A - 1 A - 1
•SAFETY PRECAUTIONS •
(Always read these instructions before using this equipment.)
Before using this product, please read this manual and the relevant manuals introduced in this manual
carefully and pay full attention to safety to handle the product correctly.
The instructions given in this manual are concerned with this product. For the safety instructions of the
programmable controller system, please read the CPU module user's manual.
In this manual, the safety instructions are ranked as "WARNING" and "CAUTION".
WARNING Indicates that incorrect handling may cause hazardous conditions,
resulting in death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous conditions,
resulting in medium or slight personal injury or physical damage.
Note that the !CAUTION level may lead to a serious consequence according to the circumstances.
Always follow the instructions of both levels because they are important to personal safety.
Please save this manual to make it accessible when required and always forward it to the end user.
[Design Precautions]
!WARNING
•Some failures of the GOT main unit, communication board or cable may keep the outputs on or
off.
An external monitoring circuit should be provided to check for output signals which may lead to a
serious accident.
Not doing so can cause an accident due to false output or malfunction.
•If a communication fault (including cable disconnection) occurs during monitoring on the GOT,
communication between the GOT and PLC CPU is suspended and the GOT becomes
inoperative.
For bus connection : The CPU becomes faulty and the GOT inoperative.
A system where the GOT is used should be configured to perform any significant operation to
the system by using the switches of a device other than the GOT on the assumption that a GOT
communication fault will occur.
Not doing so can cause an accident due to false output or malfunction.
!CAUTION
•Do not bundle the control and communication cables with main-circuit, power or other wiring.
Run the above cables separately from such wiring and keep them a minimum of 100mm apart.
Not doing so noise can cause a malfunction.

A - 2 A - 2
[Mounting Precautions]
!WARNING
•Before installing or removing the GOT main unit to or from an enclosure, always switch off the
GOT power externally in all phases.
Not doing so can cause a module failure or malfunction.
•Before loading or unloading the communication board to or from the GOT, always switch off the
GOT power externally in all phases.
Not doing so can cause a module failure or malfunction.
!CAUTION
•The GOT should be used in the environment given in the general specifications of the GOT
user's manual.
Not doing so can cause an electric shock, fire, malfunction or product damage or deterioration.
•When mounting the GOT main unit to an enclosure, tighten the mounting screws in the specified
torque range.
Undertightening can cause a drop, short circuit or malfunction.
Overtightening can cause a drop, short circuit or malfunction due to the damage of the screws or
module.
•When loading the communication board to the GOT main unit, fit it to the connection interface of
the GOT and tighten the mounting screws in the specified torque range.
Undertightening can cause a drop, failure or malfunction.
Overtightening can cause a drop, failure or malfunction due to the damage of the screws or
module.

A - 3 A - 3
[Wiring Precautions]
!WARNING
•Before starting wiring, always switch off the GOT power externally in all phases.
Not doing so may cause an electric shock, product damage or malfunction.
!CAUTION
•Please make sure to ground FG terminal, LG terminal, and protective ground terminal of the
GOT power supply unit by applying Class D Grounding (Class 3 Grounding Method) or higher
which is used exclusively for the GOT.
Not doing so may cause an electric shock or malfunction.
•Correctly wire the power supply module on the GOT after confirming the rated voltage and
terminal arrangement of the product.
Not doing so can cause a fire or failure.
•Tighten the terminal screws of the GOT power supply section in the specified torque range.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or
module.
•Exercise care to avoid foreign matter such as chips and wire offcuts entering the module.
Not doing so can cause a fire, failure or malfunction.
•Plug the bus connection cable by inserting it into the connector of the connected module until it
"clicks".
After plugging, check that it has been inserted snugly.
Not doing so can cause a malfunction due to a contact fault.
•Plug the communication cable into the connector of the connected module and tighten the
mounting and terminal screws in the specified torque range.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or
module.
[Test Operation Precautions]
!WARNING
•Before performing test operation (bit device on/off, word device's present value changing,
timer/counter's set value and present value changing, buffer memory's present value changing)
for a user-created monitor screen, read the manual carefully to fully understand how to operate
the equipment.
During test operation, never change the data of the devices which are used to perform
significant operation for the system.
False output or malfunction can cause an accident.

A - 4 A - 4
[Startup/Maintenance Precautions]
!WARNING
•When power is on, do not touch the terminals.
Doing so can cause an electric shock or malfunction.
•Before starting cleaning or terminal screw retightening, always switch off the power externally in
all phases.
Not switching the power off in all phases can cause a module failure or malfunction.
Undertightening can cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to the damage of the screws or
module.
!CAUTION
•Do not disassemble or modify the module.
Doing so can cause a failure, malfunction, injury or fire.
•Do not touch the conductive and electronic parts of the module directly.
Doing so can cause a module malfunction or failure.
•The cables connected to the module must be run in ducts or clamped.
Not doing so can cause the module or cable to be damaged due to the dangling, motion or
accidental pulling of the cables or can cause a malfunction due to a cable connection fault.
•When unplugging the cable connected to the module, do not hold and pull the cable portion.
Doing so can cause the module or cable to be damaged or can cause a malfunction due to a
cable connection fault.
[Disposal Precautions]
!CAUTION
•When disposing of the product, handle it as industrial waste.

A - 5 A - 5
REVISIONS The manual number is given on the bottom left of the back cover.
Print Date Manual Number Revision
Aug., 2000 SH (NA) 080116-A
Japanese Manual Version SH-080111-A
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent
licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property
rights which may occur as a result of using the contents noted in this manual.
2000 MITSUBISHI ELECTRIC CORPORATION

A - 6 A - 6
INTRODUCTION
Thank you for choosing the Mitsubishi Graphic Operation Terminal.
Before using the equipment, please read this manual carefully to use the equipment to its optimum.
CONTENTS
About manuals ...............................................................................................................................................A- 8
Abbreviations and generic terms in this manual ...........................................................................................A- 9
CHAPTER1 FUNDAMENTAL KNOWLEDGE 1- 1 to 1- 4
1.1 About GOT...............................................................................................................................................1- 1
1.2 About GOT Operations............................................................................................................................1- 2
1.3 Mouse Usage and Operations.................................................................................................................1- 3
1.4 System Configuration Used in the Manual..............................................................................................1- 4
1.5 Procedures for Use of GOT.....................................................................................................................1- 4
CHAPTER2 SETTING FIGURES AND OBJECTS 2- 1 to 2- 2
2.1 Drawing a Figure......................................................................................................................................2- 1
2.2 Editing a Figure or Object........................................................................................................................2- 2
CHAPTER3 CREATING SCREENS 3- 1 to 3-15
3.1 Creating a Screen like This......................................................................................................................3- 1
3.2 Common Setting before Drawing ............................................................................................................3- 2
3.2.1 Selecting GOT/PLC type...................................................................................................................3- 2
3.2.2 Setting screen switching device........................................................................................................3- 3
3.3 Creating the First Screen.........................................................................................................................3- 4
3.4 Setting Objects.........................................................................................................................................3- 5
3.4.1 Setting numerical display function....................................................................................................3- 5
3.4.2 Setting numerical input function........................................................................................................3- 7
3.4.3 Setting lamp display function............................................................................................................3- 8
3.4.4 Setting touch key function.................................................................................................................3-11
CHAPTER4 CREATING THE SECOND SCREEN 4- 1 to 4-14
4.1 Creating a Screen like This......................................................................................................................4- 1
4.2 Creating the Second Screen....................................................................................................................4- 2
4.3 Creating Comments.................................................................................................................................4- 3
4.4 Setting Objects.........................................................................................................................................4- 4
4.4.1 Setting touch key function for screen switching...............................................................................4- 4
4.4.2 Setting level display function.............................................................................................................4- 7
4.4.3 Setting panelmeter display function..................................................................................................4- 9
4.4.4 Setting alarm list display function .....................................................................................................4-11
4.5 Saving Created Screen Data...................................................................................................................4-13
4.6 Reading Saved Screen Data...................................................................................................................4-14

A - 7 A - 7
CHAPTER5 STARTING GOT FOR CHECKING 5- 1 to 5- 6
5.1 Connecting the Personal Computer and GOT........................................................................................5- 1
5.2 Installing the OS.......................................................................................................................................5- 1
5.3 Downloading Screen Data.......................................................................................................................5- 2
5.4 Connecting to PLC CPU..........................................................................................................................5- 3
5.5 Executing Monitoring ...............................................................................................................................5- 4
5.6 Upload......................................................................................................................................................5- 5
5.7 Sequence Program Used in the Manual.................................................................................................5- 6
INDEX Index- 1

A - 8 A - 8
About Manuals
The following manuals related to this product are available. Obtain the manuals as
required the according to this table.
•Related manual
Manual name Manual number (Model code)
GT Works Version5/GT Designer Version5 Operating Manual (Start up Manual)
Describes how to install GT Works Version5/GT Designer Version5 into a personal computer and
how to browse the online manuals.
(Found in the packing of the GT Works Version5/GT Designer Version5)
IB-0800143
(13JU06)
GT Works Version5/GT Designer Version5 Reference Manual
Deals with the system configuration of GT Works Version5/GT Designer Version5, the screen
makeup of the GT Designer, the general description of various monitoring functions, the procedure
for displaying the monitor screen on the GOT, and how to use the help function.(Available as option)
SH-080117
(13JF95)
GT Simulator Version5 Operating Manual
Explains the system configuration, screen makeup and using methods of GT Simulator.
(Available as option)
SH-080120
(13JU09)
GOT-A900 Series User’s Manual (GT Works Version5/GT Designer Version5
compatible Connection System Manual)
Gives the specifications, system configuration, setting method and connection diagram of each
connection form available for the GOT-A900 series. (Available as option)
SH-080119
(13JR20)
A985GOT/A975GOT/A970GOT/A960GOT User’s Manual
Explains the specifications, general system configuration, component devices, part names, option
unit loading methods, installation and wiring methods, maintenance and inspection methods, and
error codes of A985GOT/A975GOT/A970GOT/A960GOT unit. (Available as option)
SH-4005
(13JL70)
A950GOT/A951GOT/A953GOT/A956GOT User’s Manual
Explains the specifications, general system configuration, component devices, part names, option
unit loading methods, installation and wiring methods, maintenance and inspection methods, and
error codes of A950GOT/A951GOT/A953GOT/A956GOT unit. (Available as option)
SH-080018
(13JL92)
GOT-A900 Series Operating Manual (GT Works Version5/GT Designer Version5
compatible Extended •Option Functions Manual)
Provides the specifications of the utility, system monitoring, ladder monitoring, special function unit
monitoring, network monitoring functions and list editor functions available for the GOT-A900 series
and how to operate the dedicated monitor screen. (Available as option)
SH-080118
(13JU08)

A - 9 A - 9
Abbreviations and generic terms in this manual
Abbreviations and generic terms used in this manual are described as follows:
Abbreviations and generic terms Description
A985GOT Generic term of A985GOT-TBA, A985GOT-TBD and A985GOT-TBA-EU
A975GOT Generic term of A975GOT-TBA-B, A975GOT-TBD-B, A975GOT-TBA, A975GOT-TBD and
A975GOT-TBA-EU
A970GOT Generic term of A970GOT-TBA-B A970GOT-TBD-B, A970GOT-TBA, A970GOT-TBD,
A970GOT-SBA, A970GOT-SBD, A970GOT-LBA, A970GOT-LBD, A970GOT-TBA-EU and
A970GOT-SBA-EU
A97 GOT Generic term of A975GOT and A970GOT
A960GOT Generic term of A960GOT-EBA, A960GOT-EBD and A960GOT-EBA-EU
A956GOT Generic term of A956GOT-TBD, A956GOT-SBD, A956GOT-LBD, A956GOT-TBD-M3,
A956GOT-SBD-M3 and A956GOT-LBD-M3
A953GOT Generic term of A953GOT-TBD, A953GOT-SBD, A953GOT-LBD, A953GOT-TBD-M3,
A953GOT-SBD-M3 and A953GOT-LBD-M3
A951GOT Generic term of A951GOT-TBD, A951GOT-SBD, A951GOT-LBD, A951GOT-TBD-M3,
A951GOT-SBD-M3 and A951GOT-LBD-M3
A951GOT-Q Generic term of A951GOT-QTBD, A951GOT-QSBD, A951GOT-QLBD, A951GOT-QTBD-M3,
A951GOT-QSBD-M3 and A951GOT-QLBD-M3
A950GOT Generic term of A950GOT-TBD, A950GOT-SBD, A950GOT-LBD, A950GOT-TBD-M3,
A950GOT-SBD-M3 and A950GOT-LBD-M3
A950 handy GOT Generic term of A953GOT-SBD-M3-H and A953GOT-LBD-M3-H
GOT
A95 GOT Generic term of A956GOT, A953GOT, A951GOT, A951GOT-Q, A950GOT and A950 handy
GOT
Communica-
tion board Bus connection board Generic term of A9GT-QBUSS, A9GT-QBUS2S, A9GT-BUSS and A9GT-BUS2S
GT Works Version5 SW5D5C-GTWORKS-E software package
GT Designer Version5 Generic term of SW5D5C-GOTR-PACKE software package and SW5D5C-GOTR-PACKEV
software package
GT Designer Abbreviation of image creation software GT Designer for GOT900
GT Simulator Abbreviation of GT Simulator screen simulator GOT900
GT Converter Abbreviation of data conversion software GT Converter for GOT900
GT Debugger Abbreviation of debugging software GT Debugger
Software
GT Manager Abbreviation of GT Manager data editing software for GOT900
AnUCPU Generic term of A2UCPU, A2UCPU-S1, A3UCPU and A4UCPU CPU units
AnACPU Generic term of A2ACPU, A2ACPU-S1 and A3ACPU CPU units
AnNCPU Generic term of A1NCPU, A2NCPU, A2NCPU-S1 and A3NCPU CPU units
ACPU (Large Type) Generic term of AnUCPU, AnACPU and AnNCPU CPU units
A2US(H)CPU Generic term of A2USCPU, A2USCPU-S1 and A2USHCPU-S1 CPU units
AnS(H)CPU Generic term of A1SCPU, A1SHCPU, A2SCPU and A2SHCPU CPU units
A1SJ(H)CPU Generic term of A1SJCPU-S3 and A1SJHCPU CPU units
CPU
ACPU (Small Type) Generic term of A2US(H)CPU, AnS(H)CPU and A1SJ(H)CPU CPU units
Memory abbreviation of mmory (flash memory) in the GOT
OS Abreviation of GOT system software
Object Setting data for dynamic image
Others
Personal Computer Personal computer where the corresponding software package is installed

1 - 1 1 - 1
MELSOFT
1 FUNDAMENTAL KNOWLEDGE
CHAPTER1 FUNDAMENTAL KNOWLEDGE
This manual describes procedures for creating a simple screen and monitoring with the
GOT for learning basic operations.
If using the GOT for the first time, read this manual to become familiar with operation of
the GOT and the GT Designer.
POINT
The screen data and sequence programs created in Chapters 3 and 4 of this
manual are packed with GT Designer.
Use them as required to check settings, for example.
1.1 About GOT

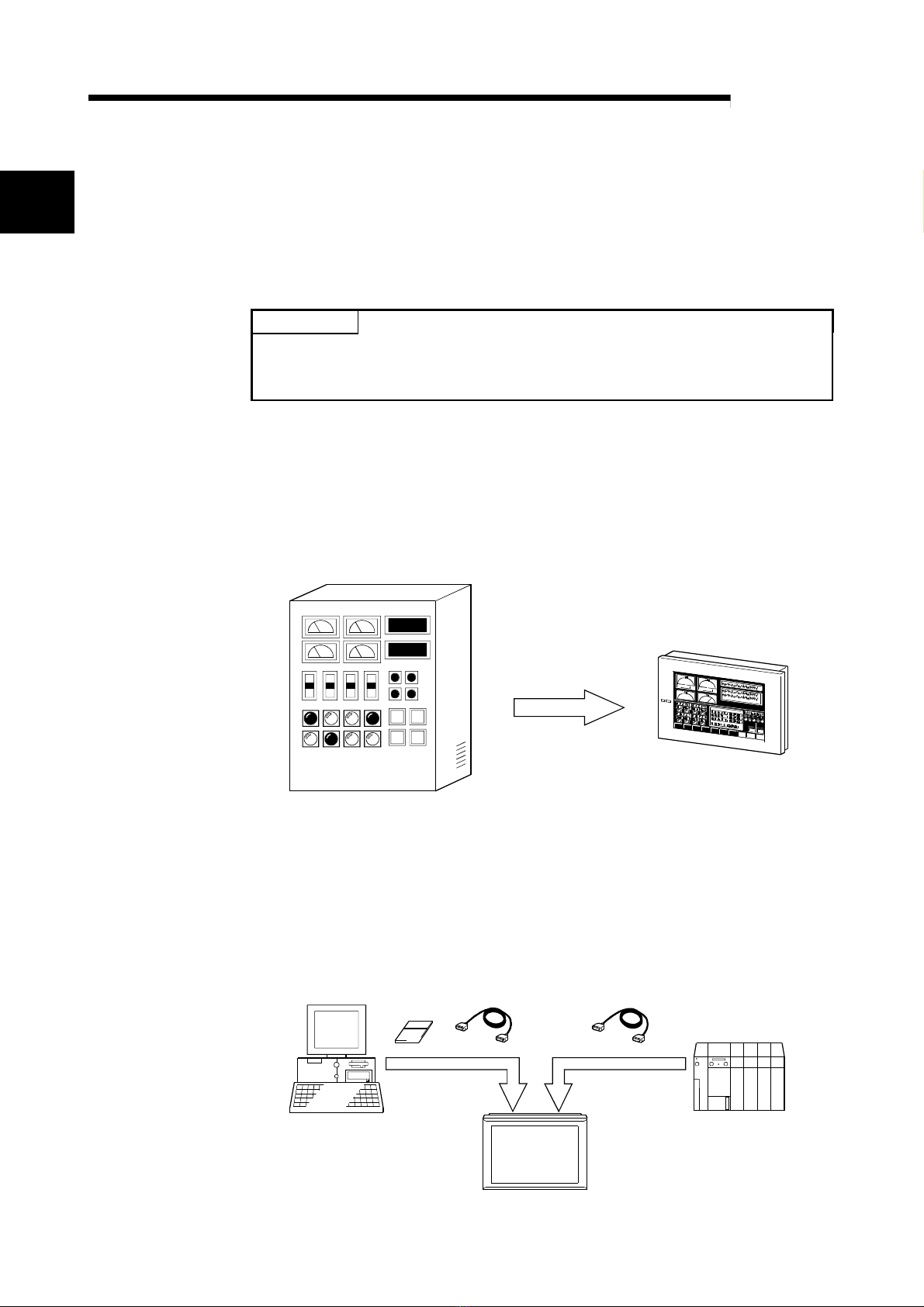

(1) What is the GOT?
The GOT can be used as an electronic operator panel which has achieved on its
monitor screen the switch operation, lamp indication, data display, message
display and other operations which were previously performed on an operator
panel.
Space saving
Cost reduction
(2) About monitor screen data to be displayed on the GOT
The monitor screen data to be displayed on the GOT are created on a personal
computer using the dedicated software (GT Designer).
You can perform the corresponding functions of the GOT by pasting display
frame figures called switch figure, lamp figure, numerical display and other
objects to create screens on GT Designer, and setting PLC CPU device memory
(bit, word) driven operating functions to the pasted objects.
The monitor screen data created are transferred to the GOT through an RS-232C
cable or PC card (memory card).
GOT
PLC CPU
Personal computer
ConnectionScreen data transfer
PC card RS-232C cable Any of various connection cables
1

1 - 2 1 - 2
MELSOFT
1 FUNDAMENTAL KNOWLEDGE
1.2 About GOT Operations
This section briefly explains what operations the GOT will perform when it is connected
with the PLC CPU.
(1) System example
M0
Y10
Y10
M1 Y10
K123MOV D10
Run Run lampStop
Data 1 123
Bus connection cable
GOT
Sequence program
<GOT settings made to figures>
PLC CPU
Numerical display setting
Read device: D10, unsigned BIN
Indication: Unsigned decimal
Touch key setting
Bit momentary
Write device: M0
Touch key setting
Bit momentary
Write device: M1
Lamp display setting
Bit
Read device: Y10

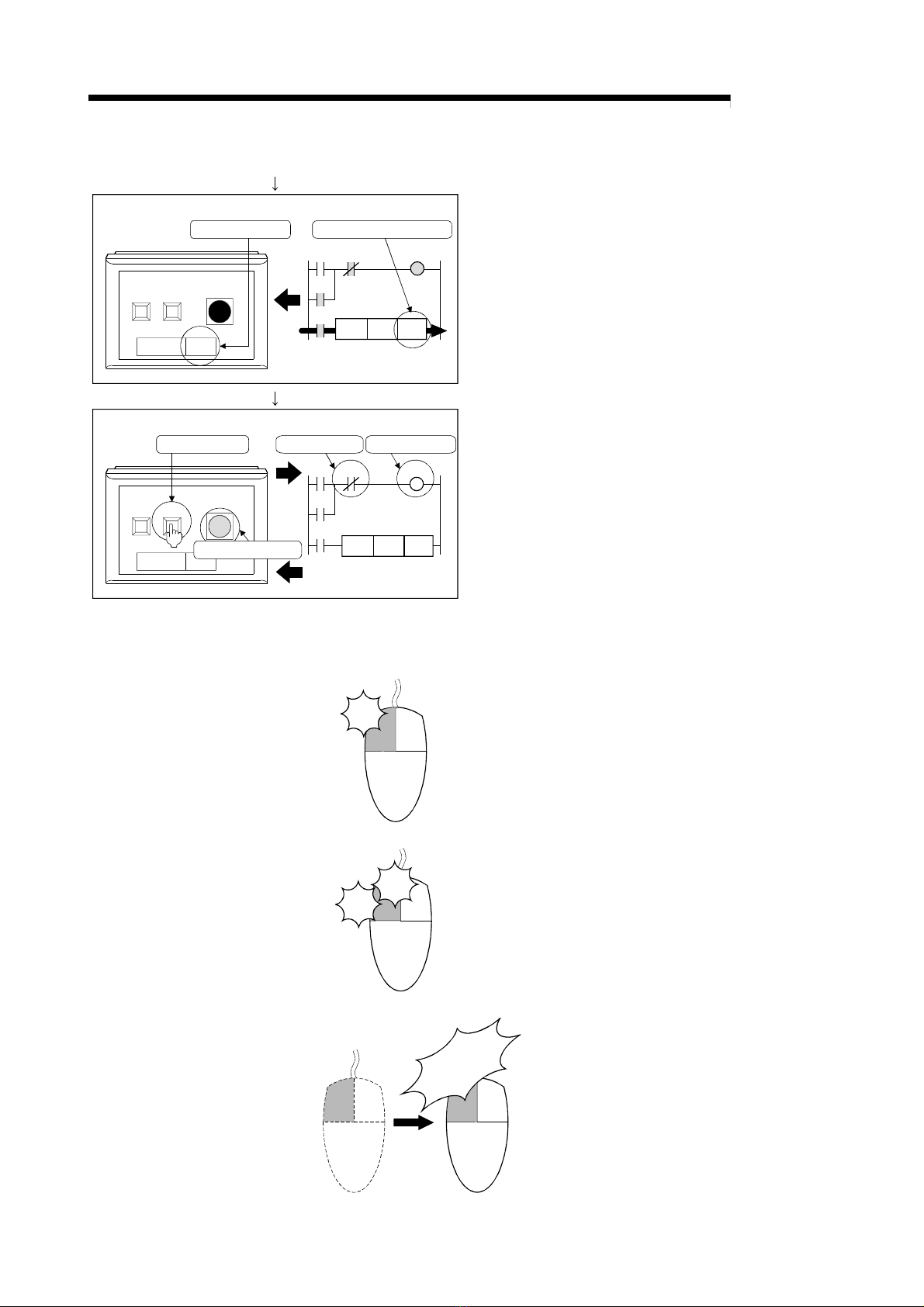

(2) Operation explanation
Data 0
(GOT) (PLC CPU)
M0
Y10
Y10
M1 Y10
Turns ON.Touch.
Run Stop Run lamp
K123MOV D10
1) While the "Run" touch key of the GOT is touched,
the bit device "M0" is ON.
Run Run lamp Stop
Data 0
(GOT) (PLC CPU)
M0
Y10
Y10
M1 Y10
Turns ON. Turns ON.
K123MOV D10
2) When the bit device "M0" turns ON, the bit device
"Y10" turns ON.
An ON figure also appears as the GOT's lamp
display where the monitor device is preset to the bit
device "Y10".
(To the following page)
1

1 - 3 1 - 3
MELSOFT
1 FUNDAMENTAL KNOWLEDGE
(From the previous page)
Run Run lamp Stop
Data 123
(GOT) (PLC CPU)
M0
Y10
Y10
M1 Y10
"123" is stored into D10.
"123" appears.
K123MOV D10
3) Since the bit device "M0" is ON, "123" is stored into
the word device "D10".
"123" also appears as the GOT's numerical display
where the monitor device is preset to the word
device "D10".
Run Run lamp Stop
Data 123
(GOT) (PLC CPU)
Touch.
M0
Y10
Y10
M1 Y10
M1 turns ON.
Display turns OFF.
Y10 turns OFF.
K123MOV D10
4) While the "Stop" touch key of the GOT is touched,
the bit device "M1" of the PLC CPU is ON.
Since the bit device "Y10" of the PLC CPU turns
OFF, the lamp display of the GOT turns OFF.
1.3 Mouse Usage and Operations
Describes basic operations of the mouse.
(1) Click
Click
Press the left button of the mouse once, then
release without moving the mouse.
This is the most common operation.
Using the right button to perform this operation is
called "right-click".
(2) Double click
Click Click
Press the left button of the mouse twice quickly
without moving the mouse. This operation is for
the left button only.
(3) Drag
Move the mouse
while the button
is pressed.
Move the mouse while pressing the
left button.
Using the right button to perform this
operation is called "right-drag".

1 - 4 1 - 4
MELSOFT
1 FUNDAMENTAL KNOWLEDGE
1.4 System Configuration Used in the Manual
Data transfer
A975GOT
PLC CPU (ACPU)
Bus connection
Personal computer
Install
GT Works Version5
or
GT Designer Version5
1.5 Procedures for Use of GOT
Describes the procedures from installation of the GT Designer to monitoring with the
GOT.
No
Yes
Start
Install the GT Designer.
Start the GT Designer. GT Works Version5/GT Designer Version5
Operating Manual (Start up Manual)
Carry out common setting. Refer to 3.1
Prepare the user screen data.
Connect the GOT and the personal computer with RS-232C,
and turn ON the GOT.
Using the GOT
for the first time?
Install the OS and the communication driver.
Transfer the user screen data.
End
Connect to the PLC, and start monitoring.
(Turn OFF the GOT, then turn it ON again.)
Refer to Chapter 3 and Chapter 4
Refer to 5.1
Refer to 5.2
Refer to 5.3
Refer to 5.4 and 5.5

2 - 1 2 - 1
MELSOFT
2 SETTING FIGURES AND OBJECTS
CAHPTER2 SETTING FIGURES AND OBJECTS
2.1 Drawing a Figure
Describes how to draw a figure.
POINT
This chapter deals with only the drawing and editing of figures used in this manual.
For the drawing and editing of other figures, refer to the help function of GT
Designer.
When drawing a figure, click the icon of the figure you want to draw.
When setting the attributes of a
figure or text, click the list box to
choose the attributes.
For details, refer to the GT Works
Version5/GT Designer Version5
Reference Manual.
Click when drawing a rectangle.
Click when drawing a scale.
Click when entering a text.
(1) When drawing a rectangle
1) 2)
3)
1) Click the left mouse button at the start point of the
rectangle.
2) Drag the cursor to the end point.
3) Release the left mouse button. A rectangle appears.
(2) When drawing a scale
1) As the scale setting dialog box appears, make
settings.
Scale points: Set the number of scale points.
Direction: Choose the scale direction.
Center line: Specify whether a line is drawn in the
scale center or not.
2) Click the OK button.
3) 4)
5)
3) Press the left mouse button at the starting point of
drawing the scale.
4) Drag the cursor to the end point.
5) Release the left mouse button. The scale appears.
2

2 - 2 2 - 2
MELSOFT
2 SETTING FIGURES AND OBJECTS

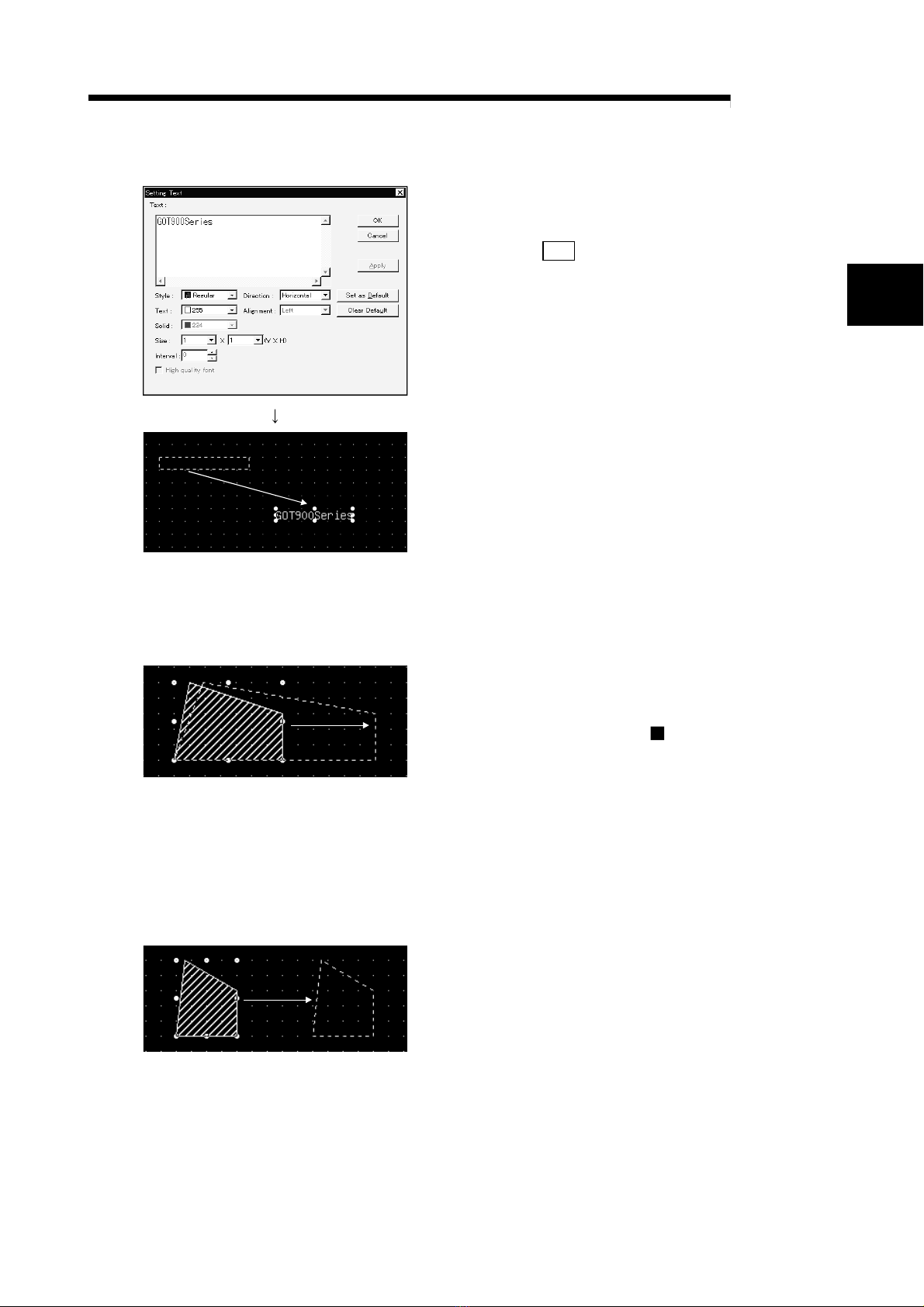

(3) When entering a text
1) As the text/figure setting dialog box appears, enter a
text.
2) Click the OK button.
3)
4)
3) A frame of display range appears at the upper-left of
the screen.
Move the frame to the desired position.
4) Click the mouse button.
The character string appears.
2.2 Editing a Figure or Object
(1) Resizing a figure or object
The following example enlarges a figure.
2) 3)
1) Select the figure to enlarge.
2) Press the left mouse button at the handle of the
selected figure or object ( ) in the direction to
enlarge, then drag it.
3) Release the left mouse button. The figure or object
is resized.
• Holding down the Shift key and changing the size
resizes the figure at equal ratios.
• Holding down the Ctrl key and changing the size
resizes the figure relative to the center.
(2) Copying a figure or object
The following example copies a figure.
2) 3)
1) Choose the figure to be copied.
2) Hold down the "Ctrl" button of the keyboard and drag
the figure.
3) Release the left button of the mouse at the position
you want to copy. This copies the figure.
2

3 - 1 3 - 1
MELSOFT
3 CREATING SCREENS
CHAPTER3 CREATING SCREENS

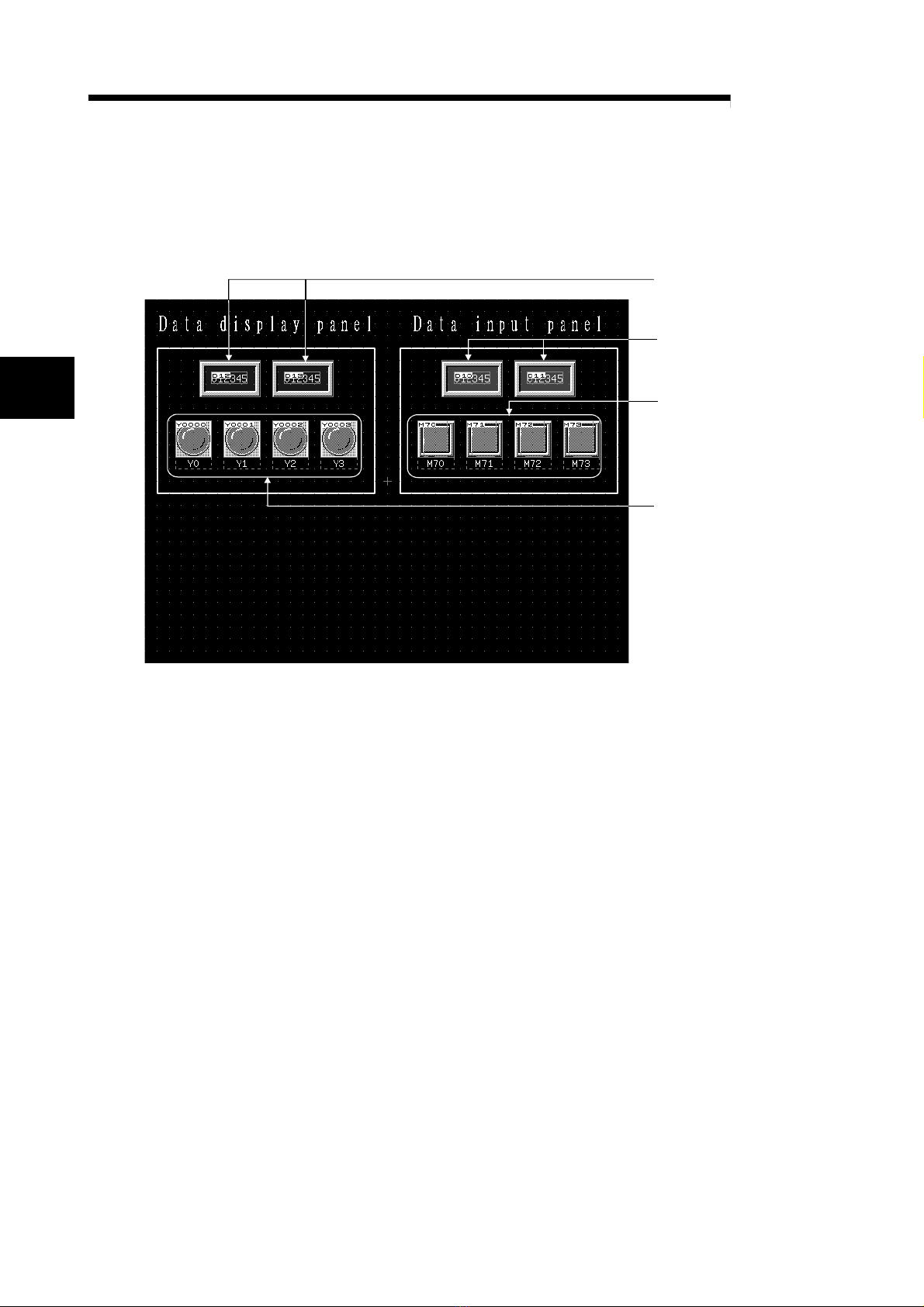

3.1 Creating a Screen like This
In this chapter, a screen as shown below is created.
Numerical
display function
Numerical
input function
Lamp display function
Touch key function
3

3 - 2 3 - 2
MELSOFT
3 CREATING SCREENS
3.2 Common Setting before Drawing
Describes the operations for common setting before drawing.
3.2.1 Selecting GOT/PLC type
Describes the operations for selecting the type of the GOT and the PLC to use.
1) Starting GT Designer displays the project
selection dialog box. Click New .
3)
2) The dialog box appears.
3) Click the list box and set the type of the GOT
and the PLC.
Here, set as follows:
GOT type: A97 GOT(640 480)
PLC type: MELSEC-A
4)
4) Click the OK button.
The GOT/PLC types are set.
POINT
The GOT/PLC type setting dialog box is also displayed by choosing the [Common]-
[GOT/PLC Type] menu.
3

3 - 3 3 - 3
MELSOFT
3 CREATING SCREENS
3.2.2 Setting screen switching device
Describes the operations for setting the screen switching device for switching screens.
Here, only the screen switching device of the base screen is set to "D999" because
only the base screens are switched in the manual.
1) Click the [Common] – [Switching Screen] menu.
3) 2) The dialog box appears.
3) Click the Device button on the base screen to
set the screen switching device of the base
screen.
5)
6)
7)
4) The dialog box appears.
5) Click the list box to set to "D".
6) Click button 9 three times.
7) After setting is completed, click the OK button.
(To the following page)

3 - 4 3 - 4
MELSOFT
3 CREATING SCREENS
(From the previous page)
8)
9)
8) Check that value is set to "D999".
9) Click the OK button.
The screen switching device is set.
POINTS
•Screen switching device
The screen switching device is required for switching screens.
Devices designated as the screen switching devices must be used only as such.
Word devices "D" or "W are mainly used as the screen switching device, but
device "GD" for the GOT is also available.
•Device "GD"
Device "GD" is a word device of the GOT.
In device GD, 1024 points from GD0 to GD1023 are available.
There is a bit device GB, in which 1024 points from GB0 to GB1023 are also
available.
3.3 Creating the First Screen
Refer to Chapter 2 and create a screen as follows:
Use a rectangle to create this. Use characters to create these.
