Mitsubishi Electric FA-LTB40ADG User manual

1
Programmable Controller Analog Terminal Block
Conversion Module
Programmable Controller High-Speed Counter
Module Terminal Block Conversion Module
Model
FA-LTB40ADG FA-LTB40DAG FA-TB20TD
FA-LTB40ADGN FA-LTB40TDG FA-TB20TC
FA-LTB40ADDG FA-LTB40RD3G
FA-LTB40D63P6V5
FA-LTB40D63P6V12
FA-LTB40D63P6V24
User’s Manual
SAFETY PRECAUTIONS 
(Always read these precautions prior to use.)
Before using this product, please read this manual carefully and pay full attention to safety
to ensure that the product is used correctly.
The precautions presented in this manual are concerned with this product only. For
programmable controller system safety precautions, refer to the user’s manual of the
programmable controller to be used. In this manual, the ●SAFETY PRECAUTIONS ●
are ranked as “DANGER“ and “CAUTION“.
DANGER Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
CAUTION
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or minor injury and/or
property damage.
Note that failure to observe the CAUTION level instructions may lead to a serious
consequence according to the circumstances. Always follow the precautions of both levels
because they are important to personal safety.
Please keep this manual in an easy-to-access location for future reference, and be sure to
provide the manual to the end user.
FA Godso

2
[Installation Precautions]
CAUTION
Use this module in an environment that complies with the general specifications
described in the catalog. Use in an environment outside the scope of general
specifications may result in risk of electric shock, fire, malfunction, product damage,
and deterioration.
During installation, be sure to fully secure the module using a DIN rail or mounting
screws and fully tighten the screws to the specified torque. Loosely tightened screws
results in the risk of the module dropping and malfunction.
Be careful to prevent foreign matter such as dust or wiring chips from entering the
module. Failure to do so may result in the risk of fire, failure, and malfunction.
Do not touch a powered terminal. Doing so results in the risk of malfunction.
Do not directly touch a powered section of the module. Doing so results in the risk of
module failure and malfunction.
[Wiring Precautions]
DANGER
Be sure to shut off all phases of the external power supply used by the system
before installation or wiring work. Failure to do so results in the risk of electric shock,
module failure, and malfunction.
CAUTION
Be sure to ground the FG terminal by applying class D grounding (class 3 grounding)
or higher. Failure to do so results in the risk of electric shock and malfunction.
Correctly wire cables to the module after checking the rated voltage and terminal
layout of the product. Connecting a power supply having a different rating or wiring
the module incorrectly results in the risk of fire and malfunction.
When wiring the input signal line and output signal line, do not bind the line with or
have the line contact wiring having superimposed noise. Doing so results in the risk
of malfunction.
Tighten the terminal screws within the range of the specified torque. If a screw is too
loose, a short circuit, or malfunction may result. If a screw is too tight, screw and/or
module damage may result, causing the module to drop, a short circuit, or
malfunction.

3
[Startup and Maintenance Precautions]
DANGER
Do not touch a terminal while the module is powered. Doing so results in the risk of electric
shock and malfunction.
Be sure to turn the power OFF before cleaning the module or retightening terminal screws.
Failure to do so results in the risk of module failure and malfunction.
CAUTION
Do not disassemble or modify the module. Doing so results in the risk of failure, malfunction,
injury, and fire.
Be sure to shut off all phases of the external power supply module installation or removal.
Failure to do so results in the risk of electric shock, module failure, and malfunction.
[Disposal Precautions]
DANGER
At the time of disposal, treat the product as industrial waste.

4
INTRODUCTION
Thank you for purchasing the FA Goods programmable controller analog terminal block conversion
module and programmable controller high-speed counter module terminal block conversion module.
Before using the product, please read this manual carefully to ensure correct and effective use.
1. PERFORMANCE SPECIFICATIONS
FA-LTB40TDG
Thermocouple input terminal block conversion module Model name
Item FA-LTB40TDG
Connectable module (Note 1) Q68TD-G-H01, Q68TD-G-H02
Connectable cable (Note 2) FA-CBL**Q68TDG
Applicable wire: 0.5 to 1.25mm2(conform to JIS C 2811 )
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Operating voltage: 8VDC or less, operating current: 1mA or less
Terminal screw tightening torque range: 50 to 75N･cm (5.2 to 7.6kgf･cm)
Terminal block
(regular screws)
Terminal block screw: M3 screw
Mounting screws M4 (with plain washer) x 0.7mm x 8mm or greater
Tightening torque range: 78 to 118N･cm (8 to 12kgf･cm)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Dielectric withstand voltage Between analog input CHs: 1000VAC for 1 minute; Other: 500VAC for 1 minute
Insulation resistance (initial) 10MΩor more by 500VDC insulation resistance tester
Weight About 200g
Note 1: Applies to the programmable controller MELSEC-Q series manufactured by Mitsubishi Electric Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 20: 2m, 30: 3m).
FA-TB20TD
Thermocouple input terminal block conversion module Model name
Item FA-TB20TD
Connectable module (Note 1) Q64TD、Q64TDV-GH A1S68TD
Connectable cable (Note 2) FA-CBLQ64TD** FA-CBLS68TD**
Applicable wire: 0.5 to 1.25mm2(conform to JIS C 2811)
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Operating voltage: 5VDC or less operating current: 1mA or less
Terminal block screw: M3 screw
Terminal screw tightening torque range: 58.8 to 88.2N･cm (6 to 9kgf･cm)
Terminal block
(Captive screws)
Terminal block screw pull force (axial direction): 78.4N or greater
Mounting screws M4 x 0.7mm x 22mm or greater, tightening torque range: 78 to 118N･cm (8 to 12kgf･
cm)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Dielectric withstand voltage 1500VAC (50/60Hz) for 1 minute
Insulation resistance (initial) 100MΩor more by 500VDC insulation resistance tester
Weight 125g
Note 1: Applies to the programmable controller MELSEC-Q series and AnS series manufactured by Mitsubishi Electric
Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 15:1.5m, 20: 2m, 25:2.5m, 30: 3m).

5
FA-TB20TC
Temperature control terminal block conversion module Model name
Item FA-TB20TC
Connectable module (Note 1) Q64TCTT, Q64TCTTBW A1S64TCTRT, A1S64TCTRTBW
Connectable cable (Note 2) FA-CBLQ64TC** FA-CBLS64TCTR**
Applicable wire: 0.5 to 1.25mm2(conform to JIS C 2811)
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Operating voltage: 30VDC or less; Operating current: 400mA or less (common),
100mA or less (signal)
Terminal block screw: M3 screw
Terminal screw tightening torque range: 58.8 to 88.2N･cm (6 to 9kgf･cm)
Terminal block
(Captive screws)
Terminal block screw pull force (axial direction): 78.4N or greater
Mounting screws M4 x 0.7mm x 22mm or greater, tightening torque range: 78 to 118N･cm (8 to 12kgf･
cm)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Dielectric withstand voltage 1500VAC (50/60Hz) for 1 minute
Insulation resistance (initial) 100MΩor more by 500VDC insulation resistance tester
Weight 125g
Note 1: Applies to the programmable controller MELSEC-Q series and AnS series manufactured by Mitsubishi Electric
Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 15: 1.5m, 20: 2m, 25:2.5m, 30: 3m).
FA-LTB40RD3G
RTD input terminal block conversion module Model name
Item FA-LTB40RD3G
Connectable module (Note 1) Q68RD3-G
Connectable cable (Note 2) FA-CBL**Q68RD3G
Applicable wire: 0.5 to 1.25mm2(conform to JIS C 2811)
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Operating voltage: 8VDC or less, operating current: 1mA or less
Terminal screw tightening torque range: 50 to 75N･cm (5.2 to 7.6kgf･cm)
Terminal block
(Regular screws)
Terminal block screw: M3 screw
Mounting screws M4 (with plain washer) x 0.7mm x 8mm or greater
Tightening torque range: 78 to 118N･cm (8 to 12kgf･m)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Dielectric withstand voltage Between analog input CHs: 1000VAC for 1 minute, Other: 500VAC for 1 minute
Insulation resistance (initial) 10MΩor more by 500VDC insulation resistance tester
Weight About 200g
Note 1: Applies to the programmable controller MELSEC-Q series manufactured by Mitsubishi Electric Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 20: 2m, 30: 3m).

6
FA-LTB40ADG, FA-LTB40ADGN, FA-LTB40ADDG, FA-LTB40DAG
Q68AD-G
conversion module
Q66AD-DG
conversion module
Q66DA-G
conversion module
Model name
Item FA-LTB40ADG FA-LTB40ADGN FA-LTB40ADDG FA-LTB40DAG
Connectable module (Note 1) Q68AD-G Q66AD-DG Q66DA-G
Connectable cable (Note 2) FA-CBL**Q68ADG FA-CBL**Q68ADGN FA-CBL**Q66ADDG FA-CBL**Q66DAG
Applicable wire: 0.5 to 1.25mm2(conform to JIS C 2811)
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Terminal screw tightening torque range: 50 to 75N･cm (5.2 to 7.6kgf･cm)
Terminal block
(Regular screws)
Terminal block screw: M3 screw
Operating voltage 10VDC 10VDC 24VDC 24VDC
Operating current 30mA or less 30mA or less 360mA or less 220mA or less
Mounting screws M4 (with plain washer) x 0.7mm x 8mm or greater
Tightening torque range: 78 to 118N･cm (8 to 12kgf･cm)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Connector MIL40P
Dielectric withstand voltage Between CHs: 1000VAC for 1 minute, Other: 500VAC for 1 minute
Insulation resistance (initial) 10MΩor more by 500VDC insulation resistance tester
Weight About 200g
Note 1: Applies to the programmable controller MELSEC-Q series manufactured by Mitsubishi Electric Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 20: 2m, 30: 3m).
FA-LTB40D63P6V5, FA-LTB40D63P6V12, FA-LTB40D63P6V24
QD63P6 terminal block conversion module
5V signal input 12V signal input 24V signal input
Model name
Item FA-LTB40D63P6V5 FA-LTB40D63P6V12 FA-LTB40D63P6V24
Connectable module (Note 1) QD63P6
Connectable cable (Note 2) FA-CBL**QD63P6
Applicable line: 0.5 to 1.25mm2(conform to JIS C 2811)
However, a 0.3 to 2mm2cable is connectable by using an applicable crimping terminal.
Terminal screw tightening torque range: 50 to 75N･cm (5.2 to 7.6kgf･cm)
Terminal block
(Regular screws)
Terminal block screw: M3 screw
Voltage 5V±10% 12V±10% 24V±10% Counter
input signal Current 6.4 to 11.5mA 10.8 to 15.9mA 10.5 to 14.9mA
Connectable encoder Open collector output
CMOS voltage output Open collector output Open collector output
Mounting screws M4 (with plain washer) x 0.7mm x 8mm or greater
Tightening torque range: 78 to 118N･cm (8 to 12kgf･cm)
Module
mounting DIN rail Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (conform to JIS C 2812)
Dielectric withstand voltage 500VAC for 1 minute
Insulation resistance (initial) 10MΩor more by 500VDC insulation resistance tester
Weight About 200g
Note 1: Applies to the programmable controller MELSEC-Q series manufactured by Mitsubishi Electric Corporation.
Note 2: The two asterisks (**) indicate cable length (05: 0.5m, 10: 1m, 15:1.5m, 20: 2m).

7
Module
mounting
hole
Module
mounting
hole
Cable connector
191
181
169
29
7.62
47
18
(
44.7
)
(
4
)
14.3 5.5
Simple lock
(120 )
°
DIN rail
Input terminal block
41.5
(
3.2
)
Module
mounting
hole
Module
mounting
hole
Cable connector
Input terminal block
Simple lock
(120 )
104
67.5
94
Cold junction compensating
resistor (supplied)
DIN
rail °
（5）5
2-
φ
4.5
2-
φ
8
7.6212
16
505
(
32
)
15
35.5 68.5
FA-TB20TD
FA-TB20TD
Q64TD/Q64TDV-GH
A1S68TD
Cable length: L
Q68TD-G-H01
G68TD-G-H02
Connection side
connector
FA-
L
TB40TDG
Connection side
connector
Shielded cable (with M4 round crimping terminal) Shielded cable (with M4 round crimping terminal)
(
300
)
(
18
)
SLD
φ
7.4
(
50
)
(
6
)
(
55.3
)
(
300
)
SLD
FA-TB20TD
Connection side
connector
Q64TD/Q64TDV-GH
Connection side terminal block Cable length: L
8
(
30
)
φ
10.0
(
50
)
(
22.8
)
(
12.23
)
(
51.03
)
FA-TB20TD
Connection side
connector
A1S68TD
Connection side terminal block Cable length: L
10
φ
10.0
(
50
)
(
22.8
)
(
51.03
)
(
30
)
(
12.23
)
2. EXTERNAL DIMENSIONS [unit: mm]
Insulated thermocouple input terminal block conversion module
(FA-LTB40TDG)
Thermocouple input terminal block conversion module
(FA-TB20TD)
Thermocouple input dedicated cable
(For FA-CBL**Q68TDG MELSEC-Q series)
(For FA-CBLQ64TD** MELSEC-Q series)
(For FA-CBLS68TD** MELSEC-AnS series)

8
FA-TB20TC
Connection side
connector
FA-TB20TC
Connection side connector
A1S64TCTRT/A1S64TCTRTBW
Connection side terminal block
Q64TCTT/Q64TCTTBW
Connection side terminal block
Module
mounting
hole
Cable connecto
r
°
DIN
rail
Input terminal block
104
94
(
5
)
5
Simple lock
(120 )
2-
φ
4.5
12 7.62
16
50
2-
φ
8
5
(
32
)
15
635.58.5
(
3.2
)
41.5
Shielded wire (with round crimping terminal)
Cable length: L
8
φ
10.0
(
50
)
(
22.8
)
(
51.03
)
(
30
)
(
150
)
(
12.23
)
Cable length: L
10
(
30
)
(
150
)
φ
10.5
(
50
)
(
22.8
)
(
12.23
)
(
51.03
)
FG
Module
mounting
hole
Module
mounting
hole
Module
mounting
hole Cable connector
191
181
169
29
7.62
47
18
(
44.7
)
(
4
)
14.3 5.5
Simple lock
(120 )
°
DIN rail
Input terminal block
Cable length: L
Shielded wire (with M4 round crimping terminal) Shielded wire (with M4 round crimping terminal)
(
300
)
(
18
)
SLD
φ
7.4
(
50
)
(
6
)
(
55.3
)
(
300
)
SLD
Q68RD3-G
Q68AD-G
Q66AD-DG
Q66DA-G
Connection side
connector
FA-LTB40RD3G
FA-LTB40ADG
FA-LTB40ADGN
FA-LTB40ADDG
FA-LTB40DAG
Connection side
connector
Temperature control terminal block conversion module [Unit: mm]
(FA-TB20TC)
Temperature control cable with terminal block
(For FA-CBLQ64TC** MELSEC-Q series)
(For FA-CBLS64TCTR** MELSEC-AnS series)
Insulated analog module terminal block conversion module, insulated RTD input module terminal
block conversion module (FA-LTB40ADG/ADGN/ADDG/DAG, FA-LTB40RD3G)
Connection cable (FA-CBL**Q68ADG, FA-CBL**Q68ADGN, FA-CBL**Q66ADDG,
FA-CBL**Q66DAG, FA-CBL**Q68RD3G)

9
Module
mounting
hole
Module
mounting
hole Cable connector Input terminal block
191
181
169
29
7.62
47
18
(
44.7
)
(
4
)
14.3 5.5
Simple lock
(120 )
°
DIN rail
(
50
)
(
6
)
(
55.3
)
(
200
)
FG
(
7.4
)
FA-LTB40D63P6V**
Connection side connector
QD63P6
Connection side
co
nn
ector
High-speed counter module terminal block conversion module [Unit: mm]
(FA-LTB40D63P6V5/V12/V24)
Connection cable (FA-CBL**QD63P6)
High-speed counter module terminal block conversion module dedicated cable connection example
Phase A
Phase B
Phase B pulse input +
Phase A pulse input +
Phase A pulse input -
Phase B pulse input -
Twisted shielded cable
Twisted shielded cable
Shield
Shield
Pulse generating
device
5V signal
12V signal
24V signal
5V signal
12V signal
24V signal
Signal
GND
Signal
GND
**
Cable length: L

10
3. INSTALLATION METHOD
3-1 Connecting the Connection Cable and Terminal Block Conversion Module with MELSEC-Q Series
For MELSEC-Q series module with insulation between channels
(Q68AD-G, Q66AD-DG, Q66DA-G, Q68TD-G-H01, Q68TD-G-H02, Q68RD3-G)
Voltage/Current input/output
Dual wire transmitter input
Thermocouple input
RTD input
Mitsubishi Electric Corporation
MELSEC-Q series module with
insulation between channels
Q68AD-G
Q66AD-DG
Q66DA-G
Q68TD-G-H01
Q68TD-G-H02
Q68RD3-G
Q68TD-G
RUN
ERR. ALM
Q68TD-G
Connection cable
FA-CBL**Q68ADG
**Q66ADDG
FA-CBL**Q68ADGN
FA-CBL
FA-CBL**Q66DAG
FA-CBL**Q68TDG
FA-CBL**Q68RD3G
Terminal block
conversion module
FA-LTB40ADG
FA-LTB40ADGN
FA-LTB40ADDG
FA-LTB40DAG
FA-LTB40TDG
FA-LTB40RD3G
Ground the FG wire in the same
manner as the programmable
controller module.
Ground the FG wire in the
same manner as the
programmable controller
module.
Insert the connector to the back,
and then fully secure the
connector with the clip.
Insert the connector to the back, and
then fully install the connector to the
programmable controller module
using the mounting screws.

11
For MELSEC-Q series thermocouple input module For MELSEC-AnS series thermocouple input module
[Q64TD, Q64TDV-GH, Q64TCTT (BW)] [A1S68TD, A1S64TCTRT (BW)]
Thermocouple input
Temperature control input/output
MELSEC-Q series
thermocouple input
module manufactured
by Mitsubishi Electric
Corporation
Q64TD
Q64TDV-GH
Q64TCTT(BW)
Terminal block
conversion module
FA-TB20TD
FA-TB20TC
Q64TD
RUN
ERR.
Q64TD
Connection cable
FA-CBLQ64TD**
FA-CBLQ64TC**
Terminal block
conversion module
FA-TB20TD
FA-TB20TC
Connection cable
FA-CBLS68TD**
FA-CBLS64TCTR**
MELSEC-AnS series
thermocouple input
module manufactured
by Mitsubishi Electric
Corporation
A
1S68TD
A
1S64TCTRT(BW)
Fully install the terminal block to the
programmable controller module
using the mounting screws.
Fully insert and secure the connector
until you hear a click.
Ground the FG wire in
the same manner as
the programmable
controller
module.(FA-CBLQ64T
C** only.)
Fully insert and secure the connector
until you hear a click.
Fully install the terminal
block to the programmable
controller module using the
mountin
g
screws.
Ground the FG wire in
the same manner as
the programmable
controller
module.(FA-CBLS64T
CTR** onl
y
.
)
Thermocouple input
Temperature control
input/output

12
For MELSEC-Q series high-speed counter module (QD63P6)
5V
12V Pulse input
24V
MELSEC-Q series
counter module
manufactured by
Mitsubishi Electric
Corporation
QD63P6
QD63P6
RUN
ERR.
φＡ
φB
123456CH
QD63P6
Terminal block
conversion module
FA-LTB40D63P6V5
FA-LTB40D63P6V12
FA-LTB40D63P6V24
Connection cable
FA-CBL**QD63P6
FA-LTB40D63P6V5
Insert the connector to the back,
and then fully secure the
connector with a clip.
Ground the FG wire in the same
manner as the programmable
controller module.
Insert the connector to the back, and
then fully install the connector to the
programmable controller module
using the mounting screws.

13

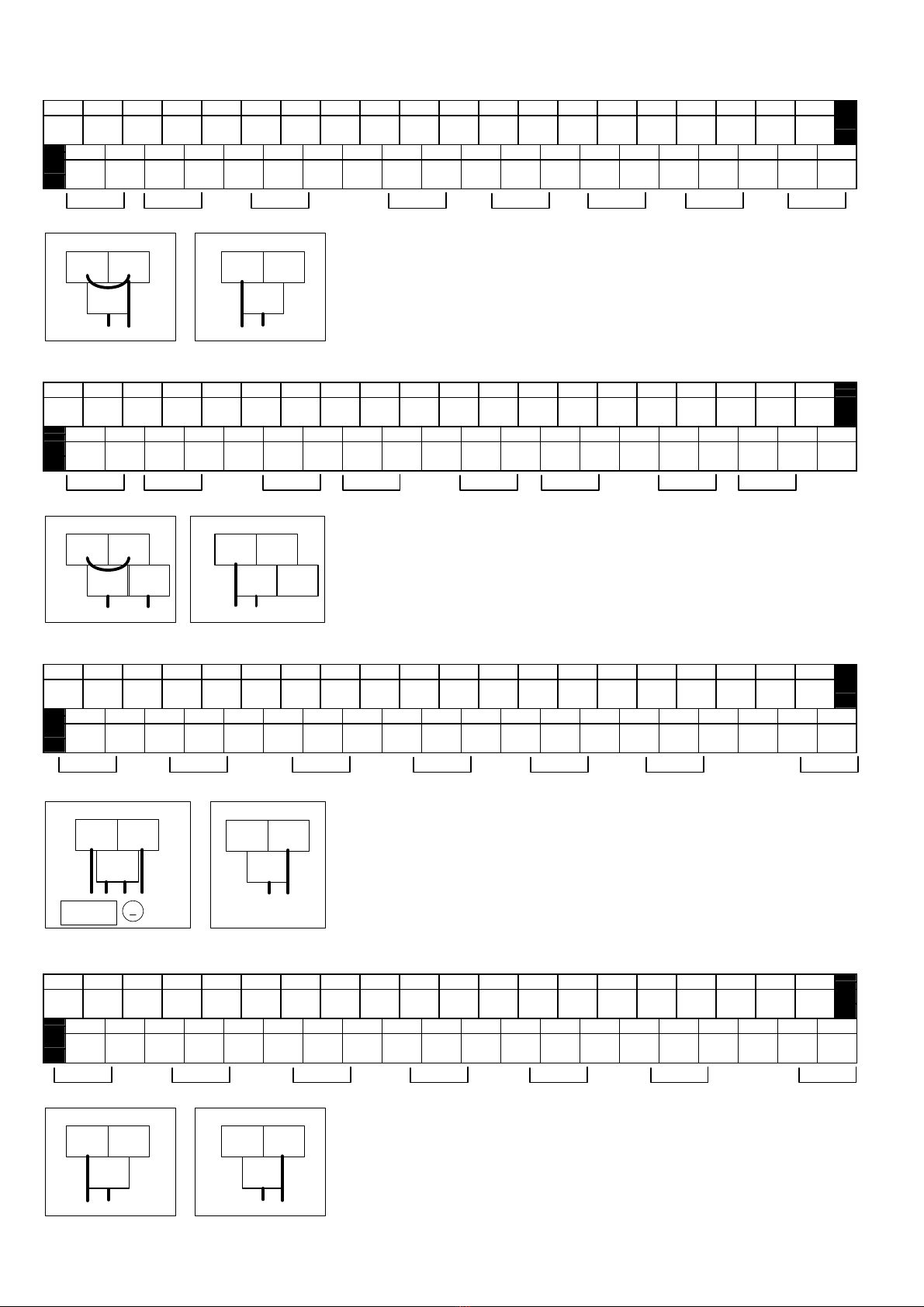

3-2 Connecting the Terminal Block Conversion Module and External Devices
FA-LTB40ADG
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
V+ - CH2 V+
CH2
V-/I- - CH3 V+
CH3
I+ - -
CH4
V-/I- - CH5 V+
CH5
I+ - CH6 V-/I- - CH7 V+
CH7
I+ - CH8 V-/I-
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
CH1
V-/I-
CH1
I+ - CH2 I+ - CH3 V-/I- - -
CH4
V+
CH4
I+ - CH5 V-/I- - CH6 V+
CH6
I+ - CH7 V-/I- - CH8 V+
CH8
I+
V+
V-/I-
I+ V+
V-/I-
I+
Current input Voltage input
I- V+ V-
I+
FA-LTB40ADGN
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
V+
CH1
Is
CH2
V+
CH2
Is - CH3 V+
CH3
Is
CH4
V+
CH4
Is - CH5 V+
CH5
Is
CH6
V+
CH6
Is - CH7 V+
CH7
Is
CH8
V+
CH8
Is -
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
CH1
V-/I-
CH1
I+
CH2
V-/I-
CH2
I+ - CH3 V-/I-
CH3
I+
CH4
V-/I-
CH4
I+ - CH5 V-/I -
CH5
I+
CH6
V-/I-
CH6
I+ - CH7 V-/I-
CH7
I+
CH8
V-/I-
CH8
I+ -
V+
V-/I-
Is V+
V-/I-
Is
Current input（Note 1）Voltage input（Note 2）
I- V+ V-
I+
I+ I+
FA-LTB40ADDG
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
P
I-
/CHK - CH2 P
I-
/CHK - CH3 P
I-
/CHK - CH4 P
I-
/CHK - CH5 P
I-
/CHK - CH6 P
I-
/CHK - - DC24V
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
I+
/CHK - -
I+
/CHK - -
I+
/CHK - -
I+
/CHK - -
I+
/CHK - -
I+
/CHK - - - DC24G
PI-/CHK PI-/CHK
Dual wire transmitter input Current input
I+ I-
+-+-
V
Dual wire
transmitter
I+/CHK I+/CHK
FA-LTB40DAG
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
V+
CH1
I+ - CH2 V+
CH2
I+ - CH3 V+
CH3
I+ - CH4 V+
CH4
I+ - CH5 V+
CH5
I+ - CH6 V+
CH6
I+ - - DC24V
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
COM1 - - COM2 - - COM3 - - COM4 - - COM5 - - COM6 - - - DC24G
V+
COM
I+ V+
COM
I+
Voltage output Current output
V- I+I-
V+
Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8
Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8
Note 1: For current input, connect the (V+) and (Is) terminals. The screw terminal
block short circuit bar FA-BAR20P can be used for the above connection.
(For screw terminal block short circuit bar details, refer to our catalog.)
Note 2: For voltage input, set the (Is) and (I+) terminals as NC, and do not
connect external wiring.
Input1 Input2 Input3 Input4 Input5 Input6 24VDC
Output1 Output2 Output3 Output4 Output5 Output6 24VDC

14
FA-LTB40TDG
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
+ - CH2 + - CH3 + - CH4 + - CH5 + - CH6 + - CH7 + - CH8 + - - - -
RTD
G
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
CH1
- - CH2 - - CH3 - - CH4 - - CH5 - - CH6 - - CH7 - - CH8 - - - -
RTD
+
RTD
-
+
-RTD+
RTDG
RTD-
Thermocouple input RTD input
-
+RTD
(Note1)
(Note1)
FA-LTB40RD3G
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CH1
A1
CH1
b1 - CH2 B2 - CH3 A3
CH3
b3 - CH4 B4 - CH5 A5
CH5
b5 - CH6 B6 - CH7 A7
CH7
b7 - CH8 B8 -
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
CH1
B1 - CH2 A2
CH2
b2 - CH3 B3 - CH4 A4
CH4
b4 - CH5 B5 - CH6 A6
CH6
b6 - CH7 B7 - CH8 A8
CH8
b8 -
A
BA
B
b
RTD input
B
A
b
b BAb
FA-TB20TD(With Q64TD and Q64TDV-GH connection) FA-TB20TD(With A1S68TD connection)
1 3 5 7 9 11 13 15 17 19 1 3 5 7 9 11 13 15 17 19
- - - SLD
CH2
+
CH2
-
CH4
+
CH4
- SLD - CH1
+
CH1
-
CH2
+
CH2
-
CH4
+
CH4
-
CH6
+
CH6
-
CH8
+
CH8
-
2 4 6 8 10 12 14 16 18 20 2 4 6 8 10 12 14 16 18 20
RTD
+
RTD
- SLD CH1 +
CH1
-
CH3
+
CH3
- SLD - - RTD
+
RTD
-
CH3
+
CH3
-
CH5
+
CH5
-
CH7
+
CH7
- SLD SLD
+ -
RTD+ RTD-
Thermocouple input RTD input
-
+RTD (Note2)
FA-TB20TC(With Q64TCTT(BW) connection)
1 3 5 7 9 11 13 15 17 19
L1 L3
COM
-
CH1
+
CH1
- - -
CH3
+
CH3
- -
2 4 6 8 10 12 14 16 18 20
L2 L4 - CH2
+
CH2
- - -
CH4
+
CH4
- -
Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8 RTD
Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8
·Install the module in a location having a constant ambient temperature.
·Connect the thermocouple or compensation lead wire directly to the terminal
block.
Note 1: For the cold junction compensating resistor (RTD), connect the supplied
Q68TD-G-H01 and -H02 products to terminal numbers 38 and 40 as
illustrated above. Terminal number 38 (RTD G) and terminal number 40
(RTD -) are connected inside the conversion module, and therefore do
not require external wiring.
RTD Input1 Input3 RTD Input3 Input5 Input7
Input2 Input4 Input1 Input2 Input4 Input6 Input8
·Install the module in a location having a constant ambient temperature.
·Connect the thermocouple or compensation lead wire directly to the terminal block.
·For FA-CBLQ64TD** and FA-CBLS68TD**, a ground wire is not wired. Grounding with
FA-TB20TD is not possible.
Ground Q64TD with terminal number 18 of the programmable controller module side
terminal block of FA-CBLQ64TD.
Ground A1S68TD with terminal number 20 of the programmable controller module side
terminal block of FA-CBLS68TD**.
Note 2: The cold junction compensating resistor (RTD) is supplied with FA-TB20TD.
Control output Input2 Input4
Input1 Input3
+ -
Thermocouple input
-
+
·Install the module in a location having a constant ambient
temperature.
·Connect the thermocouple or compensation lead wire directly
to the terminal block.
·The cold junction compensating resistor (RTD) is built into
FA-TB20TC.
Control output

15
FA-TB20TC(With A1S64TCTRT(BW) connection FA-TB20TC (with A1S64TCTRT (BW) connection
: Standard Control (thermocouple)) : Heating and cooling Control (thermocouple))
1 3 5 7 9 11 13 15 17 19 1 3 5 7 9 11 13 15 17 19
L1 L3
COM
- - CH1 +
CH1
- - -
CH3
+
CH3
- L1H L2H COM - - MT1 +
MT1
- - -
MT2
+
MT2
-
2 4 6 8 10 12 14 16 18 20 2 4 6 8 10 12 14 16 18 20
L2 L4 - CH2
+
CH2
- - - -
CH4
+
CH4
- L1C L2C - CH1
+
CH1
- - - -
CH2
+
CH2
-
+ -
Thermocouple input
Monitor input
-+
FA-TB20TC (With A1S64TCTRT (BW) connection FA-TB20TC (With A1S64TCTRT (BW) connection
: Standard control (platinum RTD)) : Heating and cooling control (platinum RTD))
1 3 5 7 9 11 13 15 17 19 1 3 5 7 9 11 13 15 17 19
L1 L3
COM
-
CH1
A
CH1
B
CH1
b - CH3 A
CH3
B
CH3
b L1H L2H COM -
MT1
A
MT1
B
MT1
b - MT2 A
MT2
B
MT2
b
2 4 6 8 10 12 14 16 18 20 2 4 6 8 10 12 14 16 18 20
L2 L4
CH2
A
CH2
B
CH2
b - -
CH4
A
CH4
B
CH4
b L1C L2C CH1
A
CH1
B
CH1
b - -
CH2
A
CH2
B
CH2
b
BAb
A B
Platinum RTD input
Monitor input
b
FA-LTB40D63P6V5 (For 5V signal)
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
- CH1
A+(5)
CH1
B+(5) - CH2 A+(5)
CH2
B+(5) - CH3 A+(5)
CH3
B+(5) - CH4 A+(5)
CH4
B+(5) - CH5 A+(5)
CH5
B+(5) - CH6 A+(5)
CH6
B+(5) - -
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
- CH1
A-
CH1
B- - CH2 A-
CH2
B- - CH3 A-
CH3
B- - CH4 A-
CH4
B- - CH5 A-
CH5
B- - CH6 A-
CH6
B- - -
FA-LTB40D63P6V12 (For 12V signal)
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
- CH1
A+(12)
CH1
B+(12) - CH2 A+(12)
CH2
B+(12) - CH3 A+(12)
CH3
B+(12) - CH4 A+(12)
CH4
B+(12) - CH5 A+(12)
CH5
B+(12) - CH6 A+(12)
CH6
B+(12) - -
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
- CH1
A-
CH1
B- - CH2 A-
CH2
B- - CH3 A-
CH3
B- - CH4 A-
CH4
B- - CH5 A-
CH5
B- - CH6 A-
CH6
B- - -
FA-LTB40D63P6V24 (For 24V signal)
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
- CH1
A+(24)
CH1
B+(24) - CH2 A+(24)
CH2
B+(24) - CH3 A+(24)
CH3
B+(24) - CH4 A+(24)
CH4
B+(24) - CH5 A+(24)
CH5
B+(24) - CH6 A+(24)
CH6
B+(24) - -
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
- CH1
A-
CH1
B- - CH2 A-
CH2
B- - CH3 A-
CH3
B- - CH4 A-
CH4
B- - CH5 A-
CH5
B- - CH6 A-
CH6
B- - -
Input2
Control output Input4
Input1 Input3Control output
Control output Input1 Input2
Monitor Input1 Monitor Input2Control output
·Install the module in a location having a constant ambient temperature.
·Connect the thermocouple or compensation lead wire directly to the terminal block.
·The cold junction compensating resistor (RTD) is built into FA-TB20TC.
Input2
Control output Input4
Input1 Input3Control output
Control output Input1 Input2
MonitorInput1 MonitorInput2Control output
·Install the module in a location having a constant ambient temperature.
·Connect the thermocouple or compensation lead wire directly to the terminal block.
·The cold junction compensating resistor (RTD) is built into FA-TB20TC.
Input1 Input2 Input3 Input4 Input5 Input6
Input1 Input2 Input3 Input4 Input5 Input6
Input1 Input2 Input3 Input4 Input5 Input6

16
A+
A-
B+
Pulse input
+-
B-
+-
Phase A Phase B
4. USAGE PRECAUTIONS
(1) For wiring to the terminal block, refer to the manual of the programmable controller module to be
connected, published by Mitsubishi Electric Corporation.
(2) Ground the FG wire provided with the cable in the same manner as the programmable controller
module. Note that rolling up extra wire without grounding the wire may cause the wire to function
as an antenna, resulting in the risk of noise.
For Your Safety
This product has been manufactured as a general-purpose product for general industry
applications, etc. The product is not intended for use in devices or systems used under
conditions in which human life could be greatly affected.
When considering application of this product to special applications, such as nuclear power,
electrical power, aerospace, medical, or manned transport devices or systems, contact our
sales service desk.
Although this product was manufactured under a strict quality management system, the product
shall be systematically provided with backup and fail-safe functions when applied to equipment
that may lead to a major accident or damage in the unlikely event any failure or defect should
occur in the product.
MITSUBISHI ELECTRIC ENGINEERING CO., LTD.
1-13-5 Kudankita, Chiyoda-ku, Tokyo, Japan 102-0073
Homepage URL: http://www.mee.co.jp/
Direct any technical inquiries to:
Nagoya office (PC Engineering Dept.) Phone: [phone] Fax: [phone]
During product use, be sure to ensure safety in the unlikely event failure occurs. Mitsubishi Electric
Engineering assumes no responsibility whatsoever for any secondary damage caused by the failure of this
product.
50D-FB0035 (0906) MEE Information such as specifications is subject to change without notice.
Developed June 2009
