FX Series Micro Programmable Controller
F(F1, F1J, F2)→FX3 series Replacement Guidance

1
Forward
F(F 1 , F 1J , F 2 )→FX3 series Replacement Guidance
This document describes how to replace MELSEC F1, F1J, and F2series programmable
controllers with FX3 series programmable controllers.
The FX-20P-E-SET0 + FX-20P-E-FKIT are introduced as a conversion tool which can be
currently purchased.
This document describes the conversion operation for the FX-20P-E, however, make sure
to refer the operation manual included in the tool used.
For the reference manual, refer to Appendix 2.
2022 MITSUBISHI ELECTRIC CORPORATION
This manual confers no industrial property rights or any rights of any other kind, nor does it confer
any patent licenses.
Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial
property rights which may occur as a result of using the contents noted in this manual.

2
Regarding use of this product
• This product has been manufactured as a general-purpose part for general industries, and
has not been designed or manufactured to be incorporated in a device or system used in
purposes related to human life.
• Before using the product for special purposes such as nuclear power, electric power, aero-
space, medicine or passenger movement vehicles, please contact Mitsubishi Electric sales
office.
• This product has been manufactured under strict quality control. However when installing
the product where major accidents or losses could occur if the product fails, install appropri-
ate backup or failsafe functions into the system.
• When combining this product with other products, please confirm the standard and the
code, or regulations with which the user should follow. Moreover, please confirm the com-
patibility of this product to the system, machine, and apparatus with which a user is using.
Note
• If in doubt at any stage during the installation of the product, always consult a professional
electrical engineer who is qualified and trained to the local and national standards. If in doubt
about the operation or use, please contact your local Mitsubishi Electric representative.
• Mitsubishi Electric will not accept responsibility for actual use of the product based on these
illustrative examples. Please use it after confirming the function and safety of the equipment
and system.
• The content, specification etc. of this manual may be changed, for improvement, without
notice.
• The information in this manual has been carefully checked and is believed to be accurate;
however, if you notice a doubtful point, an error, etc., please contact your local Mitsubishi
Electric representative.
When doing so, please provide the manual number given at the end of this manual.
TRADEMARKS
•Microsoft
and Windowsare either registered trademarks or trademarks of Microsoft Cor-
poration in the United States and/or other countries.
• All other company names and product names used in this manual are either trademarks or
registered trademarks of their respective companies.

Table of Contents
3
ABBREVIATIONS, GENERIC TERMS, AND TERMINOLOGIES USED IN THIS MANUAL ... 4
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES .... 6
1.1 Discontinued Models and Alternative Models ..................................................................... 6
1.2 External Dimensions ......................................................................................................... 11
1.3 Program Conversion Overview ......................................................................................... 13
1.4
List of Program Conversion Tool and Software to Convert the F series (F 1 , F 1J , and F 2 ) to the FX3 Series ... 13
1.5 Connecting with Programmable Controllers ..................................................................... 14
1.5.1 Connecting FX-20P-E and programmable controllers .............................................................. 14
2. OVERVIEW OF PROGRAM CONVERSION USING FX-20P-E ........................ 15
2.1 Program Conversion Procedure ....................................................................................... 15
2.2 Items to Prepare ............................................................................................................... 15
2.3 Program Conversion Operation ........................................................................................ 16
2.3.1 Turning on FX-20P-E + FX-20P-E-FKIT ................................................................................... 16
2.3.2 Reading the program to be converted from F1, F1J, and F2programmable controllers ........... 17
2.3.3 Converting programs ................................................................................................................ 18
2.3.4 Writing programs into FX3 series programmable controllers .................................................... 19
2.4 Editing Programs .............................................................................................................. 22
3. CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION ..... 23
3.1 Precautions When Converting Programs .......................................................................... 23
3.2 Device Conversion ............................................................................................................ 24
3.2.1 Input relay (X) and output relay (Y) ........................................................................................... 24
3.2.2 Auxiliary relay (M) [Excluding special auxiliary relay (M)] ......................................................... 25
3.2.3 Timer (T) ................................................................................................................................... 25
3.2.4 Counter (C) ............................................................................................................................... 26
3.2.5 State (S) .................................................................................................................................... 26
3.2.6 Special device (special auxiliary relay (M)) ............................................................................... 26
3.3 Converting Basic Instructions ........................................................................................... 28
3.3.1 Converting basic instructions .................................................................................................... 28
3.3.2 Additional information on converting master control instructions .............................................. 30
3.3.3 Additional information on converting shift instructions .............................................................. 32
3.3.4 Additional information on converting jump instructions ............................................................. 33
3.4 Converting Application Instructions ................................................................................... 34
Appendix 1. Discontinued Models [Programmable Controller] ............................... 41
Appendix 2. Relevant Manuals .............................................................................. 43
Appendix 3. Frequently Asked Questions .............................................................. 44
REVISIONS ............................................................................................................ 50

4
ABBREVIATIONS, GENERIC TERMS, AND TERMINOLOGIES USED IN THIS MANUAL
ABBREVIATIONS, GENERIC TERMS, AND TERMINOLOGIES
USED IN THIS MANUAL
The following table lists the abbreviations, generic terms, and terminologies used in this manual.
Abbreviation and
generic term Name
Programmable controller
F1/F2programmable
controller Generic term for F1, F1J, and F2series programmable controllers
F1programmable con-
troller Generic term for F1series programmable controller
F1J programmable con-
troller Generic term for F1J series programmable controller
F2programmable con-
troller Generic term for F2series programmable controller
F2/2K programmable
controller
Generic term for F2series programmable controller, which has a program
memory of 2k steps
FX programmable con-
trollers or FXCPU
Generic term for FX0, FX0S, FX1S, FX0N, FX1N, FX1, FX3G, FX2(FX), FX2C,
FX2N, FX3U, FX1NC, FX2NC, and FX3UC series programmable controllers
FX3 series Generic term for FX3G, FX3U, and FX3UC series programmable controllers
FX3U series Generic term for FX3U series programmable controller
FX3UC series Generic term for FX3UC series programmable controller
FX2N series Generic term for FX2N series programmable controller
FX2NC series Generic term for FX2NC series programmable controller
FX1N series Generic term for FX1N series programmable controller
FX1NC series Generic term for FX1NC series programmable controller
FX1S series Generic term for FX1S series programmable controller
FX2(FX) series Generic term for FX2(FX) series programmable controller
FX2C series Generic term for FX2C series programmable controller
FX1series Generic term for FX1series programmable controller
FX0N series Generic term for FX0N series programmable controller
FX0series Generic term for FX0series programmable controller
FX0S series Generic term for FX0S series programmable controller
Expansion board
Expansion board or
communication board Generic term for expansion board
232BD FX3U-232-BD, FX3G-232-BD
422BD FX3U-422-BD, FX3G-422-BD
485BD FX3U-485-BD, FX3G-485-BD
USBBD FX3U-USB-BD
Special adapter connec-
tion board or connector
conversion board
Generic term for CNVBD
CNVBD FX3U-CNV-BD, FX3G-CNV-ADP

5
ABBREVIATIONS, GENERIC TERMS, AND TERMINOLOGIES USED IN THIS MANUAL
Special adapter
Communication special
adapter or communica-
tion adapter
Generic term for communication special adapter
232ADP FX3U-232ADP
485ADP FX3U-485ADP
Program conversion tool and software
FX-20P-E Generic term for handy programming panel "FX-20P-E-SET0"
FX-20P-E-FKIT Generic term for the conversion module to connect the F series (F1, F1J, and
F2) to FX-20P-E
GX Works2 Generic term for programming software
Abbreviation and
generic term Name

6
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
1. OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J,
AND F2) TO FX3 SERIES
FX-20P-E is a program conversion tool, but before considering program conversion, check the pro-
gramming tool on hand, the availability of the target program data, and the saved data format (cre-
ation tool).
For details on how to operate programming tools and program conversion tools (software), refer to
the relevant manual.
For information on the production discontinuation period of programmable controllers, refer to
Appendix 1.
1.1 Discontinued Models and Alternative Models
This section introduces discontinued models and recommended alternative models.
The alternative models introduced in this manual are standard models in terms of the number of
I/O points, program capacity, product, and I/O terminal shape (such as terminal block and connec-
tor), but other models may be more suitable depending on the application and operating condition.
Refer to [Precautions] below and consider the appropriate alternative model that suits your needs.
[Precautions]
(1) The recommended alternative models described in the table below are alternative products for
single models that correspond to models to be discontinued.
Depending on the usage status of the model to be discontinued and the system configuration
(usage statuses of the extension module and extension block), other models or series may be
suitable as an alternative.
(2) If few I/O points are actually used in a model to be discontinued, it may be possible to use an
alternative model with less I/O points than the model listed in the recommended alternative
model column.
The recommended alternative model for extension blocks and modules, built-in boards and
batteries, and other parts can be connected to the main module of the FX3 series. However,
they cannot be connected to the main module of discontinued models.
(3) Items that require particular attention when replacing models are described in the special note
column.
Many of the recommended alternative models have different specifications that are not
described in the "Special note" column, such as having a smaller dimension than the models to
be discontinued, so check the details of the dimensions, power supply, and other specifications
in the manuals, in addition to the "Special note" column, when considering the use of a recom-
mended alternative model. (especially when using the relay output type).
(4) If there is no alternative model to recommend due to the description in note 1 above, "No alter-
native model" will be written.
However, an existing product can be used as an alternative, depending on the application and
system configuration.
Check the functions and features needed and consider using an existing product as an alterna-
tive.

7
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
F1series (1/2)
F1series (2/2)
Discontinued model Recommended alternative
model Special note
Device name Model Model
Main module F1-12MR FX3G-14MR/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
14MR.
Main module F1-20MR FX3G-24MR/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
20MR.
Main module F1-30MR FX3G-40MR/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
30MR.
Main module F1-40MR FX3G-40MR/ES
Main module F1-60MR FX3G-60MR/ES
Main module F1-12MT FX3G-14MT/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
14MT.
Main module F1-20MT FX3G-24MT/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
20MT.
Main module F1-30MT FX3G-40MT/ES
When the main module is used as a
standalone, it can be replaced with FX1S-
30MT.
Main module F1-40MT FX3G-40MT/ES
Main module F1-60MT FX3G-60MT/ES
Discontinued model Recommended alternative
model Special note
Device name Model Model
Extension module F1-10ER FX2N-8EX + FX2N-8EYR
Extension module F1-20ER FX2N-16EX + FX2N-8EYR Pay attention to the power capacity if
there are many extension blocks.
Extension module F1-40ER FX2N-48ER
Extension module F1-60ER FX2N-48ER + FX2N-16EX
Extension module F1-10ET FX2N-8EX + FX2N-8EYT
Extension module F2-8EYR FX2N-8EYR
Extension module F2-12EX FX2N-16EX
Extension module F1-20ET FX2N-16EX + FX2N-8EYT Pay attention to the power capacity if
there are many extension blocks.
Extension module F1-40ET FX2N-48ET
Extension module F1-60ET FX2N-48ET + FX2N-16EX

8
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
F1J series
F2series (1/3)
F2series (2/3)
Discontinued model Recommended
alternative model Special note
Device name Model Model
Main module F1J-12MR FX3G-14MR/ES
Consider FX3G as an alternative
model if shape compatibility does
not need to be maintained.
Main module F1J-32MR FX3G-40MR/ES
Main module F1J-60MR FX3G-60MR/ES
Main module F1J-80MR FX3G-60MR/ES +
FX2N-32ER
Extension module F1J-10ER FX2N-8EX + FX2N-8EYR
Extension module F1J-20ER FX2N-16EX +
FX2N-16EYR
Output module F1J-Y4R FX2N-8EYR
Output module F1J-Y4T FX2N-8EYT
Output module F1J-Y4S FX2N-16EYS
Analog timer F1J-4T FX3G-8AV-BD The program needs to be
changed.
Discontinued model Recommended
alternative model Special note
Device name Model Model
Main module F2-20MR FX3U-32MR/ES
When the main module is used as
a standalone, it can be replaced
with FX1S-20MR.
Main module F2-20MS FX3U-32MS/ES
Main module F2-20MT FX3U-32MT/ES
When the main module is used as
a standalone, it can be replaced
with FX1S-20MT.
Main module F2-40MR FX3U-48MR/ES
Main module F2-40MS FX3U-64MS/ES
Main module F2-40MT FX3U-48MT/ES
Discontinued model Recommended
alternative model Special note
Device name Model Model
Main module F2-60MR FX3U-48MR/ES +
FX2N-16EX
Main module F2-60MS FX3U-64MS/ES +
FX2N-8EX
Main module F2-60MT FX3U-48MT/ES +
FX2N-16EX
Main module
(24VDC power supply) F2-20MR-D FX3U-32MR/DS
When the main module is used as
a standalone, it can be replaced
with FX1S-20MR-D.
Main module
(24VDC power supply) F2-40MR-D FX3U-48MR/DS

9
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
Main module
(24VDC power supply) F2-60MR-D FX3U-48MR/DS + FX2N-16EX
Main module
(100VAC input) F2-20MR-A1 FX3U-32MR/UA1
Main module
(100VAC input) F2-20MS-A1 No alternative model
Main module
(100VAC input) F2-40MR-A1 FX3U-64MR/UA1
Main module
(100VAC input) F2-40MS-A1 No alternative model
Main module
(100VAC input) F2-60MR-A1 FX3U-64MR/UA1 +
FX2N-8EX-UA1/UL
Main module
(100VAC input) F2-60MS-A1 No alternative model
Main module
(200VAC input) F2-20MR-A2 No alternative model
Main module
(200VAC input) F2-20MS-A2 No alternative model
Main module
(200VAC input) F2-40MR-A2 No alternative model
Main module
(200VAC input) F2-40MS-A2 No alternative model
Main module
(200VAC input) F2-60MR-A2 No alternative model
Main module
(200VAC input) F2-60MS-A2 No alternative model
Extension module F2-20ER FX2N-16EX +
FX2N-8EYR
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module F2-20ES FX2N-16EX +
FX2N-16EYS
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module F2-20ET FX2N-16EX +
FX2N-8EYT
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module F2-40ER FX2N-48ER
Extension module F2-40ES FX2N-32ES + FX2N-8EX
Extension module F2-40ET FX2N-48ET
Extension module F2-60ER FX2N-48ER +
FX2N-16EX
Extension module F2-60ES 2 FX2N-32ES +
FX2N-8EX
Extension module F2-60ET FX2N-48ET +
FX2N-16EX
Extension module F2-8EYR FX2N-8EYR
Extension module F2-12EX FX2N-16EX
Extension module
(24VDC power supply) F2-20ER-D FX2N-16EX +
FX2N-8EYR
Pay attention to the power capac-
ity if there are many extension
blocks.
Discontinued model Recommended
alternative model Special note
Device name Model Model

10
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
F2series (3/3)
Discontinued model Recommended
alternative model Special note
Device name Model Model
Extension module
(24VDC power supply) F2-40ER-D FX2N-48ER-D
Extension module
(24VDC power supply) F2-60ER-D FX2N-48ER-D +
FX2N-16EX
Extension module
(100VAC input) F2-20ER-A1 2 FX2N-8EX-UA1/UL +
FX2N-8EYR
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module
(100VAC input) F2-20ES-A1 2 FX2N-8EX-UA1/UL +
FX2N-16EYS
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module
(100VAC input) F2-40ER-A1 FX2N-48ER-UA1/UL
Extension module
(100VAC input) F2-40ES-A1 3 FX2N-8EX-UA1/UL +
FX2N-16EYS
Pay attention to the power capac-
ity if there are many extension
blocks.
Extension module
(100VAC input) F2-60ER-A1 FX2N-48ER-UA1/UL +
2 FX2N-8EX-UA1/UL
Extension module
(100VAC input) F2-60ES-A1
5 FX2N-8EX-UA1/UL +
2 FX2N-16EYS +
FX3U-1PSU-5V
An extension power supply mod-
ule is needed for this combination.
Extension module
(200VAC input) F2-20ER-A2 No alternative model
Extension module
(200VAC input) F2-20ES-A2 No alternative model
Extension module
(200VAC input) F2-40ER-A2 No alternative model
Extension module
(200VAC input) F2-40ES-A2 No alternative model
Extension module
(200VAC input) F2-60ER-A2 No alternative model
Extension module
(200VAC input) F2-60ES-A2 No alternative model
Interface adapter for links
(wire) F2-40AW FX3U-485ADP
An expansion board is needed to
connect to the main module of the
FX3U series.
Interface adapter for links
(optical fiber) F2-40AP No alternative model
Interface adapter for
high-speed counters F2-40AC No alternative model Consider using the built-in high-
speed counters of the FX series.
Interface adapter for
high-speed counters F2-40AC2 No alternative model Consider using the built-in high-
speed counters of the FX series.
Pulse output module
(positioning control) F2-30GM FX2N-10GM The program needs to be changed
by FX-PCS-VPS/WIN.
Analog I/O module F2-6A FX3U-4AD + FX3U-4DA
Programmable cam
switch
F 2 -32RM-SET FX2N-1RM-SET
Data I/O module
F 2 -40DT-SET No alternative model Consider the application instruc-
tions of the FX series.
Counter module for posi-
tioning F-20CM-5 No alternative model

11
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES

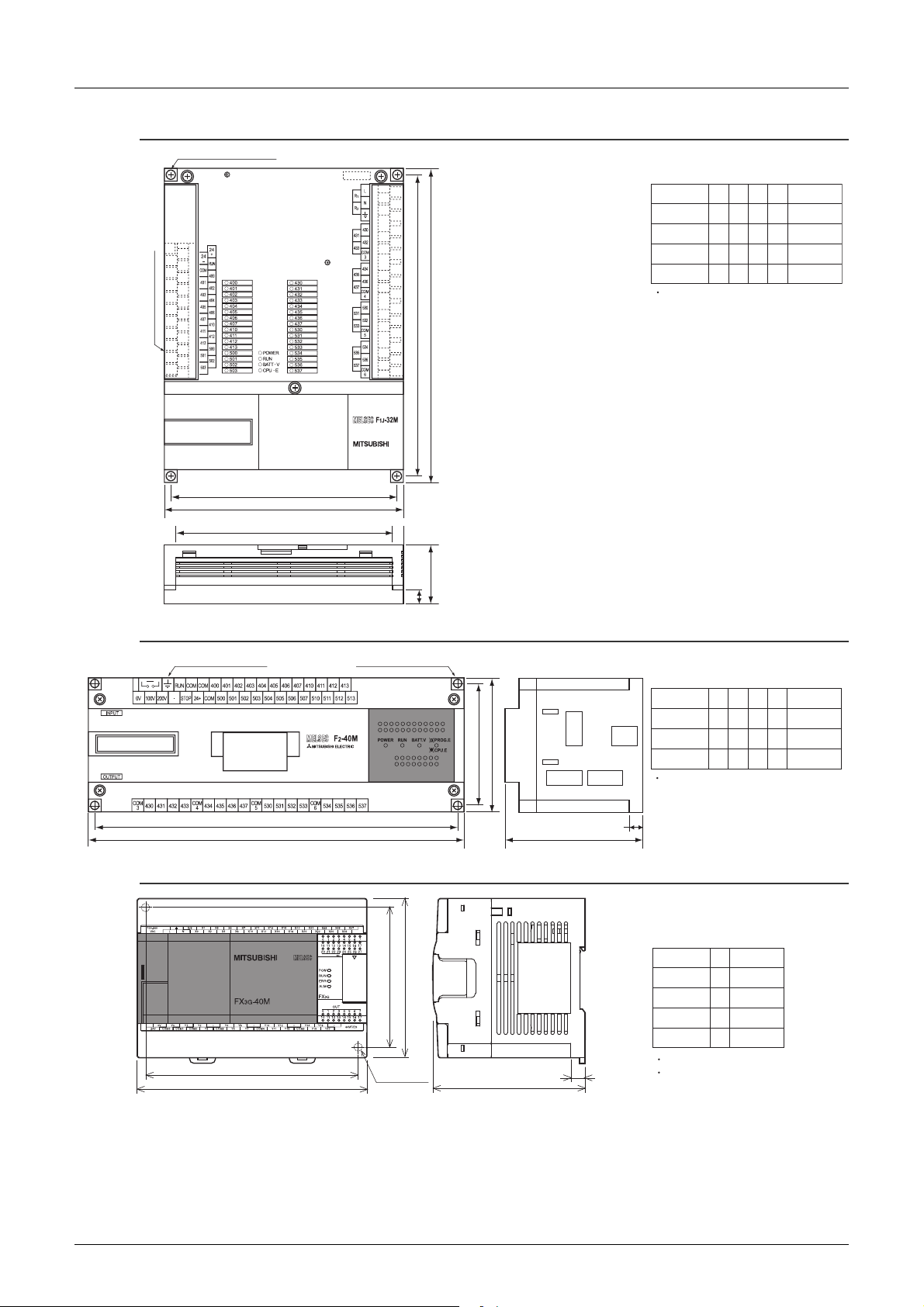

1.2 External Dimensions
This section shows the external dimensions of main modules when converting the F series (F1,
F1J, and F2) to the FX3 series.
Compatibility is not an issue for the external dimension, installation method, terminal position, ter-
minal size, and terminal number, so reconsider the installation and wiring methods for the modules
again. For information on extension devices, refer to the manual of each device.
■Main module of the F1series
For NET/MINI optical
fiber F-16NP No alternative model Consider a system that has used CC-Link.
For NET/MINI twisted
pair F-16NT No alternative model Consider a system that has used CC-Link.
Four-point analog timer
measuring 0.1 to 600
seconds
F-4T No alternative model
Discontinued model Recommended
alternative model Special note
Device name Model Model
400
4-Φ5 (mounting hole)
M3.5 (terminal screw)
V1
V
W1
W
90 (100 if 40M or higher)
57 11
F 1 -10M
F
1 -12M
F
1 -20M
F
1 -30M
F
1 -40M
F
1 -60M
165
275
300
350
165
250
155
265
290
340
155
240
90
90
110
140
90
90
70
70
100
125
70
70
1.2
1.9
2.3
3.5
1.2
1.5
External color: Munsell 5Y7/1
Model
Weight (kg)
WW1V V1
Unit: mm
M3.5 terminal screw for the terminal block

12
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
■Main module of the F1J series
■Main module of the F2series
■Main module of the FX3G series
FUSE
4-Φ5.5 (mounting hole)
47
11 V1
V
W1
170
W
M3.5 (terminal screw)
F1J-12M
F1J-32M
F1J-60M
F1J-80M
190
280
180
210
180
270
170
200
250
330
170
330
240
320
160
320
1.2
2.2
1.2
1.8
External color: Munsell 5Y7/1
Model
Weight (kg)
WW1V V1
Unit: mm
M3.5 terminal screw for the terminal block
400 500
M3.5 (terminal screw) 4-Φ5 (mounting hole)
V1
V
W1
W
110 (90 if 20M)
11
F 2 -20M
F
2 -40M
F
2 -60M
300
250
350
290
240
335
110
90
140
100
70
125
2.7
1.6
3.5
External color: Munsell 5Y7/1
Model
Weight (kg)
WW1V V1
Unit: mm
M3.5 terminal screw for the terminal block
W86
8
90
W-8 (mounting hole pitch) 2-Φ4.5
Mounting hole
82 (mounting hole pitch)
FX 3G -24M
FX
3G -60M
FX
3G -14M
FX
3G -40M
90
175
90
130
0.55
0.85
0.50
0.70
External color: Munsell 0.08GY/7.64/0.81
Model
Weight (kg)
W
Unit: mm
Top cover: Munsell N1.5
M3 terminal screw for the terminal block
35-mm-wide DIN rail mountable

13
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES

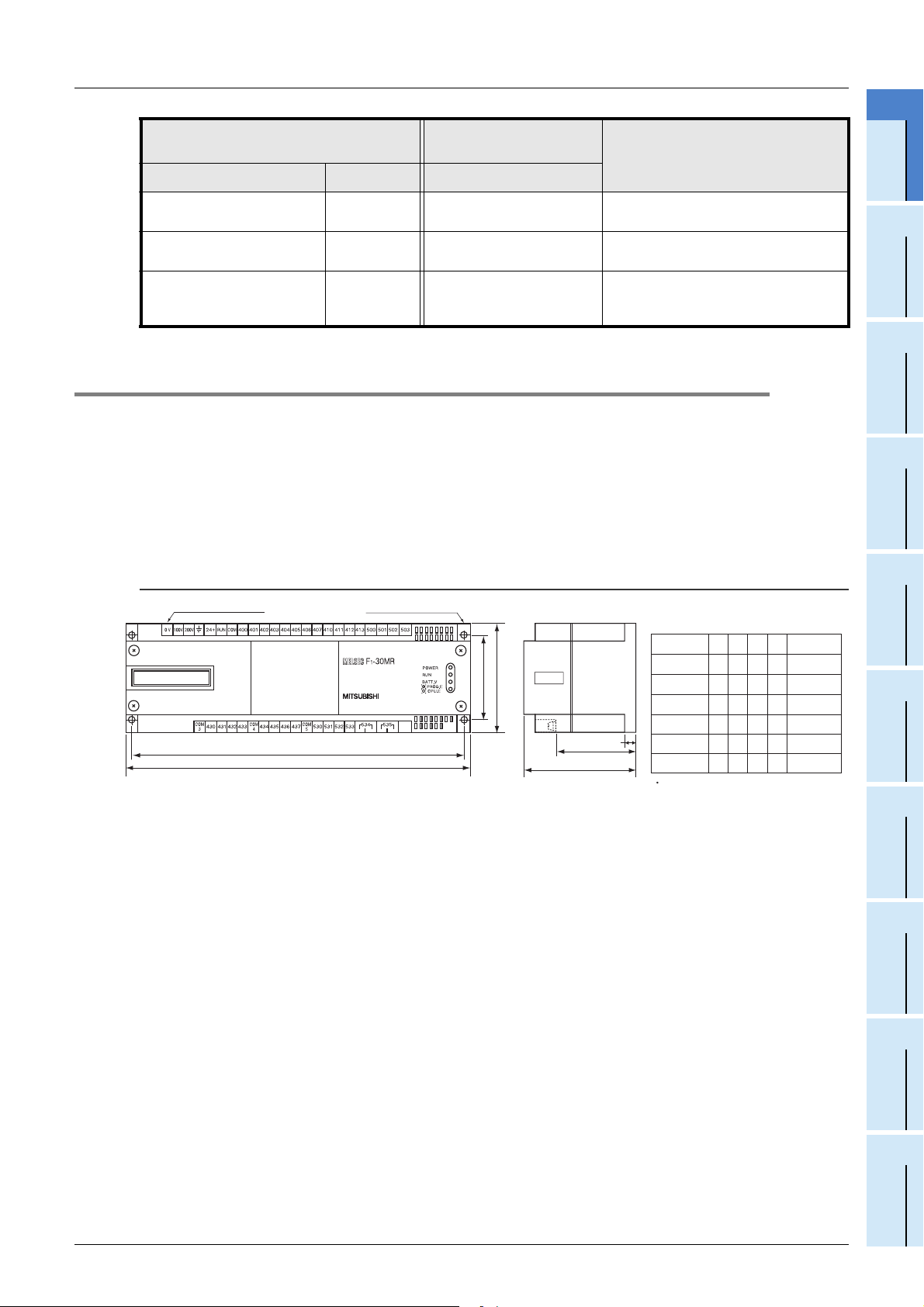

■Main module of the FX3U series
1.3 Program Conversion Overview
Converting programs from the F to FX3 series involves changing the models for the instructions
and element numbers in the basic instructions common to F and FX.
Unconvertible application instructions need to be modified using the programming tool for the FX3
series.
For information on program conversion rules, refer to Chapter 3.
For information on each programming and the operation and functions of program conversion
tools, refer to the manual for the relevant tool.
1.4 List of Program Conversion Tool and Software to Convert the F series (F1,
F1J, and F2) to the FX3 Series
The following table shows how FX-20P-E(SET0) + FX-20P-E-FKIT can be used as a tool for pro-
gram conversion.
The computer software is used to perform debug after conversion.
For information on the production discontinuation period of programmable controllers, refer to
Appendix 1.
*1 For information on the supported programmable controller version, refer to the FX-30P Operation Manual.
*2 For information on the operating environment of GX Works2, refer to the GX Works2 Operating Manual.
Tool for program
conversion
Program save destination and
creation tool for F1, F1J, and F2
programmable controllers before
conversion
Program save destination and
modification tool for FX3 series
programmable controllers after
conversion Reference
Save destination Program
tool Save destination Program tool
HPP FX-20P-E(SET0) +
FX-20P-E-FKIT
Program memory
(built-in RAM and
memory cassette) of
F1, F1J, and F2pro-
grammable control-
lers
-
Program memory
(built-in RAM and
memory cassette) of
FX3 series program-
mable controllers
FX-30P*1 Chapter 2
Computer GX Works2*2 -- In the computer GX
Works2*2 Chapter 3
2-Φ4.5 mounting hole (16M and 32M)
W
W1
4-Φ4.5 mounting hole (48M to 128M)
16M and 32M have no * mounting hole.
86 (when installing FX3U-7DM: 88.5)
80 (mounting pitch)
90
59
FX 3U -32M
FX
3U -64M
FX
3U -16M
FX
3U -48M
150
220
130
182
0.65
1.00
0.60
0.85
FX
3U -80M
285 1.20
FX3U-128M
350 1.80
External color: Munsell 0.08GY/7.64/0.81
Model
Weight (kg)
W
123
193
103
155
258
323
W1
Unit: mm
Top cover: Munsell N1.5
M3 terminal screw for the terminal block
35-mm-wide DIN rail mountable

14
1. OVERVIEW OF TRANSITION FROM F SERIES (F 1 , F 1J , AND F 2 ) TO FX3 SERIES
1.5 Connecting with Programmable Controllers
Before connecting to a programming tool, refer to the safety precautions written in the manual of
the programmable controller.
1.5.1 Connecting FX-20P-E and programmable controllers
(1) Connecting with F1, F1J, and F2programmable controllers
*1 FX-20P-FIM and FX-20P-MFA-E are included in FX-20P-E-FKIT.
(2) Connecting with FX3G, FX3U, and FX3UC programmable controllers
*2 FX-20P-CAB0 and FX-20P-MFX are included in FX-20P-E-SET0.
503502501500413412411410407406405404403402401400 COM RUN 24+ 200V100V0 V
COM
3
430
COM
4
COM
5
431 432 433 434 435 436 437 530 531 532 533 534 535
POWER
RUN
BATT.V
PROG.E
CPU.E
F1-30MR
F1, F1J, and F2programmable controllers
(The image shows an F 1 programmable controller.)
FX-20P-FIM FX-20P-FIM
Interface module
FX-20P-FIM*1
System memory cassette
FX-20P-MFA-E*1
Handy programming panel
FX-20P-E-SET0
FX-20P-E-FKIT
FX3G, FX3U, and FX3UC programmable controllers
(The image shows an FX3U programmable controller.)
FX-20P-CAB0
*2
FX-20P-MFX□
*2
FX-20P-E-SET0
Connection cable
System memory cassette
FX-20P-E

2. OVERVIEW OF PROGRAM CONVERSION USING FX-20P-E
15
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
2. OVERVIEW OF PROGRAM CONVERSION USING FX-
20P-E
2.1 Program Conversion Procedure
2.2 Items to Prepare
Prepare the following items to use FX-20P-E to convert programs of F1, F1J, F2programmable
controllers to programs for FX3 series programmable controllers. For details on the connection
configuration with programmable controllers, refer to Chapter 1.5.1.
•TheF
1, F1J or F2programmable controller containing the program to be converted
• Paper describing the program to be converted
There are instructions that cannot be converted by the FX-20P-E-FKIT program conversion
function. The paper is needed to modify the program after executing the program conversion
function.
• The FX3 series programmable controller to store the converted program
• FX-20P-E (-SET0)
• FX-20P-E-FKIT
FX-20P-E-FKIT consists of FX-20P-FIM and FX-20P-MFA-E.
• Programming tools GX Works2 or FX-30P, which are compatible with the FX3 series, can be
used to check or modify the converted program.
• Programming tool and programmable controller manual
· Turn on FX-20P-E + FX-20P-E-FKIT.
(Refer to Chapter 2.3.1.)
· Read the program to be converted from F1, F1J,
and F2programmable controllers.
(Refer to Chapter 2.3.2.)
Converting programs
Writing programs into the FX3 series
Checking and modifying the program,
and performing an operation check
Preparing for program conversion
· Convert the target program for the FX series.
(Refer to Chapter 2.3.3.)
For information on program conversion rules,
refer to Chapter 3.
·
Write the converted program into the FX3 series.
(Refer to Chapter 2.3.4.)
· Check and modify the converted program, and
perform an operation check.
(Refer to Section 2.4.)

16
2. OVERVIEW OF PROGRAM CONVERSION USING FX-20P-E
2.3 Program Conversion Operation
2.3.1 Turning on FX-20P-E + FX-20P-E-FKIT
This section describes the steps to attach FX-20P-FIM and FX-20P-MFA-E onto FX-20P-E and
launch it.
■CAUTION
Do not touch the connecting part for the programmable controller of FX-20P-E, the special module,
the connecting part for the memory cassette, and the connecting part for FX-20P-E of the system
memory cassette. The internal electric circuit may become faulty due to static electricity. Turn off
the power of the programmable controller before connecting FX-20P-E to it.
(1) Attach FX-20P-FIM to FX-20P-E.
(a) Remove the cover from the special module connection part at the top of FX-20P-E.
(b) Connect FX-20P-FIM.
(c) Secure FX-20P-FIM onto FX-20P-E with a screw.
(2) Replace the system memory cassette of FX-20P-E for the FX series with FX-20P-MFA-E (sys-
tem memory cassette for the MELSEC-F series).
(a) Push down the anti-slip of the system memory cassette from
the back of FX-20P-E.
(b) Once there is a gap of approx. 1mm between the
system memory cassette and FX-20P-E, pull out
the system memory cassette in the direction indi-
cated by the arrow.
(c) Connect (attach) FX-20P-MFA-E.
■CAUTION
Do not touch the connecting part of the system memory
cassette and FX-20P-E.
FX-20P-FIM
Locking screw
FX-20P-FIM
FX-20P-E
Module connector

2. OVERVIEW OF PROGRAM CONVERSION USING FX-20P-E
17
1
OVERVIEW OF TRANSITION FROM F SERIES (F1, F1J, AND F2) TO FX3 SERIES
2
OVERVIEW OF PRO- GRAM CONVERSION USING FX-20P-E
3
CONVERSION RULES FOR THE PROGRAM CONVERSION FUNCTION
A1
Discontinued Models [Program- mable Controller]
A2
Relevant Manuals
A3
Frequently Asked Ques- tions
(3) With the power of the programmable controller turned off, connect FX-20P-FIM to the target
programmable controller (F1, F1J, or F2).
(4) Turn on the programmable controller (F1, F1J, or F2) to display the
"SELECT PC TYPE" window.
(5) On the "SELECT PC TYPE" window, use the [↑] and [↓] keys to select
the target programmable controller model and press the [GO] key.
The window shown on the right is displayed.
The window on the right is displayed when "F2/2K" is selected.
■About the display of cursor for selecting models at startup
If the program is already stored in the RAM memory of FX-20P-E, the
cursor is displayed on the relevant model.
If a different model is selected, the window on the right is displayed.
Press the [GO] key to delete the program stored in the RAM memory
of FX-20P-E. A "SELECT MODE" message is displayed. To check the
content, press the [CLEAR] key.
For information on how to display programs, refer to the FX-20P-E-FKIT Operation Manual.
2.3.2 Reading the program to be converted from F1, F1J, and F2programmable controllers
FX-20P-E-FKIT reads and creates programs offline. Thus, it is necessary to read the program from
the target programmable controller in the RAM memory of FX-20P-E using the following steps. This
section describes the operation to read programs from the target programmable controller (F1, F1J,
or F2).
(1) Press the [OTHER] key to display the "MODE MENU" window.
(2) On the "MODE MENU" window, use the [↑] and [↓] keys to select
"2.HPP↔PC" and press the [GO] key. The "2.HPP↔PC" window is
displayed.
FX-20P-FIM
FX-20P-E
FX-20P-FIM
F1, F1J, and F2
programmable controllers
FX-20P-FIM
Connector to connect to
a programmable controller
Connector cover
SELECT PC TYPE
F2, F1
F2/2K
F2/2K
STEPS LEFT 1024
SELECT MODE
PC TYPE MISMATCH
HPP ALL CLEAR?
OK [GO]
NO [CLEAR]
MODE MENU
1.
PROGRAM CHECK
2. HPP PC
3. F FX CONVERT
4. BUZZER LEVEL
2. HPP PC
HPP
PC
HPP
PC
HPP : PC

18
2. OVERVIEW OF PROGRAM CONVERSION USING FX-20P-E
(3) On the "2.HPP↔PC" window, use the [↑] and [↓] keys to select
"HPP←PC" and press the [GO] key. The window shown on the right is
displayed.
CAUTION
The display and creation of programs using FX-20P-E + FX-20P-E-
FKIT are done offline.
Always read the program from the programmable controller first before converting it.
When converting F programs to FX programs, they are not written to F1, F1J, and F2program-
mable controllers.
(4) Press the [GO] key to read (transfer) programs. A message stating "EXECUTING" is dis-
played.
Once the program has been read, the message changes to "COMPLETED".
An error message is displayed if the program cannot be read successfully.
For information on how to resolve error messages, refer to the FX-20P-E-FKIT Operation Man-
ual.
2.3.3 Converting programs
This section describes the operation to convert programs from the target programmable controller
that was read in FX-20P-E (F1, F1J, or F2) to programs for FX3 series programmable controllers.
For information on program conversion rules, refer to Chapter 3.
■Important points
To convert programs used with a capacity of 2000 steps ("F2/2K" selected as the model) in an F2
programmable controller, read the programs from the F2programmable controller and change the
following programs first.
For information on how to change programs, refer to the FX-20P-E-FKIT Operation Manual.
• Program modification details
Add (write) an END instruction to the end of the program (last step of 1999).
(1) Press the [OTHER] key to display the "MODE MENU" window.
(2) On the "MODE MENU" window, use the [↑]
and [↓] keys to select "3.F→FX CONVERT"
and press the [GO] key. The "OLD SYSTEM"
window shown on the right is displayed
according to the model selected during sys-
tem startup.
2. HPP PC
HPP PC
OK [GO]
NO [CLEAR]
MODE MENU
1.
PROGRAM CHECK
2. HPP PC
3. F FX CONVERT
4. BUZZER LEVEL
*OLD SYSTEM*
1. F1-60M
2. F1-40M
3. F1-30M
4. F1-20M
5. F1-12M
6. F2-60M
7. F2-40M
8. F2-20M
9. DEFAULT
When F1/F2 is selected
for PC type
*OLD SYSTEM*
1. F2-60M
2. F2-40M
3. DEFAULT
When F2/2K is selected
for PC type
