Mitsubishi Electric LGH-F300RVX2-E User manual

Eng-1
English
MODELS:
Contents
1. Safety precautions...........................................1
2. Outline drawings..............................................3
3. Standard installation examples........................4
4. Installation method ..........................................4
5. Function settings ...........................................14
6. Check points after installation work...............28
7. Trial operation................................................29
Lossnay Energy Recovery Ventilator
LGH-F300RVX2-E, LGH-F380RVX2-E, LGH-F470RVX2-E,
LGH-F600RVX2-E, LGH-F940RVX2-E, LGH-F1200RVX2-E
Installation Instructions (For use by dealer/contractor)
Models LGH-F300 to F600RVX2-E Models LGH-F940 and F1200RVX2-E
This product needs to be installed properly in order to ensure maximum functionality as well as safety.
Please make sure to read this installation manual before starting the installation.
lInstallation must be performed by a dealer or installation contractor. Please note that improper installation may cause malfunction or accident.
“Operating Instructions” and this manual must be handed over to the customer after completing the installation.
1. Safety precautions
The following signs indicate that death or serious injury may be caused by failure to heed the precautions described below.
WARNING
Do not modify or disassemble.
(It could cause re, electric shock or injury.)
Do not
disassemble
Prohibition of use in
bath or shower room
Connect the
grounding wire.
The instructions
given must be
followed.
The instructions
given must be
followed.
The Lossnay unit and remote controller should not be
installed where it is highly humid, like a bathroom, or
other wet place.
(It could cause electric shock or power leakage.)
Connect the product properly to ground.
(Malfunctioning or power leaks can cause electrical shock.)
Wiring work must be performed by qualied
professionals, and be implemented safely and securely
in accordance with the engineering standards and the
extension wiring rules for electrical equipment.
(Poor connection or improper wiring work could cause
electric shock or re.)
Install a power supply isolator at the power supply
side as per local electrical regulations. All supply
circuits must be disconnected before obtaining
access to the terminal devices. Use the specied
cable size and connect the cables securely to prevent
disconnection when they are pulled.
(If there is a defect in the connection, there is a possibility
of re.)
Select an adequate place for the opening to introduce
outdoor air, where it will not intake the exhaust fumes
like combustion gas, or others, and there is no risk of
blockage.
(Shortage of fresh air could put the room in a state of
oxygen deciency.)
A duct made of steel must be installed with care not
to be connected electrically with metal, wire, stainless
steel plate, or others.
(It could cause re when power leakage occurs.)
Not suitable for use with solid-state speed controls.
Use the specied power supply and voltage.
(Use of incorrect power supply or voltage could cause re
or electric shock.)
Select a place with su󰀩cient strength and install the
main unit securely.
(It could cause injury if it falls.)
2109876H66103

Eng-2
Prohibited
CAUTION
Do not place a burning appliance in a place where it is
exposed directly to the air from the Lossnay unit.
(It could cause an accident as a result of incomplete combustion.)
Do not use at a place where it is exposed to high
temperatures (104 ˚F (40 ˚C) or higher), naked ames,
or in environment with combustible fumes.
(It could cause re.)
Do not use in an environment such as a chemical
factory, where hazardous gases such as acidic gases,
alkaline gases, organic solvent fumes, paint fumes, or
gases containing corrosive components are generated.
(It could malfunction.)
Do not install this product in a place where it is
exposed to ultraviolet light.
(UV may damage covering insulation.)
Do not install in a cooking area or connect directly to
any appliance.
Put on gloves during installation.
(It could cause injury.)
Make sure the power supply isolator is turned o󰀨 on
the power distribution panel when Lossnay is not
used for a long period of time after the installation.
(It could cause electric shock, power leakage, or re as a
result of deteriorated insulation.)
The instructions
given must be
followed.
The instructions
given must be
followed.
1. Safety precautions (continued)
CAUTION
lWhen using the product where it is exposed to high temperatures
and humidity (104 ˚F (40 ˚C) or higher, RH 80% or higher), or where
fog occurs frequently, moisture is likely to condense in the core,
and may result in condensation build up in the unit. The product
should not be used under such conditions.
lOutdoor air may enter the Lossnay owing to the pressure
di󰀨erence between indoor and outdoor or external winds even
when the product is not operated. It is recommended to install an
Electrically operated damper to block the outdoor air.
lIn a cold weather area where outdoor temperature becomes lower
than 23 ˚F (-5 ˚C), an area with strong external winds or where fog
occurs frequently, cold outdoor air, external winds or fog may be
introduced into the product when its operation is stopped. It is
recommended to install an Electrically operated damper.
lWhen using the product in an environment where there is a
window, or opening near the outdoor louvre , where insects are
likely to gather around the interior or exterior light , take note that
small insects may intrude into the product.
lIn a cold weather area, or others, dewing or freezing could
occur on the main unit, where the duct is connected, or other
sections, depending on the conditions of outdoor air and indoor
temperature and moisture, even if they are within the range
of operating conditions. Make sure to conrm the operating
conditions and other precautions, and do not use the product if
dewing or freezing is anticipated.
*Example of dewing condition - Outdoor air: 23 ˚F (-5 ˚C) or lower, dew-
point temperature at installation place: 50 ˚F (10 ˚C) or higher (When
the indoor temperature is 71.6 ˚F (22 ˚C) or higher with the relative
humidity higher than 50%, or other)
lDo not transfer and keep the product at vertical position.
Always use the specied suspension bolts, nuts and
washers or correctly rated wire / chain hangers.
(Use of hardware with insu󰀩cient strength could result in
the product dropping.)
The outside ducts must be tilted at a gradient (1/30 or
more) down toward the outdoor louvres from Lossnay,
and properly insulated.
(The entry of rain water may cause power leakage, re, or
damage to household property.)
The control box cover must be closed after the
installation.
(Dust or humidity may cause power leakage or re.)
When connecting external devices (electric heater,
damper, lamp, monitoring unit, etc.) using output
signals of the Lossnay unit, make sure to install safety
equipment for the external devices.
(It could cause re, damage, etc. without safety equipment.)
Select a duct heater in compliance with local and
national laws, ordinances, and standards.
Select a duct heater that meets adequate standard in
each country.
Install the duct heater separated from the product by a
distance of 2.2 yd (2 m) or more.
(Failure to do so may result in re or equipment damage
due to the transmission of residual heat from the heater.)

Eng-3
N
J
JA
F
C
F
K L
B
E
D
M
13/16 (20)
M
φG φH
N
4 17/32 (115)

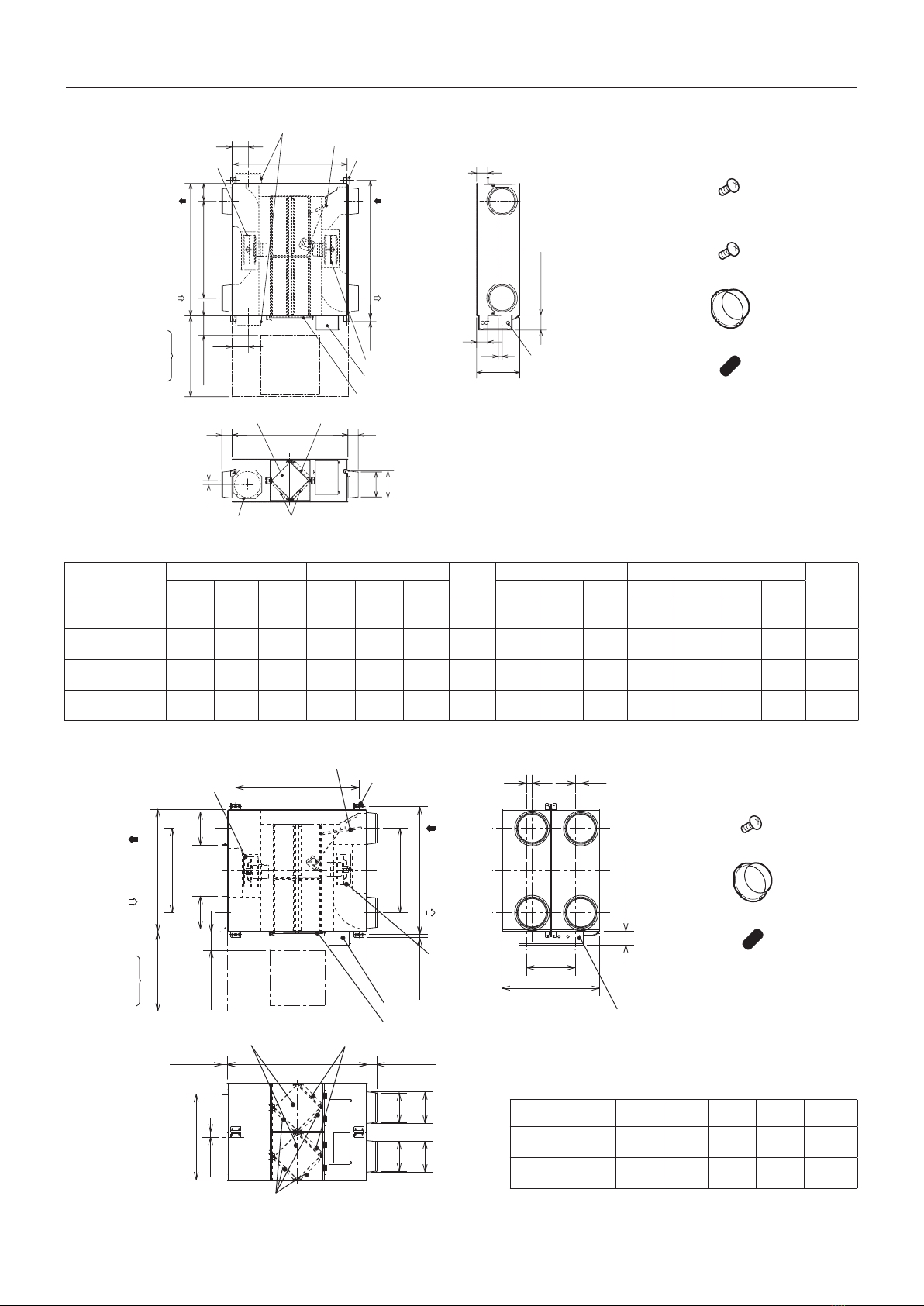

2. Outline drawings
Accessory parts
• Mounting small screws for duct
anges ..........................................x16
• Mounting large screws for ceiling
suspension xture...........................x4
• Duct connecting anges .................x4
• Screw cap.......................................x6
• Slim-Lossnay connection cable
(gray: two wires) .............................x1
LGH-F940 and F1200RVX2-E
Accessory parts
• Mounting small screws for duct
anges ...................................x16
• Duct connecting anges ..........x4
• Screw cap................................x6
• Slim-Lossnay connection cable
(gray: two wires) ......................x1
EA
(exhaust air outlet)
Air exhaust fan
OA
(outside air intake)
Core, air lter,High-
E󰀩ciency lter, fan,
maintenance space
More than 23 5/8 (600)
Position where duct
direction change is possible
Air lters
Lossnay core
Inspection
opening
1.5 x 1.5 ft (450 x
450) or more
Control box
Maintenance cover
Air supply fan
RA
(return air)
SA
(supply air)
By-pass damper plate
Position where duct direction change is possible
High-E󰀩ciency lter (sold separately) attachment position
Ceiling suspension xture
(4-1/2×13/16 (4-13×20) oval)
Power supply
cable opening
LGH-F300 to F600RVX2-E
5 7/8 ~ 9 7/8 (150~250)
39 3/4 (1010)
C B D
A
45 1/16 (1144) 3 1/8 (79)1 3/4 (44)
27 9/16 (700)
1 37/64 (40)
1 37/64
(40) 1 37/64 (40)
10 5/8 (270)
10 5/8 (270)
5 7/8 - 9 7/8 (150 - 250)
More than 23 5/8 (600)
ø9 1/2
(ø242)
ø10 3/16
(ø258)
ø9 1/2
(ø242)
ø10 3/16
(ø258)
15 29/32
(404)
31 13/16 (808)
1 1/32 (26)
4 17/32 (115)
Ceiling suspension xture
(4-9/16 X 1 3/16 (4-15 X 30) oval)
SA
(supply air)
RA
(return air)
EA
(exhaust
air outlet)
OA
(outside air
intake)
Core, air lter,
High-E󰀩ciency
lter,
fan,
maintenance
space
Lossnay cores
Air exhaust fan
By-pass damper plate
Air supply fan
Maintenance cover
Inspection
opening
1.5 x 1.5 ft (450 x
450) or more
Air lters
Power supply cable
opening
Control box
High-E󰀩ciency lter (sold separately) attachment position
Unit: Inch (mm)
Model Dimensions
Ceiling suspension xture pitch
Nominal
diameter
Duct connecting ange Duct pitch Weight
lbs (kg)
A B C D E F G H J K L M N
LGH-F300RVX2-E 34 15/16
(888) 40 (1016) 13 1/32 (331) 34 1/2 (875) 41 7/8 (1063) 3 11/32 (85) 7 7/8 (200) 7 9/16 (192) 8 3/16 (208) 3 1/8 (79) 29 3/8 (745) 5 5/16 (135.5) 4 7/8 (124) 1 3/16 (30) 75 (34)
LGH-F380RVX2-E 35 3/4
(908) 37 9/16 (954) 15 29/32 (404) 35 15/64 (895) 39 13/32 (1001) 2 3/4 (70) 7 7/8 (200) 7 9/16 (192) 8 3/16 (208) 3 1/8 (79) 27 1/4 (692) 5 5/32 (131) 4 7/8 (124) 090 (41)
LGH-F470RVX2-E 45 1/16
(1144) 39 1/2 (1004) 15 29/32 (404) 44 17/32 (1131)
41 3/8
(1051) 3 1/32 (77) 9 7/8 (250) 9 1/2 (242) 10 3/16 (258) 3 1/8 (79) 27 3/16 (690) 6 3/16 (157) 6 1/2 (165) 1 37/64 (40) 110 (50)
LGH-F600RVX2-E 45 1/16
(1144) 48 1/2 (1231) 15 29/32 (404) 44 17/32 (1131) 50 5/16 (1278) 3 1/32 (77) 9 7/8 (250) 9 1/2 (242) 10 3/16 (258) 3 1/8 (79) 36 1/8 (917) 6 3/16 (157) 6 1/2 (165) 1 37/64 (40) 123 (56)
Unit: Inch (mm)
Model A B C D Weight
lbs (kg)
LGH-F940RVX2-E 39 1/2
(1004) 27 3/16
(690) 27 3/16 (690) 41 9/64 (1045) 225 (102)
LGH-F1200RVX2-E 48 1/2
(1231) 36 1/8 (917) 36 1/8 (917) 50 1/8 (1272) 251 (114)

Eng-4
3. Standard installation examples
Model Distance
LGH-F300 and F380RVX2-E 3.3 ft (1 m) or more
LGH-F470 and F600RVX2-E 8.2 ft (2.5 m) or more
LGH-F940 and F1200RVX2-E 9.8 ft (3 m) or more
• The parts can also be installed upside down.
Remove the maintenance cover, rotate the parts
by 180°, and re-install.
• Duct length
4. Installation method
EA
(exhaust air outlet)
Inspection opening
(1.5 x 1.5 ft (450x450 mm) or more)
SA
(supply air)
Supply air grille
(not included)
Deep hood
(to prevent rain water from
seeping in)
Downward gradient of duct:
1/30 or more (toward wall side) and provision of distance
in table below (to prevent rain water from seeping in)
Duct Anchor bolt (to be provided by user)
RA
(return air)
Return air grille
(not included)
OA
(outside air intake)
Lossnay unit
Duct connecting ange
(Accessory parts)
Mounting small
screw
(Accessory parts)
Mounting small screw
(Accessory parts)
Duct connecting ange
(Accessory parts)
Models LGH-F300 to F600RVX2-E
Models LGH-F940 and F1200RVX2-E
Lossnay unit
Return air grille
(not Included)
Maintenance space
Inspection opening
EA (exhaust air outlet)
OA (outside air intake) Supply air grille
(not included)
* Except the LGH-F940 and F1200RVX2-E.
Remote controller
(optional parts)
EA
(exhaust
air outlet)
OA
(outside
air intake)
* It can be installed by inverting the top and the bottom.
After installing the duct
connecting ange,
remove the maintenance
cover. Turn the cover by
180˚, and then reinstall it.
Maintenance
space
Lossnay unit
Inspection
opening
EA
(exhaust
air outlet)
OA
(outside
air intake)
EA
(exhaust
air outlet)
OA
(outside
air intake)
Lossnay unit
Electrically operated damper
(Protection against the intrusion of cold air
while Lossnay is stopped in winter)
(To be provided by the customer)
• In a region where there is risk of freezing in winter, it is
recommended to install an electrically operated damper, or the like,
in order to prevent the intrusion of (cold) outdoor air while Lossnay
is stopped.
CAUTION
• Do not install Lossnay unit vertically or on an incline.
4.1 Hanging the Lossnay unit
4.1.1 Attaching the duct connecting anges
Use the supplied small screws to secure the duct connecting
anges to the Lossnay unit.
CAUTION
• Before attaching the duct connecting anges, check that no
foreign matter (scraps of paper, vinyl, etc.) has found its way
inside to Lossnay unit.
• Attach the duct connecting anges with the packing at the SA
and RA sides.
• Alway use accessory screws. Otherwise the screw may
interfere internal parts and result abnormal operation.
4.1.2 Securing the ceiling suspension xtures
Models LGH-F300 to F600RVX2-E
(1) Loosen the screws for the ceiling suspension xtures.
(2) Rotate the ceiling suspension xtures 90° centered around the
loosened screws to make them horizontal.
(3) Firmly tighten and secure the ceiling suspension xtures to the
product with the loosened screws and the included mounting
large screws.
* The ceiling suspension xtures are folded and secured to the
unit when shipped from the factory.
Loosen
Mounting large
screw
(Accessory parts)

Eng-5
4. Installation method (continued)
4.2 Duct works
4.2.1 Connecting the ducts
(1) Fasten the duct securely to the duct connecting ange, and
wrap aluminium tape (eld supply) around the joints so that
there is no air leakage.
(2) Suspend the ducts from the ceiling so that their weight will not
be applied to the Lossnay unit.
(3) The two outdoor ducts must be covered with heat-insulating
material in order to prevent condensation from forming.
Models LGH-F300 to F600RVX2-E
Duct
Taping
Aluminium tape
Duct connecting ange
Outdoor duct
Heat-insulating material
Lossnay
unit
Room Side
Outdoor Side
Models LGH-F940 and F1200RVX2-E
Taping Duct
Heat-insulating material
Duct connecting ange
Aluminium tape
Duct connecting ange
Outdoor duct
Heat-insulating material
Lossnay
unit
Room Side
Outdoor Side
CAUTION
• When the supply air is set twice as much as the exhaust air or
more by airow function, the Lossnay body indoor side must
be put additional insulation. Without additional insulation, it
could cause condensation and water drop from the unit.
• When on-site commissioning is planned, a straight duct
length more than 10xD (D=duct diameter) from the source of
turbulence like bends, contractions and dampers etc, to the
measurement point is recommended for correct measurement.
In the United Kingdam, on-site measurment should
therefore be measured in accordance with BSRIA guideline
(Commissioning Air System. Application procedures for
buildings AG3/89.3(2001))
• Before attaching the ducts, check that no (debris or any other)
foreign matter (scraps of paper, vinyl, etc.) has found its way
inside the ducts.
• Do not touch the damper plate inside Lossnay unit when
connecting the ducts.
• If it is expected that the ambient temperature around the place
where the Lossnay unit is installed will be high during the
summer air conditioning season, it is recommended that the
indoor duct work be covered with insulation material.
Anchor bolt Ceiling suspension
xture
Washer Nut
Models LGH-F300 to F600RVX2-E
Models LGH-F940 and F1200RVX2-E
Ceiling suspension xture
Anchor bolt
(3/8-16 or 7/16-14 UNC
(M10 or M12))
Washer
Washer
Nut
Nut
4.1.4 Mounting Lossnay unit
(1) Hang the ceiling suspension xtures on the anchor bolts and
adjust in such a way that Lossnay unit is level.
(2) Tighten up securely using double nuts.
CAUTION
• When suspending Lossnay unit from the ceiling, do not handle
it in such a way that force will be applied to the control box.
• Install the anchor bolts to ensure the product's weight or
earthquake load. (Correctly rated wire/chain may also be used)
4.1.3 Preparing the anchor bolts
Mount the washers (outer diameter of >13/16 inch for 3/8-16 UNC
(21 mm for M10) >15/16 inch for 7/16-14 UNC (24 mm for M12)
and nuts onto the pre-recessed anchor bolts (3/8-16 or 7/16-14
UNC (M10 or M12)), as shown in the gure below .
[When using (customer-prepared) vibration isolation rubber]
When using (customer-prepared) vibration isolation rubber, there
is a possibility of this causing a decrease in strength, so we
recommend the following type of construction.
Anchor bolt (3/8-16 or 7/16-14 UNC
(M10 or M12))
Anchor bolt (3/8-16 or 7/16-14 UNC
(M10 or M12))
Nut
Nut
Washer
Washer
Nut
Nut
Vibration isolation rubber
CAUTION
USE TWO NUTS
CAUTION
USE TWO NUTS

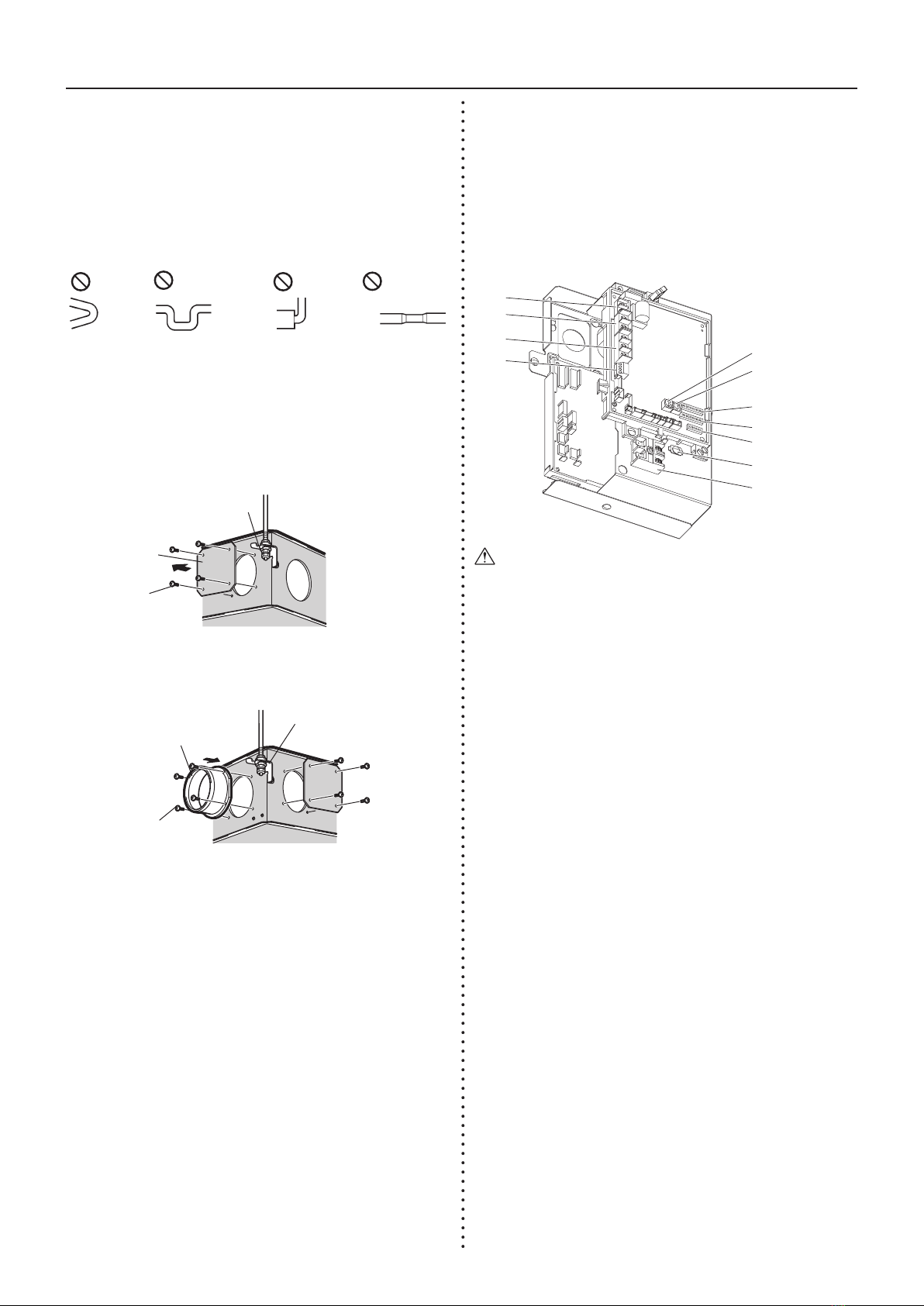

Eng-6
(2) Installation of duct connecting ange
1.
Install the duct connecting ange using attached mounting screws.
2. Fix the removed ange cover with the removed mounting
screws (4 pcs).
Mounting screw
(Accessory parts)
Duct connection ange
Ceiling suspension xture
4.2.2 When changing the direction of the out
door side duct (EA/OA) ···Except for
LGH-F940 and F1200RVX2-E
(1) Removal of ange cover
Unscrewing the ange cover mounting screws (4 pcs), remove the
ange cover.
Flange cover
Mounting screw
(for ange cover)
Ceiling suspension xture
4. Installation method (continued)
Names of components in control box
TM1
SW5
SW2
SW6
Grounding terminal
SW12
SW11
TM3
TB5
TM2
TM4
4.3 Electrical installation
With this product, the wiring installation method will vary according to
the design of the system.
Perform electrical installation to meet local electrical regulations.
* Always use double insulated PVC cable for the transmission cables.
* Wiring work must be performed by qualied professionals.
* All supply circuits must be disconnected before obtaining access to
the terminal devices.
CAUTION
• Do not pull out preconnected connectors unnecessarily
during installation.
• For LGH-F940 and F1200RVX2-E, thermistors are built only in
the lower unit. Lossnay unit controls its operation according
to the lower unit detecting temperature. Even when actual
return air temperature between the upper and the lower unit
is di󰀨erent, Lossnay operates according to the lower unit
temperature.
Do not carry out the following types of duct construction. (Doing so
could cause a drop in the air volume and generate abnormal noises.)
• Extremely
sharp bends
• Multiple bends • Bends right next
to the outlet
• Extreme reduction in
the diameter of the
connected ducts

Eng-7
4. Installation method (continued)
Wire connection diagram
* TM1, TM2, TM3, TM4, TB5 shown in dotted lines are eld work.
* Be sure to connect the ground wire.
* A power supply isolator must be installed.
* Always use an isolator for the main switch power connection.
* Select proper circuit breaker according to the electrical current information in the chart below.
* Do not disconnect connectors.
Model LGH-F300RVX2-E LGH-F380RVX2-E LGH-F470RVX2-E LGH-F600RVX2-E LGH-F940RVX2-E LGH-F1200RVX2-E
Maximum current when
operating [A] 3.40 3.10 4.05 4.15 8.10 8.30
Inrush current after
power supply ON
[A]
10 ms 6.1 12.2
100 ms 3.6 7.2
TM1
1
2
A
B
S
9
10
1
2
Y
Z
TM3
TM4
TB5
TM2
L
N
Operation signals
12 V or 24VDC
or Mr. Slim
Volt-free contact
M-NET transmission
cable
Lossnay remote controller
(Max. 2) and 2nd Lossnay
(Max. 15 units)
Isolator
(Field supply)
Power supply
208-230 V / 60Hz
Shielded wire
Printed Circuit Board
TM1: Terminal block (Power supply)
TM2: Terminal block (External control input)
TM3: Terminal block (Monitor output)
TM4: Terminal block (Transmission cable)
TB5: Terminal block (M-NET transmission cable)

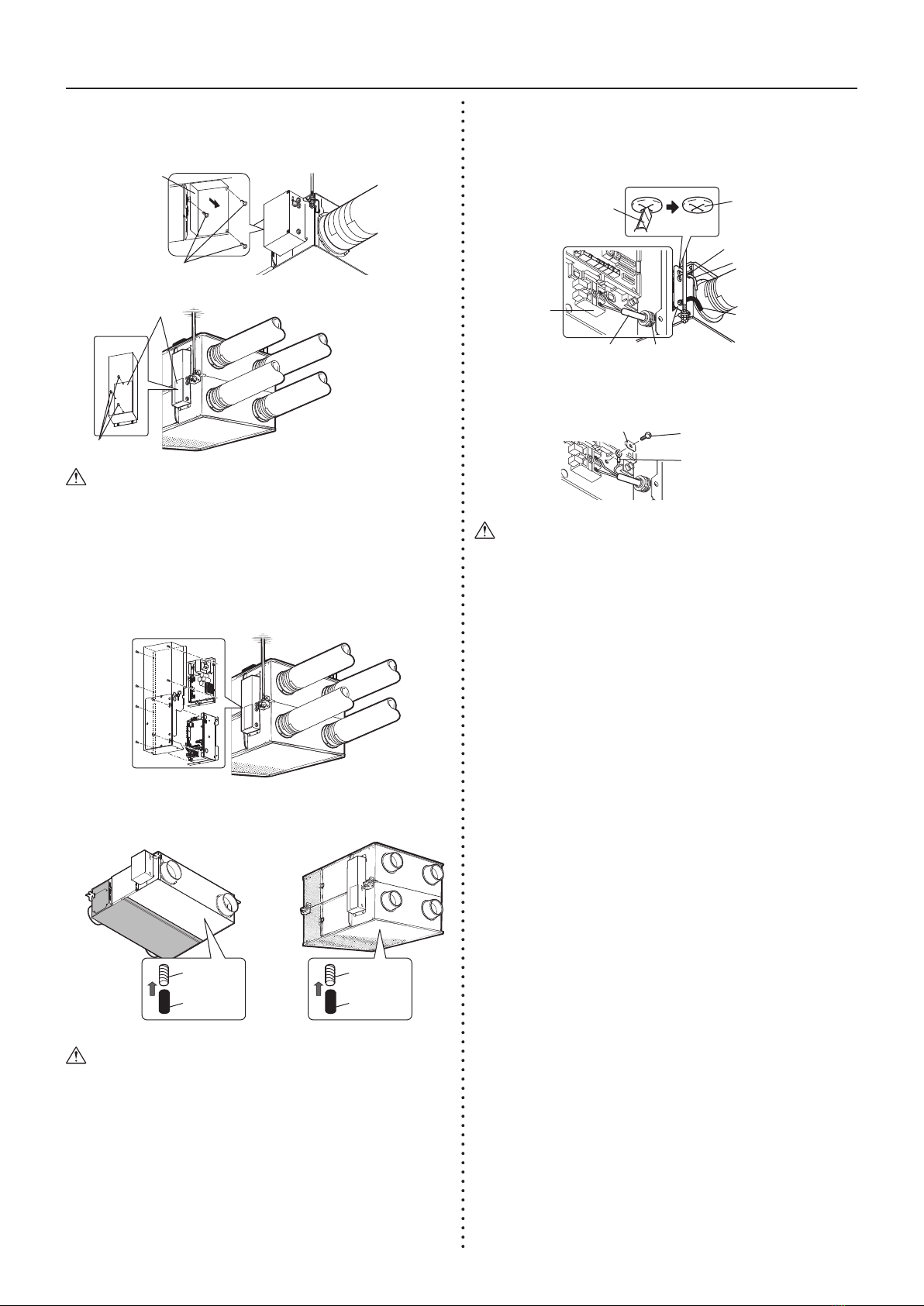

Eng-8
4. Installation method (continued)
4.2.3 Connecting the power supply cable
(1) Remove the black screws and the control box cover
Black screws
Models LGH-F940 and F1200RVX2-E
Control box cover
Control box cover
Models LGH-F300 to F600RVX2-E
Black screws
CAUTION
• For LGH-F940 and F1200RVX2-E, PZ-70CSB-E can be installed
only in the lower unit. Lossnay unit controls its fan speed
according to the lower unit detecting CO2concentration.
Even when actual CO2concentration of the upper unit is high,
Lossnay does not change its fan speed.
• When connecting PZ-70CSB-E with LGH-F940 and
F1200RVX2-E, remove whole PCB cover according to the picture
below.
(2) Attach the screw cap.
CAUTION
• After installing the Lossnay unit, attach the supplied screw
caps to the screws at the bottom of the unit.
Models LGH-F300 to F600RVX2-E Models LGH-F940 and F1200RVX2-E
Screw
Screw cap
Screw
Screw cap
(3) Connecting the power supply cable and transmission cable
Pass the Power supply cable through the bush* and connect to the
TM1 terminal block using the round terminals. Connect the ground
wire to the ground terminal and secure tightening the bush. (* Use
an item that can rmly secure the cable such as a cable gland.)
Be sure to tighten the ground wire to the grounding screw using the
round terminals with anti spread washer.
CAUTION
• Always separate the power supply cable and transmission cable
by 2” (5 cm) or more to prevent malfunctioning of the unit.
• If the length of the stripped Power supply cable is too long,
the conductors may touch and short out.
• Power supply cable size : AWG 14 (2.1 mm2) or more.
(1) Tighten the ground wire and transmission cables to the
terminal block.
(2) Secure the transmission cables using the cord clips.
Upon completion of the wiring connections, replace the control box
cover.
Power supply cable
Power supply cable
Cord clip
Insert the cutting
TM1
Bush
Cable gland
Transmission cable
Ground wire
Grounding screw
Anti spread washer

Eng-9
4. Installation method (continued)
The following system conguration
can be created. Connect the necessary
parts.
1 When connecting with remote controller (PZ-62DR-E)
2 When interlocked with indoor unit of air conditioner or other
external device including other manufactures
3 When operating multiple Lossnay units
4Signal output from Lossnay unit
5 When switching fan speed externally (when a sensor or other
device is connected)
6 When switching By-pass externally
7To change fan speed by 0 - 10 VDC input
8 When using the remote/local switching and the ON/OFF input
(level signal)
9 When connecting to the City Multi or Mitsubishi Electric Air-
Conditioner Network System (MELANS)
0To start/stop Lossnay stand-alone operation without using the
remote control
a Control via Wi-Fi interface or MELCOBEMS MINI
b When connecting CO2 sensor PZ-70CSB-E or PZ-70CSW-E
CAUTION
• When connecting external devices (electric heater, damper,
lamp, monitoring unit, etc.) using output signals of the
Lossnay unit, be sure to install safety equipment for the
external devices.
(It could cause re, damage, etc. without safety equipment.)
1When connecting with remote controller (PZ-62DR-E)
* When controlling Lossnay units with MELANS, connect wires
according to 9.
Securely connect the transmission cable from the remote controller to
1and 2 of the input terminal block (TM4). (No polarity)
Wire type: two-core sheathed cable
Wire diameter: AWG 22 (0.3 mm2)
• If there are two remote controllers, connect them in the same way.
• Keep the overall length of the transmission cable between Lossnay
and the remote controller within 219 yd (200 m).
Note
• Do not tighten screws of terminal block with a torque larger
than 1.2 N・m. It could damage the circuit board.
• Take care not to connect the power supply cable or M-NET
transmission cable.
• When connecting multiple cables to the terminal, use round
terminal.
• Solid wire (single-stranded wire) cannot be connected.
• PZ-61DR-E is not available.
CAUTION
TM4, TB5
1
2
Remote controller input terminal
Transmission cables
✓
Power supply
Up to two remote controllers
Lossnay
2When interlocked with indoor unit of air conditioner or
other external device including other manufactures
CAUTION
• The connection may vary according to the output signal type
of the external unit.
• Do not press the terminal with a force of more than 19.6 N
when connecting the cable to TM2.
Conrm that the pulse input switch (SW2-2) is set to “OFF”.
(Factory setting is “OFF”.) (Refer to function settings
No. 28
)
Connect the Slim-Lossnay connection cable connector side to
CN2L on the circuit board for the Mr. Slim indoor unit, then connect
the lead wire side to the 1and 2of the input terminal block
(TM2) for the Lossnay external controller input. (No polarity)
• Always separate the power supply cable and the Slim-Lossnay
connection cable by 2” (5 cm) or more to prevent the unit from
malfunctioning.
• The Slim-Lossnay connection cable is 4” (10 cm) long. When
wiring, extend it as far as necessary.
Note
• Use MA remote controller of Mr. Slim for switching Lossnay
ON/OFF or the fan speed.
• The ventilation mode is xed to “automatic ventilation” from
MA remote controller.
• Ensure that all connections are secure and that the appropriate
insulation is provided.
Use extension cable sheathed PVC cable or cable AWG 20 (0.5
mm2) to AWG 15 (1.5 mm2).
• Only one Lossnay and one Mr. Slim unit can be interlocked.
Multiple units interlock is not possible.
• Lossnay can not be connected M-NET in this case.
[SW2-2] setting vary depending on the types of output signal of
external device.
• If the input is pulse signal, move the pulse input switch [SW2-2]
to the ON position. (Refer to function settings
No. 28
)
• When level signal is selected, the signal width has to be more
than 10 seconds for ON and OFF .
• When pulse signal is selected, a pulse width has to be at least
200 m sec. to turn Lossnay ON, and 10 sec. interval is necessary
to next output.
• The wiring should be as shown by the following picture.
Operating switch
for external device
Power supply
External
device
Lossnay
Power supply TM2
When using Mitsubishi Mr. Slim air conditioner with MA
Remote controller
Y Z
1 2
Lossnay external
control input
(TM2)
Slim-Lossnay connection cable
(Accessory parts)
Printed circuit board
Maximum 54 yd (50 m)
CN2L
Mr. Slim (Indoor unit)
When the external device has a charged operating signal
of 12 VDC or 24 VDC
Y Z
1 2
Lossnay external
control input
(TM2)
AWG 20 (0.5 mm2) to AWG 15 (1.5 mm2)
sheathed PVC cable
External device
12 or 24 VDC
Overall connection extension length
(Follow the operation manual for the external equipment.)

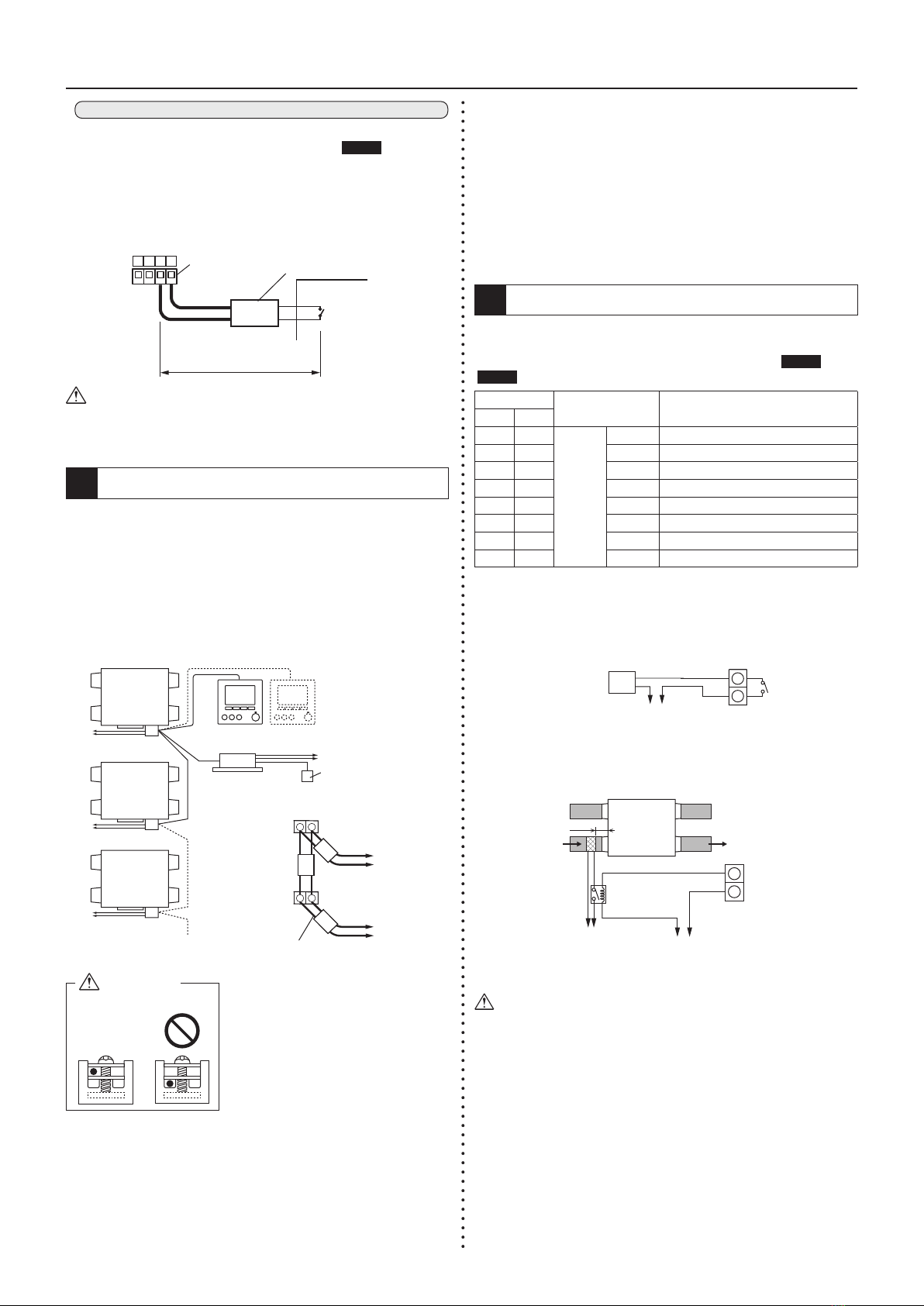

Eng-10
4. Installation method (continued)
• If the input is pulse signal, move the pulse input switch [SW2-2]
to the ON position. (Refer to function settings
No. 28
)
• When level signal is selected, the signal width has to be more
than 10 seconds for ON and OFF .
• When pulse signal is selected, a pulse width has to be at least
200 m sec. to turn Lossnay ON, and 10 sec. interval is necessary
to next output.
• The wiring should be as shown by the following picture.
CAUTION
• If an optocoupler or any other type of polar coupler is used at
the Volt-free contact, connect the positive side to Yand the
negative side to Z.
3When operating multiple Lossnay units
In the case that all Lossnay units are the same LGH-FRVX2-E series,
up to 15 multiple units can be operated at the same time.
1) Connect the Lossnay unit from Unit 1 to Unit 2, and from Unit 2 to
Unit 3 and so on up to a maximum of 15 units using a transmission
cable.
Wire type: two-core sheathed cable
Wire diameter: AWG 22 (0.3 mm2)
2) When it is interlocked with an external device, set the Lossnay unit
which has external signal input to “Main”.
CAUTION
TM4, TB5
Note
• Do not tighten screws of terminal block with a torque larger
than 1.2 N・m. It could damage the circuit board.
• When connecting multiple cables to the terminal, use round
terminal.
• Solid wire (single-stranded wire) cannot be connected.
When the external device has an Volt-free contact signal
Y Z
1 2
Lossnay external
control input
(TM2)
AWG 20 (0.5 mm2) to AWG 15 (1.5 mm2)
sheathed PVC cable
External device
Volt-free contact
Maximum 547 yd (500 m)
Operating switch for
external device
Power supply
External
device
Lossnay Remote controller
(PZ-62DR-E)
Lossnay
MAX 15 units
Power supply
Power supply
Power supply
Lossnay
Connect to
remote controller
(PZ-62DR-E)
Connect to
third Lossnay
21
21
Transmission cable
First
Lossnay
Second
Lossnay
TM4
TM4
✓
• Only one unit can be set as main Lossnay. The operating signal
and pulse signal of the external device can be connected to
Main Lossnay only.
• Connect the power supply cable to each Lossnay unit.
• When setting the Lossnay address for use with a Mitsubishi
Electric Air-Conditioner Network System (MELANS) etc., the
Lossnay with the smallest address in the group will be the
Main Lossnay. When not setting the address, set the address
to “1” for only one unit in the group. The Lossnay with an
address of “1” is the Main Lossnay. (Refer to “Setting the
address” on the section 5 for more detail.)
4Signal output from Lossnay unit
Set DIP-SW or Function setting on PZ-62DR-E as following table
depending on the necessary output signal from Lossnay unit. For
more information of signal output, see function settings
No. 12
to
No. 16
.
DIP-SW setting Function setting on
PZ-62DR-E Signal output
SW5-1 SW5-2
- -
12
0Dip-SW priority
OFF OFF 1 Operation monitor
ON OFF 2 Malfunction monitor
OFF ON 3 By-pass monitor
ON ON 4 Supply fan operation monitor
N/A N/A 5 Exhaust fan operation monitor
N/A N/A 6 Pre-heater signal output
N/A N/A 7 After-heater signal output
• Do not tighten screws of terminal block with a torque larger than 0.5
N・m. It could damage the circuit board.
• When connecting multiple cables to the terminal, use round terminal.
• If multiple output signals are necessary, use optional signal output
terminal (PZ-N4GS-E).
When using Pre-heater output signal, the wiring should be as shown
by the following picture.
CAUTION
• Failure to follow below instructions, it could cause a re.
• Choose a OA pre-heater which can control the heater outlet air
temperature even both the air ow is maximum and minimum.
Otherwise it could fall the supply fan into intermittent
operation.
• Select a duct heater in compliance with local and national laws,
ordinances, and standards.
• Select a duct heater that is tested by a certication body.
• Always select a heater that is equipped with a non-self-
resetting safety device.
• Do not directly supply power from the Lossnay unit to the duct
heater. Doing so could cause re.
• Install a circuit breaker for the duct heater in compliance with
all applicable laws, ordinances, and standards.
9
10
Indicator
External device
etc.
Power Supply for
external device
TM3
Max. 230 VAC, 1 A
24 VDC, 1 A
Min. 208 VAC, 100 mA
5 VDC, 100 mA
9
10
Relay
Pre-heater
2.2 yd (2 m or more)
Power Supply
for heater Power Supply
for relay
TM3
Max. 230 VAC, 1 A
24 VDC, 1 A
Min. 208 VAC, 100 mA
5 VDC, 100 mA
SA
OA
Lossnay

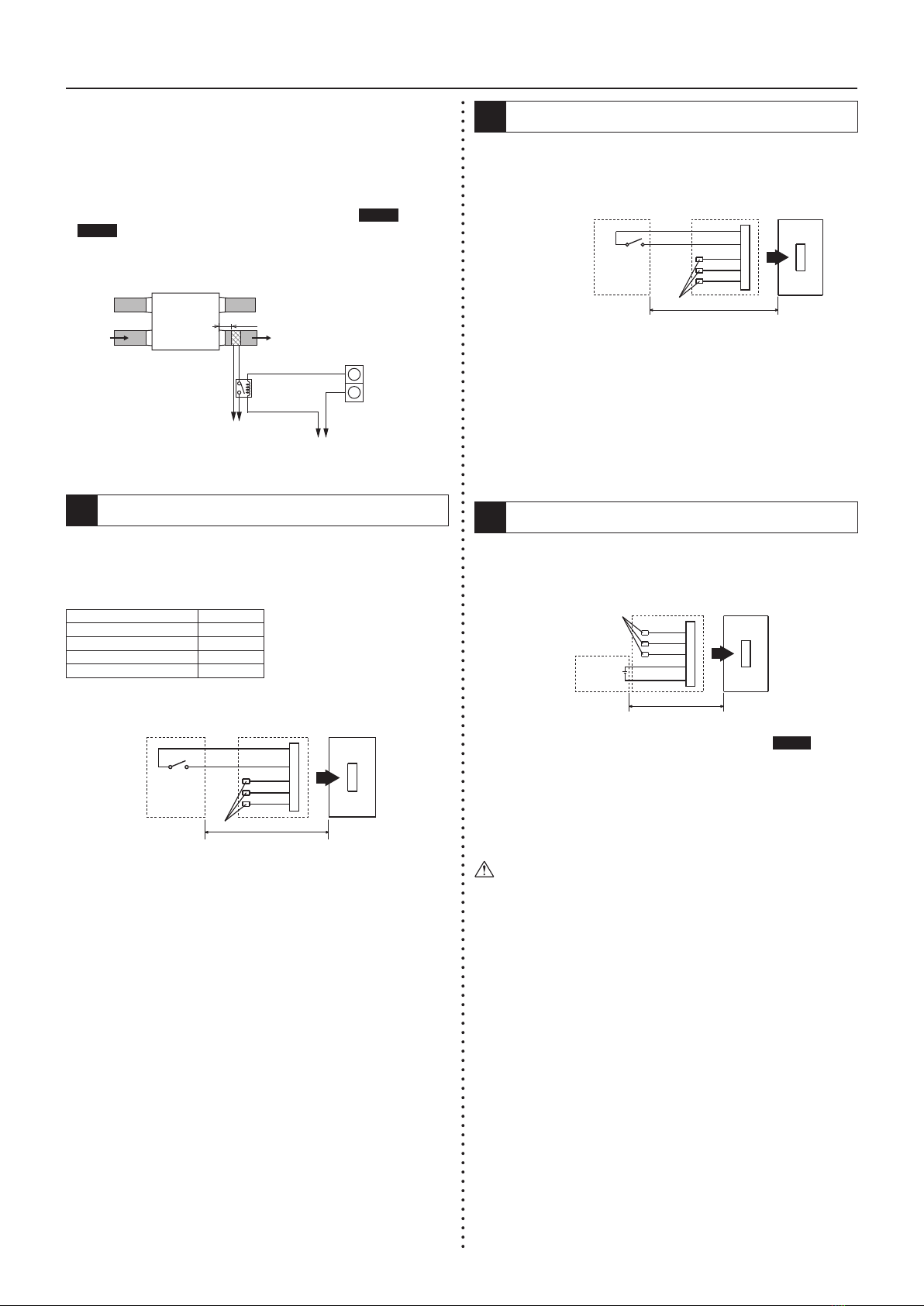

Eng-11
4. Installation method (continued)
• Install the duct heater separated from the product by a
distance of 2.2 yd (2 m) or more.
Failure to do so may result in equipment damage due to the
transmission of residual heat from the heater.
• Ensure that the duct heater and Lossnay are wired and that
the Lossnay function settings have been congured, and then
always check operation by trial operation.
• For the duct heater output, see function setting
No. 60
and
No. 61
.
When using After-heater output signal, the wiring should be as shown
by the following picture.
For the heater, observe the cautions listed in Pre-heater.
5When switching fan speed externally
(when a sensor or other equipment is connected)
Using a eld supply sensor, etc., make connection by inserting the
optional remote controller adapter (PAC-SA88HA-E or PAC-725AD)
in the connector CN17 (Red) as shown by the gure.
Lossnay will operate at the fan speed following the table below,
regardless of the remote controller setting.
CN17 (Red) Fan speed
1-2 (Brown-Red) 4
1-3 (Brown-Orange) 3
1-4 (Brown-Yellow) 2
1-5 (Brown-Green) 1
nExample “Fan speed 4”
Use this in such a way that it ventilates at low fan speed normally,
and when the external sensor detects contamination of indoor air, or
SW1 is on, it changes to high fan speed operation.
When multiple Lossnay units are controlled by one input, PZ-62DR-E
is necessary.
The signal has to be inputted into main unit referring to 3.
Cannot be used in conjunction with the following functions:
- To change fan speed by 0 - 10 VDC input.
- Connecting CO2 sensor PZ-70CSB-E or PZ-70CSW-E.
Relay
2.2 yd (2 m) or more
Power Supply
for heater Power Supply
for relay
TM3
Max. 230 VAC, 1 A
24 VDC, 1 A
Min. 208 VAC, 100 mA
5 VDC, 100 mA
9
10
Lossnay
SA
OA
SW1 CN17
Field supply sensor, etc.
Remote controller adapter
(Optional) PAC-SA88HA-E
or PAC-725AD
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Not used. Insulate completely.
Max wiring length 11 yd (10 m)
Lossnay
control board
Fan speed
selection
6When switching By-pass externally.
Establish the wire connection by inserting the optional remote
controller adapter (PAC-SA88HA-E or PAC-725AD) in the connector
CN26 (White).
With SW1 is “ON”, the ventilation mode of Lossnay is changed to the
By-pass ventilation regardless of the setting on the remote controller.
When multiple Lossnay units are controlled by one input, PZ-62DR-E
is necessary.
The signal has to be inputted into main unit referring to 3.
* When the outdoor air temperature drops lower than 46˚F (8˚C), it
changes to the heat recovery ventilation. (In this case, ventilation
mode icon on the display of the remote controller does not change
from the previous mode, it might be di󰀨erent from the actual unit
operation.)
7To change fan speed by 0 - 10 VDC input
Establish the wire connection by inserting the optional remote
controller adapter (PAC-SA88HA-E or PAC-725AD) in the connector
CN26 (White).
To change fan speed by 0 - 10 VDC input, the wiring should be as
shown by the above picture. Refer to function settings
No. 66
for
more details.
When multiple Lossnay units are controlled by one input, PZ-62DR-E
is necessary.
The signal has to be inputed into main unit referring to 3.
Cannot be used in conjunction with the following functions:
- Switching fan speed externally (CN17).
- Connecting CO2 sensor PZ-70CSB-E or PZ-70CSW-E.
CAUTION
• Make sure of correct polarity.
• Do not apply voltages higher than 10 VDC.
SW1
CN26
SW1: By-pass ventilation operation switch
(When closed: For By-pass ventilation operation)
Remote controller adapter
(Optional) PAC-SA88HA-E
or PAC-725AD
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Lossnay
control board
Fan speed/
Ventilation
mode selection
Max wiring length 11 yd (10 m)
Not used. Insulate completely.
e.g. 3rd party CO2sensor
CN26
Remote controller adapter
(Optional) PAC-SA88HA-E
or PAC-725AD
Yellow 4 (0 - 10 VDC)
Green 5 (COM)
Lossnay
control board
Fan speed/
Ventilation
mode selection
External
device
Max wiring length 11 yd (10 m)
Brown 1
Red 2
Orange 3
Not used. Insulate
completely.

Eng-12
8When using the remote/local switching and the ON/OFF
input (level signal)
Insert the optional remote ON/OFF adapter (PAC-SE55RA-E or PAC-
715AD) in CN32 on the Lossnay control circuit board.
When multiple Lossnay units are controlled by one input, the signal
has to be inputed into main unit referring to 3.
SW1: When this is ON, Lossnay cannot be turned ON/OFF by the
Remote Controller (PZ-62DR-E).
SW2: When SW1 is ON, Lossnay can be turned ON by setting SW2
at ON or turned OFF by setting SW2 at OFF.
SW1: Remote/local selector switch
SW2: ON/OFF switch
X, Y : Relay (Contact rated load: 0.1 A at 15 VDC or more,
Minimum applicable load: 1 mA or less)
9When connecting to the City Multi, Mitsubishi Electric Air-
Conditioner Network System (MELANS)
CAUTION
TM4, TB5
• Connect a shielded wire to terminal TB5 Son the circuit board.
Address setting is required. (Refer to function setting section.)
M-NET transmission cable: Connect any of the City Multi
indoor unit, or Mitsubishi Electric
Air-Conditioner Network System
(MELANS) - to the Lossnay.
• Remote Controller
PZ-62DR-E:
Connect to TM4 1, 2on the circuit board. (See Section 1
“When connecting with remote controller (PZ-62DR-E)”.)
• Securely connect the M-NET transmission cables to TB5 AB.
(No-Polar)
Type: Two-core shielded wire (CVVS/MVVS)
Wire diameter: AWG 16 (1.25 mm2)
CAUTION
• Do not tighten screws of terminal block with a torque larger
than 1.2 N・m. It could damage the circuit board.
• Always use shielded wires only for the M-NET transmission
cables, and nish the shield properly.
• Be sure to cut M-NET power supply during Lossnay wiring,
otherwise it causes malfunction.
Remote control
board
Remote ON/OFF adapter
(Optional) PAC-SE55RA-E
or PAC-715AD
Lossnay
control board
Relay circuit
CN32
SW1
SW2
Y
X
Y
X
Max wiring length 11 yd (10 m)
Orange 1
Red 2
Brown 3
Relay power supply
A
B
S
TB5
Shielded wire
M-NET transmission cable
✓
When interlocking with Mitsubishi M-NET air conditioner
• Incase of PZ-62DR-E
M-NET transmission cable
Lossnay
Air
conditioner
Air
conditioner
MA remote
controller PZ-62DR-E
4. Installation method (continued)
* Limit the total length of transmission cables no longer than 547 yd
(500 m). Limit the wiring length between Lossnay and the power
supply unit (Optional) or the outdoor unit no longer than 219 yd
(200 m).
Note
• LGH-FRVX2-E series Lossnay can NOT be set as the same
group with other series Lossnay such as LGH-FRVX-E series.
10 To start/stop Lossnay stand-alone operation without using
the remote control
Start/stop the unit by a switch connected to TM2 YZ.
When turned the unit ON, it operates at fan speed 4 and automatic
ventilation mode.
CAUTION
• Do not start/stop the unit by turning the power supply to the
unit ON/OFF.
Power
supply unit
Lossnay MELANS
M-NET transmission cable
When connecting to PZ-62DR-E and MELANS
• Connect the power feeding unit.
(Optional)
PZ-62DR-E
L
N
Y Z
1 2
Switch
Isolator
TM2
TM1
Lossnay external
control input

Eng-13
11 Control via Wi-Fi interface or MELCOBEMS MINI
Connect the lead wire of a Wi-Fi interface or MELCOBEMS MINI to CN105 (Red) on circuit board of Lossnay unit.
Regarding the model name of the connectable Wi-Fi interface or MELCOBEMS MINI, please contact the
sales company in your market.
CAUTION
1. For the installation of the Wi-Fi interface, there are some precautions. Refer to the Installation manual of the Wi-Fi interface for more details.
2. After the installation, be sure to do a test run prior to the start of actual operations.
3. Follow the system conguration examples listed below.
System controller Prohibit remote controller Do NOT use “remote controller ON/OFF prohibition” function on system controller.
External control ON/OFF switching by CN32 NOT available with CN105 connection control.
External fan speed control
(CN17, CN26)
The unit follows external input signal. Therefore, the fan speed selection through CN105 connection
control become invalid.
External Bypass control
(CN26)
The unit follows external input signal. Therefore, the ventilation mode selection though CN105
connection control become invalid.
Interlocking Interlock with Mr. Slim Interlocking with Mr. Slim unit by Slim-Lossnay connection cable (CN2L-TM212 connection) is
NOT possible.
Interlock mode setting Only “ON/OFF interlock mode” is available. Please set function
No. 19
as 0 on PZ-62DR-E
(factory setting).
12 When connecting CO2sensor PZ-70CSB-E or PZ-70CSW-E
Connect and install correctly by following the installation manual of PZ-70CSB-E or PZ-70CSW-E.
Lossnay Lossnay
Lossnay
Lossnay
Lossnay Lossnay
Lossnay
PZ-43SMF-E
PZ-62DR-E
PZ-62DR-E
PZ-62DR-E
PZ-62DR-E
Lossnay
PZ-62DR-E
Basic system
M-NET systemMultiple unit operation
Lossnay remote controller (PZ-62DR-E) or M-NET remote controller is necessary.
<NOTE>
The operation by pushing the controller button lastly has a priority.
Do NOT use “remote controller ON/OFF prohibition” function on system controller.
PZ-43SMF-E cannot be used with CN105
connection.
Wi-Fi interface/
MELCOBEMS MINI
(if necessary)
Multiple Lossnay unit
operation in one group
is NOT possible with
CN105 connection.
Set one Lossnay unit which is connected Wi-Fi interface
or MELCOBEMS MINI as one group. Set one Lossnay unit which is connected Wi-Fi interface or
MELCOBEMS MINI as one group. Do NOT make a group of
multiple Lossnay units when using CN105 connection.
Wi-Fi interface/
MELCOBEMS MINI
Wi-Fi interface/
MELCOBEMS MINI
Wi-Fi interface/
MELCOBEMS MINI
(if necessary)(if necessary)
Group 1 Group 2
M-NET system
controller
M-NET system
controller
Power supply unit
Power supply unit
4. Installation method (continued)
(if necessary)
Wi-Fi interface/
MELCOBEMS
MINI
Wi-Fi interface/
MELCOBEMS
MINI
(if necessary)

Eng-14
5. Function settings
Address setting is required when connecting to City Multi and MELANS.
Setting the address
Use the following procedure when setting the address for dedicated
Lossnay.
(The method in determining the addresses will depend on the existing
system. Refer to the appropriate technical documents for details.)
(1) Remove the control box cover.
(2) Turn the address setting switch on the circuit board.
• SW12 indicates the tens digit and SW11 indicates the ones digit.
• The factory setting is “00”.
Address setting switch
SW11 (Ones digit)
Address setting switch
SW12 (Tens digit)
Changing the function selection
switches (SW-2, 5 and 6)
Set the selection switches (SW-2 and 5) to perform the appropriate
function.
* All function except “Trial operation” and “Auto fan speed setting
without Lossnay or M-NET remote controller” can be set also from
the remote controller (PZ-62DR-E). If the function is switched later
using the remote controller, it operates according to the setting on
the remote controller.
1
2
3
4
5
6
7
8
9
10
(SW2)
1
2
3
4
5
6
7
8
9
10
(SW5)
OFF ON
OFF ON
Trial operation
No. 28 Pulse input setting
No. 9 Delay start setting for air conditioner starting
No. 6 Indoor negative pressure setting
No. 7 Indoor positive pressure setting
No. 64 Fan speed for air volume “High” setting
No. 65 Fan speed for air volume “Low” setting
No. 5
Automatic recovery setting after power interruption
N/A
N/A
No. 12 Monitor output setting
No. 17 Exhaust fan setting during air conditioner defrosting
N/A
N/A
No. 66 CO2sensor or BMS setting
When connecting the CO2 sensor, Auto fan speed setting without Lossnay or M-NET system controller
N/A
* When the address number has been changed, the data in the
memory is automatically reset.
Change the function settings from the
remote controller PZ-62DR-E.
Please refer to the Instruction book of PZ-62DR-E for how to set the
function settings.
DIP-SW6 is to identify the model for circuit board. When replacing to new circuit board, set the same setting as old one.
(SW6)
SW6-1 SW6-2 SW6-3 SW6-4 SW6-5 SW6-6
LGH-F300RVX2-E OFF OFF ON OFF ON OFF
LGH-F380RVX2-E ON OFF ON OFF ON OFF
LGH-F470RVX2-E OFF ON ON ON ON OFF
LGH-F600RVX2-E ON ON ON ON ON OFF
LGH-F940RVX2-E OFF OFF OFF ON ON OFF
LGH-F1200RVX2-E ON OFF OFF ON ON OFF
* Do not change from factory setting. If changed, please set as factory setting.

Eng-15
5. Function settings (continued)
No Function Setting Data
Factory
setting
DIP-SW
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
1
Filter maintenance and fan
power up setting against lter
choking
Indicator
N/A
Fan
power up
N/A
Indicator
available
Fan
power up
N/A
Indicator
available
Fan
power up
available
Indicator
N/A
Fan
power up
available
— — — — — — — — — — — — 0 —
2Lossnay core maintenance
indicator setting N/A
Available — — — — — — — — — — — — — — 0 —
5
Automatic recovery setting after
power interruption
Dip-SW
priority
Stop
when the
power is
On
Start
when the
power is
On
Return to
the state
before
interrup-
tion
— — — — — — — — — — — — 0 2-8
6Indoor negative pressure
setting
Dip-SW
priority N/A Supply
1 down
Supply
2 down — — — — — — — — — — — — 0 2-4
7Indoor positive pressure setting Dip-SW
priority N/A
Exhaust
1 down
Exhaust
2 down
— — — — — — — — — — — — 0 2-5
8
Max. fan speed setting during
the rst 30 minutes
N/A Available — — — — — — — — — — — — — — 0 —
9 Delay start setting for air
conditioner starting
Dip-SW
priority N/A 15 min 30 min — — — — — — — — — — — — 0 2-3
12 Monitor output setting
TM3 90
Dip-SW
priority
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
———————— 0 5-1
5-2
13 Monitor output setting
PZ-4GS-E COM-OUT1
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 1 —
14 Monitor output setting
PZ-4GS-E COM-OUT2
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 2 —
15 Monitor output setting
PZ-4GS-E COM-OUT3
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 3 —
16 Monitor output setting
PZ-4GS-E COM-OUT4
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 4 —
17 Exhaust fan setting during air
conditioner defrosting
No
change Stop Dip-SW
priority — — — — — — — — — — — — — 2 5-3
18
Exhaust fan setting at OA
temperature lower than 5˚F
(-15 ˚C)
No
change
Forced to
fan speed
2 or less
— — — — — — — — — — — — — — 0 —
19 Interlock mode setting
ON/OFF
interlock
ON
interlock
OFF
interlock
External
input giv-
en priority
— — — — — — — — — — — — 0 —
28 Pulse input setting Dip-SW
priority
Non-pulse
input
Pulse
input — — — — — — — — — — — — — 0 2-2
30 Night-purge setting 1)
Air volume N/A
Fan speed 1 Fan speed 2 Fan speed 3 Fan speed 4 — — — ———————— 0 —
31
Night-purge setting 2)
Outdoor and indoor
temperature gap
0 K
(0˚F)
1 K
(1.8˚F)
2 K
(3.6˚F)
3 K
(5.4˚F)
4 K
(7.2˚F)
5 K
(9˚F)
6 K
(10.8˚F)
7 K
(12.6˚F)
———————— 5 —
32
Night-purge setting 3)
The lowest outdoor
temperature
Setting Data 0 to 15 --> The lowest outdoor temperature for Night-purge 59˚F (15˚C) to 86˚F (30˚C) 2 —
33
Night-purge setting 4)
Outdoor temperature detection
period
24 hrs 48 hrs 72 hrs — — — — — — — — — — — — — 2 —
34 Input priority setting
Bunch
control
priority
Individual
control
priority
— — — — — — — — — — — — — — 0 —
36 Outdoor temperature display
setting N/A
Available — — — — — — — — — — — — — — 1 —
37 Indoor temperature display
setting N/A
Available — — — — — — — — — — — — — — 1 —
38 CO2concentration display
setting N/A
Available — — — — — — — — — — — — — — 1 —
39 Calculated supply air
temperature display setting N/A
Available — — — — — — — — — — — — — — 0 —
40
Temperature exchange
e󰀩ciency setting (10 digit)
Setting Data 0 to 9 --> 10 digit of temperature exchange e󰀩ciency 0 to 9 —————— 7 —
41 Temperature exchange
e󰀩ciency setting (1 digit) Setting Data 0 to 9 --> 1 digit of temperature exchange e󰀩ciency 0 to 9 —————— 0 —
42 Outdoor temperature
correction Setting Data 0 to 14 --> Outdoor temperature correction -7 K (-12.6˚F) to 7 K (12.6˚F) — 7 —
43 Indoor temperature correction Setting Data 0 to 14 --> Room temperature correction -7 K (-12.6˚F) to 7 K (12.6˚F) — 7 —
44 CO2concentration correction Setting Data 0 to 10 -->CO2concentration correction -500ppm 〜500ppm
(100ppm in increments) ————— 5 —
45 Supply fan monitor threshold
Fan speed
1 or higher
Fan speed
2 or higher
Fan speed
3 or higher
Fan speed
4
— — — — — — — — — — — — 0 —
46 Exhaust fan monitor threshold
Fan speed
1 or higher
Fan speed
2 or higher
Fan speed
3 or higher
Fan speed
4
— — — — — — — — — — — — 0 —

Eng-16
No Function Setting Data
Factory
setting
DIP-SW
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
52
Automatic ventilation mode
setting 1)
Outdoor and indoor
temperature gap
Setting Data 0 to 7 --> Temperature gap 0 K (0˚F) to 7 K (12.6˚F) ———————— 0 —
53
Automatic ventilation mode
setting 2)
The lowest outdoor
temperature setting
Setting Data 0 to 15 --> Lowest outdoor temperature 50˚F (10˚C) to 77˚F (25˚C) 6 —
54
Automatic ventilation mode
setting 3)
The lowest indoor temperature
setting
Setting Data 0 to 15 --> Lowest indoor temperature 59˚F (15˚C) to 86˚F (30˚C) 1 —
55 Supply fan power up for Fan
speed 4 N/A
1 level up 2 level up 3 level up 4 level up — — — ———————— 0 —
56 Exhaust fan power up for Fan
speed 4 N/A
1 level up 2 level up 3 level up 4 level up — — — ———————— 0 —
60 Pre-heater output setting 1)
ON temperature
32 ˚F
(0 ˚C)
30 ˚F
(-1 ˚C)
28 ˚F
(-2 ˚C)
27 ˚F
(-3 ˚C)
25 ˚F
(-4 ˚C)
23 ˚F
(-5 ˚C)
21 ˚F
(-6 ˚C)
19 ˚F
(-7 ˚C) ———————— 0 —
61 Pre-heater output setting 2)
OFF interval 1 hr 2 hrs 3 hrs 4 hrs 5 hrs — — — — — — — — — — — 0 —
62
LED usage setting for
PZ-70CSW-E during non
operation
Unlit Lit — — — — — — — — — — — — — — 0 —
64 Fan speed for air volume “High”
input
Dip-SW
priority
Fan speed 4 Fan speed 3 — — — — — — — — — — — — — 0 2-6
65 Fan speed for air volume “Low”
input
Dip-SW
priority
Fan speed 2 Fan speed 1 — — — — — — — — — — — — — 0 2-7
66 CO2sensor or BMS setting Dip-SW
priority N/A
3rd par-
ty’s CO2
seonsor
—
BMS
Pattern Z
CO2sensor
PZ-70CSW-E
—
CO2sensor
PZ-70CSB-E
———————— 0
5-6
5-7
5-8
67 Threshold minutes for
PZ-70CSW-E LED 10 min 15 min 20 min 25 min 30 min — — — — — — — — — — — 2 —
68 Threshold concentration for
PZ-70CSW-E LED
1000 ppm 1100 ppm 1200 ppm 1300 ppm 1400 ppm 1500 ppm 1600 ppm 1700 ppm 1800
ppm
1900
ppm
2000
ppm
————— 5 —
69 Emergency stop setting
Emergency
stop
Normal
stop — — — — — — — — — — — — — — 0 —
73 Airow setting for supply fan
speed 3
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 5 —
74 Airow setting for supply fan
speed 2
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 10 —
75 Airow setting for supply fan
speed 1
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 15 —
76 Airow setting for exhaust fan
speed 3
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 5 —
77 Airow setting for exhaust fan
speed 2
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 10 —
78 Airow setting for exhaust fan
speed 1
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 15 —
83 Filter maintenance interval
setting - Thousands digit
0 1 2 3 4 5 6 7 8 9 —————— 3 —
84 Filter maintenance interval
setting - Hundreds digit
0 1 2 3 4 5 6 7 8 9 —————— 0 —
85
Lossnay core maintenance
interval setting - Thousands
digit
0 1 2 3 4 5 6 7 8 9 —————— 6 —
86 Lossnay core maintenance
interval setting - Hundreds digit
0 1 2 3 4 5 6 7 8 9 —————— 0 —
87 Airow setting for supply fan
speed 4
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 0 —
88 Airow setting for exhaust fan
speed 4
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 0 —
89 CO2sensor setting - maximum
side - Hundreds digits
600 ppm 700 ppm 800 ppm 900 ppm 1000 ppm 1100 ppm 1200 ppm 1300 ppm 1400
ppm
1500
ppm
1600
ppm
1700
ppm
1800
ppm
1900
ppm
2000
ppm
— 4 —
90 CO2sensor setting - maximum
side - tens digits
0 ppm 50 ppm — — — — — — — — — — — — — — 0 —
91 CO2sensor setting - minimum
side - Hundreds digits
300 ppm 400 ppm 500 ppm 600 ppm 700 ppm 800 ppm 900 ppm 1000 ppm 1100
ppm
1200
ppm
1300
ppm
1400
ppm
1500
ppm
1600
ppm
1700
ppm
— 1 —
92 CO2sensor setting - minimum
side - tens digits
0 ppm 50 ppm — — — — — — — — — — — — — — 1 —
93 CO2sensor correction
-250 ppm -200 ppm -150 ppm -100 ppm -50 ppm 0 ppm 50 ppm 100 ppm 150
ppm
200
ppm
250
ppm
————— 5 —
100 Initialization (No.1 〜99) N/A Initialize — — — — — — — — — — — — — — 0 —
This table shows the summary of function settings. Please refer to the following pages for more details.
The functions indicated with “N/A” in the “DIP-SW No.” column are available only when using with remote controller PZ-62DR-E.
PZ-62DR-E can set Night purge setting (No.30), By-pass setting (No.52, 53, 54 ), CO2sensor setting (No.89, 90, 91, 92), Filter maintenance interval setting
(No.83, 84), Lossnay core maintenance interval setting (No. 85, 86) and Airow setting (No. 73-78, 87, 88) by di󰀨erent way more easily.
Refer to the remote controller PZ-62DR-E operation manual for more detail.
5. Function settings (continued)

Eng-17
5. Function settings (continued)
—Auto fan speed setting without Lossnay or
M-NET system controller
When CO2sensor is connected but any remote controller is not
connected, SW 5-9 has to be ON in order to operate according to
CO2concentration.
When SW 5-9 is ON, any Lossnay remote controller or M-NET
system controller can not be connected and not possible to interlock
with City Multi or Mr. Slim unit.
DIP-SW
Setting
check
Auto fan speed setting without Lossnay or M-NET
system controller
SW No. Setting
SW5-9
OFF
(Factory setting)
N/A
ON Fan speed changes according to CO2concentration
No. 1 Filter maintenance and fan power up
setting against lter choking
Set the schedule for lter cleaning based on the estimated
concentration of dust in the air.
When fan power up is available, exhaust and supply fans power up at
1,000 hrs, 2,000 hrs and 3,000 hrs gradually.
If function
No. 55
or
No. 56
is already worked, fan power up function
may not be available.
Estimated hour di󰀨ers by actual operated fan speed.
This function is N/A from Lossnay unit DIP-SW.
The target interval can be selected at
No. 83
,
No. 84
.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Filter maintenance
indicator
Fan power
UP
SW No. Setting Function No. Setting Data
N/A
- -
1
0
(Factory setting)
N/A N/A
- - 1
Appears at the
interval of estimated
3,000 hrs
N/A
- - 2
Appears at the
interval of estimated
3,000 hrs
Available
- - 3 N/A Available
CAUTION
• When the cumulative operation time of the Lossnay exceeded
the estimated hours, the maintenance icon will appear on
the air conditioner remote controller or the Lossnay remote
controller. After cleaning the lter, the maintenance icon can be
reset. Refer to the Instruction book for the remote controller.
No.2 Lossnay core maintenance indicator setting
When using PZ-62DR-E, set to enable Lossnay core maintenance
display. Estimated hour di󰀨ers by actual operated fan speed.
This function is N/A from Lossnay unit DIP-SW.
The target interval can be selected at
No. 85
,
No. 86
.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Lossnay core
maintenance indicator
SW No. Setting Function No. Setting Data
N/A
- -
2
0
(Factory setting)
N/A
- - 1 Indicate at estimated
6,000 hrs
CAUTION
• When the cumulative operation time of the Lossnay exceeded
the estimated hours, the maintenance icon will appear on the
Lossnay remote controller. After cleaning the Lossnay core, the
maintenance icon can be reset. Refer to the Instruction book for
the remote controller.
No.5 Automatic recovery setting after power
interruption
Sets for automatic recovery following power interruption.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Lossnay operation when
the power is recovered
SW No. Setting Function No. Setting Data
SW2-8
- -
5
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 Lossnay remains stopped.
- - 2 Lossnay starts operation.
ON 3 Lossnay returns to the
state before interruption*
* If a power failure happens when Lossnay is operating by external
signal via TM2 12 or YZ, Lossnay returns the condition before power
failure regardless of the external input condition after power recovery.
No. 6 Indoor negative pressure setting
Exhaust fan speed becomes
bigger than supply fan speed.
Remote controller indicates fan
speed of exhaust fan.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Down level of supply fan
speed
SW No. Setting Function No. Setting Data
SW2-4
- -
6
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 N/A
ON 2
Supply fan speed is 1
down to exhaust fan speed
- - 3
Supply fan speed is 2
down to exhaust fan speed
No.7 Indoor positive pressure setting
Supply fan speed becomes bigger
than exhaust fan speed.
Remote controller indicates fan
speed of supply fan.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Down level of exhaust
fan speed
SW No. Setting Function No. Setting Data
SW2-5
- -
7
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 N/A
ON 2
Exhaust fan speed is 1
down to supply fan speed
- - 3
Exhaust fan speed is 2
down to supply fan speed
No.8 Max. fan speed setting during the rst 30
minutes
This sets the fan to run forcibly for 30 minutes when operation starts to
ventilate the indoor area. After 30 minutes, fan speed can be changed.
Use this setting if the indoor air is contaminated at night when the
system is shut down and you desire to ventilate the indoor area
quickly when operation is started in the morning.
This function is N/A from Lossnay unit DIP-SW.
While this function is working, and selected fan speed are displayed
on the screen of PZ-62DR-E.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Max. fan speed setting
during the rst 30 minutes
SW No.
Setting Function No. Setting Data
N/A - - 8
0
(Factory setting)
N/A
- - 1 Available
Fan speed
Display
Exhaust
fan
Supply fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1
Fan speed
Display
Supply
fan
Exhaust fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1

Eng-18
5. Function settings (continued)
No.9 Delay start setting for air conditioner
starting
Delays Lossnay operation for 30 minutes when City Multi or Mr. Slim
starts operating or when a external device starts operating.
This function is available only when Lossnay is interlocked with air
conditioners.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Lossnay delay start
SW No. Setting Function No. Setting Data
SW2-3
- -
9
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 N/A
- - 2 15 min
ON 3 30 min
No.12-16 Monitor output setting
Set operation monitor output from TM3 90 synchronized with fan
operation, ventilation mode or occurrence of malfunction.
Monitor output setting for PZ-4GS-E COM-OUT1 to 4 can be set from
the remote controller as well.
See page 15 for which function No. is applied for the each terminal.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Monitor output
setting
SW No.
Setting Setting
Function
No.12
Function
No.13-16
Function
No.12
Function
No.13-16
SW5-1
SW5-2
- - - 0 - DIP-SW priority
5-1 OFF
5-2 OFF
(Factory setting)
-1 0
Operation monitor output
The output turns ON while
Lossnay is operating.
5-1 ON
5-2 OFF -2 1
Malfunction monitor
output
The output turns ON when
a malfunction occurs on
the Lossnay unit.
5-1 OFF
5-2 ON -3 2
By-pass ventilation
operation monitor output
Corresponds to operation
mode output of the By-
pass damper.
5-1 ON
5-2 ON -4 3
SA fan monitor output
* When supply fan stops
due to cold outdoor temp.
or defrosting, output stops.
5 4
EA fan monitor output
6 5
Pre-heater output
Output starts 10 seconds
after supply fan starts
operation.
Fan continues to operate
for 3 min. after stopping
the output.
Lossnay starts output
when outdoor temp.
is 32˚F (0˚C) or less,
and stops output when
detecting temp. becomes
59˚F (15˚C)
Lossnay stops the output
every 1 hour. Error code
is shown on the remote
controller and the output
stops in the case of
following.
1) Outdoor temperature
higher than 59˚F (15˚C)
within 15 minutes after
the output starts.
2) Outdoor temperature
-4˚F (-20˚C) or lower, 5
minutes after the output
starts.
7 6
SA fan monitor output
with delay operation (for
After heater)
Output starts 10 seconds
after supply fan starts
operation.
Fan continues to operate
for 3 min. after stopping
the output.
- To use as the after-heater output, observe the cautions listed in 4
in the page 10.
- For heater selection, observe the cautions listed in 4in the page
10.
No.17 Exhaust fan setting during air conditioner
defrosting
This function can be used under the condition Lossnay supply duct is
connected to Mr. Slim or City Multi indoor unit.
Sets the operation of the exhaust fan during defrosting of the air
conditioner (when supply fan stop).
To enable this function, it is necessary to set the indoor unit also.
Please refer to its manual.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Exhaust fan operation during
air conditioner defrosting
SW No. Setting Function No. Setting Data
SW5-3
OFF
(Factory setting)
17
0 No change
ON 1 Stop
- - 2
(Factory setting)
DIP-SW priority
No.18 Exhaust fan setting at OA temperature
lower than 5˚F (-15 ˚C)
Sets the operation of the exhaust fan when the outdoor air is lower
than 5˚F (-15 ˚C) (when supply fan stop).
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Exhaust fan operation at outdoor
temp. 5˚F (-15 ˚C) or less
SW No. Setting Function No. Setting Data
N/A
- -
18
0
(Factory setting)
No change
- - 1 Forced to fan speed 2
or less
- If EA and SA is set unbalanced, the Lossnay core defrosting may
not work correctly. For continuous unbalanced operation, a pre-
heater is recommended to install.
No.19 Interlock mode setting
These settings indicate how Lossnay should operate when City Multi
or external devices are started or stopped.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Interlock setting
SW No. Setting Function No. Setting Data
N/A
- -
19
0
(Factory setting)
The Lossnay will start and stop
according to the operation of the
external devices. Subsequent
operation will be possible using
the remote controller for the
Lossnay or MELANS.
- - 1
The Lossnay will start whenever
external devices are operated.
Stopping Lossnay operation
will be possible using its remote
controller or MELANS.
- - 2
The Lossnay will stop whenever
external devices are stopped.
Starting Lossnay operation will
be possible using its remote
controller or MELANS.
- - 3
The Lossnay will start and stop
according to the operation of
the external devices. Control
via the Lossnay remote
controller or MELANS will only
be possible when external
devices are stopped.

Eng-19
5. Function settings (continued)
No.28 Pulse input setting
Set external input signal type from external device for TM2.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Pulse input setting
SW No. Setting Function No. Setting Data
SW2-2
- -
28
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 NOT pulse input
ON 2 Pulse input
When pulse signal is selected,
No. 9
and
No. 19
are not available.
Keep factory settings for
No. 9
and
No. 19
.
Either interlocking with City multi or Mr. Slim is not possible.
No.30 Night-purge setting 1)
Air volume
Set fan speed during Night-purge. To use Night-purge function, it is
necessary to set
No. 30
,
No. 31
,
No. 32
correctly.
This function is N/A from Lossnay unit DIP-SW.
It can also be set on the PZ-62DR-E’s Ventilation settings screen.
When using PZ-62DR-E and AE-200A together, set all conditions
from AE-200A.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Air volume
SW No. Setting Function No. Setting Data
N/A
- -
30
0
(Factory setting)
N/A (Night-purge
function is not available)
- - 1 Fan speed 1
- - 2 Fan speed 2
- - 3 Fan speed 3
- - 4 Fan speed 4
No.31 Night-purge setting 2)
Outdoor and indoor temperature gap
Set one of conditions for Night-purge start, temperature gap between
indoor and outdoor.
When the actual gap between indoor and outdoor becomes bigger
than the setting, Night-purge starts.
This function is N/A from Lossnay unit DIP-SW.
When using PZ-62DR-E and AE-200A together, set all conditions
from AE-200A.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Outdoor and indoor
temperature gap
SW No. Setting Function No. Setting Data
N/A
- -
31
0
0 K (0 °F/0 °C ) or more
- - 1 1 K (1.8 °F/1˚C) or more
- - 2 2 K (3.6 °F/2˚C) or more
- - 3 3 K (5.4 °F/3˚C) or more
- - 4 4 K (7.2 °F/4˚C) or more
- - 5
(Factory setting)
5 K (9 °F/5˚C) or more
- - 6 6 K (10.8 °F/6˚C) or more
- - 7 7 K (12.6 °F/7˚C) or more
No.32 Night-purge setting 3)
The lowest outdoor temperature
Set one of conditions for Night-purge start, maximum outdoor
temperature within 72 hours.
When this setting temperature is low, it is likely to start Night-purge.
This function is N/A from Lossnay unit DIP-SW.
When using PZ-62DR-E and AE-200A together, set all conditions
from AE-200A.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
The lowest outdoor
temperature
SW No. Setting Function No. Setting Data
N/A
- -
32
059 ˚F (15 ˚C) or more
- - 1 61 ˚F (16 ˚C) or more
- - 2
(Factory setting)
63 ˚F (17 ˚C) or more
- - 3 64 ˚F (18 ˚C) or more
- - 4 66 ˚F (19 ˚C) or more
- - 5 68 ˚F (20 ˚C) or more
- - 6 70 ˚F (21 ˚C) or more
- - 7 72 ˚F (22 ˚C) or more
- - 8 73 ˚F (23 ˚C) or more
- - 9 75 ˚F (24 ˚C) or more
- - 10 77 ˚F (25 ˚C) or more
- - 11 79 ˚F (26 ˚C) or more
- - 12 81 ˚F (27 ˚C) or more
- - 13 82 ˚F (28 ˚C) or more
- - 14 84 ˚F (29 ˚C) or more
- - 15 86 ˚F (30 ˚C) or more
No.33 Night purge setting 4)
Outdoor temperature detection period
Night-purge is decided to start or not by the OA temperature within X
hour.
X hour can be selected from 24, 48 or 72 hrs.
It is possible to operate Night-purge on Sunday midnight or Monday
early morning by select longer setting even Lossnay stops.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
OA temperature
detection period
SW No. Setting Function No. Setting Data
N/A
- -
33
0 24 hrs
- - 1 48 hrs
- - 2
(Factory setting)
72 hrs
No.34 Input priority setting
Set to follow input to the main unit from air conditioner, fan speed
controller, etc.
When multiple Lossnay units fan speed is externally controlled via
CN17 or CN26, select individual control or bunch control.
When bunch control is selected, connect PZ-62DR-E and input
external signal to the main unit.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Input priority setting
SW No. Setting Function No. Setting Data
N/A - - 34
0
(Factory setting)
Bunch control priority
- - 1 Individual control priority

Eng-20
5. Function settings (continued)
No.36 Outdoor temperature display setting
Set to display outdoor temperature detected by Lossnay unit
thermistor.
This function is N/A from Lossnay unit DIP-SW.
This function is available only when “Sensor value” is set to “Yes”
(Display) by the remote controller PZ-62DR-E.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Outdoor temperature
display
SW No. Setting Function No. Setting Data
N/A
- -
36
0 N/A
- - 1
(Factory setting)
Available on the screen
of PZ-62DR-E
No.37 Indoor temperature display setting
Set to display indoor temperature detected by Lossnay unit thermistor.
This function is N/A from Lossnay unit DIP-SW.
This function is available only when “Sensor value” is set to “Yes”
(Display) by the remote controller PZ-62DR-E.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Indoor temperature
display
SW No. Setting Function No. Setting Data
N/A
- -
37
0 N/A
- - 1
(Factory setting)
Available on the screen
of PZ-62DR-E
No.38 CO2concentration display setting
Set to display CO2concentration when the CO2 sensor (PZ-70CSB-E,
PZ-70CSW-E) is used.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
CO2concentration
display
SW No. Setting Function No. Setting Data
N/A
- -
38
0 N/A
- - 1
(Factory setting)
Available on the screen
of PZ-62DR-E
- This function is available only when “Sensor value” is set to “Yes”
(Display) by the remote controller PZ-62DR-E.
- When displaying CO2 concentration, supply air temperature cannot
be displayed simultaneously.
- CO2concentration display shows the value detected by a CO2
sensor connected to Lossnay unit. The value may di󰀨er from the
actual indoor CO2concentration. This function cannot be used as a
measuring instrument.
- The value may signicantly di󰀨er from the actual indoor CO2
concentration for approx. 15 minutes after starting operation.
- When 3rd party’s CO2 sensor is connected, CO2concentration is
not displayed on PZ-62DR-E screen.
No.39 Calculated supply air temperature display
setting
Set to display calculated supply air temperature or not.
This function is N/A from Lossnay unit DIP-SW.
In addition, this function is available only when “Sensor value” is set
to “Yes”(Display) by the remote controller PZ-62DR-E.
CO2concentration and supply air temperature can not be displayed
at the same time.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Calculated supply air
temperature display
SW No. Setting Function No. Setting Data
N/A
- -
39
0
(Factory setting)
N/A
- - 1 Available on the screen
of PZ-62DR-E
- CO2concentration and supply air temperature can not be displayed
at the same time.
No.40, 41 Temperature exchange e󰀩ciency
setting
Set the 10 digit of temperature exchange e󰀩ciency which is used to
calculate supply air temperature.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
10 digit of temperature
exchange e󰀩ciency
SW No. Setting Function No. Setting Data
N/A
- -
40
0 0
- - 1 1
- - 2 2
- - 3 3
- - 4 4
- - 5 5
- - 6 6
- - 7
(Factory setting)
7
- - 8 8
- - 9 9
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
1 digit of temperature
exchange e󰀩ciency
SW No. Setting Function No. Setting Data
N/A
- -
41
0
(Factory setting)
0
- - 1 1
- - 2 2
- - 3 3
- - 4 4
- - 5 5
- - 6 6
- - 7 7
- - 8 8
- - 9 9
No.42 Outdoor temperature correction
Set the correction for the outdoor temperature displayed on the
PZ-62DR-E screen by function
No. 36
.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
The correction to
thermistor detection
SW No. Setting Function No. Setting Data
N/A
- -
42
0 -7 K (-12.6 °F/-7 °C )
- - 1 -6 K (-10.8 °F/-6 °C )
- - 2 -5 K (-9 °F/-5 °C )
- - 3 -4 K (-7.2 °F/-4 °C )
- - 4 -3 K (-5.4 °F/-3 °C )
- - 5 -2 K (-3.6 °F/-2 °C )
- - 6 -1 K (-1.8 °F/-1 °C )
- - 7
(Factory setting)
0 K (0 °F/0 °C )
- - 8 +1 K (+1.8 °F/+1 °C )
- - 9 +2 K (+3.6 °F/+2 °C )
- - 10 +3 K (+5.4 °F/+3 °C )
- - 11 +4 K (+7.2 °F/+4 °C )
- - 12 +5 K (+9 °F/+5 °C )
- - 13 +6 K (+10.8 °F/+6 °C )
- - 14 +7 K (+12.6 °F/+7 °C )
