Mitsubishi MOTORS ED-330BE-R1 User manual
SERVICE MANUAL
MITSUBISHI ELECTRIC CORP. SANDA WORKS
Your company internal use only.
ED-330BE-R1,-WS
Copyright (C) Mitsubishi Electric Corporation.
SE046713043E Ver.ppt11E
MITSUBISHI MOTORS
RSE (Rear Seat Entertainment)
2013 Oct.
Model : ED-330BE-R1,-WS
MELCO Code : 3AB241,250
PART No. : 8750A291YA, MZ360424EX
● FEATURES and SPECIFICATIONS.................................2,3
● OPERATION ....................................................................3,4
● CONNECTORS ..................................................................5
● SYSTEM CONFIGURATION ..............................................6
● BLOCK DIAGRAM ..............................................................7
● DISASSEMBLING PROCEDURES ............................. 8~13
● PARTS LIST.................................................................14,15
● ELECTRICAL PARTS LIST........................................ 16~27
● PARTS LAYOUT ON PRINTED CIRCUIT BOARD .... 28~33
● SCHEMATIC DIAGRAM
PCB-MAIN ..............................................................34,35
PCB-PANEL.................................................................36
PCB-MONI ..............................................................37,38
● VOLTAGE .........................................................................39
● WAVEFORM .....................................................................40
CONTENTS
Downloaded from ManualsNet.com search engine
2Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
FEATURES
●9 inch WVGA LCD.
●Built-in DV4 mecha.
SPECIFICATIONS
< Display Part >
●Screen size : 9 inch (23cm diagonally)
●Dimensions : 209.7(H) x 130.7(V)mm
●Weight (typ.) : 260g
●Number of pixels : 800 dots(H) x 480 lines(V)
●Pixel configuration : RGB stripe
●Dot pitch : 0.246(H) x 0.246(V)
●Driving system : Active matrix driving
●Display mode : Normally white
●Glass surface treatment : AG
< Disc Player Part >
●Application : DVD Video / Audio player
Shock proof memory (64M-SDRAM) loading
DVD = 2X-speed, CD = 4X-speed
Multi session disc supported. (Max 50 sessions)
●Loading system : Slot-in, Power loading / eject
12cm disc only.
(8cm disc can be played with adaptor.)
●Loading function : ANY-TIME eject,
Prevention mechanism of double insertion.
●Available standard / disc : Table 1 reference (page 3)
●Image output : NTSC Composite output (525/60)
PAL Composite output (625/50)
MACROVISION ANTITAING PROCESS,
CGMS-A supported.
●Audio output : Down Mix 2ch (3-wire digital output)
●MP3 / WMA /AAC playback : Max number of folders = 255
(Contain route folders)
Max number of files = 2000
Max number of hierarchies = 8
< Panel Part >
[ Wireless audio transmit part ]
●Modulation method : Frequency modulation method
●Transmit frequency : Right ch = 2.8MHz, Left ch = 2.3MHz
[ Panel illumination part ]
●Button : Umber
●Disc eject button : Umber
< External I/F Part >
●Sound signal rated input : 165mVrms (at 10kΩterminal / 1kHz / sine wave)
●Max sound signal input : 1.0Vrms (at 10kΩterminal / 1kHz / sine wave)
●Sound signal rated output : 1.0Vrms ±0.1V
(at max sound signal input / 10kΩterminal)
●Image signal input : 1.0Vp-p (at 75Ωterminal / positively)
●Synchronized signal input : 0.286Vp-p (at 75Ωterminal / negatively)
/ Composite VIDEO
* No analog RGB input in the current state.
< Others >
●Working temperature range : -30℃~ +75℃
●Working voltage range : 13.0 ±3.0V
●Power supply : 13.2 ±0.5V
●Max consumption current : Max 3.0A (BATT), Max 2.5mA (ACC)
●Dark current : Less than 1.0mA
●Dimensions : 350(W) x 57(H) x 292(D)mm
●Weight : 2.5kg
FEATURES and SPECIFICATIONS
Downloaded from ManualsNet.com search engine
3Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
○: Available ×: Unavailable
(*1) : Not available according to the disk and writing specification.
FEATURES and SPECIFICATIONS
OPERATION
Remote Control
IR Receiver
H/P
IR Light Emitter
Eject ButtonPower Button
Table 1 Available standard / disc
Downloaded from ManualsNet.com search engine
4Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
OPERATION

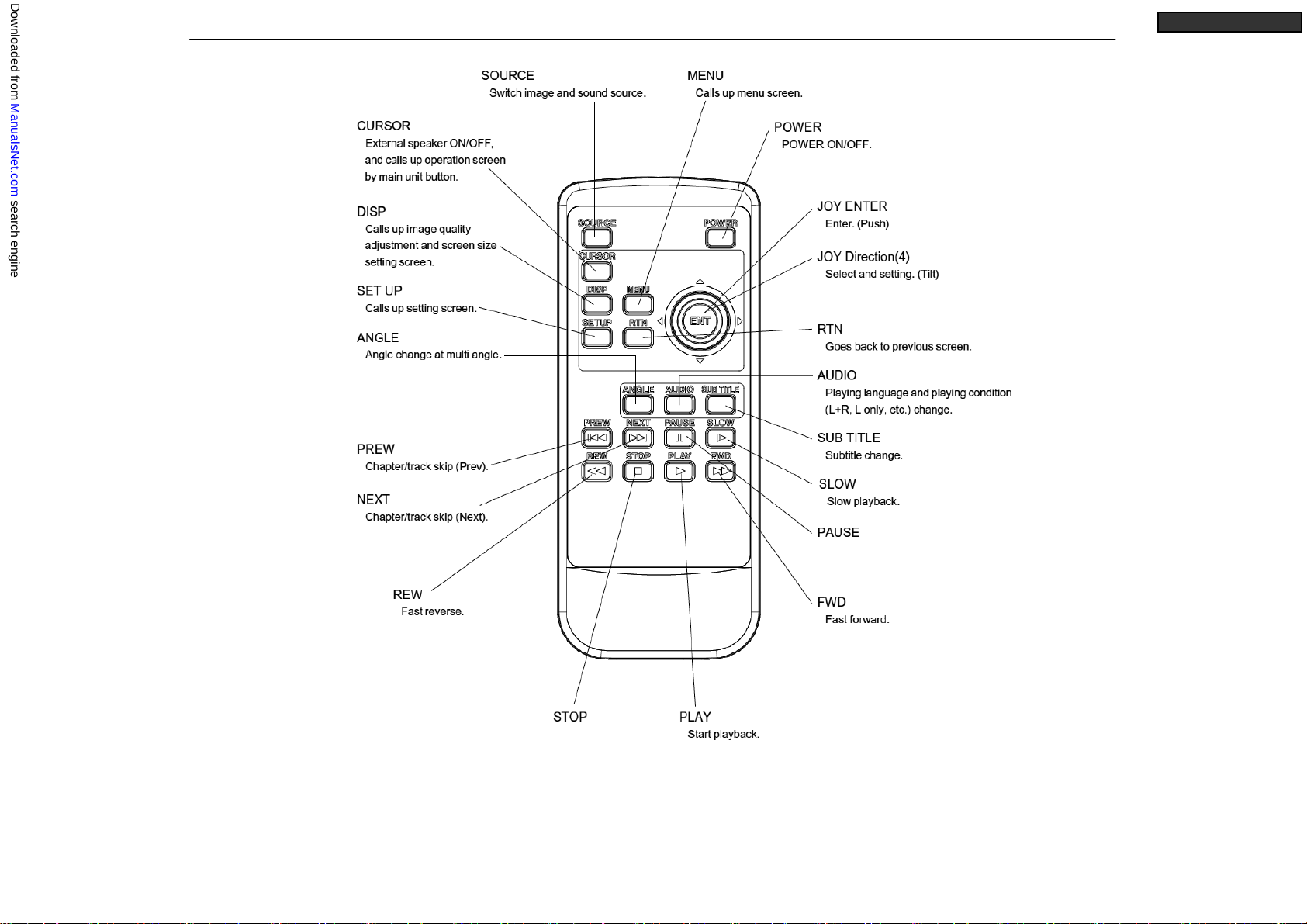

< REMOTE CONTROL (RE-311) >
●To play back AUX (external image and sound input) signal <AUX mode>
Push the SOURCE button of the remote control to change the mode from DVD to AUX.
Push the button again to change the front seat TV screen mode (with car navigation
system) or DVD mode (without car navigation system).
●To watch the front seat TV <Front seat TV screen mode> (with car navigation system)
Push the MEDIA button of the audio to change the car navigation system to the TV mode.
Push the SOURCE button of the remote control to change the mode from AUX to front seat
TV screen. Push the button again to change the mode back to DVD.
(It is not possible to operate TV by this remote control.)
Downloaded from ManualsNet.com search engine
5Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS

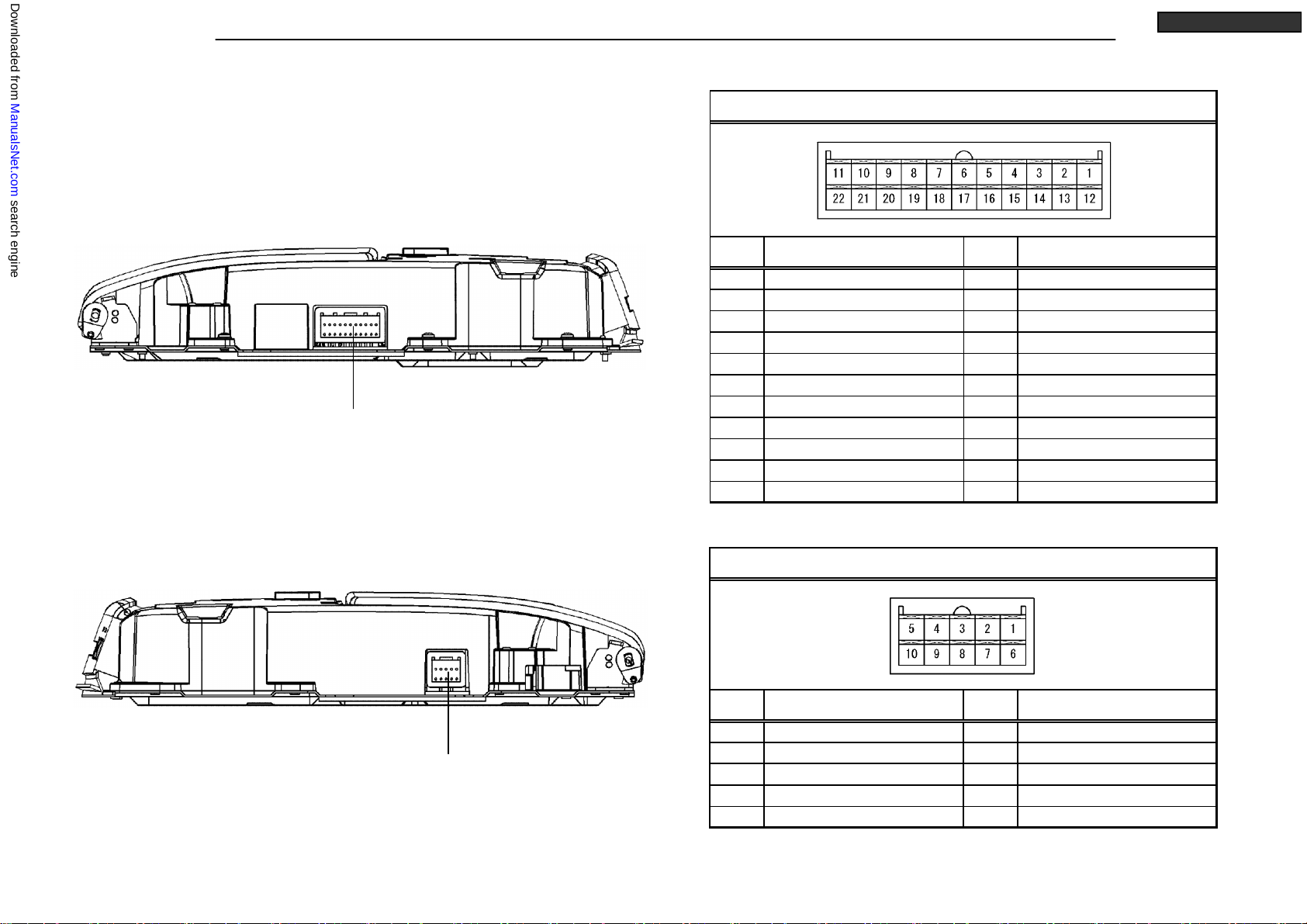

CONNECTORS
Vehicle Signal
22P Connector
(Note)
Figure of connector seen from side of unit.
VTR Adapter Input
10P Connector
PinNo. Signal Name PinNo. Signal Name
1 AUDIO-R-OUT 12 AUDIO-OUT-SHIELD
2 AUDIO-L-OUT 13-
3 VIDEO-ON(GND) 14-
4 - 15-
5 - 16-
6 - 17-
7 ILL 18 (REMO-SIG-GND)
8 ACC 19 (REMO-SIG-OUT)
9 +B 20-
10 - 21 -
11 GND 22 -
Vehicle Signal 22P Connector
PinNo. Signal Name PinNo. Signal Name
1 - 6 -
2 - 7 -
3 VTR-AUDIO-R-IN 8 VTR-AUDIO-L-IN
4 - 9 VTR -AU D IO- SH IE L D
5 VTR-VIDEO-IN 10 VTR-VIDEO-SHIELD
VTR Adapter Input 10P Connector
Downloaded from ManualsNet.com search engine
8Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.

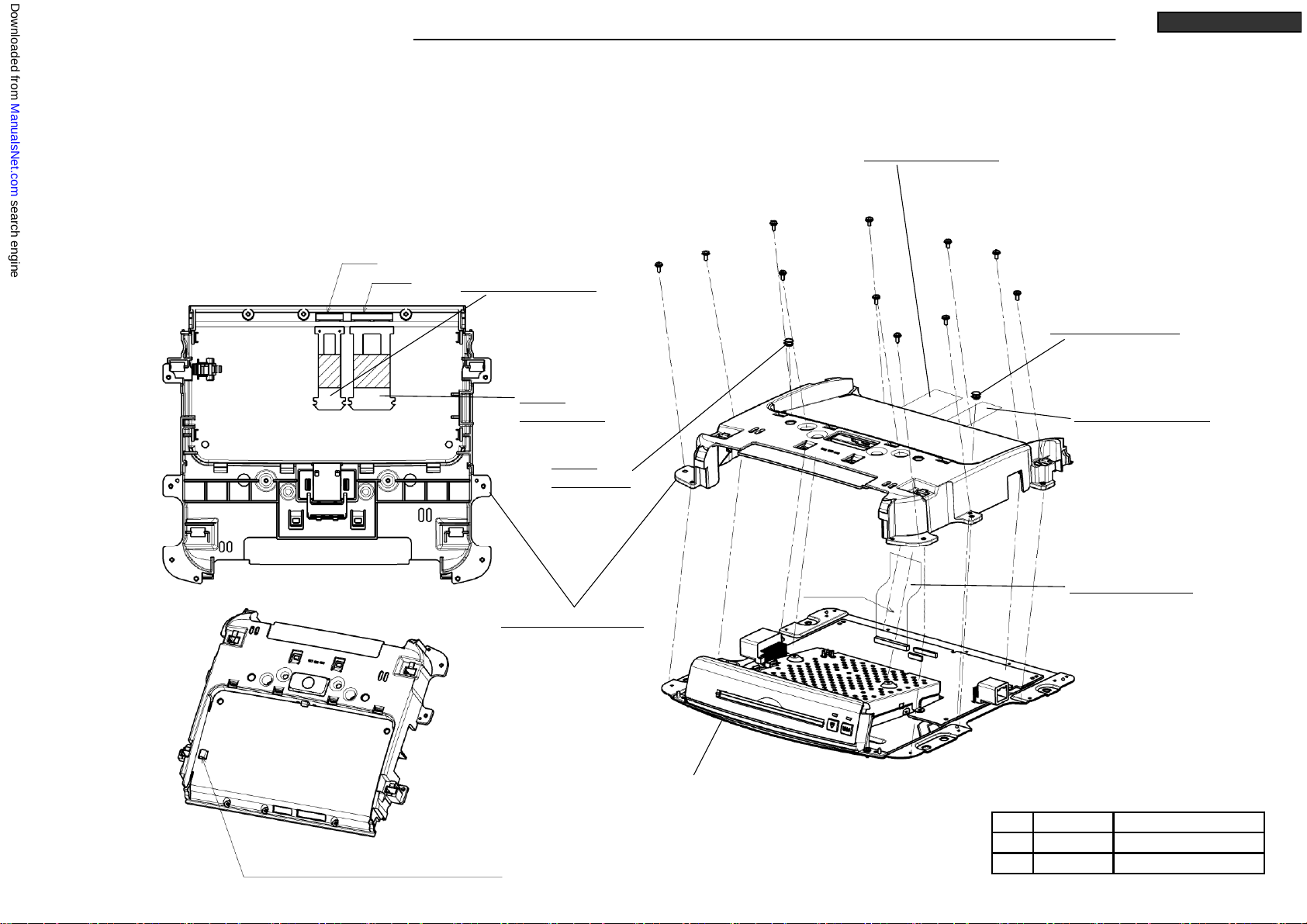

ED-330BE-R1,-WS
DISASSEMBLING PROCEDURES
M012 : SHEET
S2-ED-330BE
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Stick M012 to S2-ED-330BE. (2 places)
M025(1) : NAME-CARD(ED-330BE-R1)
M026(2) : NAME-CARD(ED-330BE-R1-WS)
Stick along at the mark.
Stick inside of the mark.
(1) ED-330BE-R1
(2) ED-330BE-R1-WS
Model
Downloaded from ManualsNet.com search engine
9Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
DISASSEMBLING PROCEDURES
M007 : SHIELD-MONI
Ⓐx 4
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Assemble S3-ED-330BE-MO-R2 to S3-ED-330BE,
and screw Ⓐ. (4 places) After screw, tightening again.
2. Stick SHEET-FPC of S3-ED-330BE to S3-ED-330BE-MO-R2 like in the fig.
3. Insert the FPC of S3-ED-330BE to the connector of S3-ED-330BE-MO-R2, and lock.
4. Assemble M007 to S3-ED-330BE-MO-R2, and screw Ⓒ. (5 places)
5. Assemble M019 to S3-ED-330BE-MO-R2.
Ⓒx 5
M019 : PANEL-R
S3-ED-330BE
S3-ED-330BE-MO-R2
0.7 +0.2/-0.1M3X4Ⓐ
Ⓒ
No.
0.4 +0.2/-0.12.6X4
Tighten torque(N・m)Screw
Downloaded from ManualsNet.com search engine
10 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
DISASSEMBLING PROCEDURES
M011 : SHEET-FPC
Ⓓx 8
Hole A
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Insert M001 to the connector of S4-ED-330BE, and lock.
2. Insert M004 to M021. (2 places)
3. Stick M010 and M011 to M021, through M010 and M011 to the hole A, B of M021.
4. Assemble M021 to S4-ED-330BE, and screw Ⓓ(8 places), Ⓔ(3 places).
(At the time, through M001 to the hole B of M021.)
M011 :
SHEET-FPC
S4-ED-330BE
Ⓔ
ⒺⒺ
Print side
(Surface) M001 : FPC-MAIN
M021 : ASSY-INNER
M010 : SHEET-FPC
When assembling M021 to S4-ED-330BE,
don't touch the lever.
Hole B M010 : SHEET-FPC
M004 : SPACER-M
M004 :
SPACER-M
0.55 ±0.1M2.6X5Ⓔ
0.55 ±0.1M2.6X6Ⓓ
No. Tighten torque(N・m)Screw
Downloaded from ManualsNet.com search engine
11 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
DISASSEMBLING PROCEDURES
Ⓓx 2
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Bend M003 at the protection sheet, insert to the connector of PCB-PANEL, and lock.
2. Assemble PCB-PANEL to M023, and screw Ⓖ. (3 places)
3. Assemble M023 to S4-ED-330BE, and screw Ⓓ. (2 places) (When screwing, don't touch the area C of M023.)
4. Insert M003 to the connector of S4-ED-330BE, and lock. Fix M003 to S4-ED-330BE by TAPE-FILAMENT.
(See the fig below about operating instructions.)
Cut TAPE-FILAMENT to 35±2mm.
M003 : FLAT-CABLE 12P
S4-ED-330BE
TAPE-FILAMENT
Area C
Protection
sheet side
Make the space of right and left same.
Put M003 (M023 side) in to the inside
of the model.
Ⓖx 3
M023 : ASSY-PANEL
PCB-PANEL
M003 : FLAT-CABLE 12P
TAPE-FILAMENT
0.55 ±0.1M2.6X6Ⓓ
Ⓖ
No.
0.2 +0.15/-0.042X6
Tighten torque(N・m)Screw
(Face side)
Downloaded from ManualsNet.com search engine
12 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS

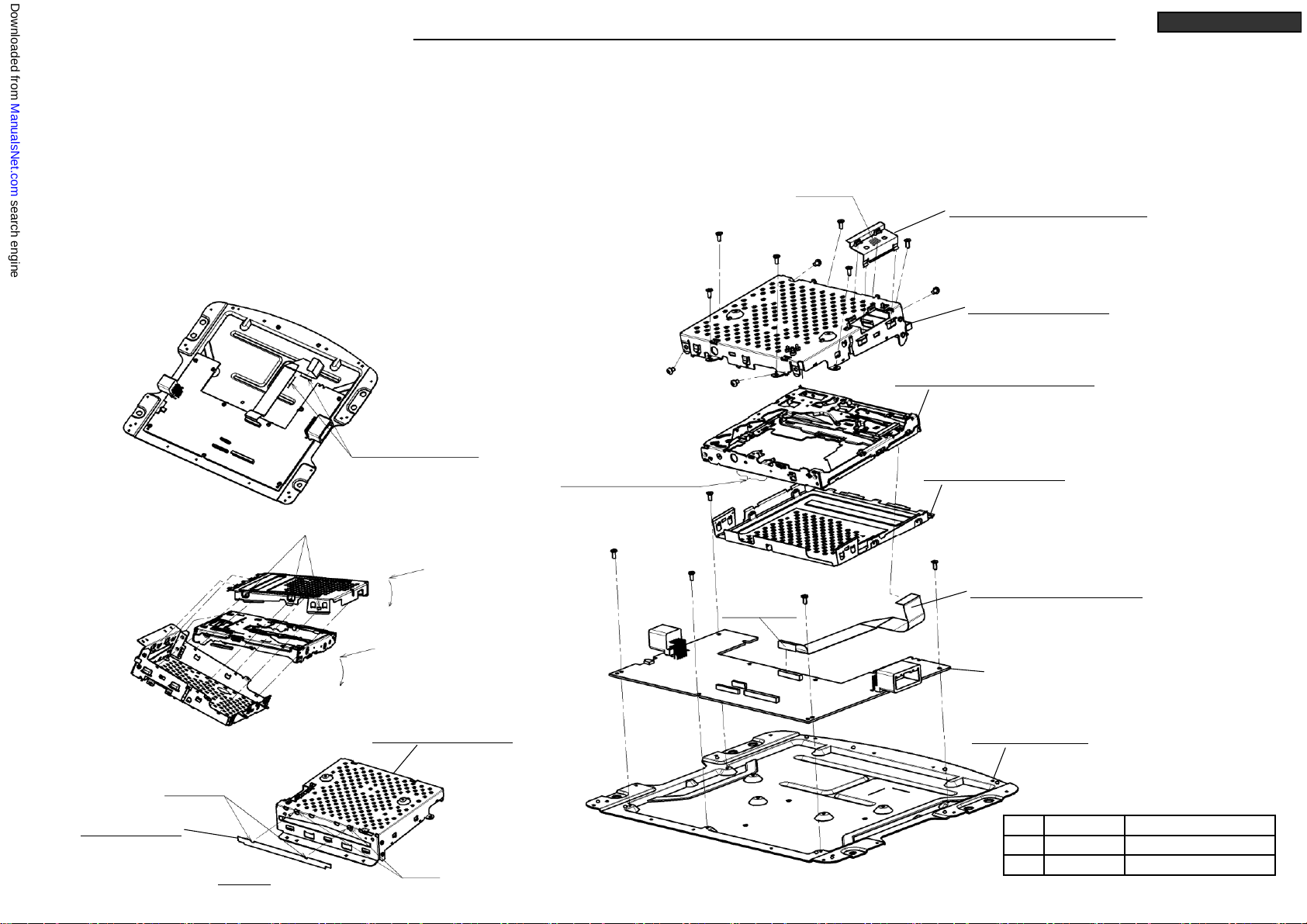

DISASSEMBLING PROCEDURES
M008 : COVER-DVD-UPPER
Ⓗx 6
Push point
When screwing *1, *2,
push this area.
FFC Sticking Mark
Latch hooks
(3 places on opposite too.)
Cutout
Hooks
Detail A
Protection
sheet side
PCB-MAIN
*1
*2
M005 : CHASSIS
M002 : FLAT-CABLE 40P
M024 : DV4-MECHA(955314)
M009 : SHIELD-DVD
M006 : COVER-DVD
Ⓐx 2
Ⓐ
Ⓐ
Ⓗx 5
0.7 +0.2/-0.1M3X4Ⓐ
Ⓗ
No.
0.65 ±0.22.6X6
Tighten torque(N・m)Screw
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Assemble PCB-MAIN to M005, screw Ⓗ. (5 places)
2. Insert M002 to the connector of PCB-MAIN, and lock.
Unstuck the paper liner, and stick along at the mark of M005.
3. Assemble M024 to M006, and screw Ⓐ. (4 places)
(When screwing *1, *2 of Ⓐ, push M024 to not move M024, and screw.)
4. Stick M017 to M006. (Set the cutout of M017 to hook of M006. See Detail A.)
5. Assemble M009 to M006, and latch the hooks. (6 places)
6. Assemble M006 to M005, and screw Ⓗ. (6 places)
7. Insert M002 to the connector of M024, and lock.
8. Assemble M008 to M006.
(Before assembling, check the hooks of M008 is able to insert to the square hole of M006.)
M006 : COVER-DVD
M017 : SHEET
Downloaded from ManualsNet.com search engine
13 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
DISASSEMBLING PROCEDURES
M013 : SHEET-PCB
Ⓕx 6
PCB-MONI
Hook B
Tape
Hook C
Hook A
Fit to the edge of the hole.
Positioning point
Double stick tape M018 : PANEL-F
Ⓑ
M020 : ASSY-LCD
M022 : ASSY-LCDH
M014 : CUSHION-E
M015 : CUSHION-E
M022 : ASSY-LCDH
M022 : ASSY-LCDH
M022 : ASSY-LCDH
M013 : SHEET-PCB
M016 : CUSHION-E
0.4 +0.2/-0.1M2.6X3Ⓑ
Ⓕ
No.
0.4 +0.15/-0.052.6X6
Tighten torque(N・m)Screw
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Assemble M020 to the hooks A (6 places) of M018.
2. Remove the tape that fixing FPC.
3. Match the marks, and stick M014 (1 place), M015 (2 places), M016 (2 places) to M022.
4. Set M022 to the locating boss of M018. Assemble the hook B of M022
and hooks C of M018 (2 places each), and screw Ⓕ. (6 places)
5. Remove the paper liner from M013, stick to M022.
6. Assemble PCB-MONI to M022, screw Ⓑ. (1 place)
7. Insert the FPC of M020 to the connectors (2 places) of PCB-MONI, and lock.
Downloaded from ManualsNet.com search engine
14 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
PARTS LIST
* Marked part is the ASSY replacement.
< ED-330BE-R1 >
Ref. No. Parts No. Parts Nam e Page
M001 241L91111 FPC-MAIN P.10
M002 246L52097 FLAT-CABLE 40P P.12
M003 246L55612 FLAT-CABLE 12P P.11
M004 550L03610 SPACER-M P.10
M005 560J43010 CHASSIS P.12
M006 590J54611 COVER-DVD P.12
M007 590J54810 SHIELD-MONI P.9
M008 590J56010 COVER-DVD-UPPER P.12
M009 594L09310 SHIELD-DVD P.12
M010 643L92214 SHEET-FPC P.10
M011 643L92215 SHEET-FPC P.10
M012 643L94210 SHEET P.8
M013 643L94311 SHEET-PCB P.13
M014 643L94410 CUSHION-E P.13
M015 643L94411 CUSHION-E P.13
M016 643L94412 CUSHION-E P.13
M017 643L94610 SHEET P.12
M018 702J90412 PANEL-F P.13
M019 702J90510 PANEL-R P.9
M020 890P19013 ASSY-LCD P.13
M021 892L52114 ASSY-INNER P.10
M022 892L52210 ASSY-LCDH P.13
M023 892L52316 ASSY-PANEL P.11
*M024 940L28624 DV4-MECHA(955314) P.12
M025 959M001O5 NAME-CARD(ED-330BE-R1) P.8
A 653P01044 SCREW-MC-PAN M3X4 -
B 653P01425 SCREW-MC-PAN M2.6X3 -
C 653P03026 SCREW-MC-BIND 2.6X4 -
D 653P07028 SCREW-MC-SEMS M2.6X6 -
E 653P07427 SCREW-MC-SEMS M2.6X5 -
F 653P31028 SCREW-P-PAN 2.6X6 -
G 653P33014 SCREW-P-BIND 2X6 -
H 655P03028 SCREW-D-BIND 2.6X6 -
Downloaded from ManualsNet.com search engine
15 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
ED-330BE-R1,-WS
PARTS LIST
* Marked part is the ASSY replacement.
< ED-330BE-R1-WS >
Ref. No. Parts No. Parts Nam e Page
M001 241L91111 FPC-MAIN P.10
M002 246L52097 FLAT-CABLE 40P P.12
M003 246L55612 FLAT-CABLE 12P P.11
M004 550L03610 SPACER-M P.10
M005 560J43010 CHASSIS P.12
M006 590J54611 COVER-DVD P.12
M007 590J54810 SHIELD-MONI P.9
M008 590J56010 COVER-DVD-UPPER P.12
M009 594L09310 SHIELD-DVD P.12
M010 643L92214 SHEET-FPC P.10
M011 643L92215 SHEET-FPC P.10
M012 643L94210 SHEET P.8
M013 643L94311 SHEET-PCB P.13
M014 643L94410 CUSHION-E P.13
M015 643L94411 CUSHION-E P.13
M016 643L94412 CUSHION-E P.13
M017 643L94610 SHEET P.12
M018 702J90412 PANEL-F P.13
M019 702J90510 PANEL-R P.9
M020 890P19013 ASSY-LCD P.13
M021 892L52114 ASSY-INNER P.10
M022 892L52210 ASSY-LCDH P.13
M023 892L52316 ASSY-PANEL P.11
*M024 940L28624 DV4-MECHA(955314) P.12
M026 959M001O6 NAME-CARD(ED-330BE-R1-WS) P.8
A 653P01044 SCREW-MC-PAN M3X4 -
B 653P01425 SCREW-MC-PAN M2.6X3 -
C 653P03026 SCREW-MC-BIND 2.6X4 -
D 653P07028 SCREW-MC-SEMS M2.6X6 -
E 653P07427 SCREW-MC-SEMS M2.6X5 -
F 653P31028 SCREW-P-PAN 2.6X6 -
G 653P33014 SCREW-P-BIND 2X6 -
H 655P03028 SCREW-D-BIND 2.6X6 -
Downloaded from ManualsNet.com search engine
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C100 181P80827 C-ELECTROLYTIC-CHI
P
UUD1C101MCLZMLGS 16V 101M N937L53610 C1S4 181P80836 C-ELECTROLYTIC-CHI
P
UUD1E101MCLZMLGS 25V 101M N937L53610
C101 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1S5 141M02113 C-CERAMIC-CHI
P
GRM32DR71E106KA12E X7S25V106K322
5
N937L53610
C102 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C1S6 141L049O6 C-CERAMIC-CHI
P
GRM31CB11A475KA01
L
B 10V 475K 321
6
N937L53610
C103 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1S7 181P80811 C-ELECTROLYTIC-CHI
P
UUD1A221MCLZMLGS 10V 221M N937L53610
C104 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1S8 141L049O6 C-CERAMIC-CHI
P
GRM31CB11A475KA01
L
B 10V 475K 321
6
N937L53610
C105 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1S9 181P80811 C-ELECTROLYTIC-CHI
P
UUD1A221MCLZMLGS 10V 221M N937L53610
C106 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1T0 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C108 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1T2 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610
C109 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1T4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C110 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1T5 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N937L53610
C117 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1T6 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N937L53610
C136 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1T7 141P23030 C-CERAMIC-CHI
P
GCJ32ER71H475KA12L X7R50V475K322
5
N937L53610
C149 141L069O8 C-CERAMIC-CHI
P
C2012JB1A335K
T
B 10V 335K212
5
N937L53610 C1T8 141P23030 C-CERAMIC-CHI
P
GCJ32ER71H475KA12L X7R50V475K322
5
N937L53610
C150 181P80851 C-ELECTROLYTIC-CHI
P
UUD1V220MCLZMLGS 35V 220M N937L53610 C1T9 181P80854 C-ELECTROLYTIC-CHI
P
UUD1V101MNLZMLGS 35V 101M N937L53610
C151 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1U0 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610
C152 141L049O6 C-CERAMIC-CHI
P
GRM31CB11A475KA01
L
B 10V 475K 321
6
N937L53610 C1U1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610
C157 181P80836 C-ELECTROLYTIC-CHI
P
UUD1E101MCLZMLGS 25V 101M N937L53610 C1U2 181P80827 C-ELECTROLYTIC-CHI
P
UUD1C101MCLZMLGS 16V 101M N937L53610
C158 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C1U3 181P80324 C-ELECTROLYTIC-CHI
P
UWT1C220MCLSHDGB 16V 220M N937L53610
C1J0 181P80811 C-ELECTROLYTIC-CHI
P
UUD1A221MCLZMLGS 10V 221M N937L53610 C1U8 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610
C1J1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C1U9 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610
C1J2 181P80811 C-ELECTROLYTIC-CHI
P
UUD1A221MCLZMLGS 10V 221M N937L53610 C1W2 181P80827 C-ELECTROLYTIC-CHI
P
UUD1C101MCLZMLGS 16V 101M N937L53610
C1J5 141L069O6 C-CERAMIC-CHI
P
GRM21BB10J475KA11
L
B 6.3V 475K212
5
N937L53610 C1W3 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610
C1J6 141P23030 C-CERAMIC-CHI
P
GCJ32ER71H475KA12L X7R50V475K322
5
N937L53610 C1W4 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610
C1J7 181P81988 C-ELECTROLYTIC-CHI
P
UUD1V391MNLAMLGS 35V 391M N937L53610 C1W5 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610
C1J8 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N937L53610 C201 141P162O3 C-CERAMIC-CHI
P
GRM1552C1H330JZ01D CH 50V 330J1005 N937L53610
C1J9 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C202 141P162O3 C-CERAMIC-CHI
P
GRM1552C1H330JZ01D CH 50V 330J1005 N937L53610
C1K1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610 C203 141P162O3 C-CERAMIC-CHI
P
GRM1552C1H330JZ01D CH 50V 330J1005 N937L53610
C1K2 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610 C204 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610
C1K3 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C212 181P80839 C-ELECTROLYTIC-CHI
P
UUD1E471MNLZMLGS 25V 471M N937L53610
C1K4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C217 181P80839 C-ELECTROLYTIC-CHI
P
UUD1E471MNLZMLGS 25V 471M N937L53610
C1K6 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610 C219 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N937L53610
C1K7 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610 C221 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610
C1K8 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610 C222 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1K9 141P173O3 C-CERAMIC-CHI
P
GRM32EB31C476ME15
L
B 16V 476M 322
5
N937L53610 C223 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1L0 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C224 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610
C1L2 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C225 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610
C1L3 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C226 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1L6 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53610 C227 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1L7 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53610 C228 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1L8 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610 C231 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610
C1L9 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610 C233 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610
C1M0 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53610 C234 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610
C1M1 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C235 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610
C1M2 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C237 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1M3 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C238 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610
C1M4 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C239 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53610
C1M5 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C240 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610
C1M6 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C241 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1M7 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C242 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610
C1M8 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C243 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1M9 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53610 C244 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1N0 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53610 C245 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610
C1N1 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C2B0 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610
C1N2 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C2B1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1N3 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53610 C2B2 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N937L53610
C1N5 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53610 C2B3 181P80813 C-ELECTROLYTIC-CHI
P
UUD1A471MNLZMLGS 10V 471M N937L53610
C1N6 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C2B4 181P80391 C-ELECTROLYTIC-CHI
P
UWT0J220MCLSHDGB 6.3V 220M N937L53610
C1N7 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53610 C2B7 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1Q1 181P80827 C-ELECTROLYTIC-CHI
P
UUD1C101MCLZMLGS 16V 101M N937L53610 C2B8 181P80391 C-ELECTROLYTIC-CHI
P
UWT0J220MCLSHDGB 6.3V 220M N937L53610
C1Q3 181P80854 C-ELECTROLYTIC-CHI
P
UUD1V101MNLZMLGS 35V 101M N937L53610 C2B9 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1Q4 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610 C306 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610
C1Q5 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N937L53610 C310 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610
C1Q6 181P80324 C-ELECTROLYTIC-CHI
P
UWT1C220MCLSHDGB 16V 220M N937L53610 C312 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610
C1S3 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610 C317 141P163O9 C-CERAMIC-CHI
P
CM05CH151J50AH CH 50V 151J1005 N937L53610
16 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
Downloaded from ManualsNet.com search engine
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C318 141P163O9 C-CERAMIC-CHI
P
CM05CH151J50AH CH 50V 151J1005 N937L53610 C657 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411
C319 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C662 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C320 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C663 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C322 141P173O2 C-CERAMIC-CHI
P
EMK325BJ226KM-
T
B 16V 226K 322
5
N937L53610 C664 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C323 141L049O6 C-CERAMIC-CHI
P
GRM31CB11A475KA01
L
B 10V 475K 321
6
N937L53610 C665 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C324 141L049O6 C-CERAMIC-CHI
P
GRM31CB11A475KA01
L
B 10V 475K 321
6
N937L53610 C666 141L169O6 C-CERAMIC-CHI
P
GRM188B10J225KE01D B6.3V 225K160
8
N937L53411
C325 181P80827 C-ELECTROLYTIC-CHI
P
UUD1C101MCLZMLGS 16V 101M N937L53610 C667 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C326 141M02113 C-CERAMIC-CHI
P
GRM32DR71E106KA12E X7S25V106K322
5
N937L53610 C668 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C327 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53610 C669 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C329 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C670 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C405 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C671 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C407 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C673 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C408 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C674 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C409 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C676 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C412 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C677 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C416 181P80826 C-ELECTROLYTIC-CHI
P
UUD1C471MNLZMLGS 16V 471M N937L53610 C679 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N937L53411
C417 181P80324 C-ELECTROLYTIC-CHI
P
UWT1C220MCLSHDGB 16V 220M N937L53610 C690 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411
C419 181P80326 C-ELECTROLYTIC-CHI
P
UWT1C470MCLSHDGB 16V 470M N937L53610 C691 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C421 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N937L53610 C692 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C422 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N937L53610 C693 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C423 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C694 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C424 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53610 C695 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C425 141L069O8 C-CERAMIC-CHI
P
C2012JB1A335K
T
B 10V 335K212
5
N937L53610 C696 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C426 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610 C697 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C428 181P80824 C-ELECTROLYTIC-CHI
P
UUD1C220MCLYMLGS 16V 220M N937L53610 C698 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C431 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N937L53610 C6A0 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N937L53411
C432 181P80826 C-ELECTROLYTIC-CHI
P
UUD1C471MNLZMLGS 16V 471M N937L53610 C6A1 141P161O3 C-CERAMIC-CHI
P
GRM1552C1H120JZ01D CH 50V 120J1005 N937L53411
C435 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610 C6A2 141P161O3 C-CERAMIC-CHI
P
GRM1552C1H120JZ01D CH 50V 120J1005 N937L53411
C438 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53610 C6C1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C441 181P80824 C-ELECTROLYTIC-CHI
P
UUD1C220MCLYMLGS 16V 220M N937L53610 C6C2 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C443 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6C3 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C444 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53610 C6C4 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C445 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53610 C6C5 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C446 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53610 C6C6 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4A7 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C6C7 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4A8 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6C8 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4A9 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N937L53610 C6C9 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4B1 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C6D0 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4B2 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C6F1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4B3 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C6F2 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4B4 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C6F3 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C4B7 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610 C6F4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4B8 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C6F5 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4B9 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C6F6 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C4C0 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6F7 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4C1 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C6F8 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4C2 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N937L53610 C6F9 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4C3 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N937L53610 C6G0 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4C4 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N937L53610 C6G1 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4C7 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6G2 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4C9 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610 C6G3 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4D1 141L069O6 C-CERAMIC-CHI
P
GRM21BB10J475KA11
L
B 6.3V 475K212
5
N937L53610 C6G4 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4D4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6G5 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4D6 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610 C6G6 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4D8 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53610 C6G7 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4D9 181P80826 C-ELECTROLYTIC-CHI
P
UUD1C471MNLZMLGS 16V 471M N937L53610 C6G8 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C4E0 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6G9 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4E1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6H0 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C4E2 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53610 C6H1 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C4E3 181P80324 C-ELECTROLYTIC-CHI
P
UWT1C220MCLSHDGB 16V 220M N937L53610 C6H2 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C4E9 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C6H3 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
C651 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411 C6H4 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C652 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C6H5 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C656 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411 C6H6 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411
17 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
Downloaded from ManualsNet.com search engine
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C6H7 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411 C821 181P80853 C-ELECTROLYTIC-CHI
P
EMZA350ADA470MF61G 35V 470M N937L53411
C6H8 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C825 181P80853 C-ELECTROLYTIC-CHI
P
EMZA350ADA470MF61G 35V 470M N937L53411
C6H9 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C830 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N937L53411
C6J0 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 C836 141P172O1 C-CERAMIC-CHI
P
GRM32EB31E226KE15
L
B 25V 226K 322
5
N937L53411
C6J2 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411 C837 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N937L53411
C6J3 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C838 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C6J5 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411 C839 141L045O5 C-CERAMIC-CHI
P
GRM31CB30J476KE18L B 6V 476K 321
6
N937L53411
C6J6 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C840 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411
C6J7 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 C841 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C6J8 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411 C842 141L045O5 C-CERAMIC-CHI
P
GRM31CB30J476KE18L B 6V 476K 321
6
N937L53411
C6J9 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C843 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411
C6K0 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 C844 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C6K1 141P22310 C-CERAMIC-CHI
P
LLL153C80J104ME01E X6S6.3V104M051
0
N937L53411 C845 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411
C6K2 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C846 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411
C6K3 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C849 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411
C6K4 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C84
A
141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N937L53411
C6K5 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C84B 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N937L53411
C6K6 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C84C 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C6K7 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C84D 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C6K8 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 C850 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411
C700 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C851 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411
C701 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C852 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N937L53411
C702 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411 C853 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N937L53411
C703 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411 C854 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53411
C704 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C858 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N937L53411
C715 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C859 141L069O9 C-CERAMIC-CHI
P
GRM21BB30J226ME38
L
B 6.3V 226M212
5
N937L53411
C716 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411 C862 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53411
C718 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C863 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411
C721 141L169O1 C-CERAMIC-CHI
P
CM105B684K10AT-N B10V 684K 160
8
N937L53411 C864 141P154O1 C-CERAMIC-CHI
P
GRM155B11C153KA01D B 16V 153K100
5
N937L53411
C722 141P158O8 C-CERAMIC-CHI
P
CM05B473K10AH B 10V 473K100
5
N937L53411 C865 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53411
C730 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C866 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N937L53411
C731 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C867 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N937L53411
C732 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C868 141M02226 C-CERAMIC-CHI
P
GCM188R11H104KA42D R 50V 104K 160
8
N937L53411
C740 141M02226 C-CERAMIC-CHI
P
GCM188R11H104KA42D R 50V 104K 160
8
N937L53411 C869 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N937L53411
C752 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N937L53411 C86
A
141L047O3 C-CERAMIC-CHI
P
GRM31MR71H474KA01
L
B 50V 474K 321
6
N937L53411
C753 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C86B 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411
C771 141L066O3 C-CERAMIC-CHI
P
CM21B475K16A
T
B 16V 475K 212
5
N937L53411 C86C 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N937L53411
C772 141P161O3 C-CERAMIC-CHI
P
GRM1552C1H120JZ01D CH 50V 120J1005 N937L53411 C86E 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N937L53411
C773 141P161O3 C-CERAMIC-CHI
P
GRM1552C1H120JZ01D CH 50V 120J1005 N937L53411 C86F 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53411
C774 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C86G 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N937L53411
C775 141L164O9 C-CERAMIC-CHI
P
CM105W5R474K10A
T
B 10V 474K 160
8
N937L53411 C86H 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411
C776 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C86J 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N937L53411
C791 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C86K 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411
C7C1 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 C86L 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N937L53411
C800 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C86N 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411
C801 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N937L53610 C86P 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53411
C802 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C86Q 141L066O3 C-CERAMIC-CHI
P
CM21B475K16A
T
B 16V 475K 212
5
N937L53411
C802 141M02226 C-CERAMIC-CHI
P
GCM188R11H104KA42D R 50V 104K 160
8
N937L53411 C86T 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C803 141L162O1 C-CERAMIC-CHI
P
GRM188B11H103KA01D B 50V 103K 160
8
N937L53411 C86U 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N937L53411
C804 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C86
V
141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53411
C805 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53610 C86W 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N937L53411
C806 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53610 C86
X
141P173O2 C-CERAMIC-CHI
P
EMK325BJ226KM-
T
B 16V 226K 322
5
N937L53411
C807 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53610 C86
Y
141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411
C807 141P159O2 C-CERAMIC-CHI
P
C1005JB1A224K
T
B 10V 224K 100
5
N937L53411 C871 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411
C809 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C872 141M02113 C-CERAMIC-CHI
P
GRM32DR71E106KA12E X7S25V106K322
5
N937L53411
C809 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N937L53411 C873 141L067O1 C-CERAMIC-CHI
P
CM21B225K25A
T
B 25V 225K 212
5
N937L53411
C80
A
141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N937L53411 C874 141P172O1 C-CERAMIC-CHI
P
GRM32EB31E226KE15
L
B 25V 226K 322
5
N937L53411
C80C 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411 C875 141P172O1 C-CERAMIC-CHI
P
GRM32EB31E226KE15
L
B 25V 226K 322
5
N937L53411
C80
V
141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411 C879 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C810 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53610 C8A2 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N937L53411
C810 181P80853 C-ELECTROLYTIC-CHI
P
EMZA350ADA470MF61G 35V 470M N937L53411 C8A3 141P172O1 C-CERAMIC-CHI
P
GRM32EB31E226KE15
L
B 25V 226K 322
5
N937L53411
C811 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N937L53610 C8A4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C815 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411 C8A5 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411
C820 181P80853 C-ELECTROLYTIC-CHI
P
EMZA350ADA470MF61G 35V 470M N937L53411 C8A7 141P162O7 C-CERAMIC-CHI
P
GRM1552C1H470JZ01D CH 50V 470J1005 N937L53411
18 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
Downloaded from ManualsNet.com search engine
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C8A8 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N937L53411 CN700 452P23222 CONNECTOR 7382-6100 22P SIDE N937L53510
C8A9 141P151O5 C-CERAMIC-CHI
P
CM05W5R332K50AH B 50V 332K100
5
N937L53411 CN703 452P23210 CONNECTOR 7382-5668 10P SIDE 040-
3
N937L53510
C8AE 141L066O3 C-CERAMIC-CHI
P
CM21B475K16A
T
B 16V 475K 212
5
N937L53411 CN705 452P40170 CONNECTOR-TAPE 501951-7010 70P TOP N937L53610
C8AF 141M02113 C-CERAMIC-CHI
P
GRM32DR71E106KA12E X7S25V106K322
5
N937L53411 CN706 452P38412 CONNECTOR-TAPE 52610-1272 12P TOP N937L53610
C8AG 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N937L53411 CN709 452P31810 CONNECTOR-TAPE SM10B-GHS-TB
(
LF
)(
SN
)
10P SIDE N937L53610
C8AH 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411 CN710 452P38568 CONNECTOR-TAPE FH28E-68S-0.5SH
(
45
)
68P SIDE N937L53411
C8S0 141L066O3 C-CERAMIC-CHI
P
CM21B475K16A
T
B 16V 475K 212
5
N937L53411 CN7A2 452P40140 CONNECTOR-TAPE 501951-4010 40P TOP N937L53610
C8S2 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 CN800 452P35512 CONNECTOR-TAPE 52207-1260 12P SIDE U
P
N937L53610
C8S3 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 CN800 452P45210 CONNECTOR-TAPE 10FHY-RSM1-GAN-TF
(
LF
)(
SN
)
10P SIDE N937L53411
C8S4 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 CN900 452P38568 CONNECTOR-TAPE FH28E-68S-0.5SH
(
45
)
68P SIDE N937L53411
C8S5 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 D100 264P64511 DIODE-CHIP RR264M-400T
R
N937L53610
C8S6 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D102 264P67810 DIODE-CHIP RF501B2S T
L
N937L53610
C8S7 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D104 264P56510 DIODE-ZENER-CHIP Z5W27VJ/P 5W 27V N937L53610
C8S8 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D105 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N937L53610
C900 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D106 264P64511 DIODE-CHIP RR264M-400T
R
N937L53610
C901 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N937L53411 D107 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C902 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D1J0 264P66510 DIODE-CHIP RB160M-60T
R
1
A
N937L53610
C903 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53411 D1J1 264P66510 DIODE-CHIP RB160M-60T
R
1
A
N937L53610
C904 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D1J2 264P66510 DIODE-CHIP RB160M-60T
R
1
A
N937L53610
C906 141L044O0 C-CERAMIC-CHI
P
EMK316BJ106KLF
T
B 16V 106K 321
6
N937L53411 D1J3 264L060O2 DIODE-CHIP 1SS400 TE-61 N937L53610
C907 141P150O9 C-CERAMIC-CHI
P
GRM155B11H102KD01D B 50V 102K100
5
N937L53411 D1J4 264L060O2 DIODE-CHIP 1SS400 TE-61 N937L53610
C908 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D1Q7 264P59828 DIODE-ZENER-CHIP DZ2J100MYL N937L53610
C909 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D1S4 264P66410 DIODE RB055L-40
_
TE2
5
N937L53610
C910 141P173O2 C-CERAMIC-CHI
P
EMK325BJ226KM-
T
B 16V 226K 322
5
N937L53411 D1S5 264P59828 DIODE-ZENER-CHIP DZ2J100MYL N937L53610
C911 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D201 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C912 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D202 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C917 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D203 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C918 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D204 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C919 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D206 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C924 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D207 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C929 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D208 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C930 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D209 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C931 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D210 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C932 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D211 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C933 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D212 264P610O1 DIODE-CHIP MC2850-T111-1 N937L53610
C934 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D221 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C935 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D222 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C936 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D223 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C938 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D224 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C939 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D225 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C940 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D226 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C942 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D232 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C943 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D233 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C945 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D234 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C946 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D235 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C947 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D236 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C949 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D237 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C952 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D238 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C954 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D239 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C956 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D240 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C958 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D241 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C960 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D242 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C962 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D243 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C963 141P161O7 C-CERAMIC-CHI
P
GRM1552C1H180JZ01D CH 50V 180J1005 N937L53411 D244 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C968 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N937L53411 D245 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C969 141M02226 C-CERAMIC-CHI
P
GCM188R11H104KA42D R 50V 104K 160
8
N937L53411 D246 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C970 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D247 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C971 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D248 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C973 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D249 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C975 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D250 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C989 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N937L53411 D251 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C990 141P172O1 C-CERAMIC-CHI
P
GRM32EB31E226KE15
L
B 25V 226K 322
5
N937L53411 D252 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C992 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N937L53411 D253 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
C993 141P154O6 C-CERAMIC-CHI
P
GRM155B31C104KA87D B 16V 104K 100
5
N937L53411 D254 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
19 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
Downloaded from ManualsNet.com search engine
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
D255 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D735 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D256 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D736 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D257 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D737 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D258 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D738 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D259 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D739 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D260 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D740 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D261 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D741 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D262 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D742 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D263 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D743 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D264 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D744 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D266 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D745 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D267 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D747 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D268 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D748 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D269 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D749 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D270 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D750 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D271 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D751 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D272 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D752 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D306 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D753 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411
D307 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D800 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D308 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D800 264P75410 DIODE-CHIP RB060M-30T
R
N937L53411
D309 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D801 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D310 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D802 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D311 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D803 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D312 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D804 264P72010 DIODE-LE DNK5307B-1082 N937L53510
D313 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D805 264P72010 DIODE-LE DNK5307B-1082 N937L53510
D316 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D806 264P72010 DIODE-LE DNK5307B-1082 N937L53510
D317 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D807 264P72010 DIODE-LE DNK5307B-1082 N937L53510
D320 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D808 264P62913 DIODE-LE-CHIP SML-311DTT86J ORANGE N937L53610
D323 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N937L53610 D809 264P62913 DIODE-LE-CHIP SML-311DTT86J ORANGE N937L53610
D324 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N937L53610 D810 264P72610 DIODE-LE-CHIP VFLA1111C-T
R
ORANGE N937L53610
D327 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D811 264P72610 DIODE-LE-CHIP VFLA1111C-T
R
ORANGE N937L53610
D328 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D813 264P72610 DIODE-LE-CHIP VFLA1111C-T
R
ORANGE N937L53610
D329 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610 D814 264P72610 DIODE-LE-CHIP VFLA1111C-T
R
ORANGE N937L53610
D401 264P64210 DIODE-CHIP RB520S-30 N937L53610 D824 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D700 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D825 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D701 264P64210 DIODE-CHIP RB520S-30 N937L53411 D826 264P59824 DIODE-ZENER-CHIP DZ2J068MYL N937L53610
D702 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D827 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53610
D703 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D828 264P59824 DIODE-ZENER-CHIP DZ2J068MYL N937L53610
D704 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D829 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D705 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D830 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N937L53610
D706 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D861 264P75410 DIODE-CHIP RB060M-30T
R
N937L53411
D707 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D862 264P64210 DIODE-CHIP RB520S-30 N937L53411
D713 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D863 264P75410 DIODE-CHIP RB060M-30T
R
N937L53411
D714 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 D8A0 264P64210 DIODE-CHIP RB520S-30 N937L53411
D715 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F101 299P14410 PROTECTO
R
11CT 5
A
5
A
N937L53610
D716 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F161 299P14416 PROTECTO
R
11CT 2.5
A
2.5
A
N937L53610
D717 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F162 299P14416 PROTECTO
R
11CT 2.5
A
2.5
A
N937L53610
D718 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F1A0 299P14413 PROTECTOR-CHIP 11CT 1.25
A
1.25
A
N937L53610
D719 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F1A1 299P14413 PROTECTOR-CHIP 11CT 1.25
A
1.25
A
N937L53610
D720 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 F860 299P137O1 PROTECTOR-CHIP ICP-S0.5TN N937L53411
D721 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC100 262P28874 IC-TAPE S-1142B34I-E6T1U VOLTAGE REG3.4
V
N937L53610
D722 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC102 262P08910 IC-TAPE BD3941FP-E2 N937L53610
D723 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC1J0 262P19410 IC-TAPE LTC3850IGN#TRA1PB
F
N937L53610
D724 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC1J1 266P64010 IC BD9778F-E2 N937L53610
D725 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC1J2 266P64712 IC-TAPE NJM2880U1-33
(
TE1
)
3.3V REG. IC N937L53610
D726 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC201 266P76310 IC-TAPE NJM2567V
(
TE1
)
N937L53610
D727 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC203 262P16710 IC-TAPE
A
K4388VT-E2 N937L53610
D728 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC204 263P91410 IC TC7WH34FU N937L53610
D729 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC205 263P07110 IC-TAPE SN74LVC3G07DCT3 BUFFER N937L53610
D730 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC303 266L068O9 IC-TAPE BA3121F-E2 N937L53610
D731 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC404 262P27110 IC-TAPE
A
K4901VFY-E
2
N937L53610
D732 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC4A1 262P61510 IC
A
K4220VQ N937L53610
D733 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC610 262P18713 IC-TAPE TC7SG34FU
(
T5LMBS
_E
N937L53411
D734 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N937L53411 IC611 262P18713 IC-TAPE TC7SG34FU
(
T5LMBS
_E
N937L53411
20 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
Downloaded from ManualsNet.com search engine
This manual suits for next models
1
Table of contents
Other Mitsubishi MOTORS Automobile Accessories manuals
Mitsubishi MOTORS
Mitsubishi MOTORS MZ380465EX User manual
Mitsubishi MOTORS
Mitsubishi MOTORS MME31503 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS MZ313817 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS MZ314444 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS MD361884 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS MZ314263 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS KJ0 User manual
Mitsubishi MOTORS
Mitsubishi MOTORS SMARTPHONE LINK DISPLAY AUDIO User manual
