TECHNICAL & SERVICE MANUAL
No. OC291
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
Wall Mounted Type
CITY MULTI Series
[Models]PKFY-08NAMU-A
PKFY-12NGMU-A
PKFY-20NFMU-A
PKFY-32NFMU-A
CONTENTS
1. PKFY-•MU-A Type ····················OC292-1
2. PLFY-•NAMU-A Type ···············OC290-1
L
I
S
T
E
D
CUS
Ceiling Cassettes Type
CITY MULTI Series
[Models]PLFY-12NAMU-A
PLFY-20NAMU-A
PLFY-24NAMU-A
PLFY-32NAMU-A
PLFY-40NAMU-A
• Connected outdoor unit is
PURY-80TMU or PURY-100TMU.
CITY MULTI Indoor Unit
OC291 t.qxp 02.9.26 4:14 PM Page 1

OC291 t.qxp 02.9.26 4:14 PM Page 2

OC292-1
CONTENTS
1. DIFFERENCES····························································································OC292- 3
2. FEATURES ··································································································OC292- 4
3. PART NAMES AND FUNCTIONS·······························································OC292- 7
4. SPECIFICATIONS ·······················································································OC292-10
5. OUTLINES AND DIMENSIONS···································································OC292-17
6. WIRING DIAGRAM······················································································OC292-21
7. REFRIGERANT SYSTEM DIAGRAM ····························································OC292-24
8. MICROPROCESSOR CONTROL ·······························································OC292-25
9. TROUBLESHOOTING·················································································OC292-33
10. DISASSEMBLY PROCEDURE ···································································OC292-42
11. PARTS LIST·································································································OC292-51
PKFY-08NAMU-A
PKFY-12NGMU-A
PKFY-20NFMU-A
PKFY-32NFMU-A
OC292--1.qxp 02.9.26 4:49 PM Page 1

OC292--1.qxp 02.9.26 4:49 PM Page 2

OC292-3
DIFFERENCES1
Lineflow fan ✕2
13-3/8
9-1/4
5/8"
3/8"
O.D. 13/16"
Item Model
Fan
Fan speed
Air flow
Noise level
Out dimension
Controller board
Pipe dimension
—
—
CFM
CFM
CFM
CFM
dB
dB
dB
dB
in.
in.
in.
—
—
—
—
—
—
in.
in.
in.
1
2
3
4
5
6
High
Medium 1
Medium 2
Low
High
Medium 1
Medium 2
Low
Height
Width
Depth
SW2
Gas side
Liquid side
Drain(unit side)
08NAMU-A
Lineflow fan ✕1
4 speeds type
36
35
33
32
11-5/8
32-3/32
6-7/32
OFF
OFF
ON
OFF
—
—
1/2"
1/4"
O.D. 5/8"
12NGMU-A
Lineflow fan ✕1
4 speeds type
42
40
36
32
13-3/8
39
9-1/4
OFF
ON
ON
OFF
OFF
OFF
1/2"
1/4"
O.D. 13/16"
20NFMU-A
2 speeds type
45
—
—
39
55-1/8
OFF
ON
OFF
ON
OFF
OFF
32NFMU-A
2 speeds type
49
—
—
46
66-1/8
OFF
OFF
OFF
OFF
ON
OFF
PKFY-
210
200
180
170
190
180
170
160
D
R
Y
W
E
T
410
370
340
280
370
330
300
250
D
R
Y
W
E
T
640
—
—
490
570
—
—
440
D
R
Y
W
E
T
990
—
—
780
890
—
—
700
D
R
Y
W
E
T

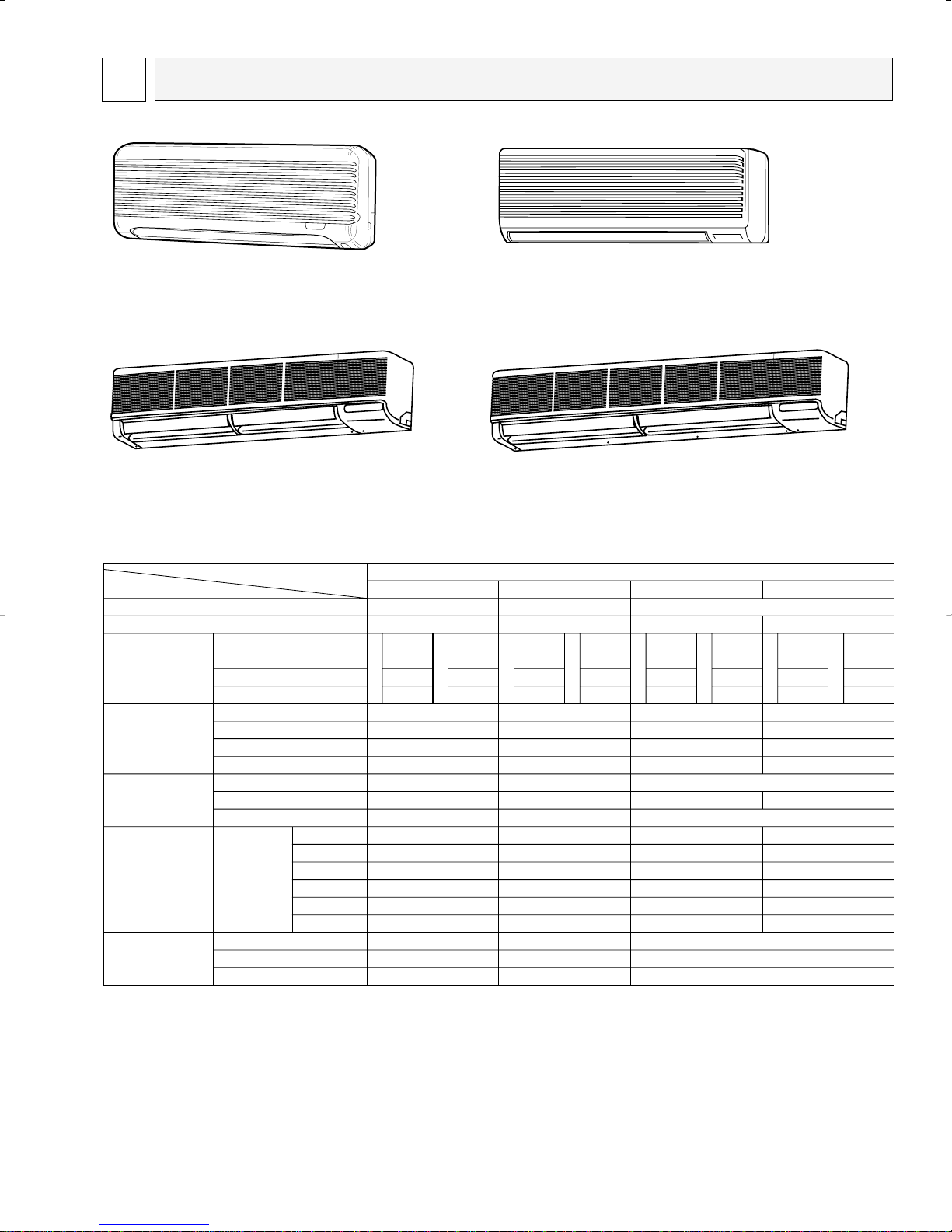

Differences among the models of PKFY series.
PKFY-08NAMU-A
Indoor Unit PKFY-12NGMU-A
Indoor Unit
PKFY-20NFMU-A
Indoor Unit PKFY-32NFMU-A
Indoor Unit
OC292--1.qxp 02.9.26 4:49 PM Page 3

OC292-4
2FEATURES
2-1. New Compact Design
• Compact 11-5/8 inch (29.5cm) high body fits snugly in even limited spaces.
• Light weight 19lbs (8.5kg) unit easy to transport and install.
2-2. Auto-flap shutter Enhances good Looks
With a simple flick of the OFF switch the air outlet can be closed off with a shutter. The shutter also functions as a flap
during operation to adjust the air flow angle, with “Auto Angle” securing a comfortable air flow.
2-3. Front power supply box for easier wiring even after installation
The front power supply box allows electrical wiring work to be done after the indoor unit has been installed. For easier
installation, all the screws required for securing the indoor unit to the wall are accessible from the front of the unit.
2-4. 4-way piping provides more flexibility in selecting installation sites
All piping including drainage can be connected from the rear, right, base, and left of the unit, providing much greater
flexibility out piping and selecting installation site.
Model Cooling capacity / Heating capacity
PKFY-08NAMU-A 8,000/9,000 Btu/h
Indoor Unit Microprocessor
Remote controller
PKFY-08NAMU-A
OC292--1.qxp 02.9.26 4:49 PM Page 4

OC292-5
2-1. New Compact Design
Units have now been downsized to require minimal wall space.
A20% reduction in width 38-31/32 inch (990mm) compared to previous models means that installation is possible in very nar-
row spaces.
2-2. Auto-flap shutter Enhances Good Looks
With a simple flick of the OFF switch the air outlet can be closed off with a with a shutter. The shutter also functions as a flap
during operation to adjust the air flow angle, with “Auto Angle” securing a comfortable air flow.
2-3. The Intake Grille Filter Can be Completely Removed Allowing Easy Cleaning
(Can be washed in water)
• Front grille
opens out
2-4. Quiet Operation
•Airflow passage configuration that assures quiet operation
1The unit incorporates a randompitch cycling fan.
By changing fan intervals, quiet operation is achieved
without reduction in airflow. Optimal design of the
airflow passage gives a shortened fan diameter
and allows a highly compact installation.
2Thanks to a highly practical casing configuration,
airflow generated by the fan is distributed uniformly.
3Due to careful positioning of the vertical vane axis,
air is blown evenly from the outlet. This prevents mixing
with secondary air and also suppresses condensation.
2-5. 4-way Piping Provides more Flexibility in Selecting Installation Sites
Model Cooling capacity / Heating capacity
PKFY-12NGMU-A 12,000 / 12,500 Btu/h
Indoor Unit Microprocessor
Remote controller
PKFY-12NGMU-A
OC292--1.qxp 02.9.26 4:49 PM Page 5

OC292-6
2-1. COMPACT DESIGN
The PKFY series models have been downsized and now require such minimal wall space that they can even be
installed above windows. For the PKFY series models, 14-9/16 inch (37 cm) of wall space between the ceiling and the
window allows “above window” installation.
2-2. A FURTHER REFINEMENT OF COMFORT WITH NISE SUPPRESSION
Remarkably tow-noise operation has been achieved through the development of a “near -silent” fan and the design
which minimises air flow resistance.
2-3. AUTO FLAP SHUTTER
With a simple flick of the OFF switch the air outlet can be closed off with a shutter. The shutter also functions as a flap
during operation to adjust the air flow angle, with “Auto Angle” securing a comfortable air flow.
2-4. INSTALLATION : FAST AND ENDLESSLY ADAPTABLE
(1) Multi-directional piping
Multi directional drain and refrigerant piping radically improves flexibility in selecting installation layouts.
PKFY- • NFMU-A models boast refrigerant piping in 4 directions and drain piping 2 directions.
(2) Back plate installation guide
The back plate installation guide gives clear instructions on installation positions. The enlarged back plate secures the
unit firmly to the wall, while the support piece which lifts the unit makes left side piping work much easier.
(3) Easily removable filter
The presence of thumbscrews on the filters means that the filters can be quickly and smoothly removed.
Models Cooling capacity / Heating capacity
PKFY-20NFMU-A 20,000 / 22,500 Btu/h
PKFY-32NFMU-A 32,000 / 35,500 Btu/h
Indoor Unit
Microprocessor
Remote controller
PKFY-20NFMU-A
PKFY-32NFMU-A
OC292--1.qxp 02.9.26 4:49 PM Page 6

OC292-7
PART NAMES AND FUNCTIONS
3
● Indoor Unit

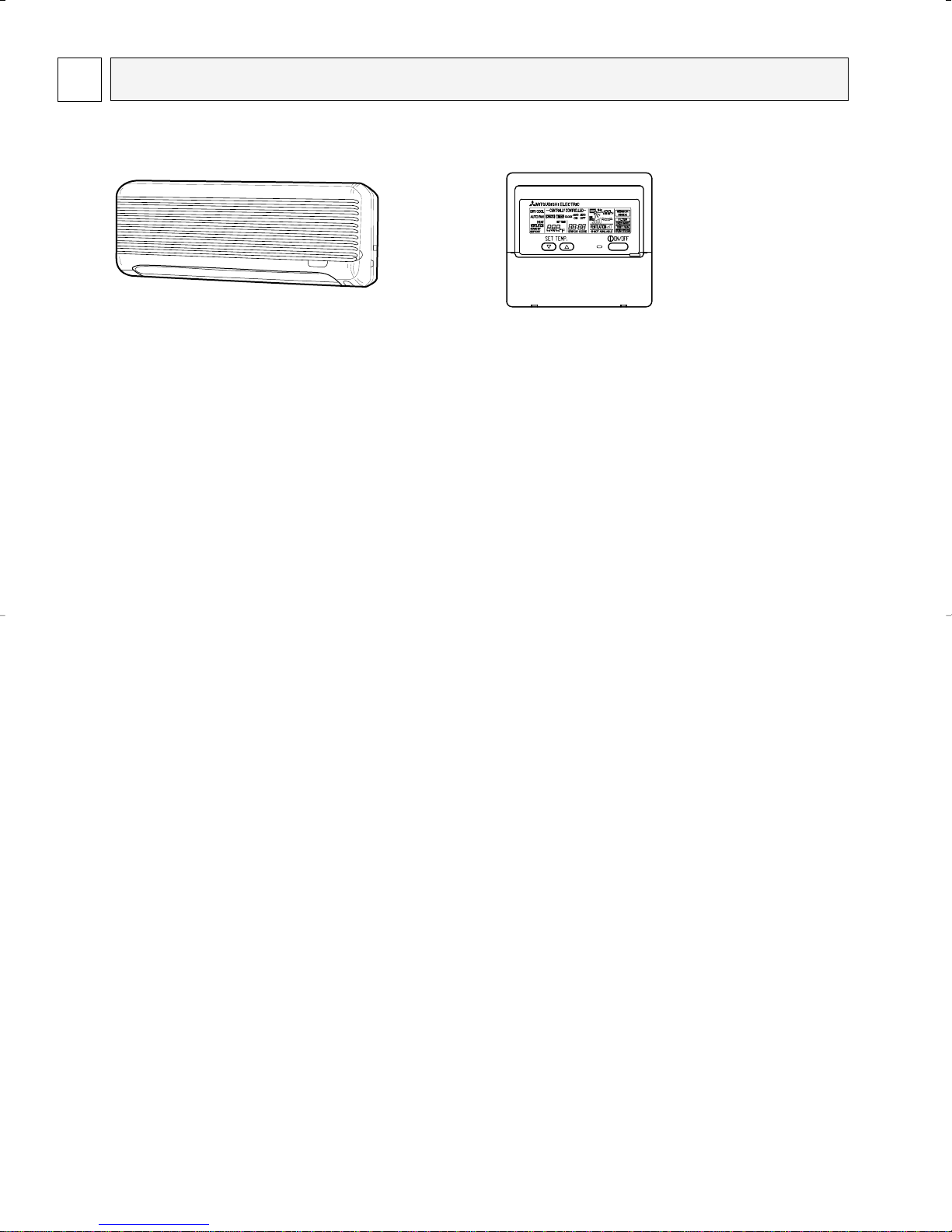

[PKFY-08NAMU-A]
Air intake Air intake grille
Filter
Air outlet
Guide vane Auto vane
[PKFY-12NGMU-A]
Air intake
Room air is
suctioned in here.
Removes dust and dirt
from the intake air.
Filter Air intake grilles
Air outletAir outlet
Auto vane
Air flow can be changed to
horizontally by moving the
Guide vane to the left or right.
Guide vane
[PKFY-20NFMU-A]
[PKFY-32NFMU-A]
Air intake grille Air intake
Filter Auto vane
Air outlet
OC292--1.qxp 02.9.26 4:49 PM Page 7

OC292-8
Press this button to switch the cooler,
electronic dry (dehumidify), automatic
and heater modes.
OPERATION SWITCH button
This sets the room temperature. The
temperature setting can be performed
in 2_F units
Setting range
Cooler 67_F to 87_F
Heater 63_F to 83_F
TEMP. ADJUSTMENT button
This switches between continuous
operation and the timer operation.
TIMER button
This switches between the operation
and stop modes each time it is pressed.
The lamp on this button lights during
operation.
ON/OFF button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
CHECK-TEST RUN button
This switch the horizontal fan motion
ON and OFF.
(Not available for this model.)
LOUVER button
This adjusts the vertical angle of the
ventilation.
AIR DIRECTION button
This resets the filter service indication
display
FILTER button
This sets the current time, start time
and stop time.
TIME SETTING button
This sets the ventilation fan speed.
AIR SPEED button

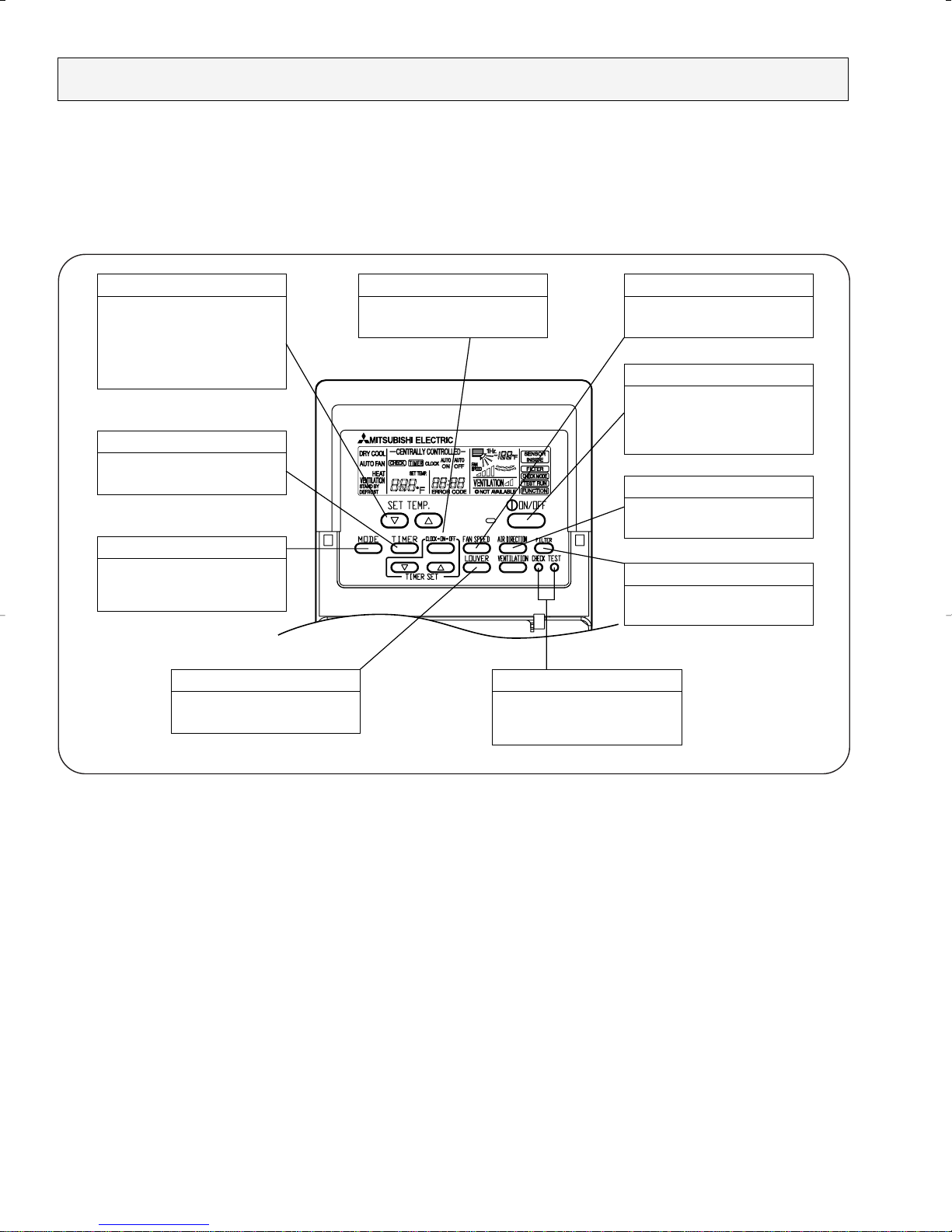

● Operation buttons
● Remote controller
● Once the operation of the unit is set, subsequent operations can only be performed by pressing the ON/OFF button
repeatedly.
OC292--1.qxp 02.9.26 4:49 PM Page 8

OC292-9
Caution
●Only the Power display lights when the unit is stopped and power supplied to the unit.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch button
and TEMP. adjustment button do not operate.
●“NOT AVAILABLE” is displayed when the Air speed button is pressed. This indicates that this room unit is not equipped with
the fan direction adjustment function and the louver function.
●When power is turned ON for the first time, it is normal that “H0” is displayed on the room temperature indication (For max.
2minutes). Please wait until this “H0” indication disappear then start the operation.
CENTRALLY
CONTROLLED display
This indicates when the unit is con-
trolled by optional features such as
central control type remote
controller.
TIMER display
This indicates when the continuous
operation and time operation modes
are set.
It also display the time for the timer
operation at the same time as when
it is set.
OPERATION MODE display
This indicates the operation mode.
STANDBY display
The [STANDBY] symbol is only dis-
played from the time the heating
operation starts unit the heated air
begins to blow.
DEFROST display
This indicates when the defrost
operation is performed.
CHECK display
This indicates when a malfunction
has occurred in the unit which should
be checked.
CLOCK display
The current time , start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button. The start time or stop time is
always displayed during the timer
operation.
●Display
In this display example on the bot-
tom left, a condition where all dis-
play lamps light is shown for expla-
nation purposes although this differs
from actual operation.
Operation lamp
This lamp lights during operation,
goes off when the unit stops and
flashes when a malfunction occurs.
POWER display
This lamp lights when electricity is
supplied to the unit.
SET TEMPERATURE display
This displays the selected set
temperature.
AIR DIRECTION display
This displays the air direction.
display
This display lights in the check
mode or when a test operation is
performed.
CHECK MODE
TEST RUN
This lamp lights when the filter need
to be cleaned.
AIR SPEED display
The selected fan speed is displayed.
FILTER display
ROOM TEMPERATURE display
The temperature of the return air
is displayed during operation. The
display range is 46_F to 102_F. The
display flashes 46_F when the actual
temperature is less than 46_F and
flashes 102_F when the actual
temperature is greater than 102_F.
OC292--1.qxp 02.9.26 4:50 PM Page 9

OC292-10
4SPECIFICATIONS
4-1. Specifications
PKFY-08NAMU-A
Power Supply
Starting Current
Fan ✕No.
Air flow w2
External static pressure
Fan motor output
Item
Power
Cooling capacity
Heating capacity
Exterior <munsell symbol>
Out dimensions
Heat exchanger
Fan
Insulator
Air filter
Pipe dimensions
Unit drain pipe size
Noise level w2
Product weight
Unit
[,V,Hz
Btu/h
Btu/h
kW
kW
A
A
—
in.
in.
in.
—
—
CFM
CFM
Pa
kW
—
—
in.
in.
in.
dB
lbs
Cooling
Heating
Cooling
Heating
Height
Width
Depth
DRY
WET
Gas side
Liquid side
PKFY-08NAMU-A
8,000
9,000
0.03
0.03
0.15
0.15
Plastic munsell : <2.60Y 8.66/0.69>
11-5/8
32-3/32
6-7/32
Cross fin
Lineflow fan ✕1
170-180-200-210
160-170-180-190
0
0.008
Polyethylene sheet
PP honey comb
1/2"
1/4"
PVC pipe with O.D. 5/8"
32-33-35-36
19
Electric
characteristic
Single phase, 208/230V, 60Hz
Note 1. Rating conditions
Cooling :Indoor D.B. 80˚F W.B. 67˚F
Outdoor D.B. 95˚F W.B. 75˚F
Heating : Indoor D.B. 70˚F
Outdoor D.B. 47˚F W.B. 43˚F
ww2. Air flow and the noise level are indicated as Low - Medium2 - Medium1 - High.
• Connected outdoor unit is PURY-80TMU or PURY-100TMU.
OC292--1.qxp 02.9.26 4:50 PM Page 10

OC292-11
Note 1. Rating conditions
Cooling : Indoor : D.B. 80 _ F W.B. 67 _ F
outdoor : D.B. 95 _ F W.B. 75 _ F
Heating : Indoor : D.B. 70 _ F
outdoor : D.B. 47 _ F W.B. 43 _ F
W2. Air flow and the noise level are indicated as Low - Medium2 - Medium1 - High.
• Connected outdoor unit is PURY-80TMU or PURY-100TMU.
Input
Current
Fan ✕No.
Air flow w2
External static pressure
Fan motor output
Item
Power
Cooling capacity
Heating capacity
Exterior <munsell symbol>
Out dimensions
Heat exchanger
Fan
Insulator
Air filter
Pipe dimensions
Unit drain pipe size
Noise level w2
Product weight
Unit
[,V,Hz
Btu/h
Btu/h
kW
kW
A
A
—
in.
in.
in.
—
—
CFM
CFM
Pa
kW
—
—
in.
in.
in.
dB
lbs
Cooling
Heating
Cooling
Heating
Height
Width
Depth
DRY
WET
Gas side
Liquid side
PKFY-12NGMU-A
Single phase, 208/230V, 60Hz
12,000
12,500
0.07
0.07
0.34
0.34
Plastic , white : <0.70Y 8.59/0.97>
13-3/8
39
9-1/4
Cross fin (Aluminum plate fin and copper tube)
Lineflow fan ✕1
280-340-370-410
250-300-330-370
0
0.03
Polyethylene sheet
PP honey comb
1/2"
1/4"
PVC pipe with O.D. 13/16"
32-36-40-42
35
Electric
characteristic
PKFY-12NGMU-A
OC292--1.qxp 02.9.26 4:50 PM Page 11

OC292-12
PKFY-20NFMU-A
PKFY-30NFMU-A
Note 1. Rating conditions
Cooling : Indoor : D.B. 80 _ F W.B. 67 _ F
outdoor : D.B. 95 _ F W.B. 75 _ F
Heating : Indoor : D.B. 70 _ F
outdoor : D.B. 47 _ F W.B. 43 _ F
• Connected outdoor unit is PURY-80TMU or PURY-100TMU.
Input
Current
Type ✕ No.
Air flow
Low - High
External static pressure
Fan motor output
Item
Power source
Cooling capacity
Heating capacity
Exterior <munsell symbol>
Dimensions
Heat exchanger
Fan
Insulator
Air filter
Pipe dimensions
Unit drain pipe dimension
Noise level Low - High
Product weight
Unit
[,V,Hz
Btu/h
Btu/h
kW
kW
A
A
—
in.
in.
in.
—
—
CFM
CFM
Pa
kW
—
—
in.
in.
in.
dB
lbs
Cooling
Heating
Cooling
Heating
Height
Width
Depth
DRY
WET
Gas side
Liquid side
PKFY-20NFMU-A
20,000
22,500
0.09
0.09
0.44
0.44
55-1/8
490 - 640
440 - 570
0.045
39 - 45
53
PKFY-32NFMU-A
32,000
35,500
0.12
0.12
0.58
0.58
66-1/8
780 - 990
700 - 890
0.070
46 - 49
62
Electric
characteristic
Single phase, 208V-220V, 60Hz
Plastic , white : <3.4Y 7.7/0.8>
13-3/8
9-1/4
Cross fin(Aluminum plate fin and copper tube)
Lineflow fan ✕2
0
Polyethylene sheet
PP Honeycomb fabric
5/8"
3/8"
PVC pipe with O.D. 13/16"
OC292--1.qxp 02.9.26 4:50 PM Page 12

OC292-13
4-2. Electrical parts specifications
PKFY-08NAMU-A
Parts name
Model Symbol
TH21
TH22
TH23
FUSE
MF
C
MV
LEV
TB2
TB5
Resistance 30˚F/15.8k", 50˚F/9.6k", 70˚F/6.0k", 80˚F/4.8k", 90˚F/3.9k", 100˚F/3.2k"
Resistance 30˚F/15.8k", 50˚F/9.6k", 70˚F/6.0k", 80˚F/4.8k", 90˚F/3.9k", 100˚F/3.2k"
Resistance 30˚F/15.8k", 50˚F/9.6k", 70˚F/6.0k", 80˚F/4.8k", 90˚F/3.9k", 100˚F/3.2k"
250V 6A
4-Pole Output 8W / PS4N8
1.2µF ✕440V
MSFBC20A03 DC12V
(L1, L2,GR) 250V 20A
(M1, M2) 250V 10A
Liquid pipe thermistor
Gas pipe thermistor
Fan motor capacitor
Linear expansion valve
PKFY-08NAMU-A
Room temperature
thermistor
Fuse
(Indoor power board)
Fan motor
(with thermal fuse)
Vane motor
(with limit switch)
Power supply terminal
block
Transmission terminal
block
DC12V Stepping motor drive
Port [3.2 (0~2000pulse) EDM-402ME
OC292--1.qxp 02.9.26 4:50 PM Page 13

OC292-14
PKFY-12NGMU-A
Room temperature thermistor
Liquid pipe temperature thermistor
Gas pipe temperature thermistor
Fuse
(Indoor controller board)
Fan motor
(with inner-thermostat)
Fan motor capacitor
Vane motor
Linear expansion valve
Power supply terminal block
Transmission terminal block
MA remote controller terminal block
Symbol
TH21
TH22
TH23
FUSE
MF
C
MV
LEV
TB2
TB5
TB15
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
250V 6A
PM4N30-KA 208V/230V 60Hz
4 pole Output 30W
OPEN 257±9°F
2.0µF 440V
MP 35 EA DC12V
DC12V Stepping motor drive
Port dimension [3.2 (0 ~ 2000pulse)
(L1, L2, GR) 330V 30A
(M1, M2, S) 250V 20A
(1,2) 250V 10A
Model
Parts name
Inner-thermostat
PKFY-12NGMU-A
OC292--1.qxp 02.9.26 4:50 PM Page 14

OC292-15
PKFY-20NFMU-A
PKFY-30NFMU-A
Room temperature thermistor
Liquid pipe temperature thermistor
Gas pipe temperature thermistor
Fuse
(Indoor controller board)
Fan motor
(with inner-thermostat)
Fan motor capacitor
Vane motor
Linear expansion valve
Power supply terminal block
Transmission terminal block
MA remote controller
terminal block
Symbol
TH21
TH22
TH23
FUSE
MF
C
MV
LEV
TB2
TB5
TB15
PKFY-20NFMU-A
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
Resistance 30°F/15.8kΩ, 50°F/9.6kΩ, 70°F/6.0kΩ, 80°F/4.8kΩ, 90°F/3.9kΩ, 100°F/3.2kΩ
250V 6A
OPEN 266±9°F
2.5= 440V
MP 35 EA DC12V
(L1, L2, GR) 330V 30A
(M1, M2, S) 250V 20A
(1,2) 250V 10A
Model
Parts name PKFY-32NFMU-A
Inner-thermostat
DC12V Stepping motor drive
Port dimension [5.2 (0 ~ 2,000pulse)
DC12V Stepping motor drive
Port dimension [3.2 (0 ~ 2,000pulse)
D10B4P70MS
208-230V 60Hz
4pole Output 70w
D094P45MS
208-230V 60Hz
4pole Output 45w
OC292--1.qxp 02.9.26 4:50 PM Page 15

OC292-16
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
PKFY-08NAMU-A
Hi
Med1
Med2
Lo
NOTCH 36
35
33
32
SPL(dB) LINE
4-3. Noise criterion curves
Ambient temperature 80˚F
Test conditions are based on JIS Z8731
Wall
Unit
3.3ft
3.3ft
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
PKFY-12NGMU-A
Hi
Med1
Med2
Lo
NOTCH 42
40
36
32
SPL(dB) LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
Hi
NOTCH
Lo 49
SPL(dB)
46
LINE
PKFY-32NFMU-A
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
Hi
NOTCH
Lo 45
SPL(dB)
39
LINE
PKFY-20NFMU-A
OC292--1.qxp 02.9.26 4:50 PM Page 16

OC292-17

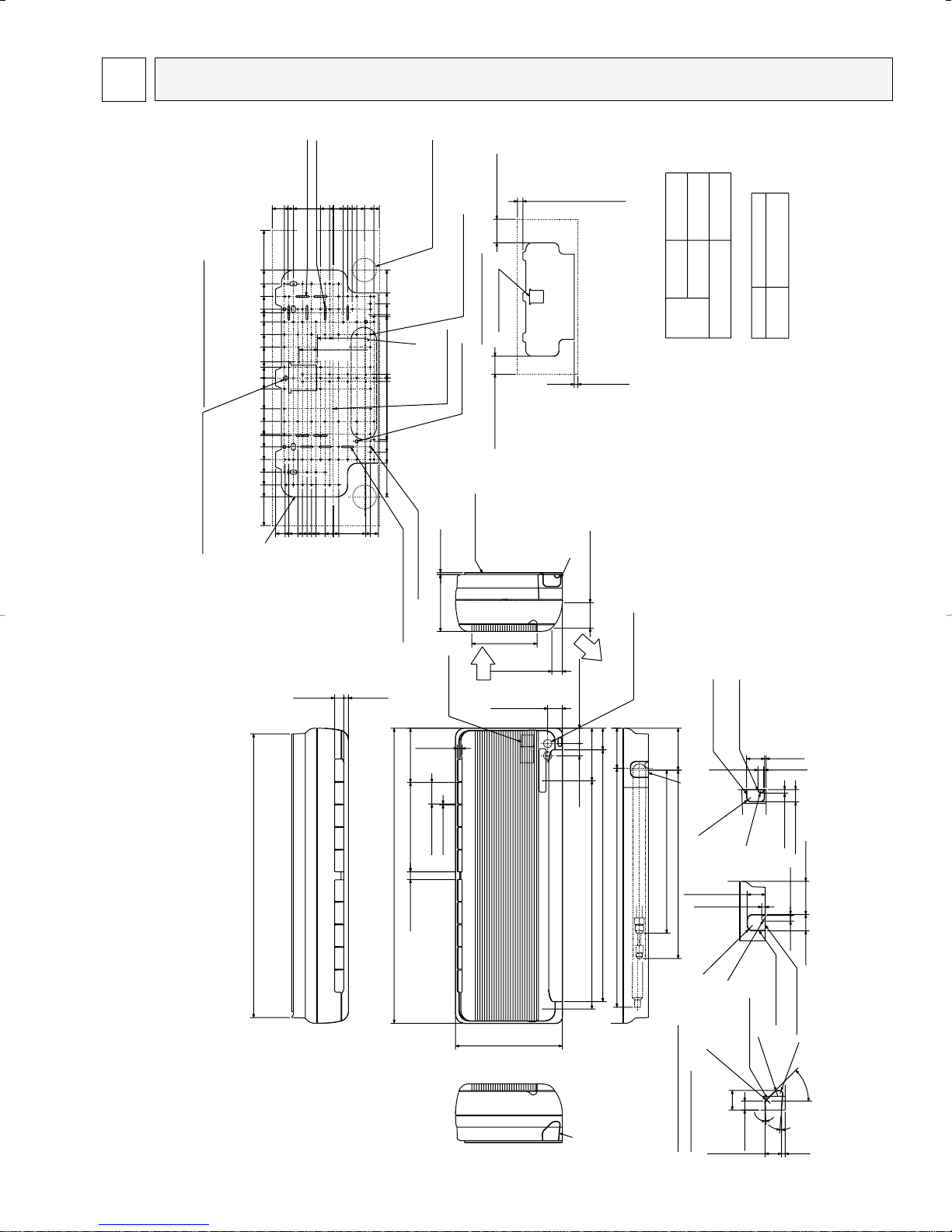

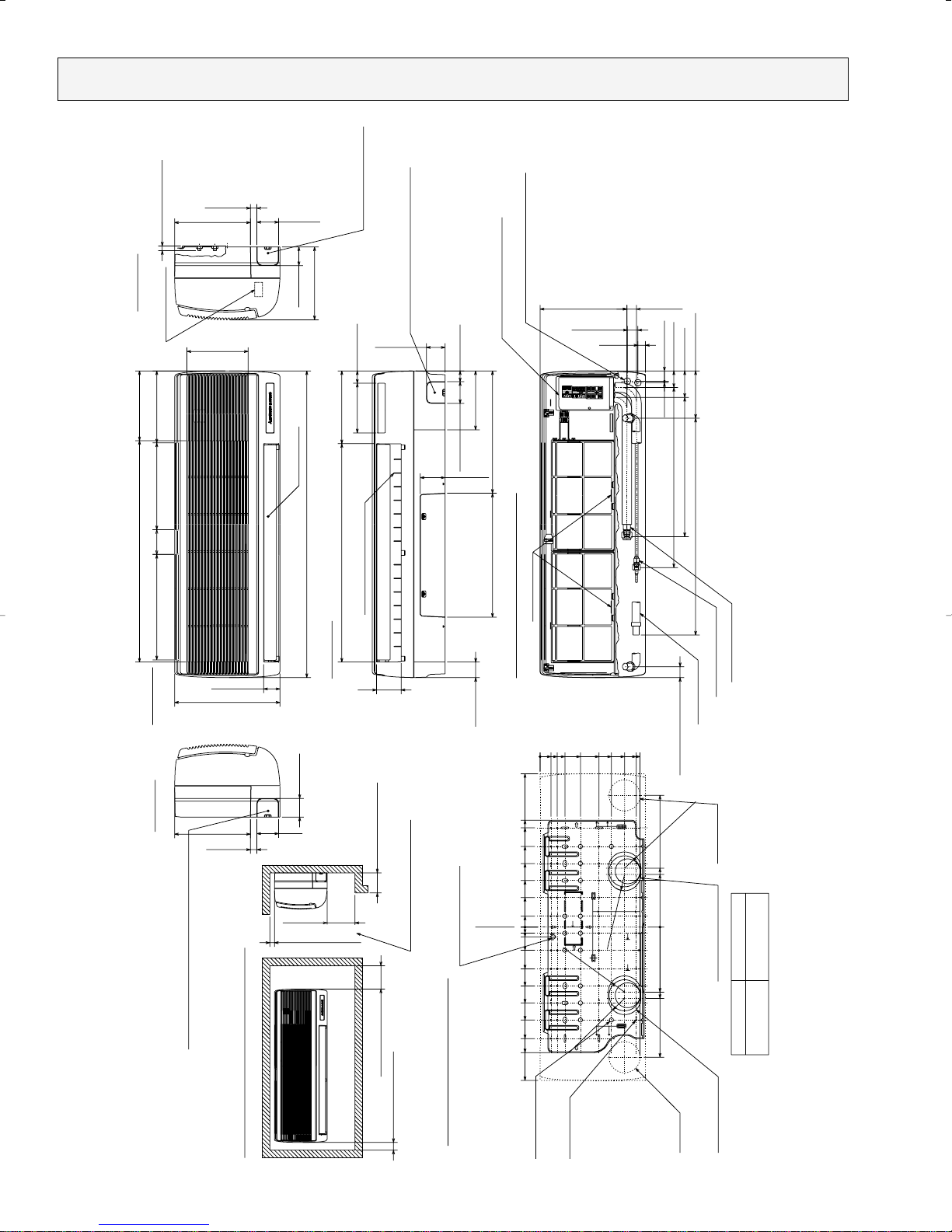

OUTLINES AND DIMENSIONS
5
Unit : inch(mm)
PKFY-08NAMU-A
1-11/ 32(34) 1-11/16(42.5)
1-5/8(40.5)
Unit:inch (mm)
Installation space
Details of installation plate
9-3/4(247.5)
3/32(2.5) 2-3/8(60)
5-29/32(150)
20-25/32(520)
17-23/32(450)
0
3-27/32(97.5)
7-3/32(180)
0
6-1/4(159)
0
1-3/32(27.5)
4-29/32(125)
0
2-3/32(53)
0
1-3/4(45)
26-31/32(660)
Liquid pipe
Gas pipe
(Drain pipe total 29-29/32(760)) 4-11/32(110)
4-9/16(116)
11-23/32(298)
9-1/4(235)
8-1/16(205)
6-7/8(175)
0
6-11/16(170)
2-9/16(65)
1-9/16(40)
0 5-1/32(128)
4-7/8(124)
3-17/32(90)
0
6-1/4(159) 6-5/8(168)
4-7/16(113)
3-7/16(87)
5-5/16(135)
4-11/32(110)
1-3/8(35)
0
13/32(10)
0
12-29/32 (328)
4-1/32(102.5)
0
19/32(15) 0
4-13/16(122.5)
5-1/4(133)
2-27/32(72.5)
3-11/32(85)
1-7/8(47.5)
2-3/8(60)
7/8(22.5) 0
16-1/32(407.5)
12-29/32(328)
11-5/8(295)
10-1/4(260)
8-27/32(225)
7-15/32(190)
6-3/32(155)
4-23/32(120)
3-11/32(85)
0
1-3/16(30)
16-1/32(407.5)
11-23/32(298)
10-1/4(260)
8-27/32(225)
7-15/32(190)
6-3/32(155)
4-23/32(120)
3-11/32(85)
0
1-3/16(30)
13/32(10)
13/32(10)
1-31/32(50)
1-23/32(44)
0
6-7/8(175)
9-1/4(235)
6-11/16(170)
8-1/16(205)
3/16(5)
❊1
2-3/8 (60)
5-3/4 (146)
1-15/32(37.4)
2-25/32(70.3)
Air outlet
Air outlet
Air intake
Air intake
Air intake
7-3/32(180)
Air outlet
Air intake
24-13/16(630)
1/2(13)
1/2(13) 1(25.5)
27-3/8(695)
11-5/8(295)
27/32(21.5)
32-3/32(815)
3-15/16(100) or more 5-1/8(130) or more
W1 5-1/8(130) or more
25/32(20) or more
30-13/16(783)
6-7/32(158)
[2-9/16~[2-3/4 ([65~[70)
Through hole
3.Sleeves are available on the market.
[2-9/16 ([65)
Sleeve
Wiring entrance holes
Terminal block
Detailed figure dwg (ABC) (Knock out hole)
R5/16(R8)
R19/32(R15)
R19/32(R15)
R19/32(R15)
R5/16(R8)
R15/32(R12)
R5/16(R8)
Knock out hole of right piping
Knock out hole of remocon wiring
(Direction)
Knock of hole
Knock out hole for remocon wiring
3/16x1-3/8(4.5x35) 4 holes
installaion plate
Knock out holt for under piping
13/32(10)
1-31/32(50)
5/8(16)
3/32(2.5)
1-25/32 (45) 3-19/32 (91.5)
Installat plate palance point hole
Supporting piece
3/16x1-9/16 (4.5x40) 4 holes
3/16x1-15/32 (4.5x37) 4 holes
12-[1/8([2.8)holes
4-[11/32([9)holes
8-[5/32([4.3) holes
87-[3/16([5.1)holes
Piping hole[2-9/16([65)
2-1/8(54) Knock out hole for
left piping
45-
31/32(24.4)
3-
5-
1-25/32(45)13/32(10)
13/32(10)
1-11/32(34)
5/8 (16)
3/32(2.5)
1-31/32 (50)
5/32(4)
Air intake
Air outlet (Direction)
Installation plate
2-1/8(54) of more
leftpiping
left-rear piping
Notes 1.Use M10 or W3/8 screw for installation plate. 2.Extension piping side.
[5/8([16) I.D
1/2F
1/4F
Drain pipe
Liquid pipe
Gas pipe
Refrigerart
piping
C
CBAB
A
OC292--1.qxp 02.9.26 4:50 PM Page 17

OC292-18
Drain hose
Wiring entrance holes
3/16(5)
1(25)
1-11/32(34)
1-5/16(33)
Air intake
Air intake
Service space required around indoor unit
Details of installation plate
Front view (top open the grille)
Lower side
Right side
Left side
Front view
22-7/8(581)
17-11/16(449)
Installation plate balance point hole
Knock out hole for right piping Refrigerant pipe.Drain pipe. Wiring hole
Gas pipe 1/2F
Liquid pipe 1/4F
49-[3/16([5)holes
for tapping screw
Knock out hole for right-rear piping Right-rear
piping hole
(Necessary clearance for Unit installation)
Address board
Filter grip
13/16(21)
13/16(21)
R2-1/16(R52.5)
R2-1/16(R52.5)
R2-1/16(R52.5)
R2-1/16(R52.5)
Unit center
Knock out hole for under piping Refrigerant piping.Drain pipe. Wiring hole
Service panel (Power supply access)
Right side
w1 Sleeves are available on the market. w2 This size shows the lower end of through hole.
[2-15/16~[3-5/32 ([75~[80)
[2-15/16([75)
Through holeSleeve W1
14-[9/16([14)holes
for bolts
Left-rear piping hole Knock out hole for left-rear piping
(Flexible hose total length 31-1/2(800)) (Right side piping installation)
(Left side piping
installation)
12—Louvers (manual)
Auto vane
Air intake
Knock out hole for left piping Refrigerant pipe.Drain pipe.Wiring hole.
1-3/8(35)
Less than 5-1/8(130)
1-31/32(50) or more
5-29/32(150) or more
7-3/32(180) or more
1-13/16(30) or more
27-9/16(700) 6-1/32(153)
3-3/8(86)
2-1/8(54)
1-7/32(31) 11-1/32(280)
3-1/8(80)
2-3/8(60)
2-3/4(70) 9-21/32(245)
1-31/32(50)
15-9/16(395)15-3/4(400)
7-15/32(190)
2-3/8(60)
2-3/4(70) 1-3/8(35)
3-1/8(79)
6-5/16(160) 1-9/16(40)
27-3/4(705) Air outlet 9-1/4(235)
Less than 19/32(15)
7-25/32(198)
2-3/4(70) 9-21/32(245)
2-3/8(60)
9-1/4(235)
2-3/32(53)
13-3/8(340)
28-5/32(715) Air intake 8-27/32(225)
13-3/8(340) 3-5/32(80) 11-1/32(280) 9-3/16(233)
39(990)
16-23/32(425)
16-17/32(420)
6-11/16(170)
7-15/32(190)
8-9/32(210)
9-1/16(230)
0
12-11/16(322)w1 0 1-3/8(35) 2-5/32(55) 3-5/32(80) 5-1/8(130) 7-15/32(190) 9-1/16(230) 10-23/32(272) 12-7/32(310) 0
1-3/8(35)
3-3/4(95)
5-29/32(150)
8-1/16(205)
10-1/4(260)
12-19/32(320)
13-19/32(345)
19-1/2(495)
25/32(20)
2-15/16(75)
5-5/16(135)
7-15/32(190)
9-21/32(245)
11-13/16(300)
14-3/16(360)
15-15/16(405)
19-1/2(495)
1-1/4(32)
0
PKFY-12NGMU-A Unit : inch(mm)
OC292--1.qxp 02.9.26 4:50 PM Page 18
