MK Diamond Products MK-101-24 System manual

10.2011
MK-101-24
OWNERS MANUAL &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions before
using this equipment. This owners manual MUST
accompany the equipment at all times.
Revision 101
Manual Part No. 169689
MK-101-24

2
INTRODUCTION
Congratulations on your purchase of a MK-101-24 Tile Saw. We are certain that you will be pleased
with your purchase. MK Diamond takes pride in producing the finest construction power tools and
diamond blades in the industry.
Operated correctly, your MK-101-24 should provide you with years of service. In order to help you,
we have included this manual. This owners manual contains information necessary to operate and
maintain your Tile Saw safely and correctly. Please take a few minutes to familiarize yourself with
the saw by reading and reviewing this manual.
If you should have questions concerning your saw, please feel free to call our friendly customer
service department at: 800 421-5830
Regards,
MK Diamond
NOTE: For your (1) one year warranty to be effective, complete the warranty
card (including the Serial Number) and mail it in as soon as possible.
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:

3
TABLE OF CONTENTS
SAFETY
Safety Messages 4
General Safety Precautions 4-6
California Proposition 65 Message 6
Hazard Symbols 7
Electrical Requirements 8-9
Safety Label Locations 10
Product Specications 11
UNPACKING, TRANSPORT and ASSEMBLY
Unpacking 12
Contents 12
Transport 12
Stand 13
Assembly 14-16
SETUP, STARTUP, ADJUSTMENT, OPERATION and SHUTDOWN
Setup 17-19
Operation 20-23
Cutting Head Adjustment 24-25
Cleanup 26
MAINTENANCE AND TROUBLESHOOTING
Maintenance 27-32
Troubleshooting 33-38
EXPLODED VIEW AND PARTS LIST
Exploded View 40-42
Parts List 43-45
ACCESSORIES ORDERING and RETURN INSTRUCTIONS
Theory of Diamond Blade 47
Accessories 48
Ordering Information 49
Return Material Policy 49
Packaging Instructions 49
Authorized Service Centers 49

4
MK-101-24 SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow
these instructions could also result in damage and/or reduced equipment life.
SAFETY MESSAGES
DAMAGE PREVENTION AND INFORMATION MESSAGES:
A Damage Prevention Message is to inform the user of important information and/or
instructions that could lead to equipment or other property damage if not followed. Information
Messages convey information that pertains to the equipment being used. Each message will
be preceded by the word NOTE, as in the example below.
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
In order to prevent injury, the following safety precautions and symbols should be followed at
all times!
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is preceded
by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you do not follow directions.
You CAN be KILLED or SERIOUSLY INJURED if you do not follow directions.
You CAN be INJURED if you do not follow directions. It may also be used to alert
against unsafe practices.
WARNING
CAUTION
ALWAYS read this Owner’s Manual before operating the machine.
ALWAYS keep the Blade Guard in place.
REMOVE ADJUSTING KEYS AND WRENCHES
Form a habit of checking to see that keys and adjusting wrenches are removed from the
power tool before it is turned on.
KEEP WORK AREA CLEAN
Cluttered work areas and benches invite accidents.
DO NOT USE IN DANGEROUS PLACES
DO NOT use power tools in damp or wet locations nor expose them to rain. Always
keep the work area well lighted.
KEEP CHILDREN AWAY
All visitors and children should be kept a safe distance from work area.
SAFETY PRECAUTIONS

5
MK-101-24 SAFETY
MAKE THE WORKSHOP KID PROOF
Make the workshop kid proof by using padlocks, master switches or by removing starter keys.
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
USE THE RIGHT TOOL
DO NOT force a tool or an attachment, to do a job that it was not designed to do.
USE THE PROPER EXTENSION CORD
If using an extension cord make sure it is in good condition first. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage that will result in a loss of power and
overheating. TABLE 1, Page 9 shows the correct AWG size to use depending on cord length
and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller
the gage number, the heavier the cord.
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be
caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to
contain long hair.
ALWAYS wear approved eye protection.
ALWAYS wear approved respiratory protection.
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
MAINTAIN TOOLS WITH CARE
Keep tools clean for the best and safest performance. Always follow maintenance
instructions for lubricating, and when changing accessories.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing or when changing accessories,
such as blades, bits, cutters, and the like.
ALWAYS place the power ON/OFF switch in the OFF position when the saw is not in use.
ON / OFF

6
MK-101-24 SAFETY
USE RECOMMENDED ACCESSORIES
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury.
NEVER STAND ON THE TOOL
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
CHECK FOR DAMAGED PARTS
Before using a power tool, check for damaged part. A guard or any other part that is
damaged should be carefully checked to determine ifwould operate properly and perform
its intended function. Always check moving parts for proper alignment or binding. Check
for broken parts and mountings and all other conditions that may affect the operation of the
power tool. A guard, or any damaged part, should be properly repaired or replaced.
DIRECTION OF FEED
ALWAYS feed work into a blade or cutter against the direction of rotation. A blade or cutter
should always be installed such that rotation is in the direction of the arrow imprinted on
the side of the blade or cutter.
NEVER LEAVE A TOOL UNATTENDED
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. Always turn a
power tool OFF when leaving the work area, or, when a cut is finished.
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contain chemicals known [to the State of California] to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products and
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/consilic.html
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
CALIFORNIA PROPOSITION 65 MESSAGE

7
Sawing and drilling generates dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and
protection suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
Diamond Blades improperly used are dangerous. Comply with American National Standards
Institute Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety
Guards, Flanges, Mounting Procedures, General Operating Rules, Handling, Storage and
General Machine Conditions
((
)
)
on
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. They can be
sources of electrical shock which could cause severe injury or burns.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never
operate the motor with covers, shrouds, or guards removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum
speed. Severe personal injury and damage to the engine or equipment can result if
operated at speeds above maximum.
DO NOT EXPOSE TO RAIN
DO NOT expose to rain or use in damp locations.
WARNING
WARNING
MK-101-24 SAFETY
HAZARD SYMBOLS

8
MK-101-24 SAFETY
In order to prevent potential electrical shock and injury, the following electrical safety precautions and
symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a
qualied electrician
Improper connections of the equipment-grounding conductor can result in a risk of electric shock.
The equipment-grounding conductor is the insulated conductor that has an outer surface that is
green, with or without yellow stripes. If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding conductor to a live terminal
Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool’s plug
Repair or replace a damaged or worn cord immediately
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, lug, and the like, extending from the adapter, must be connected to
a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
WARNING
WARNING
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information

9
MK-101-24 SAFETY
Drip Loop Information
To avoid the possibility of the appliance plug or receptacle getting wet,
position the machine to one side of a wall mounted receptacle. This will
prevent water from dripping onto the receptacle or plug. A “drip loop,”
shown in the picture below, should be arranged by the user
to properly position the power cord relative to the power source.
The “drip loop” is that part of the cord below the level of the receptacle,
or the connector, if an extension cord is used. This method of positioning
the cord prevents the travel of water along the power cord and coming in
contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking “Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. Do not use damaged extension cords. Examine extension cords before using and
replace if damaged. Do not abuse extension cords and do not yank on any cord to disconnect.
Keep cords away from heat and sharp edges. Always disconnect the extension cord from the
receptacle before disconnectingthe product from the extension cord.
WARNING
Use of under sizedextension cords result in low voltage to the motor that can result in motor
burnout and premature failure. MK Diamond warns that equipment returned to us showing signs
of being run in a low voltage condition, through the use of undersized extension cords will be
repaired or replaced totally at the customer's expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct AWG size
required for that length of extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not
touch the plug with wet hands.
EXTENSION CORD MINIMUM GAGE FOR LENGTH
VOLTS TOTAL LENGTH OF CORD IN FEET
25 ft. AWG 50 ft. AWG 75-100 ft. AWG
115v 12 10 8
230v 14 14 12
WARNING
WARNING

10
MK-101-24 SAFETY
SAFETY LABEL LOCATIONS
Safety labels contain important safety information. Please read the information contained on each
safety label. These labels are considered a permanent part of your saw. If a label comes off or
becomes hard to read, contact MK Diamond or your dealer for a replacement.
TILE SAW SPECIFIC WARNINGS
Wear eye protection.
Use splash guard for every operation for which it can be used.
Disconnect saw before servicing, when changing cutting blades, and cleaning.
Replace damaged cutting blade before operating.
WARNING
Decal/Label Location Description
A Motor-Side Warning - Read and Follow Operating Instructions
BMotor - Front Warning - Silica Warning
CMotor - Side Notice - Receptacle is for Water Pump Only
DMotor - Back Service/ Warranty
EMotor - Side Caution - Use with GFCI only
FMotor - Side Caution - Receptacle for water pump
GMotor - Side Motor Specifications
HWater Pump Pump Specifications
A
D
C
B
H
E
F
G
Receptacle is for
water pump only.
125V, .6 amps max.
!CAUTION
This saw is to be used
with a Ground Fault
Circuit Interrupter.
!CAUTION
Tile Master Label Sheet Part#166012
Label E
Label F
Label D
Label B
Label A
Label C
SERVICE OR
WARRANTY
FORINFORMATIONON
PLEASE CALL
1-800-474-5594
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition,California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
For Your Own Safety Read Instruction Manual
Before Operating Saw.
Wear Eye Protection.
Disconnect Saw Before Servicing, when Changing
Cutting Wheels and Cleaning.
Use Tool Only with Smooth Edge Cutting Wheels
Free of Openings and Grooves.
Replace Damaged Cutting Wheel Before Operating.
Do Not Fill Water Bath Above Water Fill Line.
See Manual for Pump Replacement.
!
WARNING
NOTICE
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’
100’
150’
250’
Max. Cord Length
Max. Cord Length
Max. Cord Length
No. 12 Wire
No. 10 Wire
No. 8 Wire
115v 230v
!

11

Voltage 120V
Overall Amperage 14.5
Frequency 60Hz
Blade RPM 3400
Horse Power 1-1/2 Hp
 98lbs
Blade Capacity 10" (254 mm)
Arbor Size 5/8" (16 mm)
 3" (76 mm)
 24"
Diagonally Cuts 18" Tile
 42" x 21-1/2" x 23"
 1,014 x 546 x 584
Part # 169612
MK-101-24 PRODUCT SPECIFICATION
The MK-101-24 is a versatile Tile Saw. Operated and used according to this manual, the unit will pro-
vide years of dependable service.
The MK-101-24 is engineered as a table top or stand mounted wet tile saw. The saw include a power-
ful 120V totally enclosed capacitor start motor with a thermal protective overload.
PRODUCT SPECIFICATIONS

12

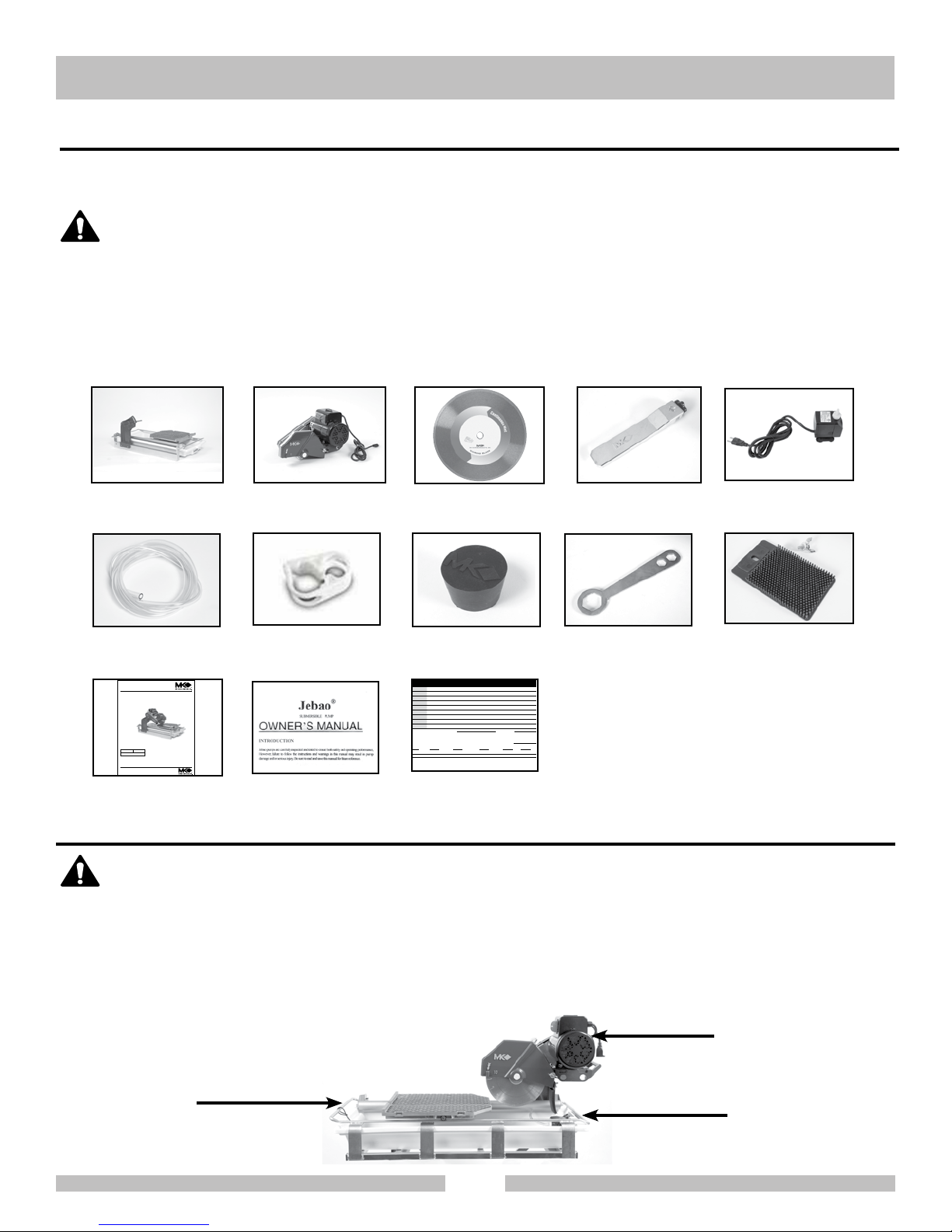

Your MK-101-24 has been shipped from the factory thoroughly inspected. Only minimal as-
sembly is required.
In your container, you will nd one (1) MK-101-24 frame and water basin, one (1) MK-101-24 Cutting
Head, one (1) 10-inch wet cutting continuous rim diamond blade, one (1) adjustable cutting guide, one (1)
electric water pump, one (1) blade wrench, one (1) splash guard, one (1) cooling transfer tube, one (1)
ow adjusting clamp, one (1) drain plug, one (1) owners manual, one (1) pump manual and one (1) war-
ranty card.
1. The MK-101-24 weighs approximately ninety-eight (98) pounds.
2. Never transport the MK-101-24 with water in the Water Basin.
CAUTION
CAUTION
Use proper lifting techniques when lifting the MK-101-24.
The MK-101-24 is designed with a rigid frame and removable Cutting Head. Two people are required
to transport the MK-101-24 with the Cutting Head installed. Remove the Cutting Head if one person is
transporting the saw (see Cutting Head Installation and Removal in the following section).
09.2011
MK-100 24
MK-100 24
OWNERS MANUAL &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution:Read all safety and operating instructions before
using this equipment. This owners manual MUST
accompany the equipment at all times.
Revision 100
Manual PartNo.
MK-101-24 Frame
and Water Basin
MK-101-24
Cutting Head
Diamond Blade Adjustable
Cutting Guide
Electric Water
Pump
Cooling Transfer
Tube
Flow Adjusting
Clamp
Drain Plug Blade Wrench Splash Guard
Owners Manual Pump Manual Warranty Card
UNPACKING
TRANSPORT
Lift Point Lift Point
Name
address
City
state
zip Code
phoN
eFax
e-mail
produ
Ct model
part N
umBer
maChi
Ne serial#
MK DiaMonD Warranty CarD
q tile
distriButor q home CeNter q equipmeNt supply house
q tool
supply q Bldg material supply q reNtal equipmeNt house
are you a
do-it-yourselFer qor CoNtraCtor qIF so, what type? tile qmasoNry qother
what
Criteria was importaNt iN ChoosiNg this saw? (rate From 1 to 5, 5 BeiNg the most importaNt)
power preCisioN portaBility availaBility other
If within one (1) Year from the date of purchase, this MK Diamond saw fails due to defect in material or workmanship, MK will repair it, free of charge when the unit is re
-
turned to the dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall MK Diamond Products,
Inc. be liable for consequential damages arising out of the failure of any product if operated improperly. MK Diamond Products may act as a warranty station for motor/en
-
gine repairs based on an individual agreement with the manufacturer. This warranty is in lieu of all other warranties express or implied.
©2010 All Rights reserved. MK Diamond Products, Inc. • P/N 155037 MK Warranty Card (02/10)
mK d
iamoNd warraNty 1315 Storm Parkway, Torrance, CA 90509 USA | www.mkdiamond.com | 1.800.421.5830 | 1.310.539.5158
where did you pur
Chase this saw Fro m ? N a me
Comme
Nts or suggestioNs:
priCe
date purChased
MK-101-24 SAFETY
Cutting Head

13
The MK-101-24 weighs approximately ninety-eight (98) pounds; follow the
guidelines for transport in the TRANSPORT section, when placing it on the
stand.
CAUTION

MK-101-24 PRODUCT SPECIFICATION
(A)
Open the stand and place on
at surface
(B)
Remove Water Basin,
place saw on stand
(C)
Ensure saw frame is
positioned properly
(D)
Reinstall the Water Basin
If using the MK Diamond Stand, Part # 168244, follow these steps.

14
(B)
Align Cutting Head rear Pivot
Hole to the Post Pivot Shaft
and slide onto shaft.
NOTE: If the cutting head is installed, go to the next step.
(A)
Ensure Cutting Head Stop is in
upward position.
(C)
Install the Cutting Head onto the
Post Pivot Shaft and install the
Adjusting Knob.
For maximum cutting length,
the Cutting Head should be in
the front pivot hole and the Post
should be in the rear post
retaining hole.
NOTE: For small tiles (6" tile or smaller) the Cutting Head should
be in the rear pivot hole and the Post should be in the forward post
retaining hole. For large tiles and maximum cutting length, the Cut-
ting Head should be in the front pivot hole and the Post should be
in the rear post retaining hole.
NOTE: Move Cutting Head Stop in upward position when using
rear pivot hole and in the down position when using front pivot
hole, refer to page 24.
Cutting Head Installation
Follow the assembly instructions to prepare your MK-101-24 for operation.
MK-101-24 ASSEMBLY

15

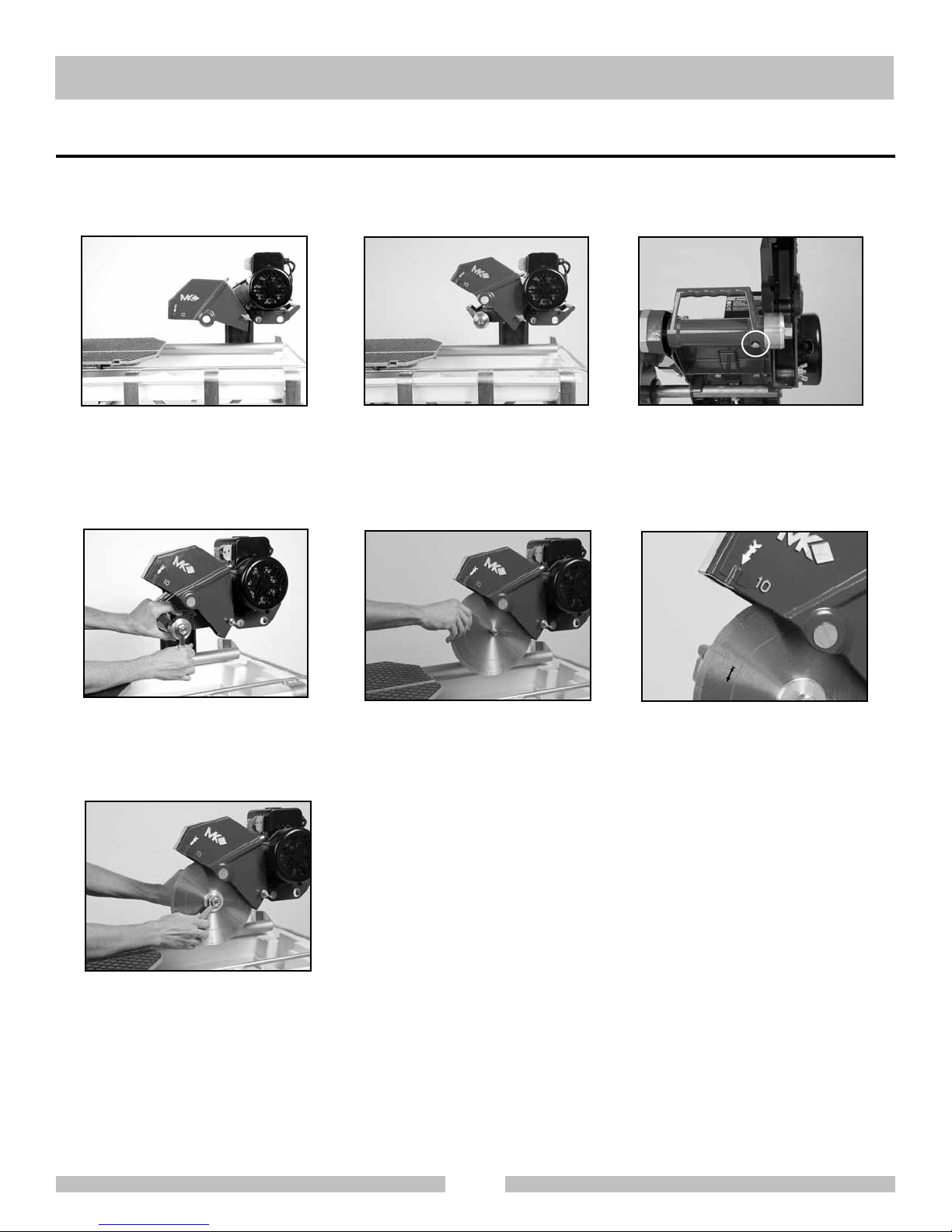

(A)
Position Movable Cutting Table
to the front of the saw.
(B)
Raise the Blade Guard by
loosening the wingnut.
(C)
Locate the Shaft Lock push
button on the underside
of the Cutting Head.
(D)
Depress and hold the Shaft
Lock pushbutton and remove
Retaining Nut and Outer Flange
using the Blade Wrench.
(E)
Install Diamond Blade
onto Blade Shaft.
(F)
Verify the Blade is seated on
the Blade Shaft and direction
of rotation is correct.
(G)
Install Retaining Nut and Outer
Flange, depress and hold the
Shaft Lock pushbutton
and tighten Retaining Nut.
NOTE: When installing the Retaining Nut, do not “cross-thread” and DO NOT over tighten.
Diamond Blade Installation
MK-101-24 ASSEMBLY

16

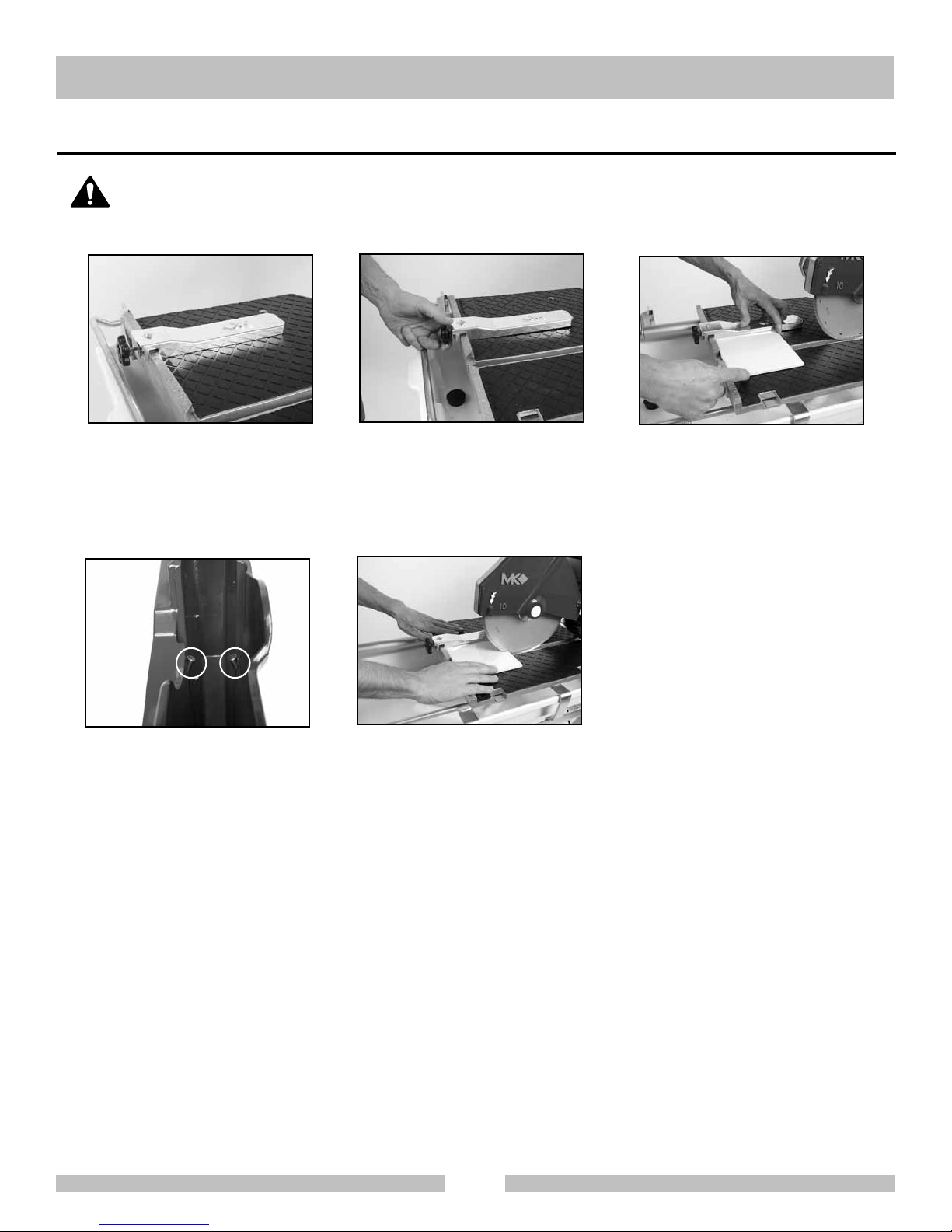

NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
(A)
Place the Adjustable Cutting
Guide onto the Movable Cutting
Table Ruler/Stop and tighten
the retaining thumbscrew.
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found
on back of the Blade Guard.
(B)
Install the Splash Guard
onto the Blade Guard.
(A)
Install Water Pump
Discharge Fitting.
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting.
(C)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube.
MK-101-24 ASSEMBLY
Adjustable Cutting Guide Installation
S
Water Pump Preparation

17

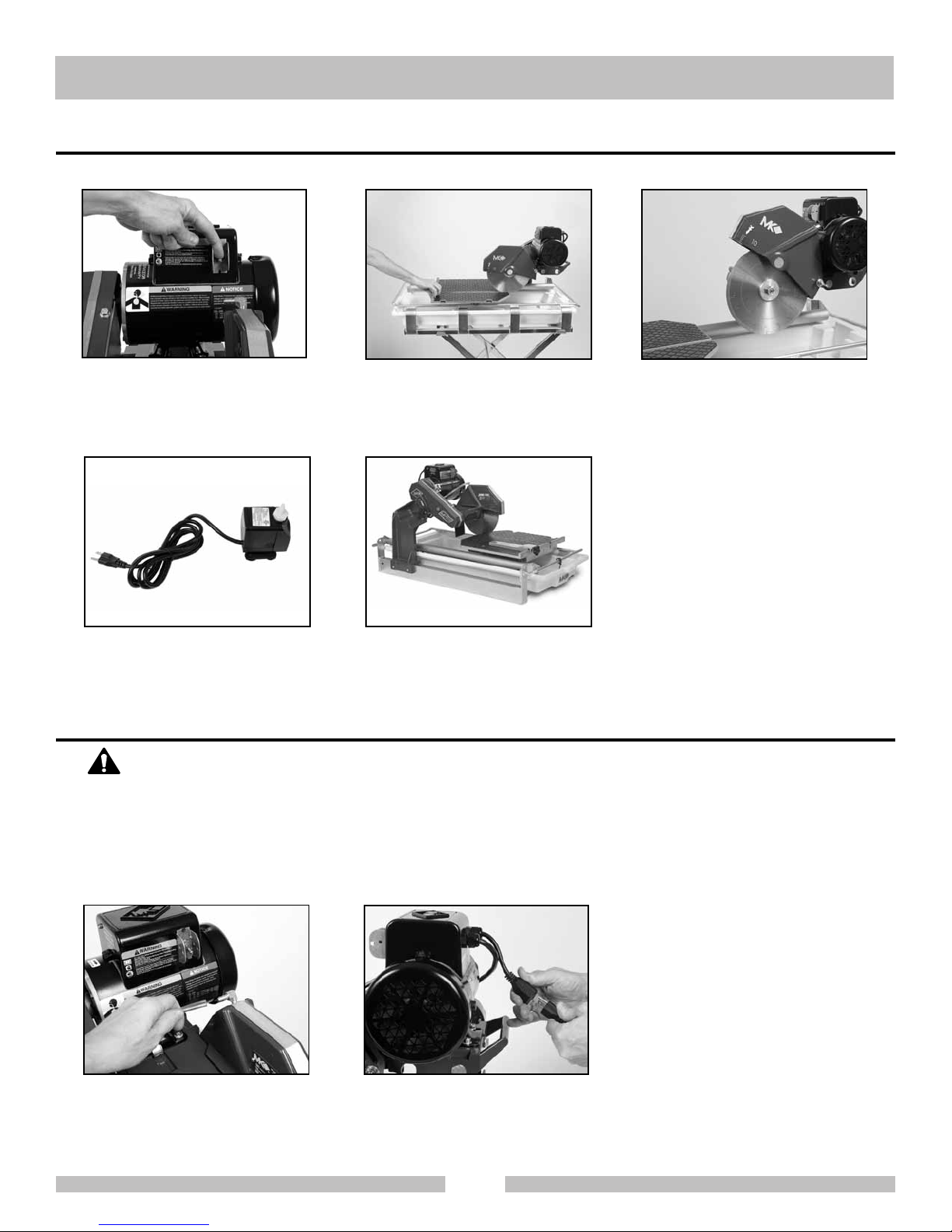

Prior to beginning work, a pre-start inspection of the saw should be performed.
1. To prevent the possibility electrical shock, the MK-101-24 MUST be de-
energized when connecting the Water Pump.
2. To prevent the possibility of electrical shock, use only MK Diamond qualied
replacement parts.
(A)
Ensure the ON/OFF Switch
is in the OFF position.
(B)
Verify the Movable Cutting
Table moves freely.
(C)
Inspect the Diamond Blade for
damage – verify the blade is
correct for the material being cut.
(D)
Inspect the Pump Assembly
for damage – ensure the cord
is free of cracks or cuts.
(E)
Inspect the MK-101-24
for damage – ensure the cord
is free of cracks or cuts.
(A)
Connect the Cooling Transfer
Tube to the inlet connection
of the Blade Guard.
(B)
Connect the Water Pump power
cord to the connection found on
the back of the motor.
WARNING
MK-101-24 SETUP
Pre-start Inspection

NOTE: To prevent pump damage, the Water Pump must be disconnected during
dry cutting operations.

18

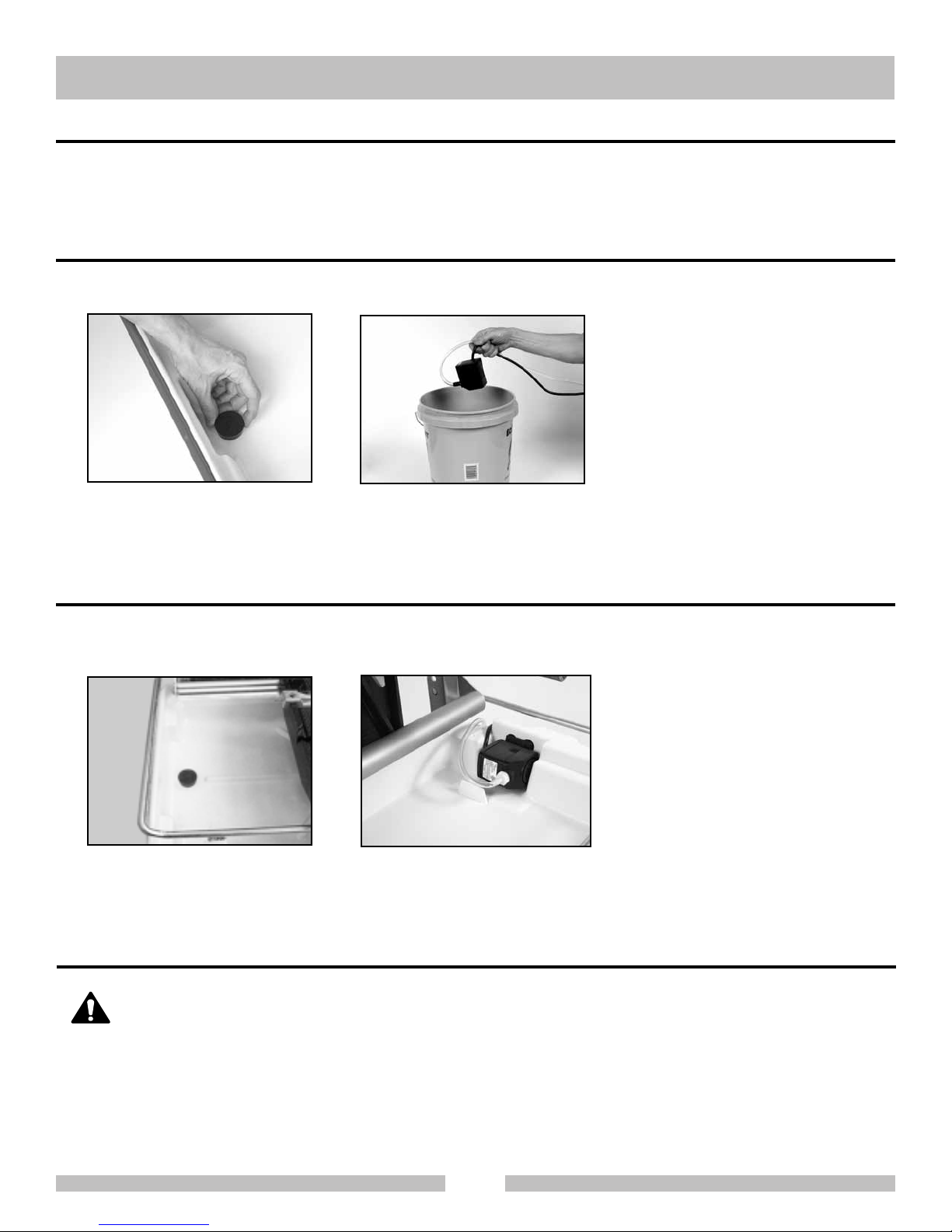

The Water Pump can be setup for operation in two ways, External Water Source or Re-circulation.
(B)
Place Water Pump in Water Pan.
Fill the Water Basin until water
completely covers the
Water Pump suction.
(A)
Remove the Drain Plug. Place
empty container under hole for
water drainage.
(B)
Place the Water Pump in an
external container and ll until
water completely covers the
Water Pump suction.
This is the preferred method of cooling.
NOTE: When using the re-circulation method, the water should be changed often for
longer pump life
(A)
Ensure the Drain Plug is
installed in the Water Basin.
CAUTION
Water Pump Setup for Operation
SETUP FOR OPERATION
External Water Source
Re-circulation
MK-101-24 SETUP
NOTE: If using a dry blade for operation, DO NOT connect the water pump.
1. Before powering or starting, check for damage that could prevent this
equipment from proper operation or performing it’s intended function.
Check for binding and proper alignment of moving parts. Check for dam-
aged, broken, or missing parts.
2. Verify the On/Off switch is in the OFF position.
3. Before connecting the MK-101-24 to a power supply, be sure the voltage,
cycle and phase of the job site power source meet these requirements.

19
When loosing the Cutting Head Adjusting Knob, the Cutting Head will pivot
down unless held.
(A)
Ensure the ON/OFF Switch
is in the OFF position.
(B)
Plug MK-100 into the GFCI.
(C)
Plug the GFCI into the
power source.
(A)
Loosen Cutting Head
Adjusting Knob.
(B)
Set cutting depth approximately
1/4 to 1/2 inch below the
surface of the Movable
Cutting Table.
(C)
Tighten the Adjusting Knob.
CAUTION

MK-101-24 SETUP
VOLTAGE: 120V
CYCLE: 60hz
PHASE: 1-phase
PORTABLE GENERATOR
ELECTRIC RECEPTACLE
4. If using an extension power cord, make sure, the length and wire gauge cor-
respond to the requirements listed in on page 9. An extension power cord
that is too small in wire gauge (diameter), or too long in length, will cause the
motor to overheat and could cause premature failure.
5. Use an approved Ground Fault Circuit Interrupter (GFCI)
6. Do not cover the motor vents as this could lead to motor overheating.
In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
A GFCI wall socket is the preferred protective device.
NOTE:
NOTE:
5 KW 120/240 volts 41.7/20.8 amps Single Phase
If using a portable generator, ensure the generator meets the following minimum requirements:

20
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed.
(A)
Position the Adjustable Cutting
Guide to desired cut length.
(B)
Tighten the retaining
thumbscrew.
(C)
Place the tile against the
Ruler/Stop and Cutting Guide.
Turn the motor ON.
(D)
Verify proper cooling ow on
both sides of the blade (See
Maintenance Section to
increase/decrease ow).
(E)
Perform the cut. Turn the motor
OFF when work is complete.
CAUTION

MK-101-24 OPERATION
