Mobicool MCF 32 User manual

mobicool.com
Mobile refrigerating appliance
Installation and Operating Manual. . . . . 5
Mobiles Kühlgerät
Montage- und Bedienungsanleitung . . 21
Appareil de réfrigération mobile
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . 37
Aparato móvil de refrigeración
Instrucciones de montaje
y de uso . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Apparecchio di refrigerazione
mobile
Istruzioni di montaggio e d’uso . . . . . . .72
Mobiel koelapparaat
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . .88
Transportabelt køle-/fryseapparat
Monterings- og
betjeningsvejledning . . . . . . . . . . . . . . . 104
Mobil kyl-/frysprodukt
Monterings- och bruksanvisning . . . . . 120
Mobil kjøleboks
Monterings- og bruksanvisning. . . . . . 136
Siirrettävä kylmäsäilytyslaite
Asennus- ja käyttöohje. . . . . . . . . . . . . 152
Aparelho de refrigeração móvel
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . 168
Мобильное охлаждающее
устройство
Инструкция по монтажу и
эксплуатации . . . . . . . . . . . . . . . . . . . . 186
Przenośne urządzenie chłodnicze
Instrukcja montażu i obsługi . . . . . . . .204
Mobilní chladicí spotřebič
Návod k montáži a obsluze. . . . . . . . .222
Mobilný chladiaci spotrebič
Návod na montáž a uvedenie do
prevádzky . . . . . . . . . . . . . . . . . . . . . . . . 238
Mobil hűtőkészülék
Használati utasítás . . . . . . . . . . . . . . . .254
ﻝﻭﻣﺣﻣﻟﺍ ﺩﻳﺭﺑﺗﻟﺍ ﺯﺎﻬﺟ
ﻝﻳﻟﺩ ﻝﻳﻐﺷﺗﻟﺍﻭ ﺏﻳﻛﺭﺗﻟﺍ. . . . . . . . . . . . . . . . .254
EN
DE
FR
ES
IT
NL
DA
SV
NO
FI
PT
RU
PL
CS
SK
HU
AR
COOL BOXES
MCF32, MCF40, MRF40, MCF60 AC/DC

© 2022 Dometic Group. The visual appearance of the contents of this manual is protected
by copyright and design law. The underlying technical design and the products contained
herein may be protected by design, patent or be patent pending. The trademarks
mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

MCF32/MCF40/MRF 40/MCF60 AC/DC
3
1
1
ON
OFF
DOWNUP
SET
POWER
+ –
ERROR
°
ON
OFF
DOWNUP
SET
POWER
+ –
ERROR
°
1 3 4 5
8
6 72
1 3 4 5 6 72

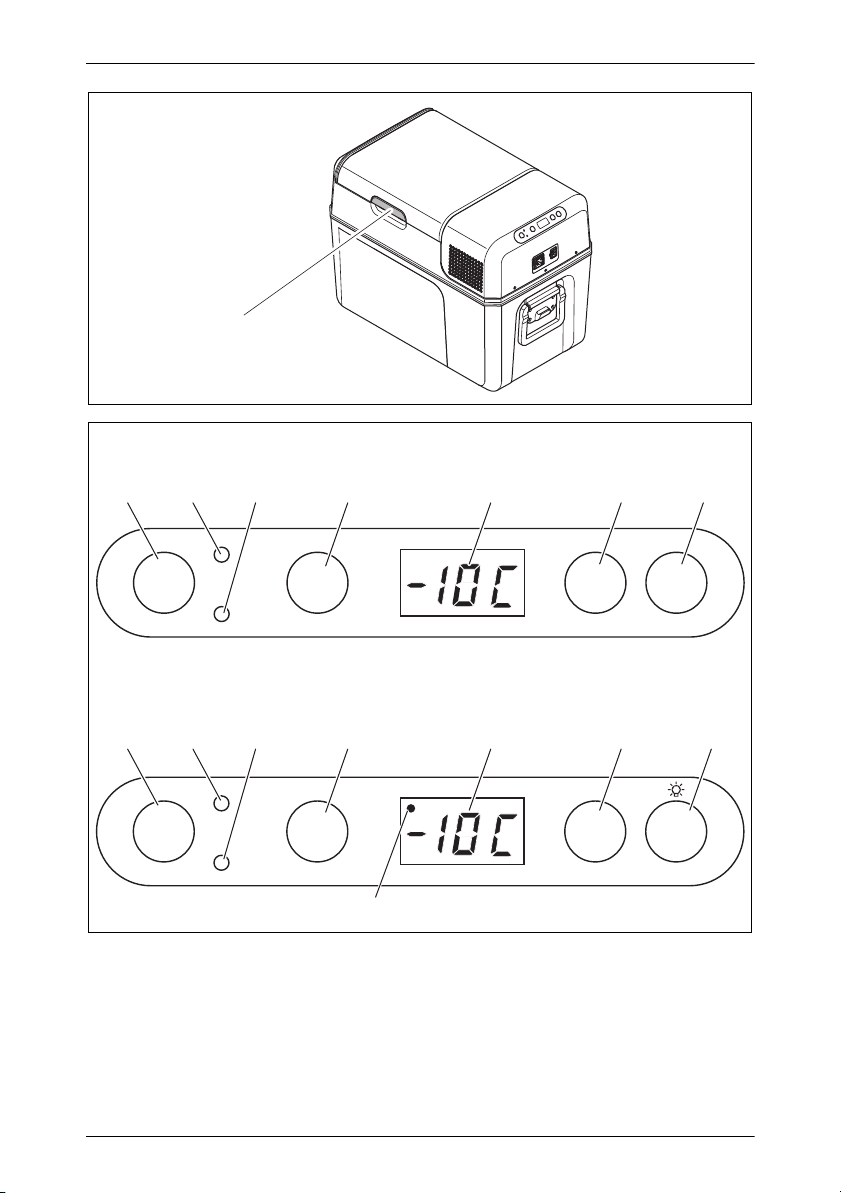

MCF32, MCF40, MRF40
MCF60
2

MCF32/MCF40/MRF 40/MCF60 AC/DC
4
3
100-240V~AC 12/24V DC
1 2 43 5
2. 1.
A B
C
1.
1.
2.
2.
4

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Explanation of symbols
5
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
documents.dometic.com.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5 Function description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not
avoided, could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property
damage.

EN
Safety instructions MCF32/MCF40/MRF 40/MCF60 AC/DC
6
I
2Safetyinstructions
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
Before starting the device, ensure that the power supply line and
the plug are dry.
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
Do not operate the cooling device if it is visibly damaged.
If this cooling device's power cable is damaged, it must be
replaced to prevent safety hazards.
This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Plug the device to sockets that ensure proper connection espe-
cially when the device needs to be earthed.
Fire hazard
When positioning the device, ensure the supply cord is not
trapped or damaged.
Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Keep the ventilation openings on the device housing or in instal-
lations free of obstructions.
Do not use any mechanical objects or other means to speed up
the defrosting process, unless they have been recommended by
the manufacturer for this purpose.
NOTE
Supplementary information for operating the product.

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Safety instructions
7
Do not damage the refrigerant circuit.
Health hazard
This device can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
device in a safe way and understand the hazards involved.
Children shall not play with the device.
Cleaning and user maintenance shall not be made by children
without supervision.
Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
Do not store any explosive substances such as spray cans with
a flammable propellant in the cooling device.
!CAUTION! Failure to obey these cautions could result in minor
or moderate injury.
Electrocution hazard
Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
To avoid contamination of food, please respect the following
instructions:
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.
Food may only be stored in its original packaging or in suitable
containers.
Opening the cooling device for long periods can cause signifi-
cant increase of the temperature in the compartments of the
device.
Clean regularly surfaces that can come in contact with food and
accessible drainage systems.

EN
Safety instructions MCF32/MCF40/MRF 40/MCF60 AC/DC
8
If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mold developing within the
device.
ANOTICE! Damage hazard
Check that the voltage specification on the data plate
corresponds to that of the energy supply.
Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the
vehicle
– Or with the AC connection cable to an AC power supply
Never pull the plug out of the socket by the cable.
If the cooling device is connected to a DC outlet, disconnect the
cooling device and other power consuming devices from the bat-
tery before connecting a quick charging device.
If the cooling device is connected to a DC outlet, disconnect the
cooling device or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
The insulation of the cooling device contains flammable cyclo-
pentane and requires special disposal procedures. Deliver the
cooling device at the end of its life-cycle to an appropriate
recycling center.
Do not use electrical devices inside the cooling device unless
they are recommended by the manufacturer for the purpose.
Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation
on all four sides of the cooling device. Keep the ventilation area
free of any objects that could restrict the air flow to the cooling
components.
Do not place the cooling device in closed compartments or
areas with none or minimal air flow.
Ensure that the ventilation openings are not covered.
Do not fill the inner container with ice or fluids.

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Scope of delivery
9
Never immerse the cooling device in water.
Protect the cooling device and cables against heat and moisture.
The device shall not to be exposed to rain.
3Scopeofdelivery
4 Intended use
The cooling box is suitable for cooling food. The cooling box is also suitable
for use on vehicles. The cooling box is designed to be operated from a DC
power supply socket of a vehicle or from an AC power supply.
The cooling box is also suitable for camping use.
The cooling box is intended to be used in household and similar applications
such as
staff kitchen areas in shops, offices and other working environments
farm houses
clients in hotels, motels and other residential type environments
bed and breakfast type environments
catering and similar non-retail applications
The cooling box is not suitable for:
storage of corrosive, caustic or solvent-containing substances
This cooling box is only suitable for the intended purpose and application in
accordance with these instructions.
This manual provides information that is necessary for proper installation and/
or operation of the cooling box. Poor installation and/or improper operating or
maintenance will result in unsatisfactory performance and a possible failure.
Quantity Description
1 Compressor cooler
1 DC connection cable
1 AC connection cable
1 Operating manual

EN
Function description MCF32/MCF40/MRF 40/MCF60 AC/DC
10
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
Incorrect assembly or connection, including excess voltage
Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
Alterations to the product without express permission from the manufac-
turer
Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
5 Function description
The cooling device can chill products, keep them cool.
A low maintenance refrigerant circuit with compressor provides the cooling.
The foamed in place insulation and compact compressor ensure optimum
cooling.
The cooling device is portable.
When used on boats, the cooling device can withstand a constant heel
(inclination) of 30°.
5.1 Scope of functions
Three-level battery monitor to protect the vehicle battery switches off
automatically at low battery voltage
Display with temperature gauge
Temperature setting: With two buttons in steps of 1 °C (2 °F)

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Function description
11
5.2 Operating and display elements
Latch for lid: fig. 11, page 3
Operating panel (fig. 2, page 3)
Item Description Explanation
1ON
OFF
Switches the cooling device on or off when the
button is pressed for between one and two seconds
2 POWER Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off auto-
matically due to low
battery voltage
3 ERROR LED flashes red: Cooling device is switched
on but not ready for oper-
ation
4 SET Selects the input mode
– Temperature setting
– Celsius or Fahrenheit display
– Set battery monitor
5 – Display, shows the information
6 “+” Press once to increase the value
7 “–” Press once to decrease the value
8Only MCF60: If displayed, the interior light is
switched on.

EN
Operation MCF32/MCF40/MRF 40/MCF60 AC/DC
12
Connectors (fig. 3, page 4)
6Operation
6.1 Before initial use
I
Selecting the temperature units
You can switch the temperature display between Celsius and Fahrenheit.
Proceed as follows:
1. Switch on the cooling device.
2. Press the “SET” button twice.
3. Use the “+” and “–” buttons to select Celsius or Fahrenheit.
✔The selected temperature units then appear in the display for a few
seconds. The display flashes several times before it returns to the current
temperature.
6.2 Saving energy
Choose a well ventilated location which is protected from direct sunlight.
Allow warm food to cool down first before placing it in the cooling device
to keep cool.
Do not open the cooling device more often than necessary.
Item Description
1ACsocket
2 Fuse holder
3 Cover AC socket
4 Cover DC socket
5DCsocket
NOTE
Before starting your new cooling device for the first time, you
should clean it inside and outside with a damp cloth for hygienic
reasons (please also refer to the chapter “Cleaning and mainte-
nance” on page 17).

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Operation
13
Do not leave the cooling device open for longer than necessary.
If the cooler has a basket: For optimal energy consumption, position the
basket according to its position on delivery.
On a regular basis, make sure the lid seal still fits properly.
6.3 Connecting the cooling device
The cooling device can be operated with DC or AC voltage.
A
For safety reasons the cooling device is equipped with an electronic system
to prevent the polarity reversal. This protects the cooling device against short-
circuiting when connecting to a battery.
1. Plug the DC connection cable into the DC socket and connect it to a DC
power socket.
2. Plug the AC connection cable into the AC voltage socket and connect it to
an AC mains.
3. Close the covers of the sockets not in use to prevent accidentally touch-
ing the sockets. This also prevents dust, water and dirt from entering the
socket.
NOTICE! Damage hazard
Disconnect the cooling device and other consumer units from the
vehicle battery before you connect the vehicle battery to a quick
charging device.
Overvoltage can damage the electronics of the cooling device.

EN
Operation MCF32/MCF40/MRF 40/MCF60 AC/DC
14
6.4 Using the battery monitor
The cooling device is equipped with a multi-level battery monitor that protects
your vehicle battery against excessive discharging when the cooling device is
connected to the DC power supply.
If the cooling device is operated when the vehicle ignition is switched off, the
cooling device switches off automatically as soon as the supply voltage falls
below a set level. The cooling device will switch back on once the vehicle
battery has been recharged to the restart voltage level.
A
In “HIGH” mode, the battery monitor responds faster than at the levels “LOW”
and “MED” (see the following table).
Proceed as follows to select the battery monitor mode:
1. Switch on the cooling device.
2. Press the “SET” button three times.
3. Use the “+” and “–” buttons to select the battery monitor mode.
✔The selected mode then appears in the display for a few seconds. The dis-
play flashes several times before it returns to the current temperature.
I
NOTICE! Damage hazard
When switched off by the battery monitor, the vehicle battery will
no longer be fully charged. Avoid starting repeatedly or operating
current consumers without longer charging phases. Ensure that the
vehicle battery is recharged.
Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V 10.1 V 11.4 V 11.8 V
Restart voltage at 12 V 11.1 V 12.2 V 12.6 V
Switch-off voltage at 24 V 21.5 V 24.1 V 24.6 V
Restart voltage at 24 V 23.0 V 25.3 V 26.2 V
NOTE
When the cooling device is supplied by the vehicle battery, select
the battery monitor mode “HIGH”. If the cooling device is con-
nected to a supply battery, the battery monitor mode “LOW” will
suffice.

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Operation
15
6.5 Using the cooling device
A
1. Place the cooling device on a firm foundation.
2. Connect the cooling device, see chapter “Connecting the cooling device”
on page 13.
A
3. Press the “ON/OFF” button for between one and two seconds.
✔The “POWER” LED lights up.
✔The display switches on and shows the current cooling temperature.
I
✔The cooling device starts cooling the interior.
I
To avoid food waste, note the following:
Keep temperature fluctuation as low as possible. Only open the cooling
device as often and for as long as necessary. Store the foodstuff in such a
way that the air can still circulate well.
Adjust the temperature to the quantity and type of the foodstuff.
Foodstuff can easily absorb or release odor or taste. Always store food-
stuff covered or in closed containers/bottles.
6.6 Latching the cooling device lid
1. Lift the latch (fig. 11, page 3) and close the lid.
NOTICE! Damage hazard
Place the cooling device as shown (fig. 1, page 3). If you operate
the cooling device in a different position it can be damaged.
NOTICE! Hazard from excessively low temperature
Ensure that only those objects are placed in the cooling device
that are intended to be cooled at the selected temperature.
NOTE
The temperature displayed is that of the middle of the interior.
The temperatures elsewhere can deviate from this temperature.
NOTE
When operating with the battery, the display switches off auto-
matically if the battery voltage is low. The LED “POWER” flashes
orange.

EN
Operation MCF32/MCF40/MRF 40/MCF60 AC/DC
16
2. Release the latch.
✔The latch audibly clicks in place and secures the cooling device lid.
6.7 Setting the temperature
1. Press the “SET” button once.
2. Use the “+” and “–” buttons to select the cooling temperature.
✔The cooling temperature appears in the display for a few seconds. The
display flashes several times and then the current temperature is
displayed again.
6.8 Switching off the cooling device
1. Empty the cooling device.
2. Switch the cooling device off.
3. Pull out the connection cable.
If you do not want to use the cooling device for a longer period of time:
➤Leave the lid slightly open. This prevents odour build-up.
6.9 Using the interior light (only MCF60)
1. Ensure the display shows the actual temperature.
2. Press the “–” button to switch the interior light on.
3. Press the “–” button again to switch the interior light off.
✔The black dot (fig. 28, page 3) in the upper left corner of the display indi-
cates whether the interior light is switched on or off.
I
6.10 Defrosting the cooling device
Humidity can form frost in the interior of the cooling device or on the evapora-
tor. This reduces the cooling capacity. Defrost the cooling device in good time
to avoid this.
NOTE
The interior light switches off automatically after 30 minutes.

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Cleaning and maintenance
17
A
To defrost the cooling device, proceed as follows:
1. Take out the contents of the cooling device.
2. If necessary, place them in another cooling device to keep them cool.
3. Switch off the cooling device.
4. Leave the lid open.
5. Wipe off the defrosted water.
6.11 Replacing the fuse
➤Replace the fuse (8 A 32 V) as shown (fig. 4, page 4).
7 Cleaning and maintenance
A
➤Occasionally clean the cooling device interior and exterior with a damp
cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any
dust and dirt, so that heat can be released and the device is not damaged.
8 Warranty
The statutory warranty period applies. If the product is defective, please
contact your retailer or the manufacturer's branch in your country (see
dometic.com/dealer).
For repair and warranty processing, please include the following documents
when you send in the product:
A copy of the receipt with purchasing date
NOTICE! Damage hazard
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
NOTICE! Damage hazard
Never clean the cooling device under running water or in dish
water.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooling device.

EN
Troubleshooting MCF32/MCF40/MRF 40/MCF60 AC/DC
18
A reason for the claim or description of the fault
Note that self-repair or nonprofessional repair can have safety consequences
and might void the warranty.
9 Troubleshooting
Fault Possible cause Suggested remedy
The cooling device
does not function,
“POWER” LED does not
glow.
There is no voltage
present in the DC power
socket in your vehicle.
The ignition must be switched on in most
vehicles to apply current to the DC power
socket.
The cooling device
does not cool (plug is
inserted, “POWER” LED
is lit).
Defective compressor. This can only be repaired by an
authorized customer services unit.
The cooling device
does not cool (plug is
inserted, “POWER” LED
flashes orange, dis-
play is switched off).
Voltage of the vehicle
battery is too low.
Test the vehicle battery and charge it as
needed.
When operating from
the DC power socket:
The ignition is on and
the cooling device is
not working and the
“POWER” LED is not lit.
The DC power socket is
dirty. This results in a
poor electrical contact.
If the plug of your cooling device
becomes very warm in the DC power
socket, either the DC power socket must
be cleaned or the plug has not been
assembled correctly.
The fuse of the DC plug
has blown.
Replace the fuse (8 A) in the DC plug, see
chapter “Replacing the fuse” on page 17.
The vehicle fuse has
blown.
Replace the vehicle’s DC power socket
fuse (usually 15 A). Please refer to your
vehicle’s operating manual.
The display shows an
error message (e.g.
“Err1”) and the cooling
device does not cool.
The cooling device has
switched off due to an
internal fault.
This can only be repaired by an
authorized repair center.

EN
MCF32/MCF40/MRF 40/MCF60 AC/DC Disposal
19
10 Disposal
Recycling products with non-replaceable batteries, rechargeable batter-
ies or light sources
Recycling packaging material
11 Technical data
➤If the product contains any non-replaceable batteries, rechargeable
batteries or light sources, you don't have to remove them before dis-
posal.
➤If you wish to finally dispose of the product, ask your local recycling
center or specialist dealer for details about how to do this in accor-
dance with the applicable disposal regulations.
➤The product can be disposed free of charge.
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MCF32 AC/DC MCF40 AC/DC,
MRF40 AC/DC MCF60 AC/DC
Connection voltage: 12/24 Vg
100 – 240 Vw, 50/60 Hz
Power consumption: 8 A (12 Vg) 6 A (12 Vg)
4A(24Vg) 3 A (24 Vg)
2.0 – 1.0 A (100 – 240 Vw) 1.0 – 0.4 A
(100 – 240 Vw)
Cooling capacity: +20 °C to –10 °C
(+68 °F to +14 °F)
Total volume: 31 l 38 l 58 l
Climate class: N
Ambient temperature: +16 °C to +32 °C
Refrigerant quantity: 40 g 42 g 58 g
CO2equivalent: 0.057 t 0.060 t 0.083 t

EN
Technical data MCF32/MCF40/MRF 40/MCF60 AC/DC
20
I
The refrigerant circuit contains R134a.
This product contains fluorinated greenhouse gases.
The cooling unit is hermetically sealed.
Global warming potential
(GWP):
1430
Dimensions (L x W x H): 584 x 365 x
407 mm
584 x 365 x
446 mm
680 x 440 x
470 mm
Weight: 11.4kg 11.5kg 18.4kg
Test/certificates:
NOTE
If the ambient temperature is above +32 °C (+90 °F), the minimum
temperature cannot be attained.
MCF32 AC/DC MCF40 AC/DC,
MRF40 AC/DC MCF60 AC/DC
ID 1419063589
ID 1419056512
