Modern Flames CEF-50B User manual

CHALLENGER WALL MOUNT/RECESSED ELECTRIC FIREPLACE
Model# : CEF-50B CEF-60B
OWNER’S MANUAL
AC 120V 60Hz 1500W (5000BTUs)
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
AFFIX SERIAL NUMBER LABEL HERE
FOR FUTURE REFERENCE
REV_03162021

2
IMPORTANT SAFETY INFORMATION!
WARNING
l Read all instructions before installing or using this heater.
l Use a dedicated 15 Amp (or higher) breaker.
l This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of
the heater, and keep them away from the sides and rear.
l Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
l Do not operate any heater after it malfunctions. Disconnect power at service panel and have
heater inspected by a reputable electrician before reusing.
l Do not use outdoors.
l To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect
panel (or operate internal disconnect switch if provided).
l Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock, fire, or damage the heater.
l To prevent a possible fire, do not block air intakes or exhaust in any manner.
l A heater has hot arcing or sparking parts inside. Do not use in areas where gasoline, paint,
flammable vapors, or liquids are used or stored.
l Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
l This heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect
for any objects on or adjacent to the heater that may have blocked the airflow or otherwise
caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE
ALARM SOUNDING (OR ILLUMINATING).
l ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an extension
cord or relocatable power tap (outlet/power strip).
l NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub, pool, become damp, or come in contact with water.
l AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
l ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
l NEVER use a wall mount bracket from another manufacturer.
l This product is not intended to be a primary heat source. It is for supplemental heat only.
l INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!

3
l ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
l NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
l ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
l NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
l ALWAYS check your heater cord and plug connections with each use.
i) MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can
cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or face plate is HOT.
iv) If the outlet or face plate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
l SAVE THESE INSTRUCTIONS.
Preparation
This product includes a GLASS panel. Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and
assembly steps are grouped for wall-hanging or recessing use. Check the parts list to make sure
nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver, stud finder, level, tape
measure, electric drill, 1/4” wood drill bit, hammer.

4

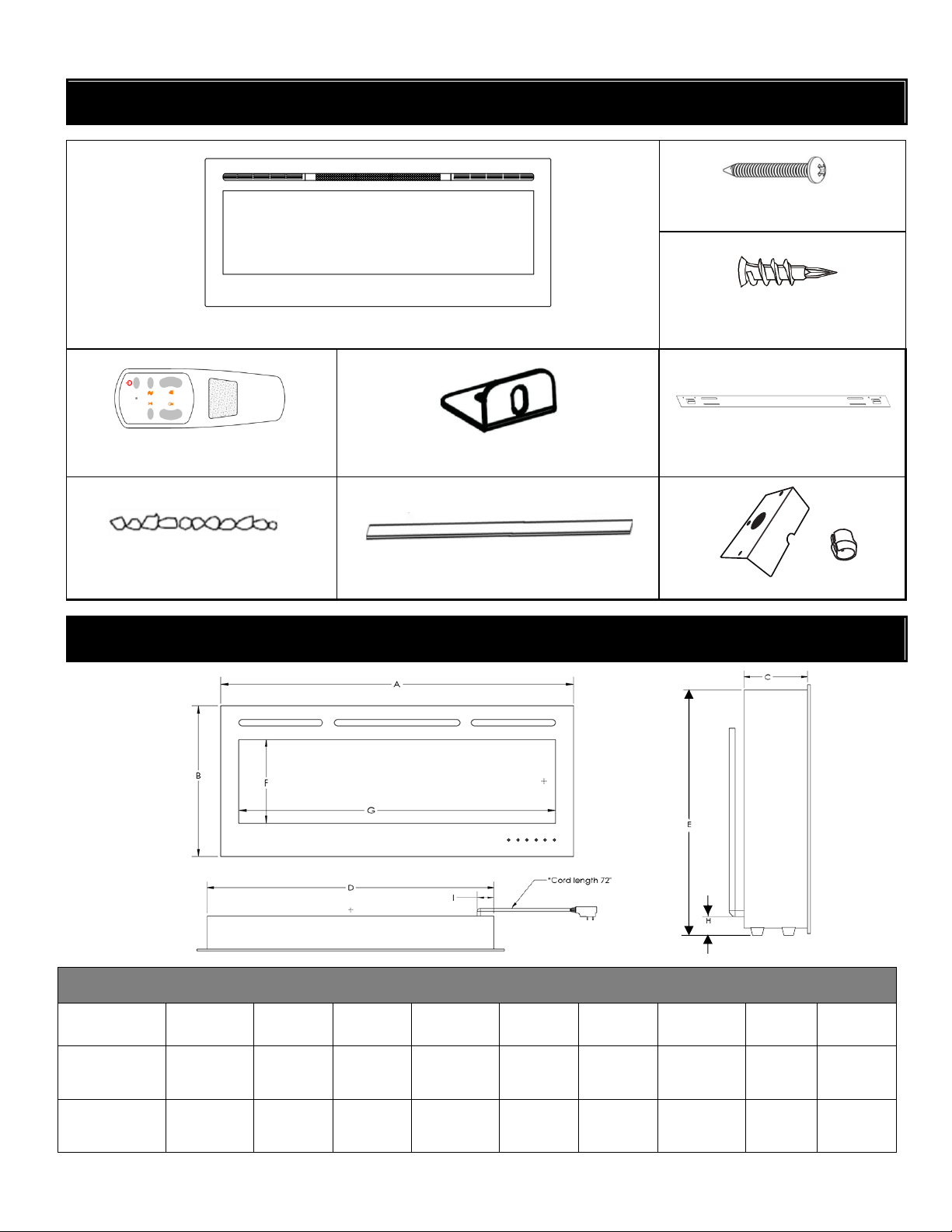

Parts and Hardware
A – Fireplace
B – Wood Screws
C – Drywall anchors
D – Remote Control
E – Metal Bracket
F – Wall Bracket
Fixed on back of firebox
G – Glacier Crystals
H – Plastic Tray
I – Hardware Kit
Specification and Dimension
PRODUCT DIMENSIONS
Model
Number
A
B
C
D
E
F
G
H
I
CEF-50B
50-3/8"
(1280mm)
21-7/16"
(544mm)
5-3/4"
(146mm)
47-1/16"
(1195mm)
20-9/16"
(522mm)
12"
(305mm)
45-1/4"
(1149mm)
1-3/8"
(36mm)
7-1/4"
(184MM)
CEF-60B
59-7/8"
(1520mm)
21-7/16"
(544mm)
5-3/4"
(146mm)
47-1/16"
(1195mm)
20-9/16"
(522mm)
12"
(305mm)
45-1/4"
(1149mm)
1-3/8"
(36mm)
7-1/4"
(184MM)

5
Installation and Assembly
Your appliance is a recessed, partial recessed or wall-mount installed appliance. Select a suitable location that
is not susceptible to moisture and is away from drapes, furniture and high traffic areas.
NOTE: Follow all National and local electrical codes.

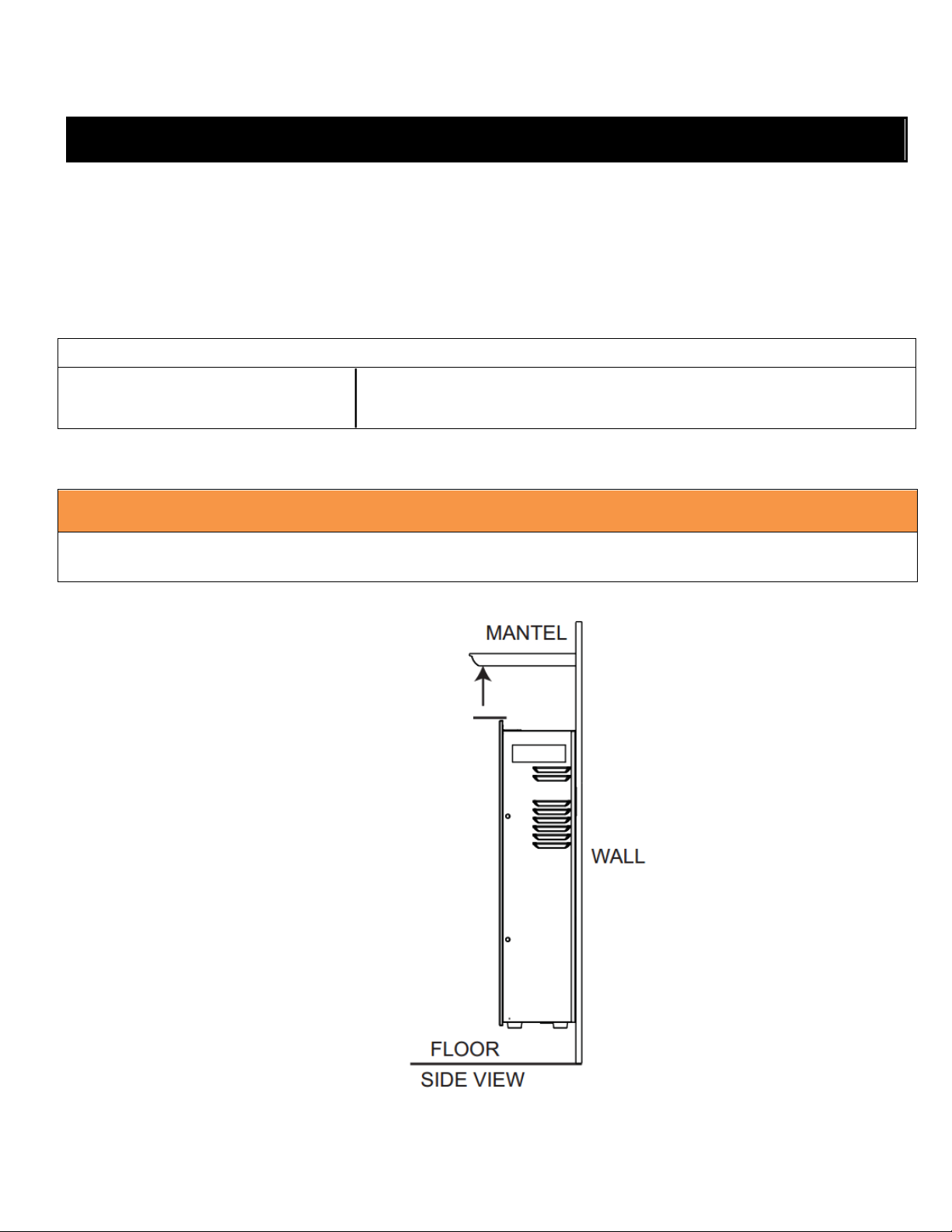

MINIMUM CLEARANCE TO COMBUSTIBLES
Measurements are taken from the glass front.
Bottom 0" Top 11-13/16" (300mm) to mantel
Sides 0" Top 11-13/16" (300mm) to ceiling
Back 0"
MINIMUM MANTEL CLEARANCES
WARNING
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION.
11-13/16” (300mm)

6

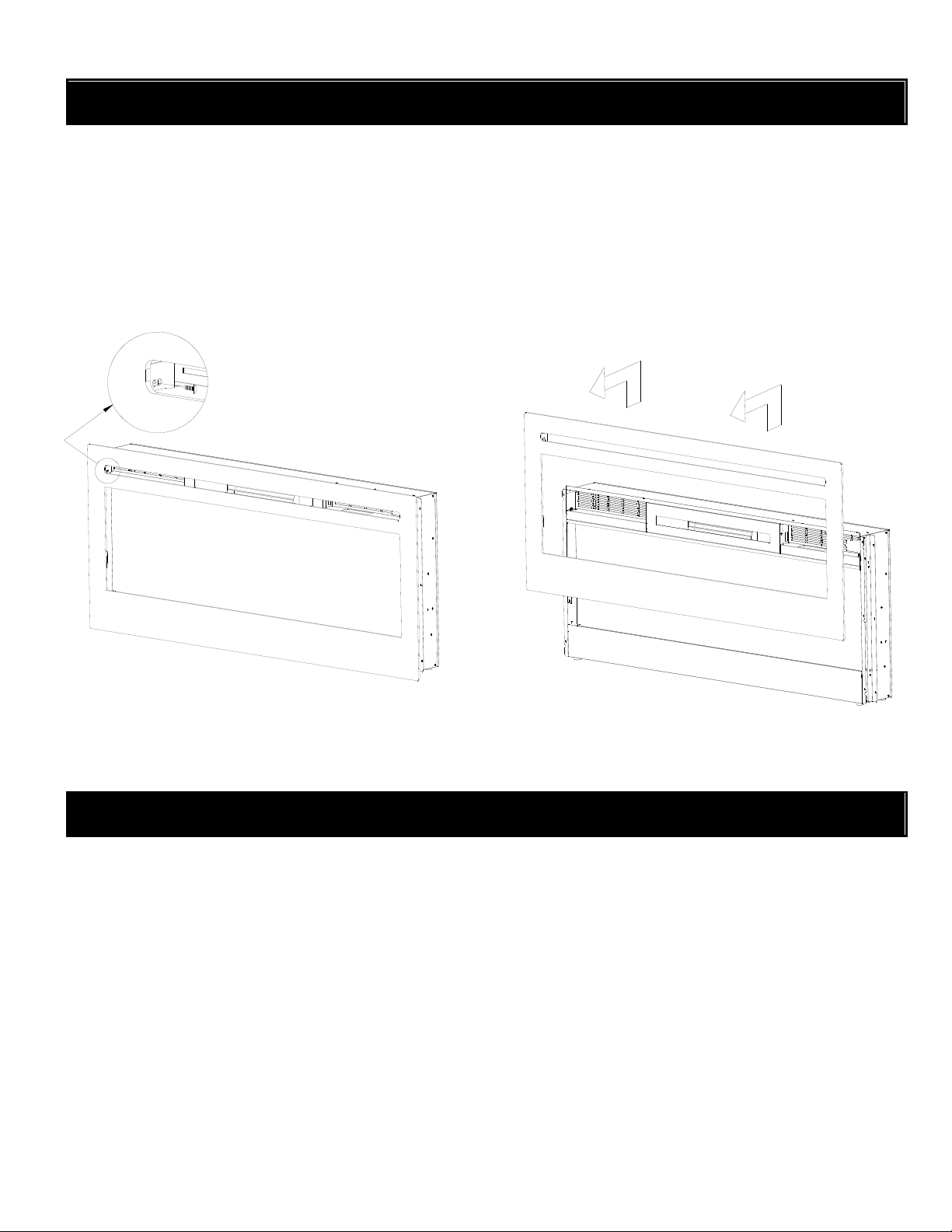

Front glass removal / installation
A. With one hand on the front glass to prevent it from falling, remove the two screws (1 per side) from
the side of the appliance (Fig. 1-1). Set the screws aside.
B. Carefully lift the front glass up and away from the appliance (Fig. 1-2 ). Place it face down on a
soft, non-abrasive surface.
C. Reverse these steps to install the front glass.
Fig. 1-1 Fig. 1-2
Recessed pre-installation
Due to the many different materials used on different walls, it is highly recommended that you
consult your local builder before you install this appliance on the wall.
A. Select a location that is not prone to moisture and is located at least 36” (94.1cm) away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc.
B. Measure the appliance and create a rough-in frame with electrical (see below “framing”).
C. Remove the front glass (see “front glass removal / installation” section).
D. Hold the appliance up to ensure it will fit into the framing.

7
Framing Hole Size
Model Number
A
B
C
CEF-50B
47-1/4” (1200mm)
20-3/4” (527mm)
5-1/2” (140mm)
CEF-60B
47-1/4” (1200mm)
20-3/4” (527mm)
5-1/2” (140mm)
(Non-load bearing)

8

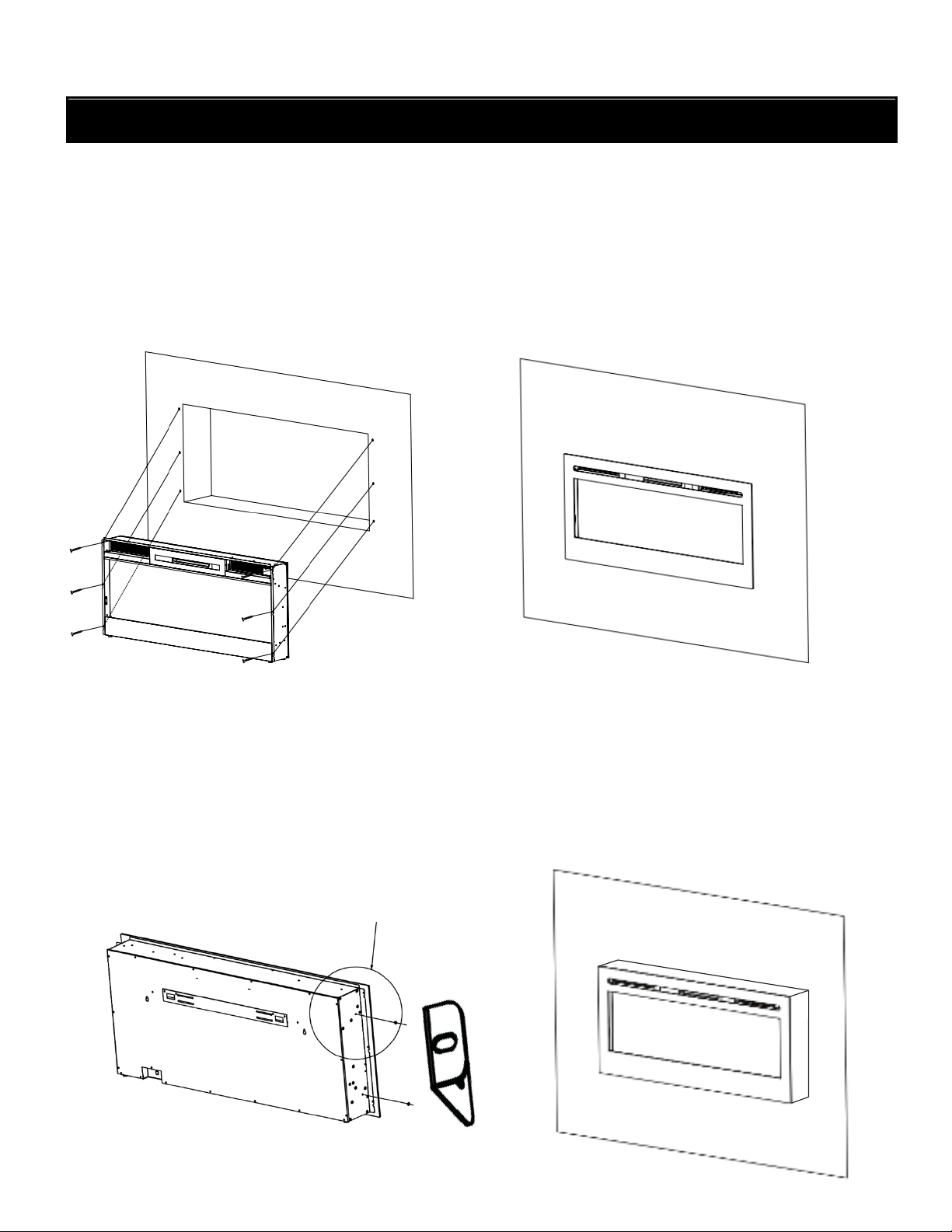

Fully recessed installation
Note: Remove power cord and complete hardwiring (see “hardwiring installation” section).
Have two people to lift the fireplace and insert to the wall opening hole.
If the appliance is fully recessed into the wall:
• Use the 6 screws (provided) to lock the appliance into the wall with the existing two side
flanges, see Figure 2-1
• Install the media and re-install the glass front.
Fig. 2-1
If partial recess into the wall:
• Use the four mounting metal brackets H (supplied) to lock the appliance to the wall, see Figure 2-3
NOTE: Using the existing holes on sides of the appliance for recessing into wall.
Fireplace will be like this after installation Figure 2-4
Fig. 2-2
Fig. 2-3
Fig. 2-4

9
A
B
C
4-5/8” (118mm)
10-7/8” (276mm)
13-3/4” (349mm)
Wall mounted installation .
Due to the many different materials used on different walls, it is highly recommended that you consult
your local builder before you install this appliance on the wall.
A. NOTE: A dedicated 15 Amp (or higher) breaker is required.
B. Select a location that is not prone to moisture and is located at least 36" (914mm) away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc.
C. Have two people hold the appliance against the wall to determine the final location.
D. Place unit face down on a soft, non abrasive surface. Remove the bracket from the back of the unit by
removing the screws.
E. Mark location, then mount the bracket(s) onto
the wall using the supplied screws.
This bracket MUST have the hooks facing
upward and be level. NOTE: It is strongly
recommended that the mounting bracket
(F) be Screwed into the wall studs where
possible. If the wall studs cannot be used, ensure the supplied plastic anchors are used to affix
the bracket to the wall and the bracket is adequately secured.
F. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks
on the bracket into the two slots on the back of the appliance.
G. Check the appliance for stability ensuring that the bracket will not pull free from the wall.
H. Install the side skirt panels to each side of firebox.
Wall Bracket Illustrated
Wall Bracket Illustrated

10

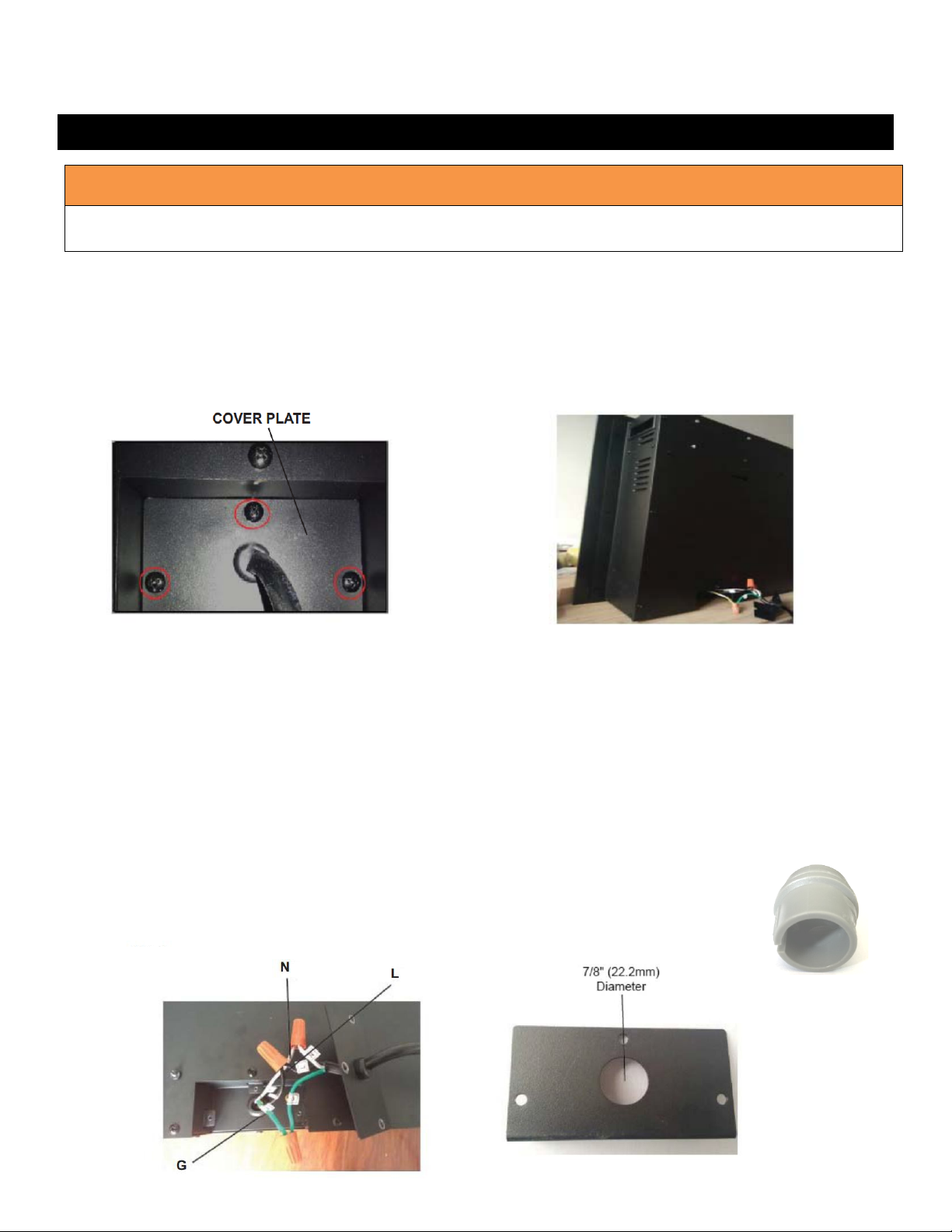

Hard wiring installation .
HARD WIRING CONNECTION
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord
connection, and wire the appliance directly to the household wiring. NOTE: A dedicated 15 Amp
(or higher) breaker is required.
This appliance must be electrically connected and grounded in accordance with local codes if hard wired.
TURN OFF POWER FROM CIRCUIT BREAKER FIRST
A. Remove the cover plate from the right side bottom of the appliance by removing the three screws,
as shown above.
B. Remove the wire connectors from the power cord. The power cord may be discarded.
C. Take the new cover plate, supplied in the hardware bag and punch out the 7/8" (22.2mm) hole and install
a box connector through, into the junction box. Snap the box connector clamp onto the supply wires.
D. Using the wire connectors, connect the ground green wires (G), the common white wires (N)
together, then the hot black wires (L),
E. Re-install the cover plate using the three screws.
WARNING
TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE
PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
Box connector
Cover plate (I)
1
2
Cable connector
(I)

11
Glacier Crystal installation .
A. Glass front must be removed and the appliance must be mounted in its final location
before the glacier crystals are installed.
B. Place the plastic tray ( H ) into the fireplace ember bed. Then carefully place crystals onto the
plastic tray as illustrated. Apply an even layer from side to side. Figure 3-1 & Figure 3-2.
Fig. 3-1
Fig. 3-2

12
Operation
Read and understand this entire owner’s manual, including all safety information, before
plugging in or using this product. Failure to do so could result in electric shock, fire,
serious injury, or death.
Power
Plug the power cord into a dedicated 110~120 Volt 15 Amp grounded outlet (see IMPORTANT
SAFETY INFORMATION on Pages 2 and 3). Make sure the outlet is in good condition and the plug is
not loose. NEVER exceed the maximum amperage for the circuit. DO NOT plug other appliances into
the same circuit.
Methods of Operation
This electric fireplace can be operated by the TOUCH-ON CONTROL PANEL, located on the lower
right corner of the fireplace or by the battery-powered REMOTE CONTROL.

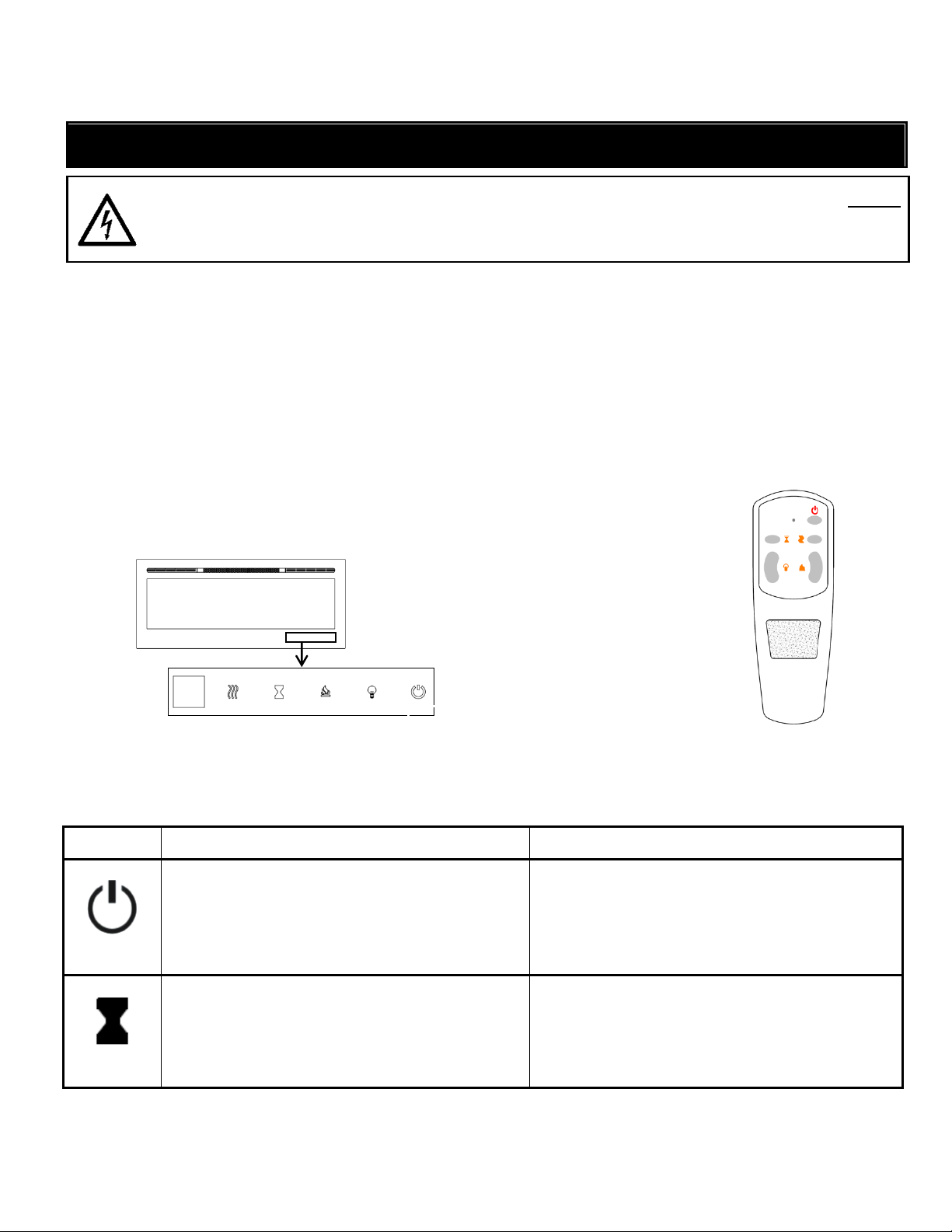

Remote Control & Touch-on Control Panel Operation
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and
remote control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.
TIMER
TIMER button: Controls timer settings to
turn off fireplace at selected time.
Settings range from 0.5 hours to 7.5 hours.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Raises in 0.5 increments.
Remote control
Touch on control panel

13
FLAME
FLAME button: Makes flame effect
dimmer and brighter.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be
on for heater to turn on.
1. Press once. Flame brightness effect
gets changing.
2. Press again. until desired setting is
reached.
COLOR
COLOR button: Makes the color flame
effect changing.
NOTE: color effect stays on until power
button is turned off. Color flame effect
must be on for heater to turn on.
NOTE: this fireplace is with memory
function for flame.
1. Press once. Flame & ember bed
color change.
2. Press again until desired setting is
reached, In total 10 colors.
HEATER
HEATER button: Turns heater on and off.
NOTE: The heater only works when the
flame effect is on. If the flame effect is off,
the heater will not turn on.
NOTE: To prevent overheating, the heater
fan will blow cool air for 8-10 seconds
before the heater turns on, and after the
heater turns off.
1. Press once. Indicator lights up.
Fan blows cool air for 10 seconds. 750W
heater turns on and blows warm air.
2. Press again. Indicator lights up.
1500W heater turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air for 10 seconds to
allow heater to cool down, then turns off.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet or turn OFF dedicated circuit breaker. Wait 5 minutes to reset.
2. Inspect the fireplace to make sure no vents are blocked or clogged with dust or lint. If they are, use a vacuum
to clean the vent areas.
3. Plug the power cord back into the outlet or turn ON dedicated circuit breaker.
4. If the problem continues, have your outlet and wiring inspected by a professional.
Remote Control Battery Information
• Remote control uses two AAA batteries.

14
Care and Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet or turn off
dedicated circuit breaker before cleaning, performing maintenance, or moving this fireplace.
Failure to do so could result in electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
• Buff using a soft cloth, slightly dampened with a mild solution of dish soap and warm water.
• DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
• Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
• Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock! DO NOT OPEN any panels! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet or turn off
dedicated circuit breaker before cleaning, performing maintenance, or moving this fireplace.
Failure to do so could result in electric shock, fire, or personal injury.
Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
• Store heater in a clean dry place when not in use.
WARNING! NO SERVICING of the internal or electrical parts should be performed by the
consumer. Do not service the unit yourself.

15

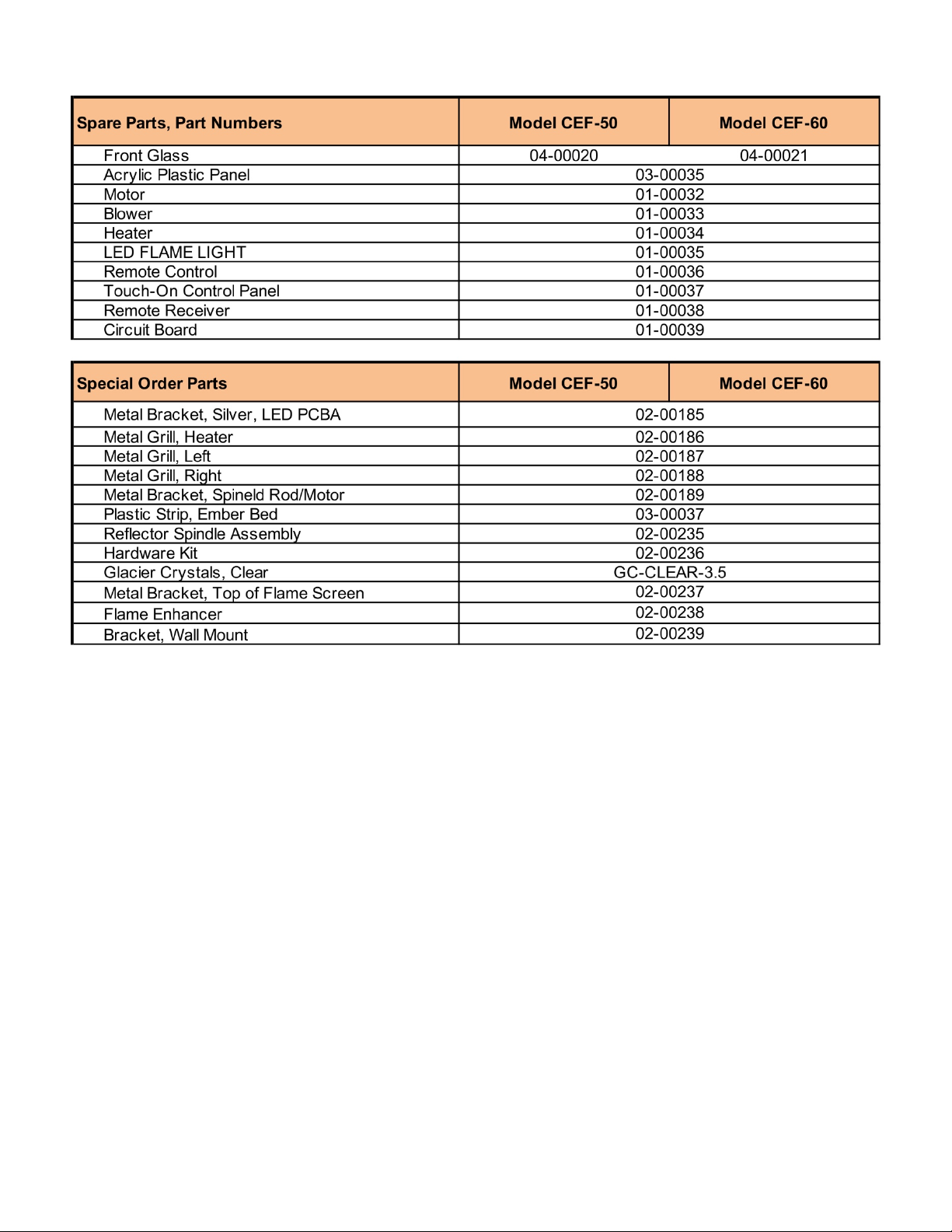

16
DO NOT RETURN TO STORE!
CALL US FIRST
For immediate help with installation, product information or
if your product arrives damaged, please call our toll free number at:
1-877-246-9353
(Monday - Friday, 8:00AM - 5:00PM, AZ Mountain Time)
Or email us at:
[email protected]
OUR STAFF IS READY TO PROVIDE ASSISTANCE
