Modern Flames LPM-4416V2 User manual

Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so
could result in fire, electric shock, or serious personal injury. Don’t
spray water directly on to product. Clean with damp cloth or duster.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
WARNING
CAUTION
Approved for Indoor and Outdoor Use
Rated: 120VAC 60Hz (10,000 BTUs capable)
Landscape Pro Multi Electric Fireplace
Model# LPM-4416V2 LPM-5616V2 LPM-6816V2
LPM-8016V2 LPM-9616V2 LPM-12016V2
Installation Manual
AFFIX SERIAL NUMBER LABEL
HERE FOR FUTURE REFERENCE
07-00011 REV C

IMPORTANT SAFETY INFORMATION!
WARNING
When using electrical appliances, basic precautions should always be followed to reduce the risk of
fire, electric shock, and injury to persons, including the following:
1. Read all Instructions before installing or using the heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains
at l east 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear
(sides and rear restrictions apply to location dedicated heaters only)
3. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4. Do not operate heater after it malfunctions. Disconnect power at service panel and have the
heater inspected by a reputable electrician before reusing.
5. To disconnect heater, turn controls to off, and turn power to heater circuit at main disconnect
panel (or operate internal disconnect switch if provided).
6. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
7. To prevent a possible fire, do not block air intakes or exhaust in any manner.
8. A heater has hot and arcing or sparking parts inside. Do not use if in areas where gasoline, paint,
or flammable vapors or liquids are used or stored.
9. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
10. This heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect
for any objects on or adjacent to the heater that may have blocked the airflow or otherwise
caused high temperature to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM
SOUNDING (OR ILLUMINATING).
11. “SAVE THESE INSTRUCTIONS”
Additional Important Instructions
• Use a dedicated 20 Amp (or higher) breaker.
• Never use with an extension cord or relocatable power tap (outlet/power strip).
• Never use a wall mount bracket from another manufacturer.
• Always disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
• Always store this heater in a dry location.
• This product is not intended to be a primary heat source. It is for supplemental heat only.
• Outdoor installations other as defined in the manual void warranty.
1

CONSIGNES IMPORTANTES
ATTENTION
Lors de l'utilisation d'appareils électriques, des précautions de base doivent toujours être suivies pour
réduire les risques d'incendie, d'électrocution et de blessures, notamment les suivantes :
1. Lisez toutes les instructions avant d'installer ou d'utiliser le radiateur.
2. Ce radiateur est chaud lorsqu'il est utilisé. Pour éviter les brûlures, ne laissez pas la peau nue toucher les
surfaces chaudes. Gardez les matériaux combustibles, tels que les meubles, les oreillers, la literie, les
papiers, les vêtements, etc. et les rideaux à au moins 3 pieds (0,9 m) de l'avant de l'appareil de chauffage
et éloignez-les des côtés et de l'arrière (des restrictions sur les côtés et l'arrière s'appliquent à radiateurs
dédiés à l'emplacement uniquement)
3. Une extrême prudence est nécessaire lorsqu'un appareil de chauffage est utilisé par ou à proximité
d'enfants ou de personnes invalides et chaque fois que l'appareil de chauffage est laissé en marche et
sans surveillance.
4. Ne faites pas fonctionner le radiateur après un dysfonctionnement. Débranchez l'alimentation au
panneau de service et faites inspecter le radiateur par un électricien réputé avant de le réutiliser.
5. Pour déconnecter le réchauffeur, éteignez les commandes et mettez le circuit du réchauffeur sous
tension au niveau du panneau de déconnexion principal (ou actionnez l'interrupteur de déconnexion
interne, le cas échéant).
6. N'insérez pas ou ne laissez pas d'objets étrangers pénétrer dans les ouvertures de ventilation
ou d'évacuation, car cela pourrait provoquer une électrocution ou un incendie, ou endommager le
radiateur.
7. Pour éviter un éventuel incendie, ne bloquez en aucune manière les prises d'air ou les sorties d'air.
8. Un appareil de chauffage contient des pièces chaudes et produisant des arcs ou des étincelles à
l'intérieur. Ne pas utiliser si dans des zones où de l'essence, de la peinture ou des vapeurs ou liquides
inflammables sont utilisés ou stockés.
9. Utilisez cet appareil de chauffage uniquement comme décrit dans ce manuel. Toute autre utilisation
non recommandée par le fabricant peut provoquer un incendie, un choc électrique ou des blessures.
10. Cet appareil de chauffage peut inclure une alarme sonore ou visuelle pour avertir que des pièces de
l'appareil de chauffage deviennent excessivement chaudes. Si l'alarme retentit (ou s'allume), éteignez
immédiatement l'appareil de chauffage et recherchez tout objet sur ou à proximité de l'appareil de
chauffage qui aurait pu bloquer le flux d'air ou autrement provoqué une température élevée. NE PAS
FAIRE FONCTIONNER LE CHAUFFAGE LORSQUE L'ALARME SONNE (OU S'ALLUME).
11. "CONSERVEZ CES INSTRUCTIONS"
Instructions importantes supplémentaires
• Utilisez un disjoncteur dédié de 20 A (ou plus) .
• Ne jamais utiliser avec une rallonge ou une prise d'alimentation amovible (prise/multiprise).
• N'utilisez jamais un support de montage mural d'un autre fabricant.
• Débranchez toujours cet appareil de l'alimentation électrique avant d'effectuer tout assemblage ou
nettoyage, ou avant de déplacer le foyer électrique.
• Rangez toujours cet appareil de chauffage dans un endroit sec.
• Ce produit n'est pas destiné à être une source de chaleur primaire. C'est uniquement pour le chauffage
d'appoint.
• Les installations extérieures autres que celles définies dans le manuel annulent la garantie.
2

USER INSTRUCTIONS
POWER DATA
LPM-4414V2 LPM-5614V2 LPM-6814V2 LPM-8014V2 LPM-9614V2 LPM-12014V2
Volts/HZ Amps AC 120V AC 120V AC 120V AC 120V AC 120V AC 120V
60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps
Heater AC 120V AC 120V AC 120V AC 120V AC 120V AC 120V
1465W 1465W 1465W 1465W 1465W 1465W
Optional AC Optional AC Optional AC Optional AC Optional AC Optional AC
240V 2930W 240V 2930W 240V 2930W 240V 2930W 2240V 2930W 240V 2930W
BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs
(10,000 BTUs Capable) (10,000 BTUs Capable) (10,000 BTUs Capable) (10,000 BTUs Capable) (10,000 BTUs Capable) (10,000 BTUs Capable)
Lamps LED 12V LED 12V LED 12V LED 12V LED 12V LED 12V
Motor 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor
Shipping Size 47.25" x 28.5" 59" x 28.5" 71" x 28.5" 83" x 28.5" 99" x 28.5" 123" x 28.5"
x 14.5" x 14.5" x 14.5" x 14.5" x 14.5" x 14.5"
1200 mm
x 720 mm
x 370 mm
1500 mm
x 720 mm
x 370 mm
1800 mm
x 720 mm
x 370 mm
2105 mm
x 720 mm
x 370 mm
2510 mm
x 720 mm
x 370 mm
3120 mm
x 720 mm
x 370 mm
3

24 7/8”
632 mm
(all models)

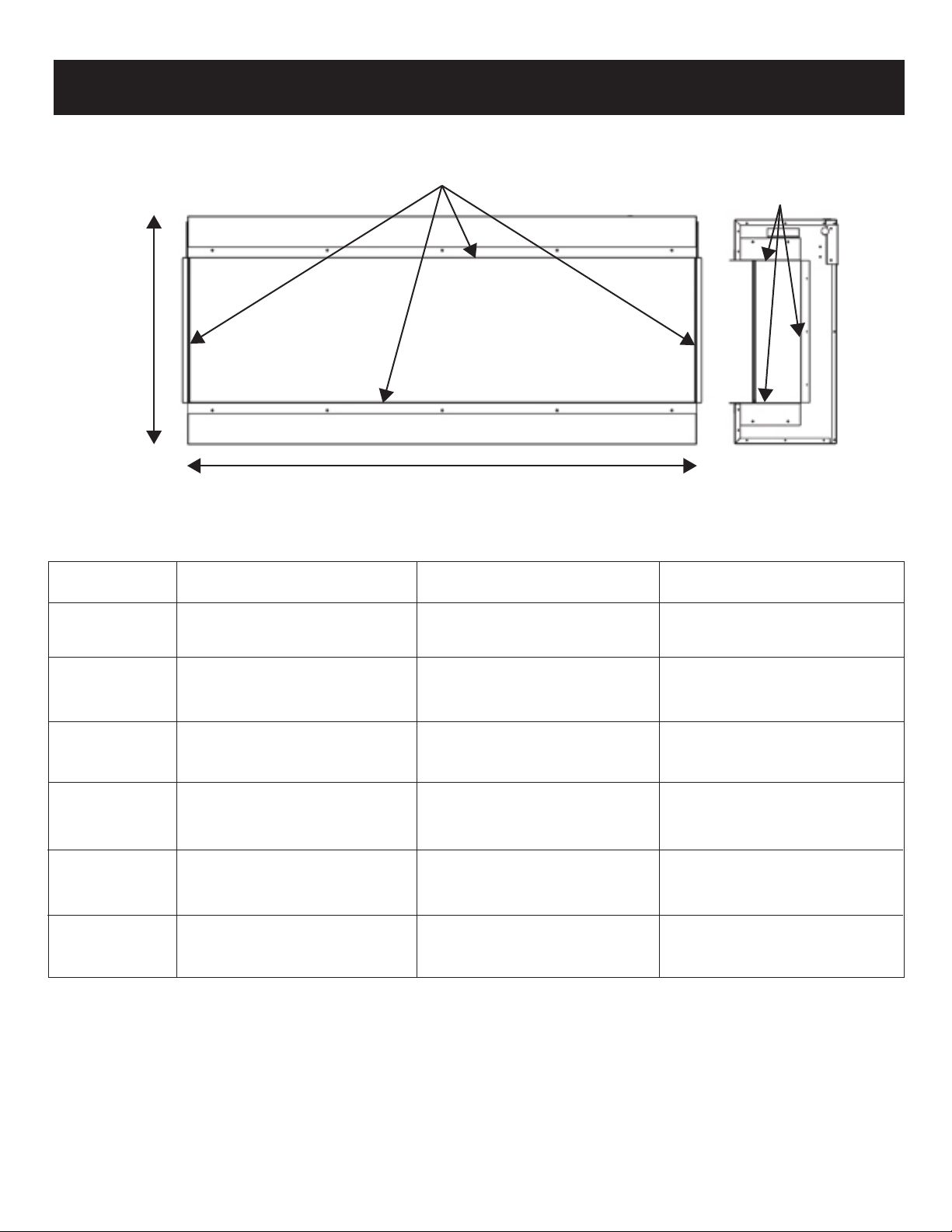

DRYWALL STOPS DRYWALL
STOPS
Width varies (see chart below)
Model Viewing Area Firebox Dimensions Framing Dimensions
LPM-4416V2 43 1/4" W x 15 7/8" H x 5 5/16" D 44 1/16" W x 24 7/8" H x 11 9/16" D 44 3/8" W x 25 1/4" H x 12" D
1099 mm W x 403 mm H x 135 mm D 1120 mm W x 632 mm H x 294 mm D 1128 mm W x 642 mm H x 305mm D
LPM-5616V2 55 1/4" W x 15 7/8" H x 5 5/16" D 56 1/16" W x 24 7/8" H x 11 9/16" D 56 3/8" W x 25 1/4" H x 12" D
1403 mm W x 403 mm H x 135 mm D 1424 mm W x 632 mm H x 294 mm D 1432mm W x 642mm H x 305mm D
LPM-6816V2 67 1/4" W x 15 7/8" H x 5 5/16" D 68 1/16" W x 24 7/8" H x 11 9/16" D 68 3/8" W x 25 1/4" H x 12" D
1708 mm W x 403 mm H x 135 mm D 1729 mm W x 632 mm H x 294 mm D 1737mm W x 642mm H x 305mm D
LPM-8016V2 79 1/4" W x 15 7/8" H x 5 5/16" D 80 1/16" W x 24 7/8" H x 11 9/16" D 80 3/8" W x 25 1/4" H x 12" D
2013 mm W x 403 mm H x 135 mm D 2034 mm W x 632 mm H x 294 mm D 2042mm W x 642mm H x 305mm D
LPM-9616V2 95 1/4" W x 15 7/8" H x 5 5/16" D 96 1/16" W x 24 7/8" H x 11 9/16" D 96 3/8" W x 25 1/4" H x 12" D
2419 mm W x 403 mm H x 135 mm D 2440 mm W x 632 mm H x 294 mm D 2448mm W x 642mm H x 305mm D
LPM-12016V2 119 1/4" W x 15 7/8" H x 5 5/16" D 120 1/16" W x 24 7/8" H x 11 9/16" D 120 3/8" W x 25 1/4" H x 12" D
3029 mm W x 403 mm H x 135 mm D 3050 mm W x 632 mm H x 294 mm D 3058mm W x 642mm H x 305mm D
PRODUCT GUIDE
11 9/16”
294 mm
(all models)
4

PARTS AND HARDWARE
Bracket (1) Canyon
(1) Fireplace (1) Owners Manual (6) Screws (1) Remote Driftwood Logs Set
(2-4) L-Metal
(Depend on Model)
(1) Front Glass (2) Metal Side Panels (2) Side Glass (2) Suction Cups Mounting Brackets
(1) Wall Mount
Smoke Clear (1) 5-Piece Trim Kit Touch Control
Acrylic Crystals Pkg Acrylic Stones Pkg (Sold Separately) (Sold Separately) (1) 1 Piece Trim Kit
(1) Wall Mount Bracket
Battery Tool (1) CR2025 Battery (Kit Sold Separately)
5

INSTALLATION
Select a suitable location that is away from drapes, furniture, and high traffic areas.
NOTE: Follow all National and local electrical codes.
Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this fireplace.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.
Parts and assembly steps are grouped for use. Check the parts list to make sure nothing is
missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver, stud finder, level,
tape measure, electric drill, 1/4" wood drill bit, hammer.
This product includes a GLASS panel. Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
6

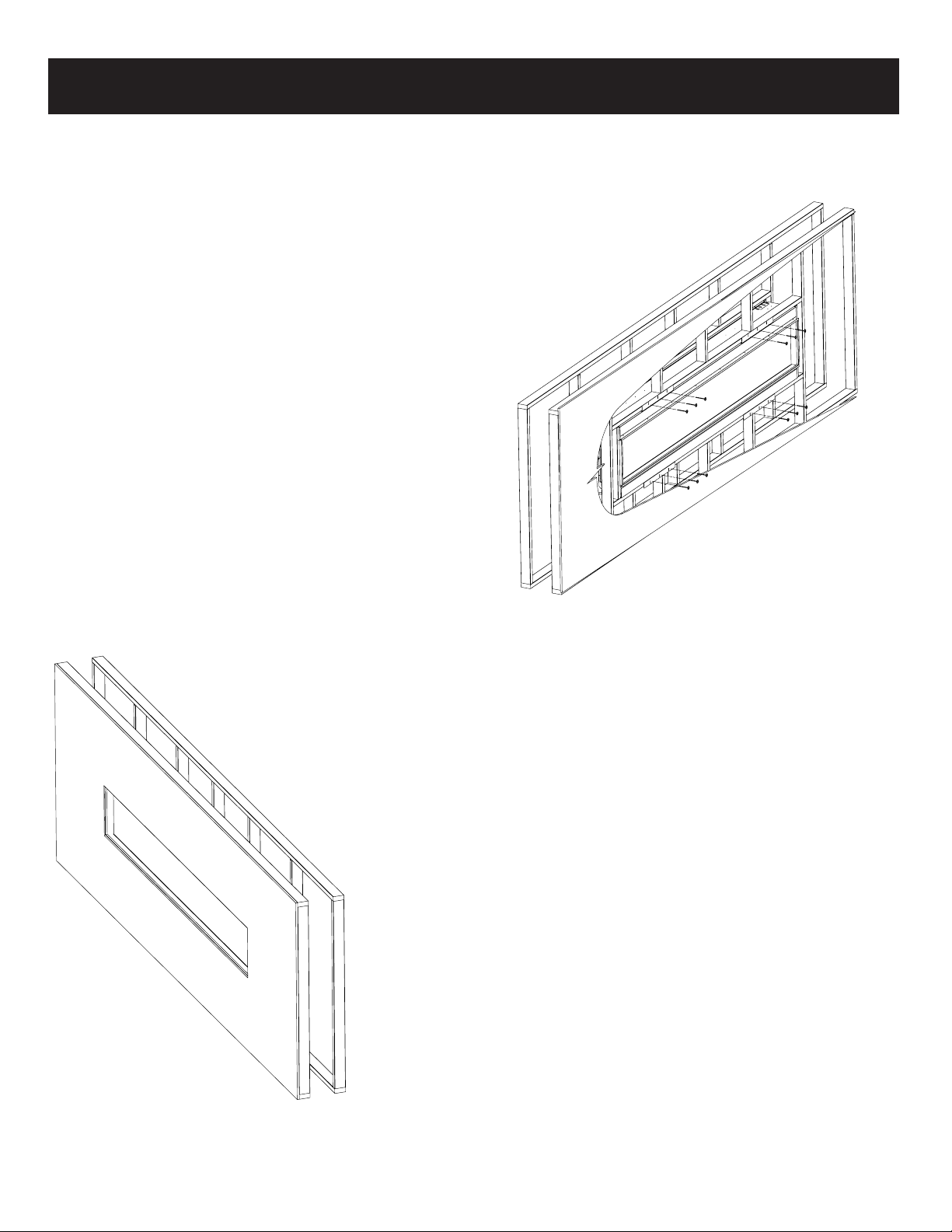

BUILT-IN INSTALLATION
3 Sided Installation (Bay)
2. Install L Metal mounting brackets to
the top and bottom of the fireplace
with supplied screws.

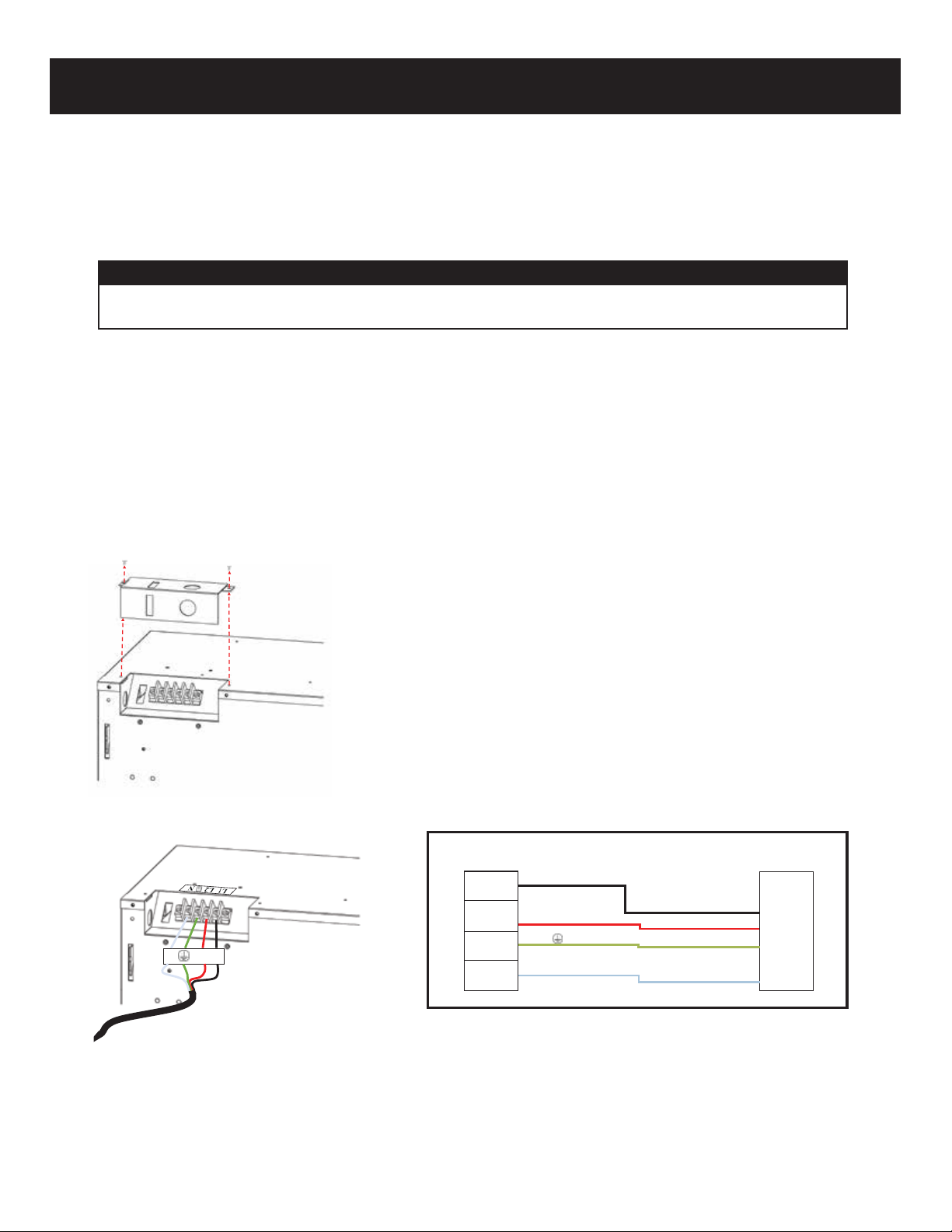

3. Hardwire fireplace (see page 16)
4. Install the fireplace in the framed
opening with a minimum 1 1/4" 32 mm
drywall screws to secure the unit.
1. Prepare the framed opening according
to the chart on page 4.
*Provide appropriate dedicated circuit
for hardwire install at the top right of
framed opening.
5. Mask the exposed fireplace during the drywall
process. Install drywall to the drywall stops on
the perimeter of the fire box. For more
information on the drywall stops see the
Product Guide on page 4.

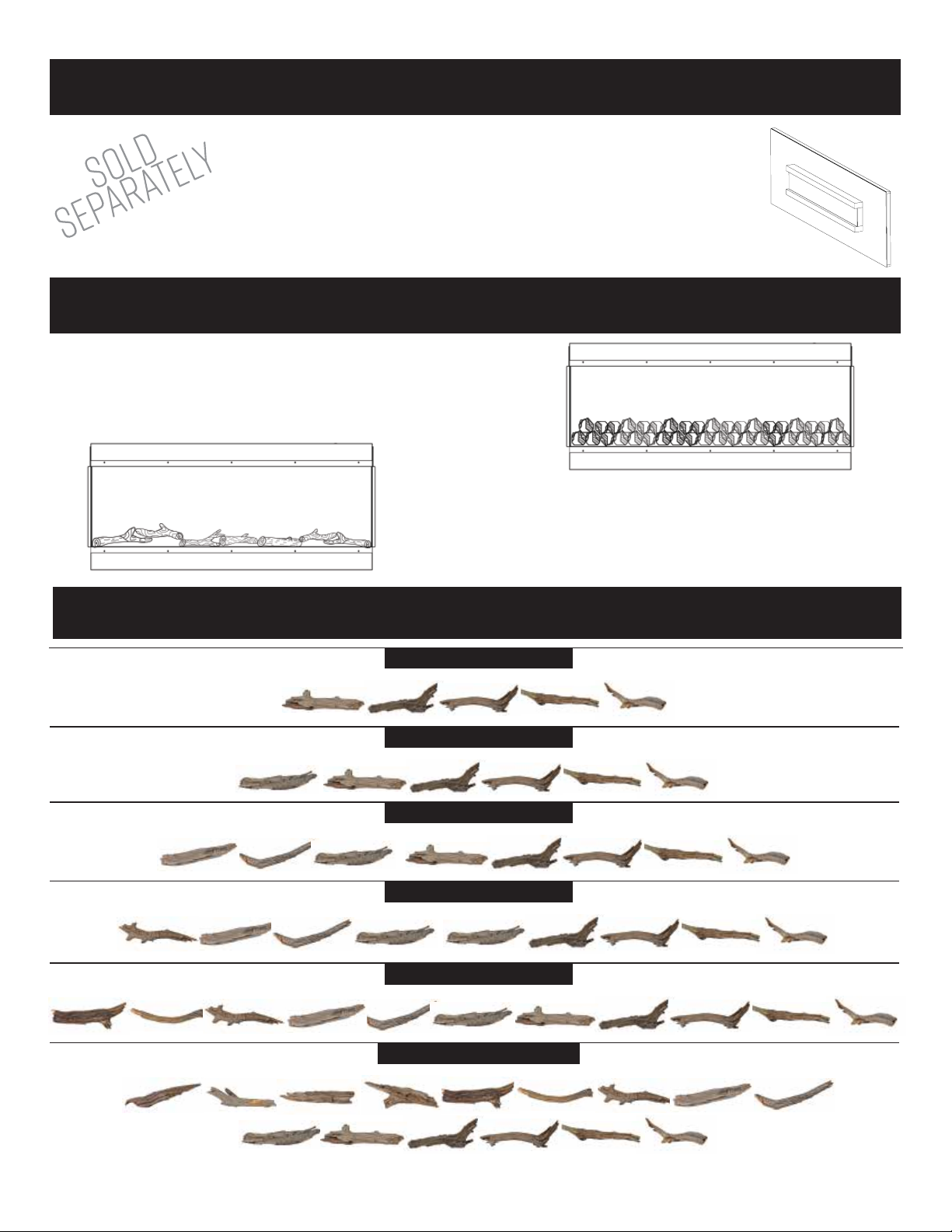

6. Decorate according to media installation guide
on page 13.

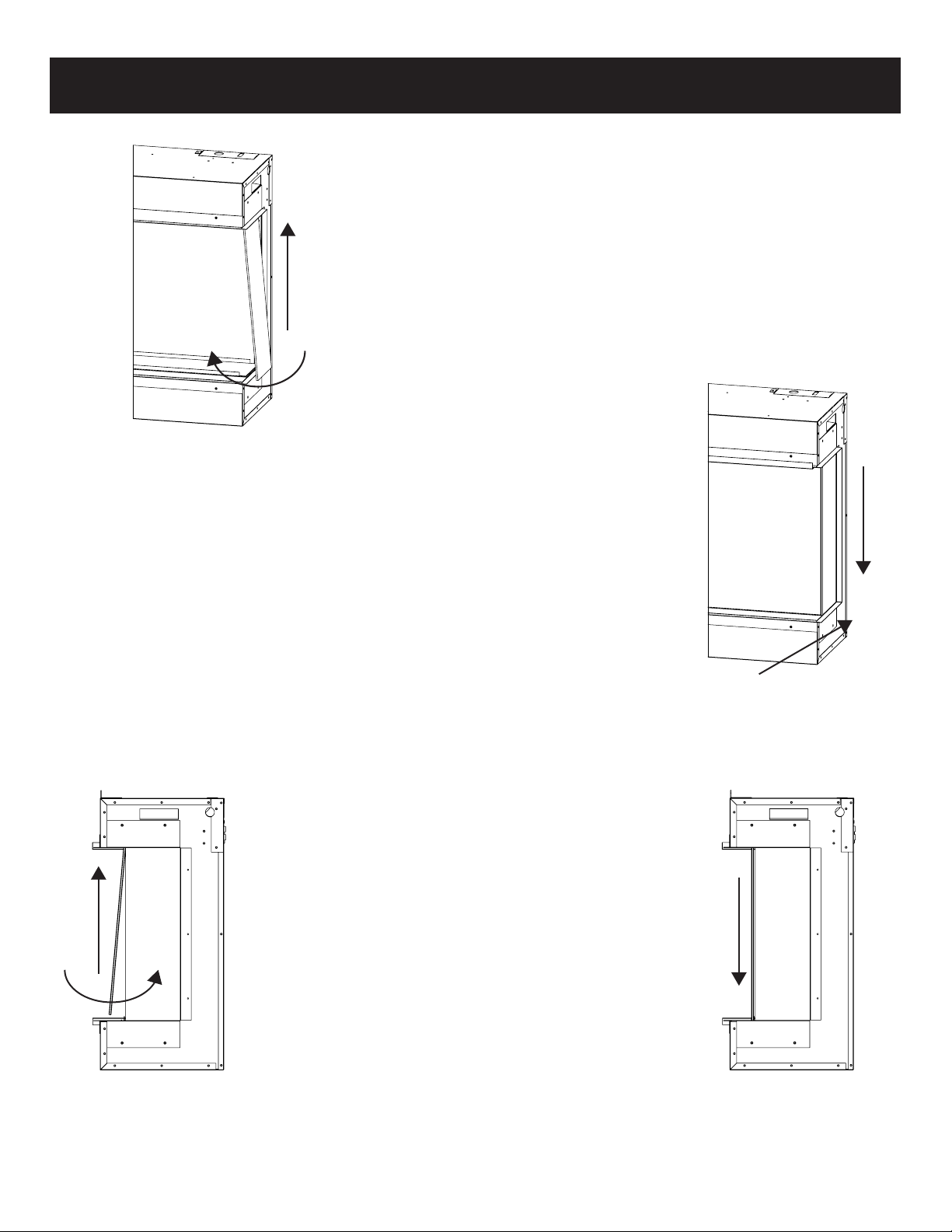

7. Install the side and front glass pieces according
to installation diagram on Page 15.
8. Install optional 5-pc. trim kit (sold separately.)
7

A
B
4
4
3
3
2
2
DO NOT SCALE DRAWING
UNLESS OTHERWISE SPECIFIED:
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
A
B
C
D
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
NOT SPECIFIED
DO NOT SCALE DRAWING
UST120_A1_20221031-Two sides
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:20
WEIGHT:
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
A
B
C
D
8 7

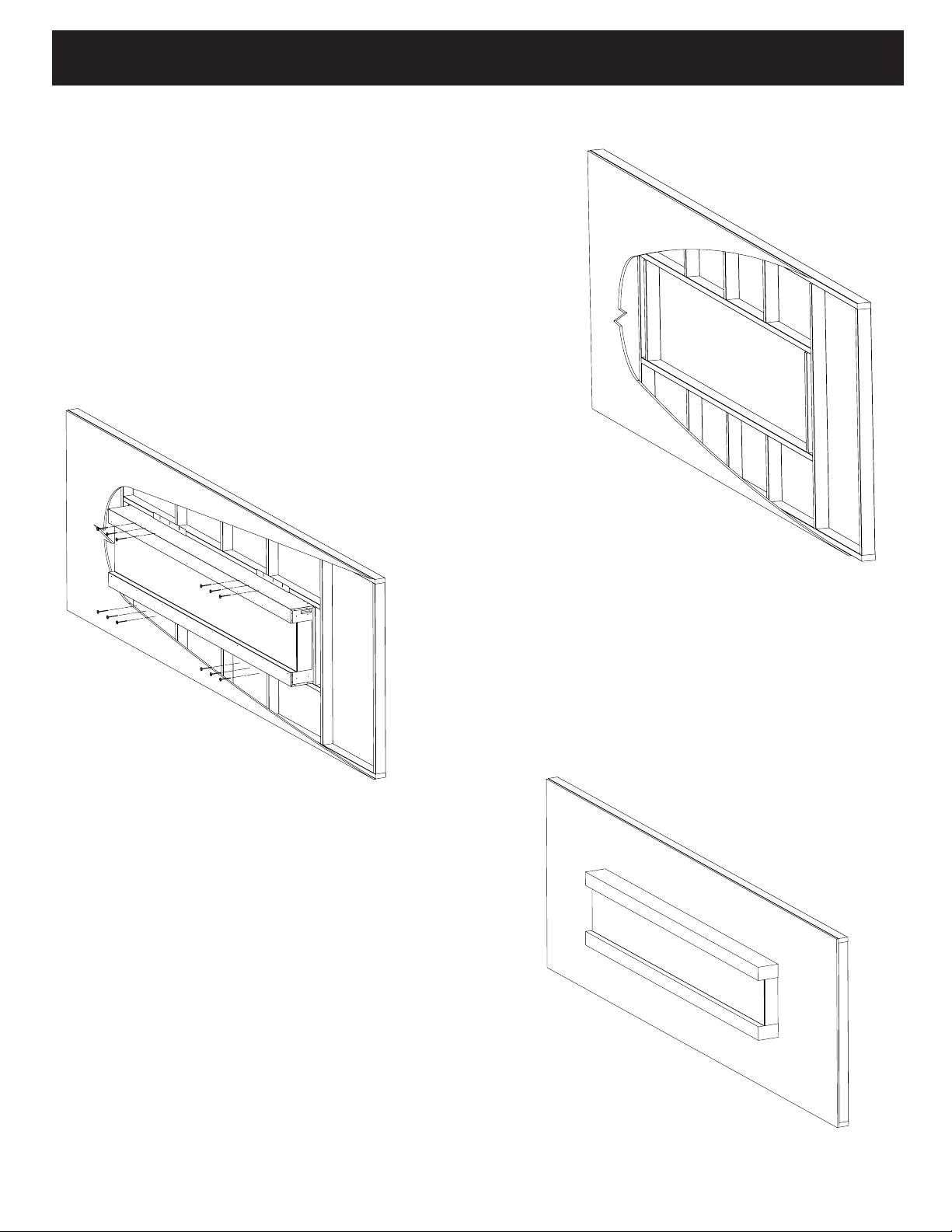

BUILT-IN INSTALLATION
Fully Recessed Installation
(Left/Right Corner)
1. Follow steps from the 3-sided installation
instructions.
2. Remove the corresponding drywall stops according
to your installation (in the example, the drywall
stops on the left end would be removed.)
3. Install the side glass then the corresponding side
cover according to your installation (the side glass
must be installed before the metal side cover.
See installation diagram on Page 15.)
4. Wire fireplace (see page 3) for maximum
heating power (10,000 BTUs) see page 17
for optional wiring
5. Install the fireplace in the framed opening
with a minimum 1 1/4" 32 mm drywall
screws to secure the unit.
6. Mask the exposed fireplace during the
drywall process. Install drywall to the
drywall stops on the perimeter of the
fireplace. For more information on the
drywall stops see the Product Guide on
page 4.
7. Decorate according to media installation
guide on page 13.
8. Install the remaining side glass and front
glass according to installation diagram on
Page 15.
9. Install optional 5-pc. trim kit (sold separately.)
8

A
B
1
1
NOT SPECIFIED
UST120_A1_20221031
SHEET 1 OF 1
SCALE: 1:33.3
WEIGHT:
REV
DWG. NO.
B
SIZE
TITLE:
NAME
DATE
A
B
C
D
8
8
7
7
6
6
5
5
4
4
3
3
A
B
C
D
54321
NOT SPECIFIED
UST120_A1_20221031
UNLESS OTHERWISE SPECIFIED:
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
BUILT-IN INSTALLATION
Fully Recessed Installation (Single Sided)
1. Follow steps from the 3 sided installation
instructions.
2. Remove the drywall stops on both sides of the
fire unit.
3. Install the side glass then side covers on both
sides of the fire unit (the side glass must be
installed before the metal side cover. See
installation diagram on Page 15.)
4. Install the fire unit in the framed opening with
a minimum 1 1/4" 32 mm drywall screws to
secure the unit.
5. Mask the exposed fireplace during the drywall process.
Install drywall to the drywall stops on the perimeter of
the fireplace. For more information on the drywall
stops see the Product Guide on page 4.
6. Decorate according to media installation guide on
page 13.
7. Install the front glass according to installation diagram
on Page 15.
8. Installation optional: 1-pc trim kit (included.)
9

A
B
C
D
6
6
5
5
4
4
3
3
2
2
1
1
NOT SPECIFIED
DO NOT SCALE DRAWING
UST120_A1_20221031
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:20
WEIGHT:
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
BUILT-IN INSTALLATION
Half Recessed Installation
1. This installation is optimized for a 2x4 framed wall.
Prepare the framed opening according to the height
and width of the chart on page 4.
*Provide appropriate dedicated circuit for hardwire
install at the top right of framed opening.
2. Install L Metal Nailing Flanges to the top
and bottom of the fireplace.
3. Hardwire fireplace (see page 16)
4. Install the fire unit in the framed opening
with a minimum 1 1/4" 32 mm drywall
screws to secure the unit.
5. Mask the exposed viewing area of fireplace
during this process. Install drywall, tile or
material of your choice to the drywall stops
on the perimeter of the fireplace. For more
information on the drywall stops see the
Product Guide on page 4.
6. Decorate according to media installation
guide on page 13.
7. Install the side and front glass pieces
according to installation diagram on Page 15.
8. Finish fireplace with your desired decorative.
A
B
C
D
8
8
7
7
6
6
5
5
4
4
3
3
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
A
B
C
D
876543
10

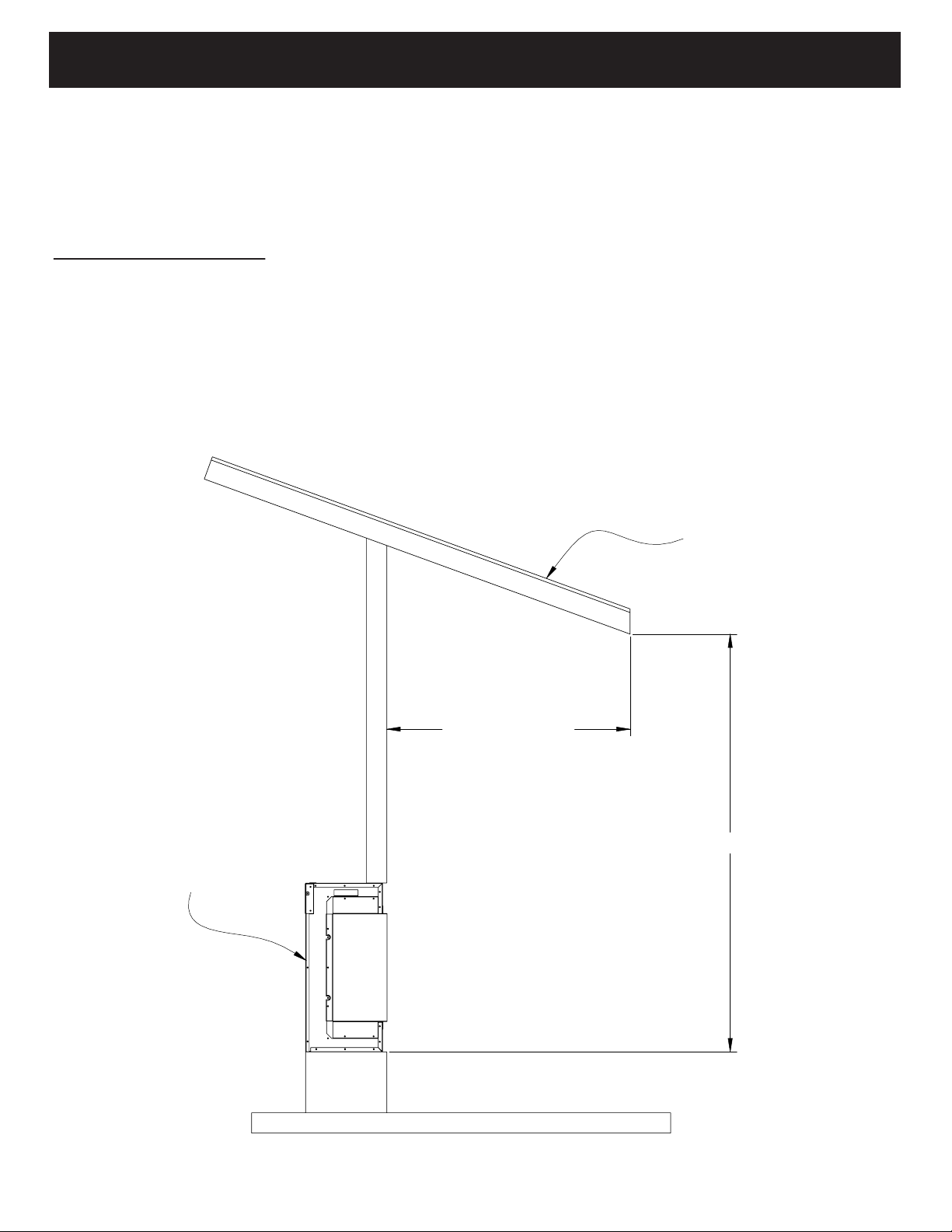

OUTDOOR INSTALLATION REQUIREMENTS
The LPM Series electric fireplaces from Modern Flames LLC have been tested and approved for
installation outdoors under a patio cover and away from direct water contact or direct sun light.
Modern Flames LLC standard warranty applies if installed per instructions. All electrical wiring
shall be to local building codes. Consult professional installers before installation. Approved
installations are as noted below.
Front Protection:
Patio roof overhang must be 50% (or more) of the height of the patio roof from bottom
of fireplace.
A
B
C
D
2
2
1
1
DO NOT SCALE DRAWING
Recessed Fireplace Wall_Bay_G
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:20
WEIGHT:
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
A
B
C
D
2 1
UNLESS OTHERWISE SPECIFIED:
NAME
DATE
If: H=6’
Then: OD=3’ minimum (6’ x 50%=3’)
Note 1: Base of fireplace must be 2" (minimum) above floor.
Note 2: H taken from bottom of fireplace.
HEIGHT (H)
OVERHANG
DISTANCE (OD)
OVERHANG
LPM
432
11

OUTDOOR INSTALLATION REQUIREMENTS

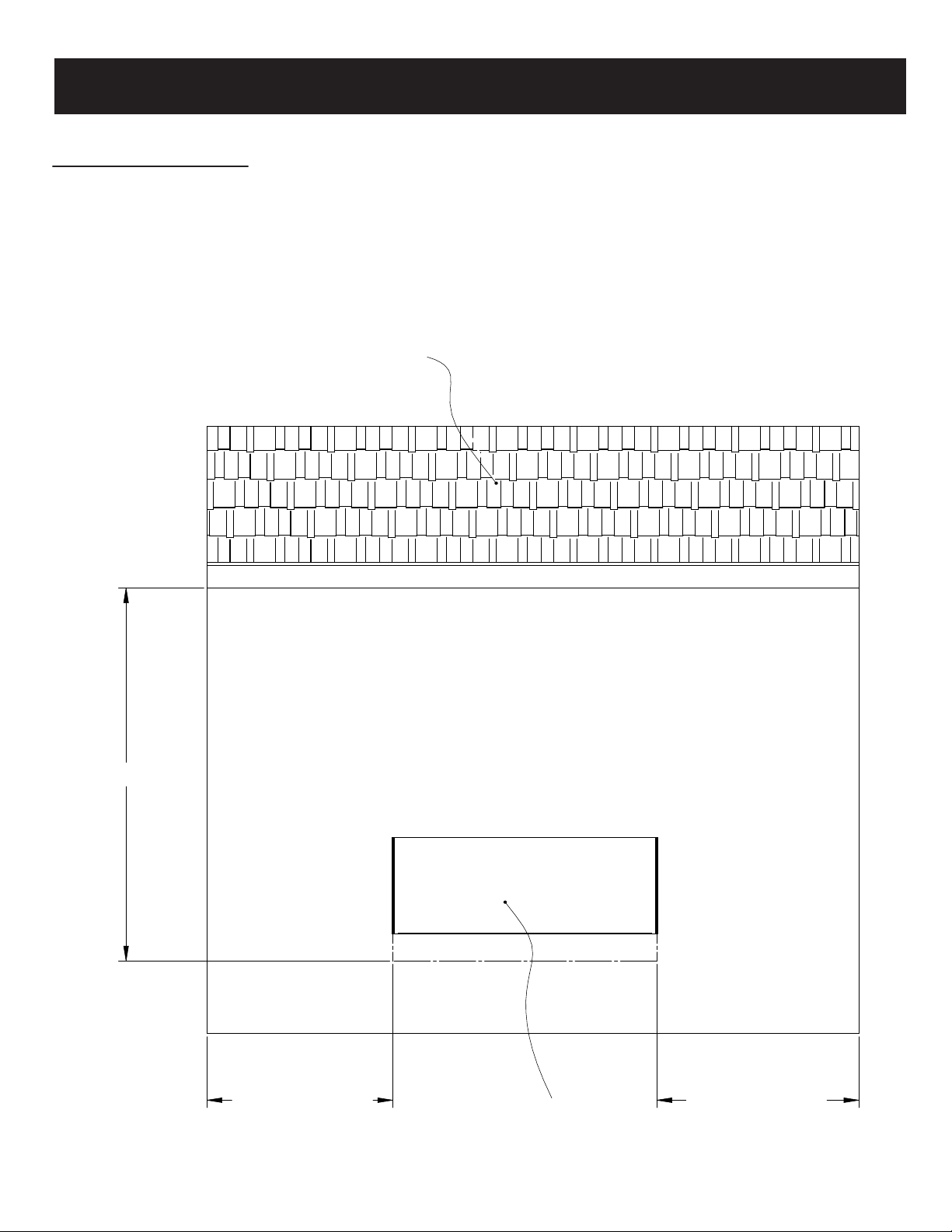

Side Protection:
Side distance (SD) must be 50% (or more) of the height(H).
12
If: H=6’
Then: SD=3’ minimum (6’ x 50%=3’)
Note: H taken from bottom of fireplace.
HEIGHT (H)
SIDE DISTANCE
(SD)
SIDE DISTANCE
(SD)
LPM
OVERHANG
432

BUILT-IN INSTALLATION
Suite Wall Mount &
Recessed Cabinet Installation
Follow the directions included with the
Suite Wall Mount Accessory Kit.
1. Before installing the front glass, evenly spread out
the acrylic crystals along the ember bed.
2. Place the logs on top of the acrylic crystals.
3. The front glass can now be installed.
INSTALLING MEDIA
LANDSCAPE PRO MULTI - LOG SET SIZES
44" - 56" - 68" - 80" - 96" - 120"
#1 LOG#2 LOG#3 LOG#4 LOG#5 LOG
LPM 44" - Set contains 5 logs
#1 LOG#2 LOG#3 LOG#4 LOG#5 LOG
LPM 56" - Set contains 6 logs
#1 LOG#2 LOG#3 LOG#4 LOG#5 LOG
LPM 68" - Set contains 8 logs
#6 LOG#7 LOG#8 LOG#9 LOG
LPM 80" - Set contains 9 logs
#7 LOG#8 LOG#9 LOG#10 LOG#11 LOG
LPM 96" - Set contains 11 logs
#11 LOG#12 LOG#13 LOG#14 LOG#15 LOG
LPM 120" - Set contains 15 logs
#7 LOG#8 LOG#9 LOG#10 LOG
#1 LOG#2 LOG#3 LOG#4 LOG#5 LOG#6 LOG
#6 LOG
#6 LOG#7 LOG#8 LOG
#1 LOG#2 LOG#3 LOG#4 LOG#5 LOG
#6 LOG #1 LOG#2 LOG#3 LOG#4 LOG#5 LOG
A
B
C
D
1
A
B
C
D
8
8
7
7
6
6
5
5
4
4
3
3
PROPRIETARYAND CONFIDENTIAL
THEINFORMATION CONTAINED IN THIS
DRAWINGIS THE SOLE PROPERTY OF
<INSERTCOMPANY NAME HERE>. ANY
REPRODUCTIONIN PART OR AS A WHOLE
WITHOUTTHE WRITTEN PERMISSION OF
<INSERTCOMPANY NAME HERE> IS
PROHIBITED.
13

LPM 44" - Log Placement
LPM 120" - Log Placement
LPM 56" - Log Placement
LPM 68" - Log Placement
LPM 80" - Log Placement
LPM 96" - Log Placement
LOG PLACEMENT
LANDSCAPE PRO MULTI - LOG PLACEMENT
44" - 56" - 68" - 80" - 96" - 120"
#8 LOG #9 LOG #10 LOG #11 LOG #12 LOG #13 LOG #14 LOG #15 LOG
#1 LOG #2 LOG #3 LOG #4 LOG #5 LOG #6 LOG #7 LOG
14

GLASS INSTALLATION
Installing Side Glass
4. Slide the glass down in to the bottom channel.
5. Push the glass back as far as it will go to make
installation of the front glass easier. See Figure 1.2.
Figure 1.1
1. The unit has 2 channels, one on the top and one on the
bottom to hold the side glass.
2. Insert the glass at an angle in to the top channel.
3. Swing the bottom edge of the side glass in to the unit.
See Figure 1.1.
Figure 1.2
Installing Front Glass
1. The unit has 2 channels, one on the top and one
on bottom to hold the front glass.
2. Using the included suction cups, insert the glass
at an angle in to the top channel.
3. Swing the bottom edge of the front glass in to the
unit. See Figure 2.1.
4. Slide the glass down in to the bottom channel.
See Figure 2.2.
Figure 2.1 Figure 2.2
15

(Fig 3-1)
N L1
N L1L1 L2 N
(Fig 3-2)
FUSE
BOX
WHITE (N) NEUTRAL
BLACK (L1) LINE/HOT
( )
GREEN GROUND
HARD WIRING
• Ensure power from the circuit breaker is off.
• Remove the 2 securing screws from the junction box cover plate, located on the top
left-hand, backside of the appliance (Fig 3-1).
• From the power supply wire, connect the green/bare copper wire to the ground (G), the
white wire to neutral (N), and the black wire to Line 1 (L1) (Fig 3-2).
A qualified electrician must wire this fireplace to a dedicated 110 volt, 20 amp circuit.
NOTE:A 20 Amp (or higher), 2-pole (for 10,000 BTU’s), breaker is required.
The appliance must be electrically connected and grounded in accordance with local codes.
In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the
current ANSI/NFPA 70 National Electrical Code in the USA.
TURN OFF POWER FROM CIRCUIT BREAKER FIRST
120 Volt Power (5,000 BTU’s):
Note:
There are 3 wires from the appliance junction box: light blue (neutral), brown (power L1), and
yellow/green/bare (ground) that are connected to 220~240V power source (circuit breaker panel).
FIREPLACE
JUNCTION/TERMINAL
16

N L2 L1
(Fig 4-1)
(Fig 4-2)
FUSE
BOX
WHITE (N) NEUTRAL
BLACK (L1) LINE/HOT
RED (L2) SECONDARY LINE/HOT
( )
GREEN GROUND
HARD WIRING
• Ensure power from the circuit breaker is off.
• Remove the 2 securing screws from the junction box cover plate, located on the top
left-hand, backside of the appliance (Fig 4-1).
• Remove protective decal from terminal L2 to prepare for 240V.
• From the 4-wire, 240 volt power supply wire, connect the green/bare copper wire to the
ground (G), the white wire to neutral (N), and the black wire to Line 1 (L1) and the red
wire to Line 2 (Fig 4-2).
This fireplace is equipped with the ability to optionally wire with 240 volts, which will supply
10,000 BTU’s of heat.
A qualifed electrician must wire this fireplace to a dedicated 220~240 volt, 20 amp, circuit.
240 Volt Power (10,000 BTU’s):
Note:
There are 4 wires from the appliance junction box: white (neutral), black (power L1), red (power L2), and
green/bare (ground) that are connected to 220V power source (circuit breaker panel).
FIREPLACE
JUNCTION/TERMINAL
17

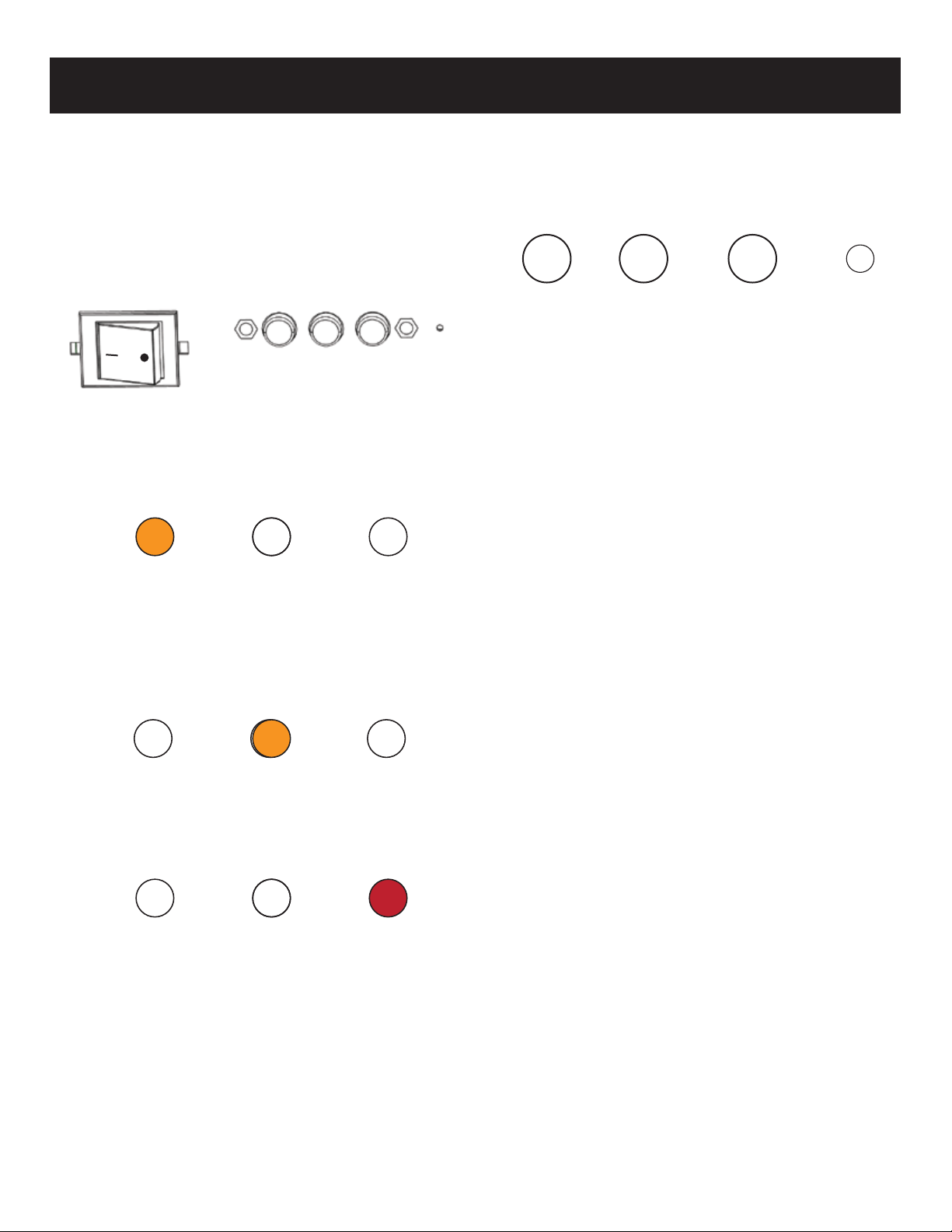

The unit has a main power switch just in front of the glass on the top right hand side.
A hand-held remote is included.

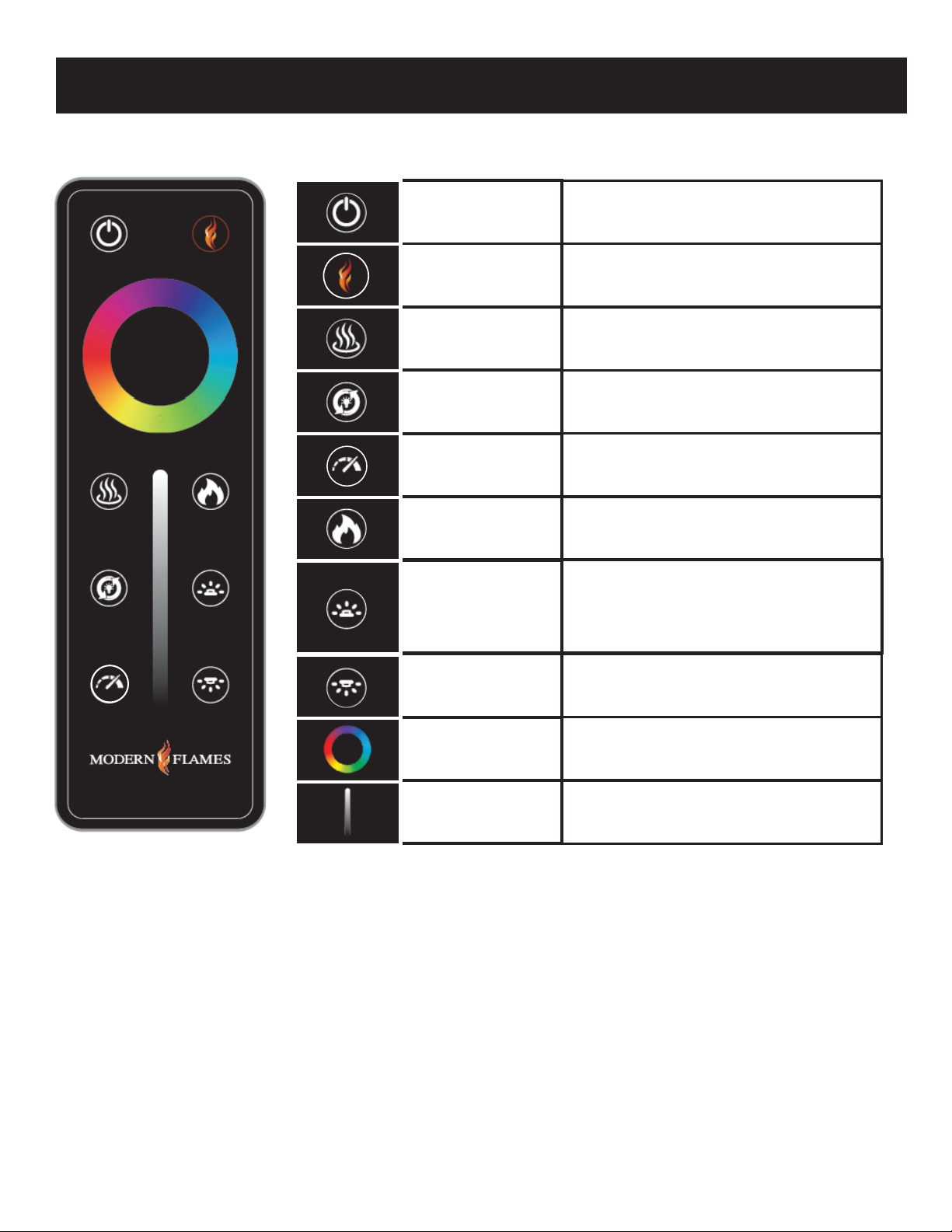

REMOTE CONTROL OPERATION
Power
Home
Heat
Mode
Speed
Flame
Ember Bed
Downlight
Color Wheel
Brightness
Slider
This will cycle the fireplace on and off. Upon
cycling power on, the fireplace will return to
the settings it had when it was cycled off .
If the fireplace is on, this button will act as a
reset and bring all colors back to the default
Modern Flames' signature color.
This will cycle the heater between
high, low and off .
All zones of the fireplace will cycle through
various demo modes - 7 & 3 color
gradient/fade, 7 & 3 color jump,
red/green/blue gradient.
This is the speed button. Pressing will
cycle the flame & ember bed speeds.
Speeds: Low, Medium, Default & High.
This is a zone setting. Touching this button
will allow you to change the color and
brightness of the flame by using the
color wheel and brightness slider.
This is the Ember Bed light adjustment button.
After pressing this button, the color ring and
brightness bar will be adjusted, and only the
color of the ember bed lamp will be adjusted.
Long press this button for 3 seconds to adjust
the optional accessory on or off.
This will cycle the selected zone through the
colors of the color spectrum.
This is a zone setting that controls the
color and brightness of the downlight.
This will adjust the brightness of the
selected zone.
Pairing remote or wall mounted touch control:
Before beginning, read pairing instructions in its entirety. Locate and familiarize yourself with the manual touch
controls on the fireplace and your hand held remote. Ensure remote has a battery installed.
1. On the fireplace touch controls, long press the on/off button for 3 seconds until a fast double beeping tone is
heard from the fireplace. The power indicator will also flash 3 times in 1 second. This places the fireplace in RF pairing
mode.
2. Within 5 seconds of hearing the double beeping tone, either on the handheld remote or wall touch control, press
the power button repeatedly until another beeping tone is heard along with the indicator lights flashing. This is the
fireplace acknowledging that it has paired. An additional tone may also be heard; this is simply the fireplace
completing the pair mode.
NOTE:
• Pairing must be done within 5 seconds or the fireplace will time out of pairing mode.
• After the initial double beep is heard, do not long press the power button on the remote/pairing device to pair as this may not
be successful. Pressing the power button repeatedly is required to ensure the signal is sent from the remote/pairing device to the
fireplace.
• To clear any paired remotes/devices from the fireplace, locate the reset button on the fireplace, then long press the reset
button for 3 seconds. A beeping tone will indicate that the codes have been cleared. Once cleared, a new remote or wall touch
control can now be paired. This will also un-pair any APP that was paired to the fireplace.
18

Toggle Switch: The fireplace has a main toggle
switch located next to the manual controls.
The toggle switch is in front of the glass on
the top right side of the viewing area.
When the “-” side of the toggle switch
is depressed, the “O” pops up. This is the
power-on state of the fireplace.
Power Indicator lights: The fireplace is
equipped with Power indicator lights
which are located on the upper right
corner of the fireplace viewing area.
First light: When the fireplace is in the
power-on state, an amber light turns on.
The light shows the fireplace is energized
and on stand-by for any commands. The
amber light turns OFF when the fireplace
is turned on and operating.
Second light: When the fireplace is powered
on and the heater is set to low, the second
light turns on. Light will fade away after
6 seconds.
Third light: When the fireplace is powered
on and the heater is set to high, the
third light turns on. Light will fade
away after 6 seconds.
Manual Controls
The fireplace has manual controls located next to the
toggle switch, in front of the glass on the top right
side of the viewing area.
Power On/Off button: Press once, indicator light
turns off and fireplace power turns on. All
functions enabled. Press again, flame turns off
and fireplace goes to standby. NOTE: Long
pressing this button for 3 seconds places
fireplace in RF pairing mode.
Heat Button: Pressing heat button cycles the heater
and blower on/off. Settings: Heater and blower
OFF, Low Heat, and High Heat. Indicator light will
match according to status. NOTE: On US LPM, low
and high heat have the same heat output when
wired for 120 V. Long Press the heater button for
5 seconds to lock/unlock the heater.
Preset Color Button: Press preset color button to
cycle through the 8 preset color options. This
changes color of all three zones: the flame,
ember bed and down light. Colors in order of
appearance: MF orange-red-orange-golden
orange-green-aqua-blue-magenta
Resetting button: Clears any paired remotes/devices
from the fireplace. Once cleared you can pair a
new remote or wall touch control. This will also
un-pair any APP that was paired to the fireplace.
After long pressing the reset button for 3
seconds, a beeping tone will be heard indicating
that the pairing codes have been cleared.
Buzzer Tone Change: Long press the on/off and
preset color button at the same time to enter the
beeping tone cycle mode. Continue to long press
both buttons to cycle through the 4 tone options.
The tone will change every 2 seconds while
releasing the buttons will act as the selection of
the tone. The tones in order of appearance are;
tone-1, tone-2, tone-3, and silent mode.
Power
Turns unit
on/off
Heat
Cycles
heat low/
high/off
Color
Changes all
fireplace colors
together
Reset
Resets
unit
SETTING CONTROLS
19
