Modern Flames Landscape Pro Multiview Series User manual

SERIAL NUMBER:________________________________________
Landscape Pro Multiview Series
LPM-4416/INT • LPM-5616/INT • LPM-6816/INT • LPM-8016/INT
AUSTRALIA INSTALLATION/OWNERS MANUAL
CE RATED FOR 240V 50HZ INSTALLATIONS
2
USER INSTRUCTIONS
LANDSCAPE PRO SERIES MULTIVIEW
LPM-4416/INT • LPM-5616/INT • LPM-6816/INT • LPM-8016/INT
SAFETY INFORMATION AND OPERATIONS MANUAL
Read these instructions completely before beginning installation. Failure to follow them could
cause a heater malfunction resulting in serious injury and/or property damage.
WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in
areas where gasoline, paint or ammable liquids are or are stored.
This replace meets the construction and safety standards of H.U.D. for application in
manufactured homes when installed according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

3
USER INSTRUCTIONS
TABLE OF CONTENTS
When using electrical heaters, basic
precautions should always be followed to
reduce the risk of re, electric shock and injury
to persons, including the following:
1. Read all instructions before installing or
using this heater.
2. This heater is hot when in use. To avoid
burns, do not let bare skin touch hot
surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m)
from the front of the heater and keep them
away from the sides and rear.
3. Extreme caution is necessary when any
heater is used by or near children or
disabled people and whenever the heater is
left operating and unattended.
4. Do not operate any heater after it
malfunctions, has been dropped, or
damaged in any manner. Disconnect power
at service panel and have heater inspected
by an authorized technician or a reputable
electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to o󰀨
and turn o󰀨 power to heater circuit at main
disconnect panel.
7. Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or re, or
damage the heater.
8. To prevent a possible re, do not block air
intakes or exhaust in any manner.
9. A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint or ammable vapors or
liquids are used or stored.
10.Use this heater only as described in this
manual. Any other use not recommended
by the manufacturer may cause re, electric
shock or injury to persons.
11. SAVE THESE INSTRUCTIONS
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information,
consult a qualied installer.
CAUTION: Do not expose the heater to the
elements (such as rain, etc).
Do not place clothing or other ammable
material on or near rebox. Never place
any objects on the replace.
Carefully supervise young children when
they are in the room with replace.
Fireplace becomes very hot when running.
Keep children and adults away from
hot surfaces to avoid burns or clothing
ignition. Fireplace will remain hot for a
time after shutdown. Allow surfaces to
cool before touching.
CAUTION: In order to avoid
overheating, do not cover the
heater.
IMPORTANT INSTRUCTIONS
Important Instructions 3
Power Data 4
Product Guide 4
Box Contents 5
Installation 6
Operation 11

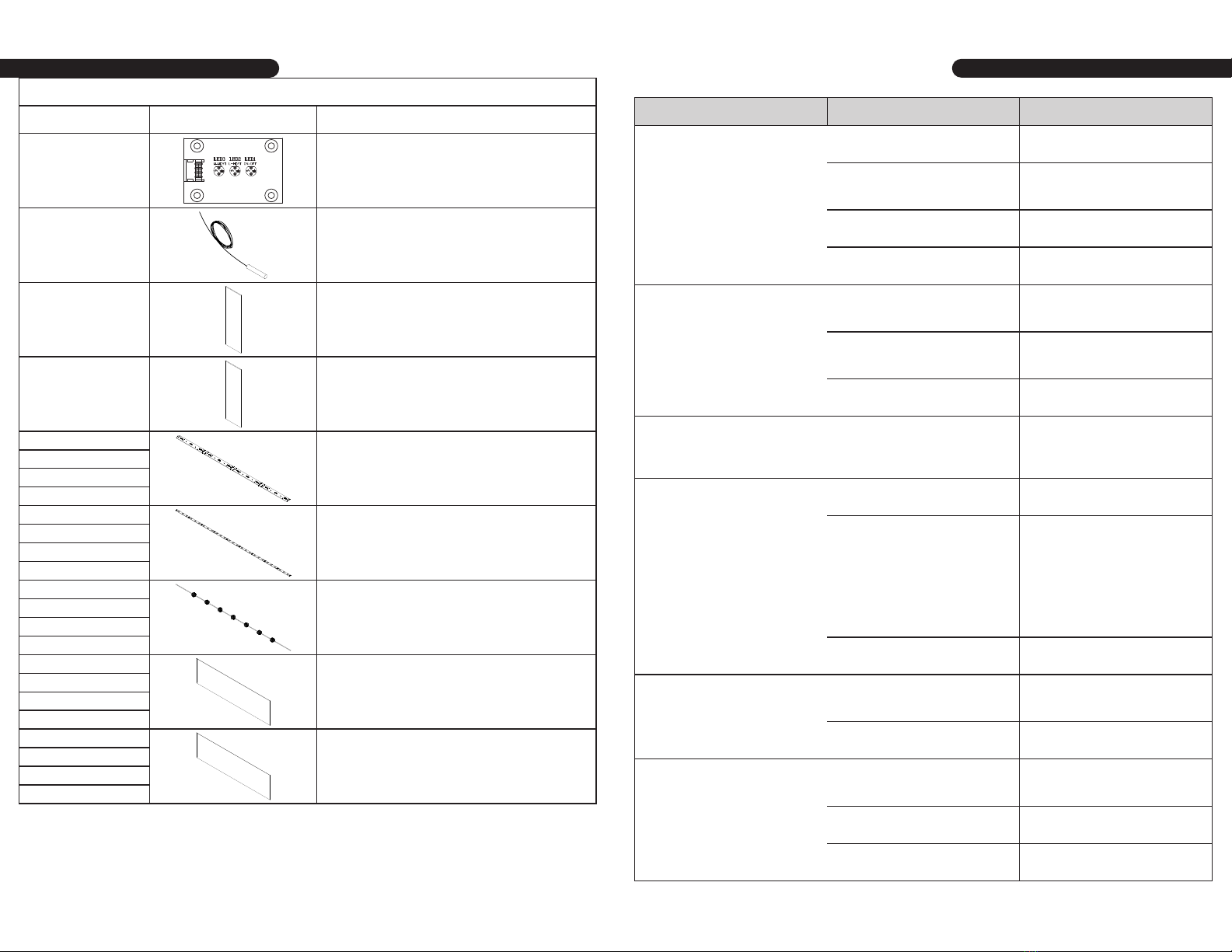

Service Parts 12
Troubleshooting 14
Frequently Asked Questions 15
Cleaning and Maintenance Instructions 16
Wiring Diagram 16

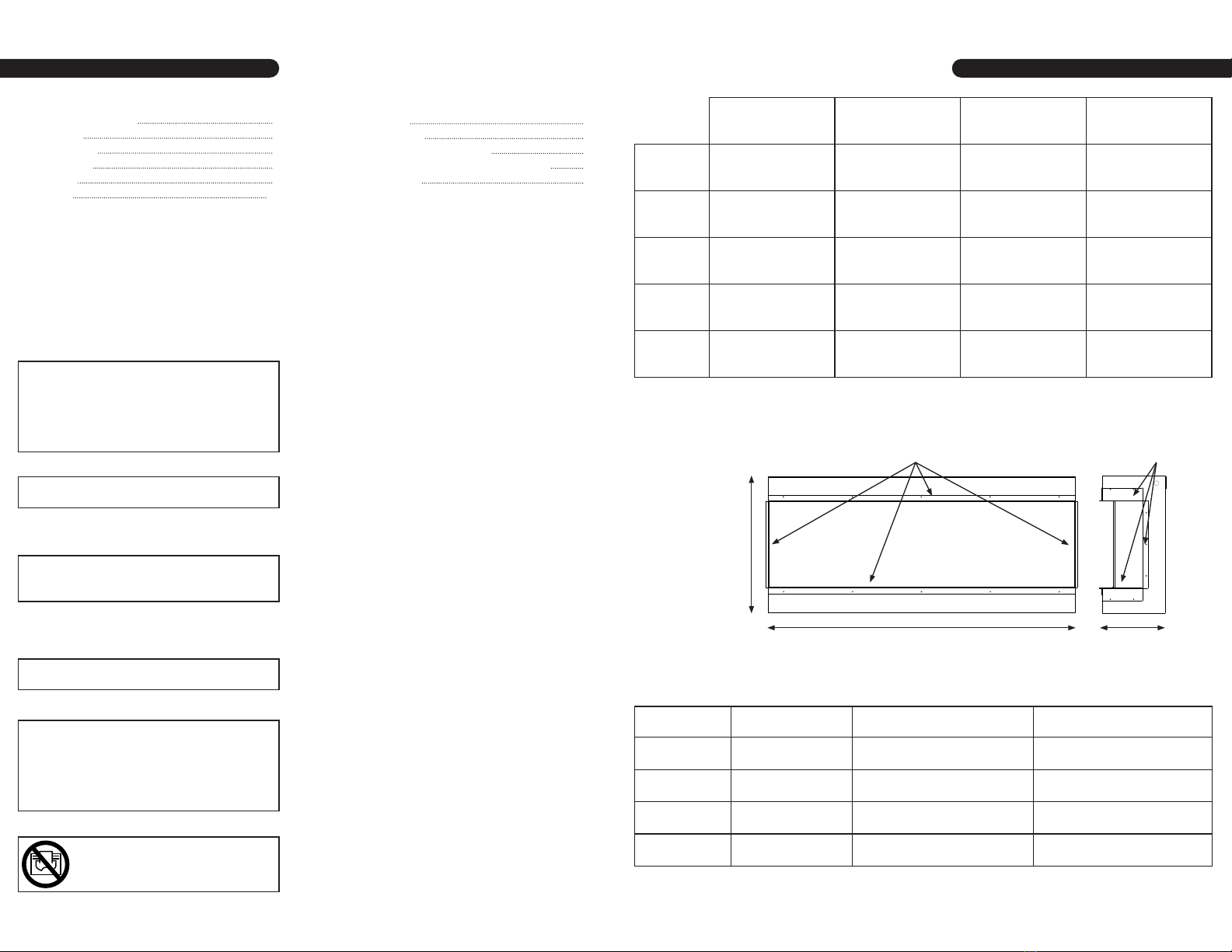

4
USER INSTRUCTIONS
POWER DATA
PRODUCT GUIDE
LPM-4416/INT LPM-5616/INT LPM-6816/INT LPM-8016/INT
Volts/HZ
Amps
AC 240V 60Hz 14
Amps
AC 240V 60Hz 14
Amps
AC 240V 60Hz 14
Amps
AC 240V 60Hz 14
Amps
Heater AC 240V 3000W AC 240V 3000W AC 240V 3000W AC 240V 3000W
Lamps LED DC 12V LED DC 12V LED DC 12V LED DC 12V
Rotor Motor
AC220-240V
50/60Hz 4.5W
18/15RPM CCW
AC220-240V
50/60Hz 4.5W
18/15RPM CCW
AC220-240V
50/60Hz 4.5W
18/15RPM CCW
AC220-240V
50/60Hz 4.5W
18/15RPM CCW
Shipping
Size
1168mm x 686mm x
343mm
1473mm x 686mm x
343mm
1778mm x 686mm x
343mm
2083 x 686mm x
343mm
Model Viewing Area Firebox Dimensions Framing Dimensions
LPM-4416/INT 1067mm W x
394mm H
1118mm W x 632mm H x
292mm D
1124mm W x 641mm H x
305mm D
LPM-5616/INT 1372mm W x
394mm H
1422mm W x 632mm H x
292mm D
1429mm” W x 641mm H x
305mm D
LPM-6816/INT 1676mm W x
394mm H
1727mm W x 632mm H x
292mm D
1734mm W x 641mm H x
305mm D
LPM-8016/INT 1981mm W x
394mm H
2032mm W x 632mm H x
292mm D
2038mm W x 641mm H x
305mm D
632mm
(all models)
Width varies (see chart below) 292mm
(all models)
Drywall stops Drywall stops

5
INSTALLATION

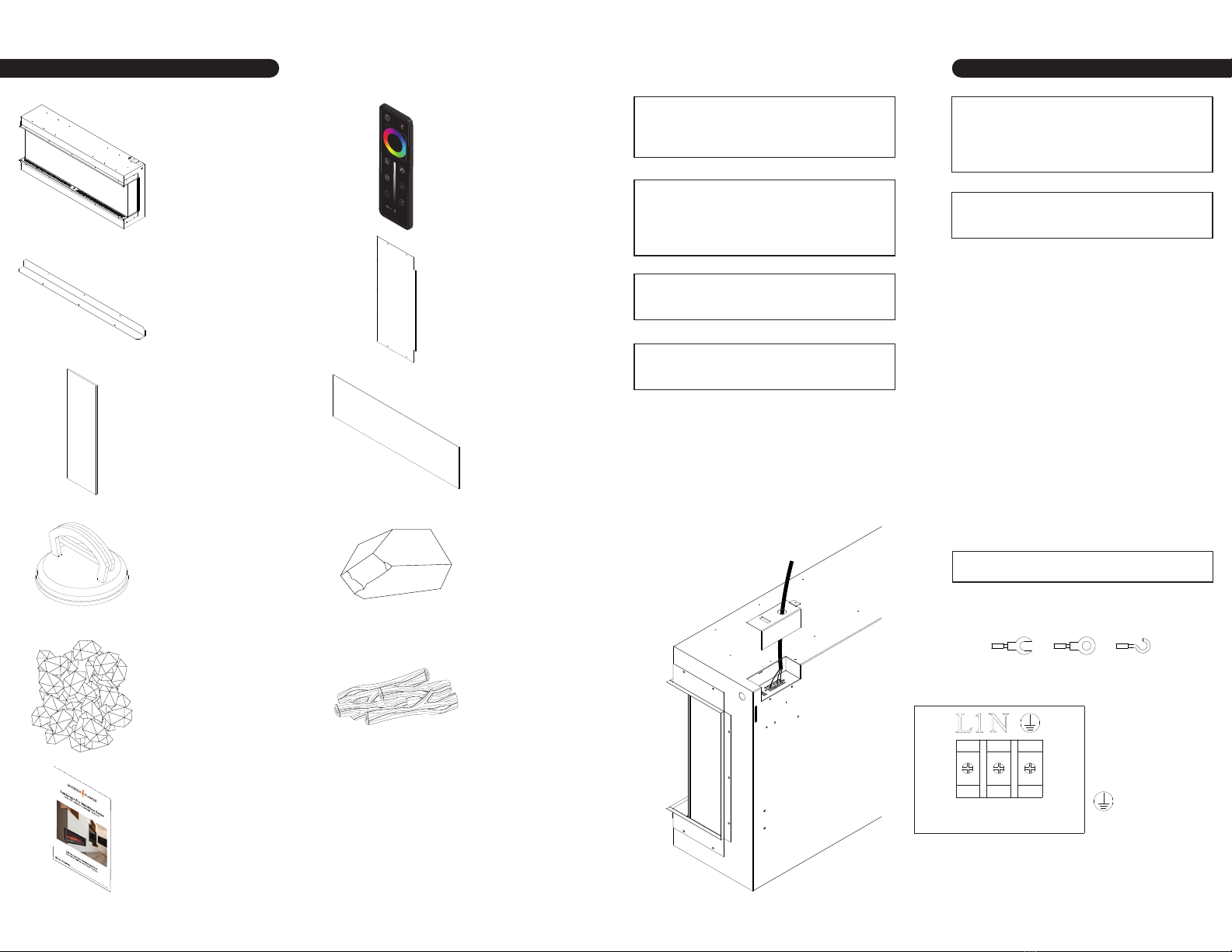

BOX CONTENTS
1 Fire Unit 1 Remote
4 L-Metal Mounting
Brackets
2 Side Glass Pieces
2 Side Covers
1 Front Glass
Clear Acrylic Stones
Canyon Driftwood
Logs
2 Suction Cups
Smoke Acrylic
Crystals
1 Owner's Manual
6
INSTALLATION
INSTALLATION
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or death.
WARNING - RISK OF FIRE!
To prevent a possible re, do not block air
intake or exhaust in any manner. Do not
use on soft surfaces where openings may
become blocked.
WARNING - RISK OF FIRE!
Do not blow or place insulation against the
rebox.
To reduce the risk of re do not store or
use gasoline or other ammable vapors in
the vicinity of this or any other heater.
CAUTION: Keep combustible materials,
such as furniture, pillows, bedding,
papers, clothes and curtains at least 3
feet (0.9m) from the front of the heater and
keep them away from the sides and rear.
CAUTION: Wear gloves and safety glasses
for protection during installation and
maintenance.
Installing replace
Select a suitable location that is not susceptible
to moisture and is a safe distance from drapes,
furniture and high tra󰀩c areas. A qualied
electrician should add a dedicated exible
15 amp 220-240 volt circuit per local building
codes.
Note: Follow all national and local electrical
codes.
This replace has a number of installation options. It can be installed fully recessed, half recessed, wall
mounted with a oating cabinet or with a simple slide-in cabinet. In addition, the fully recessed option can
be installed with all sides showing, 1 side showing, or ush.
To prepare for installation, connect the hard wire to the terminal block according to the diagram below.
Choose any connector type according to local building code.
To be performed by a qualied electrician
according to local building codes.
L1 - Line 1
N - Neutral
- Ground

7
INSTALLATION
Model WHD
LPM-4416/INT 1124mm 641mm 305mm
LPM-5616/INT 1429mm 641mm 305mm
LPM-6816/INT 1734mm 641mm 305mm
LPM-8016/INT 2038mm 641mm 305mm

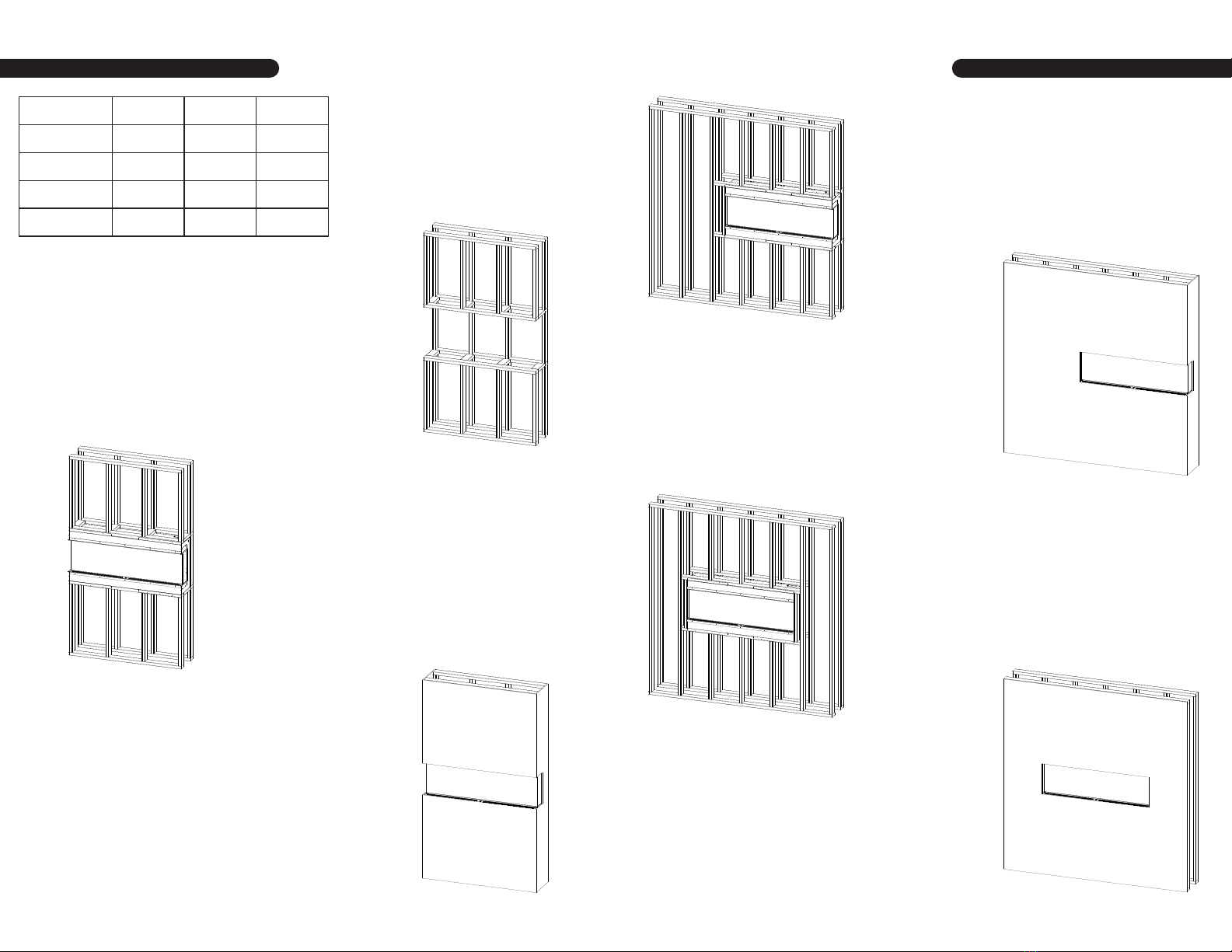

1. Prepare the framed opening according to
the chart above. Provide a dedicated exible
15 amp 220-240 volt circuit for hard wire
installation.
2. Install L Metal Nailing Flanges.
3. Install the re unit in the framed opening with a
minimum 1 ¼ drywall screws to secure the unit.
4. Mask the exposed re unit during the
drywall process. Install drywall to the drywall
stops on the perimeter of the re box. For
more information on the drywall stops see the
Product Guide on page 4. Decorate as desired.
5. Install the side and front glass pieces.
8
INSTALLATION
Fully recessed installation - 1 side
Fully recessed ush installation
1. Follow steps 1 & 2 from the 3 sided installation
instructions.
2. Remove the corresponding drywall stops
according to your installation (in the example,
the drywall stops on the left end would be
removed.)
3. Install the side glass then the corresponding
side cover according to your installation (the
side glass must be installed before the metal
side cover.)
4. Install the re unit in the framed opening with a
minimum 1 ¼ drywall screws to secure the unit.
5. Mask the exposed re unit during the
drywall process. Install drywall to the drywall
stops on the perimeter of the re box. For
more information on the drywall stops see the
Product Guide on page 4. Decorate as desired.
6. Install the remaining side glass and front glass.
1. Follow steps 1 & 2 from the 3 sided installation
instructions.
2. Remove the drywall stops on both sides of the
re unit.
3. Install the side glass then side covers on both
sides of the re unit (the side glass must be
installed before the metal side cover.)
4. Install the re unit in the framed opening with a
minimum 1 ¼ drywall screws to secure the unit.
5. Mask the exposed re unit during the
drywall process. Install drywall to the drywall
stops on the perimeter of the re box. For
more information on the drywall stops see the
Product Guide on page 4. Decorate as desired.
6. Install the front glass.

9
INSTALLATION
Half recessed installation
1. This installation is optimized for a 2x4 framed
wall. Prepare the framed opening according
to the height and width of the chart on page 7.
Provide a dedicated exible 15 amp 220-240
volt circuit for hard wire installation.
2. Install L Metal Nailing Flanges.
3. Install the re unit in the framed opening with a
minimum 1 ¼ drywall screws to secure the unit.
4. Firebox must be covered with material of
choice. Mask the exposed re unit during
this process. Install drywall, tile or material
of your choice to the drywall stops on the
perimeter of the re box. For more information
on the drywall stops see the Product Guide on
page 4. Decorate as desired.
5. Install the side and front glass pieces.
10
INSTALLATION
Floating cabinet installation
Slide-in cabinet installation
Follow the directions included with the Floating
Cabinet Accessory Kit.
Follow the directions included with the Slide-in
Cabinet Accessory Kit.
Installing Optional Wall Mounted Touch Control
1. Locate 2-gang low voltage bracket within 20 feet (6m) of replace. Install according to manufacturer’s
instructions.
2. Remove glass face (attached with magnets) from metal bracket.
3. Attach the metal bracket to the low voltage bracket with the included screws.
4. Insert batteries (2 AAA) and replace the glass face.

11

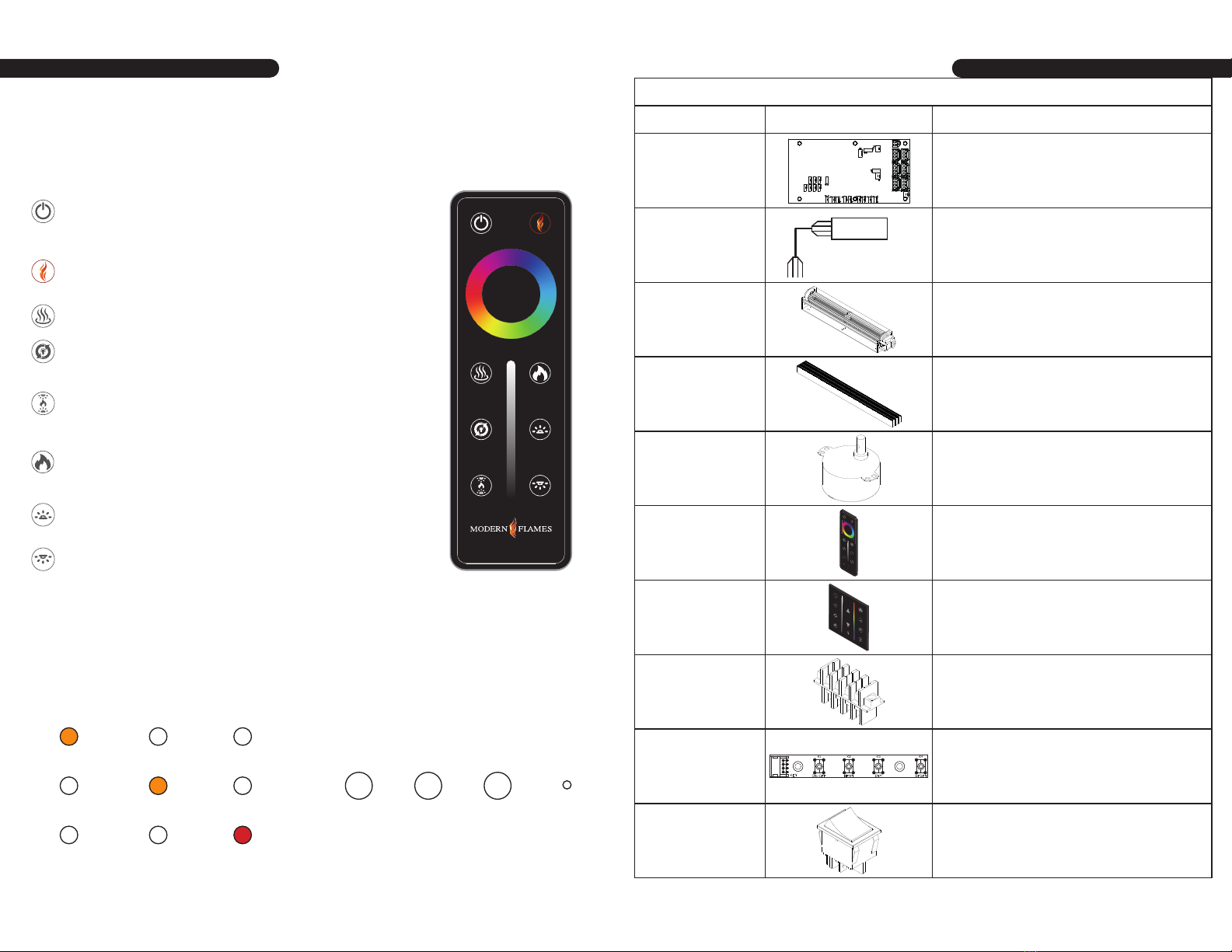

OPERATION
OPERATION
This will cycle the machine on and o󰀨. Upon cycling
power on, the machine will return to the settings it had
when it was cycled o󰀨.
If the replace is on, this button will act as a reset and
bring all colors back to the default Modern Flames
orange/yellow.
This will cycle the heater between high, low and o󰀨.
All zones of the replace will start the slow fade
between colors.
Pressing the sync button will change all the colors of
the replace) Flame, Ember Bed and Downlight) to
match the current color of the ame setting.
This is a zone setting. Touching this button will allow
you to change the color and brightness of the ame by
using the RGB wheel and brightness slider.
This is a zone setting that controls the color and
brightness of the ember bed.
This is a zone setting that controls the color and
brightness of the downlight.
The unit has a main power switch just in front of the glass on the right hand side. A hand-held remote is
included.
Power indicator lights for wall switch as well
as upper right corner of the main unit
When the switch turns on, this orange pilot lamp
turns on. It shows the re is energized.
The status light above shows that the power is on
and the heater is on low.
The status light above shows that the power is on
and the heater is on high.
Pairing remote:
To pair remote, turn o󰀨 the re unit at the main power switch for 30 seconds. Hold the On/O󰀨 button on
the remote while ipping the main power switch back to on. When the re unit powers up, the remote will
be paired.
Power
Reset
Heat
Fade
Sync
Flame
Ember
Bed
Downlight
Manual Controls
The unit has manual controls located next to the
power switch, just in front of the glass on the top
right side.
Power
Turns unit
on/o󰀨
Heat
Cycles
heat low/
high/o󰀨
Color
Changes
replace
color
Reset
Resets
unit
12
MAINTENANCE
SERVICE PARTS
ITEM PHOTO DESCRIPTION
MF-PRO-PCB
PRINTED CIRCUIT BOARD CONTROLS LOW
VOLTAGE AND HIGH VOLTAGE FUNCTIONS
AND TRANSFORMER
MF-PRO-WIFI
WIFI
WIFI BOARD
MF-PRO-HF-230 HEATER FAN 230 V
MF-PRO-PTC PTC HEATER 120/240 V 1500/3000 WATTS
MFSM230 SPINDLE MOTOR 230 V 50-60 HZ
MF-PRO-RC PRO SERIES RF REMOTE CONTROL
MF-PRO-WTC
OPTIONAL
WALL MOUNTED TOUCH CONTROL
ASSEMBLY
MF-PRO-TB TERMINAL BLOCK 120/240 V
MF-PRO-MTC MANUAL TOUCH CONTROL BOARD
MFPS1 20 AMP POWER SWITCH

13
MAINTENANCE
SERVICE PARTS
ITEM PHOTO DESCRIPTION
MF-PRO-PIB POWER INDICATOR BOARD
MF-PRO-NTC THERMOSTAT SENSOR
MF-LPM-SG-C SIDE GLASS CLEAR
MF-LPM-SG-B SIDE GLASS BLACK
MF-LPM-F/LED-44
RGB FLAME LED BAR SET
MF-LPM-F/LED-56
MF-LPM-F/LED-68
MF-LPM-F/LED-80
MF-LPM-EB/DL-44
RGB EMBER BED/DOWNLIGHT LED STRIP
MF-LPM-EB/DL-56
MF-LPM-EB/DL-68
MF-LPM-EB/DL-80
MF-LPM-SR-44
SPINDLE ROD FOR FLAME AND EMBER BED
MF-LPM-SR-56
MF-LPM-SR-68
MF-LPM-SR-80
MF-LPM-GF-44
FRONT GLASS
MF-LPM-GF-56
MF-LPM-GF-68
MF-LPM-GF-80
MF-LPM-PP-44
FLAME SCREEN
MF-LPM-PP-56
MF-LPM-PP-68
MF-LPM-PP-80
14
MAINTENANCE
TROUBLESHOOTING
Problem Possible Cause Corrective Action
Nothing comes on (touch screen,
etc.)
A. Breaker tripped or circuit has
no power
A. Reset breaker, test circuit for
power
B. Internal component is frozen
and needs to be reset
B. Turn power o󰀨 at the main
breaker for 20 seconds. Turn
power back on.
C. Loose connection C. Look for loose connection
D. Defective component D. Replace motherboard or touch
control
Touch Screen Comes on - then
nothing
A. Not operating touch control
properly with nger
A. Press at part of nger rmly
on the touch screen and apply
moderate pressure
B. Loose connection on
motherboard
B. Check functions with remote
control. If functional, check
connections on motherboard
C. Motherboard is defective C. Replace Motherboard
Fireplace turns o󰀨 and will not
turn back on
A. Fireplace has overheated and
safety disc has snapped or circuit
breaker has tripped
A. Turn the main breaker to the
“o󰀨” position for 30 seconds.
Next ip the breaker back into
the “on” position.
Can operate replace functions
with manual controls but not
remote control
A. Low Batteries A. Replace batteries in remote
control with - CR2025
B. Remote not paired properly
B. To pair remote, turn o󰀨 the
re unit at the main power switch
for 30 seconds. Hold the On/
O󰀨 button on the remote while
ipping the main power switch
back to on. When the re unit
powers up, the remote will be
paired.
C. Remote control defective C. Replace remote control
Heater does not provide heat
when on
A. Wiring is loose
A. Disconnect unit from power
source and inspect for loose
connections
B. Heater core is defective B. Replace Heater Core
Flame is not visible when unit is
turned on
A. Wiring is loose
A. Disconnect unit from power
source and inspect for loose
connections
B. LEDs defective B. Replace LEDs
C. Motherboard is defective C. Replace motherboard

15
MAINTENANCE
FREQUENTLY ASKED QUESTIONS
Q. How do you change the optional Wall Touch Control to Fahrenheit/Celsius?
A. Long press on the up and down arrows on the re unit to toggle between Fahrenheit and Celsius.
Q. What distance can the remote be used from the replace?
A. Optimal distance for the remote control is within 6 meters.
Q. Can you turn on the replace via the manual control and o󰀨 via the remote (or vise versa)?
A. Yes.
Q. Can the replace be installed outside?
A. No. Please review the entire safety chapter before installing this replace.
Q. Does the replace need to be on a dedicated 15 amp circuit?
A. Yes.
Q. What thickness of sheetrock should be used for the recessed installation?
A. 12mm or 16mm, thinner is recommended for tile façade.
Q. How often do the batteries in the remote need to be replaced?
A. Annually, possibly more with heavy use.
Q. Is there a remote receiver in the replace that requires batteries?
A. No, only the actual remote requires batteries. The rest of the replace runs entirely o󰀨 of the main
power supply.
Problem Possible Cause Corrective Action
Fireplace lights up but there is
no ame image or ame image
frozen
A. Wiring for motor is loose
A. Disconnect unit from power
source and inspect for loose
connections from motor
B. Motor is defective B. Replace motor
Fireplace is squeaking when
ame image is on
A. Fireplace spindle/rod is
contacting to metal
A. Apply lithium grease or any
standard grease to contacts with
rod and metal
B. Motor is defective B. Replace motor
16
MAINTENANCE
CLEANING AND MAINTENANCE INSTRUCTIONS
WIRING DIAGRAM
There is very little maintenance involved with your electric replace. Please follow the few points below:
• On a semi-annual basis unplug the machine from it’s power source, wait for the heating element to
cool and dust the re unit with a dry cloth. Be careful not to brush any wires that may be exposed as
you do this.
• To clean the glass face of the replace simply use your desired glass cleaner with paper towels.
• To clean the air inlets/outlets, wipe with a soft cloth or the nozzle of a vacuum cleaner
• Dust can easily build up around the heater area inside the re unit, on the left and right sides. Take
particular care to clean this area on a regular basis to prevent buildup.
• For long periods of inactivity, please unplug the replace and ensure the surrounding area remains
dry.
1
2
Downlight
Ember Bed light
Flame light
WIFI
Ember
Motor
Flame
Motor

17
MAINTENANCE
NOTES
18
MAINTENANCE
NOTES

19
MAINTENANCE
NOTES
20
©2019
www.modernames.com
Please dispose of properly.
V1
