moll T 7 User manual

moll T 7 / T 7 XLOperating Manualwith Safety Instructionsand EC Declaration of Conformity06. 2018Electrically adjustable deskfor the living areaGB

2Safety InstructionsIt is essential to read this operating instruction thoroughly beforecommissioning the table. Caution:The sit-stand table may be used only for its intended use as a writingand working table for the living area.Caution: This sit-stand table is not designed for continuous operation. The table top height can be adjusted without interruption for no longer than the operating time indicated in this manual(2 min on / 18 min off).Caution:This unit may only be operated with a mains voltage of220-230 V / 50-60 Hz.Danger:Please use only the supplied power cable! Make sure that the powercable is not damaged. Operating the sit-stand table with a damaged power cable is prohibited! It must be replaced to prevent from hazardsof electric shock.Caution:If the product is visibly damaged, makes unusual noises or causes odours, it may not be assembled or used!Danger:Using this table is only permitted in dry rooms. Protect the table frameand in particular all electrical components on the table from moisture, dripping or splashing water!33Safety InstructionsDanger:This unit can be used by children aged 8 years and above and by personswith reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they are supervised or have been instructed in the safe use of the unit and understand the hazards involved.Danger: Children must not play with the device!Cleaning and user maintenance shall not be carried out by children without supervision .Danger: Do not open the motor control unit under any circumstances. There is a danger of electric shock.Electrical equipment may only be opened or replaced by trained and qualied personnel.Danger:There is a danger of crushing when changing the table top position! You must therefore ensure that no persons or objects are located in thehazardous area or reach into it.Please keep this operating manual for future reference !It is a part of the table and contains important safety informations.When the table is sold, rented out or otherwise passed on to anotherparty, it must be handed over with this operating manual.

2Safety InstructionsIt is essential to read this operating instruction thoroughly beforecommissioning the table. Caution:The sit-stand table may be used only for its intended use as a writingand working table for the living area.Caution: This sit-stand table is not designed for continuous operation. The table top height can be adjusted without interruption for no longer than the operating time indicated in this manual(2 min on / 18 min off).Caution:This unit may only be operated with a mains voltage of220-230 V / 50-60 Hz.Danger:Please use only the supplied power cable! Make sure that the powercable is not damaged. Operating the sit-stand table with a damaged power cable is prohibited! It must be replaced to prevent from hazardsof electric shock.Caution:If the product is visibly damaged, makes unusual noises or causes odours, it may not be assembled or used!Danger:Using this table is only permitted in dry rooms. Protect the table frameand in particular all electrical components on the table from moisture, dripping or splashing water!33Safety InstructionsDanger:This unit can be used by children aged 8 years and above and by personswith reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they are supervised or have been instructed in the safe use of the unit and understand the hazards involved.Danger: Children must not play with the device!Cleaning and user maintenance shall not be carried out by children without supervision .Danger: Do not open the motor control unit under any circumstances. There is a danger of electric shock.Electrical equipment may only be opened or replaced by trained and qualied personnel.Danger:There is a danger of crushing when changing the table top position! You must therefore ensure that no persons or objects are located in thehazardous area or reach into it.Please keep this operating manual for future reference !It is a part of the table and contains important safety informations.When the table is sold, rented out or otherwise passed on to anotherparty, it must be handed over with this operating manual.

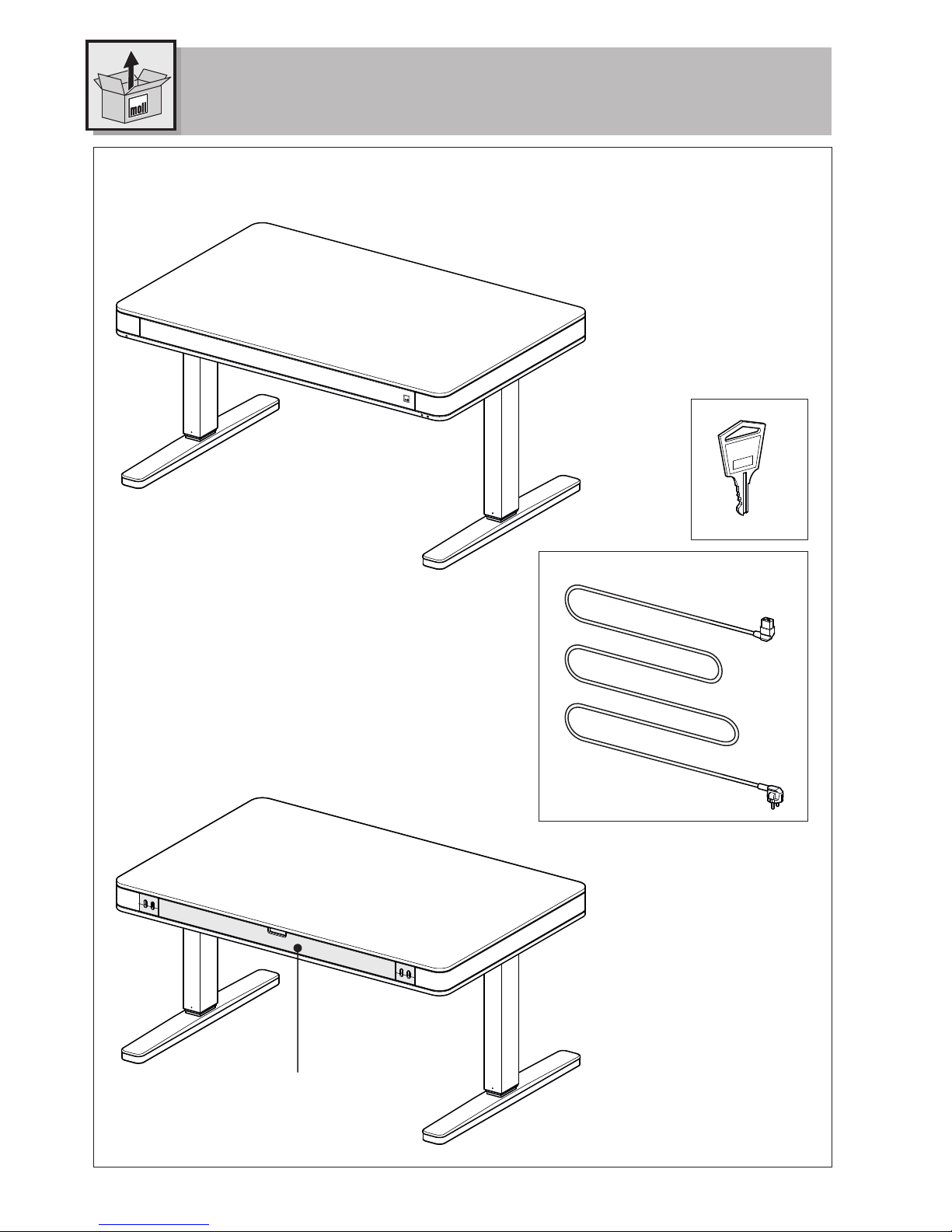

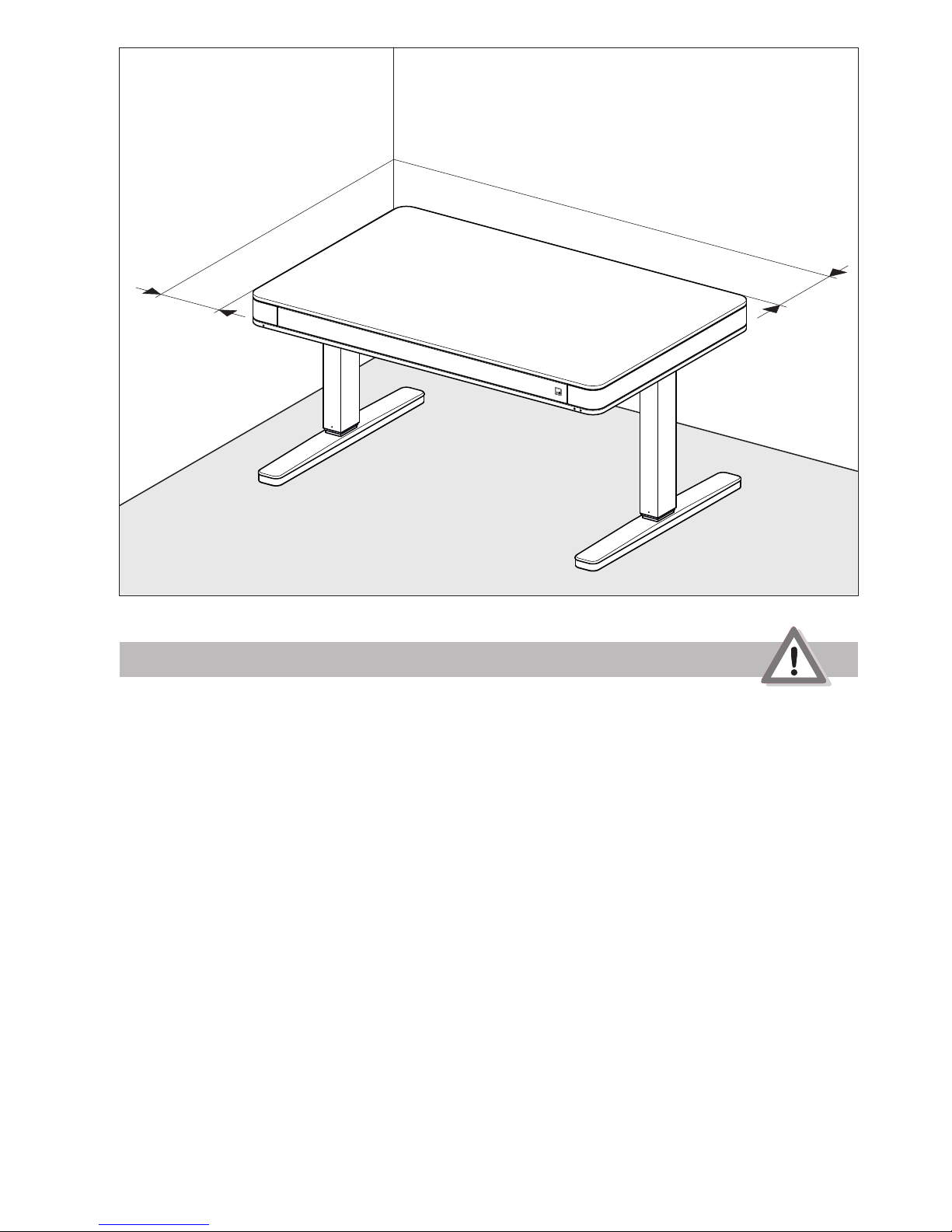

4Check for completenessrear side with power management5Safety InstructionsTo avoid crushing or shearing hazards, the desk with its moving parts must keep a minimum distance of 50 cm to adjacent objects such as furniture, building parts etc.When adjusting the table top height, the user must make sure that nobodycan be injured and no objects can get damaged. The desk must notcollide with fixed objects , because it otherwise may tip over!Before adjusting the table top height, please move away chairs, containers etc. to avoid possible collisions.Solid objects are usually detected by the optional collision protection, but the danger of crushing for persons still exists! The collision protectionprotects the system, NOT persons!
215
2xmoll T7 / T7 XL06. 2018
50 cm
50 cm

4Check for completenessrear side with power management5Safety InstructionsTo avoid crushing or shearing hazards, the desk with its moving parts must keep a minimum distance of 50 cm to adjacent objects such as furniture, building parts etc.When adjusting the table top height, the user must make sure that nobodycan be injured and no objects can get damaged. The desk must notcollide with fixed objects , because it otherwise may tip over!Before adjusting the table top height, please move away chairs, containers etc. to avoid possible collisions.Solid objects are usually detected by the optional collision protection, but the danger of crushing for persons still exists! The collision protectionprotects the system, NOT persons!
215
2xmoll T7 / T7 XL06. 2018
50 cm
50 cm

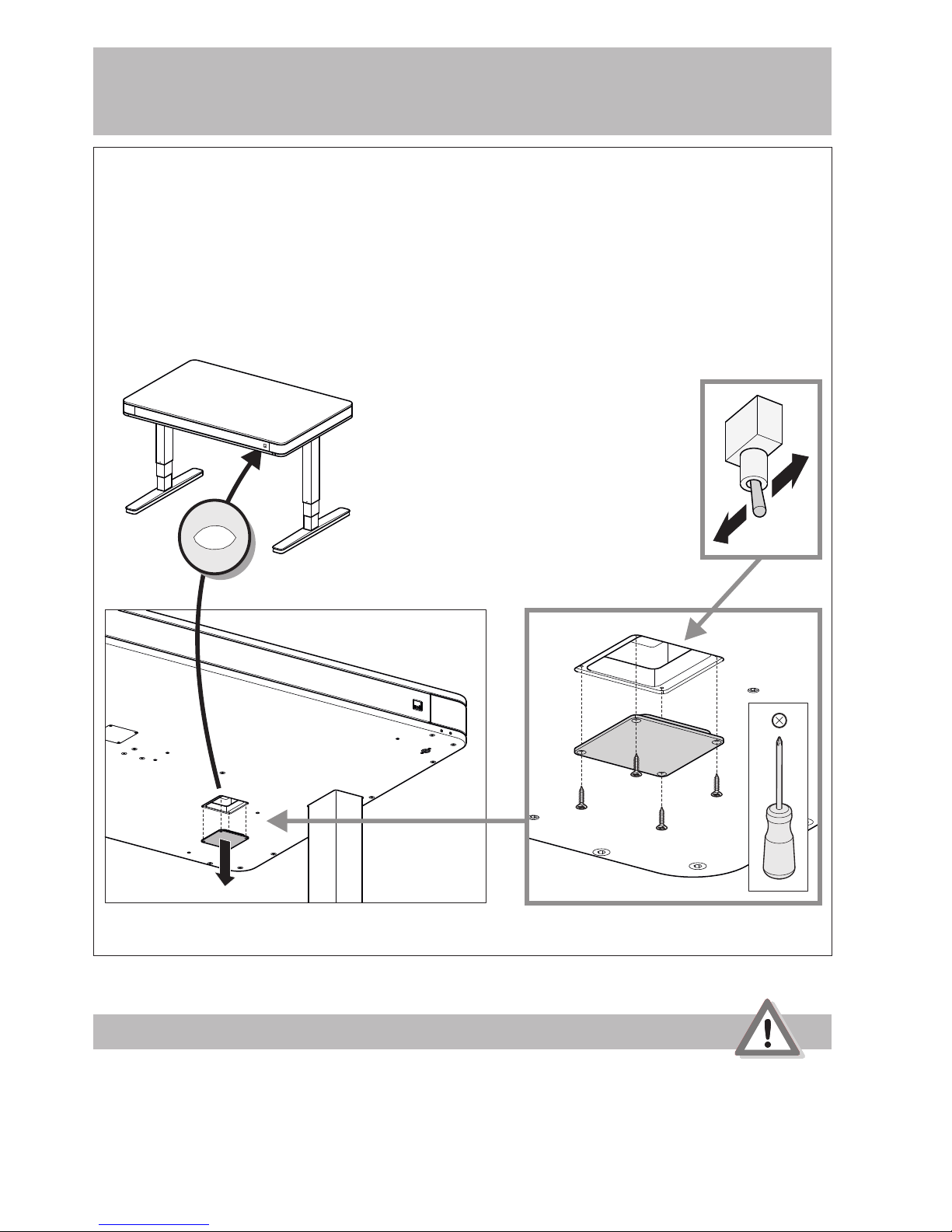

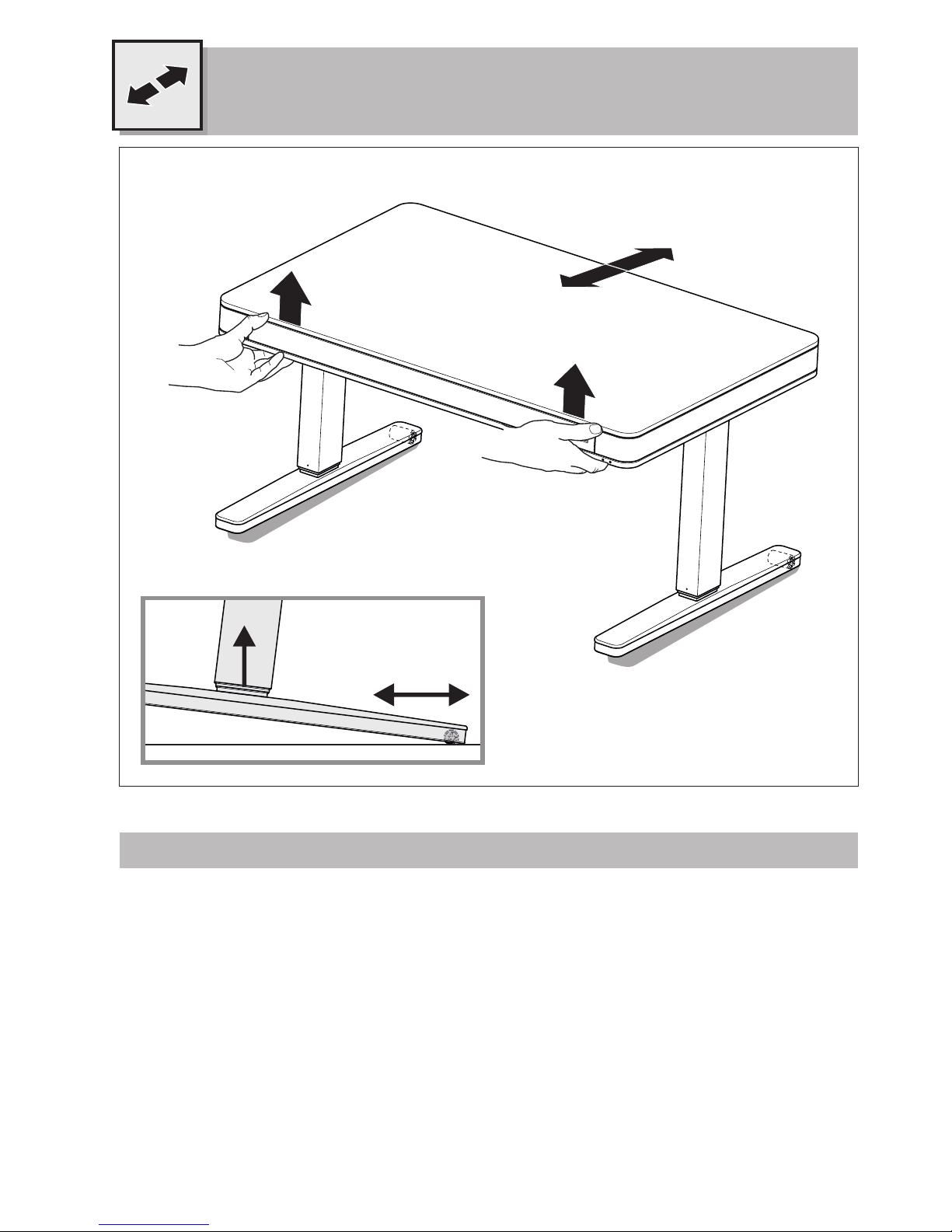

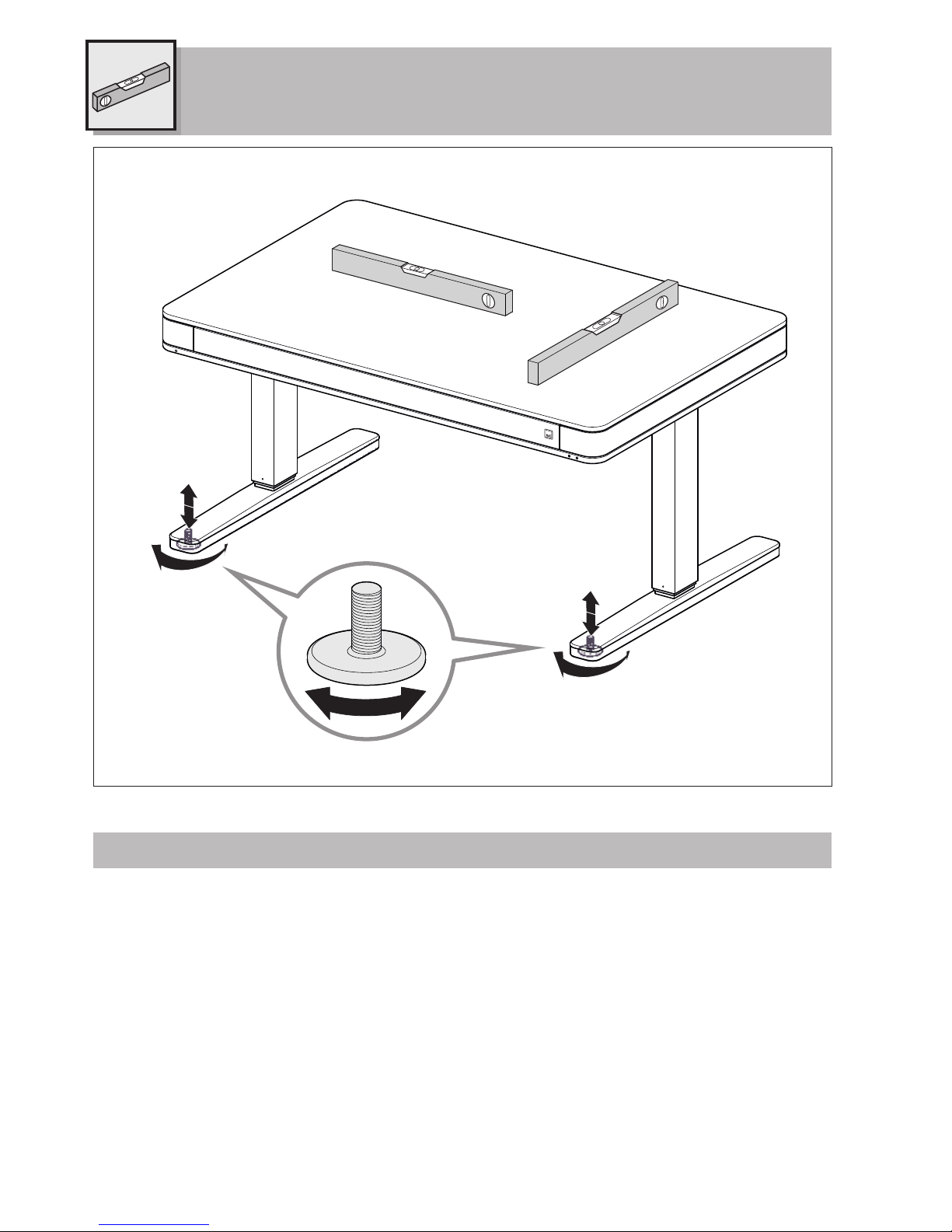

6Levelling the deskNoteThe desk must be aligned horizontally with the adjustment plates.Thus, the best stability is achieved.7Moving the deskTo move the desk, simply raise the front. Now it can be easily moved back and forth on the integrated castors.Note1.2.

6Levelling the deskNoteThe desk must be aligned horizontally with the adjustment plates.Thus, the best stability is achieved.7Moving the deskTo move the desk, simply raise the front. Now it can be easily moved back and forth on the integrated castors.Note1.2.

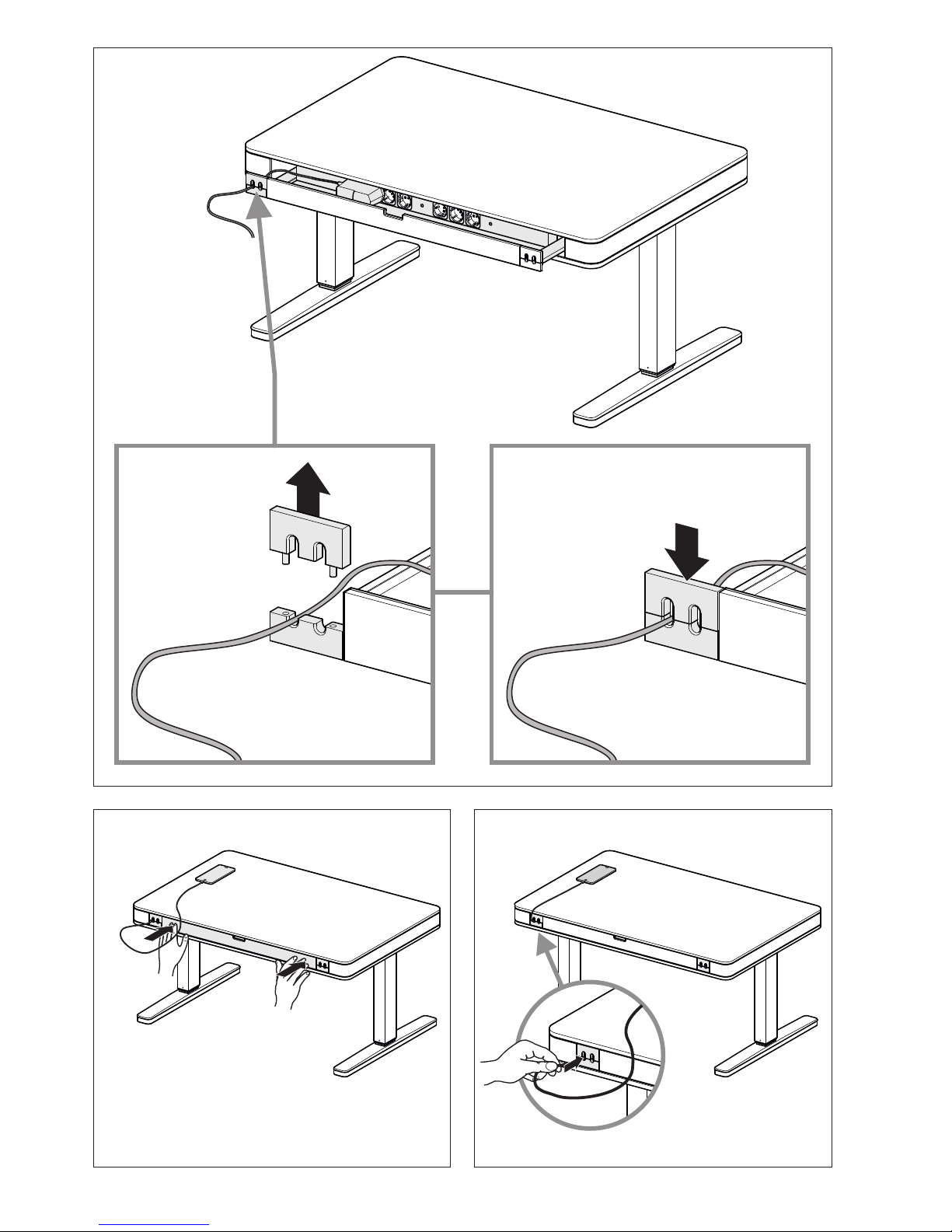

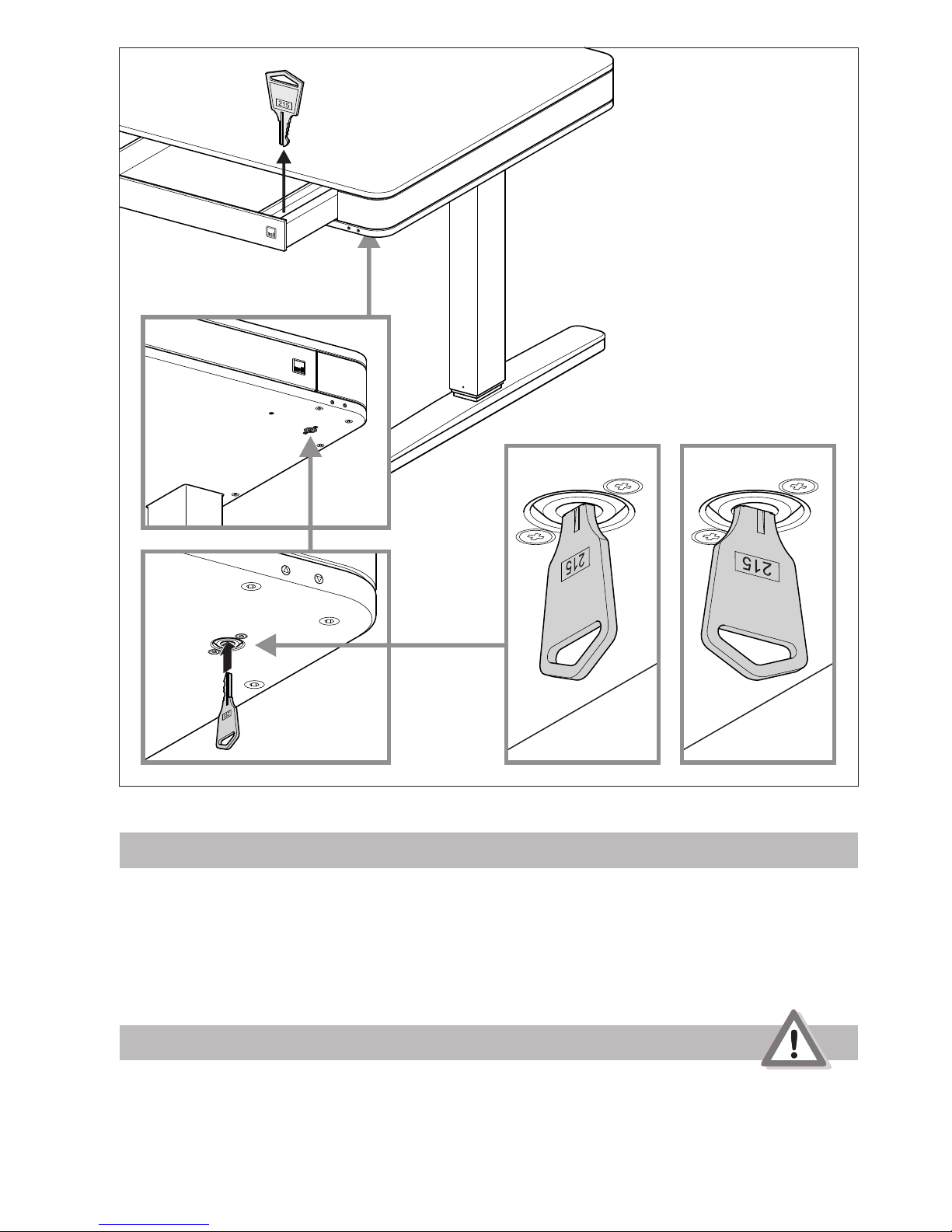

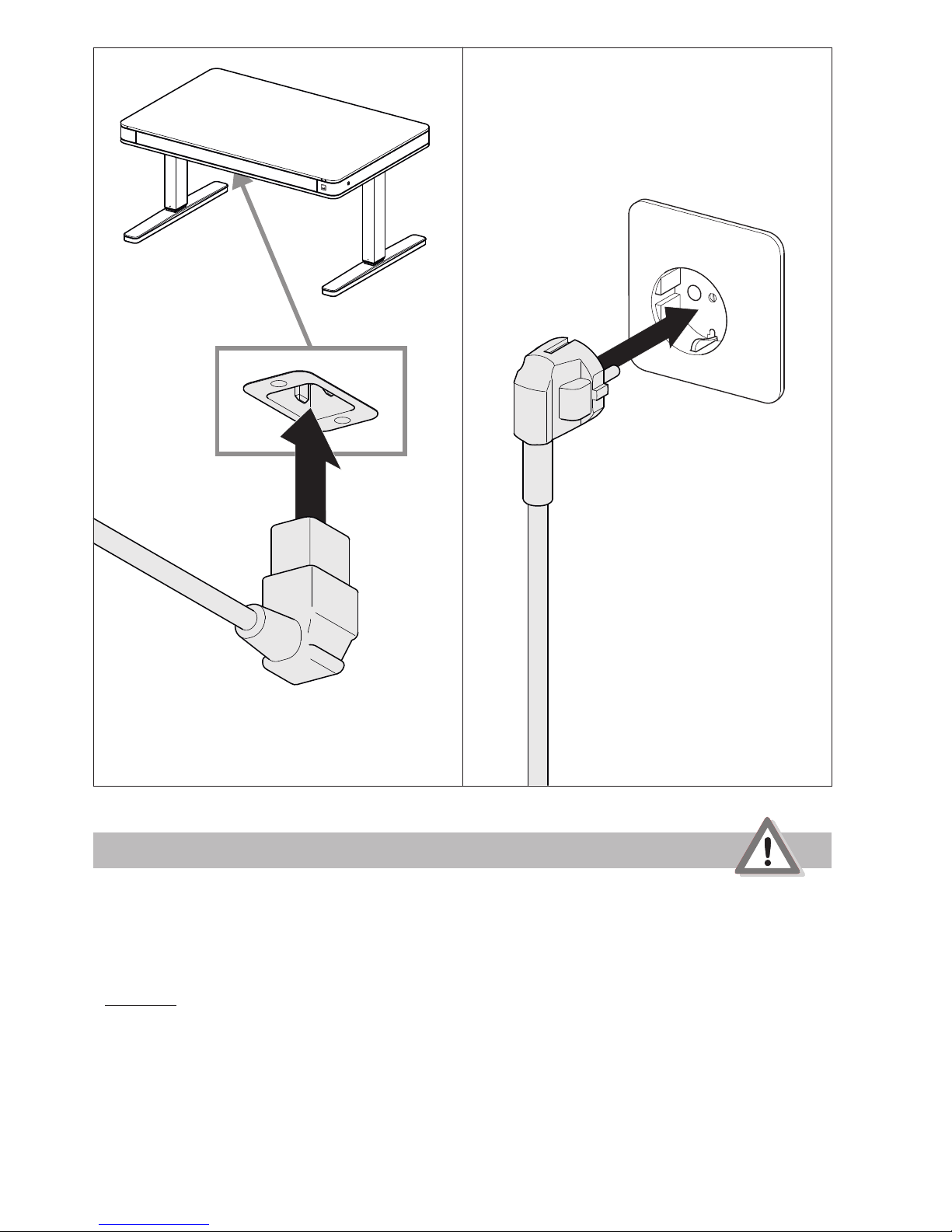

8Make sure that the cable length is also sufficient when the tabledesk is in the top position. Route the cable so that it is not likely to trip over it.Danger!Should the power cord become damaged, unplug the desk immediately!CautionMains voltage:220 - 230 V / 50 - 60 HzThe key switch protects against unauthorized height adjustment of the table.When the key is removed in the „off“ position, the table can not be adjustedaccidentally or on purpose.Note9ONOFFCautionCaution! Remove key during use.Please do not leave the key in the lock - risk of injury!

8Make sure that the cable length is also sufficient when the tabledesk is in the top position. Route the cable so that it is not likely to trip over it.Danger!Should the power cord become damaged, unplug the desk immediately!CautionMains voltage:220 - 230 V / 50 - 60 HzThe key switch protects against unauthorized height adjustment of the table.When the key is removed in the „off“ position, the table can not be adjustedaccidentally or on purpose.Note9ONOFFCautionCaution! Remove key during use.Please do not leave the key in the lock - risk of injury!

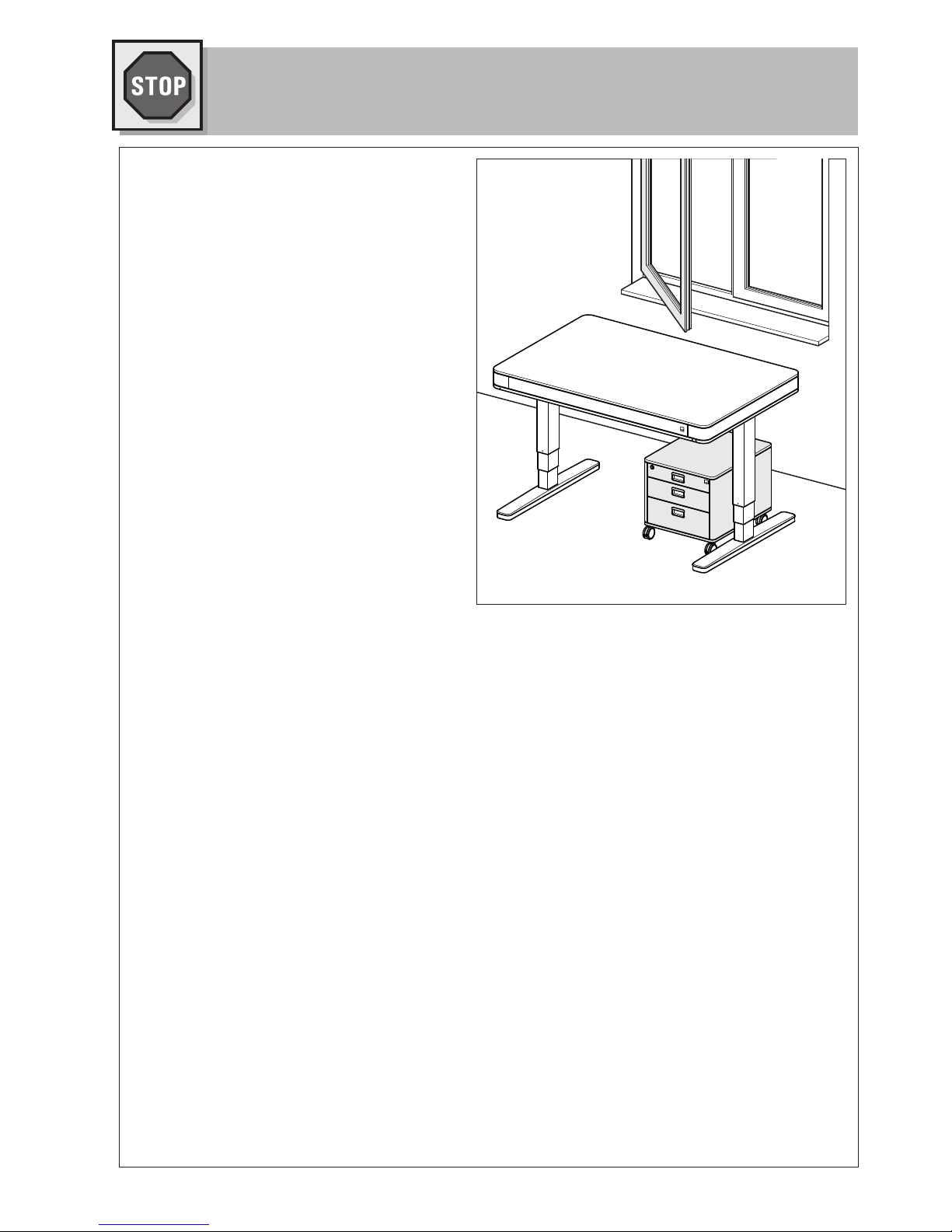

10Upward desktop movementWhen adjusting the table top height, please make sure that thetable movement will not get blocked (e.g. by window sills, chairarmrests, file cabinets etc.)and that no persons are located inthe hazardous area or will reach into it.11

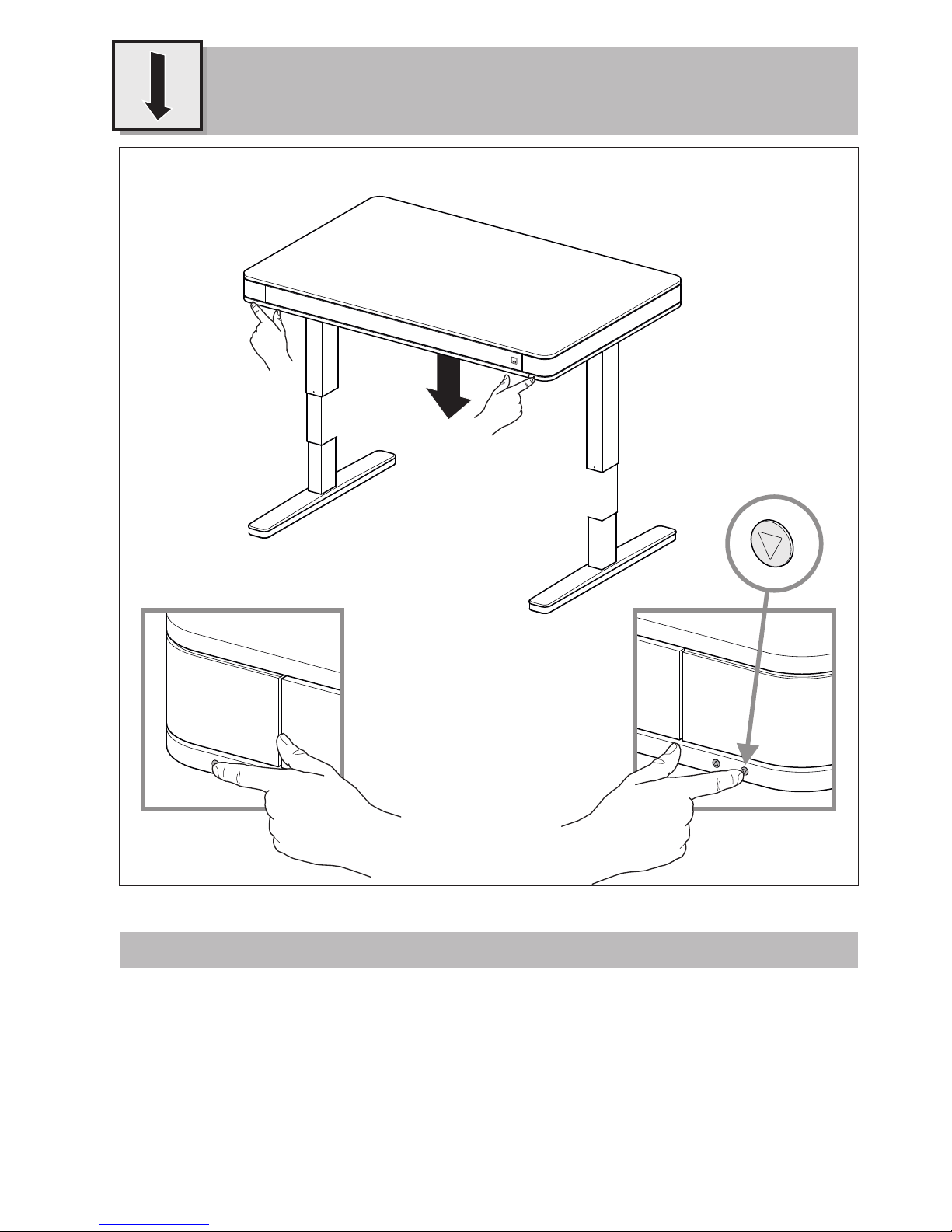

NoteDownward desktop movementMaximum operation time: 2 minutes of continuous operation, the controlunit is automatically disabled for the next 18 minutes!The operation duration is then automatically limited to this period. This prevents the table drive from overheating.NoteAs delivered, the desk's height adjustment requires two-hand operating forsafety reasons. The button on the left side of the table and the "UP" or"DOWN" button must be pressed simultaneously while the lock switch is in the"ON" position (see page 9). The two-hand operating can be switched offpermanently, this allows desk operation without actuating the left button(see page 12).

10Upward desktop movementWhen adjusting the table top height, please make sure that thetable movement will not get blocked (e.g. by window sills, chairarmrests, file cabinets etc.)and that no persons are located inthe hazardous area or will reach into it.11
NoteDownward desktop movementMaximum operation time: 2 minutes of continuous operation, the controlunit is automatically disabled for the next 18 minutes!The operation duration is then automatically limited to this period. This prevents the table drive from overheating.NoteAs delivered, the desk's height adjustment requires two-hand operating forsafety reasons. The button on the left side of the table and the "UP" or"DOWN" button must be pressed simultaneously while the lock switch is in the"ON" position (see page 9). The two-hand operating can be switched offpermanently, this allows desk operation without actuating the left button(see page 12).

12 13
N
Container-stop / Shelf-stop positionsContainer-stop andshelf-stop positionThese two functions can be used tolimit the range of movement of the sit-stand table (e.g. if a file cabinetis located under the sit-stand table).A container-stop position can be setonly in the lower half of themovement range, a shelf-stopposition only in the upper half ofthe movement range. If a containerstop position is set, it is used as thelower end position, while ashelf-stop position corresponds tothe upper end position of the movement range.To activate a container- or shelf-stop position, follow these steps:1. Move the sit-stand table to the position that you want to define as a new container- or shelf-stop position.2. Press the button on the left side and the UP and DOWN buttons simul- taneously for 10 seconds. The control unit confirms the successful activation with a double-click sound.To deactivate a container- or shelf-stop position, follow these steps:1. Move the sit-stand table to any position in the lower half of the movement range to deactivate the container-stop , or in the upper half of the movement range for the shelf-stop position.2. Press the button on the left side and the UP and DOWN buttons simul- taneously for 10 seconds. The control unit confirms the deactivation with a single click sound.Enabling single-hand operatingThe table can be permanently set to single-hand operating so it can beadjusted using the "UP" and "DOWN" keys without pressing the leftbutton. Please disconnect the mains plug from the socket beforechanging this setting! Remove the plastic cover on the right bottomside of the desk (4 screws, see picture) to get access to the toggleswitch.Reinstall the plastic cover and connect the desk to mains.Important safety noteThe two-hand operating is a safety feature of the desk! The conversion tosingle-handed operating is at the user's own responsibility!Toggle switch towards the front sideof the desk = Two-hand operatingToggle switch towards the back sideof the desk = Single-hand operating

12 13
N
Container-stop / Shelf-stop positionsContainer-stop andshelf-stop positionThese two functions can be used tolimit the range of movement of the sit-stand table (e.g. if a file cabinetis located under the sit-stand table).A container-stop position can be setonly in the lower half of themovement range, a shelf-stopposition only in the upper half ofthe movement range. If a containerstop position is set, it is used as thelower end position, while ashelf-stop position corresponds tothe upper end position of the movement range.To activate a container- or shelf-stop position, follow these steps:1. Move the sit-stand table to the position that you want to define as a new container- or shelf-stop position.2. Press the button on the left side and the UP and DOWN buttons simul- taneously for 10 seconds. The control unit confirms the successful activation with a double-click sound.To deactivate a container- or shelf-stop position, follow these steps:1. Move the sit-stand table to any position in the lower half of the movement range to deactivate the container-stop , or in the upper half of the movement range for the shelf-stop position.2. Press the button on the left side and the UP and DOWN buttons simul- taneously for 10 seconds. The control unit confirms the deactivation with a single click sound.Enabling single-hand operatingThe table can be permanently set to single-hand operating so it can beadjusted using the "UP" and "DOWN" keys without pressing the leftbutton. Please disconnect the mains plug from the socket beforechanging this setting! Remove the plastic cover on the right bottomside of the desk (4 screws, see picture) to get access to the toggleswitch.Reinstall the plastic cover and connect the desk to mains.Important safety noteThe two-hand operating is a safety feature of the desk! The conversion tosingle-handed operating is at the user's own responsibility!Toggle switch towards the front sideof the desk = Two-hand operatingToggle switch towards the back sideof the desk = Single-hand operating

14Opening the drawerpress the center of the drawer frontand the drawer openspress the center of the drawer front and closethe drawer until it engages with a clicking soundClosing the drawer15
Height adjustmentRecommended adjustmentsThe desktop height is infinitely adjustable from 56 cm to 118 cm(with height adapter from 66 cm to 128 cm - see page 20)127 cm135 cm143 cm151 cm159 cm167 cm175 cm183 cm191 cm~56 cm~59 cm~63 cm~66 cm~69 cm~72 cm~75 cm~79 cm~82 cm ~80 cm ~85 cm ~90 cm ~96 cm~102 cm~108 cm~113 cm~118 cm~124 cm10 cmsittingstanding±
cm
max. 6 kg

14Opening the drawerpress the center of the drawer frontand the drawer openspress the center of the drawer front and closethe drawer until it engages with a clicking soundClosing the drawer15
Height adjustmentRecommended adjustmentsThe desktop height is infinitely adjustable from 56 cm to 118 cm(with height adapter from 66 cm to 128 cm - see page 20)127 cm135 cm143 cm151 cm159 cm167 cm175 cm183 cm191 cm~56 cm~59 cm~63 cm~66 cm~69 cm~72 cm~75 cm~79 cm~82 cm ~80 cm ~85 cm ~90 cm ~96 cm~102 cm~108 cm~113 cm~118 cm~124 cm10 cmsittingstanding±
cm
max. 6 kg

16Please make sure that you plug in the connectors and power supplies so that they are not damaged and that no wires get pinched when the drawer is closed.17
Power-Managementwith integrated power outlets

16Please make sure that you plug in the connectors and power supplies so that they are not damaged and that no wires get pinched when the drawer is closed.17
Power-Managementwith integrated power outlets

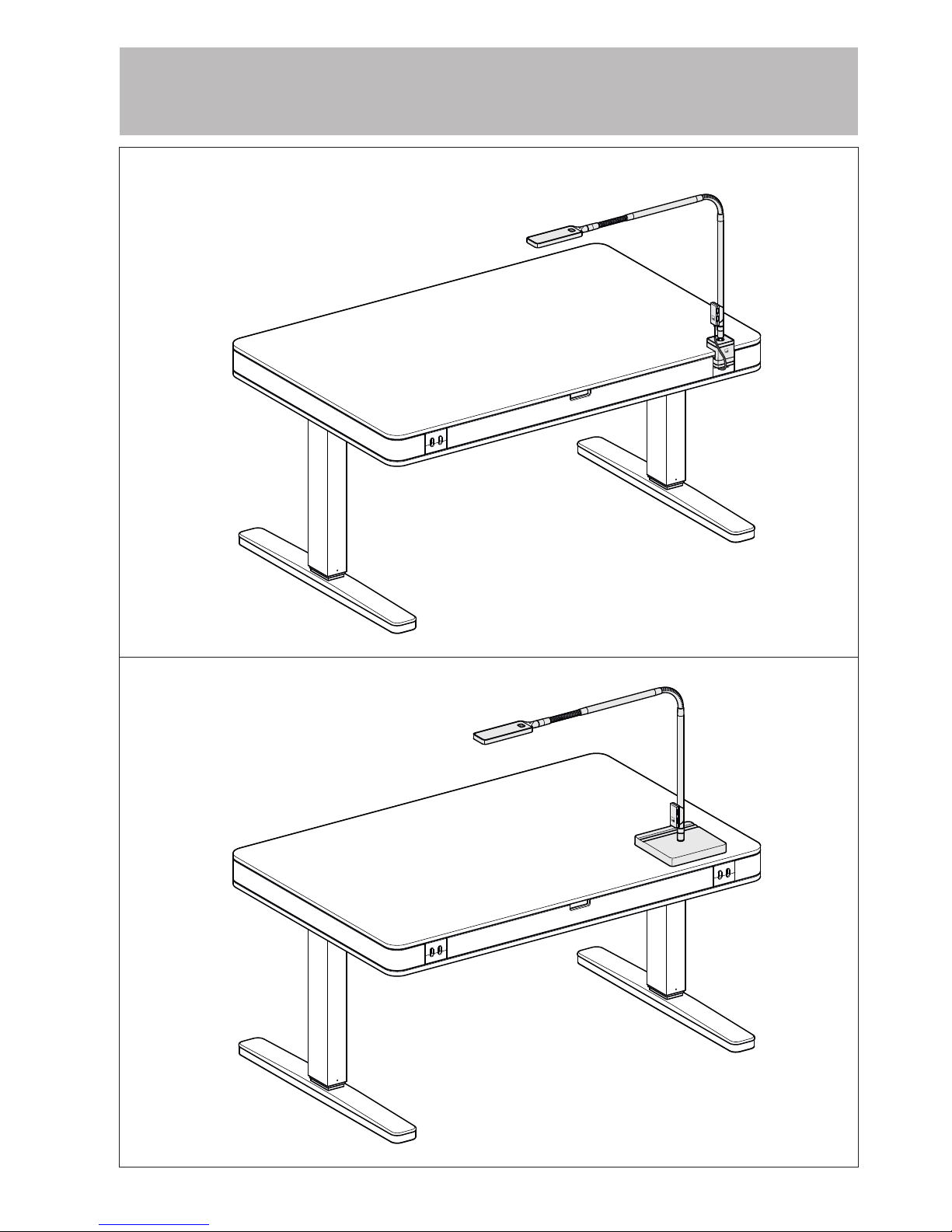

18 19AccessoriesFlexlightflexible LED desklightmoll L7flexible LED desklightCable feedthrough

18 19AccessoriesFlexlightflexible LED desklightmoll L7flexible LED desklightCable feedthrough

20AccessoriesHeight adaptor to increase the desktop height by 10 cm The desktop height with this adaptor is adjustable from 66 cm to 128 cm21FAQThe desktop height can not be adjusted:• Is the power cord correctly plugged into the desk and the power outlet?• Is the electrical power outlet working?• Has the maximum operation time been exceeded (see page 11)?Strange noises or smoke:• Immediately unplug the power cord and call for service!Slow upward movement:• The maximum lifting capacity is exceeded, reduce the weight.Desk stops during upward or downward movement before it has reachedthe end position:• Container-stop and / or shelf-stop function is active (see page 12).Desk stops during upward or downward movement and changes drivedirection:• The desk ran against an obstacle and the collision protection has been triggered. Eliminate the cause of the collision!Cleaning and care:We recommend a damp cloth and a mild household cleaner for regularcleaning of the table surface.Please do not use scouring agents or abrasive cleaners!2xQI Wireless ChargerThis table can be upgraded with a QI charger for wireless charging ofelectronic devices. Detailed information can be found on our website or canbe obtained from your dealer.
