Monitor M441 User manual

SAFETYALERTSYMBOL
Thesesymbolsappear as importantsafetyprecautions and should be understood
and followed bythe owner to assure safe operation ofthe heater.

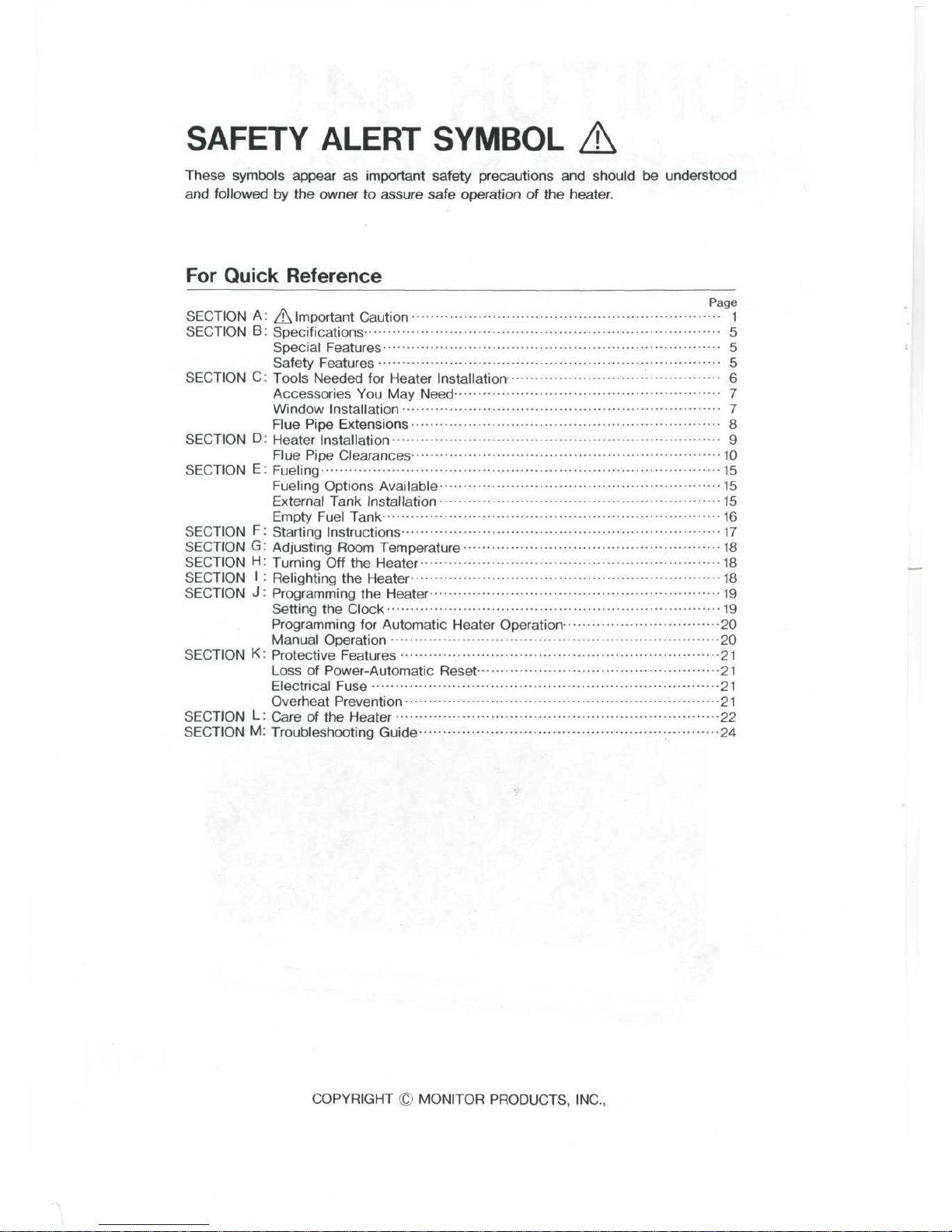

For QuickReference
Page
SECTION A: £±Important Caution 1
SECTION B: Specifications 5
SpecialFeatures 5
Safety Features • 5
SECTION C: ToolsNeeded for Heater Installation 6
Accessories YouMay Need 7
Window Installation 7
FluePipeExtensions 8
SECTION D: HeaterInstallation 9
FluePipeClearances 10
SECTION E: Fueling 15
Fueling OptionsAvailable 15
ExternalTank Installation 15
Empty FuelTank 16
SECTION F: StartingInstructions 17
SECTION G: AdjustingRoomTemperature 18
SECTION H: Turning Offthe Heater 18
SECTION I : Relighting the Heater 18
SECTION J : Programming the Heater 19
Setting the Clock 19
Programming for AutomaticHeaterOperation 20
ManualOperation 20
SECTION K: ProtectiveFeatures 21
Loss of Power-Automatic Reset 21
ElectricalFuse 21
Overheat Prevention 21
SECTION L: Care ofthe Heater 22
SECTION M: TroubleshootingGuide -. 24
COPYRIGHT © MONITOR PRODUCTS, INC.,

SECTION A
IMPORTANT CAUTION
AWARIMING
USE ONLYCRYSTALCLEARKEROSENE.NEVER
USE GASOLINE,WHITEGAS,CAMPFUEL OR
OTHER FLAMMABLELIQUIDS. USEOF SUCH
FUELS CAN RESULT INAN EXPLOSIVEFIRE AND
CAUSE SEVEREINJURY.
KEROSENE ONLY
GAS
ACAUTION
1. Makesurethatthere isno fuelleakagefromfueltank and fuelpipejoint.
2. Makesurethatfluepipe(exhaust pipe, air supplyhose) is connected
properly.

3. Keepheaterclean anddonot store any flammableitems onor near the
heater.
4. Don't usethe heater for drying clothes.
5. Shouldanythingabnormaloccur inthe heater,remaincalm,turn itoff(do
not unplug) and contact yourMonitordealer.
6. Risk of burns.
Fluepipe and louver may havehighsurface
temperature.

7. Donot placeyourself or others too close tothe heater.
8. Installation of heater in extremehumidity or dustareas isnot
recommended.
Any removal of unitparts or remodeling is strictlyforbidden.
9. Donotsitonthe heater.
Placingornaments or plants onthe heater isnot recommended.
Excess heat may causedamage to ornament or plant and overwatering
or spilling of water may causeshock toyouor damage tothe
heater.
10. In areas of heavysnowaccumulation,fluepipe may need tobe installedhigher to avoidbeingburied.
In openareaswithstrongwind, a windbreak maybe necessary to avoidexhaustgasesbeingblown
backinto the intake and causingpoorcombustion.
u_ 24"min
Long _^
Extension
kit
Must be higher.
Snow

11. Donot install nor exhaust the flue pipe into a crawlspace or underneath floor nor into a flue or chimney.
X
-Flue
or
Chimney
12. OPERATING ALTITUDESHIGHER LIMITS
This heater is designed tobe used no higher than 3000FT above sea level. Donot operate at altitudes
higherthan3000FTabove sea level.
13.0PERATING TEMPERATURE LIMITS
Please usethe Monitorwithin the range of temperatures indicated bythe shadedareashown onthe graph
below.
OperatingTemperatureLimits
-100 2040
InsideAreaTemperature(°F)
60
Point A
InsideAreaTemperature — 4°F
Outside Temperature — 22°F
Point B
InsideAreaTemperature60°F
Outside Temperature — 40°F

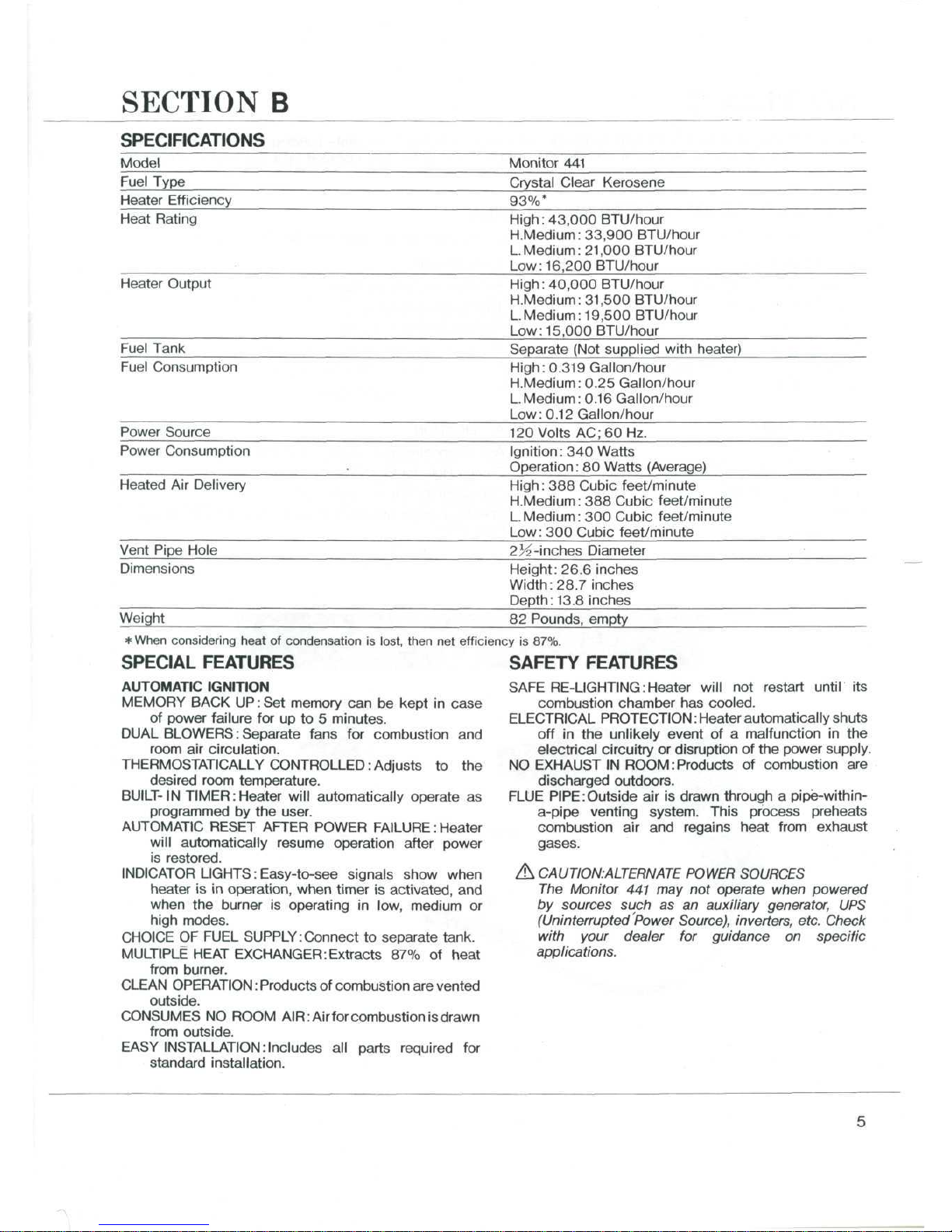

SECTION B
SPECIFICATIONS
Model Monitor 441
Fuel Type
Crystal Clear Kerosene
Heater Efficiency
93%*
Heat Rating
High: 43,000BTU/hour
H.Medium: 33,900 BTU/hour
LMedium: 21,000BTU/hour
Low: 16,200 BTU/hour
Heater Output
High: 40,000BTU/hour
H.Medium: 31,500 BTU/hour
L Medium: 19,500BTU/hour
Low: 15,OOP BTU/hour
Fuel TankSeparate(Notsuppliedwith
heater)
Fuel Consumption
High: 0.319Gallon/hour
H.Medium: 0.25Gallon/hour
L.Medium: 0.16Gallon/hour
Low: 0.12 Gallon/hour
Power Source
120 Volts AC; 60 Hz.
Power Consumption
Ignition: 340 Watts
Operation: 80 Watts (Average)
Heated Air Delivery
High: 388 Cubicfeet/minute
H.Medium: 388 Cubicfeet/minute
L.Medium: 300 Cubicfeet/minute
Low: 300 Cubicfeet/minute
Vent PipeHole
2/1>-inches Diameter
Dimensions
Height:26.6inches
Width: 28.7inches
Depth: 13.8inches
Weight
82 Pounds,empty
* When consideringheat of condensation is lost,then net efficiency is 87%.
SPECIAL FEATURES SAFETY FEATURES
AUTOMATIC IGNITION
MEMORY BACK UP: Set memory canbe kept in case
of power failure forupto5 minutes.
DUAL BLOWERS: Separatefans for combustion and
room air circulation.
THERMOSTATICALLY CONTROLLED: Adjusts tothe
desired roomtemperature.
BUILT-IN TIMER:Heater willautomaticallyoperate as
programmed bythe user.
AUTOMATIC RESETAFTERPOWER FAILURE: Heater
will automatically resumeoperationafterpower
is restored.
INDICATOR LIGHTS: Easy-to-see signalsshowwhen
heater isin operation, when timer is activated, and
when the burner is operating in low,medium or
highmodes.
CHOICE OF FUEL SUPPLY: Connect to separatetank.
MULTIPLE HEAT EXCHANGER:Extracts 87%of heat
from burner.
CLEAN OPERATION: Products of combustion are vented
outside.
CONSUMES NO ROOM AIR :Airfor combustion is drawn
from outside.
EASY INSTALLATION includes all partsrequired for
standard installation.
SAFE RE-LIGHTING:Heater will not restart until its
combustionchamber has cooled.
ELECTRICAL PROTECTION: Heaterautomaticallyshuts
off inthe unlikely event ofa malfunction inthe
electrical circuitry or disruption ofthe powersupply.
NO EXHAUST IN ROOM: Products of combustion are
dischargedoutdoors.
FLUE PIPE:Outside airis drawnthrough a pipe-within-
a-pipe ventingsystem.Thisprocesspreheats
combustion airand regainsheatfrom exhaust
gases.
A CAUTION:ALTERNATE POWER SOURCES
The Monitor 441 may not operate when powered
by sources such as an auxiliary generator, UPS
(Uninterrupted'Power Source), inverters, etc. Check
with your dealer for guidance on specific
applications.

SECTION C
Before installing your heater, be sure to check and complywithlocal and statebuilding and electricalcodes
that may apply to ventedheaters in your area.Permanent wiring must be installed bya licensedelectrician.
TOOLS NEEDED FOR HEATERINSTALLATION
Check the followingcharts tobe sure you have allthe toolsrequired to install yourMonitor 441 HeatingSystem.
STANDARD TOOLS APPLICATION
Phillips Head Screwdriver Installation of HeaterParts
Steel TapeMeasure
Taking Measurements
Pen or PencilMarkingDrilling Location
Exterior Caulk Caulking Between Packing and Wall
Yardstick or LongStraightEdgeCheckingAngle of Hole for FluePipe
Soapy WaterLubricatingSleeveHardware
SPECIAL TOOLS
APPLICATION
Electric DrillAccommodatingHole Sawand Drill Bit
inchHole Saw AttachmentCuttingHole
for FluePipe
Long % inch Drill Bit
Drilling PilotHoleThroughWall
Level
CheckingAngle of Hole for FluePipe andfor checking
heaterlevel.
Fig. 1
6

ACCESSORIES YOUMAY NEED
Check the list below andsee your MPI dealer for accessories youmay need or want for installation of your heating
system.
ACCESSORY
APPLICATION
MediumFluePipe P/N 8206
For use wherewallthickness isupto \41A inches
LongFluePipe P/N 8005
For use wherewallthickness isupto20 inches
ElectricLifterPump P/N 1101
For use with largecapacity tank wheregravityfeed isnot
practical
Window Installation KitP/N 8208,8209,8001
(See WindowInstallationbelow)
For use where "through-the window"fluepipeinstallation
is desired
Extra Short,Short,Medium or
Long Extension Kitor ElbowAdapter Kit
(See FluePipeExtensions,page 8)
For use where"standard"installation isnot practical
Fitting and Tank
For largecapacity fueling: Tobe dealerinstalled
WINDOWINSTALLATION
Theuseof "through-the-window" installation for your
flue pipewillrequire a windowinstallation kitandone
of the4 (extrashort,short,medium or long)extension
kits.
In order to determinewhichextension kitis required,
measure the distancefrom the floor totheTOPof
your window sill (seeFigure 2)and refer tothe chart
below.
IF THE MEASUREMENT IS:
Fig. 2
YOU NEED
20% to25 inches
Extra ShortExtension KitP/N 8212
25 to33% inches
Short Extension Kit
P/N 8204
33%to 511A inchesMediumExtension
Kit
P/N 8203
511A to86M inchesLongExtension Kit
P/N 8202
ElbowAdapter Kit
P/N 8213
NOTE: Window kit installation is prohibited when the window is required to meet the local building code requirements
for ventilation, emergency escape, or rescue.
One or more Elbow Adapter Kit may be needed if heater is installed on inside wall.

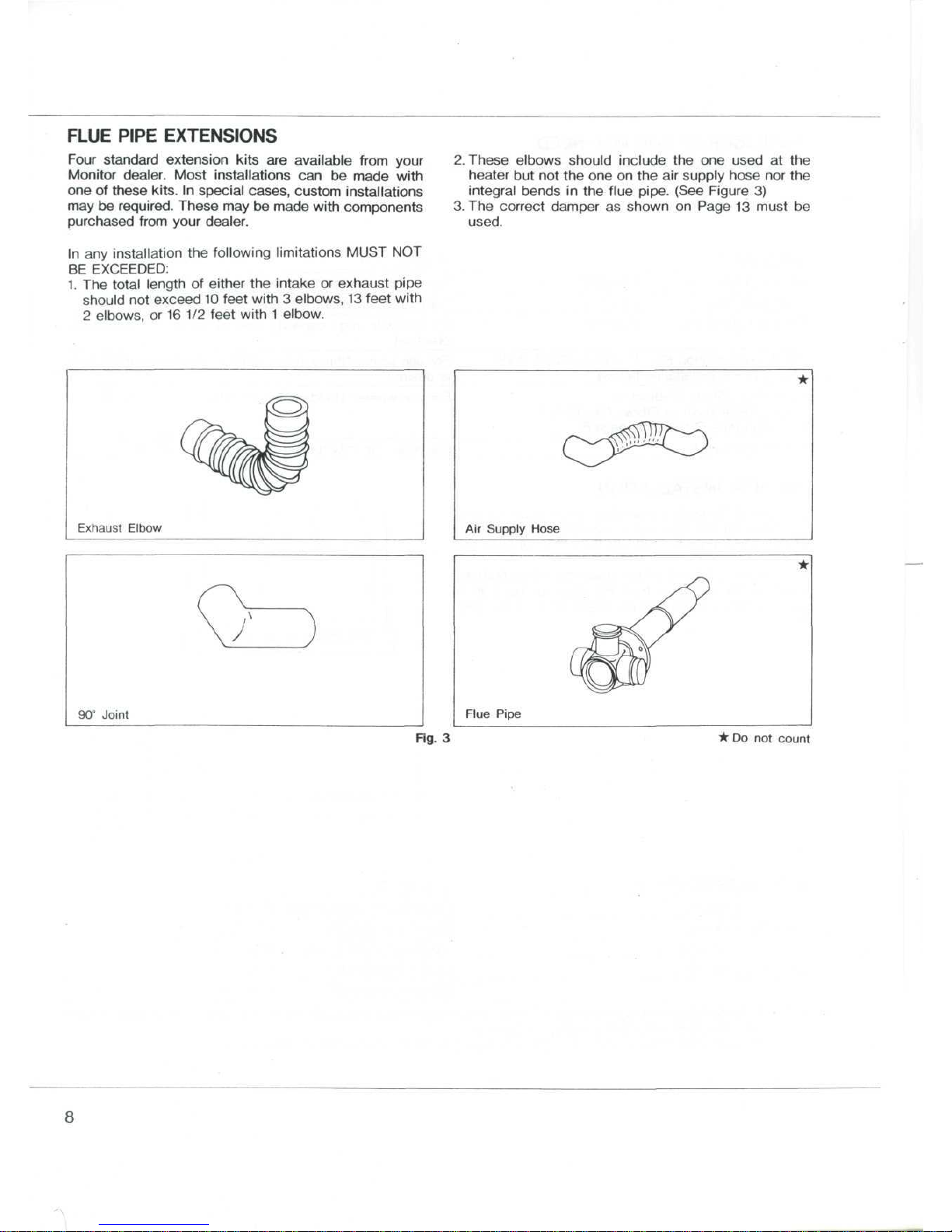

FLUEPIPEEXTENSIONS
Four standardextension kits are available fromyour
Monitordealer.Most installations canbe madewith
one of these kits. In specialcases,custom installations
may be required.These maybe madewithcomponents
purchasedfromyourdealer.
In any installation the followinglimitationsMUST NOT
BE EXCEEDED:
1. The totallength of either the intake or exhaustpipe
should not exceed 10 feet with 3 elbows, 13 feetwith
2 elbows, or161/2 feetwith 1 elbow.
2. Theseelbowsshould include theone used atthe
heater butnottheoneontheair supplyhose northe
integralbends inthe fluepipe.(SeeFigure 3)
3. The correctdamper as shown on Page 13 must be
used.
Exhaust Elbow
Air SupplyHose
90' Joint
Flue Pipe
Rg. 3
Do not count
8

SECTION D
HEATER INSTALLATION
Step 1: Fill Out Owner Registration Card
Remove yourownerregistrationcard from the plastic
envelope containing the owner'sguide. It should be
filled outand mailed as soon as possible.
Step 2: Check for Parts
Before discardingpackingmaterials, be sure you have
located the following:
Flue Pipe
Sleeve Nut
SpillTray
Room Temp.Sensor(attached tothe rear ofthe
heater)
Cardboard Template
"STANDARD" Damper
"EXTENSION" Damper
Wall Clamps (2)
Rubber Packing
JointPipe
ClothInsulationCover
Outer Flange
Pipe Holder
Small Bagof Screws
Tapping,Type A —
Tapping,Type A—
For securing
sleeve and
wall clamps
For securing
wall clamps
SIZE
Tapping
Tapping
Fig. 4
Step 3: Choose a Location for Your Heater
In choosing a location for yourheater, the following
guidelinesmust be considered:
• The heater MAY be installed on combustiblefloors.
• The areaaround the heatershould be free of
obstaclesthatmightinterferewith the freeflow of
air.Allow the clearancesshown in Figure 5.
5'A
10"
Fig. 5
• The heatermust notbe installed ina fireplace.
• An AC wall outlet must be withinreach ofthe
heater'spowercord.Extensioncordsmust notbe
used.
•The areaoutsidewhere the fluepipewillemerge
should be free of foliage,fuelstoragetanks and
flammableobjects. Air shouldcirculatefreely in
the area.Allow the clearancesshown in Figure 6on
the nextpage.
•The wallwherefluepipeholewill becut should be
free of plumbingpipes,electricalwires,studs, air
ducts and otherobstacles.
NOTE:Use the cardboard template provided with your
heater for flue pipe location.

FLUEPIPECLEARANCES
Flue pipeinstallationsshouldprovide for venting toan unconfinedspacethroughwhichthere isa freeflow of
outdoor air.Clearances to adjacentwalls or obstaclesmustcomplywith the requirementsshownbelow.
Frontal Clearance
Cnmhustible "|||m"
m
ACAUTION:
2,
Do not attach anythingonto the outlet or
of the fluepipe.
t
t" (60cm)
more
5K' _U
(13.5cm)
Body-
Clamp
~s=r
t fa
Heater
4
« —
—
-Wall
Any construction f
aboveFluePipe ]
5%" must not come _. \
(14 within 24" (60cm)
cm) of front obstacle
-or 4 24" (60cm) > |
more or more 1 FrontObstacle
£T (20cm)
or more
1 \
Ground or slab surface
Overhead Clearance
Combustible -••
m""|!i1
" "'|m
24" (£
or m
Body
Clam
Heate
iOct
ore
5
_d
1
n)
|f- _4_
3.5cm)
•4-
1
]
Non-combustible
~
Wa"
Combustible
liillliililiiiHiliiiii|i iiiiiiiiiiiiiiimiiitillllllllliiiilnnl
/ J^ 24' (60cm)
•dr or more
45° "^
T
•-^/ 12" (30cm)
f or more
~ FluePipe
Ground or slab surface
Side Clearance Body
Clamp
— L\_I
Heater-
y
--*-
Side obstacle
18" (45cm)
or more
fj=- -V .
FluePipe
— Wall
IMPORTANT:
(1) In areas of heavy snow falls, ground surface clearance
must be increased according to average snow falls, to
prevent flue pipe from being buried.
(2) In open area with strong wind, a wind break may be
necessary.
i«- 24"min -H
Long
Extension
kit
"T
Must be higher.
Snow
Fig. 6
10

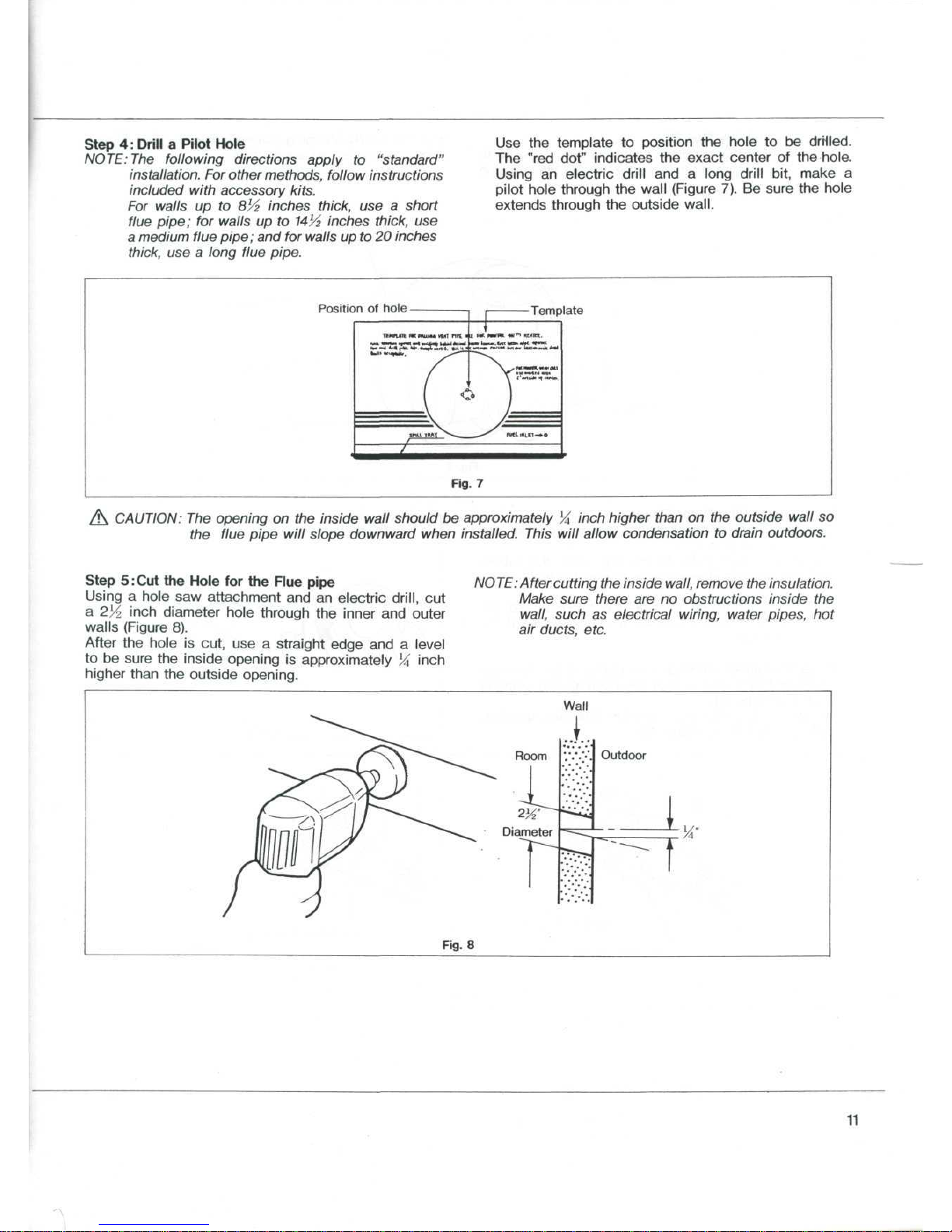

Step 4: Drill a PilotHole
NOTE: The following directions apply to "standard"
installation. For other methods, follow instructions
included with accessory kits.
For walls up to 8% inches thick, use a short
flue pipe; for walls up to 141/2 inches thick, use
a medium flue pipe; and for walls up to 20 inches
thick, use a long flue pipe.
Use the template to position the hole tobe drilled.
The "reddot" indicates the exact center ofthe hole.
Using an electric drill anda long drill bit, make a
pilot hole through the wall (Figure 7).Be sure the hole
extends through the outside wall.
Position of hole
Template
Fig. 7
CAUTION: The opening on the inside wall should be approximately % inch higher than on the outside wall so
the flue pipe will slope downward when installed. This will allow condensation to drain outdoors.
Step 5: Cutthe Hole forthe Flue pipe
Using a hole saw attachment andan electric drill, cut
a 2l/z inch diameter hole through the inner and outer
walls (Figure 8).
After the hole is cut, usea straight edge anda level
tobe sure the inside opening is approximately % inch
higher than the outside opening.
NOTE: After cutting the inside wall,remove the insulation.
Make sure there are no obstructions inside the
wall, such as electrical wiring, water pipes, hot
air ducts, etc.
Wall
Fig. 8
11

Step 6: Install the FluePipe
From INSIDE the building,insert the fluepipe(with
arrow pointing"up")into the hole.Fasten the fluepipe
NOTE: Top center port is an extra exhaust port.
with the3 # SxKtapping screws(Figure 9). (SeeFigure
4for screwsize and application.)
tappingscrew
Fig. 9
Step 7: Install the Outer Flange
Apply caulkingmaterial tothe insideridge ofthe
rubber packing (Figure 10).
Holding the "Up"mark tothe top, slide the rubber
packingonto the sleeve(caulkside tothe wall).
NOTE: If it is difficult to slide the packing onto the
sleeve, apply soapy water to the inside of the
packing.
Once the rubberpacking isin place, slide the outer
flange onto the sleevewith the conical side pointing
outward (Figure 11).
Screw the fluepipe nut onto the fluepipegrooves,
and tighten it firmly (Figure11).
Fig. 10
Rubber Packing
Outer FlangeFluePipeNut.
Fig. 11
12

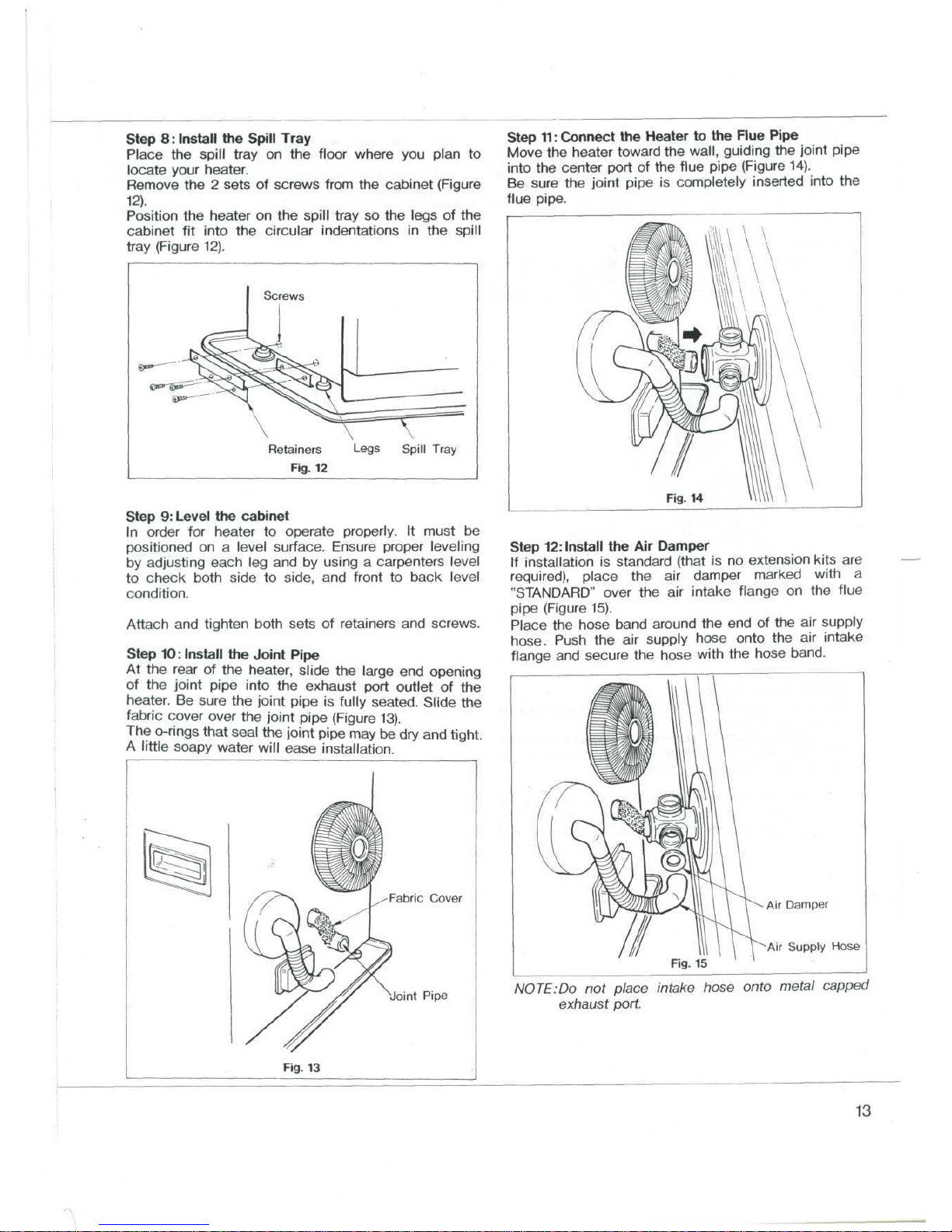

Step 8: Install the Spill Tray
Place the spill tray onthe floorwhere you plan to
locate your neater.
Remove the2 sets of screwsfrom the cabinet(Figure
12).
Position the heater onthe spilltray sothe legs ofthe
cabinet fit into the circularindentations inthe spill
tray (Figure12).
Screws
Retainers
Fig. 12
Legs Spill Tray
Step 9: Level the cabinet
In order for heater to operateproperly. It must be
positioned ona levelsurface.Ensureproperleveling
by adjustingeach legandby using a carpenterslevel
to checkbothside to side, and front to backlevel
condition.
Attach and tightenbothsets of retainers and screws.
Step 10: Install the Joint Pipe
At the rear ofthe heater, slide the large end opening
of the jointpipeinto the exhaustport outlet ofthe
heater. Be sure the joint pipe is fully seated. Slide the
fabriccoverover the jointpipe(Figure13).
The o-rings that seal the joint pipe maybedryand tight.
A little soapywaterwillease installation.
FabricCover
Joint Pipe
Fig. 13
Step 11: Connect the Heater tothe FluePipe
Move the heatertoward the wall,guiding the jointpipe
into the centerport ofthe fluepipe(Figure14).
Be sure the jointpipe is completelyinsertedinto the
fluepipe.
Step 12: Install theAir Damper
If installation is standard(that isno extensionkits are
required), place theair dampermarkedwith a
"STANDARD" over theair intakeflange onthe flue
pipe(Figure15).
Place the hosebandaround theendoftheair supply
hose. Push theair supplyhoseonto theair intake
flange and secure the hosewith the hoseband.
NOTE:Do not place intake hose onto metal capped
exhaust port.
13

NOTE:
The "STANDARD" damper is to be used with
extension kits up to a total overall length of 20
inches and a maximum of 3 bends (90° elbow).
The "EXTENSION" damper must be used when
extension kit or kits exceed 20 inches.
Step 13: Install the Flue Pipe Holder
Place the ring ofthe fluepipeholderaround the flue
pipe. The otherside ofthe holderhooks ina slot
directlyabove the jointpipe atthe rear ofthe heater
(See Figure16).
Step 15: Recheck the Heater
Before proceeding,checkagain tobe surethere are
no flammablematerialsclose tothe heater.Check to
be sure the heater is level.
Examine the fluepipe tobe sureconnections are tight.
Flue Pipe Holder
Fig. 16
Step 14: Secure the Heater
Insert the narrowends ofthe2 wallclampsintosockets
on the rear ofthe heater.
Loosen the adjustmentscrews and extend the clamps
until theytouch the wall.Fasten the clamps tothe
wallwith 2 #8x% tappingscrews.
NOTE: If use of wall clamps is not feasible or
practical, the heater should be secured by
screws to floor through punched holes in spill
tray.
14

SECTION E
FUELING
WARNING: Use only crystal clearkerosene. Never use gasoline, white gas,camp fuel or other flammable
liquids. Useof such Fuels can result inan explosive fire and cause severe injury.
FUELINGOPTIONS AVAILABLE
Fueling of yourMonitor 441 HeatingSystem canbe
accomplished inoneof2 ways:
1. Gravity Fed LargeCapacityExternalTank:
Practical for large heating needswhere bulk delivery
of kerosene is available.Thissystemshould be
installed bya qualifiedplumber or fuelsupply
technician.
2. LargeCapacityExternalTank with Pump:
For largeheatingneedswhere a gravity fed system
is not practical. An electriclifterpump,especially
designed foruse with your Monitor 441 heating
system, is availablefromyourdealer.
When using a gravity fed tank or pumpingsystem to
supply fuel, the inletpressure tothe heatermust not
exceed 2.5 psi.
EXTERNAL TANK INSTALLATION- Gravity Fed
NOTE:External tank installations must comply with the
National Fire Protection Association code NFPA
31 or locally applicable codes, such as the 1979
Uniform Mechanical Code No. 5-1, that are
consistent with NFPA 31. Check with your local
building official.
To install a largecapacity,gravity fed external tank,
follow the instructionsbelow, and refer to Figure 17for
one possible installation. Useofa qualifiedinstaller is
recommended.
• Installation height ofthe bottom ofthe fueltank
should be16 inches or moreabove the floorsurface
on which the heaterstands.Thisensuresthat inlet
fuelpressurewill be sufficient.
• The topofthe fuel tank should beno higher than
Ql/z feetabove the floorunder the heater.Heights
above 81A feetwillexceed the2.5psi inletlimit,
anda pressurereducerwill need tobe installed at
or near the unit.
• The horizontallength of pipingshould not exceed
100 feet and should be free of sharpbends or
obstructions.
• Pipingshouldinclude no inverse U-type bends (to
avoid air locks,whichcouldblock the fuelsupply).
• Only % inch OD coppertubingshould be used. The
tubingshould be bentcarefully to avoidcrimping.
•A fuelfilter is recommended foruseonthe fuel line
near the tank, anda shut-offvalveshould be
installed atthe tank.
•A flareadaptor canbe used to make a flaredtubing
connectionbetween the unit andthe filter atthe
tank.
• The fueltankshould be located no closerthan 3
feet toa source of heat.
• The fueltankshouldhave an opening for filling on
thetopand vent with a weather-proof caponthe
side. On sometanks the vent and fill spout usethe
sameopening.
When using a gravity fed tank to supplyfuel, the inlet
pressure tothe heatermust not exceed 2.5 psi.
The Monitor 441 comesequipped with a %" pipe
thread connection. A straight, or90 degree pipe-to-
flare fitting ora firomaticvalve canbe used forthe
fuel line connection. Ifa firomaticvalve is beingused:
Valve Position-Open/Close
Turncounterclockwise to open,clockwise to close. If
threadedvalvestem is sticking up about ^", valve is
open. If handle screws off stem,valve is closed.
15

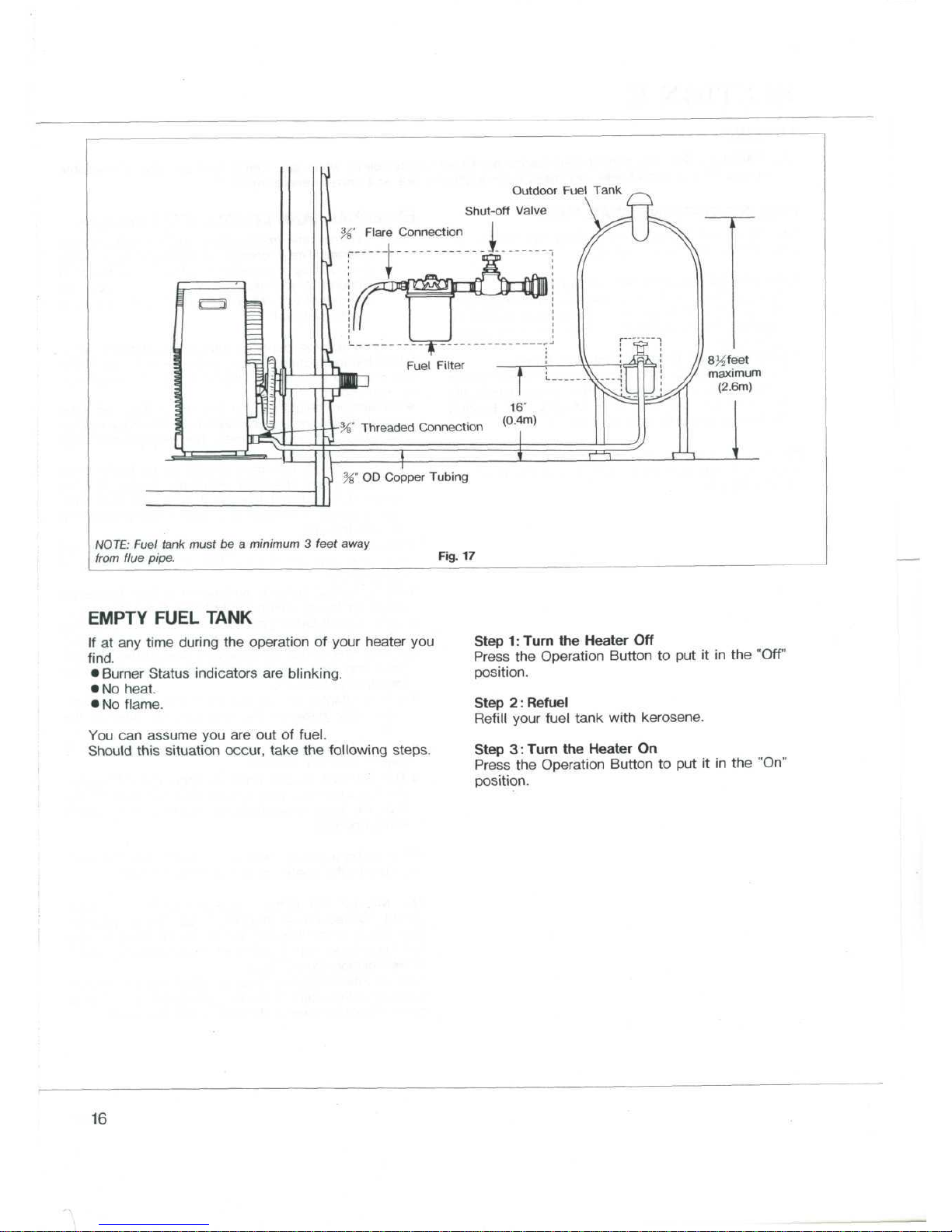

OutdoorFuel Tank
Shut-off Valve
16"
t-%" Threaded Connection
(QA"^
I1 .
—
— ->
\ \ ^ '
— "
r_
31
OD CopperTubing
NOTE: Fuel tank must be a minimum 3 feet away
from flue pipe.
maximum
(2.6m)
Fig. 17
EMPTY FUEL TANK
If atany timeduring the operation of your heater you
find.
• Burner Statusindicators are blinking.
• No heat.
• No flame.
You can assume youareoutof fuel.
Should this situation occur, take the followingsteps.
Step 1: Turn the Heater Off
Press the OperationButton toputitinthe "Off"
position.
Step 2: Refuel
Refillyour fuel tank with kerosene.
Step 3: Turn the Heater On
Press the OperationButton toputitinthe "On"
position.
16

SECTION F
STARTINGINSTRUCTIONS
Step 1: Plug inthe Heater
Plug intheAC cord, and route it awayfrom the area
of the fluepipe. Itis recommended that no other
applianceshare the sameoutlet.
Step 2: Prime the Heater
If using the heater forthe firsttime, orifthe heater
has not been in operation for sometime,press the fuel
set lever atthe lowerrighthandside ofthe cabinet
and release it slowly 2 or3 times(Figure18).
/!\ CAUTION: Donot continuepressing lever repeat-
edly as this may causeoverfilling of constant
level valveinside.
NOTE:After a power outage, there is a three-minute
waiting period before the unit restarts, provided
the ON/OFF switch is in the "ON"position.
Step 3: Set "ON" Button
Depress the operationbutton toputitinthe "ON"
position. The "OperationLamp"lights indicating "Set
Room Temperature" and "present roomi temperature".
Burner statuslampswilllight and ignitionwillstart
after approximatelythreeminutes. In5 to10 minutes
the circulation fan willstart to operate, and warm air
will be feltcomingthrough the cabinetgrill.
Fuel Set Lever
Fig. 18
RUN
AUTO
ECONOMY
PLUS
BURNER STATUS
SET
ROOM
TEMP
AM
PM
i- n - c Q
/ i_i - /_/ o
OPERATION TIMERSELECTORTIME/TEMP SET
CLOCK
ON/OFF AUTO ECONOMY
SFT 1st 2nd
3rd4th
PLUS — -_. Jill iii _ TIME! I HOUR MINUTE SET CLEAR
CD i—i CDCDCDCD
TEMP [ | UP DOWN
Fig. 19
17

SECTION G
ADJUSTING ROOMTEMPERATURE
Pressing either the "Up" or "Down"buttonwillincrease
or decrease theset temperature by2 degreeincrements.
Oncedesired temperature is displayed, press set
button to lockintomemory.
The lights onthe controlpanelwill indicate the level
of heateroperation — low,medium or high. The heater
will automaticallychange its heatoutputuntil the
desired room temperature is reached.While it cycles,
you may hear the circulation fan change speed.
Depending onthe outputrequired to maintain the
desired roomtemperature, the indicator lights will
illuminate inthe following pattern:
BURNER MODE
LIGHT PATTERN
High
8 indicators —On
H.Medium
6 indicators —On
L Medium
4 indicators — On
Low
2 indicators — On
Off
*No lights on
« The heaterwillshut itself off temporarilywhen the desired room temperature has beenreached and restartautomaticallywhen
necessary to maintain room temperature.
NOTE: The heater may display room temperature 4 degrees above set temperature, depending on heater load
conditions, before shutting itself off.
INSTRUCTIONS FOR ECONOMYPLUSMODE
To engage the economyplusmode,simplypressdown the buttonlabeled"EconomyPlus", to disengagepress
again.
NOTE:Operation switch must be "ON" and in manual mode.
This featureminimizes the "ON" and "OFF"cycling ofthe unit by allowing itto overshoot theset temperature by
12 degreesinstead ofthe normal 4 degrees.
The advantages of thisfeature areto increase the overallefficiency ofthe unit by:
1. Decreasingelectricalconsumption by decreasing the frequency of ignitioncycles.
2. Reducingheatlossduring the prepurge and postpurgecycles.
3. Reducinginefficientcombustionassociatedwithstart upand shutdown.
4. Prolongingcomponentlife by decreasingexpansion and contraction of internalparts.
NOTE: This feature could be compared to driving an automobile in stop and go traffic (regular mode) versus
highway driving with cruise control engaged (Economy Plus mode).
SECTION H
TURNING OFFTHE HEATER
To turn offthe heater, press the OperationButton to
putitinthe "Off"position(Figure19). The operation
lightwill go out, andthe fuelflowwill stop.
After turningheater offthe fanswillcontinue torun
until unit has cooleddown tothe pointwhere the
fans will automaticallystop.
SECTION I
REUGHTING THE HEATER
Automaticcontrolspreventyourheater from relighting
after the OperationButton has been setto "Off" until
heater has cooled.
If the OperationButton isputinthe "On"position
during the coolingperiod, the heaterwill automatically
relight attheendofthe period.
18
