Monte Carlo Fan Company 3RULSM52 D Series Instruction manual

Total fan weight with light
DATE OF PURCHASE:
MODEL NUMBER:
RETAILER NAME:
RETAILER ADDRESS:
Attach sales receipt to this card and retain as yourproof of purchase
To register your fixture, please visit our website www.montecarlofans.com
3RULSM52XXXD Series Fan
cETL Model NO. : 3RULSM52XXD
6.35 kg
14 lbs
Owner’s Guide and Installation Manual

2
© 2022 Monte Carlo Fan Collections 2/2022
Customer Service
800-969-3347
Customer Service Center
7400 Linder Ave.
Skokie, IL 60077
www.montecarlofans.com
Cautions and Warnings
Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including
fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side
of the outlet box and ungrounded conductor on the other side of the outlet box. The splices, after being made, should be turned upward and pushed
carefully up into the outlet box.
WARNING: Before you begin installing, servicing or cleaning the fan unit, switch the power off at the service panel and lock the service panel to prevent
the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally,
securely fasten a warning sign to the service panel.
Be cautious! Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the floor
to the trailing edge of the blade.
WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked “Acceptable for Fan Support of 15.9 kg (35 lbs) or
less” and use mounting screws provided with the outlet box.
CAUTION: Comply with local codes and regulations. If installing the secondary support safety cable in the U.S., do not remove knockouts in the outlet
box. Mount the secondary support safety cable through the reserved nail/screw hole on the outlet box to the building structure or the ceiling joist.
WARNING: To reduce the risk of personal injury, do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert
foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. JY1126O manufactured by Satellite
Electronic (Zhongshan) Ltd.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any other solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
Never place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating equipment
manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the light kit.
CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the
product should be returned to an authorized service facility for examination or repair.
All set screws must be checked and tightened where necessary before installation.
Note: Suitable for use in damp locations. Install the fan under covered or enclosed patios or porches.
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Stepladder and Wire Strippers
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, FOLLOW THESE INSTRUCTIONS.

3
1 2 3
4 5 6
© 2022 Monte Carlo Fan Collections 2/2022
ON
OFF
ON
OFF
Before you begin installing the fan, Switch
power off at Service panel and lock
service disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be locked,
securely fasten a warning device, such
as a tag, to the service panel.
Use AC 120V/60HZ power supply
only.
Before installing this fan make sure the
outlet box is properly installed to the
house structure. To reduce the risk of
fire, electric shock, or personal injury,
mount to outlet box or supporting system
acceptable for fan support.
(Mounting must support at least 35 lbs.)
Install the mounting bracket onto the
outlet box.
Partially loosen the two screws on the
outlet box, attach the mounting bracket
onto the outlet box by sliding it over the
two screws as shown in the illustration.
Have the mounting bracket in position
and tighten the set screws.
Partially loosen downrod set screws from
yoke at top of motor assembly.
Remove preassembled keeper pin and
cross pin from downrod. Keep parts
Place downrod over canopy, canopy
bottom cap and yoke cover. Thread lead
wires and safety cable from motor
assembly through downrod.
Downrod
Cross pin
Keeper pin
Mounting bracket
Canopy
Use metal outlet box suitable for fan
support and use only the screws provided
with the outlet box (must support 35
lbs). Before attaching fan to outlet box,
ensure the outlet box is securely fastened
by at least two points to a structural
ceiling member ( a loose box will cause
the fan to wobble).
Yoke
Yoke cover
Downrod
Canopy bottom cap

4
7 8
10
9
© 2022 Monte Carlo Fan Collections 2/2022
Slip downrod into motor housing yoke,
aligning holes and install cross pin and
keeper pin.
Insert cross pin through yoke and downrod
until point appears on the other side, and
insert keeper pin on cross pin.
Pull the downrod up tight against the
cross pin, and then evenly tighten the
downrod set screws on motor housing
yoke.
Place yoke cover on top housing of fan.
Warning: Cross pin and keeper pin must
be installed securely, failure to install them
will result in serious injury.
Install ball end of downrod into mounting
bracket opening. Align (engage) slot on
ball with tab on mounting bracket.
Warning: Failure to align slot on ball with
tab may result in serious injury.
Important: If using the angle mount,
make sure open end of mounting bracket
is installed facing the higher point of the
ceiling and make sure the ceiling angle is
not steeper than 20º. Longer downrod
may be necessary allowing the fan blades
to rotate without obstructions.
Safety cable must be installed into the
house structure using 3” lag screws,
washers, and lock washers provided,
required for outdoor applications and in
Canada (All fans installed in Canada), and
for USA fan and light kit combinations
over 35lbs.
Make sure that when the safety cable is
fully extended the lead wires are longer
than the cable and no stress is placed on
the lead wires.
Note: If Installing The Secondary Support
Safety Cable in the U.S., Do Not Remove
Knockouts In The Outlet Box.
Make wiring connections using wire connectors provided as indicated above.
Brown wire from fan to Brown wire from receiver marked Motor U.
Gray wire from fan to Gray wire from receiver marked Motor V.
Orange wire from fan to Orange wire from receiver marked Motor W.
White wire from fan marked “For light” to White wire from receiver marked “For light”.
Blue wire from fan marked “For light” to Blue wire from receiver marked “For light”.
White (Neutral) wire from house to White wire from remote marked AC IN N.
Black (Live) wire from house to Black wire from remote marked AC IN L.
Connect all green grounded wires to Grounded wire from House.
Make sure that no filaments are outside of the wire connectors.
Insert the remote receiver into mounting bracket.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on the other side of the outlet box. The splices after being made should be turned upward and
pushed carefully up into the outlet box.
Place the wi-fi antenna outside canopy and stick/fix it onto ceiling.
Caution: The installation has to be complete before operate the fan. Receiver has to be used on the fan and cannot be bypassed.
SAFETY CABLE INSTALLATION
Lag screw
Safety cable
Washer
Lock washer
Cross pin
Keeper pin
Tab
Slot
Wi-Fi antenna
Canopy
Power source
White
White
White
Ground/Green
Blue
Orange
Brown Grey
Receiver
Black
Black
Wall Swich
Receiver
Antenna of receiver
Note : For better performance of the remote
operation, keep the WIFI antenna apart from
the antenna of the receiver.

5
11 12 13
14 15 16
© 2022 Monte Carlo Fan Collections 2/2022
Make wiring connections using wire connectors provided as indicated above.
Brown wire from fan to Brown wire from receiver marked Motor U.
Gray wire from fan to Gray wire from receiver marked Motor V.
Orange wire from fan to Orange wire from receiver marked Motor W.
White wire from fan marked “For light” to White wire from receiver marked “For light”.
Blue wire from fan marked “For light” to Blue wire from receiver marked “For light”.
White (Neutral) wire from house to White wire from remote marked AC IN N.
Black (Live) wire from house to Black wire from remote marked AC IN L.
Connect all green grounded wires to Grounded wire from House.
Make sure that no filaments are outside of the wire connectors.
Insert the remote receiver into mounting bracket.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on the other side of the outlet box. The splices after being made should be turned upward and
pushed carefully up into the outlet box.
Place the wi-fi antenna outside canopy and stick/fix it onto ceiling.
Caution: The installation has to be complete before operate the fan. Receiver has to be used on the fan and cannot be bypassed.

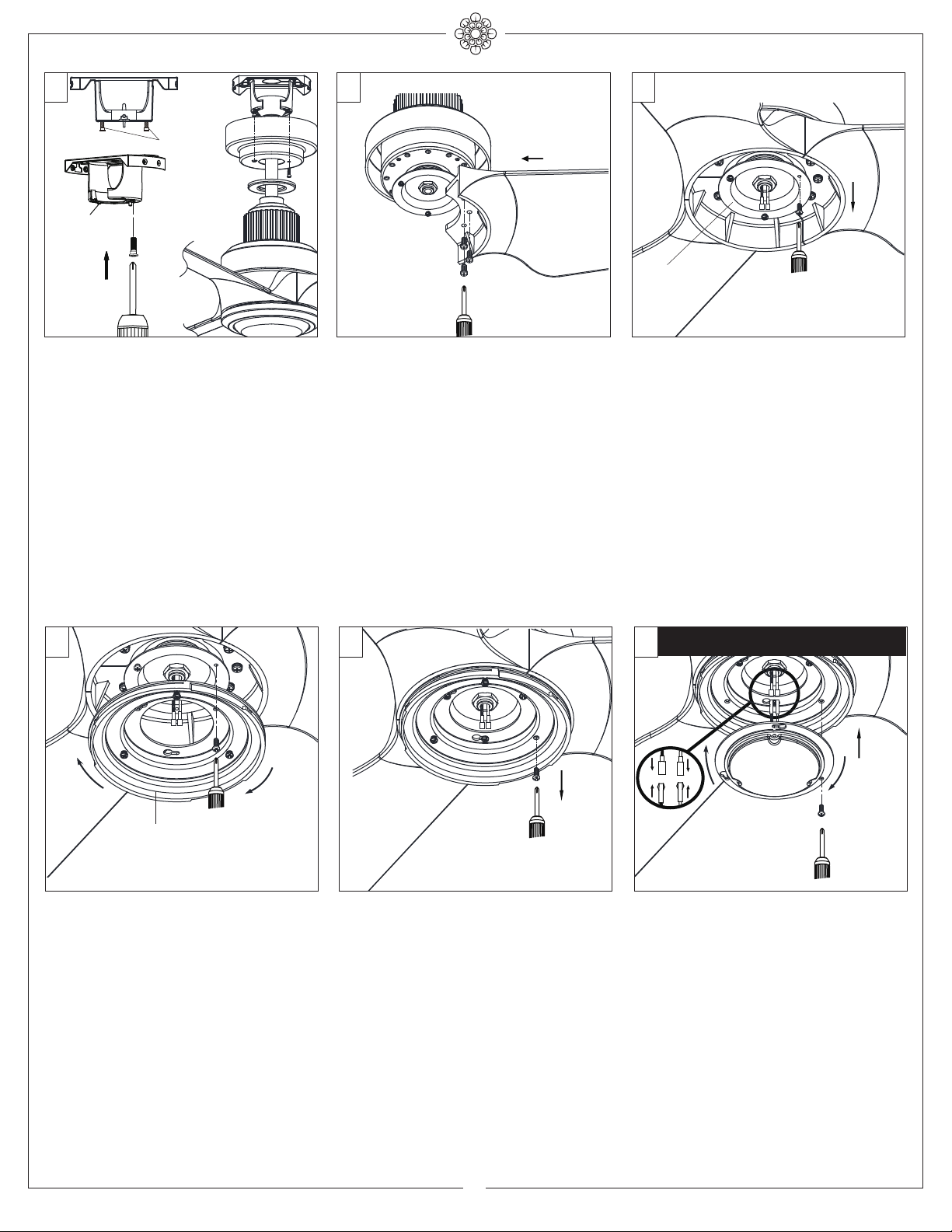

Partially loosen one and remove one
preassembled step screw from mounting
bracket (Do not remove the other set
screws). Save the screw.
Lift canopy up, aligning its keyhole slot
with the preassembled step screw on
mounting bracket and twist clockwise to
lock in place. Reinstall the other step
screw and tighten the screws securely.
Attach canopy bottom cap onto canopy
by aligning its holes with the step screws
on mounting bracket and fix it with the
magnet embraced in the cap.
Loosen 2 and remove 1 preassembled
screw from the plate on motor. Save
screw for later use.
Attach the light pan onto the plate on
motor, Place light pan over the lead wires
from fan, aligning the keyhole slots on the
light plate with the preassembled screws
on the plate. Twist clockwise till lock.
Reinstall the other screw. Tighten all
screws securely.
Loosen 2 and remove 1 preassembled
screws from light pan. Keep screw.
Connect white wire from fan to white wire
from LED light fixture and then connect
blue (or black) wire from fan to black (or
blue) wire from LED light fixture. Be sure
plugs connection clasped together firmly.
Attach LED light fixture onto the light pan,
aligning the keyhole slots on the LED light
fixture with the preassembled screws on
the light pan. Twist clockwise till lock.
Reinstall the screw which was just
removed. Tighten all screws securely.
Install the blade by using the set screws
provided. Align the 3 holes on in the
blade with the screw holes in the motor
and install the screws securely. Tighten
screws securely. Repeat this process for
remaining blades.
Blade
Light pan
Plate on motor
Step screw
Step screw
Install LED Light Fixture

6
17
© 2022 Monte Carlo Fan Collections 2/2022
18
Attach the light shade by locating dimples
in light pan with grooves on the light
shade and twist clockwise until tight.
Isolate the quick connects with electrical
tape.
Attach blanking plate by locating dimples
in light pan with grooves on the blanking
plate and twist clockwise until tight.
Note: Do not install LED light fixture if
use blanking plate.
Light shade
Blanking plate
Install Blanking Plate

7
© 2022 Monte Carlo Fan Collections 2/2022

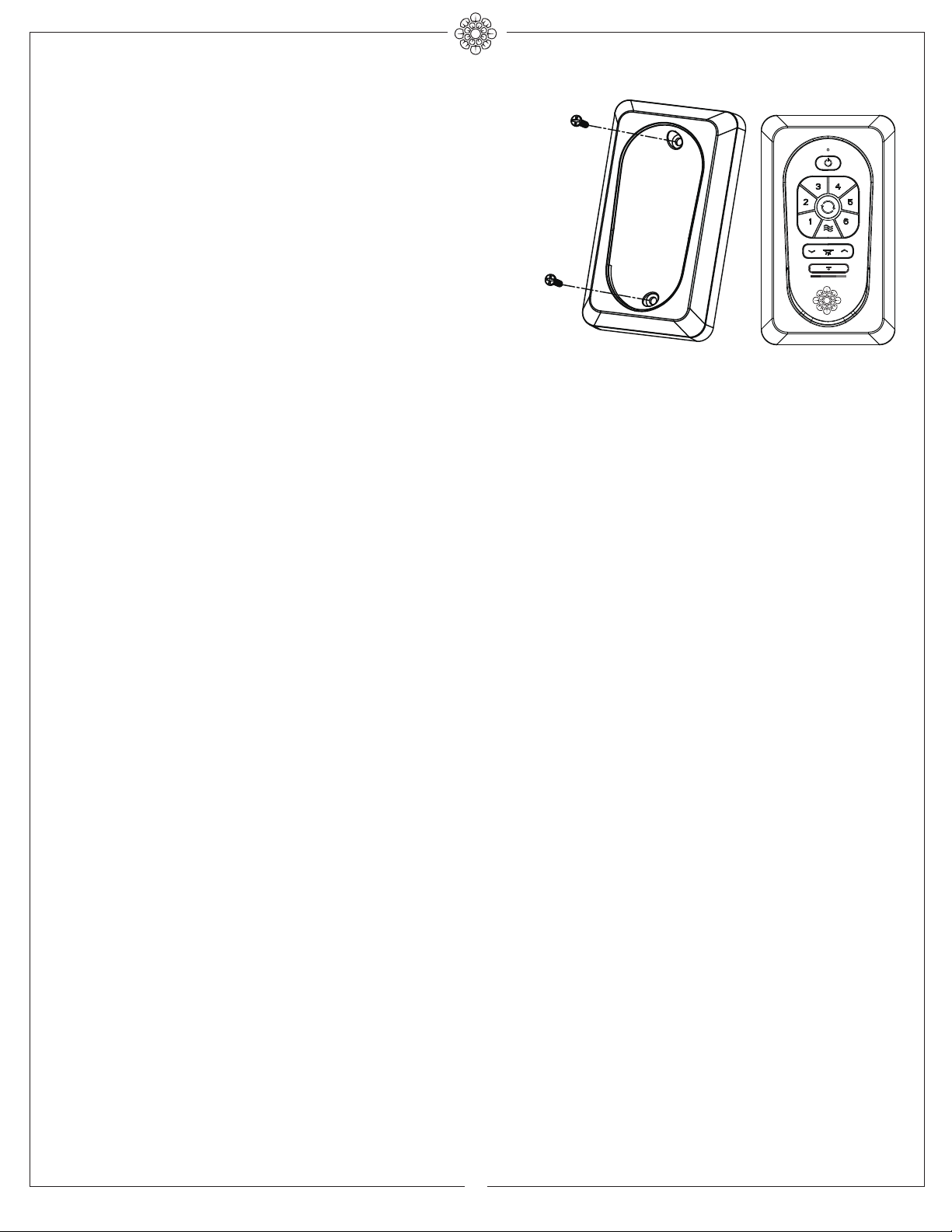

Remote Controller Operation
Remove the battery cover from the remote control transmitter and install batteries.
Replace the cover. This remote uses 2 1.5V/AAA batteries.
Note: If not using for long periods of time, remove the batteries to prevent damage to
remote controller, and store the remote controller away from excess heat or humidity.
The batteries will weaken with age and should be replaced before they leak or corrode as
this will damage the controller. Dispose of the used batteries properly. Always keep
batteries out of the reach of children.
Note: Refer to page 9 for fan operation with Bond app.
Dimming, Non Dimming Setting (Only available for fans with light)
In the dimming mold, it is a light dimming selection and it is to be used with dimmable
luminaries. The remote controller is set with dimming function at factory.
In ON/OFF (non-dimming mold), it is for light ON/OFF only (non-dimming function).
The remote control buttons control the fan speed as follows:
1 = minimum speed 2 = low speed 3 = medium low speed
4 = medium speed 5 = medium high speed 6 = high speed
This button turns the fan off.
Forward/Reverse button: This button is to control direction of fan rotation. Press once
to change direction of the fan rotation. Fan must be running to reverse.
Light button- Press this button to turn light on or off.
Light button- Press this button to desired brightness, dim to bright.
Light button- Press this button to desired brightness, bright to dim.
Press this button to change correlated color temperatures (CCT)
This light kit includes 2700 (Warm white), 3000 (Soft white) and 4000K (Daylight) correlated color
temperatures (CCT). Get desired CCT by pressing the converted button.
Breeze:
Press the Breeze button, fan will operates randomly among minimum, low and medium low speed at
intervals of 30 seconds until the breeze mold is canceled.
Breeze mode can be erased by pressing either the power or speed control buttons.
Note : This remote controller has auto resume function. The fan and light will maintain the last setting
when turned back on, with the exception of Breeze mode.
Battery cover
DIM (D)
ON/OFF (O)
SET
SET
1
0
1
0
1
0
Universal Mode and Learning Mode
Your remote controller has two options: “Universal Mode” (mark “0”) and “Learning Mode” (mark “1”).
If choosing “Universal Mode,” simply move the switch to the LOWER position (mark “0”). Your fan with
the remote controller is ready to use.
Note: If using Universal Mode, your fan can be controlled with other remote controllers with the same
setting.
To control the fan with a specific remote controller, choose “Learning Mode” by moving the switch to
the UPPER position (mark “1”) and then follow the Learn Mode steps below.
Learn Mode
Important: Turn the power on for ONLY the specific fan you wish to pair with the remote controller.
Make sure to turn the power off for all other fans with which you use the same remote controller.
Restore power to your fan, press and hold the “SET” button to pair the transmitter and receiver. You
must press the ‘SET” button within 60 seconds of restoring power to the fan.
Note : Fan will at first operate at minimum speed and light will blink (if your fan has a light) after you’ve
chosen Learn Mode.
Note : If the power is already on, you must turn the power off and then back on for the remote control
setting.
Note : If you reset the controller to Universal Mode (mark “0”) and later want to pair the controller
again to a specific fan, you have to repeat the Learn Mode steps.

8
© 2022 Monte Carlo Fan Collections 2/2022
Wall mount cradle
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS. (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
The receiver provides the following protective functions:
Lock protection: The DC motor has a build-in safety feature
against blade obstruction during operation. If something
obstructs the fan blades, the motor will stop operation after
about 20 seconds of interruption. Please remove obstacles
and reset it by turning the power off, and then turn power
back on.
Over 40W protection: When the receiver detects motor
power consumption which is greater than 40W, the fan RPM
will automatically lower to prevent it from overloading.
User Tips
1. If your fan is operating automatically after installation, it is still using the factory setting. Follow the settings for Learn Mode
above to reset.
2. If the fan or light isn’t working, reset power (turn the power off then turn the power back on) and follow the Universal Mode or
Learn Mode remote control settings.
3. If two or more fans in the same remote signal range are on the same power supply, they cannot be operated separately by
remote control. Use a separate power supply for each fan, such as an individual wall switch, and restrict the power supply to
only the fan which you are pairing with its transmitter in order to use the remote controller.
4. When the fan is turned on to oscillate in either forward or reverse direction, it may shudder briefly until fully engaged. This is a
normal operation for this fan; the shuddering will quickly cease as movement is engaged.
Install Transmitter wall mount cradle with 2 screws provided.
Useful tips:
The remote transmitter can be removed by pressing it
upward from the lower half.
The remote transmitter can be held on magnetic metal
materials by a magnet built in the transmitter.

9
© 2022 Monte Carlo Fan Collections 2/2022
Download the Bond Home app with your smart devices. The app is available on the
Google Play Store and Apple Store.
Or get it from bond home link, http://bondhome.io/app
Create a new account following on-screen operating steps.
Make the fan (Smart by Bond wi-fi receiver) connection with wi-fi router. Within 60
seconds of restoring power to the fan, Press and hold the “Power” button of
transmitter for 5 seconds until light blinks and fan runs at lowest speed for about 10
seconds. Your fan has now successfully learned the transmitter.
Note: If you haven’t made “learn” function setting for the fan remote yet. You may
handle it via the bond app. On the fan operation UI, tap device setting “ or ”
at upper right area and select Manage Remotes.
Note: Check and make sure power on and Wi-Fi router is functional.
To add a new device. Press “+” and choose Smart by Bond, and following on-screen
information and set up your fan (Wi-Fi receiver) with smart phone/device and Wi-Fi
router.
Tap “Settings” on the bond app, select Schedules and following on-screen
information to set up schedule.
Note: If “Bond Configuration” Wi-Fi network cannot be found, try pressing and
holding the button of power on the remote transmitter for 10 seconds, the Wi-Fi
network should re-appear.
Note: You may control fan from multiple smart phones or tablets by logging onto
the same Bond Home account on all the smart phones/tablets.
Fan operation with Bond Home APP
Compatible with Amazon Alexa, Google Home and Samsung SmartThings
Tap “Settings” on the bond app, select Manage Integrations and you may find the
Smart Cloud integrations.
Or you may download Alexa, Google Home, Samsung SmartThings app. You may
need to sign up an account if you don’t have it yet. Sign in your Alexa/Google
Home/Samsung SmartThings account.
- Login Amazon Alexa, Google Home or Samsung SmartThings app to enable the
skill and discover the MC Fan with Smart by Bond wi-fi receiver.
- Come back to the Smart device with bond app and define the device/MC Fan.
Connect to Amazon Echo, Google Home or Samsung SmartThijngs to make your fan
can be voice-activated, and available with UI (User interface) of Amazon Echo,
Google Home or Samsung SmartThings.
Initialize (Factory reset) the wi-fi receiver
If there are questions on the fan operation with bond app, following below steps to initialize the wi-fi receiver and redo bond app
stetting.
Turn the fan power off, and then turn the power back. Within 30 seconds, press and hold the button of the first speed/1st on the
transmitter for 15 seconds until light blinks. The receiver has been initialized.
Wait for 10 seconds and redo bond app setting.
Initialization (Factory reseting) can also be performed via the app: Tap device setting “ or ” and then tap “ or ” at upper
right corner to remove device, and then select “Wipe All Data”.
.
.
.
. . .

10
© 2022 Monte Carlo Fan Collections 2/2022
Troubleshooting
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
installation, please call our Customer Service Center at the
number printed on your parts list insert sheet.
Warning
and lock the service panel to prevent the power from being switched back on accidentally. If the service panel
cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the
service panel.
1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in switch housing.
CAUTION
either way. Fan will not operate when switch is in the middle.
4. If this fan uses a remote controller, make sure dip switches are in the correct setting
and make sure the battery works.
1. Check to make sure all screws in motor housing are snug (not over tightened).
2. Check to make sure the screws which attach the fan blade holder to the motor are tight.
3. Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION
4. Check to be sure lightbulb is tight in socket and not touching the glass shade.
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
1. If this is a downrod mount fan, make sure the ridge on mounting bracket engages the
notch in the downrod ball.
2. Make sure that canopy, mounting bracket or mounting plate are tightened securely to
4. Check that all blade holders are tightened securely to motor.
5. Most fan wobble problems are caused when blade levels are unequal. Check this level
by selecting a point on the ceiling above the tip of one of the blades. Measure this distance
from blade tip to ceiling. Keeping measure within 1/8", rotate the fan until the next blade
is positioned for measurement. Repeat for each blade. If all blade levels are not equal,
you can adjust blade levels by the following procedure. To adjust a blade tip down, insert
a washer (not supplied) between the blade and blade holder at the screw closest to the
motor. To adjust a blade tip up, insert washer (not supplied) between the blade and blade
holder at the two screws farthest from the motor. Reverse the position of the washer if
blades mount from top of blade.
6. If blade wobble is still noticeable, interchanging two adjacent blades can redistribute the
weight and possibly result in smoother operation.
If the above steps do not eliminate the wobble problem, you will need to dynamically
balance your fan with balancing kit provided.
1. Check blue wire from fan to make sure it is connected to hot wire from house.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty lightbulb and make sure bulb is tight in socket.
5. Remove light kit and check the plug connections if they are present.
6. If this fan uses a remote controller, make sure dip switches are in the correct setting
and make sure the battery works.
CAUTION: Make sure main power is turned off before entering switch housing and/or
canopy.
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. If fan does not start:
Trouble Suggested Remedy

Mar.2022
