montpellier MDG600LW User manual

EN -2-
Installation and Operating Instructions
Model: MDG600LW/K/S
60cm Gas Double Oven Cooker
Model shown for illustration purposes only)

EN -3-
Introduction
Thank you for choosing this
appliance. It
has been designed to give years of trouble-free use
provided it is installed and maintained correctly.
Please read these instructions carefully before
installing or using your appliance. It is advisable to
keep your purchase and installation receipts with these
instructions in a safe place for future reference.
Included is some important safety information in
addition to guidelines and recommendations that will
enable you to take full advantage of all the functions
available.
This quality appliance has been tested and certified to meet
all applicable UK electrical and safety standards.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do
not use it, contact your retailer immediately.
This appliance must be installed and connected in
accordance with current regulations by a qualified
electrician.

EN -4-
Your 2 year Manufacturer's
THIS DOES NOT AFFECT YOUR
STATUTORY S.
Your new Montpellier appliance carries a free guarantee which protects you against
the cost of repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number
and proof of purchase, such as a Sales Receipt, showing that the appliance was
purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee
::
Any appliance not correctly installed and operated in accordance with
the manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as,
but not exclusively, cleaning of filters.
Cost of Call-out for work required to correct the alignment of
doors following door reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs,
bulbs and breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech
and/or carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
SERVICE HELP-LINE
Should your appliance develop a fault, please call
Repairtech Service Helpline
01527 888133
Please remember to have all your product details available, including the
number, serial number, date of purchase and your retailer’s
details registering a . Your service call cannot progress
without this i .

EN -5-
AOB-6029 Dear Customer,
Our goal is to offer you high quality products that exceed your expectations. Your
appliance is produced in modern facilities and is thoroughly tested for quality. This
manual is intended to help you use your appliance, which has been manufactured using
the most recent technology with confidence and maximum efficiency. Before using your
appliance, carefullyread this guide which includes basic information onsafe installation,
maintenance and use. Please contact your nearest Authorised Service centre for the
installation of yourproduct.
CE Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
This appliance has been designed to be used only for home cooking. Any other use
(such as heating a room) is improper and dangerous.
The operating instructions apply to several models. You may notice differences
between this instructions and yourmodel.

EN -6-
CONTENTS
SAFETY INSTRUCTIONS .................................................................................... 4
INSTALLATION AND PREPARATIONS FOR USE ............................................ 10
Instructions for the Installer............................................................................10
Installation of the Cooker................................................................................11
Gas Connection .............................................................................................12
Gas Conversion (If available).........................................................................14
Electrical Connection and Safety (If available)...............................................17
Anti-tilting kit...................................................................................................18
PRODUCT FEATURES ...................................................................................... 20
List of Components ........................................................................................20
Adjusting the feet ...........................................................................................20
Control Panel .................................................................................................21
Maintenance...................................................................................................32
Maintenance...................................................................................................33
TROUBLE SHOOTING&TRANSPORT .............................................................. 34
Trouble shooting ............................................................................................34
Transport........................................................................................................36

EN -4-
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance and keep them in a convenient place
for reference when necessary.
This manual is prepared for more than one model. Your appliance
may not have some of the features described in this manual.
Pay particular attention to any figures while you are reading
the operating manual.
General Safety Warnings
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching heating
elements. Keep children less than 8 years of age away unless
they are continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire. NEVER try to extinguish a
fire with water, but switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on thecooking
surfaces.
• WARNING: If the surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
• For models which incorporate a hob lid, clean any spillages off
the lid before using and allow the Cooker to cool before closing
the lid.
• Do not operate the appliance by means of an external timer or
separate remote-control system.

EN -5-
• WARNING: To prevent the appliance tipping, the stabilizing
brackets must be installed. (For detailed information refer to the
anti-tilting kit set guide.)
• During use the appliance will get hot. Care should be taken to
avoid touching heating elements inside the oven.
• During use handles held for short periods in normal use may
get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass and other surface. They can scratch
the surface which may result in shattering of the glass ordamage
to the surface.
• Do not use steam cleaners for cleaning the appliance.
• WARNING: To avoid the possibility of electric shocks, make
sure that the appliance is switched off before replacing the lamp.
• CAUTION: Accessible parts may be hot when cooking or
grilling. Keep young children away from the appliance when it is
in use.
• Your appliance is produced in accordance with all applicable
local and international standards and regulations.
• Maintenance and repair work must only be carried out by
authorised service technicians. Installation and repair work that
is carried out by unauthorised technicians may be dangerous.
Do not alter or modify the specifications of the appliance in any
way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local
distribution conditions (nature of the gas and gas pressure or
electricity voltage and frequency) and the specifications of the
appliance are compatible. The specifications for this appliance
are stated on the label.
• CAUTION: This appliance is designed only for cooking food
and is intended for indoor domestic household use only.It should
not be used for any other purpose or in any other application,

EN -6-
such as for non-domestic use or in a commercial environment
or room heating.
• Do not use the oven door handles to lift or move the appliance.
•This appliance is not connected to a ventilation device. It shall be
installed and connected in accordance with current installation
regulations. Particular attention shall be given to the relevant
requirements regarding ventilation.
• If the burner has not lit after 15 seconds, stop operating the
device and open the compartment door and/or wait at least 1
minute before attempting a further ignition of the burner.
• These instructions are only valid if the correct country symbol
appears on the appliance. If the symbol does not appear on the
appliance, refer to the technical instructions which describe
how to modify the appliance to match the conditions of use of
the country.
• All possible measures have been taken to ensure your safety.
Since the glass may break, care should be taken while cleaning
to avoid scratching. Avoid hitting or knocking the glass with
accessories.
•Make sure that the supply cord is not trapped or damaged during
installation. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons
in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is
open.
• If your appliance is provided with a cooking hotplate made of
glass or glass ceramic:
CAUTION: “In case of hotplate glass breakage”:
- immediately shut off all burners and any electrical heating
element and isolate the appliance from the power supply
- do not touch the appliance surface
- do not use the appliance.

EN -7-
Installation Warnings
• Do not operate the appliance before it is fully installed.
•The appliancemust be installedbyanauthorised technician.The
manufacturer is not responsible for any damage that might be
caused by defective placement and installation by unauthorised
people.
• When the appliance is unpacked, make sure that it is has not
been damaged during transportation. In case of any defect do
not use the appliance and contact a qualified service agent
immediately. The materials used for packaging (nylon, staplers,
styrofoam...etc) may be harmful to children and they should be
collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not
expose it to effects such as sun, rain, snow, excessive humidity
etc.
• The material around the appliance (cabinet) must be able to
withstand a minimum temperature of 100°C.
During Usage
•When you first use your Oven you may notice a slight smell. This
is perfectly normal and is caused by the insulation materials on
the heater elements.We suggest that before using your Oven for
the first time you leave it empty,andset at maximum temperature
for 45 minutes. Make sure that the environment in which the
product is installed is well ventilated.
• Take care when opening the oven door during or after cooking.
The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the
appliance when it is operating.
•Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker unattended while cooking with solid
or liquid oils. They may catch fire under extreme heating
conditions. Never pour water on to flames that are caused by oil,

EN -8-
instead switch the cooker off and cover the pan with its lid or a
fire blanket.
• Always position pans over the centre of the cooking zone, and
turn the handles to a safe position so they cannot be knocked
or grabbed.
• If the product will not be used for a long period of time, turn
the main control switch off.Also when not using a gas appliance,
turn the gas valve off.
• Make sure the appliance control knobs are always in the “0”
(stop) position when it is not used.
• The trays incline when pulled out. Take care not to spill or drop
hot food when removing it from the ovens.
• CAUTION: The use of a gas cooking appliance results in the
production of heat, moisture and products of combustion in the
room in which it is installed. Ensure that the kitchen is well
ventilated especially when the appliance is in use, keep natural
ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional
ventilation, for example opening a window, or more effective
ventilation, for example increasing the level of mechanical
ventilation where present.
•While using the grill burner, keep the oven door open and always
use the grill deflector shield supplied with the product. Never use
the grill burner with the oven door closed.
• CAUTION: Glass lids may shatter when heated.
Turn off all the burners and allow the hob surface to
cool before closing the lid.
• Do not place anything on the oven door when it is
open. This could disrupt the balance of the oven or damage the
door.
• Do not place heavy items or flammable or ignitable items (e.g.
nylon,plasticbag,paper,cloth,etc.)intothedrawer.Thisincludes
cookware with plastic accessories (e.g. handles).

EN -9-
• CAUTION: The inside surface of the storage compartment
may get hot when the appliance is in use. Avoid touching the
inside surface.
• Do not hang towels, dishcloths or clothes from the appliance or
its handles.
During Cleaning and Maintenance
• Always turn the appliance off before operations such as
cleaning or maintenance. You can do it after plugging the
appliance off or turning the main switches off.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we
recommend you always use original spare parts and to call our
authorised service agents in case of need.
Warning
Serious injury or death risk
Risk of electric shock
Dangerous voltage risk
Caution
Injury or property damage risk
Important
Operating the system correctly

EN -10-
INSTALLATION AND PREPARATIONS FOR USE
WARNING : This appliance must be installed by an authorised service person or
qualified technician, according to the instructions in this guide and in compliance with
the current local regulations.
• Incorrect installation may cause harm and damage, for which the manufacturer
accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage
and frequency and/or nature of the gas and gas pressure) and the adjustments of
the appliance are compatible.The adjustment conditions for this appliance are stated
on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be
followed(safetyregulations,properrecyclinginaccordancewiththeregulations,etc.).
Instructions for the Installer
Ventilation requirements
• For rooms with a volume of less than 5 m3 permanent ventilation of 100 cm2 free
area is required.
• For rooms with a volume of between 5 m3 and 10 m3 permanent ventilation of 50
cm2 free area will be required, unless the room has a door which opens directly the
outside air in which case no permanent ventilation is required.
• For rooms with a volume greater than 10 m3 no permanent ventilation is required.
Important: Regardless of room size, all rooms containing the appliance must have
direct access to outside air via an openable window or equivalent.

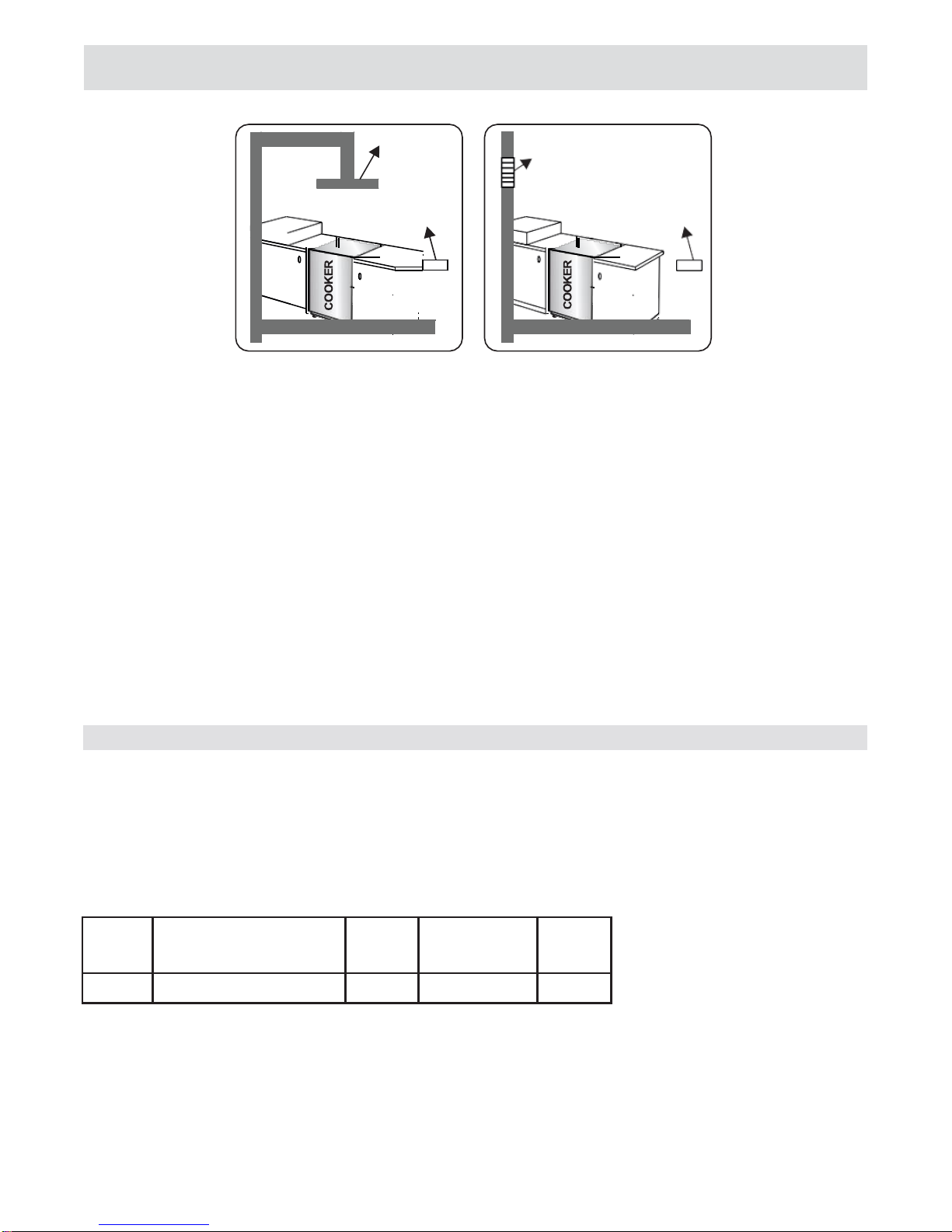

Emptying of the burned gases from environment
Gas appliances expel burned gas waste to the outside air, either directly or via a cooker
hood with a chimney. If it is not possible to install a cooker hood, install a fan on the
window or wall that has access to fresh air. The fan must have the capacity to change
the volume of air in the kitchen a minimum of 4-5 times perhour.
Air inlet section
min. 100 cm2
Air inlet section
min. 100 cm2

EN -11-
General instructions
• After removing the packaging material from the appliance and its accessories, ensure
that the appliance is not damaged. If you suspect any damage, do not use it and
contact an authorised service person or qualified technician immediately.
• Make sure that there are no flammable or combustible materials in the close vicinity,
such as curtains, oil, cloth etc. which may catch fire.
• The worktop and furniture surrounding the appliance must be made of materials
resistant to temperatures above 100°C.
• The appliance should not be installed next to a dishwasher, fridge, freezer, washing
machine or clothes dryer.
• The appliance can be placed close to other furniture on condition that in the area
where the appliance is set up, the furniture‟s height does not exceed the height of
the cooktop.
Installation of the Cooker
• If the kitchen furniture is higher than the cooktop, the kitchen furniture must be at
least 10 cm away from the sides of appliance for air circulation.
• There should be a minimum 2cm blank space around the appliance for aircirculation.
• If a cooker hood or any cupboard is to be installed above the appliance, the safety
distance betweencooktop andanycupboard/cookerhoodshouldbeasshownbelow.
A (mm)
B (mm)
Cooker Hood/Cupboard
C (mm)
D (mm)
E (mm)
V/T
420
650/700
20
Product Width
150/100
Cooker
hood
flue
Air inlet section
min. 100 cm2
Electrical ventilator
Air inlet section
min. 100 cm2

EN -12-
A B C C
D E V T
Gas Connection
Assembly of gas supply and leakage check
Theconnectionoftheapplianceshouldbeperformedinaccordancewithapplicablelocal
and international standards and regulations. First, check what type of gas is installed on
the cooker. This information is available on a sticker on the back of the cooker. You can
find the information related to appropriate gas types and appropriate gas injectors in the
technical data table. Check that the feeding gas pressure iscompliant with values on the
technical data table, to be able to get the most efficient use and to ensure the minimum
gas consumption. If the pressure of used gas is different than the values stated or not

EN -13-
stable in your area, it may be necessary to assemble an available pressure regulator
on the gas inlet. Youshould contact the authorised service to make these adjustments.
Points that must be checked during flexible hose assembly:
• If the gas connection is made by a flexible hose fixed onto the gas inlet of the hob, it
must be fixed on by a pipe collar.
• Connect your appliance with a short and durable hose that is as close as possible
to the gas source.
• The permitted maximum length of the hose is 1.5 m.
• The hose that supplies the appliance with gas must be changed once a year for your
security.
• The hose must be kept clear of areas that may heat up to temperatures of more
than 90°C.
• The hose must not be cracked, torn, bent or folded.
• Keep the hose clear of sharp corners and objects that could move.
• Before you assemble the connection, you must make sure the hose is not damaged.
Use bubbly water or leakage fluids to perform the check. Do not use a naked flame
to check for gas leakage.
• All metal items that are used during gas connection must be free from rust. Check
the expiry date of any components used for connection.
Points that must be checked during fixed gas connection assembly:
Themethod usedtoassembleafixedgasconnection (gasconnectionmadebythreads,
e.g. a nut) varies according to the country you are in. The most common parts for your
country will be supplied with your appliance. Any other parts required can be supplied
as spare parts.
During connection, always keep the nut on the gas manifold fixed while rotating the
counter-part. Use appropriately-sized spanners for a safe connection. For surfaces
between different components always use the seals provided in the gas conversion kit.
Thesealsusedduringconnectionshouldalsobeapprovedtobeusedingasconnections.
Do not use plumbing seals for gas connections.
Remember that this appliance is ready to be connected to the gas supply in the country
for which it has been produced. The main country of destination is marked on the rear
cover of the appliance. If you need to use it in another country, any of the connections
in the figure below may be required. In such a case, contact local authorities to learn
the correct gas connection.

EN -14-
The Cooker must be installed and maintained by a suitably qualified gas registered
technician in accordance with current safety legislation.
WARNING: Do not use a naked flame to check for gasleaks.
Gas Conversion (If available)
Your appliance is designed to be operated with LPG/NG gas. The gas burners can be
adapted to different types of gas, by replacing the corresponding injectors and adjusting
the minimum flame lengthsuitable tothegas inuse.Forthis purpose,thefollowingsteps
should be performed:

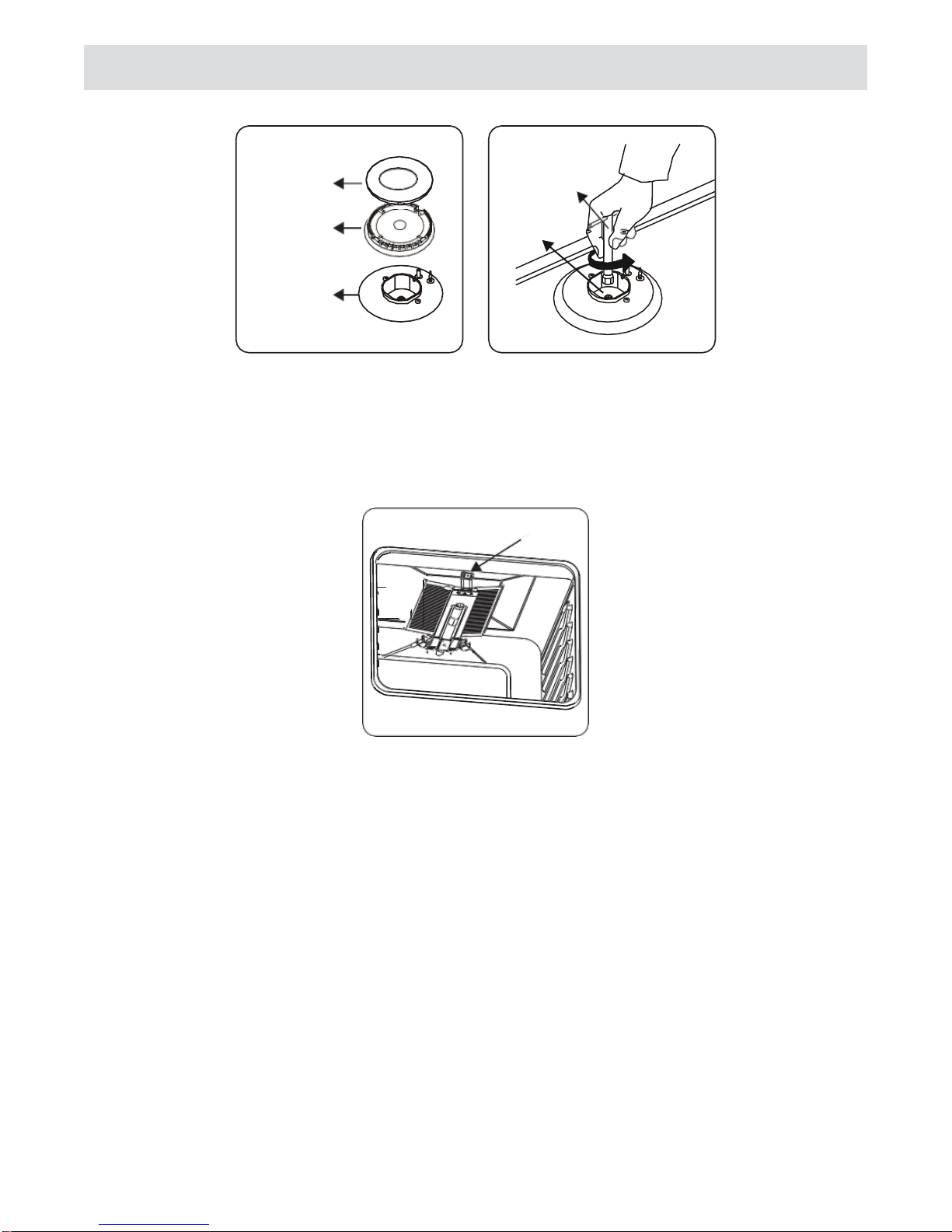

Changing injectors
Hob burners
• Cutoff themaingassupplyandunplugtheappliancefromthemains electricalsupply.
• Remove the burner caps and the adapters.
• Use a 7 mm spanner to unscrew the injectors.
• Replace the injector with the ones from the gas conversion kit, with the correct
diametersforthetypeofgasthatisgoingtobeused,accordingtothegasinjectortable.
Gas pipe
Seal
Hose
fitting
Gas hose
with collar
Gas pipe
Seal
Adapter
Mechanical
gas hose
Gas pipe
Seal
Mechanical
gas hose
Gas pipe
Mechanical
gas hose

EN -15-
Burner
Spanner
cap
Adapter
Injector
Cup
Grill Injector
The grill injector is held in position by a single screw on the tip of the burner. This screw
is already visible. Remove the screw, pull the grill burner towards you and the injector
will be visible on the rear surface of the ovencavity.
Remove the injectors using a 7mm spanner and replace the injector with the ones from
the spare set. Make sure you use corresponding diameters suitable to the type of gas
that is going to be used, according to the information chart (which is also supplied in
the gas conversion kit).

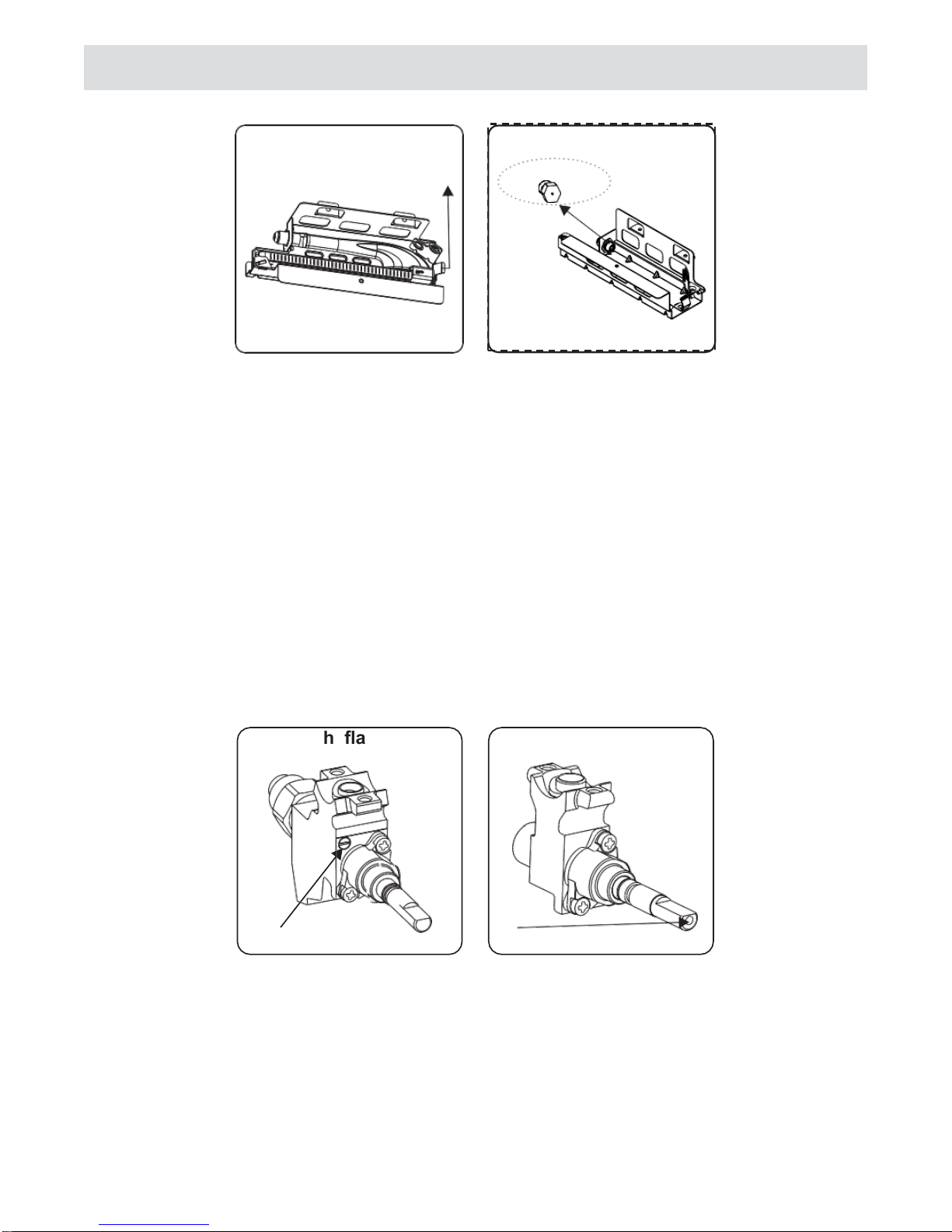

Oven Injector
The oven burner is held in its cradle by a single clip on the left-hand side of the burner.
Pull the clip towards the left and, with your other hand, lift the burner up holding from
the thermocouple/spark plug holder. The injector is on the right-hand side of the burner
cradle. Repeat the same procedure for both Main andTopOven (if present) burners.
Grill burner
Screw

EN -16-
Injector
Clip
Remove the injectors using a 7mm spanner and replace the injector with the ones from
the spare set. Make sure you use corresponding diameters suitable to the type of gas
that is going to be used, according to the information chart (which is also supplied in
the gas conversion kit).

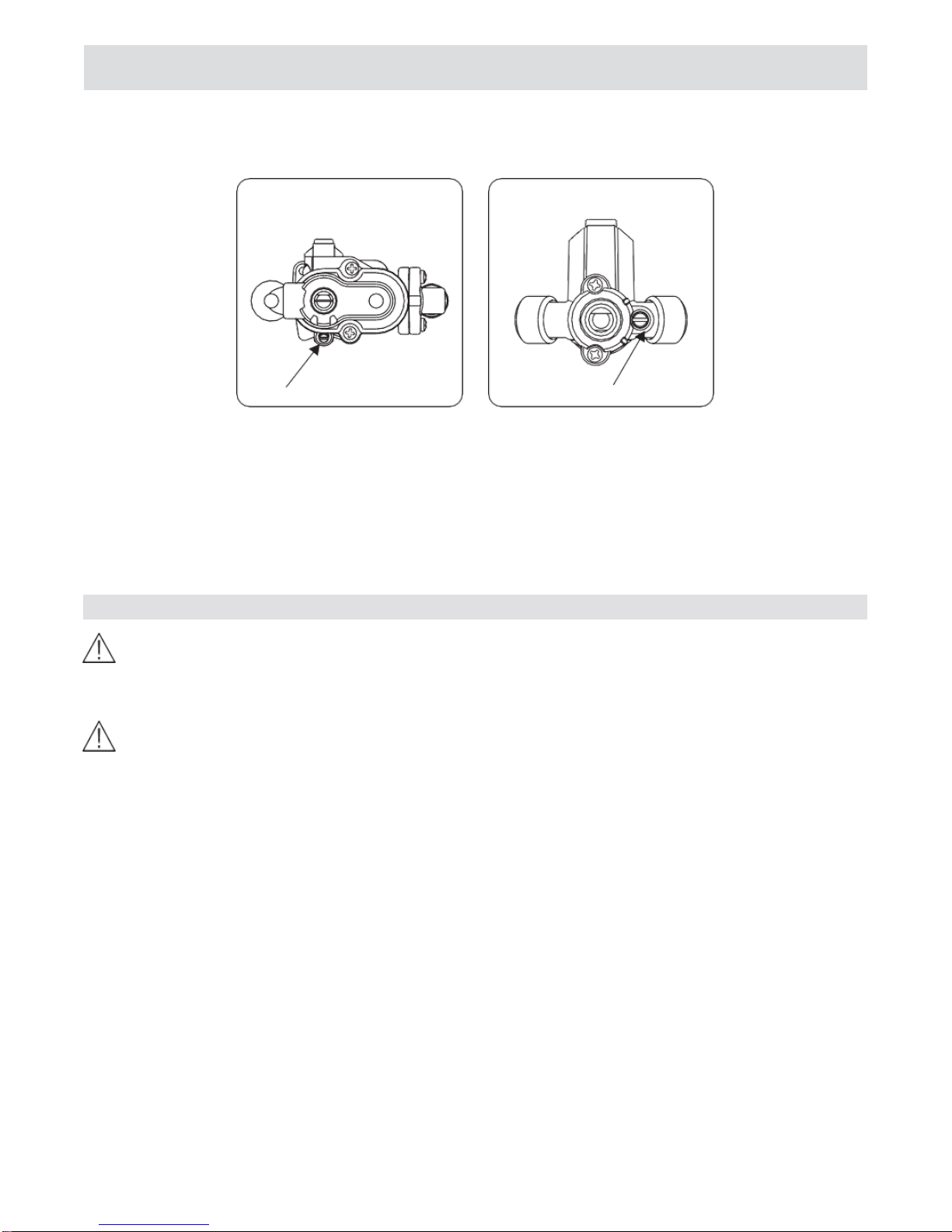

Adjusting the minimum flame position:
Firstofall,makesurethattheapplianceisunpluggedfromthethemainselectricalsupply
and that the gas feed is open. The minimum flame position is adjusted with a flat screw
located on the valve. For valves with a flame failure safety device, the screw is located
on the side of the valve spindle and for valves without a flame failure safety device, the
screw is located inside the valve spindle. Tomake adjusting the flame position easier,
we recommend that you remove the control panel (and the micro switch if your model
has one) during the alteration. The position of the bypass screw must be loosened for
conversion from LPG to naturalgas. Forconversionfrom natural gastoLPG, the bypass
screw must be tightened.
Determining the minimum flame position
To determine the minimum position, ignite the burners and leave them on in minimum
position. Remove the knobs because the screws are accessible only when the knobs
are removed. With the help of a small screwdriver, fasten or loosen the bypass screw
by around 90 degrees. When the flame has a length of at least 4mm, the gas is well
distributed. Make sure that the flame does not die out when passing from the maximum
position to the minimum position. Create an artificial wind with your hand toward the
flame tosee if the flamesare stable. For the oven burner, operate the oven burner atthe
Valve with flame failure
device
Bypass screw
Screw(inside the hole)
Valve without flame
failure device

EN -17-
minimum position for 5 minutes, then open and close the oven door 2-3 times to check
the flame stability of the burner.
Changing the gas inlet
Forsomecountries,thegasinlettypecanbedifferentforNG/LPGgases.Insuchacase,
remove the current connection components and nuts (if any) and connect the new gas
supply accordingly. In all conditions, all components used in gas connections should be
approved by local and/or international authorities. In all gas connections, refer to the
“Assembly of gas supply and leakage check” clause explained before.
Electrical Connection and Safety (If available)
WARNING: The electrical connection of this appliance should be carried out by an
authorised service person or qualified electrician, according to the instructions in this
guide and in compliance with the current local regulations.
WARNING: THE APPLIANCE MUST BE EARTHED.
• Before carrying out the connection to the power supply, the voltage rating of the
appliance (stamped on the appliance identification plate) must be checked for
correspondence to the available mains supply voltage, and the mains electric wiring
should be capable of handling the appliance‟s power rating (also indicated on the
identification plate).
• During installation, please ensure that isolated cables are used. An incorrect
connection might damage your appliance. If the mains cable is damaged and needs
to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of appliance and must not be
bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a multi-pole isolator
switch (with at least 3 mm contact spacing) must be used in order to meet the safety
regulations.
Thermostatic oven valve
Bypass screw
Non-thermostatic
oven valve
Bypass screw

EN -18-

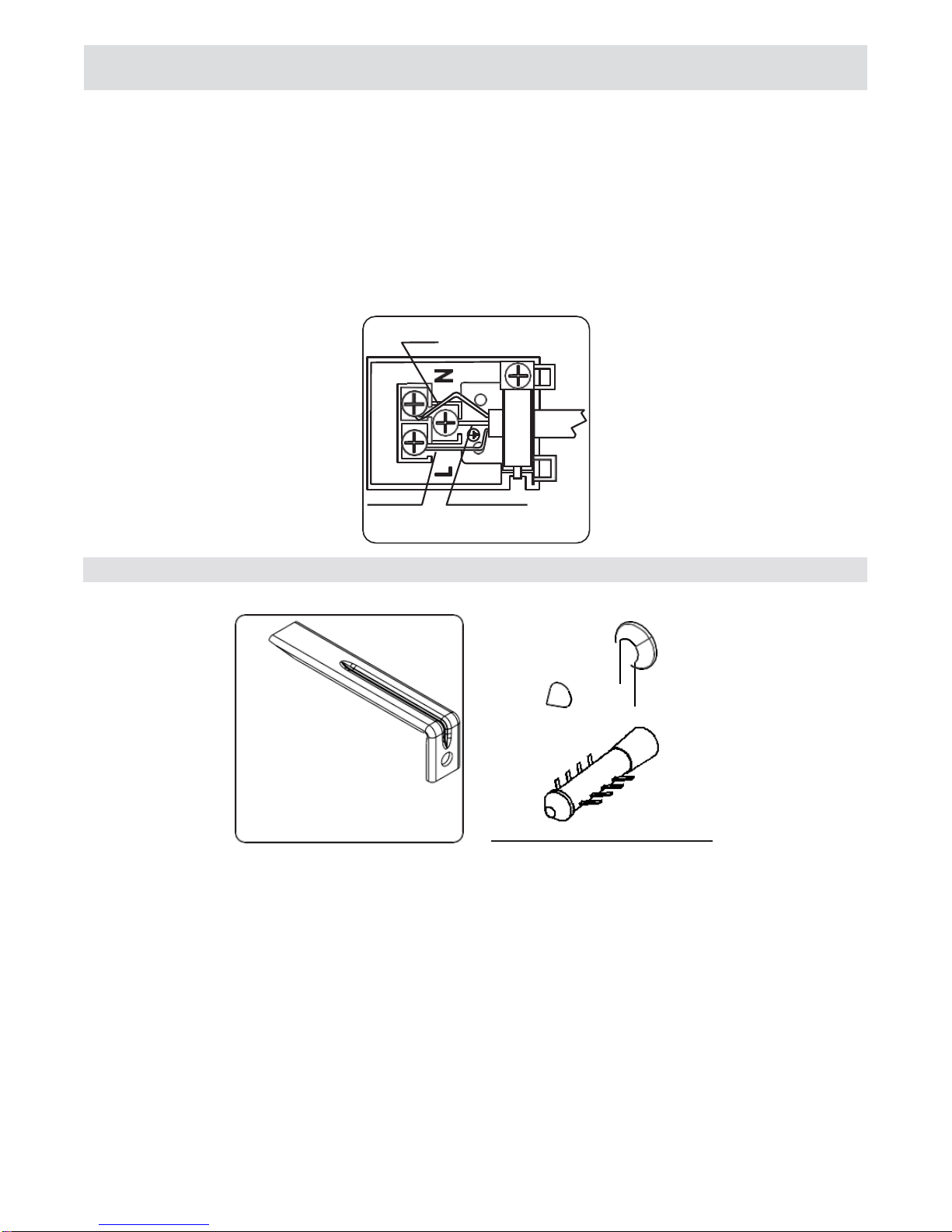

Dowel (x1)
• Theapplianceisdesignedforapowersupply of 220-240V~.Ifyoursupplyisdifferent,
contact the authorized service personnel or qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance.
• The fused switch must be easily accessible once the appliance has been installed.
• Ensure all connections are adequately tightened.
• Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.
Anti-tilting kit
2
3
The document bag contains an anti-tilting kit. Loosely attach the anti-tilting bracket (1)
to the wall using the screw (2) and dowel (3), following the measurements shown in the
figure and table below.Adjust the height of the anti-tilting bracket so that it lines up with
theslotonthe cooker and tightenthe screw.Pushthe appliancetowards thewallmaking
sure that the anti-tilting bracket is inserted into the slot on the appliance.
Blue
Brown Yellow+Green
1
Anti-tilting Bracket
(x1) (will be attached
to the wall)
Screw (x1)
