montpellier ECO TCC60 User manual

Installation and Operating Instructions
Freestanding Twin Cavity Cooker
TCC60 - 60cm Ceramic Cooker
White/Silver/Black
Please read these instructionscarefully before attempting to install or use this
appliance. We recommend that you keep these instructions in a safe place for future
reference.

Thank you for choosing this Montpellier Freestanding Cooker.
Our cookers have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your freestanding cooker to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your cooker is covered by a comprehensive two year Parts & Labour Guarantee.
In the unlikely event that you experience a problem with your Cooker, you can
rest assured that you are fully protected against the cost of repairs for the first
24 months . Please note that any claim must be accompanied by the model
reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

Dear Customer,
Remains of any packaging (plastic bags, polystyrene) etc. must not be
left within reach of children, as it is potentially dangerous. Please
dispose of packaging properly and in the appropriate manner.
This user manual is prepared for more than one model. Some of
the images shown and features specified in the Manual may not be
relevant to your appliance.
Warning: This appliance is for domestic use only.
CONTENTS
1. IMPORTANT WARNINGS
2. TECHNICAL FEATURES OF THE COOKER
3. INSTALLATION OF THE COOKER
4. DESCRIPTION OF THE COOKER
5. USING THE COOKER
6. IF THE APPLIANCE DOES NOT OPERATE
7. USE OF THE HEAT SHIELD
8. MAINTENANCE AND CLEANING

IMPORTANT WARNINGS
•WARNING: This appliance must be earthed!
•Please find information regarding power and ratings for
your
cooker on the rating label, which can be found on the
back of the appliance.
•Ensure that the cooker is not connected to the electricity supply during
installation.
•Ensure that the power to the appliance is switched off when replacing
the oven lamp.
• If the supply cord is damaged, it must be replaced by a qualified
person.
•Ensure the electrical cable to your cooker is kept well away from hot
areas; and anything which may cause damage to the cable.
•Use of your appliance creates moisture and heat in the room;
make sure that your kitchen is well ventilated.
•Prolonged intensive use of the appliance may call for additional
ventilation.
•When the cooker is hot DO NOT TOUCH THE GLASS.
•This appliance is for cooking purposes only, it must not be used for
any
other purpose. This appliance is only for domestic use and
must not be used in any commercial application.
•Before using your appliance, keep curtains, paper or
flammable items away from the appliance. Do not keep
combustible or flammable items in or near the appliance.
•This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge. However, they must have been
given instruction concerning the safe use of the appliance and
understand the hazards involved. They must always be supervised
when using the appliance.
•Children must not play with the appliance.
•Cleaning and user maintenance must not be carried out by children
unless they are older than 8 years and under supervision.
•Use oven gloves when using the cooker. Do not touch hot surfaces.
•Do not lift or carry the cooker by the handle.
•Do not use the cooker in potentially explosive atmospheres.
•If the current rating of the fuse in your installation is less than
32Ampere, have a qualified electrician fit a 32A fuse.
•When the oven is being used, some parts may become hot; children
should be kept away and supervised at all times.
•Do not splash cool water into the oven tray or inside the oven whilst
the appliance is still hot. Subsequent steam may cause burns and the
sudden temperature increase may cause damage to the
appliance.
•WARNING: Accessible parts may become hot during use. Young
children should be kept away.
•Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass as they can scratch the surface.
•This appliance is produced in accordance with current safety
regulations. Incorrect use may cause harm to people and to the
appliance.

•Power must be supplied by a suitable double pole isolating switch,
having contact separation of at least 3 mm in all poles and located in a
readily accessible position adjacent to the cooker.
•The cooker may only be located in a kitchen, a kitchen/diner or bed-
sitting room. If the product has a digital timer, you must reset after a
loss of power, otherwise, your oven will not operate.
•Do not put flammable, combustible, explosive liquid or any materials in
the oven, even when the appliance is not in use.
•Bread may catch fire if the toasting time is too long. Close supervision is
necessary during toasting.
•For cleaning the fan guard panel, the cooker must be switched off before
removing the guard and after cleaning. The guard must then be
replaced
in the correct position.
•WARNING: Before obtaining access to any terminations, the power
supply must be disconnected.
•WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and could result in a fire. NEVER try to extinguish a fire with
water, switch off the appliance and then cover the flame with a lid or a
fire blanket.
•WARNING: Danger of fire: do not store items on the cooking surface.
•WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock.
•WARNING: Danger of fire:
°Take care when preparing food with high alcohol content (e.g. rum,
cognac) The alcoholic vapour could ignite. Open the
door carefully.
•The appliance is not intended to be operated by means of an external
timer or separate remote-control system.

TECHNICAL FEATURES OF YOUR COOKER
SPECIFICATIONS
50 x 60
60 x 60
Outer width
500 mm
600 mm
Outer depth
560 mm
660 mm
Outer height
930 mm
930 mm
Lamp power
Max 25W
Thermostat
50 - 250 °C
Supply voltage
220-240V AC, or 230V AC, 50 - 60 Hz.
Heating element power for Bottom cavity
Bottom heating element
800 W
1300 W
Top heating element
650 W
850 W
Heating element power for Top cavity
Grill heating element
1400 W
Hob heating zones
Back left zone
1800W
Back right zone
1200W
Front left zone
1200W
Front right zone
1800W

INSTALLATION OF YOUR COOKER

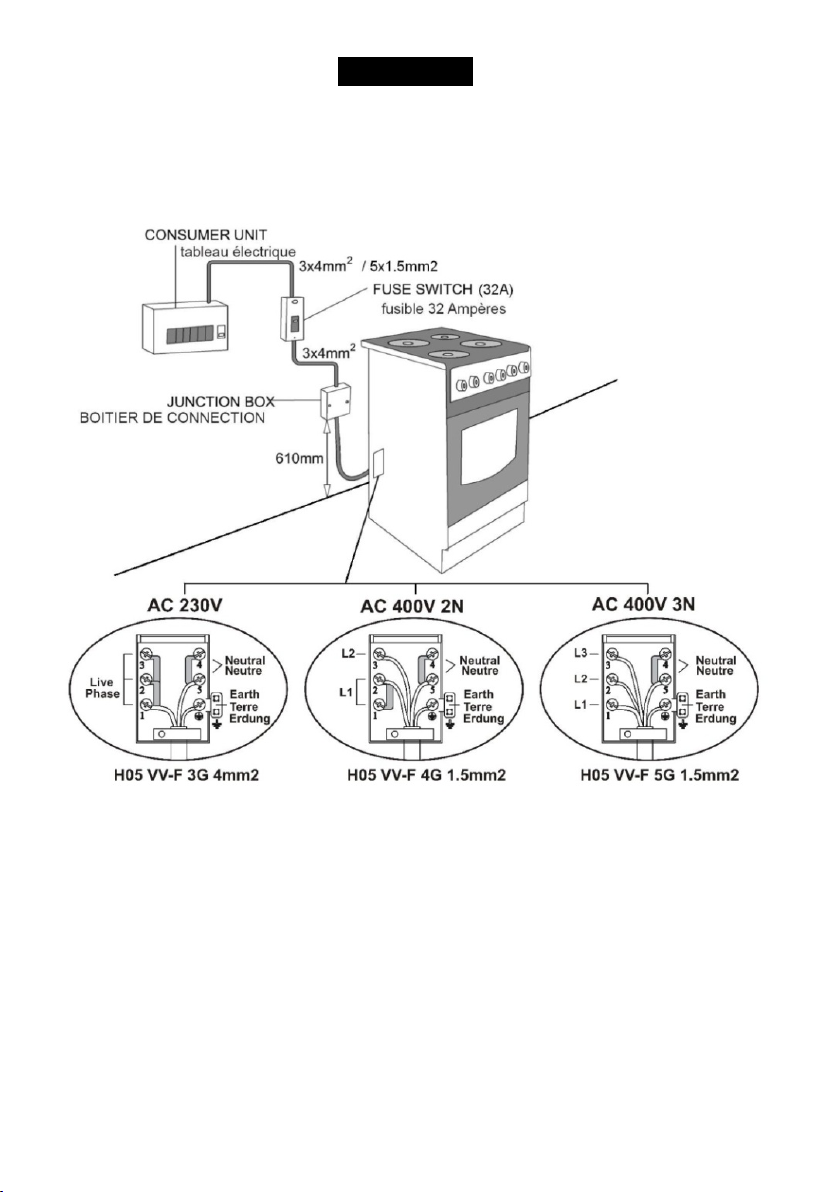

ELECTRICAL CONNECTION
•The adjustment values for this appliance are stated on the rating
label.
•Your appliance requires a 32-40 Ampere supply. Installation
must be carried out by a qualified electrician.
•Electrical connection of the cooker should only be made to
connections/sockets with an earth system installed in compliance
with statutory regulations.
•The manufacturer is not responsible for any damage that may
arise as a result of the appliance not being connected to a
suitable earthing system.
•Your cooker is for use with 220-240V AC or 230V AC for mono
phase and 230V/400V 3N for 3 phase 50-60 Hz electric supply. If
your supply is different to that specified, contact a qualified
electrician.
•When siting your cooker into its location, ensure the hob top is at
work top level, by adjusting the feet if necessary.
•Some models are supplied without a plug and lead set. In this
case please use a flexible cable suitable for connection to a mono
phase supple: H05 VV-F 3 G 2,5 mm2, H05 VV-F 3 G 4 mm2 or for
3phase: H05 VV-F 5 G 1.5 mm2.

CONNECTION

WALL FIXING
•Before using the appliance, in order to ensure safe use, be sure to fix
the appliance to the wall using the chain and hooked screw supplied.
Ensure that the hook is screwed into the wall securely.
WARNING!
In order to prevent tipping of the appliance, the wall fixing must be installed.

Any kitchen furniture adjacent to the appliance must be heat resistant
to (100°C).

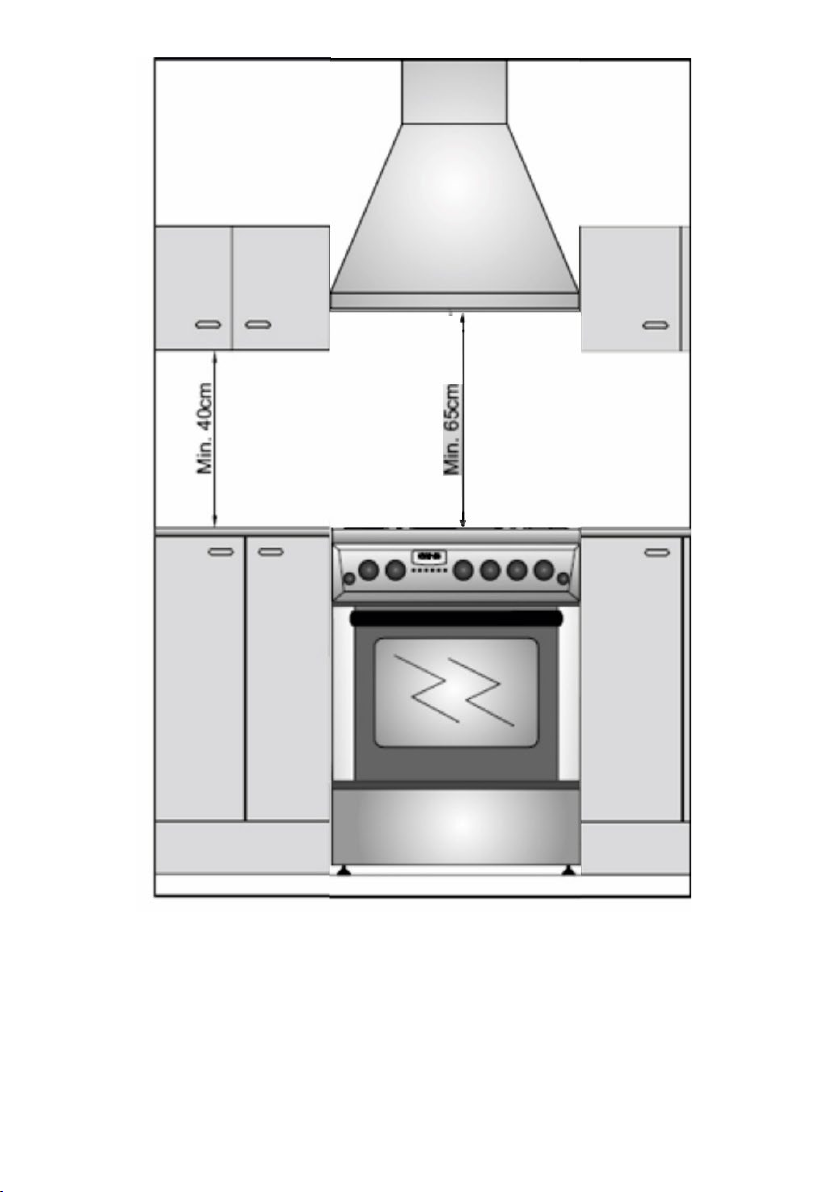

When fitting an Extraction Cooker Hood above the Hob, the minimum
height must be 650mm.

FUNCTION SYMBOLS
Off Bottom heating element Top heating element
Top & Bottom heating element Turbo fan Oven lamp
Grill element
1. Hob top 10 .Top shelf runner (main oven)
2. Control/ Fascia panel 11. Middle shelf runner
3. Grill compartment 12. Middle shelf runner
4. Wire shelf 13. Bottom shelf runner
5. Oven tray 14. Oven lamp (main oven)
6. Main oven 15. Top cavity shelf runner
7. Main oven door handle 16. Top cavity shelf runner
8. Main oven door 17. Lamp (top cavity)
9. Top cavity door

USE AND DESCRIPTION OF THE CERAMIC HOB
Controlling the Hob Cooking Zones
1. To operate the hob, use the control knobs on the fascia panel of the
oven. This allows the power level to be selected in order to reach
the required cooking temperature.
2. In order to achieve the best result from the hob, the bottom of the
pans should be as thick and flat as possible.
3. It is important that the base of pans match the size of the cooking
zones. Where possible, always cook with lids on the pans. Always
place pans on the cooking zone before switching on. Switch the
cooking zones off before the end of the cooking time, to take
advantage of residual heat.
4. Turn the knob in a clock wise direction to begin cooking. Set the
cooking power level by turning the knob position gradually
increasing to the level required. (Singlezone)
5. At the “0”position, all the zones are turned off.

USING THE OVEN
1. When your oven is operated the first time, an odour will emanate from
the heating elements. In order to get rid of this, operate the oven at
250°C for 45-60 minutes with the oven empty.
2. Oven control knobs must be set to the required level; otherwise the
oven will not operate.
3. The thermostat control knob should be positioned to the required
temperature setting.
4. When using the oven, the oven door should not be opened too
frequently, as the heat circulation may be affected and cooking results
may deteriorate.
5. The oven should be pre-heated for 5-10 minutes prior to cooking.
SUGGESTED COOKING TIME TABLE
Meals
Temperature (°C)
Rack position
Cooking time (min.)
Creamed cake
150 - 170
2
30 - 35
Pastry
200 - 220
2
35 - 45
Biscuit
160 - 170
3
20 - 25
Cookie
160 – 170
3
20 - 35
Cake
160 - 180
2
25 - 35
Braided cookie
200 - 220
2
30 - 40
Filo pastry
180 - 220
2
35 - 45
Savory pastry
160 - 180
2
20 - 30
Lamb meat
200 - 230
1
90 - 120
Veal
200 - 230
1
90 - 120
Mutton
210 - 230
1
90 - 120
Chicken (in
210 - 230
1
75 – 100
Fish
190 - 210
2
40 – 50
Note: Results may change. Always consult the information on your food
packets before cooking.

IF THE APPLIANCE DOES NOT OPERATE
Problem
Possible Causes
Suggested Solutions
Oven is not
working
Fuse malfunction or automatic fuse
blown
Check the general fuse box to see if
any breakers are off.
Check the general fuse box to see if
the
automatic fuse or the breakers
are off. If the problem continues
contact a qualified electrician.
The device is switched off.
Switch on at the fused spur or fuse
box.
Oven light is
not working
Oven lamp is defective. Change the lamp.
There is no current
Check the general fuse box to see if
any breakers are off.
Check the general fuse box to see if
the
automatic fuse or the breakers
are off. If the problem continues
contact a qualified electrician
Oven is not
heating
Oven temperature and/or cooking
mode has not been selected
Set the cooking mode
and
temperature
There is no current
Check the general fuse box to see if
any breakers are off.
Check the general fuse box to see if
the
automatic fuse or the breakers
are off. If the problem continues
contact a qualified electrician

IMPORTANT
•Do not try to repair the cooker yourself.
•There are no parts inside the product that should be accessed or
repaired by the user.
USING THE HEAT SHIELD
The safety shield is designed to protect the fascia panel and the knobs
when the oven is in Grill Mode. Place the safety shield under the control
panel by opening the grill door, then secure the safety shield between
the oven and the grill door by closing the grill door. It is important to
keep the grill door open in this manner when using the Grill.

MAINTENANCE AND CLEANING
1. Switch the power off.
2. While the oven is operating or shortly after it starts operating,
it is extremely hot. You must not touch the heating elements.
3. Never clean the interior parts, panel, lid, trays or any other
parts of the oven with the tools like a hard brush, cleaning
mesh or knife. Do not use abrasive, scratching agents and
detergents.
4. After cleaning the interior parts of the oven with a soapy cloth,
rinse it and then dry thoroughly with a soft cloth.
5. Clean the glass surfaces with special glass cleaning agents.
6. Do not clean your oven with a steam cleaner.
7. Never use flammable agents like acid or thinners when cleaning
your oven.
8. Do not wash any part of your oven in a dishwasher.
REMOVING THE OVEN DOOR
CHANGING OVEN LAMP
Let the oven cavity, grill and heating elements cool down. Switch off
the power to your appliance before changing the inner lamp. Change
a bulb using one with a maximum rating of 25W and with 300 C˚
temperature resistance.

PRODUCT FICHE
Type:
60 x 60cm Free Standing Double Cavity
Electrical Cooker
Cavity:
Main Oven
Energy Source:
Electrical
Volume:
64 litre
Energy Consumption -Convection
Mode (EC):
0,77kWh
Energy Efficiency Index (EEI):
94,9
Energy Class:
A
Measurement method:
EN 60350-1 / Regulation (EU)66/2014

Her
e
F
or
Y
ou
Here for You
After-sales assistance
If you continue to experience problems with your Freestanding Cooker, please call the Montpellier customer
service helpline on: 01527 888133.
Please have all your product details available, including the model number, serial number, date ofpurchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects youagainst the cost of repairs during
the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase,
such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
ofclaim.
What is not coveredunder the Guarantee
• Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
• Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
• Cost of Call-outwhere a fault cannot be found with the appliance.
• Cost of Call-outfor work covering routine maintenance, such as, but not exclusively, cleaning of filters or
defrosting.
• Costof Call-outfor work required to correct the alignment of doors following door
reversal procedures carried out by you.
• Use of the appliance by anyone other than the Householder.
• Use in any commercial environment.
• Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routinereplacement.
• Repair costs incurred that have not been authorised by Montpellier service and/or carried out by a non-
approved Montpellier engineer.
• Montpellier Appliances do not accept claims for consequential loss, rusting, corroding,delivery damage
or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To register your appliance simply complete the card in your appliance pack and return it with a stampaffixed
or Alternatively,you can registeronlineat www.montpellier-appliances.com/support.

SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 0 1527
888133. Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailer’s details before registering a fault.
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway
Lane,
Tewkesbury, Gloucestershire GL20
8JU
www.montpellier-appliances.com
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed
over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of
correctly,you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you purchased the product.
