moon Arcturus Auto Instruction Manual

LIGHT SENSITIVE AUTO ON/OFF OPERATION
*The light will shut off after 3 seconds
when you have selected the mode in
automatic standby status.
Normal Working Status
Automatic Working Status
Steady Orange
Normal Working Status
Automatic Standby Status
Flashing Orange
Well-lit environment situation
Dark environment situation
1. Turn on the light.
2. Press and hold the power button about 3 seconds to toggle between
automatic status and normal status.
3. Select the mode you want to use by press the power button.
Hold for 3 seconds to toggle between
automatic status and normal status.
Hold for 3 seconds to toggle between
automatic status and normal status.
AUTO
OFF
(30 seconds delay)
AUTO
ON
4. Press the power button about 1 second to switch off.
Low battery status
* Steady blue
Double click
1. Double click the power button to toggle between the steady and
flashing modes.(With mode memory, the light will resume previous
mode upon next usage.)
LIGHT OPERATION
2. Press and hold the power button about 1 second to switch off.
(With mode memory, the light will resume previous mode upon next
usage.)
Power button
Indicators
Automatic status
* Standby - flashing orange
* Working - steady orange
Auto safe mode
* Flashing blue
!Remember to switch off the light when you do not use it.

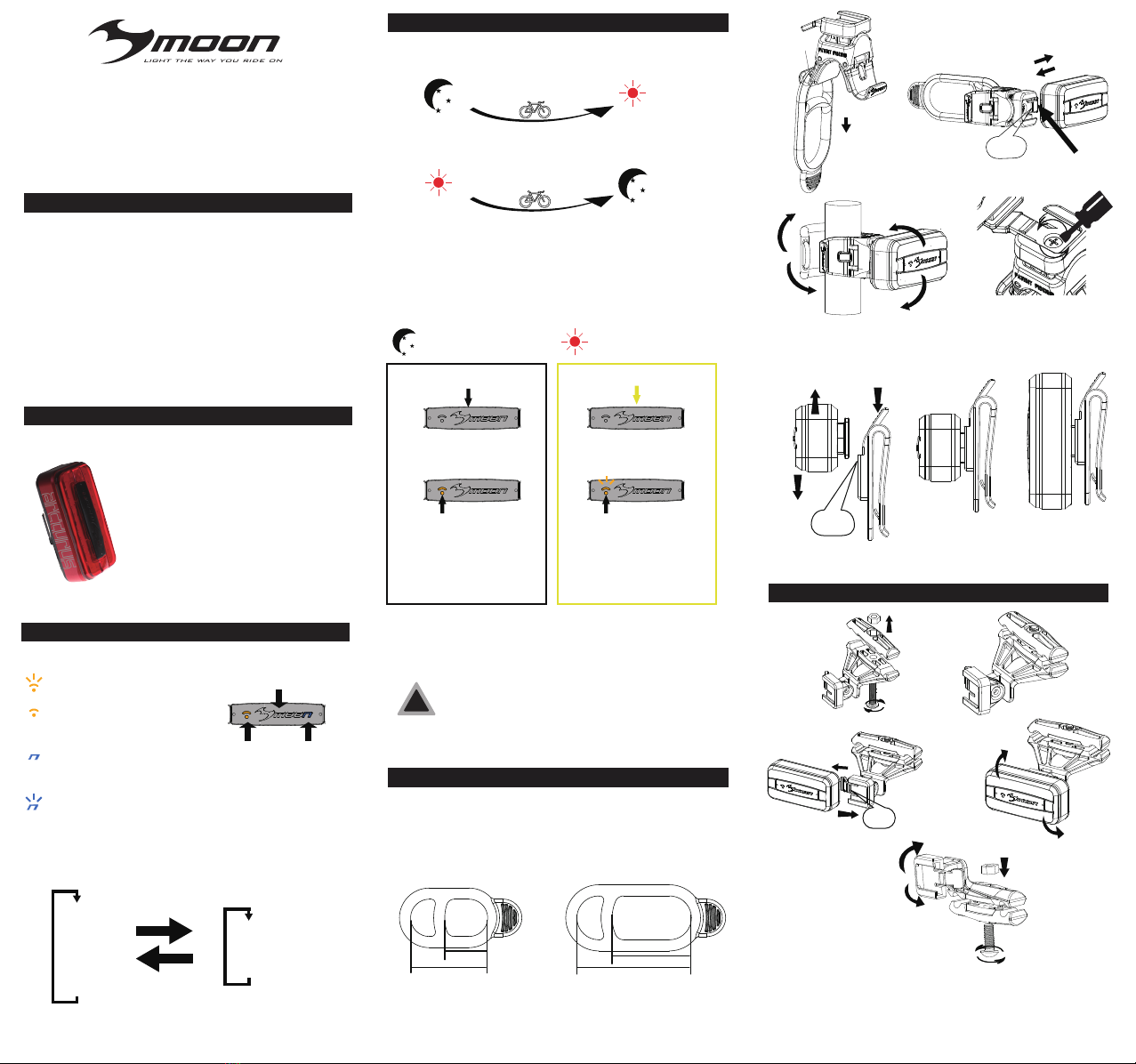

HOW TO MOUNT THE LIGHT
1. Choose the strap to fit in the bar.
2. Make sure the strap is clicked in place of the hook.
3. Hold the light on the handlebar/seat post.
4. Wrapping rubber strap around bar and stretching strap around hook to secure.
5. Slide the light forward onto bracket until it clicks into place.
6. Press down release lever to remove.
Pull
Install
Install
Release
click Press
RS-G RS-H
35-52 mm20-35 mm
20-26 mm
26-35 mm
26-35 mm
35-52 mm
HOW TO MOUNT THE LIGHT
7. Adjust the vertical beam angle when mounted on the seatpost, loosen
the screw knob and band the light up or down for your preferred angle,
then tighten the screw knob to secure the light in place.
1. Slide tail light forward onto belt clip until it clicks into place.
2. Press down release lever to remove.
Release
Clockwise
Wrapping
Release
Adjust
Adjust
Release
Adjust
Adjust
1.
2.
3. Install Click 4.
Method 1
Method 2
Adjust
Adjust
Install
Install
Press
click
Release
Method 1 Method 2
*1 pc (30 chips) Rectangular ring COB high brightness red LED
*CNC Aluminium heat sink casing
*Light sensitive auto ON/OFF
*Auto safe mode
*Mode memory function
*Rechargeable lithium polymer battery (3.7V 300 mAh)
*7 modes: Mode1 / Mode2 / Mode3 /
FL1 / FL 2 / FL 3 / DAY FLASH (DOUBLE BLAST)
*Quick release universal bracket RB-22
(fits all round bars and AERO style bars)
*Low battery, charging and fully charged indicator
*Automatic fully charged cut-off system
*Side visibility
*Water resistant (IPX 4)
USER GUIDELINE
Thank you for choosing MOON light!
*For using this product safely and conveniently and keeping it well-
preserved, please read this manual carefully before using. Please
save this manual for future reference.
*Due to the improvement of the product, the product you bought may
not be exactly in accordance with the introduction of this manual. We
apologize for that.
SPECIFICATION
CONTENTS INCLUDED
®
Contents:
*ARCTURUS-AUTO
*RB-22 (Universal bracket)
*2 O-rings for mounting
RS-G (fits 20-35 mm diameters)
RS-H (fits 35-52 mm diameters)
*BK-21 (Belt clip)
*USB-WP (Water resistant USB cable)
Optional accessories:
*RB-19 (Rear rack mount bracket)
*RB-21 (Saddle rail bracket)
*RB-23 (Helmet bracket)
1. Loosen the screws in the saddle bracket with the Allen key.
2. Clamp the bracket onto the saddle rail.
3. Align the screw holes, using the Allen key to tighten the bracket.
4. Slide light forward onto bracket until it clicks into place.
5. Press down release lever to remove.
6. Twist the light body to adjust the vertical angle.
DAY FLASH
(DOUBLE BLAST)
FL1
FL2
FL3
Mode3
Mode2
Mode1

Run Time Recharge
time
(Auto safe)
around
1 hr
Mode Lumens
10 3:45
2:20
1:20
13:00
5:00
16:30
15
35
70
10
* The time of recharging depends on which method (wall charger or computer) is being used.
Mode3
Mode2
Mode1
DAY FLASH
(DOUBLE BLAST)
FL1
FL2
FL3
35
8:0035
Weight: 30 g
Double click 2 hrs
270°
TOTAL ANGLE 105°
SPOT ANGLE
Hold for 3 seconds to toggle between automatic status and normal status.
2. When the signal “ N ” flashes, it means that is in very low power
stage, then the safe mode will be on and cannot be changing mode
accordingly. The light may have an hour left for usage. (Depending on
which mode the light was on before entering safe mode, it would
affect the run time of safe mode before battery is completely drained.)
1. When the signal “ N ” turns on, it means the battery is low. You
should charge your light.
Attention: If you do not use the battery for a long time, be sure to fully
recharge every 3 months. Please store the battery in a cool and dry
place. Recharge battery after each long usage.
Charging indicator
* Flashing Blue - charging
* Steady Blue - charged
HOW TO CHARGE BATTERY AUTO SAFE MODE
Steady-Blue
Flashing-Blue
Power button
Indicators
!
*Do not charge over 5V the battery will result in damage.
*Light sensor mode must be off before charging.
*Keep away from flammable objects while charging as this may lead
to fire or battery explosion.
*Do not smoke while charging as the battery may release hydrogen
gas. Always charge your battery in a well-ventilated space.
*Never connect or disconnect the plug or cord with wet hands whilst
charging. Do not connect or disconnect the plug or cord when they are
wet, it may lead to electric shock.
CAUTION
*Make sure to clean the dust and dirt on the light with soft damp cloth
after every ride.
*Water resistant is for rain water only. Do not submerge the battery or
the whole light into water when cleaning.
HOW TO CLEAN AND CARE THE LIGHT
CAUTION: When riding at night, please follow the guidelines below:
*Carrying a flash light is recommended.
*Use caution when handing, the light may get hot.
*Unplug the light if not in use.
*Unplug connector by the plug, never by the cable.
*Do not dismantle the light.
*Provide sufficient airflow to the light for cooling during use.
*Do not control any part of the system under water.
*Do not look directly at light.
*Do not leave the light on and unattended.
*Keep the light away from fire and combustible materials.
*Do not store head unit when hot or straightway after use.
*Unplug the light, charger and cable once the battery is fully charged.
*This light is for bicycle use only.
!
MOON warrants to the original purchaser of this product that the
product is free from defects in material and workmanship for a period of
one year. This warranty does not apply to damage due to heat, physical
damage resulting from abuse, neglect, improper repair, improper fit, or
alterations of the fixture. This warranty is in lieu of all other agreements
and warranties, general or specific, express or implied and no
representative or person is authorized to assume liability on behalf of
MOON in connection with the sale and use of this product.
MOON reserves the right to request the return of any product submitted
for warranty consideration. All customers should contact the local dealer
or regional distributor for warranty service.
To make a claim, first call local dealer or regional distributor. Some
issues may be resolved upon the initial call. If return of the product is
necessary, please refer to the following instructions:
*We recommend that items be sent by a traceable method (such as
FedEx or UPS). MOON is not responsible for lost or misdirected
packages.
*Please include your full contact information (name, address, phone
number, and email [if applicable]), and a description of the issue.
*Address items to: local dealer or regional distributor
What is not covered: MOON Lights are covered by a ONE YEAR
LIMITED WARRANTY from the date of purchase. This covers the lights
and cables only. It does not cover the battery or battery internals.
Batteries are covered by 120 days warranty.
For more information please contact us at [email protected].
http://www.moon-sport.com
*The specifications and design are subject to change without notice.
1. Problem: The light is not on
Solution: Check if the battery still has power
Check if the power button is pressed hard
SIMPLE PROBLEMS ANALYSIS AND SOLUTION
WA-MOON-ARCTURUS-AUTO
WARRANTY
1. Find the charging place at the back of the light.
2. Lift the rubber cover and you’ll see the charging port.
3. Plug the USB cable to your computer USB port.
4. Plug the charger cable to the light charger port.
5. The charging indicator shows slow flashing blue when the light is
charging, after fully charged it changes to steady.
6. It is normal that the battery may get high temperatures during
charging (up to 104°F/40°C), as the chemical in battery is in reaction.
If the battery is not drained completely before charging, it may also
get warm.
7. Several factors can influence the battery’s durability: type of cell
strain, the maintenance routine, the temperature and number of
charges etc.
Normally speaking, the higher the battery capacity, the longer the
burn time.
8. The battery capacity may become ineffective about 80% of its value
after 300-500 charge/discharge cycles. The battery can may 3 years
life span under good care.
9. The battery voltage and capacity decrease apparently at low
temperatures, especially near or below ice point. The capacity
decreases 5%-10% at freezing (burn time decreases 50%). At -20°C,
the capacity decreases 30% (burn time decreases 70%). The battery
performance will return normal when the temperate gets up to
70°F/20°C.
The battery will lose around 1% of its capacity per day when you store
the battery at normal room temperature. Battery temperate should
never exceed 104°F/40°C, it will lose about 5% of its capacity per day.
10. If you do not use the battery for a long time, be sure to fully
recharge every 3 months. Please store the battery in a cool and dry
place.
Emax (LUX) Distance (M)
ARCTURUS-AUTO
1M
2M
10M
12
3.6
0.12
2.6 M
5.2 M
26 M
35 LUMENS
