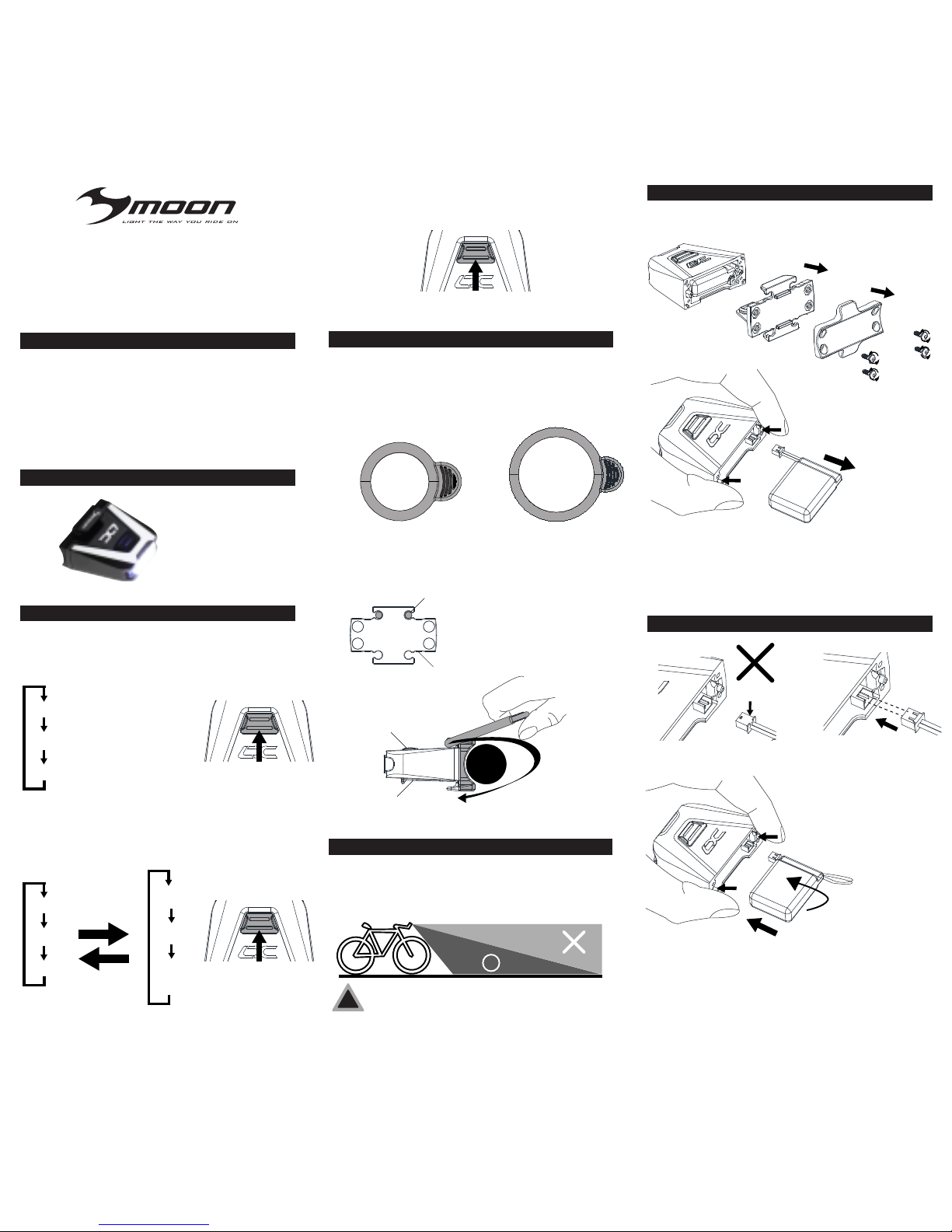

moon LUXEIUM series Instruction Manual

CONTENTS:
HOW TO MOUNT THE HEADLIGHT
RS-A RS-B
BEAM ADJUSTMENT
To adjust the horizontal beam, spin the headlight left to right for your
best side to side beam angle. To adjust the vertical beam angle,
loosen the mounting and rotate the light up and down to your best
vertical beam angle, then tighten the mounting.
The beam is widely dispersed, besides its high brightness. To prevent
from blinding the oncoming vehicles on the public roads, you’d better
adjust the angle downward.
!
USER GUIDELINE
Thank you for choosing MOON LUXEIUM series headlight!
*For using this product safely and conveniently and keeping it
well-preserved, please read this manual carefully before using.
Please save this manual for future reference.
*Due to the improvement of the product, the product you bought may
not be exactly in accordance with the introduction of this manual. We
apologize for that.
SPECIFICATION
CONTECTS INCLUDED
1. Choose the strap to fit in the bar.
2. Make sure the strap is click in place of the hook.
3. Hold the light on the handle bar.
4. Wrapping rubber strap around bar and stretching strap around hook to secure.
*1 pc CREE XP-E LED
*Rechargeable lithium polymer battery ( 3.7V 550mAh)
*USB rechargeable
*Water resistant headlight with durable aluminum alloy body
*6 modes : Over drive / High / Standard / Flashing / Strobe / SOS
*Quick release handlebar mount (fits 20-40mm)
*Low battery, charging and fully charged indicator
*Automatic fully charged cut-off system
*High precision optical lens
* LX-100
* Lithium polymer battery
* USB cable
* Handlebar rubber strap
* Rubber base
1. Press the power button to choose the modes:
In this method three modes are cycle.
LIGHT OPERATION
2. Fast press two times the power button to change into the strobe
and flashing modes.Fast press two times back to the first cycle.
3. Press and hold the on / off button around 0.5 second to turn off.
PRESS
Hold 0.5 sec
Power button
PRESS
Over drive
High beam
Standard
Over drive
High beam
Standard
Flashing
Strobe
SOS
Fast press
2 times
Fast press
2 times
WRAPPING
Power button
Rubber strap
Base cover
USB cover
27 - 40 mm
20 - 25 mm
1.
2.
3.
Power button
Power button
®
Battery installation
1. Do not up side down the slot.
2. Align the slot until it clicks into place.
3. Fold up the battery install into the light.
4. Twist the remain wire into the light of the remain sapce.
5.Twist the screw clockwise until install the base cover.
Battery release
1.Twist the screw anti-clockwise until release the base cover & rubber pad.
2.Use two finger to hold the light body when release the battery from the
light.
INSTALL THE BATTERY
THE BATTERY REPLACEMENT
RELEASE
RELEASE
Battery
Hold
Hold
RELEASE
Battery
UPSIDE DOWN
Hold
Hold
ALIGN
INSTALL
INSTALL
(Make sure the strap is click in place of the hook.)

*Make sure to clean the dust and dirt on the light with soft damp cloth
after every ride.
*Water resistant is for rain water only. Do not submerge the battery or
the whole light into water when cleaning.
*Once you start using the light, you’d better keep using it. When you
have to stop using for a long time, please take off the battery to keep
well.
HOW TO CLEAN AND CARE THE LIGHT
CAUTION: When riding at night, please follow the guidelines below:
*Carrying a flash light is recommended.
*Use caution when handing, the light may get hot.
*Unplug the headlight if no use.
*Unplug connector by the plug, never by the cable.
*Do not amend or replace any parts with Non-MOON parts.
*Provide sufficient airflow to the headlight for cooling during use.
*Do not control any part of the system under water.
*Do not look directly at light.
*Do not leave the light on and unattended.
*Keep headlight away from fire and combustible materials.
*Do not store head unit when hot or straightway after use.
*Unplug the USB cable when fully charged.
*This light is for bicycle use only.
6. It is normal that the battery may get high temperatures during
charging (up to 104°F/40°C), as the chemical in battery is in
reaction. If the battery is not drained completely before charging, it
may also get warm.
7. Several factors can influence the battery’s durability: type of cell
strain, the maintenance routine, the temperature and etc.
Normally speaking, the higher the battery capacity, the longer the
burn time.
8. The battery capacity may become ineffective about 80% of its
value after 300-500 charge/discharge cycles. The battery may has
3 years life span under good care.
9. The battery voltage and capacity decrease apparently at low
temperatures, especially near or below ice point. The capacity
decreases 5%-10% at freezing (burn time decreases 50%). At
-20°C,the capacity decreases 30% (burn time decreases 70%). The
battery performance will return normal when the temperate gets up
to 70°F/20°C.
The battery will lose around 1% of its capacity per day when you
store the battery at normal room temperature. Battery temperate
should never exceed 104°F/40°C, it will lose about 5% of its
capacity per day.
10. If you donot use the battery for a long time, be sure to make it a
fully recharge every 3 months before storing again. Please keep the
battery in cool and dry place when storing.
MOON warrants to the original purchaser of this product that the
product is free from defects in material and workmanship for a period of
one year. This warranty does not apply to damage due to heat, physical
damage resulting from abuse, neglect, improper repair, improper fit, or
alterations of the fixture. This warranty is in lieu of all other agreements
and warranties, general or specific, express or implied and no
representative or person is authorized to assume liability on behalf of
MOON in connection with the sale and use of this product.
MOON reserves the right to request the return of any product submitted
for warranty consideration. All customers should contact the local dealer
or regional distributor for warranty service.
To make a claim, first call local dealer or regional distributor. Some
issues may be resolved upon the initial call. If return of the product is
necessary, please refer to the following instructions:
*We recommend that items be sent by a traceable method (such as
FedEx or UPS). MOON is not responsible for lost or misdirected
packages.
*Please include your full contact information (name, address, phone
number, and email [if applicable]), and a description of the issue.
*Address items to: local dealer or regional distributor
What is not covered: MOON Lights are covered by a ONE YEAR
LIMITED WARRANTY from the date of purchase. This covers the lights
and cables only. It does not cover the battery or battery internals.
Batteries are covered by 120 days warranty.
For more information please contact us at [email protected].
1. Problem: The light is not on
Solution: Check if the battery still has power
Check if the power button is pressed hard
Check if the battery is installed correctly
2. Problem: The light turns off over rough terrain
Solution: Check if the battery is fully inserted.
HOW TO CHARGE BATTERY
Attention: MOON would like to recommend you to use the original
supplied USB cable to charge the battery. The battery will be
damaged if you use any other USB cables to charge the battery.
Unplug the light, charger and cable once the battery is fully charged.
1. Find the charging place at the back of the light.
2. Lift the rubber cover and you’ll see the charging port.
3. Plug the USB cable to your computer USB port.
4. Plug the charger cable to the light charger port.
5. The charging indicator shows slow flashing blue when the light is
charging, after fully charged it changes to steady.
SIMPLE PROBLEMS ANALYSIS AND SOULUTION
Low battery indicator
* Flashing Orange
Low battery &
charging indicator
USB port
Rubber cover
* When the indicator turns flashing red, it means the battery is low.
You'd better charge the light right now.
Power button
Charging indicator
* Flashing blue - charging
* Soild blue - charged
Mode Lumen Runtime
Over drive 100 Up to 1 hour 20 mins
High Up to 2 hours 30 mins50
Standard Up to 4 hours 30 mins30
Flashing Up to 5 hours 30 mins--
Strobe Up to 2 hours 45 mins--
Weight
charge
time
54 g3 hours
* Charge time dependent on wall charger or computer
Emax (LUX) Distance (M)
100 LUMENS
LX-100 Spot angle 14°Total Angle 48°
1M
2M
10M
720
270
8
0.25 M
0.5 M
2 .5M
9 M
5.5 lux
Side light
Battery installation
1. Do not up side down the slot.
2. Align the slot until it clicks into place.
3. Fold up the battery install into the light.
4. Twist the remain wire into the light of the remain sapce.
5.Twist the screw clockwise until install the base cover.
