66615
Sidewing Table
Assembly Instructions
2
P1 Support Arm 1 EA
P2 Shelf 1 EA
P3 Wire Stop 1 EA
P4 “U” Bracket 2 EA

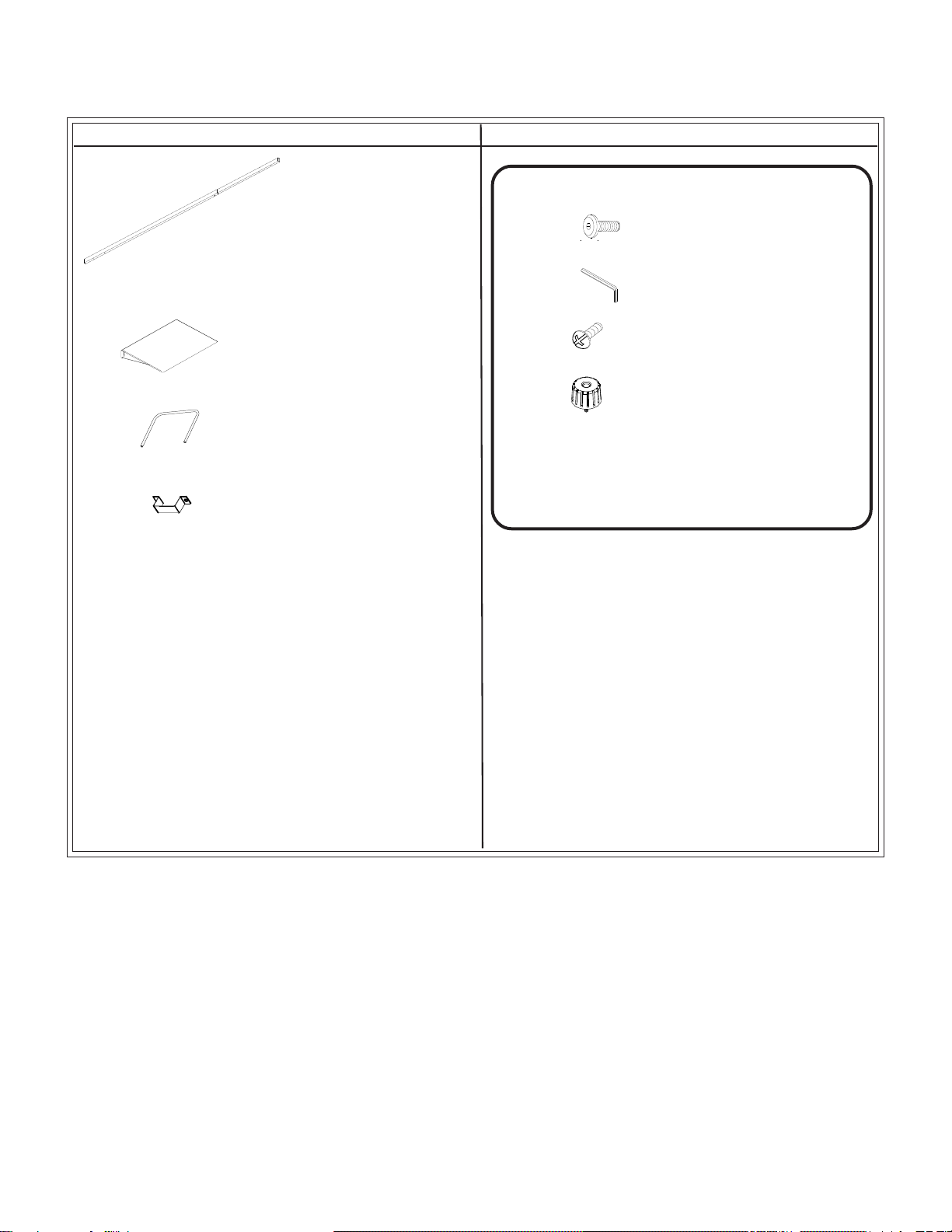

Part Drawing Description Qty Part Drawing Description Qty
Sidewing Table
Hardware List
Allen Wrench 1 EA
Screw-Phillips 2 EA
Knob 1 EA
Screw M6X10mm 6 EA
A
B
C
D
3
1.)
R
EAD
T
HROUGH
I
NSTRUCTIONS
FROM
BEGINNING
TO
END
BEFORE
STARTING
TO
ASSEMBLE
UNIT
.
Identifyand Separateall theParts andHardware.
66615 Sidewing Arm & Shelf
2.)
A
P1
66615A,66620_07-09-14
C
P3
P2
A
D
Bottom View

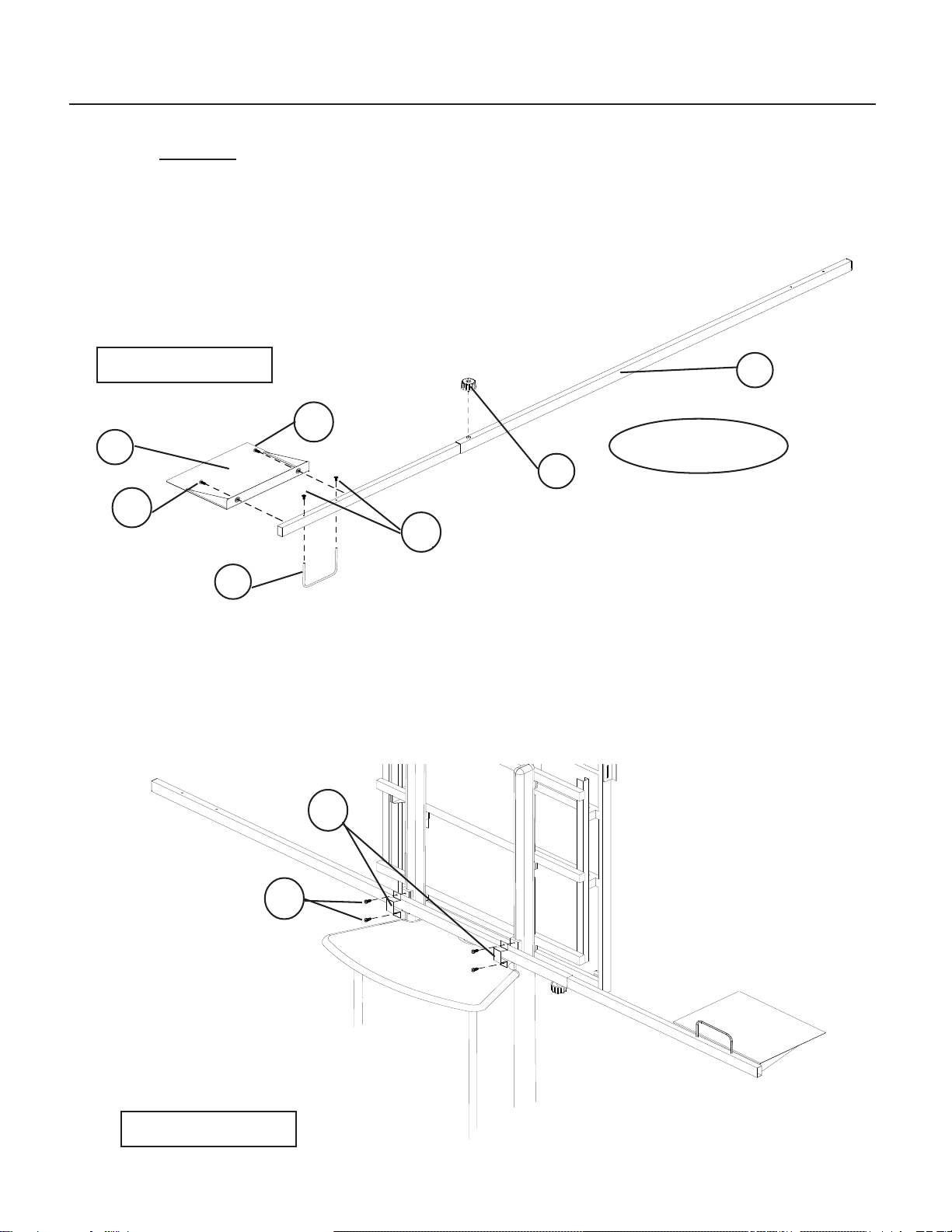

AttachtheShelf (P2) tothe SupportArm(P1) using twoScrews (A)
asshown inIllustration #1. Insert theWire Stop(P3) intothe top
holesin the SupportArm(P1)and secure inplace from thebottom
usingtwo Phillips Screws (C). Screwin Knob (D) into thebottom
holein the Support Arm(P1).
Illustration #1
3.) Attachthe assembly from Step 2 tothe back of yourcart using two U Brackets(P4) and
fourScrews(A) asshown inIllustration #2. TightenScrews with AllenWrench(B).
Illustration # 2
A
P4
