Mopar 82212895 User manual

1
REMOTESTART
CHRYSLERTOWNANDCOUNTRY/DODGECARAVAN
CALLOUTDESCRIPTIONQUANTITY
1WINAntenna1
2HoodAjarSwitchBracketMountingFastener1
3HoodAjarSwitch1
4HoodAjarSwitchBracket1
5ZipTies10
6WirelessIgnitionModule(WIN)1
7FOBIK2
8HoodAjarSwitchHarness1
9WINAntennaMountingFasteners2
TOOLSREQUIRED
TrimStickSmallPry/PickToolSmallFlatheadScrewdriver
Jul01,2011K6861201
www.mopar.com
4280416

2
TOOLSREQUIRED
LongPhillipsHeadScrewdriverShortPhillipsHeadScrewdriver8mm,9mm,10mm,13mmSockets
T15,T27TorxHeadSocketsRatchetw/Short/LongSwivelExtensionsSidecutters
CAUTION:
XBMremotestartcanONLYbeinstalledonvehiclesthathavethefollowingfactoryoptions:AutomaticTrans
mission,RemoteKeylessEntryandImmobilizer.
WinFobikbasedvehicles,thesalescodemustbeaddedtothedatabaseandtheRestoreVehicleConfiguration
(usingadiagnosticscantool)mustbeperformedpriortoinstallingthenewWINmodule.Failuretodosowill
rendertheWINmodule’sremotestartfunctioninoperative.
Thetechnicianshouldwait1/2hourbetweenaddingXBMsalescodeinDealerConnectbeforeinstallingtheWIN
module&restoringvehicleconfiguration.Intheinterim,thetechniciancaninstallallothercomponentsexcept
theWINmodule.
NOTE:Itisrecommendedtoreadtheinstructionsthoroughlybeforeinstallingthisproduct.
PROCEDURESTEPS:
UPDATEVEHICLECONFIGURATION
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
1.VINmustbeupdatedwiththesalescodeoftheaddedaccessoryinordertoenablesystemfunctionality.Usingthe
DealerCONNECTwebsiteandthewiTECHdiagnosticapplication,completethevehicleconfiguration.
2.Logontohttps://dealerconnect.chrysler.com.
3.Inthe"VehicleOption"screenunderthe"GlobalClaimsSystem"categoryinthe"Service"tab,enterthevehicle
VIN,fourdigitpinnumberobtainedfromthedealershippartsdepartmentandaddsalescode(s)notedbelowasa
"DealerInstalledOption".
XBM(REMOTESTART)
4.ConfirmthatthenewsalescodehasbeensuccessfullyaddedtotheVIN.
5.WiththewiTECHdiagnosticapplication,performthefollowingstepsformtheInitialStartUpScreen:
•Selectthe"DIAGNOSTICPROCEDURES"tab
•Select"RESTOREVEHICLECONFIGURATION"
•Selectthe"RunDiagnostic"button
•Select"CONTINUE"
•VerifythatthevehicleVINnumberiscorrect
•Onceverified,selectthe"CorrectVIN"button
•NoteOnScreeninstructionsandselectthe"Close"button
PROCEDURESTEPS:
Jul01,2011K6861201
4280416

3
HOODSWITCHANDHARNESSINSTALLATION
NOTE:Itmaybenecessarytoloosenorremove
thebatterytoinstallthehoodswitch,bracketand
harness.
NOTE:Itmaybenecessarytorepositionorremove
theIntegratedPowerModule(IPM)toinstallthehood
switchandbracket.
1.Disconnectandisolatethenegativebatterycable.
2.Locatethehoodswitchmountinglocation,nearthe
batteryonthedriversideinnerfender(1).
3.Positionthehoodajarswitchbracket(2)ontothe
driversideinnerfender(1).
4.Installthemountingfastener(3)providedinthekitto
securethehoodajarswitchbrackettothedriverside
innerfender(1).Tightenthefastenersecurely.
NOTE:Ifequipped,itmaybenecessarytoreposition
orremovetheIntegratedPowerModule(IPM)tolocate
thefactoryhoodswitchharness.
5.Locatethehoodswitchharnesstakeoff(1)located
nexttothebatteryrunningundertheIPM,tapedonthe
existingvehicleharness.Ifthehoodswitchharness
takeoffisnotpresentontheexistingvehicleharness,
proceedtostep10.
6.Ifthehoodswitchtakeoffharness(1)ispresenton
theexistingvehicleharness,removethetapesecur
ingthetakeoffharness(1)fromthevehicleharness.
NOTE:Selfadjustmentofthehoodajarswitch
isaonetimefeature.Iftheswitchisdamaged,
ineffective,removedorrequiresreadjustment,it
mustbereplacedwithanewunit.
7.Positionthehoodajarswitch(1)neartheholeinthe
mountingbracket(2)ontheleftinnerfenderside
shield.
8.Pullthewireharnessconnector(3)throughtheswitch
mountingbracket(2)andconnectittothehoodajar
switch(1).
9.Fromthetopofthemountingbracket,pressthehood
ajarswitchdownward(1)intothemountingholeofthe
bracketuntiltheintegralswitchlatchtabslockitinto
place.
Jul01,2011K6861201
4280416

4
IFVEHICLEISNOTEQUIPPEDWITHHOODSWITCH
HARNESSTAKEOFF
10.Removethevehiclegroundbolt(1)locatednexttothe
battery.
11.Installthehoodswitchgroundharnessgroundtermi
nalandinstallthevehiclegroundbolt(1)backintothe
innerfender.
12.RemovetheTIPMcover.
13.Removethepositivebatteryfeed(2)fromtheTIPM.
14.Usingaflatbladescrewdriver,releasetheTIPMre
tainingtabs(1)andliftuptoaccesstheTIPMharness
connectorslocatedunderneath.
15.Disconnecttheconnector(1)labeledD.
Jul01,2011K6861201
4280416

5
16.Removethesecondarylock(2)andweatherseal(1)
fromtherearoftheconnector.
17.Removetheprimarylock(1)fromtheconnector.
18.Locatecavity3(3)onthewireendviewofthecon
nector.
Jul01,2011K6861201
4280416

6
19.Inserttheviolet/whitewire(3)fromthekitsuppliedhar
nessthroughthesecondarylock(2),theweatherseal
(1)andintocavity3oftheconnector.
20.Reinstalltheweatherseal(1)andthesecondarylock
(2)totheconnector.
21.Reinstalltheprimarylock(1)totheconnector.
22.Reconnecttheconnector(1)labeledD.
Jul01,2011K6861201
4280416

7
23.ReinstalltheTIPMtothebracket.Makesureallfour
retainingtabs(1)areseatedproperly.
24.Reinstallthepositivebatteryfeed(2)totheTIPM.
25.ReinstalltheTIPMcover.
NOTE:Selfadjustmentofthehoodajarswitch
isaonetimefeature.Iftheswitchisdamaged,
ineffective,removedorrequiresreadjustment,it
mustbereplacedwithanewunit.
26.Positionthehoodajarswitch(1)neartheholeinthe
mountingbracket(2)ontheleftinnerfenderside
shield.
27.Pullthewireharnessconnector(3)throughtheswitch
mountingbracket(2)andconnectittothehoodajar
switch(1).
28.Fromthetopofthemountingbracket,pressthehood
ajarswitchdownward(1)intothemountingholeofthe
bracketuntiltheintegralswitchlatchtabslockitinto
place.
29.Removethevehiclegroundbolt(1)locatednexttothe
battery.
30.Installthehoodswitchgroundharnessgroundtermi
nalandinstallthevehiclegroundbolt(1)backintothe
innerfender.
Jul01,2011K6861201
4280416

8
WIRELESSCONTROLMODULE(WCM)ANDREMOTESTARTANTENNAINSTALLATION
WARNING:Disabletheairbagsystembeforeattemptinganysteeringwheel,steeringcolumnorinstrument
panelcomponentdiagnosisorservice.Disconnectandisolatethenegativebattery(ground)cable,thenwait
twominutesfortheairbagsystemcapacitortodischargebeforeperformingfurtherdiagnosisorservice.This
istheonlysurewaytodisabletheairbagsystem.Failuretofollowtheseinstructionsmayresultinaccidental
airbagdeploymentandpossibleseriousorfatalinjury.
NOTE:Taketheproperprecautionstoprotectthefrontfaceoftheinstrumentpanelfromcosmeticdamage
duringthisserviceprocedure.
1.Disconnectandisolatethenegativebatterycable.
2.Usingatrimstickorequivalent,removethedoorscuff
panelandthelowercowltrimpanel.Repeatonoppo
siteside.
3.Usingatrimstickorequivalent,removetheendcap
(1)fromtheinstrumentpanel.Repeatonopposite
side.
4.Usingatrimstickcarefullyprybetweentheknob(1)
andtheplasticbezeltoremovetheshiftercoverfrom
theshifterknob(2).
Jul01,2011K6861201
4280416

9

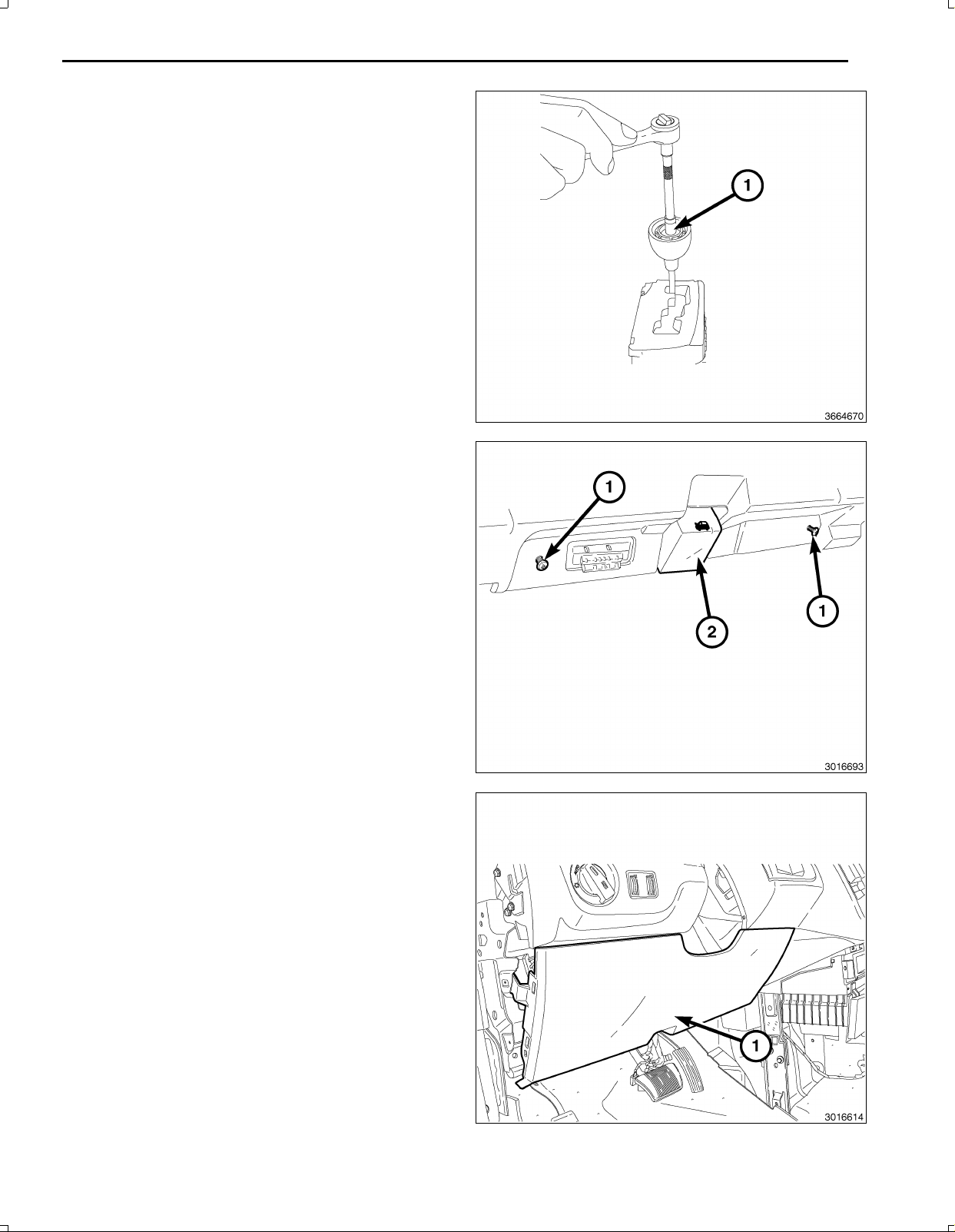

5.Removethenut(1)fromtheshiftershaft.
6.Removetheshifterknobfromtheshiftermechanism
byfirmlypullingupward.
7.Removethescrews(1)fromthesteeringcolumn
openingcover.Thescrewsarelocatednearthehood
releasehandle.
8.Removethescrewlocatedontheoutboardsideat
tachingthesteeringcolumnopeningcover(1)tothe
instrumentpanelstructure.
9.Usingatrimstickorequivalent,removethesteering
columnopeningcover(1)fromtheinstrumentpanel.
Jul01,2011K6861201
4280416

10
10.Pushthetiltlever(3)downwardtothereleasedposi
tion.
11.Removethetwoscrews(1)attachingtheupper
shroudtothelowershroud.Afterremovingthe
screws,uncliptheupperandlowershroudsfrom
oneanotherbyapplyinghandpressurealongthe
seamswheretheshroudsconnectonthesides.
12.Removetheuppershroud.
13.Removetheremainingscrew(2)attachingthelower
shroud(4)tothecolumn.
14.Removethelowershroud.
15.Pushthetiltlever(3)upward,lockingthecolumnin
place.
16.Removethegearshiftcablefromtheshifter(1,2)..
Jul01,2011K6861201
4280416

11
17.RemovetheleftandrightsideApillartrimpanels(1)..
18.Usingatrimstickorequivalent,disengagetheretain
ingtabsthatsecuretherearoftheinstrumentpanel
topcover(1)totheinstrumentpanel(2).
19.Pulltheinstrumentpaneltopcover(1)rearwardtodis
engagetheretainingtabsatthefrontofthecoverand
removethecover.
20.Removethesixfasteners(1)securingtheinstrument
paneltoppadtothestructure.
Jul01,2011K6861201
4280416

12
21.Usingatrimstickorequivalent,removetheradio
bezel(1).
22.Removetheradio(1).
23.Removethefastenersfromthetabslocatedbehind
theradiosecuringthecenterbezel(2).
24.Usingatrimstickorequivalent,removethecenter
bezel(2)fromtheinstrumentpanel,disconnectthe
HVACcontrolsandclock.
25.Removethetwotoppadtostructurefasteners(1)lo
catedintheradiocavityarea.
Jul01,2011K6861201
4280416

13
26.Removethetwotoppadtostructurefasteners(1)lo
catedintheHVACcontrolcavityarea.
27.Removethepushpinretainers(1)andscrewsthatse
curethesilencer(3)tothepassengersideofthein
strumentpanel(2)andremovethesilencer.
28.Removethelowerglovebox(1)..
Jul01,2011K6861201
4280416

14

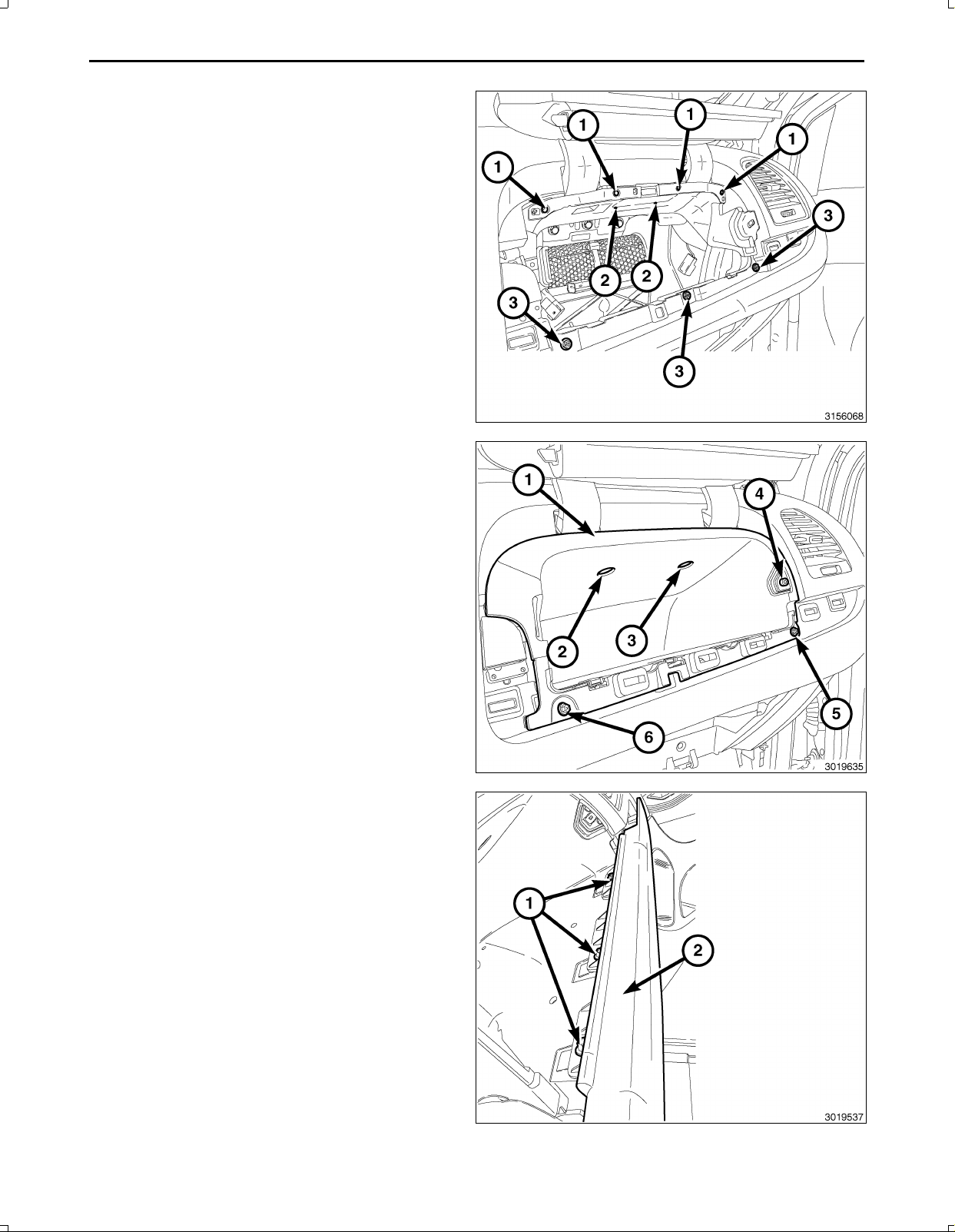

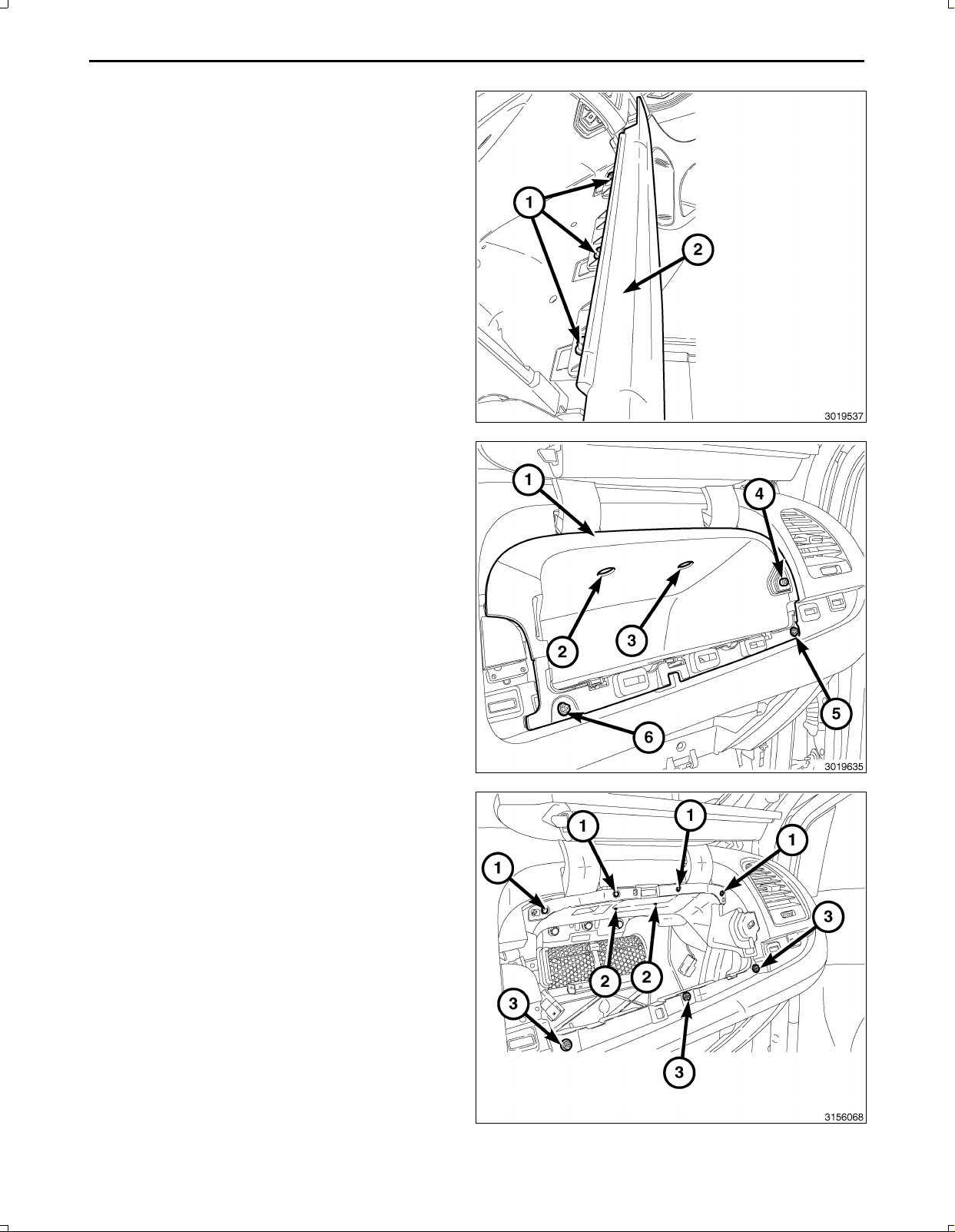

29.Opentheuppergloveboxdoor.
30.Removethefasteners(1)fromtheinstrumentpanel
trimbezel(2).
31.Usingattrimstickorequivalent,removethetrimbezel
(2)fromtheinstrumentpanel.
32.Removethefasteners(2,3,4,5,6)fromtheupper
glovebox(1)..
33.Usingatrimstickorequivalent,removetheupper
glovebox(1)fromtheinstrumentpanel.
34.Ifequipped,removetheUSBconnectorfromtheup
perglovebox.
35.Removethefasteners(1,2)fromtheupperglovebox
door(1).
36.Usingatrimstickorequivalent,removetheupper
gloveboxdoor(1)fromtheinstrumentpanel.
37.Removethethreetoppadtostructurefasteners(3)
locatedintheuppergloveboxcavityarea.
38.Removethepassengersideairbagfastenersfrom
theI/Preinforcementbracketanddisconnectthe
squibconnectors.
Jul01,2011K6861201
4280416

15

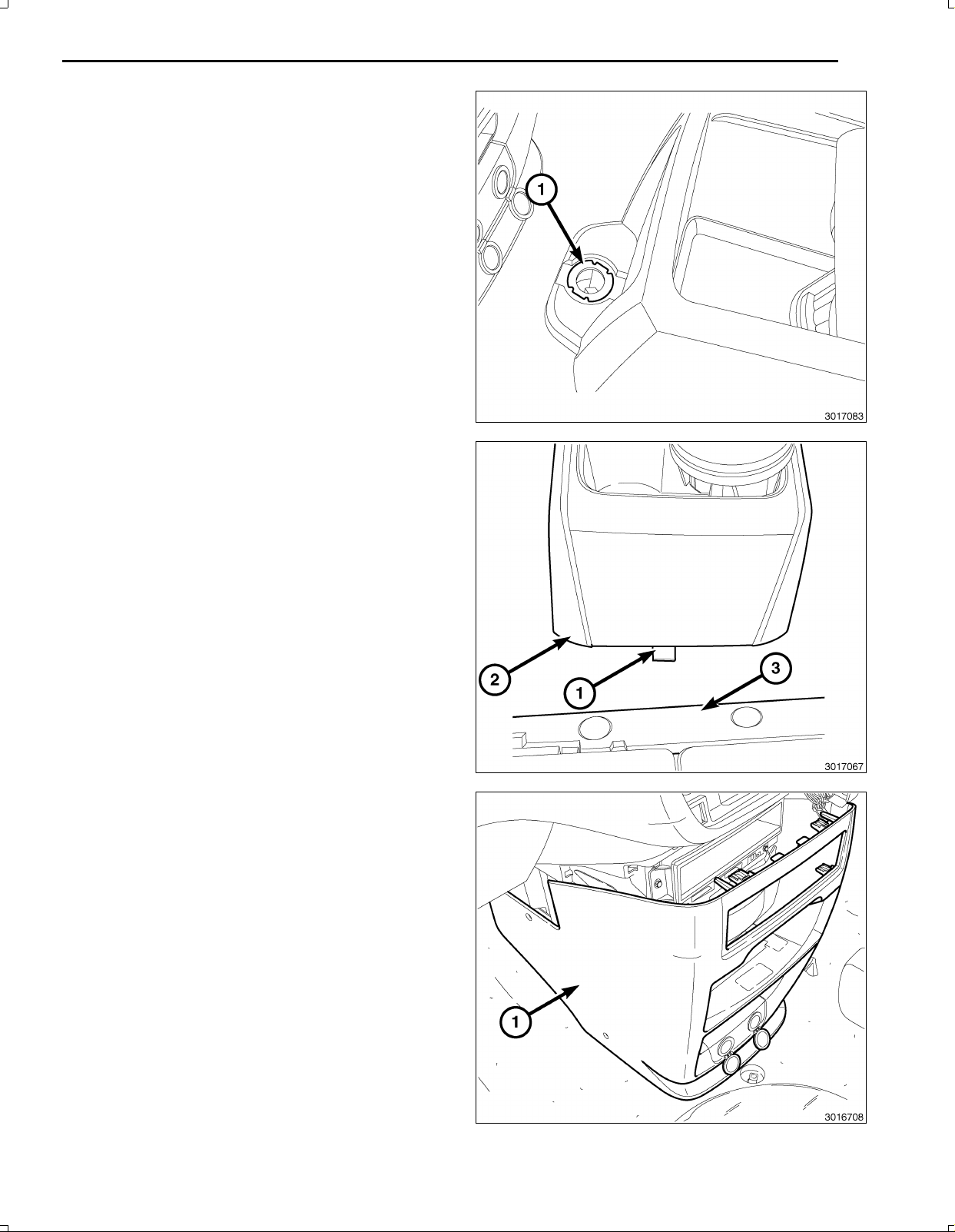

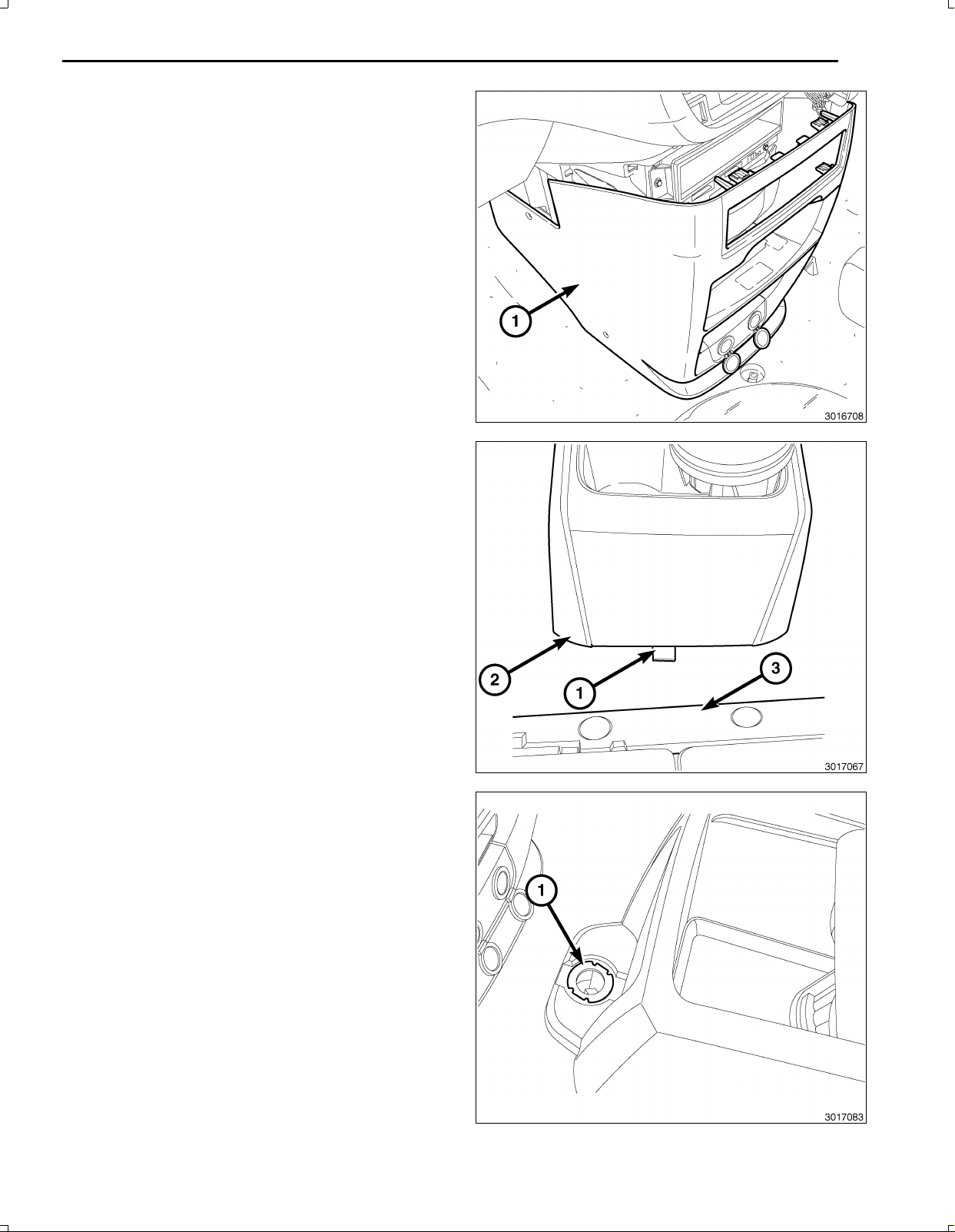

39.Removethefastener(1)fromthefrontofthefloorcon
sole.
40.Pullthefloorconsole(2)forwardtodisengagethere
tainingtab(1)fromthefloorbracket(3).
41.Removethefrontfloorconsole.
42.Removethefourplasticretainersthatsecurethein
strumentpanelbin(1)totheinstrumentpanel.
43.Disconnectandremovetheinstrumentpanelbin(1).
Jul01,2011K6861201
4280416

16
44.Removethefastener(4)securingthelightswitchto
theinstrumentpanel.
45.Usingatrimstickorequivalent,removeanddiscon
nectthelightswitch.
46.Removethefasteners(1,2)securingthetoppadto
thestructure.Repeatonoppositeside.
47.Pulltheinstrumentpaneltoppad(1)rearwardtodis
engagetheretainingclipsthatsecurethetoppadto
thestructure.
48.Liftupwardandrearwardtoremovetheinstrument
paneltoppad(1)fromthevehicle.

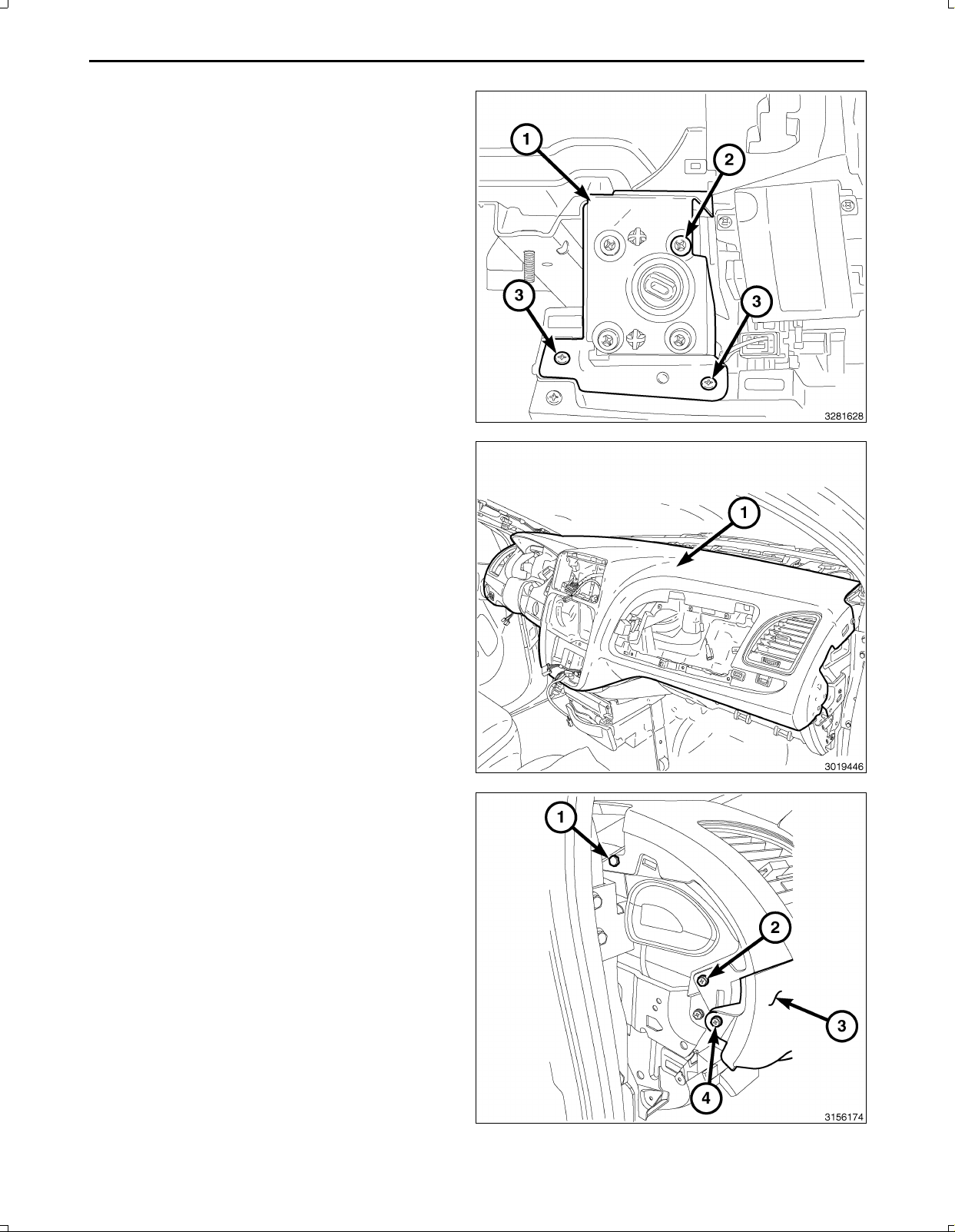

49.Removethethreefasteners(3)securingtheWIN
bracket(1)totheinstrumentpanelcover.
50.Removethefasteners(2)toseparatetheWINmodule
fromthebracket.
Jul01,2011K6861201
4280416

17
51.Ifnecessary,pullbacktheI/Pinsulatortoaccessthe
remotestartantennacavitylocatedontopoftheI/P
basepanelnearthedriverside.
52.Usingthekitsuppliedantenna(1),routetheantenna
harnessthroughtheopeningintheinstrumentpanel
topnearthebottomleftedgeoftheremotestartan
tennacavity.
53.Placetheantenna(2)intothecavity,ontothelocating
pinsandinstallthemountingscrews(1).Tightenthe
screwssecurely.
54.Routetheantennaharness(1)throughtothelower
steeringcolumnopening.
55.Continueroutingtheantennaharness(1)behindthe
kneeblockertowardstheWINmodule(2).
56.DisconnecttheharnessfromtheWINmodule(2)and
discardtheoriginalWINmodule.
57.UsingthekitsuppliedWINmodule(2),connectthe
factoryharness(3)andtheantennaharness(1)tothe
WINmodule.
Jul01,2011K6861201
4280416

18
58.PositiontheWINmoduleintothemountingbracket
andinstallthefasteners(2)tosecuretheWINmodule
tothebracket.Tightenthefastenerssecurely.
59.Installthethreefasteners(3)securingtheWIN
bracket(1)totheinstrumentpanelcover.Tightenthe
fastenerssecurely.
60.Withthehelpofanassistant,positiontheinstrument
paneltoppad(1)totheI/Pstructure.
61.Lifttheinstrumentpanel(1)upandforwardtoseatthe
passengersideairbagintothestructurebracket.
62.Handtapthetoppadtoengagetheretainingclips.
63.Installthefasteners(1,2)securingthetoppadtothe
structure.Tightenthefastenerssecurely.Repeaton
oppositeside.
64.Connectandinstallthelightswitch(3).
65.Installthefastener(4)securingthelightswitchtothe
instrumentpanel.
Jul01,2011K6861201
4280416

19
66.Position,connectandinstallthefourplasticretainers
thatsecuretheinstrumentpanelbin(1)totheinstru
mentpanel.
67.Positionthefloorconsole(2)intothevehicle.
68.Alignandpushthefloorconsole(2)rearwardtoen
gagetheretainingtab(1)fromthefloorbracket(3).
69.Installthefastener(1)tothefrontofthefloorconsole.
Tightenthefastenersecurely.
Jul01,2011K6861201
4280416

20
70.Connectthesquibconnectorstothepassengerside
airbag.
71.InstallthepassengersideairbagfastenerstotheI/P
reinforcementbracket.Tightenthefastenersto6N∙m
(55in.lbs.).
72.Installthethreetoppadtostructurefasteners(3)lo
catedintheuppergloveboxcavityarea.Tightenthe
fastenerssecurely.
73.Positiontheuppergloveboxdoor(1)totheinstrument
panel.
74.Installthefasteners(1,2)totheuppergloveboxdoor
(1).Tightenthefastenerssecurely.
75.Ifequipped,installtheUSBconnectortotheupper
gloveboxandpositiontheglovebox(1)intothecav
ity.Makesurealltheretainingclipsareengaged.
76.Installthefasteners(2,3,4,5,6)securingtheupper
glovebox(1).Tightenthefastenerssecurely.
77.Installthetrimbezel(2)totheinstrumentpanel.
78.Installthefasteners(1)totheinstrumentpaneltrim
bezel(2).Tightenthefastenerssecurely.
79.Closetheuppergloveboxdoor.
Jul01,2011K6861201
4280416
