Moroso 74016 User manual

BATTERY CHARGER BATTERY CHARGER

OWNER’S MANUAL OWNER’S MANUAL

POWER CHARGER Part # 74016 POWER CHARGER Part # 74016

12-16 volt Amp 12-16 volt Amp

----CAUTION---- ----CAUTION----

READ THIS MANUAL CAREFULLY FOR READ THIS MANUAL CAREFULLY FOR

RULES OF SAFE OPERATION AND RULES OF SAFE OPERATION AND

PROPER USE OF THIS CHARGER PROPER USE OF THIS CHARGER

***SAVE THESE INSTRUCTIONS*** ***SAVE THESE INSTRUCTIONS***

CAUTION DO NOT USE WITH LITHIUM BATTERIES ! CAUTION DO NOT USE WITH LITHIUM BATTERIES !

DO NOT SHUT OFF GENERATOR BEFORE CHARGER. DO NOT SHUT OFF GENERATOR BEFORE CHARGER.

NOT RECOMMENDED FOR GENERATORS LESS THAN NOT RECOMMENDED FOR GENERATORS LESS THAN

1200 WATTS. 1200 WATTS.

STANDARD FEATURES STANDARD FEATURES

♦BATTERY TYPE SWITCH (BTS) ♦BATTERY TYPE SWITCH (BTS)

♦HIGH ENERGY RETURN, FAST CHARGING ♦HIGH ENERGY RETURN, FAST CHARGING

♦CONSTANT CURRENT FIRST STAGE ♦CONSTANT CURRENT FIRST STAGE

♦DUAL VOLTAGE LIMIT (CYCLIC/ STANDBY) ♦DUAL VOLTAGE LIMIT (CYCLIC/ STANDBY)

♦AUTOMATIC SAFTEY OVERRIDE TIMER ♦AUTOMATIC SAFTEY OVERRIDE TIMER

♦START DELAY ON BATTERY CONNECT ♦START DELAY ON BATTERY CONNECT

♦SHORT AND REV. CONNECTION SHUTDOWN ♦SHORT AND REV. CONNECTION SHUTDOWN

♦RUGGED SCR PHASE CONTROL ♦RUGGED SCR PHASE CONTROL

♦MAINS ZERO-CROSSING BATTERY SENSING ♦MAINS ZERO-CROSSING BATTERY SENSING

For Technical Assistance, Call Moroso’s Tech Line at

(203) 458-0542, 458-0546 8:30am – 5:00pm Eastern Time For Technical Assistance, Call Moroso’s Tech Line at

(203) 458-0542, 458-0546 8:30am – 5:00pm Eastern Time

MOROSO PERFORMANCE PRODUCTS, INC

80 CARTER DR

•

GUILFORD, CT 06437

Phone:

(

203

)

6571

•

Fax:

(

203

)

6906

MOROSO PERFORMANCE PRODUCTS, INC

80 CARTER DR

•

GUILFORD, CT 06437

Phone:

(

203

)

6571

•

Fax:

(

203

)

6906

i s i t U s A t w w w . m o r o s o . c o m

Rev. C

090612 Rev. C

090612 74016INST

74016INST

Installation Instructions Cont. Page 2 of 17 Installation Instructions Cont. Page 2 of 17

POWER CHARGER POWER CHARGER

12 & 16 VOLT 12 & 16 VOLT

SPECIFICATIONS SPECIFICATIONS

090612

POWER CHARGER

P/N 74016

INPUT: 117 Volts AC 60Hz, 720 VA 7amps

OUTPUT: 12 or 16 Volts DC, 30 Amps

Full Wave Phase Controlled Rectification

CONTROL:

Voltage limit:

Normal Mode 2.42 V/Cell

Gel-Cell Mode 2.33 V/Cell

Liquid Electrolyte Mode 2.62 V/Cell

Current limited to AMP rating MEAN DC.

utomatic timer starts when first stage voltage limit reached.

Proportional CV stage timer - t/2+1 hour.

Constant voltage 2.3 V/Cell after timeout, with

Temperature Compensation.

PROTECTION:

Electronic reverse polarity. Short circuit shutdown

and current limit.

Manual Reset Circuit Breaker

BATTERY TYPE & RATING

This charger is for use with Lead Acid Batteries of

Minimum capacity 50 AH, Gel Cell, Absorbed

Electrolyte or Liquid Electrolyte types by using the

BTS (Battery Type Switch) (See Page 14-16 BTS)

DIMENSIONS: (Inches) (Wall & Table Mounting)

12.0” LONG, 7.0” WIDE, 7.0" HIGH

POWER CHARGER

P/N 74016

INPUT: 117 Volts AC 60Hz, 720 VA 7amps

OUTPUT: 12 or 16 Volts DC, 30 Amps

Full Wave Phase Controlled Rectification

CONTROL:

Voltage limit:

Normal Mode 2.42 V/Cell

Gel-Cell Mode 2.33 V/Cell

Liquid Electrolyte Mode 2.62 V/Cell

Current limited to AMP rating MEAN DC.

Automatic timer starts when first stage voltage limit reached.

Proportional CV stage timer - t/2+1 hour.

Constant voltage 2.3 V/Cell after timeout, with

Temperature Compensation.

PROTECTION:

Electronic reverse polarity. Short circuit shutdown

and current limit.

Manual Reset Circuit Breaker

BATTERY TYPE & RATING

This charger is for use with Lead Acid Batteries of

Minimum capacity 50 AH, Gel Cell, Absorbed

Electrolyte or Liquid Electrolyte types by using the

BTS (Battery Type Switch) (See Page 14-16 BTS)

DIMENSIONS: (Inches) (Wall & Table Mounting)

12.0” LONG, 7.0” WIDE, 7.0” HIGH

Installation Instructions Cont. Page 3 of 17 Installation Instructions Cont. Page 3 of 17

IMPORTANT SAFETY

INSTRUCTIONS

1.SAVE THESE INSTRUCTIONS-- This manual contains

important safety and operating instructions.

2. Before using this battery charger, read all instructions and

cautionary markings on (1) the battery charger, (2) the

battery, (3) product using the battery.

3. CAUTION--To reduce risk of injury, charge only lead acid,

maintenance free or flooded lead acid type rechargable

batteries. Other types of batteries may burst causing

personal injury and damage.

4. Do not expose charger to rain or snow.

5. Use of an attachment not recommended or sold by the

battery charger manufacturer may result in a risk of fire,

electric shock or injury to person.

6. To reduce risk of damage to electric plug and cord, pull by

plug rather than cord when disconnecting charger.

7. Make sure cord is located so that it will not be stepped on,

tripped over or otherwise subjected to damage or stress.

8. An extension cord should not be used unless absolutely

necessary. Use of improper extension cord could result

in risk of fire and electrical shock. If an extension cord

must be used, make sure:

a. That pins on plug of the extension cord are the same

number, size and shape as those of the plug on the charger.

b. That the extension cord is properly wired and in good

electrical condition.

c. That the wire size is large enough for the A/C ampere

rating of the charger as specified in the table below:

LENGTH OF CORD (FEET) 25 50 100 150

AWG WIRE SIZE 18 18 16 14

9. Do not operate charger with damaged cord or plug.

REPLACE THEM IMMEDIATELY.

IMPORTANT SAFETY

INSTRUCTIONS

1.SAVE THESE INSTRUCTIONS-- This manual contains

important safety and operating instructions.

2. Before using this battery charger, read all instructions and

cautionary markings on (1) the battery charger, (2) the

battery, (3) product using the battery.

3. CAUTION--To reduce risk of injury, charge only lead acid,

maintenance free or flooded lead acid type rechargable

batteries. Other types of batteries may burst causing

personal injury and damage.

4. Do not expose charger to rain or snow.

5. Use of an attachment not recommended or sold by the

battery charger manufacturer may result in a risk of fire,

electric shock or injury to person.

6. To reduce risk of damage to electric plug and cord, pull by

plug rather than cord when disconnecting charger.

7. Make sure cord is located so that it will not be stepped on,

tripped over or otherwise subjected to damage or stress.

8. An extension cord should not be used unless absolutely

necessary. Use of improper extension cord could result

in risk of fire and electrical shock. If an extension cord

must be used, make sure:

a. That pins on plug of the extension cord are the same

number, size and shape as those of the plug on the charger.

b. That the extension cord is properly wired and in good

electrical condition.

c. That the wire size is large enough for the A/C ampere

rating of the charger as specified in the table below:

LENGTH OF CORD (FEET) 25 50 100 150

AWG WIRE SIZE 18 18 16 14

9. Do not operate charger with damaged cord or plug.

REPLACE THEM IMMEDIATELY.

Installation Instructions Cont. Page 4 of 17 Installation Instructions Cont. Page 4 of 17

10. Do not operate charger if it has received a sharp blow,

been dropped or otherwise damaged in any way; return it to

a qualified service source.

11. Do not disassemble charger; Take it to a qualified service

source when repair or service is required. Incorrect

reassembly may result in a risk of electrical shock or fire.

12. To reduce risk of electrical shock, unplug charger from

outlet before attempting any maintenance or cleaning.

WARNING

RISK OF EXPLOSIVE GASES

1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS

DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES

DURING NORMAL BATTERY OPERATION. FOR THIS

REASON, IT IS OF THE UTMOST IMPORTANCE THAT EACH

TIME BEFORE USING YOUR CHARGER, YOU READ THIS

MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

2. To reduce risk of battery explosion, follow these directions and

those published by the battery manufacturer and the manuf.

of any equipment you intend to use in vicinity of the battery.

Review cautionary marking on these products and on engine.

PERSONAL PRECAUTIONS

1. Someone should be within range of your voice or close enough

to come to your aid when you work near a lead-acid battery.

2. Have plenty of fresh water and soap nearby in case battery

acid contacts skin, clothing or eyes.

3. Wear complete eye protection and clothing protection. Avoid

touching eyes while working near battery.

4. If battery acid contacts skin or clothing, wash immediately with

soap and water. If acid enters eyes, immediately flood eyes

with running cold water for at least 10 minutes and get

medical attention immediately.

5. NEVER smoke or allow a spark or flame in the vicinity of

battery or engine.

been dropped or otherwise damaged in any way; return it to

a qualified service source.

11. Do not disassemble charger; Take it to a qualified service

source when repair or service is required. Incorrect

reassembly may result in a risk of electrical shock or fire.

12. To reduce risk of electrical shock, unplug charger from

outlet before attempting any maintenance or cleaning.

WARNING

RISK OF EXPLOSIVE GASES

1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS

DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES

DURING NORMAL BATTERY OPERATION. FOR THIS

REASON, IT IS OF THE UTMOST IMPORTANCE THAT EACH

TIME BEFORE USING YOUR CHARGER, YOU READ THIS

MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

2. To reduce risk of battery explosion, follow these directions and

those published by the battery manufacturer and the manuf.

of any equipment you intend to use in vicinity of the battery.

Review cautionary marking on these products and on engine.

PERSONAL PRECAUTIONS

1. Someone should be within range of your voice or close enough

to come to your aid when you work near a lead-acid battery.

2. Have plenty of fresh water and soap nearby in case battery

acid contacts skin, clothing or eyes.

3. Wear complete eye protection and clothing protection. Avoid

touching eyes while working near battery.

4. If battery acid contacts skin or clothing, wash immediately with

soap and water. If acid enters eyes, immediately flood eyes

with running cold water for at least 10 minutes and get

medical attention immediately.

5. NEVER smoke or allow a spark or flame in the vicinity of

battery or engine.

Installation Instructions Cont. Page 5 of 17 Installation Instructions Cont. Page 5 of 17

6. Be extra cautious to reduce risk of dropping a metal tool onto

battery. It might spark or short circuit battery or other electrical

part that may cause explosion.

7. Remove personal metal items such as rings, bracelets.

necklaces, and watches when working with a lead acid battery.

A lead acid battery can produce a short circuit current high

enough to weld a ring or the like to metal, causing a severe

burn.

8. Use charger for charging a LEAD-ACID BATTERY ONLY. Do

not use battery charger for charging dry-cell batteries that are

commonly used with home appliances. These batteries may

burst and cause injury to persons and damage to property.

9. NEVER charge a frozen battery.

PREPARING TO CHARGE

1. If necessary to remove battery from vehicle to charge, always

remove grounded terminal from battery first. Make sure all

accessories in vehicle are off so as not to cause an arc.

2. Be sure area around battery is well ventilated while battery is

being charged. Gas can be forcefully blown away by using a

piece of cardboard or other nonmetallic material as a fan.

3. Clean all battery terminals. Be careful to keep corrosion from

coming in contact with eyes.

4. Add distilled water in each cell until battery acid reaches level

specified by battery manufacturer. This helps purge excessive

gas from cells. Do not overfill. For a battery without cell caps,

carefully follow manufacturer's recharging instructions.

5. Study all battery manufacturer's specific precautions such as

removing or not removing cell caps while charging and

recommended rates of charge.

6. Determine voltage of battery by referring to car or equipment

owner's manual and make sure it matches output rating of

battery charger.

6. Be extra cautious to reduce risk of dropping a metal tool onto

battery. It might spark or short circuit battery or other electrical

part that may cause explosion.

7. Remove personal metal items such as rings, bracelets.

necklaces, and watches when working with a lead acid battery.

A lead acid battery can produce a short circuit current high

enough to weld a ring or the like to metal, causing a severe

burn.

8. Use charger for charging a LEAD-ACID BATTERY ONLY. Do

not use battery charger for charging dry-cell batteries that are

commonly used with home appliances. These batteries may

burst and cause injury to persons and damage to property.

9. NEVER charge a frozen battery.

PREPARING TO CHARGE

1. If necessary to remove battery from vehicle to charge, always

remove grounded terminal from battery first. Make sure all

accessories in vehicle are off so as not to cause an arc.

2. Be sure area around battery is well ventilated while battery is

being charged. Gas can be forcefully blown away by using a

piece of cardboard or other nonmetallic material as a fan.

3. Clean all battery terminals. Be careful to keep corrosion from

coming in contact with eyes.

4. Add distilled water in each cell until battery acid reaches level

specified by battery manufacturer. This helps purge excessive

gas from cells. Do not overfill. For a battery without cell caps,

carefully follow manufacturer's recharging instructions.

5. Study all battery manufacturer's specific precautions such as

removing or not removing cell caps while charging and

recommended rates of charge.

6. Determine voltage of battery by referring to car or equipment

owner's manual and make sure it matches output rating of

battery charger.

Installation Instructions Cont. Page 6 of 17

VOLTAGE SELECTOR SWITCH VOLTAGE SELECTOR SWITCH

WARNING: The front panel switch has two settings, marked

12V and 16V, with OFF in the center.

The switch must be set to 12 Volts when charging 12 Volt

(SIX CELL) batteries.

The switch must be set to 16 Volts ONLY when charging

16 Volt (EIGHT CELL) batteries.

Sixteen Volt (Eight Cell) batteries are special high performance

batteries used in racing applications only, which need a higher

voltage recharge. They are identified as 16 Volts on the battery

label, and have eight cell caps on top of the battery.

Some 16 Volt batteries have a third 12 Volt post. Setting the

charger to 16 Volts, when connected to the “12-Volt Post”

on a three terminal 16 Volt battery, will apply excessive

voltage to the battery cells and to the vehicle electrical

system, and may result in emission of explosive gases,

overheating and damage to the vehicle electrical system.

Damage caused by incorrect setting of the Voltage is not

covered under the warranty, so check which type of battery

is connected before using the charger. If in any doubt, use

only the 12 Volt setting.

CHARGER LOCATION

1. Locate charger as far away from battery as charging cables

will permit.

2. Never place charger above battery being charged; gases

from battery will corrode and damage charger.

3. Never allow battery acid to drip on charger when reading

specific gravity or filling battery.

4. Do not operate charger in a closed-in area or restrict

ventilation in any way.

5. Do not set a battery on top of charger.

WARNING: The front panel switch has two settings, marked

12V and 16V, with OFF in the center.

The switch must be set to 12 Volts when charging 12 Volt

(SIX CELL) batteries.

The switch must be set to 16 Volts ONLY when charging

16 Volt (EIGHT CELL) batteries.

Sixteen Volt (Eight Cell) batteries are special high performance

batteries used in racing applications only, which need a higher

voltage recharge. They are identified as 16 Volts on the battery

label, and have eight cell caps on top of the battery.

Some 16 Volt batteries have a third 12 Volt post. Setting the

charger to 16 Volts, when connected to the “12-Volt Post”

on a three terminal 16 Volt battery, will apply excessive

voltage to the battery cells and to the vehicle electrical

system, and may result in emission of explosive gases,

overheating and damage to the vehicle electrical system.

Damage caused by incorrect setting of the Voltage is not

covered under the warranty, so check which type of battery

is connected before using the charger. If in any doubt, use

only the 12 Volt setting.

CHARGER LOCATION

1. Locate charger as far away from battery as charging cables

will permit.

2. Never place charger above battery being charged; gases

from battery will corrode and damage charger.

3. Never allow battery acid to drip on charger when reading

specific gravity or filling battery.

4. Do not operate charger in a closed-in area or restrict

ventilation in any way.

5. Do not set a battery on top of charger.

Installation Instructions Cont. Page 7 of 17

DC CONNECTION PRECAUTIONS DC CONNECTION PRECAUTIONS

1. Connect and disconnect DC output only after removing AC 1. Connect and disconnect DC output only after removing AC

cord from electric outlet. Never allow clips to touch each other.

2. Attach clips to battery posts and twist or rock back and forth

several times to make a good connection. This tends to keep

clips from slipping off terminals and helps to reduce risk of

sparking.

FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN

VEHICLE. A SPARK NEAR A BATTERY MAY CAUSE

BATTERY EXPLOSION.

TO REDUCE RISKS;

1. Carefully position AC and DC cords to reduce risk of damage

by hood, door or moving engine parts.

2. Stay clear of fan blades, belts, pulleys and other parts that

can cause injury to persons.

3. Check polarity of battery posts. POSITIVE (POS., P., +), battery

posts usually have a larger diameter than

the NEGATIVE (NEG., N., -.) posts.

4. Determine which post of battery is grounded (connected) to

the chassis.

5. For negative-grounded vehicle, connect POSITIVE (RED) clip

from battery charger to POSITIVE (POS, P,+) UNGROUNDED

POST OF THE BATTERY. Connect NEGATIVE (BLACK) clip

to vehicle chassis or engine block away from battery. DO NOT

CONNECT CLIPS TO CARBURETOR, FUEL LINES, OR

SHEET METAL BODY PARTS. Connect to a heavy gauge

metal part of the frame or engine block.

6. For positive-grounded vehicle, connect NEGATIVE (BLACK)

clip from battery charger to the NEGATIVE (NEG, N, -)

UNGROUNDED POST OF THE BATTERY. Connect

POSITIVE (RED) clip to the vehicle chassis or engine block

away from battery.

DO NOT CONNECT CLIP TO CARBURETOR, FUEL LINES

OR SHEET METAL BODY PARTS, CONNECT TO GOOD

GROUND I.E. FRAME OR ENGINE BLOCK

cord from electric outlet. Never allow clips to touch each other.

2. Attach clips to battery posts and twist or rock back and forth

several times to make a good connection. This tends to keep

clips from slipping off terminals and helps to reduce risk of

sparking.

FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN

VEHICLE. A SPARK NEAR A BATTERY MAY CAUSE

BATTERY EXPLOSION.

TO REDUCE RISKS;

1. Carefully position AC and DC cords to reduce risk of damage

by hood, door or moving engine parts.

2. Stay clear of fan blades, belts, pulleys and other parts that

can cause injury to persons.

3. Check polarity of battery posts. POSITIVE (POS., P., +), battery

posts usually have a larger diameter than

the NEGATIVE (NEG., N., -.) posts.

4. Determine which post of battery is grounded (connected) to

the chassis.

5. For negative-grounded vehicle, connect POSITIVE (RED) clip

from battery charger to POSITIVE (POS, P,+) UNGROUNDED

POST OF THE BATTERY. Connect NEGATIVE (BLACK) clip

to vehicle chassis or engine block away from battery. DO NOT

CONNECT CLIPS TO CARBURETOR, FUEL LINES, OR

SHEET METAL BODY PARTS. Connect to a heavy gauge

metal part of the frame or engine block.

6. For positive-grounded vehicle, connect NEGATIVE (BLACK)

clip from battery charger to the NEGATIVE (NEG, N, -)

UNGROUNDED POST OF THE BATTERY. Connect

POSITIVE (RED) clip to the vehicle chassis or engine block

away from battery.

DO NOT CONNECT CLIP TO CARBURETOR, FUEL LINES

OR SHEET METAL BODY PARTS, CONNECT TO GOOD

GROUND I.E. FRAME OR ENGINE BLOCK.

Installation Instructions Cont. Page 8 of 17 Installation Instructions Cont. Page 8 of 17

7. When disconnecting charger, turn switches to off,

disconnect AC cord, remove clip from vehicle chassis

and then remove clip from battery terminal.

FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE

VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE

BATTERY EXPLOSION.

TO REDUCE RISK

1. Check polarity of battery posts. POSITIVE (POS, P, +)

battery post usually has a larger diameter than the

NEGATIVE (NEG, N, -) post.

2. Attach at least a 24-inch long, 6 gauge (AWG) insulated

battery cable to the NEGATIVE (NEG. N, -) battery post.

3. Connect POSITIVE (RED) charger clip to POSITIVE

(POS, P, +) of the battery.

4. Position yourself and free end of cable as far away from

battery as possible, then connect NEGATIVE (BLACK)

charger clip to free end of cable.

5. Do not face battery when making final connection.

6. When disconnecting charger, always do so in reverse

sequence while as far away from battery as practical.

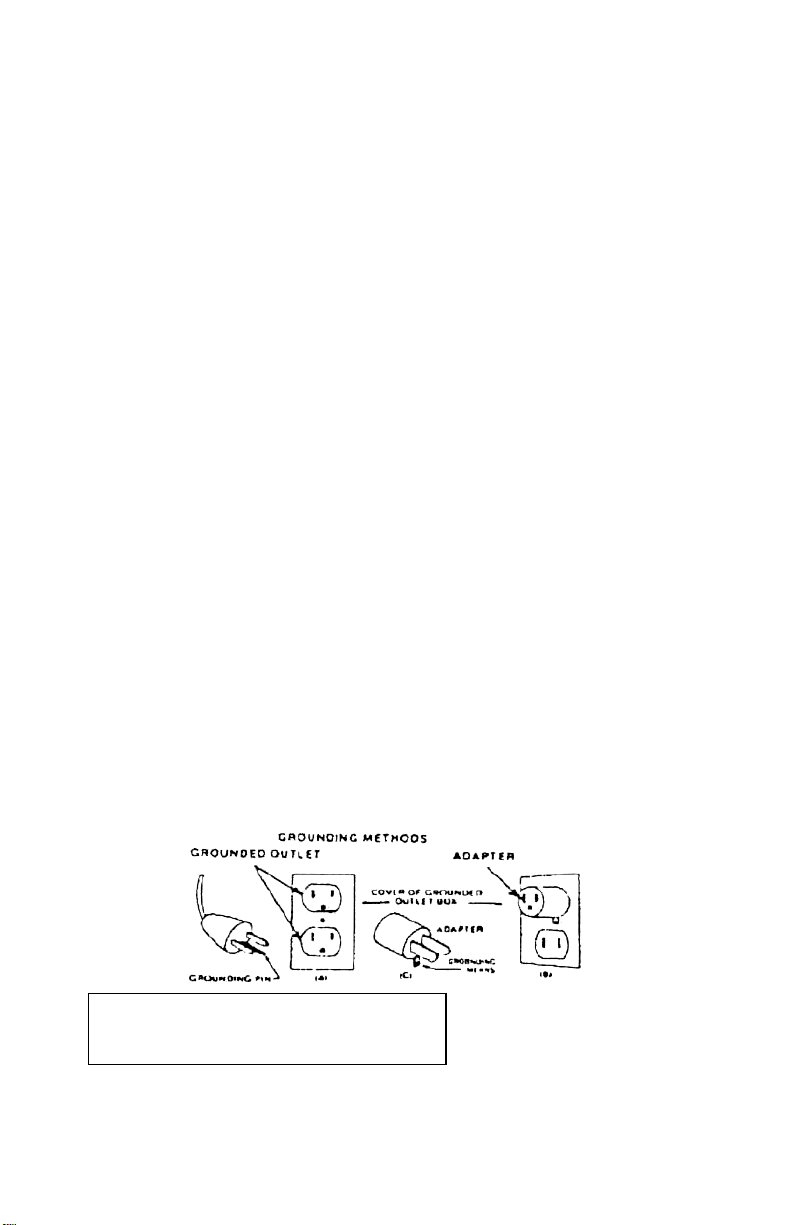

GROUNDING AND AC POWER CORD

CONNECTING INSTRUCTIONS

Charger should be grounded to reduce risk of electrical shock.

Charger is equipped with an electrical cord having an equipment

grounding conductor and a grounding pin. This plug must be

plugged into an outlet that is properly installed and grounded

in accordance with all local codes and ordinances.

DANGER-- Never alter AC cord or plug provided. If it will not

fit outlet, have proper outlet installed by a qualified electrician.

Improper connection can result in a risk of an electrical shock.

7. When disconnecting charger, turn switches to off,

disconnect AC cord, remove clip from vehicle chassis

and then remove clip from battery terminal.

FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE

VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE

BATTERY EXPLOSION.

TO REDUCE RISK

1. Check polarity of battery posts. POSITIVE (POS, P, +)

battery post usually has a larger diameter than the

NEGATIVE (NEG, N, -) post.

2. Attach at least a 24-inch long, 6 gauge (AWG) insulated

battery cable to the NEGATIVE (NEG. N, -) battery post.

3. Connect POSITIVE (RED) charger clip to POSITIVE

(POS, P, +) of the battery.

4. Position yourself and free end of cable as far away from

battery as possible, then connect NEGATIVE (BLACK)

charger clip to free end of cable.

5. Do not face battery when making final connection.

6. When disconnecting charger, always do so in reverse

sequence while as far away from battery as practical.

GROUNDING AND AC POWER CORD

CONNECTING INSTRUCTIONS

Charger should be grounded to reduce risk of electrical shock.

Charger is equipped with an electrical cord having an equipment

grounding conductor and a grounding pin. This plug must be

plugged into an outlet that is properly installed and grounded

in accordance with all local codes and ordinances.

DANGER-- Never alter AC cord or plug provided. If it will not

fit outlet, have proper outlet installed by a qualified electrician.

Improper connection can result in a risk of an electrical shock.

Installation Instructions Cont. Page 9 of 17

This battery charger is for use on a nominal 117 volt AC circuit

and has a grounded plug that looks like the plug illustrated in

sketch (A). A temporary adapter, which looks like the adapter

illustrated in sketches (B) & (C) may be used to connect this

plug to a two-pole receptacle as shown in sketch (B) if a

properly grounded outlet is not available. The temporary

adapter should be used only until a properly grounded outlet

can be installed by a qualified electrician.

* Optional Voltages are available.

NOTE: USE OF AN ADAPTER IS NOT ALLOWED IN CANADA.

This battery charger is for use on a nominal 117 volt AC circuit

and has a grounded plug that looks like the plug illustrated in

sketch (A). A temporary adapter, which looks like the adapter

illustrated in sketches (B) & (C) may be used to connect this

plug to a two-pole receptacle as shown in sketch (B) if a

properly grounded outlet is not available. The temporary

adapter should be used only until a properly grounded outlet

can be installed by a qualified electrician.

NOTE: USE OF AN ADAPTER IS NOT ALLOWED IN CANADA.

If a grounding type receptacle is not available. DO NOT use this

appliance in CANADA until the proper outlet is installed by a

qualified electrician.

DANGER-- Before using an adapter as illustrated, be certain

that the center screw of the outlet plate is grounded. The green

colored rigid ear or lug extending from the adapter must be

connected to a properly grounded outlet. Make certain it is

grounded.

If necessary, replace original outlet cover plate screw with a

longer screw that will secure adapter ear or lug to outlet cover

plate and make ground connection to grounded outlet.

POWER CHARGER

OPERATING INSTRUCTIONS

This charger is suitable for use with all types of lead acid

batteries, including the new types of maintenance free and

gelled electrolyte batteries.

If a grounding type receptacle is not available. DO NOT use this

appliance in CANADA until the proper outlet is installed by a

qualified electrician.

DANGER-- Before using an adapter as illustrated, be certain

that the center screw of the outlet plate is grounded. The green

colored rigid ear or lug extending from the adapter must be

connected to a properly grounded outlet. Make certain it is

grounded.

If necessary, replace original outlet cover plate screw with a

longer screw that will secure adapter ear or lug to outlet cover

plate and make ground connection to grounded outlet.

POWER CHARGER

OPERATING INSTRUCTIONS

This charger is suitable for use with all types of lead acid

batteries, including the new types of maintenance free and

gelled electrolyte batteries.

Installation Instructions Cont. Page 10 of 17

1. Disconnect vehicle battery cables.

2. Connect charger to battery. Ensure correct polarity. - BLACK

lead to Negative (-) terminal and RED lead to Positive

(+) terminal.

NOTE: THIS CHARGER IS PROTECTED AGAINST REVERSE

CONNECTION. CHARGING WILL NOT COMMENCE IF

BATTERY IS INCORRECTLY CONNECTED.

3. Connect the charger to AC power supply.

The following LED sequence details the operation of the

Hibernate Mode:

HIBERNATE MODE INDICATION

CHARGE! HIBERNATE (Red LED Indicator)

ON CONSTANT= CHARGING (Battery and AC Connected,

First stage charging in progress)

ON FLASHING = HIBERNATE (Battery and AC Connected,

charger is in auto-shutoff mode)

80% POWER ON (YELLOW LED Indicator)

ON CONSTANT = 80% CHARGED (Battery is charging and

has reached the second stage Constant Voltage)

ON FLASHING = POWER ON (AC Supply is connected,

charger is on, but battery is not connected)

READY! TIMEOUT (GREEN LED Indicator)

ON CONSTANT = Battery ready, charge cycle completed

ON FLASHING = Timeout error, battery or charger may be

defective or other fault.

NOTE: - Power On self test indication.

When the charger is switched from OFF to ON, the Green-

Yellow-Red LEDs indicate in sequence showing the battery

charger self test. After this sequence, which takes two

seconds in total, if the battery is connected the red charging

LED will come On, indicating the start of charge. If there is

no battery connected, the yellow LED will flash briefly once

each second, to indicate that the AC power to the charger is

connected.

1. Disconnect vehicle battery cables.

2. Connect charger to battery. Ensure correct polarity. - BLACK

lead to Negative (-) terminal and RED lead to Positive

(+) terminal.

NOTE: THIS CHARGER IS PROTECTED AGAINST REVERSE

CONNECTION. CHARGING WILL NOT COMMENCE IF

BATTERY IS INCORRECTLY CONNECTED.

3. Connect the charger to AC power supply.

The following LED sequence details the operation of the

Hibernate Mode:

HIBERNATE MODE INDICATION

CHARGE! HIBERNATE (Red LED Indicator)

ON CONSTANT= CHARGING (Battery and AC Connected,

First stage charging in progress)

ON FLASHING = HIBERNATE (Battery and AC Connected,

charger is in auto-shutoff mode)

80% POWER ON (YELLOW LED Indicator)

ON CONSTANT = 80% CHARGED (Battery is charging and

has reached the second stage Constant Voltage)

ON FLASHING = POWER ON (AC Supply is connected,

charger is on, but battery is not connected)

READY! TIMEOUT (GREEN LED Indicator)

ON CONSTANT = Battery ready, charge cycle completed

ON FLASHING = Timeout error, battery or charger may be

defective or other fault.

NOTE: - Power On self test indication.

When the charger is switched from OFF to ON, the Green-

Yellow-Red LEDs indicate in sequence showing the battery

charger self test. After this sequence, which takes two

seconds in total, if the battery is connected the red charging

LED will come On, indicating the start of charge. If there is

no battery connected, the yellow LED will flash briefly once

each second, to indicate that the AC power to the charger is

connected.

Installation Instructions Cont. Page 11 of 17 Installation Instructions Cont. Page 11 of 17

4.The charger will now commence to charge the battery, as

indicated by the RED charging LED's. NOTE: The length of

time the charger remains in the "Charging Mode" depends

on the size and state of discharge of the battery. This is

controlled by the charger's solid state circuitry which

constantly monitors the state of the battery and provides

the correct charge automatically.

IMPORTANT: The charger must be allowed to go through the

complete charge routine in order to obtain the optimum charge.

This will take a minimum of one hour.

5. When the GREEN "READY" LED comes ON, the battery is

ready for use. NOTE: The battery may be connected to the

charger in the "READY" mode indefinitely, in order to

maintain the battery in a fully charged state while not in use

without risk of over charging. IMPORTANT: The charger

must be disconnected from the 120 volt power supply and

switched off before disconnecting from the battery to

prevent the possibility of arcing.

SPECIAL NOTE

6. During charging, the current flowing into the battery is indicated

by the LED Amp Meter. At the start of charge, if the battery is

normally discharged, all 4 RED LED's will be on, and will go out

in sequence as the charge current drops. When the last RED

LED goes off, the internal proportional timer will start, the

GREEN LED will show proportional to the time of the constant

current time. (T/2+1 hr)

7. If the battery voltage is less than half a volt, the battery is

considered very heavily discharged. In this case, the YELLOW

Charging LED will not show.

TROUBLE SHOOTING GUIDE

YELLOW CHARGE LIGHT DOES NOT SWITCH ON;

The charger will not commence charging unless properly

Connected.

1. Check to ensure the charger is connected correctly – BLACK

4.The charger will now commence to charge the battery, as

indicated by the RED charging LED's. NOTE: The length of

time the charger remains in the "Charging Mode" depends

on the size and state of discharge of the battery. This is

controlled by the charger's solid state circuitry which

constantly monitors the state of the battery and provides

the correct charge automatically.

IMPORTANT: The charger must be allowed to go through the

complete charge routine in order to obtain the optimum charge.

This will take a minimum of one hour.

5. When the GREEN "READY" LED comes ON, the battery is

ready for use. NOTE: The battery may be connected to the

charger in the "READY" mode indefinitely, in order to

maintain the battery in a fully charged state while not in use

without risk of over charging. IMPORTANT: The charger

must be disconnected from the 120 volt power supply and

switched off before disconnecting from the battery to

prevent the possibility of arcing.

SPECIAL NOTE

6. During charging, the current flowing into the battery is indicated

by the LED Amp Meter. At the start of charge, if the battery is

normally discharged, all 4 RED LED's will be on, and will go out

in sequence as the charge current drops. When the last RED

LED goes off, the internal proportional timer will start, the

GREEN LED will show proportional to the time of the constant

current time. (T/2+1 hr)

7. If the battery voltage is less than half a volt, the battery is

considered very heavily discharged. In this case, the YELLOW

charging LED will NOT show.

TROUBLESHOOTING GUIDE

YELLOW CHARGE LIGHT DOES NOT SWITCH ON;

The charger will not commence charging unless properly

connected.

1. Check to ensure the charger is connected correctly – BLACK

Installation Instructions Cont. Page 12 of 17

lead to NEGATIVE (-) terminal and RED lead to POSITIVE

(+) terminal or that the Factory installed OEM (Original

Equipment Manufacturer) custom connector is properly

installed regarding the Polarity at the connectors contact

terminals or at the mating connector on the battery or

equipment.

2. Check that the clips made a good connection to the battery

posts. Twist clips or clean battery posts to ensure good

connection.

GREEN READY LIGHT DOES NOT APPEAR AFTER

18 HOURS;

3. The Microprocessor Control can indicate a problem with the

battery. If the battery has not reached the First Stage of the

Operation within 18 hours, the charger may determine that

a problem exists within the battery or the battery is too big

for the charger's output rating.

The OVERRIDE TIMER FUNCTION is shown by the GREEN

LED FLASHING.

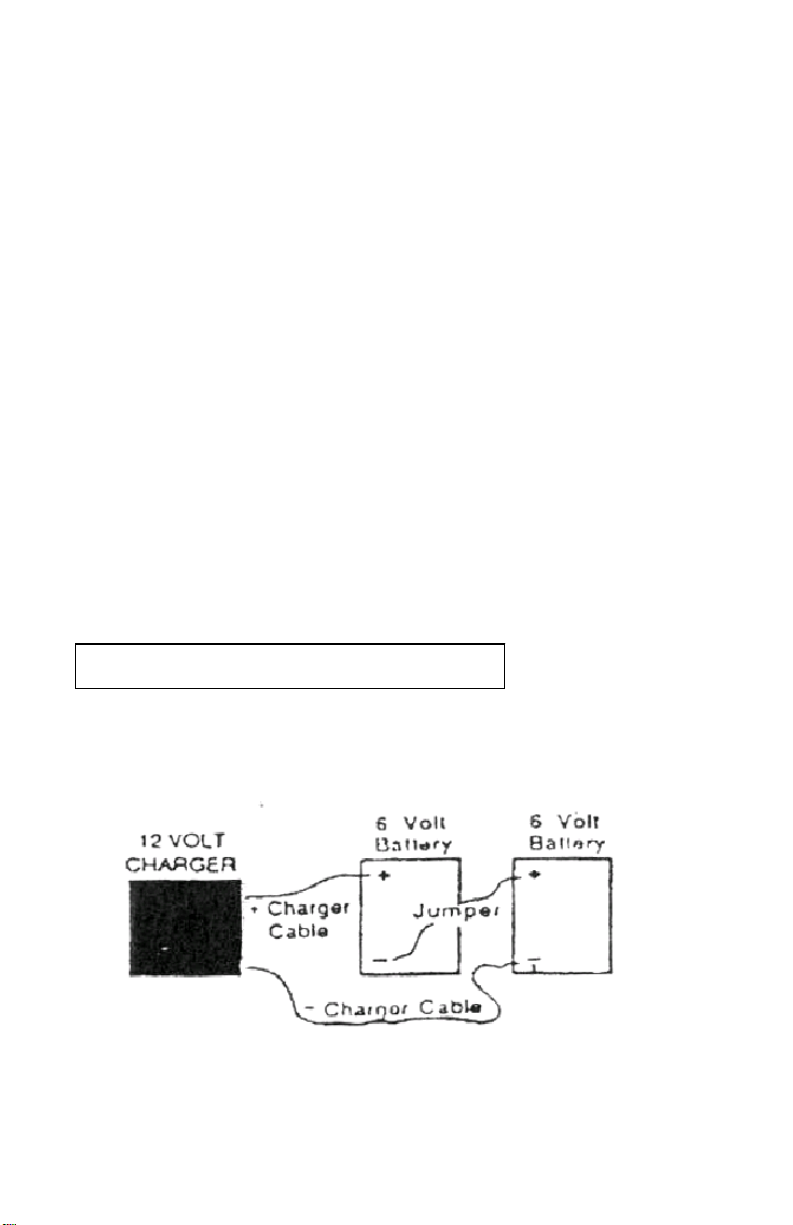

SERIES AND PARALLEL CHARGING

1. Two 6 volt batteries may be charged with the 12 volt setting on

charger if they are connected in SERIES as shown below:

lead to NEGATIVE (-) terminal and RED lead to POSITIVE

(+) terminal or that the Factory installed OEM (Original

Equipment Manufacturer) custom connector is properly

installed regarding the Polarity at the connectors contact

terminals or at the mating connector on the battery or

equipment.

2. Check that the clips made a good connection to the battery

posts. Twist clips or clean battery posts to ensure good

connection.

GREEN READY LIGHT DOES NOT APPEAR AFTER

18 HOURS;

3. The Microprocessor Control can indicate a problem with the

battery. If the battery has not reached the First Stage of the

Operation within 18 hours, the charger may determine that

a problem exists within the battery or the battery is too big

for the charger's output rating.

The OVERRIDE TIMER FUNCTION is shown by the GREEN

LED FLASHING.

SERIES AND PARALLEL CHARGING

1. Two 6 volt batteries may be charged with the 12 volt setting on

charger if they are connected in SERIES as shown below:

Installation Instructions Cont. Page 13 of 17

CAUTION: NEVER UNDER ANY CIRCUMSTANCES

ATTEMPT TO CHARGE A SINGLE 6 VOLT BATTERY WITH

THIS CHARGER. THIS WILL RESULT IN SERIOUS DAMAGE

TO THE BATTERY AND CREATE A RISK OF EXPLOSION.

EXTREME CARE SHOULD BE TAKEN TO CONNECT THE

BATTERIES ONLY AS SHOWN ABOVE. IMPROPER

CONNECTION CAN RESULT IN EXPLOSION AND

SERIOUS INJURY.

2. Two or more 12 volt batteries may be bank charged with the

(1) charger if they are connected in parallel as shown .

CAUTION: NEVER UNDER ANY CIRCUMSTANCES

ATTEMPT TO CHARGE A SINGLE 6 VOLT BATTERY WITH

THIS CHARGER. THIS WILL RESULT IN SERIOUS DAMAGE

TO THE BATTERY AND CREATE A RISK OF EXPLOSION.

EXTREME CARE SHOULD BE TAKEN TO CONNECT THE

BATTERIES ONLY AS SHOWN ABOVE. IMPROPER

CONNECTION CAN RESULT IN EXPLOSION AND

SERIOUS INJURY.

2. Two or more 12 volt batteries may be bank charged with the

(1) charger if they are connected in parallel as shown .

NOTE: It is important that the batteries in the circuit be of the

same type (e.g. maintenance free only or conventional lead acid

only). Mixing different types of batteries in the same circuit will

result in improper charging.

STORAGE INSTRUCTIONS

1. When not in use, store the charger indoors in a cool dry place

preferably with its original packing and carton.

2. Place these instructions with the charger during storage.

MAINTENANCE AND CLEANING

Very little maintenance is required other than protecting it from

damage and weather.

NOTE: It is important that the batteries in the circuit be of the

same type (e.g. maintenance free only or conventional lead acid

only). Mixing different types of batteries in the same circuit will

result in improper charging.

STORAGE INSTRUCTIONS

1. When not in use, store the charger indoors in a cool dry place

preferably with its original packing and carton.

2. Place these instructions with the charger during storage.

MAINTENANCE AND CLEANING

Very little maintenance is required other than protecting it from

damage and weather.

Installation Instructions Cont. Page 14 of 17

1. Coil cord when not in use.

2. Clean case and cords with a slightly damp cloth.

3. Corrosion on the clips may be removed with a solution of

water and baking soda.

4. Examine cords for damage periodically and replace if

necessary with manufacturer approved parts.

SERVICE

This charger is a solid state device and should not require

service under normal operating conditions and use according

to these instructions. For service call or write the manufacturer.

MOROSO POWER CHARGER BATTERY TYPE SWITCH

SETTINGS

NOTE: THIS MODIFICATION IS TO BE PREFORMED BY A

MOROSO AUTHORIZED SERVICE TECHNICIAN ONLY.

FAILURE TO FOLLOW THESE INSTRUCTIONS WILL

EFFECT THE PERFORMANCE OF THE BATTERY, CAUSE

THE BATTERY TO GAS AND VOID ANY BATTERY

WARRANTY.

WHEN SHIPPED FROM THE FACTORY THE CHARGER IS

SET IN THE "NORMAL MODE" UNLESS OTHERWISE

SPECIFIED.

BTS (BATTERY TYPE SWITCH) SETTING INSTRUCTIONS

WARNING: DISCONNECT THE A.C. POWER. BATTERY OR

LOAD BEFORE SETTING B. T. S. *. FAILURE TO COMPLY

MAY RESULT IN SHOCK OR ELECTROCUTION.

WITH A SMALL PLASTIC NON-CONDUCTIVE PROBE, ENTER

THROUGH THE TOP FRONT VENT SLOT, SETTING THE

CHARGERS "RED" B.T.S. (BATTERY TYPE SWITCH) TO THE

CORRESPONDING ACTUATOR POSITION SHOWN BELOW.

CHARGER WILL NOW AUTOMATICALLY FUNCTION PER

THE B. T. S. SELECTED CHARGING SPECIFICATIONS.

“NO OTHER ADJUSTMENTS ARE REQUIRED!"

1. Coil cord when not in use.

2. Clean case and cords with a slightly damp cloth.

3. Corrosion on the clips may be removed with a solution of

water and baking soda.

4. Examine cords for damage periodically and replace if

necessary with manufacturer approved parts.

SERVICE

This charger is a solid state device and should not require

service under normal operating conditions and use according

to these instructions. For service call or write the manufacturer.

MOROSO POWER CHARGER BATTERY TYPE SWITCH

SETTINGS

NOTE: THIS MODIFICATION IS TO BE PREFORMED BY A

MOROSO AUTHORIZED SERVICE TECHNICIAN ONLY.

FAILURE TO FOLLOW THESE INSTRUCTIONS WILL

EFFECT THE PERFORMANCE OF THE BATTERY, CAUSE

THE BATTERY TO GAS AND VOID ANY BATTERY

WARRANTY.

WHEN SHIPPED FROM THE FACTORY THE CHARGER IS

SET IN THE "NORMAL MODE" UNLESS OTHERWISE

SPECIFIED.

BTS (BATTERY TYPE SWITCH) SETTING INSTRUCTIONS

WARNING: DISCONNECT THE A.C. POWER. BATTERY OR

LOAD BEFORE SETTING B. T. S. *. FAILURE TO COMPLY

MAY RESULT IN SHOCK OR ELECTROCUTION.

WITH A SMALL PLASTIC NON-CONDUCTIVE PROBE, ENTER

THROUGH THE TOP FRONT VENT SLOT, SETTING THE

CHARGERS "RED" B.T.S. (BATTERY TYPE SWITCH) TO THE

CORRESPONDING ACTUATOR POSITION SHOWN BELOW.

CHARGER WILL NOW AUTOMATICALLY FUNCTION PER

THE B. T. S. SELECTED CHARGING SPECIFICATIONS.

“NO OTHER ADJUSTMENTS ARE REQUIRED!"

Installation Instructions Cont. Page 15 of 17 Installation Instructions Cont. Page 15 of 17

MOROSO PS & ICS CHARGERS BATTERY TYPE SWITCH SETTINGS

OTE: Voltages shown are for 12 volt chargers. Double voltages for 24 volt MOROSO PS & ICS CHARGERS BATTERY TYPE SWITCH SETTINGS

OTE: Voltages shown are for 12 volt chargers. Double voltages for 24 volt

NORMAL MODE

FOR SEALED LEAD ACID, AGM OR

EQUIPMENT USED IN CYCLIC OR STANDBY

CHARGE - 14.50 VOLTS

FLOAT – 13.80 VOLTS

NORMAL MODE

FOR SEALED LEAD ACID, AGM OR

EQUIPMENT USED IN CYCLIC OR STANDBY

CHARGE - 14.50 VOLTS

FLOAT – 13.80

GEL CELL MODE

FOR SEALED GEL CELL OR MINIMAL GAS

EMISSION

CHARGE – 14.10 VOLTS

FLOAT – 13.75 VOLTS

GEL CELL MODE

FOR SEALED GEL CELL OR MINIMAL GAS

EMISSION

CHARGE-14.10 VOLTS

FLOAT

–

13.75 VOLTS

LIQUID ELECTROLYTE MODE

FOR VENTED LIQUID LEAD ACID OR

FAST CHARGING FOR CYCLIC USE

CHARGE - 15.70 VOLTS

FLOAT - 13.85 VOLTS

LIQUID ELECTROLYTE MODE

FOR VENTED LIQUID LEAD ACID OR

FAST CHARGING FOR CYCLIC USE

CHARGE –15.70 VOLTS

FLOAT - 13.85 VOLTS

Installation Instructions Cont. Page 16 of 17

Special "BTS" (Battery Type Switch) FEATURE

Power Chargers are fitted with a Dealer settable BTS (Battery

Type Switch). The charging circuitry will work correctly with

Sealed, Gelled or Flooded type batteries.

Only an Authorized Service Technician is authorized to

change the charger battery type setting. NOTE: Failure to

select the correct setting will affect the performance of the

battery, and may cause the battery to gas and void any Warranty

on the Battery. If Battery Type is not specified the charger will be

supplied set to the NORMAL mode which will provide good

performance with most Battery Types and applications.

The BTS is NOT intended for consumer use. If your Dealer or

Authorized Service Technician is unable to offer you this

service, contact the Factory for assistance.

Power Chargers are fitted with a Dealer settable BTS (Battery

Type Switch). The charging circuitry will work correctly with

Sealed, Gelled or Flooded type batteries.

Only an Authorized Service Technician is authorized to

change the charger battery type setting. NOTE: Failure to

select the correct setting will affect the performance of the

battery, and may cause the battery to gas and void any Warranty

on the Battery. If Battery Type is not specified the charger will be

supplied set to the NORMAL mode which will provide good

performance with most Battery Types and applications.

The BTS is NOT intended for consumer use. If your Dealer or

Authorized Service Technician is unable to offer you this

service, contact the Factory for assistance.

Installation Instructions Cont. Page 17 of 17

MOROSO PERFORMANCE PRODUCTS, INC.

80 Carter Drive, Guilford, Connecticut 06437-2116

All Moroso products are manufactured under strict quality control specifications to

MOROSO PERFORMANCE PRODUCTS, INC.

80 Carter Drive, Guilford, Connecticut 06437-2116

All Moroso products are manufactured under strict quality control specifications to

insure you the finest products available. We rarely receive complaints but should

you encounter a problem. Please refer to this Quality Control Number in your

correspondence. We must have the Q.C. Number to properly process the

complaint.

STATEMENT OF LIMITED WARRANTY

This limited warranty is extended only to each individual who purchases a

Moroso product. This limited warranty applies to any product which, after

inspection by Moroso Performance Products, is found to have a defect in

either material or workmanship. To obtain the benefit of this limited warranty you

must (1) return the product and sales receipt to Moroso Performance Products, at

your own expense. to the above address so that it is received by Moroso no later

than ninety (90) days after the date it was purchased; and (2) clearly state the

specific complaint that you have with respect to the product. If all of the above

procedures are followed, and the product is found by Moroso to be defective in

either material or workmanship, Moroso shall either repair or replace the

product at its election, and at its sole cost. Moroso will attempt to repair or

replace any defective product within SIXTY (60) days after receipt.

This limited warranty DOES NOT cover or apply to any damage sustained to the

engine or other parts which may have been caused by the defective product and

DOES NOT cover or apply to any personal injury, labor charges or any other

incidental costs or damages caused by the defective product.

THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH

APPLIES TO MOROSO PRODUCTS AND IS EXPRESSLY GIVEN IN LIEU

OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED. INCLUDING THAT

OF MERCHANTABILITY. ANY IMPLIED WARRANTY INCLUDING THAT OF

MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE IS

HEREBY LIMITED BY THE SAME TERMS AND TIME LIMITATIONS SET

FORTH IN THIS LIMITED EXPRESS WARRANTY AND OTHERWISE

EXCLUDED. You may have rights under either state or federal law, including

laws governing warranties which you should consult.

EXCEPT FOR THOSE OBLIGATIONS ASSUMED HEREIN, MOROSO

PERFORMANCE PRODUCTS, INC. ASSUMES NO OTHER OBLIGATIONS

IN CONNECTION WITH THE SALE OF ITS PRODUCTS.

Moroso Main Telephone: 203-453-6571 TECH: 203-458-0542

MODEL: Volt_____ Amp ______ SERIAL # _______

(record here for your records)
