Moroso 74018 User manual

BATTERY CHARGER BATTERY CHARGER
OWNER’S MANUAL OWNER’S MANUAL
HIBERNATING BATTERY CHARGER HIBERNATING BATTERY CHARGER
Part# 74018 Part# 74018
12-16 Volt 5 Amp 12-16 Volt 5 Amp
----CAUTION---- ----CAUTION----
READ THIS MANUAL CAREFULLY FOR READ THIS MANUAL CAREFULLY FOR
RULES OF SAFE OPERATION AND RULES OF SAFE OPERATION AND
PROPER USE OF THIS CHARGER PROPER USE OF THIS CHARGER
***SAVE THESE INSTRUCTIONS*** ***SAVE THESE INSTRUCTIONS***
" CAUTION DO NOT USE WITH LITHIUM BATTERIES ! " " CAUTION DO NOT USE WITH LITHIUM BATTERIES ! "
STANDARD FEATURES STANDARD FEATURES
♦HIGH ENERGY RETURN, FAST CHARGING ♦HIGH ENERGY RETURN, FAST CHARGING
♦CONSTANT CURRENT FIRST STAGE ♦CONSTANT CURRENT FIRST STAGE
♦DUAL VOLTAGE LIMIT (CYCLIC/ STANDBY) ♦DUAL VOLTAGE LIMIT (CYCLIC/ STANDBY)
♦AUTOMATIC SAFETY OVERRIDE TIMER ♦AUTOMATIC SAFETY OVERRIDE TIMER
♦START DELAY ON BATTERY CONNECT ♦START DELAY ON BATTERY CONNECT
♦SHORT AND REV. CONNECTION SHUTDOWN ♦SHORT AND REV. CONNECTION SHUTDOWN
♦RUGGED SCR PHASE CONTROL ♦RUGGED SCR PHASE CONTROL
♦MAINS ZERO-CROSSING BATTERY SENSING ♦MAINS ZERO-CROSSING BATTERY SENSING
For Technical Assistance, Call Moroso’s Tech Line at
[phone], 458-0546 8:30am – 5:00pm Eastern Time For Technical Assistance, Call Moroso’s Tech Line at [phone], 458-0546 8:30am – 5:00pm Eastern Time
MOROSO PERFORMANCE PRODUCTS, INC
80 CARTER DR
• GUILFORD, CT 06437
Phone:
(
203
)
45
3
-
6571
• Fax:
(
203
)
45
3
-
6906
MOROSO PERFORMANCE PRODUCTS, INC
80 CARTER DR
• GUILFORD, CT 06437
Phone:
(
203
)
45
3
-
6571
• Fax:
(
203
)
45
3
-
6906
V
i s i t U s A t w w w . m o r o s o . c o m
Rev.A
021708
V
i s i t U s A t w w w . m o r o s o . c o m
Rev.A
021708 74018INST
74018INST

Installation Instructions Cont. Page 2 of 14 Installation Instructions Cont. Page 2 of 14
HIBERNATING BATTERY CHARGER HIBERNATING BATTERY CHARGER
12 & 16 VOLT 12 & 16 VOLT
SPECIFICATIONS SPECIFICATIONS
POWER CHARGER
MODEL EX 1216/4
INPUT: 117 Volts AC 60Hz, 110 VA 1Amps
OUTPUT: 12 or 16 Volts DC, 5 Amps
Full Wave Phase Controlled Rectification
CONTROL:
Voltage limit: to 2.41 V/Cell with microprocessor timing
Float standby maintenance charge 2.3 Volts/Cell
Current electronically limited to rated amperage
Proportional Timed Cycle Charge Stage.
Flashing yellow LED indicates 80 % state of charge
Green LED indicates 100% charged.
PROTECTION:
Electronic reverse polarity. Short circuit shutdown
and current limit.
Internal AC input fuse
BATTERY TYPE & RATING
This charger is for use with Lead Acid Batteries of
Minimum capacity 8 AH, Gel Cell, Absorbed
Electrolyte or Liquid Electrolyte Types.
DIMENSIONS: (Inches) (Wall & Table Mounting)
4.0 "WIDE, 3-1/4 FRONT TO BACK, 6.0" HIGH
POWER CHARGER
MODEL EX 1216/4
INPUT: 117 Volts AC 60Hz, 110 VA 1Amps
OUTPUT: 12 or 16 Volts DC, 5 Amps
Full Wave Phase Controlled Rectification
CONTROL:
Voltage limit: to 2.41 V/Cell with microprocessor timing
Float standby maintenance charge 2.3 Volts/Cell
Current electronically limited to rated amperage.
Proportional Timed Cycle Charge Stage.
Flashing yellow LED indicates 80 % state of charge
Green LED indicates 100% charged.
PROTECTION:
Electronic reverse polarity. Short circuit shutdown
and current limit.
Internal AC input fuse
BATTERY TYPE & RATING
This charger is for use with Lead Acid Batteries of
Minimum capacity 8 AH, Gel Cell, Absorbed
Electrolyte or Liquid Electrolyte.Tyypes.
DIMENSIONS: (Inches) (Wall & Table Mounting)
4.0 "WIDE, 3-1/4 FRONT TO BACK, 6.0" HIGH

Installation Instructions Cont. Page 3 of 14 Installation Instructions Cont. Page 3 of 14
IMPORTANT SAFETY
INSTRUCTIONS
1.SAVE THESE INSTRUCTIONS-- This manual contains
important safety and operating instructions.
2. Before using this battery charger, read all instructions and
cautionary markings on (1) the battery charger, (2) the
battery, (3) product using the battery.
3. CAUTION--To reduce risk of injury, charge only lead acid,
maintenance free or flooded lead acid type rechargable
batteries. Other types of batteries may burst causing
personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of fire,
electric shock or injury to person.
6. To reduce risk of damage to electric plug and cord, pull by
plug rather than cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on,
tripped over or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result
in risk of fire and electrical shock. If an extension cord
must be used, make sure:
a. That pins on plug of the extension cord are the same
number, size and shape as those of the plug on the charger.
b. That the extension cord is properly wired and in good
electrical condition.
c. That the wire size is large enough for the A/C ampere
rating of the charger as specified in the table below:
LENGTH OF CORD (FEET) 25 50 100 150
AWG WIRE SIZE 18 18 16 14
9. Do not operate charger with damaged cord or plug.
REPLACE THEM IMMEDIATELY.
IMPORTANT SAFETY
INSTRUCTIONS
1.SAVE THESE INSTRUCTIONS-- This manual contains
important safety and operating instructions.
2. Before using this battery charger, read all instructions and
cautionary markings on (1) the battery charger, (2) the
battery, (3) product using the battery.
3. CAUTION--To reduce risk of injury, charge only lead acid,
maintenance free or flooded lead acid type rechargable
batteries. Other types of batteries may burst causing
personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of fire,
electric shock or injury to person.
6. To reduce risk of damage to electric plug and cord, pull by
plug rather than cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on,
tripped over or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result
in risk of fire and electrical shock. If an extension cord
must be used, make sure:
a. That pins on plug of the extension cord are the same
number, size and shape as those of the plug on the charger.
b. That the extension cord is properly wired and in good
electrical condition.
c. That the wire size is large enough for the A/C ampere
rating of the charger as specified in the table below:
LENGTH OF CORD (FEET) 25 50 100 150
AWG WIRE SIZE 18 18 16 14
9. Do not operate charger with damaged cord or plug.
REPLACE THEM IMMEDIATELY.

Installation Instructions Cont. Page 4 of 14 Installation Instructions Cont. Page 4 of 14
10. Do not operate charger if it has received a sharp blow,
been dropped or otherwise damaged in any way; return it to
a qualified service source.
11. Do not disassemble charger; Take it to a qualified service
source when repair or service is required. Incorrect
reassembly may result in a risk of electrical shock or fire.
12. To reduce risk of electrical shock, unplug charger from
outlet before attempting any maintenance or cleaning.
WARNING
RISK OF EXPLOSIVE GASES
1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS
DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL BATTERY OPERATION. FOR THIS
REASON, IT IS OF THE UTMOST IMPORTANCE THAT EACH
TIME BEFORE USING YOUR CHARGER, YOU READ THIS
MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
2. To reduce risk of battery explosion, follow these directions and
those published by the battery manufacturer and the manuf.
of any equipment you intend to use in vicinity of the battery.
Review cautionary marking on these products and on engine.
PERSONAL PRECAUTIONS
1. Someone should be within range of your voice or close enough
to come to your aid when you work near a lead-acid battery.
2. Have plenty of fresh water and soap nearby in case battery
acid contacts skin, clothing or eyes.
3. Wear complete eye protection and clothing protection. Avoid
touching eyes while working near battery.
4. If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters eyes, immediately flood eyes
with running cold water for at least 10 minutes and get
medical attention immediately.
5. NEVER smoke or allow a spark or flame in the vicinity of
battery or engine.
10. Do not operate charger if it has received a sharp blow,
been dropped or otherwise damaged in any way; return it to
a qualified service source.
11. Do not disassemble charger; Take it to a qualified service
source when repair or service is required. Incorrect
reassembly may result in a risk of electrical shock or fire.
12. To reduce risk of electrical shock, unplug charger from
outlet before attempting any maintenance or cleaning.
WARNING
RISK OF EXPLOSIVE GASES
1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS
DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL BATTERY OPERATION. FOR THIS
REASON, IT IS OF THE UTMOST IMPORTANCE THAT EACH
TIME BEFORE USING YOUR CHARGER, YOU READ THIS
MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
2. To reduce risk of battery explosion, follow these directions and
those published by the battery manufacturer and the manuf.
of any equipment you intend to use in vicinity of the battery.
Review cautionary marking on these products and on engine.
PERSONAL PRECAUTIONS
1. Someone should be within range of your voice or close enough
to come to your aid when you work near a lead-acid battery.
2. Have plenty of fresh water and soap nearby in case battery
acid contacts skin, clothing or eyes.
3. Wear complete eye protection and clothing protection. Avoid
touching eyes while working near battery.
4. If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters eyes, immediately flood eyes
with running cold water for at least 10 minutes and get
medical attention immediately.
5. NEVER smoke or allow a spark or flame in the vicinity of
battery or engine.

Installation Instructions Cont. Page 5 of 14 Installation Instructions Cont. Page 5 of 14
6. Be extra cautious to reduce risk of dropping a metal tool onto
battery. It might spark or short circuit battery or other electrical
part that may cause explosion.
7. Remove personal metal items such as rings, bracelets.
necklaces, and watches when working with a lead acid battery.
A lead acid battery can produce a short circuit current high
enough to weld a ring or the like to metal, causing a severe
burn.
8. Use charger for charging a LEAD-ACID BATTERY ONLY. Do
not use battery charger for charging dry-cell batteries that are
commonly used with home appliances. These batteries may
burst and cause injury to persons and damage to property.
9. NEVER charge a frozen battery.
PREPARING TO CHARGE
1. If necessary to remove battery from vehicle to charge, always
remove grounded terminal from battery first. Make sure all
accessories in vehicle are off so as not to cause an arc.
2. Be sure area around battery is well ventilated while battery is
being charged. Gas can be forcefully blown away by using a
piece of cardboard or other nonmetallic material as a fan.
3. Clean all battery terminals. Be careful to keep corrosion from
coming in contact with eyes.
4. Add distilled water in each cell until battery acid reaches level
specified by battery manufacturer. This helps purge excessive
gas from cells. Do not overfill. For a battery without cell caps,
carefully follow manufacturer's recharging instructions.
5. Study all battery manufacturer's specific precautions such as
removing or not removing cell caps while charging and
recommended rates of charge.
6. Determine voltage of battery by referring to car or equipment
owner's manual and make sure it matches output rating of
battery charger.
6. Be extra cautious to reduce risk of dropping a metal tool onto
battery. It might spark or short circuit battery or other electrical
part that may cause explosion.
7. Remove personal metal items such as rings, bracelets.
necklaces, and watches when working with a lead acid battery.
A lead acid battery can produce a short circuit current high
enough to weld a ring or the like to metal, causing a severe
burn.
8. Use charger for charging a LEAD-ACID BATTERY ONLY. Do
not use battery charger for charging dry-cell batteries that are
commonly used with home appliances. These batteries may
burst and cause injury to persons and damage to property.
9. NEVER charge a frozen battery.
PREPARING TO CHARGE
1. If necessary to remove battery from vehicle to charge, always
remove grounded terminal from battery first. Make sure all
accessories in vehicle are off so as not to cause an arc.
2. Be sure area around battery is well ventilated while battery is
being charged. Gas can be forcefully blown away by using a
piece of cardboard or other nonmetallic material as a fan.
3. Clean all battery terminals. Be careful to keep corrosion from
coming in contact with eyes.
4. Add distilled water in each cell until battery acid reaches level
specified by battery manufacturer. This helps purge excessive
gas from cells. Do not overfill. For a battery without cell caps,
carefully follow manufacturer's recharging instructions.
5. Study all battery manufacturer's specific precautions such as
removing or not removing cell caps while charging and
recommended rates of charge.
6. Determine voltage of battery by referring to car or equipment
owner's manual and make sure it matches output rating of
battery charger.

VOLTAGE SELECTOR SWITCH VOLTAGE SELECTOR SWITCH
WARNING The front panel switch has two settings, marked
12V and 16V, with OFF in the center.
The switch must be set to 12 Volts when charging 12 Volt
(SIX CELL) batteries.
The switch must be set to 16 Volts ONLY when charging
16 Volt (EIGHT CELL) batteries.
Sixteen Volt (Eight Cell) batteries are special high performance
batteries used in racing applications only, which need a higher
voltage recharge. They are identified as 16 Volts on the battery
label, and have eight cell caps on top of the battery.
Setting the charger to 16 Volts, when connected to
the "12-Volt Post" on a three terminal 16 Volt battery, will apply
excessive voltage to the battery cells and to the vehicle
electrical system, and may result in emission of explosive
gasses, overheating and damage to the vehicle electrical system.
Damage caused by incorrect setting of the Voltage is not covered
under the warranty, so check which type of battery is connected
before using the charger. If in any doubt, use only the 12 Volt
setting.
CHARGER LOCATION
1. Locate charger as far away from battery as charging cables
will permit.
2. Never place charger above battery being charged; gasses
from battery will corrode and damage charger.
3. Never allow battery acid to drip on charger when reading
specific gravity or filling battery.
4. Do not operate charger in a closed-in area or restrict
ventilation in any way.
5. Do not set a battery on top of charger.
Installation Instructions Cont. Page 6 of 14 Installation Instructions Cont. Page 6 of 14
WARNING The front panel switch has two settings, marked
12V and 16V, with OFF in the center.
The switch must be set to 12 Volts when charging 12 Volt
(SIX CELL) batteries.
The switch must be set to 16 Volts ONLY when charging
16 Volt (EIGHT CELL) batteries.
Sixteen Volt (Eight Cell) batteries are special high performance
batteries used in racing applications only, which need a higher
voltage recharge. They are identified as 16 Volts on the battery
label, and have eight cell caps on top of the battery.
Setting the charger to 16 Volts, when connected to
the "12-Volt Post" on a three terminal 16 Volt battery, will apply
excessive voltage to the battery cells and to the vehicle
electrical system, and may result in emission of explosive
gasses, overheating and damage to the vehicle electrical system.
Damage caused by incorrect setting of the Voltage is not covered
under the warranty, so check which type of battery is connected
before using the charger. If in any doubt, use only the 12 Volt
setting
CHARGER LOCATION
1. Locate charger as far away from battery as charging cables
will permit.
2. Never place charger above battery being charged; gasses
from battery will corrode and damage charger.
3. Never allow battery acid to drip on charger when reading
specific gravity or filling battery.
4. Do not operate charger in a closed-in area or restrict
ventilation in any way.
5. Do not set a battery on top of charger.

Installation Instructions Cont. Page 7 of 14 Installation Instructions Cont. Page 7 of 14
DC CONNECTION PRECAUTIONS
DC CONNECTION PRECAUTIONS
1. Connect and disconnect DC output only after removing AC
cord from electric outlet. Never allow clips to touch each other.
2. Attach clips to battery posts and twist or rock back and forth
several times to make a good connection. This tends to keep
clips from slipping off terminals and helps to reduce risk of
sparking.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN
VEHICLE. A SPARK NEAR A BATTERY MAY CAUSE
BATTERY EXPLOSION.
TO REDUCE RISKS;
1. Carefully position AC and DC cords to reduce risk of damage
by hood, door or moving engine parts.
2. Stay clear of fan blades, belts, pulleys and other parts that
can cause injury to persons.
3. Check polarity of battery posts. POSITIVE (POS. P. +), battery
posts usually have a larger diameter than
the NEGATIVE (NEG. -.) posts.
4. Determine which post of battery is grounded (connected) to
the chassis.
5. For negative-grounded vehicle, connect POSITIVE (RED) clip
from battery charger to POSITIVE (POS, P,+) UNGROUNDED
POST OF THE BATTERY. Connect NEGATIVE (BLACK) clip
to vehicle chassis or engine block away from battery. DO NOT
CONNECT CLIPS TO CARBURETOR, FUEL LINES, OR
SHEET METAL BODY PARTS. Connect to a heavy gauge
metal part of the frame or engine block.
6. For positive-grounded vehicle, connect NEGATIVE (BLACK)
clip from battery charger to the NEGATIVE (NEG, N, -)
UNGROUNDED POST OF THE BATTERY. Connect
POSITIVE (RED) clip to the vehicle chassis or engine block
away from battery.
DO NOT CONNECT CLIP TO CARBURETOR, FUEL LINES
OR SHEET METAL BODY PARTS, CONNECT TO GOOD
GROUND I.E. FRAME OR ENGINE BLOCK
1. Connect and disconnect DC output only after removing AC
cord from electric outlet. Never allow clips to touch each other.
2. Attach clips to battery posts and twist or rock back and forth
several times to make a good connection. This tends to keep
clips from slipping off terminals and helps to reduce risk of
sparking.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN
VEHICLE. A SPARK NEAR A BATTERY MAY CAUSE
BATTERY EXPLOSION.
TO REDUCE RISKS;
1. Carefully position AC and DC cords to reduce risk of damage
by hood, door or moving engine parts.
2. Stay clear of fan blades, belts, pulleys and other parts that
can cause injury to persons.
3. Check polarity of battery posts. POSITIVE (POS. P. +), battery
posts usually have a larger diameter than
the NEGATIVE (NEG. -.) posts.
4. Determine which post of battery is grounded (connected) to
the chassis.
5. For negative-grounded vehicle, connect POSITIVE (RED) clip
from battery charger to POSITIVE (POS, P,+) UNGROUNDED
POST OF THE BATTERY. Connect NEGATIVE (BLACK) clip
to vehicle chassis or engine block away from battery. DO NOT
CONNECT CLIPS TO CARBURETOR, FUEL LINES, OR
SHEET METAL BODY PARTS. Connect to a heavy gauge
metal part of the frame or engine block.
6. For positive-grounded vehicle, connect NEGATIVE (BLACK)
clip from battery charger to the NEGATIVE (NEG, N, -)
UNGROUNDED POST OF THE BATTERY. Connect
POSITIVE (RED) clip to the vehicle chassis or engine block
away from battery.
DO NOT CONNECT CLIP TO CARBURETOR, FUEL LINES
OR SHEET METAL BODY PARTS, CONNECT TO GOOD
GROUND I.E. FRAME OR ENGINE BLOCK

Installation Instructions Cont. Page 8 of 14 Installation Instructions Cont. Page 8 of 14
7. When disconnecting charger, turn switches to off,
7. When disconnecting charger, turn switches to off,
disconnect AC cord, remove clip from vehicle chassis
and then remove clip from battery terminal.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE
VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE
BATTERY EXPLOSION.
TO REDUCE RISK
1. Check polarity of battery posts. POSITIVE (POS, P, +)
battery post usually has a larger diameter than the
NEGATIVE (NEG, N, -) post.
2. Attach at least a 24-inch long, 6 gauge (AWG) insulated
battery cable to the NEGATIVE (NEG. N, -) battery post.
3. Connect POSITIVE (RED) charger clip to POSITIVE
(POS, P, +) of the battery.
4. Position yourself and free end of cable as far away from
battery as possible, then connect NEGATIVE (BLACK)
charger clip to free end of cable.
5. Do not face battery when making final connection.
6. When disconnecting charger, always do so in reverse
sequence while as far away from battery as practical.

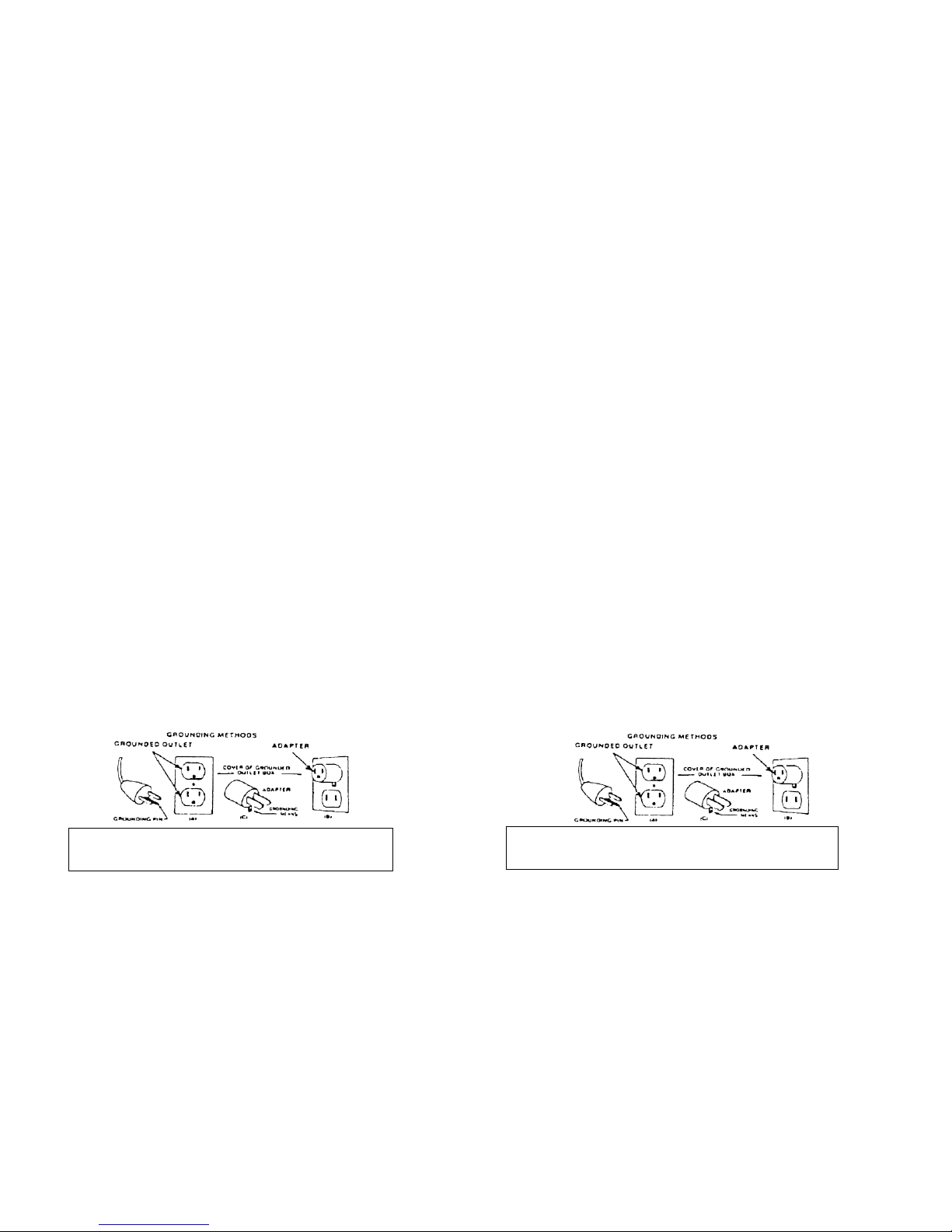

GROUNDING AND AC POWER CORD
CONNECTING INSTRUCTIONS
Charger should be grounded to reduce risk of electrical shock.
Charger is equipped with an electrical cord having an equipment
grounding conductor and a grounding pin. This plug must be
plugged into an outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
DANGER-- Never alter AC cord or plug provided. If it will not
fit outlet, have proper outlet installed by a qualified electrician.
Improper connection can result in a risk of an electrical shock.
disconnect AC cord, remove clip from vehicle chassis
and then remove clip from battery terminal.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE
VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE
BATTERY EXPLOSION.
TO REDUCE RISK
1. Check polarity of battery posts. POSITIVE (POS, P, +)
battery post usually has a larger diameter than the
NEGATIVE (NEG, N, -) post.
2. Attach at least a 24-inch long, 6 gauge (AWG) insulated
battery cable to the NEGATIVE (NEG. N, -) battery post.
3. Connect POSITIVE (RED) charger clip to POSITIVE
(POS, P, +) of the battery.
4. Position yourself and free end of cable as far away from
battery as possible, then connect NEGATIVE (BLACK)
charger clip to free end of cable.
5. Do not face battery when making final connection.
6. When disconnecting charger, always do so in reverse
sequence while as far away from battery as practical.
GROUNDING AND AC POWER CORD
CONNECTING INSTRUCTIONS
Charger should be grounded to reduce risk of electrical shock.
Charger is equipped with an electrical cord having an equipment
grounding conductor and a grounding pin. This plug must be
plugged into an outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
DANGER-- Never alter AC cord or plug provided. If it will not
fit outlet, have proper outlet installed by a qualified electrician.
Improper connection can result in a risk of an electrical shock.

Installation Instructions Cont. Page 9 of 14
Installation Instructions Cont. Page 9 of 14
This battery charger is for use on a nominal 117 volt AC circuit
and has a grounded plug that looks like the plug illustrated in
sketch (A). A temporary adapter, which looks like the adapter
illustrated in sketches (B) & (C) may be used to connect this
plug to a two-pole receptacle as shown in sketch (B) if a
properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician.
* Optional Voltages are available.
NOTE: USE OF AN ADAPTER IS NOT ALLOWED IN CANADA.
This battery charger is for use on a nominal 117 volt AC circuit
and has a grounded plug that looks like the plug illustrated in
sketch (A). A temporary adapter, which looks like the adapter
illustrated in sketches (B) & (C) may be used to connect this
plug to a two-pole receptacle as shown in sketch (B) if a
properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician.
NOTE: USE OF AN ADAPTER IS NOT ALLOWED IN CANADA.
If a grounding type receptacle is not available. DO NOT use this
appliance in CANADA until the proper outlet is installed by a
qualified electrician.
DANGER-- Before using an adapter as illustrated, be certain
that the center screw of the outlet plate is grounded. The green
colored rigid ear or lug extending from the adapter must be
connected to a properly grounded outlet. Make certain it is
grounded.
If necessary, replace original outlet cover plate screw with a
longer screw that will secure adapter ear or lug to outlet cover
plate and make ground connection to grounded outlet.
HIBERNATING BATTERY CHARGER
OPERATING INSTRUCTIONS
This charger is suitable for use with all types of lead acid
batteries, including the new types of maintenance free and
gelled electrolyte batteries.
If a grounding type receptacle is not available. DO NOT use this
appliance in CANADA until the proper outlet is installed by a
qualified electrician.
DANGER-- Before using an adapter as illustrated, be certain
that the center screw of the outlet plate is grounded. The green
colored rigid ear or lug extending from the adapter must be
connected to a properly grounded outlet. Make certain it is
grounded.
If necessary, replace original outlet cover plate screw with a
longer screw that will secure adapter ear or lug to outlet cover
plate and make ground connection to grounded outlet.
HIBERNATING BATTERY CHARGER
OPERATING INSTRUCTIONS
This charger is suitable for use with all types of lead acid
batteries, including the new types of maintenance free and
gelled electrolyte batteries.

Installation Instructions Cont. Page 10 of 14
Installation Instructions Cont. Page 10 of 14
1. Disconnect vehicle battery cables.
2. Connect charger to battery. Ensure correct polarity. - BLACK
lead to Negative (-) terminal and RED lead to Positive
(+) terminal.
NOTE: THIS CHARGER IS PROTECTED AGAINST REVERSE
CONNECTION. CHARGING WILL NOT COMMENCE IF
BATTERY IS INCORRECTLY CONNECTED.
3. Connect the charger to AC power supply.
This charger is suitable for all types of lead acid batteries,
including the new types of Maintenance-Free and Gelled
Electrolyte batteries.
1. Disconnect vehicle battery cables
2. Connect charger to battery. Ensure correct
polarity. Black lead to Negative(-) terminal and
Red lead to Positive (+) terminal.
NOTE: THE CHARGER IS PROTECTED AGAINST
REVERSE CONNECTION. CHARGING WILL NOT
COMMENCE IF THE BATTERY IS INCORRECTLY
CONNECTED.
3. Connect the charger to an A.C. Power Supply
Check that the Red (Power) and Yellow (Charge)
indicator LEDs are ON. After a time (which depends on
how heavily the battery has discharged) the Yellow LED
will begin to flash, indicating the battery has reached 80%
1. Disconnect vehicle battery cables.
2. Connect charger to battery. Ensure correct polarity. - BLACK
lead to Negative (-) terminal and RED lead to Positive
(+) terminal.
NOTE: THIS CHARGER IS PROTECTED AGAINST REVERSE
CONNECTION. CHARGING WILL NOT COMMENCE IF
BATTERY IS INCORRECTLY CONNECTED.
3. Connect the charger to AC power supply.
This charger is suitable for all types of lead acid batteries,
including the new types of Maintenance-Free and Gelled
Electrolyte batteries.
1. Disconnect vehicle battery cables
2. Connect charger to battery. Ensure correct
polarity. Black lead to Negative(-) terminal and
Red lead to Positive (+) terminal.
NOTE: THE CHARGER IS PROTECTED AGAINST
REVERSE CONNECTION. CHARGING WILL NOT
COMMENCE IF THE BATTERY IS INCORRECTLY
CONNECTED.
3. Connect the charger to an A.C. Power Supply
Check that the Red (Power) and Yellow (Charge)
indicator LEDs are ON. After a time (which depends on
how heavily the battery has discharged) the Yellow LED
will begin to flash, indicating the battery has reached 80%
recharge level. The red light will flash when it is in the
hibernate mode.
4. After a further time, the Green “Ready” LED will
indicate that the battery is fully charged. The
minimum time before the Green “Ready” LED shows is
one hour.
The battery should be left on charge until required
for use. A flashing “green light” means a fault condition.
recharge level. The red light will flash when it is in the
hibernate mode.
4. After a further time, the Green “Ready” LED will
indicate that the battery is fully charged. The
minimum time before the Green “Ready” LED shows is
one hour.
The battery should be left on charge until required
for use. A flashing “green light means a fault condition.

Installation Instructions Cont. Page 11 of 14 Installation Instructions Cont. Page 11 of 14
4. NOTE : The length of time the charger remains in the
Yellow charging mode depends on the size and
“Sate of Charge” of the battery.
This function is controlled by the solid state circuitry of the
charger which provides the correct charge profile
automatically. This charger can be left connected to the
battery for extended periods of time safely.
SPECIAL NOTE: BATTERIES THAT HAVE A
SUSPECT CONDITION, PARTICULARLY “SULFATED
CELLS” MAY WHEN FIRST CONNECTED, GO
DIRECTLY TO THE “FLASHING YELLOW LED MODE.
THEN AFTER CURRENT FLOW BEGINS. THE YELLOW
CHARGE LED STAYS ON INDICATING THAT A NORMAL
CHARGE CYCLE IS NOW OPERATING.
Do not switch to 16v when connected to a 12v battery.
TROUBLE SHOOTING GUIDE
YELLOW CHARGE LIGHT DOES NOT SWITCH ON;
The charger will not commence charging unless properly
connected.
1. Check to ensure the charger is connected correctly – BLACK
lead to NEGATIVE (-) terminal and RED lead to POSITIVE
(+) terminal or that the Factory installed OEM (Original
Equipment Manufacturer) custom connector is properly
installed regarding the Polarity at the connectors contact
terminals or at the mating connector on the battery or
equipment.
2. Check that the clips made a good connection to the battery
posts. Twist clips or clean battery posts to ensure good
connection.
GREEN READY LIGHT DOES NOT APPEAR AFTER 18
HOURS.
4.. NOTE : The length of time the charger remains in the
Yellow charging mode depends on the size and
“Sate of Charge” of the battery.
This function is controlled by the solid state circuitry of the
charger which provides the correct charge profile
automatically. This charger can be left connected to the
battery for extended periods of time safely.
SPECIAL NOTE: BATTERIES THAT HAVE
A
SUSPECT CONDITION, PARTICULARLY “SULFATED
CELLS” MAY WHEN FIRST CONNECTED, GO
DIRECTLY TO THE “FLASHING YELLOW LED MODE.
THEN AFTER CURRENT FLOW BEGINS. THE YELLOW
CHARGE LED STAYS ON INDICATING THAT A NORMAL
CHARGE CYCLE IS NOW OPERATING.
Do not switch to 16v when connected to a 12v battery.
TROUBLE SHOOTING GUIDE
YELLOW CHARGE LIGHT DOES NOT SWITCH ON;
The charger will not commence charging unless properly
connected.
1. Check to ensure the charger is connected correctly – BLACK
lead to NEGATIVE (-) terminal and RED lead to POSITIVE
(+) terminal or that the Factory installed OEM (Original
Equipment Manufacturer) custom connector is properly
installed regarding the Polarity at the connectors contact
terminals or at the mating connector on the battery or
equipment.
2. Check that the clips made a good connection to the battery
posts. Twist clips or clean battery posts to ensure good
connection.
GREEN READY LIGHT DOES NOT APPEAR AFTER 18
HOURS.

Installation Instructions Cont. Page 12 of 14
Installation Instructions Cont. Page 12 of 14
3. The Microprocessor Control can indicate a problem with the
battery. If the battery has not reached the First Stage of the
Operation within 18 hours, the charger may determine that
a problem exists within the battery or the battery is too big
for the charger's output rating.
The OVERRIDE TIMER FUNCTION is shown by the GREEN
LED FLASHING.
SERIES AND PARALLEL CHARGING
1. Two 6 volt batteries may be charged with the 12 volt
charger if they are connected in SERIES as shown below:
3. The Microprocessor Control can indicate a problem with the
battery. If the battery has not reached the First Stage of the
Operation within 18 hours, the charger may determine that
a problem exists within the battery or the battery is too big
for the charger's output rating.
The OVERRIDE TIMER FUNCTION is shown by the GREEN
LED FLASHING.
SERIES AND PARALLEL CHARGING
1. Two 6 volt batteries may be charged with the 12 volt
charger if they are connected in SERIES as shown below:
CAUTION: NEVER UNDER ANY CIRCUMSTANCES
ATTEMPT TO CHARGE A SINGLE 6 VOLT BATTERY WITH
THIS CHARGER. THIS WILL RESULT IN SERIOUS DAMAGE
TO THE BATTERY AND CREATE A RISK OF EXPLOSION.
EXTREME CARE SHOULD BE TAKEN TO CONNECT THE
BATTERIES ONLY AS SHOWN ABOVE. IMPROPER
CONNECTION CAN RESULT IN EXPLOSION AND
SERIOUS INJURY.
CAUTION: NEVER UNDER ANY CIRCUMSTANCES
ATTEMPT TO CHARGE A SINGLE 6 VOLT BATTERY WITH
THIS CHARGER. THIS WILL RESULT IN SERIOUS DAMAGE
TO THE BATTERY AND CREATE A RISK OF EXPLOSION.
EXTREME CARE SHOULD BE TAKEN TO CONNECT THE
BATTERIES ONLY AS SHOWN ABOVE. IMPROPER
CONNECTION CAN RESULT IN EXPLOSION AND
SERIOUS INJURY.

2. Two or more 12 volt batteries may be bank charged with 2. Two or more 12 volt batteries may be bank charged with
(1) charger if they are connected in parallel as shown (1) charger if they are connected in parallel as shown .
NOTE: It is important that the batteries in the circuit be of the
same type (e.g. maintenance free only or conventional lead acid
only). Mixing different types of batteries in the same circuit will
result in improper charging.
STORAGE INSTRUCTIONS
1. When not in use, store the charger indoors in a cool dry place
preferably with its original packing and carton.
2. Place these instructions with the charger during storage.
MAINTENANCE AND CLEANING
Very little maintenance is required other than protecting it from
damage and weather.
1. Coil cord when not in use.
2. Clean case and cords with a slightly damp cloth.
3. Corrosion on the clips may be removed with a solution of
water and baking soda.
4. Examine cords for damage periodically and replace if
necessary with manufacturer approved parts.
SERVICE SERVICE
This charger is a solid state device and should not require This charger is a solid state device and should not require
Installation Instructions Cont. Page 13 of 14
NOTE: It is important that the batteries in the circuit be of the
same type (e.g. maintenance free only or conventional lead acid
only). Mixing different types of batteries in the same circuit will
result in improper charging.
STORAGE INSTRUCTIONS
1. When not in use, store the charger indoors in a cool dry place
preferably with its original packing and carton.
2. Place these instructions with the charger during storage.
MAINTENANCE AND CLEANING
Very little maintenance is required other than protecting it from
dama
g
e and weather.
1. Coil cord when not in use.
2. Clean case and cords with a slightly damp cloth.
3. Corrosion on the clips may be removed with a solution of
water and baking soda.
4. Examine cords for damage periodically and replace if
necessar
y
with manufacturer a
pp
roved
p
arts.
Installation Instructions Cont. Page 13 of 17Installation Instructions Cont. Page 13 of 14
service under normal operating conditions and use according service under normal operating conditions and use according
to these instructions. For service call or write the manufacturer. to these instructions. For service call or write the manufacturer

Installation Instructions Cont. Page 14 of 14
Installation Instructions Cont. Page 14 of 14
MOROSO PERFORMANCE PRODUCTS, INC.
80 Carter Drive. Guilford, Connecticut 06437-2116
All Moroso products are manufactured under strict quality control specifications to
insure you the finest products available. We rarely receive complaints but should
you encounter a problem. Please refer to this Quality Control Number in your
correspondence. We must have the Q.C. Number to properly process the
complaint.
STATEMENT OF LIMITED WARRANTY
This limited warranty is extended only to each individual who purchases a
Moroso product. This limited warranty applies to any product which, after
inspection by Moroso Performance Products, is found to have a defect in
either material or workmanship. To obtain the benefit of this limited warranty you
must (1) return the product and sales receipt to Moroso Performance Products, at
your own expense. to the above address so that it is received by Moroso no later
than ninety (90) days after the date it was purchased; and (2) clearly state the
specific complaint that you have with respect to the product. If all of the above
procedures are followed, and the product is found by Moroso to be defective in
either material or workmanship, Moroso shall either repair or replace the
product at its election, and at its sole cost. Moroso will attempt to repair or
replace any defective product within SIXTY (60) days after receipt.
This limited warranty DOES NOT cover or apply to any damage sustained to the
engine or other parts which may have been caused by the defective product and
DOES NOT cover or apply to any personal injury, labor charges or any other
incidental costs or damages caused by the defective product.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH
APPLIES TO MOROSO PRODUCTS AND IS EXPRESSLY GIVEN IN LIEU
OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED. INCLUDING THAT
OF MERCHANTABILITY. ANY IMPLIED WARRANTY INCLUDING THAT OF
MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE IS
HEREBY LIMITED BY THE SAME TERMS AND TIME LIMITATIONS SET
FORTH IN THIS LIMITED EXPRESS WARRANTY AND OTHERWISE
EXCLUDED. You may have rights under either state or federal law, including
laws governing warranties which you should consult.
EXCEPT FOR THOSE OBLIGATIONS ASSUMED HEREIN, MOROSO
PERFORMANCE PRODUCTS, INC. ASSUMES NO OTHER OBLIGATIONS
IN CONNECTION WITH THE SALE OF ITS PRODUCTS.
Moroso Main Telephone: [phone] TECH: 203-458-0542
MODEL: Volt_____ Amp ______ SERIAL # _______
(record here for your records)
MOROSO PERFORMANCE PRODUCTS, INC.
80 Carter Drive. Guilford, Connecticut 06437-2116
All Moroso products are manufactured under strict quality control specifications to
insure you the finest products available. We rarely receive complaints but should
you encounter a problem. Please refer to this Quality Control Number in your
correspondence. We must have the Q.C. Number to properly process the
complaint.
STATEMENT OF LIMITED WARRANTY
This limited warranty is extended only to each individual who purchases a
Moroso product. This limited warranty applies to any product which, after
inspection by Moroso Performance Products, is found to have a defect in
either material or workmanship. To obtain the benefit of this limited warranty you
must (1) return the product and sales receipt to Moroso Performance Products, at
your own expense. to the above address so that it is received by Moroso no later
than ninety (90) days after the date it was purchased; and (2) clearly state the
specific complaint that you have with respect to the product. If all of the above
procedures are followed, and the product is found by Moroso to be defective in
either material or workmanship, Moroso shall either repair or replace the
product at its election, and at its sole cost. Moroso will attempt to repair or
replace any defective product within SIXTY (60) days after receipt.
This limited warranty DOES NOT cover or apply to any damage sustained to the
engine or other parts which may have been caused by the defective product and
DOES NOT cover or apply to any personal injury, labor charges or any other
incidental costs or damages caused by the defective product.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH
APPLIES TO MOROSO PRODUCTS AND IS EXPRESSLY GIVEN IN LIEU
OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED. INCLUDING THAT
OF MERCHANTABILITY. ANY IMPLIED WARRANTY INCLUDING THAT OF
MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE IS
HEREBY LIMITED BY THE SAME TERMS AND TIME LIMITATIONS SET
FORTH IN THIS LIMITED EXPRESS WARRANTY AND OTHERWISE
EXCLUDED. You may have rights under either state or federal law, including
laws governing warranties which you should consult.
EXCEPT FOR THOSE OBLIGATIONS ASSUMED HEREIN, MOROSO
PERFORMANCE PRODUCTS, INC. ASSUMES NO OTHER OBLIGATIONS
IN CONNECTION WITH THE SALE OF ITS PRODUCTS.
Moroso Main Telephone: [phone] TECH: 203-458-0542
MODEL: Volt_____ Amp ______ SERIAL # _______
(record here for your records)
