Morris RUSTLER User manual

OPERATOR’S MANUAL
H72503-00
RUSTLER
Heavy Harrow

Quick Start Guide
Hydraulic Connections to Tractor
Yellow - Wing lift/lower
Red - Tine angle adjust
Green - Wing wheel pivot
Unfold to Field Position
Important: Ensure the center harrow section has been rotated forward after shipping and bolted in place
or damage to the unit may result.
• Find a location that is as level as possible. Position harrow in line with tractor.
• Remove lock pin from main frame lift cylinder.
• Remove lock pins from wing lift and wing pivot wheels.
• From the cab of the tractor, rotate pivot wheels to 45° (Green hydraulic remote).
• Slowly back up the tractor to unfold.
• Once wings are nearly fully unfolded, rotate pivot wheels to 90°.
• Ensure that the draft arms have pushed the swing arms into the lock mechanism.
• Carefully lower the harrow wing halfway to the ground (Yellow hydraulic remote). Ensure that the swing arms
are both still locked in place.
• Slowly drive the tractor ahead, while lowering the harrow wing the rest of the way down.
NOTE:
Important: Do not lower the harrow wings fully down to the ground without driving ahead simultaneously.
Damage to rotary harrow sections could result.
• Check the level of A-frame hitch relative to the tractor. Adjust using hitch tongue to level
• Ensure all harrow chains are tight. Tighten chains using the tools provided on the left-most rotary harrow
section if necessary.
Rustler Heavy Harrow August 2021 Quick Start Guide

Table of Contents
Section 1:
Safety ............................................................................................................................1-1
Signal Words .............................................................................................................. 1-2
General Operation ...................................................................................................... 1-3
Tractor Operation ........................................................................................................1- 3
Transporting ................................................................................................................1- 4
Hydraulics ..................................................................................................................1- 4
Maintenance ............................................................................................................... 1-5
Hitching and Unhitching ............................................................................................. 1- 5
Storage ....................................................................................................................... 1-5
Safety Signs ............................................................................................................... 1- 6
Locations ....................................................................................................................... 1-6
Section 2:
Specifications ..............................................................................................................2-1
Specifications and Options.........................................................................................2-2
Section 3:
Checklist ......................................................................................................................3-1
Pre-Delivery Inspection ..............................................................................................3-3
Section 4:
Introduction .................................................................................................................4-1
Introduction ................................................................................................................4-2
Section 5:
Operation .....................................................................................................................5-1
Tractor .........................................................................................................................5-2
General Information ...................................................................................................5-2
Hitching to Tractor ......................................................................................................5-3
Tractor Disconnecting ................................................................................................5-4
Transport.....................................................................................................................5-5
Transport to Field Position ................................................................................................5-6
Field to Transport Position ..........................................................................................5-9
Levelling ..................................................................................................................5-10
Tine Section Adjustment ................................................................................................. 5-11
Section 6:
Maintenance .................................................................................................................6-1
General ......................................................................................................................6-2
Safety .........................................................................................................................6-2
Tighten Bolts ..............................................................................................................6-3
Tires ...........................................................................................................................6-3
Lubrication ................................................................................................................6-4
General ..........................................................................................................................6-4
Every 8 Hours (Daily) ....................................................................................................6-4
Every 100 Hours (Monthly) ............................................................................................6-4
Annually .........................................................................................................................6-4
Grease Locations ..........................................................................................................6-5
Wheel Bearings ..........................................................................................................6-7
Hydraulics ..................................................................................................................6-8
Section 7:
Storage ......................................................................................................................... 7-1
Preparing for Storage ................................................................................................. 7- 2
Cylinder Shaft Protection ........................................................................................... 7- 3
Removing From Storage ............................................................................................. 7- 3
I August 2021 Rustler Heavy Harrow

Table of Contents
Rustler Heavy Harrow August 2021 II
Section 8:
Parts .............................................................................................................................8-1
A-Frame ......................................................................................................................8-2
Hitch ........................................................................................................................8-2
Axle .........................................................................................................................8-4
Center Bar ...............................................................................................................8-6
Auto Fold .................................................................................................................8-8
Wings .......................................................................................................................8-10
Steering................................................................................................................. 8-10
Lift Arms ...................................................................................................................8-12
Center ................................................................................................................... 8-12
Wings .................................................................................................................... 8-14
Harrow Sections .......................................................................................................8-16
Section - 11 ft ........................................................................................................ 8-16
Section - 6 1/2 ft .................................................................................................... 8-18
Tine Retainers .......................................................................................................8-20
Tine Angle Indicator ..............................................................................................8-21
Light Kit - Slow Moving Sign - Jack Storage Mount ..............................................8-22
Perfect Hitch .............................................................................................................8-24
Hub and Spindle ......................................................................................................8-25
Hydraulics Schematics .............................................................................................8-26
Hitch ......................................................................................................................8-26
Model 5-55 ............................................................................................................8-28
Model 5-68 ............................................................................................................8-30
Model 5-78 ............................................................................................................8-32
Cylinders ..................................................................................................................8-34

Notes
III August 2021 Rustler Heavy Harrow

Rustler Heavy Harrow August 2021 1-1
Section 1:
Safety
Safety
Section 1:
Safety 1-1
Signal Words ..................................................................................................................... 1-2
General Operation ............................................................................................................ 1-3
Tractor Operation ..............................................................................................................1- 3
Transporting ...................................................................................................................... 1-4
Hydraulics ......................................................................................................................... 1- 4
Maintenance ..................................................................................................................... 1- 5
Hitching and Unhitching .................................................................................................... 1- 5
Storage ............................................................................................................................. 1-5
Safety Signs ..................................................................................................................... 1- 6
Locations .................................................................................................................... 1-6
Section Contents

Safety
1-2 August 2021 Rustler Heavy Harrow
Watch for this symbol. It identifies potential hazards
to health or personal safety. It means:
ATTENTION - BE ALERT.
Your Safety is involved.
Familiarize yourself with the location of all decals. Read them
carefully to understand the safe operation of your machine.
SAFETY-ALERT
SYMBOL
Three words are used in conjunction with the safety-alert symbol:
Signal Words
The words DANGER,WARNING or CAUTION are used
with the safety alert symbol. Learn to recognize the
safety alerts, and follow the recommended precautions
and safe practices.
Replace any DANGER, WARNING, CAUTION or
instructional decal that is not readable or is missing. The
location and part number of these decals is identied
later in this section of the manual.
The words Important and Note are not related
to personal safety but are used to give additional
information and tips for operating or servicing this
equipment.
IMPORTANT: Identifies special instructions or
procedures which, if not strictly
observed could result in damage to, or
destruction of the machine, process or
its surroundings.
NOTE: Indicates points of particular interest for more
efcient and convenient repair or operation.
Indicates an imminently hazardous situation that, if not
avoided, will result in DEATH OR SERIOUS INJURY.
DANGER
Indicates a potentially hazardous situation that, if not
avoided, could result in DEATH OR SERIOUS INJURY.
WARNING
Indicates a potentially hazardous situation that, if not
avoided, may result in MINOR OR MODERATE INJURY.
CAUTION

Safety
Rustler Heavy Harrow August 2021 1-3
General Operation
• DO NOT RIDE!! Do not allow riders on the implement
when in motion.
• Do not allow extra riders in the tractor unless an
instructor seat and seat belt are available.
• Check behind when backing up.
• Reduce speed when working in hilly terrain.
• Never allow anyone within the immediate area when
operating machinery.
• Stand clear when raising or lowering wings.
• Keep all shields in place, replace them if removed
for service work.
Tractor Operation
• Be aware of the correct tractor operating procedures,
when working with implements.
• Review tractor operator’s manual.
• Secure hitch pin with a retainer and lock drawbar in
centre position.

Safety
1-4 August 2021 Rustler Heavy Harrow

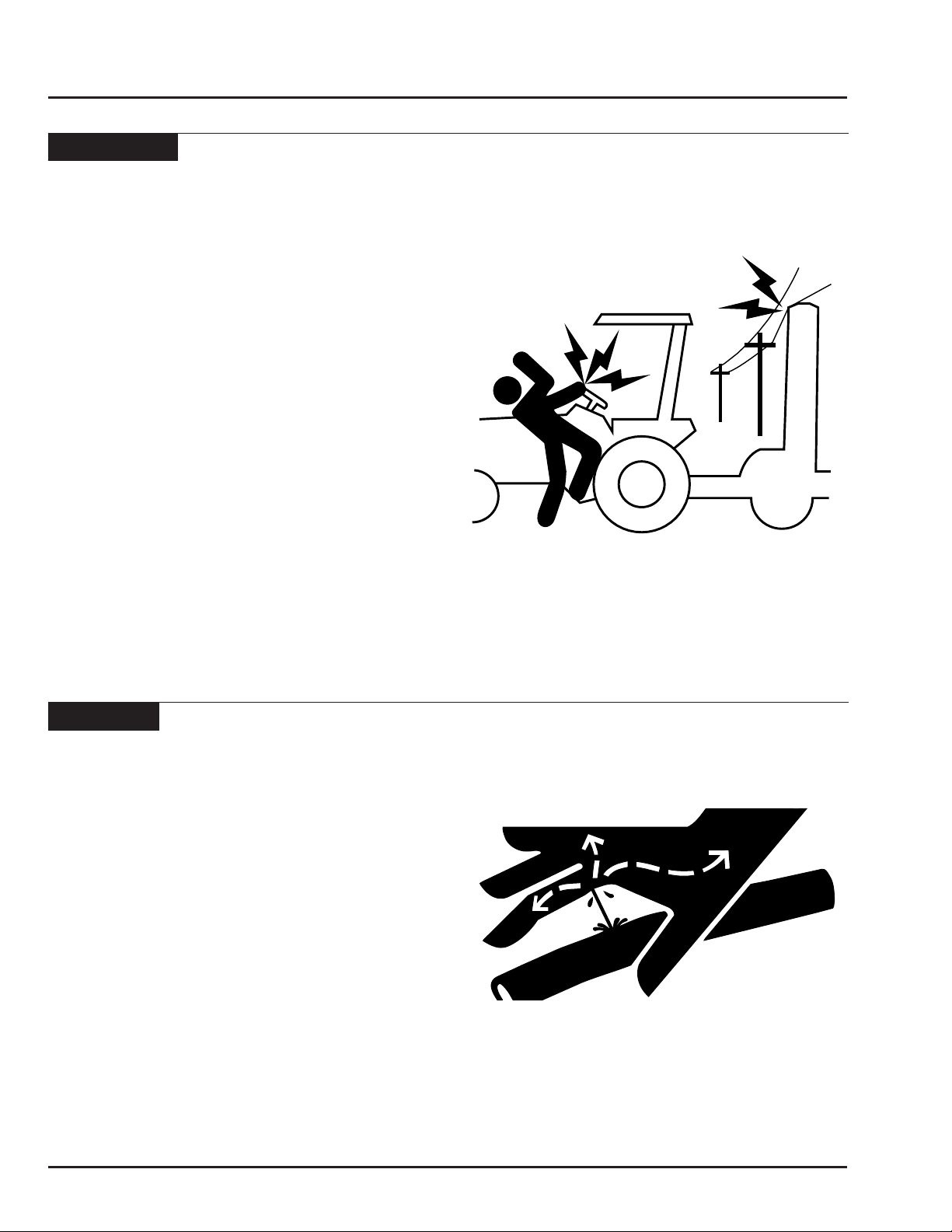

Transporting
• Be aware of the height, length and width of
implement. Make turns carefully and be aware of
obstacles and overhead electrical lines.
• Always travel at a safe speed. Do Not Exceed 20
mph (32 kph).
• Use an agricultural tractor that is large enough with
sufcient braking capacity so that the weight of the
loaded equipment towed does not exceed 1.5 times
the weight of the tractor.
• Use ashing amber warning lights, turn signals and
SMV emblems when on public roads.
• Do not transport in poor visibility.
• The slow moving vehicle (SMV) emblem and
reectors must be secured and be visible on the
machine for transport.
• Avoid soft surfaces, the additional wing weight on
the centre wheels could cause the machine to sink.
• Ensure safety chain is attached correctly to the
towing vehicle and the hitch of the implement.
• Check that wings are rmly seated on transport wing
stops, and wing lift valve and opener valve are in
locked postion.
• Be familiar with and adhere to local laws.
Hydraulics
• Do not search for high pressure hydraulic leaks
without hand and face protection. A tiny, almost
invisible leak can penetrate skin, thereby requiring
immediate medical attention.
• Use cardboard or wood to detect leaks - never your
hands.
• Double check that all is clear before operating
hydraulics.
• Never remove hydraulic hoses or ends with machine
elevated. Relieve hydraulic pressure before
disconnecting hydraulic hoses or ends.
• Maintain proper hydraulic uid levels.
• Keep all connectors clean for positive connections.
• Ensure all ttings and hoses are in good condition.
• Do not stand under wings.

Safety
Rustler Heavy Harrow August 2021 1-5

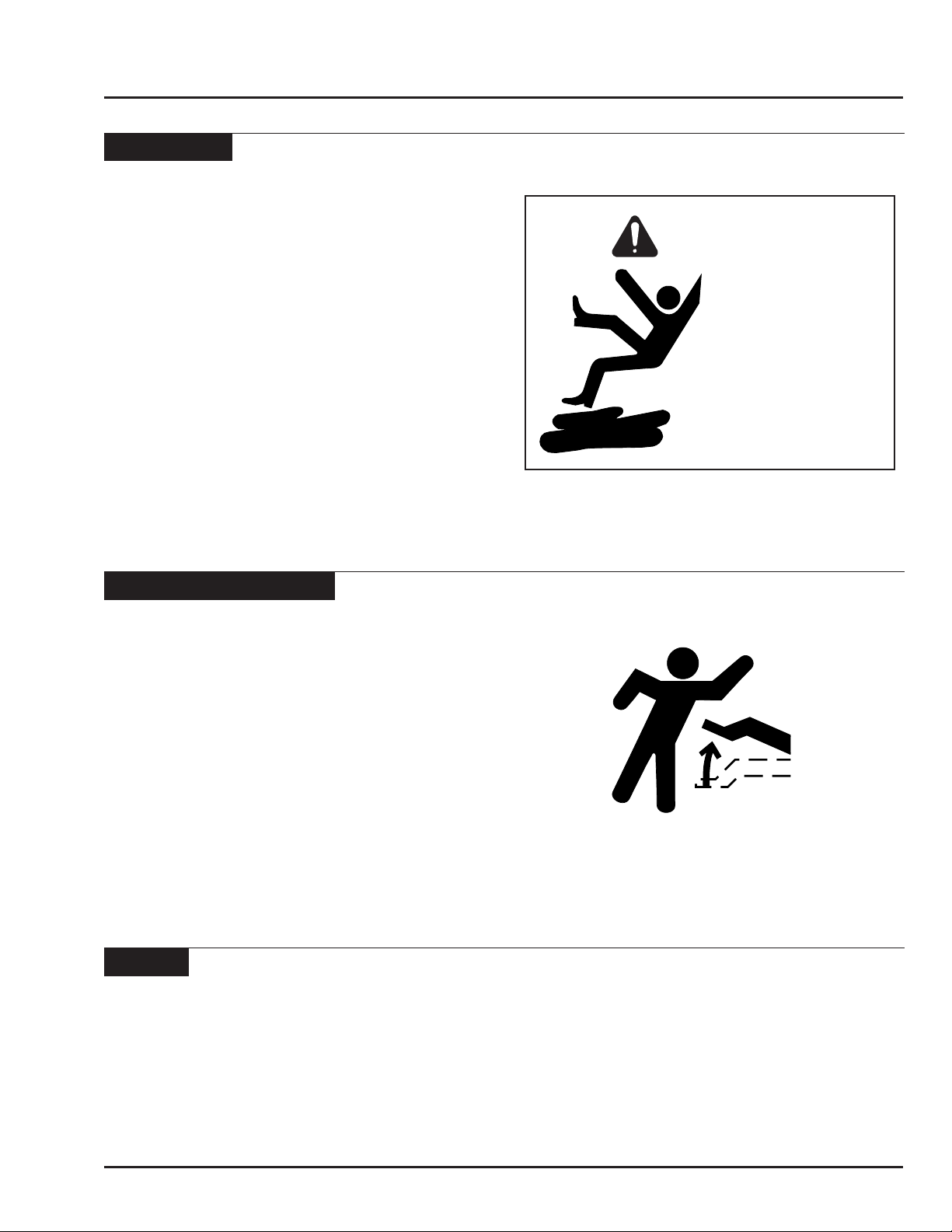

Caution
Keep service area
clean and dry. Wet
or oily floors are
slippery. Wet spots
can be dangerous
when working with
electrical equipment.
Maintenance
• Shut tractor engine off before making any
adjustments or lubricating the machine.
• Block machine securely to prevent any movement
during servicing.
• Wear close tting clothing and appropriate personal
protective equipment for the job.
• Always wear safety goggles, breathing apparatus
and gloves when working on seeder lled with granular
chemical or treated seed per the manufacture’s
instructions.
• Do not modify the machine.
Hitching and Unhitching
• Stand clear of hitch tongue. The hitch of the
Heavy Harrow Bar can swing up abruptly when
disconnected from the tractor drawbar.
• Never stand between the tractor and implement.
• Lower the hitch jack(s) onto rm ground and chock
the tires when un-hooking implement from tractor.
• Ensure the unit is on level ground prior to un-hooking
tractor.
Storage
• Store implement away from areas of main activity.
• Level implement and block up securely to relieve
pressure on jack.
• Do not allow children to play on or around stored
implement.

Safety
1-6 August 2021 Rustler Heavy Harrow
Safety Signs
Locations

Safety
Rustler Heavy Harrow August 2021 1-7
Safety Signs - Continued
Decal Locations - Continued
Item Part No. Description Qty
1 S66442 Morris - Decal .................................................................................................................... 2
2 060-0038 Attention - Ensure That All Cylinders Are Retracted... ....................................................... 1
3 H72505 Rustler 5-55 Used On 55’ Unit ........................................................................................ 2
H72506 Rustler 5-68 Used On 68’ Unit ........................................................................................ 2
H72507 Rustler 5-78 Used On 78’ Unit ........................................................................................ 2
4 060-0009 Amber Reflector (3 x 2) ..................................................................................................... 14
5 060-0022 Red Reflector (3 x 2) ......................................................................................................... 2
6 060-0046 Grease Every 8 Hours ....................................................................................................... 10
7 060-0015 Important - Block Wheels... ............................................................................................... 1
8 060-0028 Warning - Lower Or Block Elevated Components ............................................................. 1
9 060-0011 Caution - Escaping Fluid Hazard... ................................................................................... 1
10 060-0029 Warning - Stand Clear Of Hitch Tongue… ......................................................................... 1
11 060-0036 Place Jack In Small Mount For Transport… ....................................................................... 2
12 * * * * * * Morris Serial Number Plate ............................................................................................... 1
13 060-0050 Warning - Tine Angling Cylinders... ................................................................................... 2
14 060-0061 Hydraulic - Hose Application ............................................................................................. 1
15 060-0067 Warning - Check And Tighten Hub And Wheel Bolts.. ....................................................... 1
16 060-0091 Tine Angle Indicator - (1234) 11 x 2-3/4” ........................................................................... 1
17 H72508 Morris Bullet ...................................................................................................................... 2

Safety
1-8 August 2021 Rustler Heavy Harrow
Notes

Rustler Heavy Harrow August 2021 2-1
Specifications
Section 2:
Specifications 2-1
Specifications and Options ...............................................................................................2-2
Section 2:
Specifications
Section Contents

Specications
2-2 August 2021 Rustler Heavy Harrow
RUSTLER “Heavy Harrow Bar”
Specifications and Options
Base Size 55 feet
(16.76 m)
68 feet
(20.72 m)
78 feet
(23.77 m)
Harrows - Sections
5 Bars - 18” (460mm) Spacing Between Rows
- 2-3/8” Diameter Pipe
5 - 11’ (3.4m) 2 - 6 1/2’ (2 m)
5 - 11’ (3.4 m) 7 - 11’ (3.4m)
Tines - Straight with 4” high wear edge
9/16” x 28 (1.4 cm x 69 cm) Standard Standard Standard
Hydraulic Tine Adjustment Standard Standard Standard
Main Frame -Single Axle -Tire Size - (2) 16.5L x 16.1
10 ply rating
(2) 16.5L x 16.1
10 ply rating
(2) 16.5L x 16.1
10 ply rating
Wing Axle (1 per wing) - Tire Size (2) 12.5L x 15
8 ply rating
(2) 12.5L x 15
8 ply rating
(2) 12.5L x 15
8 ply rating
Weight 11,950 lbs. (5,420 kg) 13,560 lbs. (6,151 kg) 14,720 lbs. (6,677 kg)
Transport Length 44' 8” (13.7 m) 51’ 8” (15.8 m) 55' 10” (17.0 m)
Transport Height 11’ 8” (3.6 m) 11’ 8” (3.6 m) 11’ 8” (3.6 m)
Transport Width 14’ 9” (4.5 m) 14’ 9” (4.5 m) 14’ 9” (4.5 m)
Cart Frame
- 8" (20.3 cm) x 4” (10 cm) Structural Tubing Standard
Main Frame
- 8” (20.3 cm) x 8” (20.3 cm) Structural Tubing Standard
Wing Frames
- 8” (20.3 cm) x 8” (20.3 cm) Structural Tubing Standard
Safety Chain Standard
Safety Lights Standard
Harrow Arms Self-Levelling Parallel Linkage
Harrow Tine Length 28" (69 cm)
Harrow Tine Diameter 9/16" (1.4 cm)
Harrow Tine Spacing 2.75 inches (7 cm)
Harrow Tine Angle Degree Range 40 - 85
Hydraulics Requires 3 control valves

Rustler Heavy Harrow August 2021 3-1
Checklist
Section 3:
Checklist 3-1
Pre-Delivery Inspection ....................................................................................................3-3
Section 3:
Checklist
Section Contents

Checklist
3-2 August 2021 Rustler Heavy Harrow
Please read the Operator’s Manual carefully
and become a “SAFE” operator.
Adopt a good lubrication and maintenance
program.
SAFETY-ALERT
SYMBOL
ATTENTION - BE ALERT.
Your safety is involved.
Watch for this symbol. It identies
potential hazards to health or personal
safety. It points out safety precautions.
It means:
TAKE SAFETY SERIOUSLY.
DO NOT TAKE
NEEDLESS CHANCES!!
Warranty Void if Not Registered
Note: Pre-Delivery Inspection Form must be
completed and submitted to Morris Equipment
within 30 days of delivery date.
OWNER REFERENCE
Model:
Serial No:
Dealer:
Town: State:
Phone:
OWNER/OPERATOR
Date:

Checklist
Rustler Heavy Harrow August 2021 3-3
Pre-Delivery Inspection
General
Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.)
Inspect paint, decals and general appearance of unit.
Verify that the owners manual is in the manual storage tube.
Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit
Verify that jacks are with the unit and function properly.
Check wheel bolts for proper torque.
Check for proper tire pressure (PSI).
Verify that the wheel hubs are lubricated.
Verify that locking pins and / or ram locks are in place.
Lubricate all components as per operators manual recommendation.
Check that all bolts and fasteners are at the proper torque specifications.
Note: All cap screws that have lock nuts joining moving pieces should not be tightened completely, they
must allow movement. i.e. Spring pressure kits, rock shaft connector, draft arm, etc.
Check sprocket alignment and chain tension. (If applicable)
Check locking collars and set screws for proper tension. (If applicable)
Verify operation of lights. (If applicable)
Verify the unit moves ‘IN’ and ‘OUT’ of transport without any binding.
Verify that tires are tracking properly when in transport mode.
Hydraulics
Insure that all hydraulic hoses and lines are routed properly and secured.
Verify that all hydraulic fittings / hoses are secure and there are no oil leaks.
Inspect all cylinders for leakage and the cylinder shaft for rust, pits, or scratches.
Verify operation of all hydraulic functions - Cycle hydraulic cylinders to remove air from the system.
Delivery
Verify that ‘The customer is aware of warning decals and proper jack placement for transport.’
Verify that ‘The customer is aware of proper operation and transportation of the unit’.
Verify that ‘The customer has received an operators manual’.
Explain all maintenance and service intervals to the customer (From operators manual).
Advise the customer of grease zerk locations and maintenance schedules.
Level the unit per operators manual and instruct the customer on the proper procedures.
Verify that the center harrow section has been rotated to working position.

Checklist
3-4 August 2021 Rustler Heavy Harrow
Notes
