Contents
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Operating Instructions. . . . . . . . . . . . . . . . . . . 4 - 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5

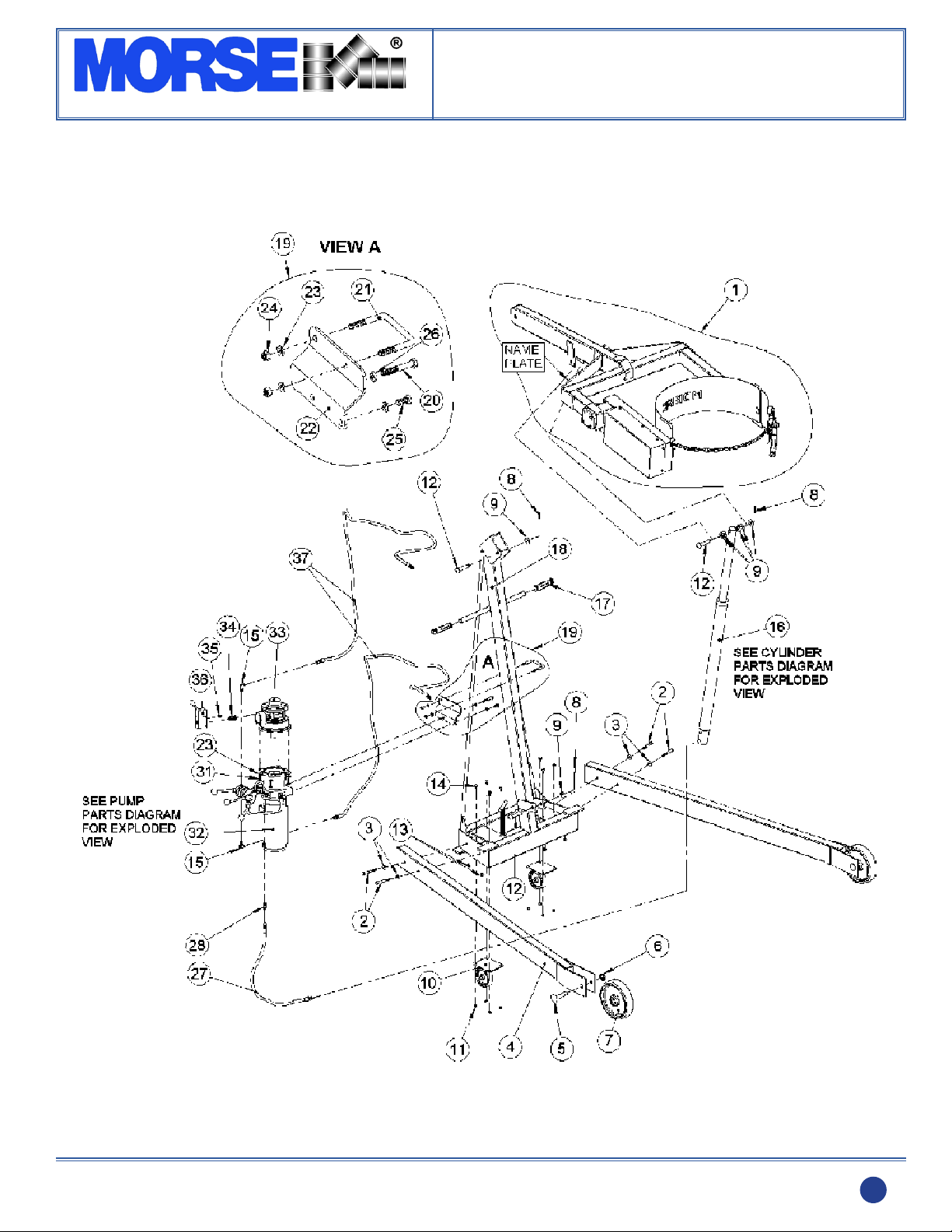

Parts Lists and Diagrams. . . . . . . . . . . . . . . . 6 - 9
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use or
damage from accident or abuse. Motors and other purchased parts
carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Operator’s Manual
for Morse Hydra-Lift Karrier
Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyandefciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting. The unit can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines. Keep well clear of power lines. Never approach a power line.
Current in a high voltage line may arc some distance from the wire to the steel framed, grounded
machine.
WARNING - The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page
3, under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO
NOT exceed the weight capacity of 800 Lb.
WARNING -LevelFloorsOnly.Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.
Donotuseonslopedsurfaces,ramps,irregularordebrisstrewnoors.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorsemachinery withoutfactoryauthorization. Anymodicationsmay voidthewarranty.This
machine was designed to perform a specic job and alterations may result in injury to operator or
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous. Escaping hydraulic uid under
pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before
disconnectinghydrauliclines.Keephandsandbodyawayfrompinholesandnozzles,whichejectuid
under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor
immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes. Wear safety shoes with non-slip soles and hard toe protection.

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 3
Machine Description
TheModel400A-60-114Hydra-LiftKarrierwillpouradrumupto60”high,measuredfromtheoortothelowestpointofahorizontaldrum.
It is designed to lift, transport, and dispense a ribbed 55-gallon steel drum 22.5” in diameter.
A smaller diameter drum can be handled with the correct size 55/30 Series Diameter Adaptor installed. See Diameter Adaptor•
literature.
A 55-gallon plastic drum can be handled if the unit is equipped with an Adjustable Bracket•
(Option HDPS) or Top Rim Clamp (Option HDRC). See plastic drum option manual.
The maximum full-drum capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-full
drum. The half-full rating is based on the tilt mechanism’s capacity for handling an unbalanced
bottom-heavy drum.

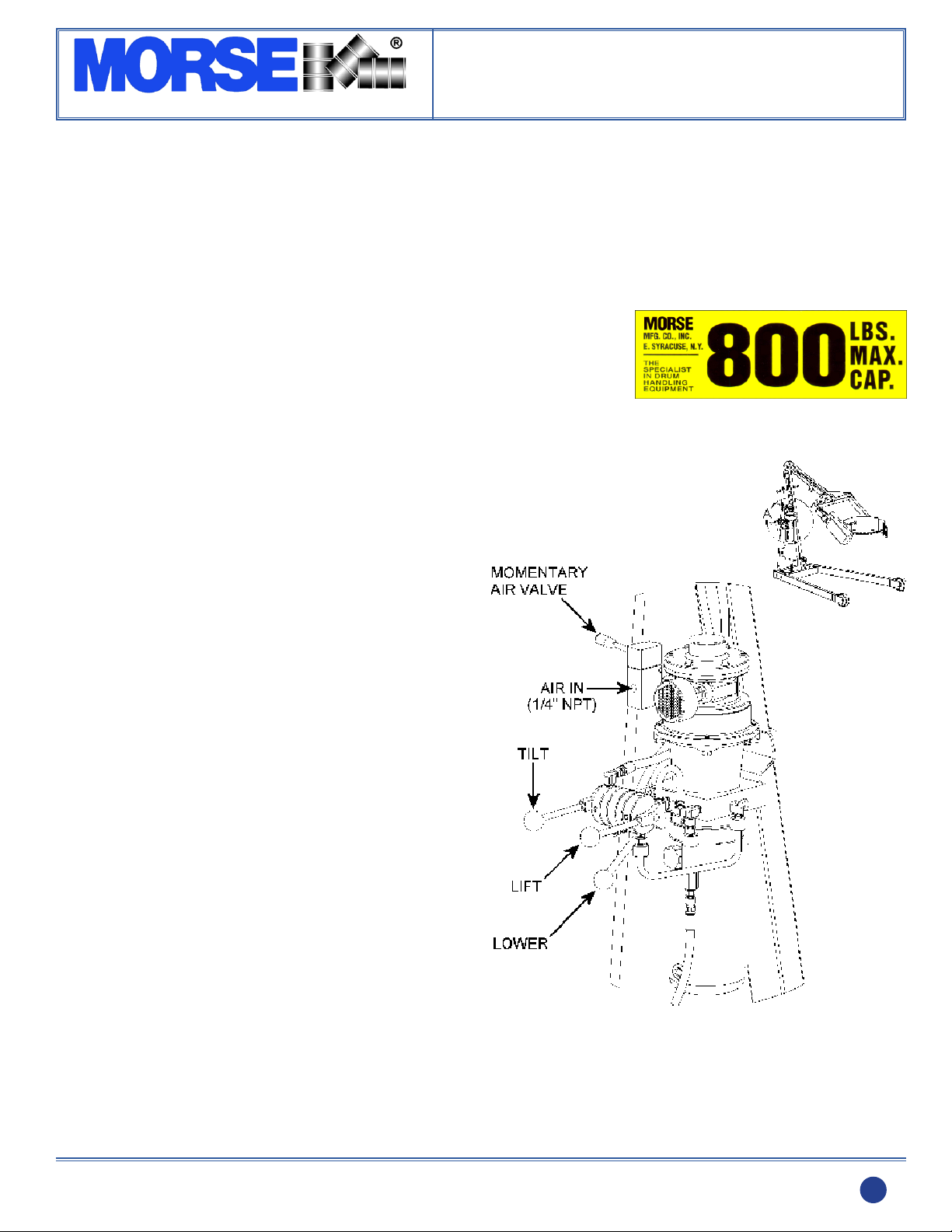

Controls
The Morse Hydra-Lift Karrier is manually propelled and steered.
The hydraulic pump is powered by a vane type air motor. The air
motor is control by a momentary air valve located on the air motor.
Attach air supply to the air valve.
There are two functions for the operator to control (Figure 2.1):
1. LIFT and lower function for vertical positioning of the drum.
To raise the drum, hold the air valve handle in the on•
position and raise the LIFT handle. Release the two valve
handles when desired drum height is reached.
To lower the drum, push in the LOWER handle. Air motor•
is not needed.
2. TILT function to control the degree of rotation of the drum.
To tilt the drum forward for pouring, hold the air valve handle•
in the on position and raise the TILT handle. Release the
two valve handles when drum angle is reached.
To return the drum to vertical position, hold the air valve•
handle in the on position and push down on the TILT
handle.
Figure 2.1

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 4
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Floor Lock
Thescrew-downoorlockislocatedonthebaseofthetower(gure
3.1).Turningtheoorlockclockwiseuntilitlocksinthedownposition
activatestheoorlock.Whentheoorlockisactivateditprevents
unwanted free wheeling of the unit. Floor conditions determine the
effectivenessoftheoorlock.Theoperatorshouldverifyitsholding
action before depending on it to hold.
Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the component
on the Hydra-Lift Karrier that is intended to hold the drum. The
drum holder assembly is designed to secure a standard ribbed 55-
gallon steel drum around it’s middle using a cinch chain and ratchet
tightening system. The drum holder accepts accessories for handling
smaller diameter drums.
Operating Instructions
1.) Push the Hydra-Lift Karrier to the drum.
2.) Using the “LIFT” control as described in “Machine Description
- Controls” (page 3) , position the drum holder assembly with the
back band at the middle of the drum. (Figure 3.1). With the ratchet
plate swung open and the cinch chain hanging from the chain hook,
push the unit until the back band rests rmly against the drum.
Some adjustment to the tilt angle of the saddle may be necessary to
ensurebandtsushonthedrum.
3.) Attaching the drum:
Drape the chain across the front of the drum and engage a link into
the slot in the ratchet (Figure 3.2). Turn the ratchet clockwise to
tighten chain. If ratchet turns until the pawl is beyond the last ratchet
tooth, turn the ratchet back and slide the next link into the ratchet
slot and try tightening again. The chain must be held tightly against
the drum with the pawl engaged securely in the ratchet teeth.
4.)Operatetheliftfunctiontoliftdrumclearofoor.Rolltodispensing
location.NOTE:Donotallowthedrumtoimpactonoor,pouring
station, etc. or a spill or damage could occur.
Figure 3.1
Figure 3.2

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 5
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position before transporting.
The unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page
3)toadjustthedrumattitude.Thisisespeciallyimportantwhenliftinganopendrum.Theoorlockshouldbeengagedwhiledispensing
/ draining.
6.)Whendispensingiscomplete,tiltdrumbacktouprightposition.Disengagetheoorlockandlowerthedrumtotransportingheight;
about6”offtheoor.
WARNING - Stay Clear of Raised Drum. NEVER allow anyone to be below any part of a raised drum handler or drum. Remain
behind the push handle while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground. When the drum is in the upright position, lower
thedrumtotheoorbeforereleasingthecinchchain.
7.)Pushtheunittothedrumstorageareaandlowertotheoorinanuprightposition.Releasethecinchchainfromtheratchetbyapplying
pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the ratchet with the other hand. Remove
the cinch chain link from the ratchet.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeandefcientoperation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or replace parts
as necessary to prevent failure and maintain proper function.
Inspectthe hydraulicsystemfor oildrips, hosedamage, orother signsofwear. Inspectthe leveland conditionof thehydraulicuid.
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the boom which
contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)isavailable
online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent for indoor use
(Mobil dte 13 for outdoor use).

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 6
ITEM QTY. PART # DESCRIPTION
1 1 793-72-P OVERHEAD ASM, 72” PT
2 4 1521-P HHCS, 3/8-16 X 3 GR5
3 4 1166-P WASHER, 3/8 USS 1” OD
4 2 134-P LEG WELD, 400A-72, 60
5 2 704-P AXLE, 3/4”, USE WITH PUSH-ON
6 2 705-P CAP, HUB, PUSH-ON, 3/4”
7 2 87-P WHEEL, MORTUF, 8”, 3/4” BRG
8 3 64-P ROLL PIN, 3/16 X 1-1/4
9 7 17-P WASHER, 5/8 SAE FL 1-5/16 OD
10 2 3308-P CASTER, 4” SWIVEL, DBL RACE
11 8 491-P NUT, 5/16-18 REV HEX LOCK
12 3 138-P CLEVIS PIN 5/8 X 3”
13 4 1169-P NUT, 3/8-16 REV HEX LOCK
14 8 215-P HHCS, 5/16-18 X 5/8 GR2
15 2 765-P HYD FIT, MALE ELBOW, FLARE 400
16 1 781-P CYLINDER, 1.5 X 22.625”, SAE
17 2 136-P GRIP, HANDLE 7/8” X 4-3/4”
18 1 135-P ASM, TOWER, 400A-60, 72
19 1 3680-P KIT, PUMP MOUNT PLATE, PL
20 1 155-P HHCS, 3/8-16 X 2-1/2 GR2
21 1 3641-P U-BOLT, 3/8-16, 400 PUMP MOUNT
22 1 3643-P MOUNT PLATE, POWER PUMP
23 7 1474-P WASHER, 3/8 SPLIT LOCK
24 2 149-P NUT, 3/8-16 FIN HEX
25 1 1657-P HHCS, 3/8-16 X 3/4 GR2
26 1 1165-P NUT, 3/8-16 JAM
27 1 3689-P HYD HOSE ASM, 31”
28 1 345-P HYD FIT, MALE FLARE, 456, 82
31 4 1572-P HHCS, 3/8-16 X 1 GR2
32 1 M4507-P HYD POWER PACK, -110, -114
33 1 290-A-2P MOTOR, 2HP, AIR, 56C
34 1 332-P HYD FIT, PIPE NIPPLE 1/2 - 1/4
35 1 3634-P HYD FIT, PIPE PLUG, 1/4” HEX
36 1 3632-P VALVE, AIR MOTOR, 400, 500
37 2 1763-P HYD HOSE ASM, 72 PT, 77”
* Recommended spare parts

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 7

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 8
Overhead Assembly (Part Number 793-72-P)
ITEM QTY. PART # DESCRIPTION
50 1 745A-P SADDLE ASM, A-HD, ‘88
51 * 1 726-P A RATCHET HINGE PLATE CPT 1/4”
52 * 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5
53 * 1 1297-P NUT, 1/4-20 REV HEX LOCK
54 * 1 180-P CHAIN, CINCH, 3/16 ALLOY 33 LK
55 * 1 4081-P NUT, M8 ESNA, 8MM
56 * 1 4079-P HHCS, M8 X 60 MM GR5, 8MM
57 * 1 27-P SPUR GEAR W/ 1” SHAFT, HD TYPE
59 1 29-P SPACER, SPUR GEAR .15”
60 1 731-P A RATCHET HINGE PLATE ONLY 1/4 (Not Sold Separately)
61 1 165KIT-P KIT, RATCHET CHAIN TIGHTENER
62 1 168-P PAWL, WITH DRILLED HOLE
63 1 169-P PAWL SPRING
64 1 170-P SCREW, SHOULDER, 3/8 DIA X 5/8
65 1 710-P RETAINER, RATCHET PUSH NUT 3/4
66 1 165-P RATCHET, MALLEABLE, FOR SADDLE
67 1 136-P GRIP, HANDLE 7/8” X 4-3/4”
68 1 792-72-P OVERHEAD WELD, 72” PT
69 1 64-P ROLL PIN, 3/16 X 1-1/4
70 2 55-P WASHER, 3/4 SAE FL 1-1/2 OD
71 * 1 735-P KEY, WOODRUFF, SIZE 9, ASA606
72 * 1 14-P GEAR, PINION, 7 TOOTH
73 * 1 12-P CHAIN, ROLLER, #35 W/ M LINK
74 1 795-P LINK, MASTER, #35 CHAIN
75 * 1 13-P SPROCKET #35 36T, 3/4” BORE
76 * 1 1116-P SPROCKET #35 17T, 1” BORE
77 4 1657-P HHCS, 3/8-16 X 3/4 GR2
78 4 1474-P WASHER, 3/8 SPLIT LOCK
79 * 1 2656-P KEY, SQUARE, 1/4 X 1”
80 2 2120-P HYD FIT, MALE CONNECTOR, 400
81 1 351-P MOTOR, HYDRAULIC HYD, 400, 456
82 * 1 7-P BEARING, 3/4” ID X 1-1/2”
83 * 2 18-P BEARING, 1” ID X 2-1/2”
84 * 2 736-P KEY, WOODRUFF, SIZE 15, ASA808
85 1 15-P COLLAR, 3/4” ID
86 * 1 30-P SPROCKET #40D 16T, 1” BORE
87 * 1 31-P CHAIN, ROLLER, #40D W/ M. LINK
88 1 796-P LINK, MASTER, #40D CHAIN
89 * 1 32-P SPROCKET #40D 32T, 1” BORE
* Recommended spare parts.

The Specialist In Drum Handling Equipment
Model # 400A-60-114
Hydra-Lift, 60”, Air Power Lift & Tilt
Operator’s Manual for Morse Forklift-Karrier Model 400A-60-114
Serial Number 0103 to 0309 (MMYY)
www.morsedrum.com
Copyright 2009 - Morse Mfg. Co., Inc. Form PL400A-60-114 (0103-0309) (Updated February 27, 2018 2:58 PM) 9
Overhead Assembly (Part Number 793-72-P)
ITEM QTY. PART # DESCRIPTION
90 1 1049-P KIT, SQ COVER, 400 PT
91 1 1772-P COVER HALF SQ, 1 HOLE, 400 PT
92 1 1755-P COVER HALF SQ, NO HOLES 400 PT
93 * 9 193-P SCREW, TEK, 12-14 X 3/4, 3 PT
* Recommended spare parts.
