morse 400A-60-125 User manual

The Specialist In Drum Handling Equipment

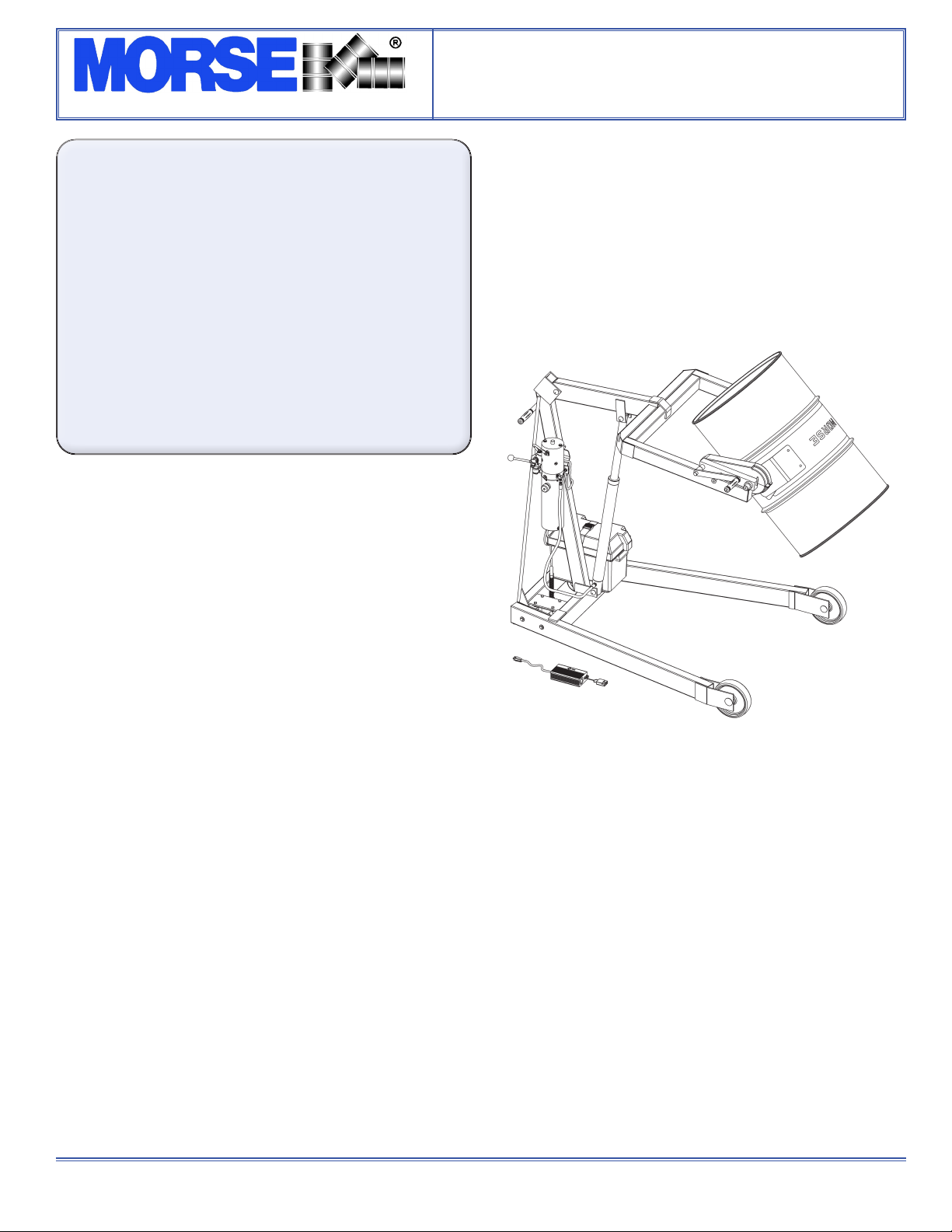

Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 1
CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Accessories. . . . . . . . . . . . . . . . . . . . 3
Start-Up Procedure. . . . . . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . . . . . 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and e󰀩ciency, a high degree of responsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock for
this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of any
concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock result
in additional freight charges. Residential delivery fees, inside
delivery fees, re-delivery charges, and lift gate services will be
added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for TWO YEARS when used properly
within its rated capacity. Warranty does not cover wear from
normal use or damage from accident or abuse. Motors and
other purchased parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modications, unauthorized repairs or parts substitution.
Operator’s Manual
for Morse Hydra-Lift Drum Karrier
Model 400A-60-125
Serial Number 1210 to ____ (MMYY)

The Specialist In Drum Handling Equipment
Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-60-125
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or
death. This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious
injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the
machine.
CAUTION – Do Not Transport with Drum Raised - ALWAYS LOWER THE DRUM HOLDER TO
LOWEST POSITION BEFORE TRANSPORTING. The unit can become unstable when transporting
with a raised load.
DANGER - Stay Clear of Power Lines - KEEP WELL CLEAR OF POWER LINES. Never approach
a power line. Current in a high voltage line may arc some distance from the wire to the steel framed,
grounded machine.
WARNING - The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page
3, under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO
NOT exceed the weight capacity.
WARNING - Level Floors Only - For operation only on clean, level oors of suitable bearing capacity.
Do not use on sloped surfaces, ramps, irregular or debris strewn oors.
WARNING - Do Not Modify the Unit - Under no circumstances should any modications be made
to the Morse machinery without factory authorization. Any modications may void the warranty. This
machine was designed to perform a specic job and alterations may result in injury to operator or
machine.
WARNING - No Loose Fitting Clothing - Wear close-tting clothing and safety equipment appropriate
to the job. Loose tting clothing may become caught on the machinery and cause severe personal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous - Escaping hydraulic uid under
pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before
disconnecting hydraulic lines. Keep hands and body away from pinholes and nozzles, which eject uid
under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor
immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes - Wear safety shoes with non-slip soles and hard toe protection.
WARNING: This product can expose you to chemicals including lead and arsenic,
which are known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium
dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and
bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-60-125
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 3
Machine Description
The Model 400A-60-125 Hydra-Lift Karrier will pour a drum up to 72” (183 cm) high,
measured from the oor to the lowest point of a horizontal drum. It is designed to lift,
transport, and dispense a 55-gallon (210 liter) steel drum 22” to 23.5” (56 to 59.7 cm) in
diameter.
The maximum full-drum capacity is 800 Lb. (363 kg). The capacity is derated to 500 Lb.
(227 kg) for a half-full drum. The half-full rating is based on the tilt mechanism’s capacity
for handling an unbalanced bottom-heavy drum.
Hand Wheel
Kit # 2690-P
16” (40.6 cm) diameter
Hand Wheel
with speed knob.
Replaces standard
Hand Crank to turn
drum.
Kit for customer to install
on EXISTING manual tilt
drum handler.
MORStopTM Tilt-Brake
Kit # 3900-P
Automatically holds
drum tilt angle until you
move it.
Kit for customer to install
on EXISTING manual tilt
drum handler.
• 55/30 Series Diameter Adapters for drum with diameter smaller than
22” (56 cm).
To handle a smaller drum, insert the correct size Diameter Adapter into
the standard drum holder. See Diameter Adapter info at:
https://morsedrum.com/products/diameter-adapters
NOTE: For 30-gallon (114 Liter) PLASTIC drum insert Diameter
Adapter, AND install Bracket or Top Rim Clamp to prevent drum from
slipping length-ways.
• IMPORTANT: You MUST install either the Top Rim Clamp Kit or Bracket
Assembly Kit to prevent a plastic drum from slipping length-ways
• Bracket Assembly Kit # 4556-P is required to handle a RIMLESS
plastic drum (gure 2.1), and is also recommended when handling
a ber drum. The Bracket adjusts for a 31” to 39” (79 to 99 cm) tall
drum.
You can also handle a rimmed drum with the Bracket installed.
• Top Rim Clamp Kit # 4560B-P to handle a RIMMED plastic
size drum (gure 2.2). Install the Top Rim Clamp Kit to handle a
RIMMED plastic, steel or ber drum with suitable top rim.
ACCESSORIES
Figure 2.2
Kit # 4560B-P
Install Top Rim Clamp Kit
to handle RIMMED plastic
drum
Figure 2.1
Kit # 4556-P
Install Bracket Assembly Kit
to handle RIMLESS or
RIMMED plastic drum

The Specialist In Drum Handling Equipment
Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-60-125
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 4
Figure 3.1
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Floor Lock
The screw-down oor lock is located on the base of the tower
(gure 3.1). Turning the oor lock clockwise until it locks in the
down position activates the oor lock. When the oor lock is
activated it prevents unwanted free wheeling of the unit. Floor
conditions determine the e󰀨ectiveness of the oor lock. The
operator should verify its holding action before depending on it to
hold.
MORCINCH Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the
component on the Hydra-Lift Karrier that is intended to hold the
drum. The MORCINCH drum holder assembly is designed to
secure a standard ribbed 55-gallon (210 liter) steel drum around
it’s middle using a cinch chain and ratchet tightening system.
The MORCINCH drum holder accepts accessories for handling a
plastic drum, a ber drum, or smaller diameter drums.
Figure 2.3
Controls
The Morse Hydra-Lift Karrier is manually propelled and steered. The drum lift is powered
by a 12V DC motor. There are two functions for the operator to control (Figure 2.3):
1. LIFT and Lower Function for vertical positioning of the drum.
• Push and hold the valve handle in against the start switch.
• Release the handle when the drum is at the desired height.
• To lower the drum: Pull and hold the valve handle out away from the start
switch.
2. TILT Function to control the degree of rotation of the drum.
• Turn the hand crank to turn the drum.
• Before releasing your grip on the hand crank, pull out the crank stop pin to
block the hand crank from spinning freely.
• If the drum handler is equipped with the MORStop Tilt-Brake, there is no need
to use the stop pin. Braking is immediate and self-actuating, without additional
steps by the operator.
Note: To add the MORStop Tilt-Brake to an existing drum handler, order part #
3900-P for a eld installation kit.

The Specialist In Drum Handling Equipment
Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-60-125
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 5
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page
3) to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged
while dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to
transporting height; about 6” (15 cm) o󰀨 the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind
the push handle while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is o󰀨 the Ground
When the drum is in the upright position, lower the drum to the oor before releasing the cinch
chain.
7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the
ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free
the ratchet with the other hand. Remove the cinch chain link from the ratchet.
Figure 3.2
Operating Instructions
1.) Push Hydra-Lift Karrier to drum.
2.) Using “LIFT” control as described in “Machine Description -
Controls”, position drum holder assembly with back band at
middle of drum (Figure 3.1). With ratchet plate swung open
and cinch chain hanging from chain hook, push unit until back
band rests rmly against drum. Some adjustment to tilt angle
of saddle may be necessary to ensure band ts ush on drum.
3.) Attaching the drum:
Drape chain across front of drum and engage a link into slot in
ratchet (Figure 3.2). Turn ratchet clockwise to tighten chain.
If ratchet turns until the pawl is beyond last ratchet tooth,
turn ratchet back and slide next link into ratchet slot and try
tightening again. Chain must be held tightly against drum with
pawl engaged securely in ratchet teeth.
4.) Operate lift function to lift drum clear of oor. Roll to dispensing
location. NOTE: Do NOT allow drum to impact on oor,
pouring station, etc. or a spill or damage could occur.
START-UP Procedure
Machine is shipped with hydraulic uid.
1. Install provided hydraulic control levers (threaded rods with black ball handles).
2. IMPORTANT: BEFORE operation, remove the RED shipping plug from the hydraulic reservoir, and replace with the
provided BLACK.

The Specialist In Drum Handling Equipment
Model 400A-60-125
Hydra-Lift, 60”, DC Power Lift, Manual Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-60-125
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400-60-125 (1210-____) (Updated 31 Jan, 2022) 6
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and e󰀩cient
operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,
or replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the
hydraulic uid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the
boom which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and
pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet
(MSDS) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil
dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).
