Motion Concepts Matrx FLIPP ELAN Manual

TRD0704 Rev A
DEALER: This manual MUST be given to the user of the product.
USER: Before using this product, read this manual and save for future reference.
Matrx®
FLIPP ELAN
HEADREST MOUNTING HARDWARE
INSTALLATION AND SET-UP
(includesStandard,Mini andExtended HardwareOptions)

This manual may not be reproduced or reprinted either partly or completely without previous written consent from
Motion Concepts or its statutory representatives.
This user manual is compiled from the latest specifications and product information available at the time of publication.
We reserve the right to make any necessary as they become necessary. Any changes made to our products may cause
slight variations between the illustrations and explanations in this manual and the product you have purchased. If
you have any questions or concerns regarding the information provided in this manual, please contact our Customer
Service Department for assistance.
Motion Concepts LP Copyright © 2023
Wඉකකඉඖගඡ (Matrx®Accessories)
This warranty is extended only to the original purchaser/user of our products. This warranty gives you
specific legal rights and you may also have other legal rights which vary from state to state. Invacare/
Motion Concepts warrants this product to be free from defects in materials and workmanship for
three months of use by original purchaser. This warranty does not apply to punctures, tears or burns,
nor to the removable cushion cover. If within such warranty period any such product shall be proven
to be defective, such product shall be repaired or replaced, at Invacare’s/Motion Concepts’ option,
with refurbished or new parts. This warranty does not include any labor or shipping charges incurred
in replacement part installation or repair of any such product. Product repairs shall not extend this
warranty - coverage for repaired product shall end when this limited warranty terminates. Invacare’s/
Motion Concepts’ sole obligation and your exclusive remedy under this warranty shall be limited
to such repair and/or replacement. For warranty service, please contact the dealer from whom you pur-
chased your Invacare/Motion Concepts product. In the event you do not receive satisfactory warranty
service, please write directly to Invacare/Motion Concepts at the address on the back cover. Provide
dealer’s name, address, model number, the date of purchase, indicate nature of the defect and, if the
product is serialized, indicate the serial number. Invacare Corporation/Motion Concepts will issue a
return authorization. The defective unit or parts must be returned for warranty inspection using the
serial number, when applicable, as identification within thirty (30) days of return authorization date.
DO NOT return products to our factory without our prior consent. C.O.D. shipments will be refused;
please prepay shipping charges
Lඑඕඑගඉගඑ඗ඖඛ ඉඖඌ Eචඋඔඝඛඑ඗ඖඛ
THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR
FAILURE TO ADHERE TO THE ENCLOSED INSTRUCTIONS. IN ADDITION, THE FOREGOING
WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER
HAS BEEN REMOVED OR DEFACED; PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT,
IMPROPER OPERATION, MAINTENANCE OR STORAGE; OR PRODUCTS MODIFIED WITHOUT
INVACARE’S/MOTION CONCEPTS’ EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT
LIMITED TO: MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS:
PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT
THE SPECIFIC CONSENT OF INVACARE/MOTION CONCEPTS; PRODUCTS DAMAGED BY
CIRCUMSTANCES BEYOND INVACARE’S/MOTION CONCEPTS’ CONTROL; PRODUCTS
REPAIRED BY ANYONE OTHER THAN AN INVACARE/MOTION CONCEPTS DEALER, SUCH
EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE/ MOTION CONCEPTS.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
IF ANY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. IT SHALL NOT EXTEND BEYOND THE DURATION OF THE
EXPRESSED WARRANTY PROVIDED HEREIN AND THE REMEDY FOR VIOLATIONS OF ANY
IMPLIED WARRANTY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE
PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. INVACARE/MOTION CONCEPTS
SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND
REQUIREMENTS

- 3 -
IMPORTANT! When applicable, please refer to the OEM Headrest Pad Owners Manual
(provided separately) for additional safety information, warnings and cautions related to
the installation and care of the headrest pad.
1.2 Sඍකඞඑඋඍ Lඑඎඍ
The expected service life of this product is three years when used in accordance with safety instructions
and intended use, stated in this manual. The effective service life can vary depending on frequency and
intensity of use.
1.0 Gˎ˗ˎ˛ˊ˕
1.1 Sඉඎඍගඡ Sඡඕඊ඗ඔඛ:
The following symbols are used throughout this user manual to identify warnings, cautions and
important notes. It is very important that you read and understand them completely.
IMPORTANT! Indicates important information which if not followed could result in damage
to the product.
CAUTION! Indicates a potentially hazardous situation which if not avoided could result in
product damage, minor injury or both.
WARNING! Indicates a potentially hazardous situation which if not avoided could result
in death or serious injury.
2.0 Mˊ˝˛ˡ FLIPP ELAN M˘˞˗˝˒˗ː Hˊ˛ˍˠˊ˛ˎ
WARNING! Risk of Serious Injury
Injury may occur during use of the wheelchair if a headrest is wrongly adjusted or not
installed correctly. The users neck may become hyperextended in the event of a collision,
or when the system is tilted or reclined.
• This product must be fitted by an experienced clinician or technician.
• Before each use, check that all mounting/adjustment hardware is securely fastened.
Our FLIPP ELAN Mounting Hardware incorporates a lock/release latch mechanism to temporarily
rotate the headrest*by 90° without requiring complete detachment. The Flipp Elan Hardware is
designed for use with most industry standard headrest pads, and is fully compatible with our line of
Matrx Elan Headrest Pads (*headrest pads are sold separately).
• Wherever practicable Motion Concepts recommends that the client is transferred out of the
wheelchair into a vehicle seat using a lap and diagonal seat belt or an appropriate child safety seat.
• For safe transportation of a client within a wheelchair in a motor vehicle, refer to the user
manuals for the wheelchair and the tie-down and occupant restraint system (WTORS).
WARNING! Risk of Serious Injury
Risk of serious injury when transporting a client in a motor vehicle within a wheelchair
fitted with the Matrx®FLIPP ELAN headrest hardware.
WARNING! Risk of injury
• Inspect the headrest hardware to ensure that there are no missing or damaged parts.
WARNING! Risk of injury
• Before drilling or modifying any back shell, always contact the back manufacturer to ensure
the back is recommended for a headrest application.

- 4 -
HEADREST PAD* ADJUSTMENT (Fig 4 and Fig 5):
2.1 Mඉගකච Fඔඑ඘඘ Eඔඉඖ Iඖඛගඉඔඔඉගඑ඗ඖ/Sඍග-ඝ඘ Iඖඛගකඝඋගඑ඗ඖඛ:
MOUNTING CLAMP INSTALLATION (see Fig 2):
Secure the mounting clamp assembly (E) onto back shell*using hardware provided. If additional
clearance is required, install the spacer plate and long screws (e) provided.
(*note: the mounting clamp hardware is installed from the inside of the back shell)
FLIPP ELAN HARDWARE INSTALLATION (see Fig 3):
•Loosen set-screw (d) and remove the lower D-Ring (D2) from the headrest post (1).
•Install the headrest post (F) into the mounting clamp assembly (E), and adjust the headrest post
to the desired height/position (2). (note: loosen upper D-Ring if necessary)
•Tighten the mounting clamp (E) to secure the headrest post in position (3).
•Adjust the upper D-Ring (D1) so that it rests flush with the top of the mounting clamp (4), then secure
the D-Ring into place via the set-screw (d).
•Reinstall and secure the Lower D-Ring (D2) onto the headrest post (5) so that it rests flush with the
bottom of the mounting clamp assembly.
HEADREST POST MODIFICATIONS:
If necessary, the headrest post (F) can be cut (shortened) to prevent any collision interference along
the back of the wheelchair/seating system. (Note: After cutting the post, the plastic end cap (G)can
be removed and re-installed into the newly cut post).
(Refer to images provided in Section 2.2: ADJUSTMENT OVERVIEW (p.5-7))

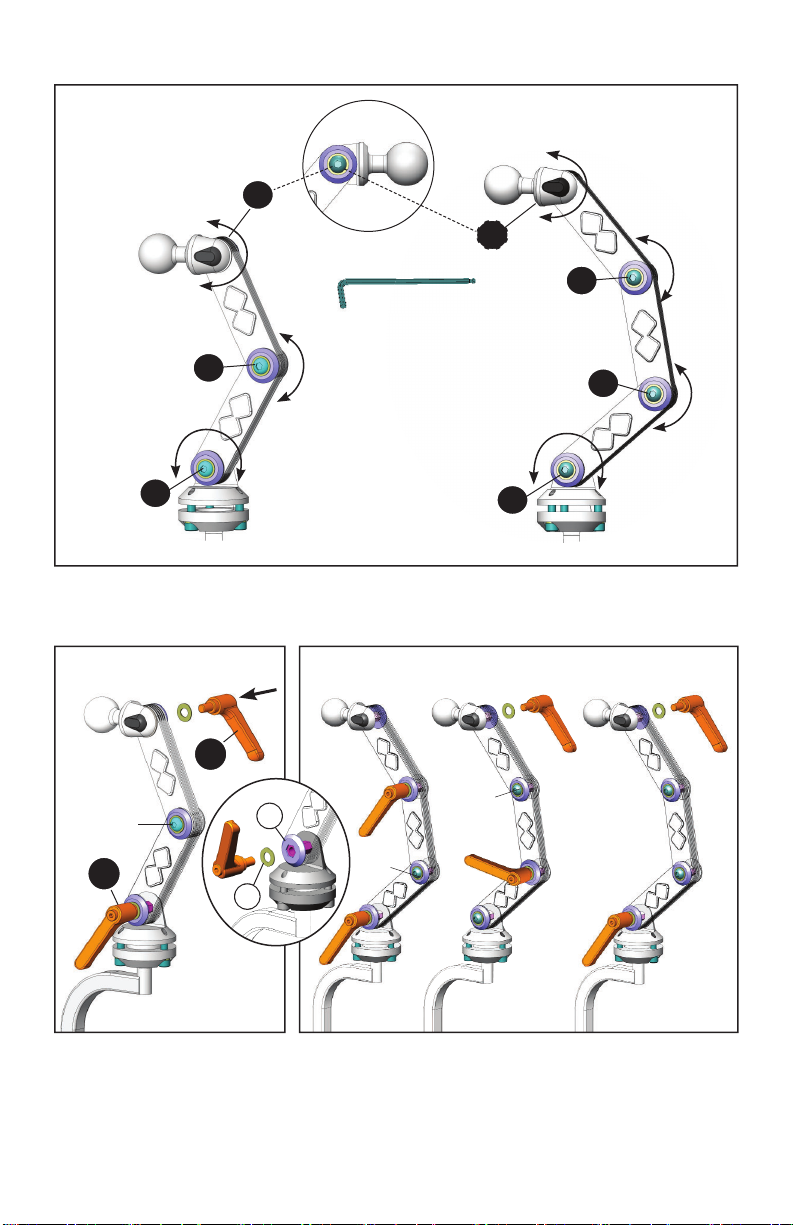

Rotational Pivot Adjustments (see Fig 4): Loosen** the adjustment screws (B) on the rotational
pivot assembly, and adjust the angle/position of the headrest pad as necessary. Re-tighten the
adjustments screws (x3) to secure the headrest into position.
Linkage Adjustments (see Fig 5):Loosen**the applicable linkage adjustment screws (A) or
Lever Handles (C), then adjust the angle/position of the headrest pad as necessary. Re-tighten
all lever handles/linkage screws to secure the headrest into position.
OPTIONAL LEVER HANDLES (see Fig 1 and Fig 6)
Lever Handles (C)may be installed for easier angle adjustment of the headrest linkages (see
Fig. 6a/6b). To install, carefully unscrew the locking screw from the desired link pivot using the 4mm
hex key (provided) and retain the original washer (a). Be very careful to keep the locking nut (b) in
position on the link pivot housing, then install the locking lever handle (with original washer (a)).
ELAN HEADREST PAD* INSTALLATION (see Fig 8):
Position the headrest mounting collar over the pivot ball on the horizontal bar (1); then align and
secure the mounting collar to the headrest pad (2).
*NOTE: Headrest pad sold separately.
FLIP-BACK LATCH MECHANISM (see Fig 7):
To ‘flip-back’ the headrest, depress the release button (H) on the latch mechanism (1). To return
the headrest to its original position, simply lift upward on the headrest until the latch mechanism is
re-engaged (2). (The latch will lock in place automatically)
The position of the headrest pad is adjusted via the three adjustment screws (B) on the rotational
pivot assembly, in combination with the adjustable links (A) on the Standard (2-Link) hardware or
the Extended (3-Link) hardware.
**NOTE: When adjusting the linkage assembly, do not fully remove the linkage screws (A) or Lever
Handles (C). To make adjustments, loosen hardware by approximately 1/2 to 3/4 turn only

- 5 -
C
F
Fig. 1
E

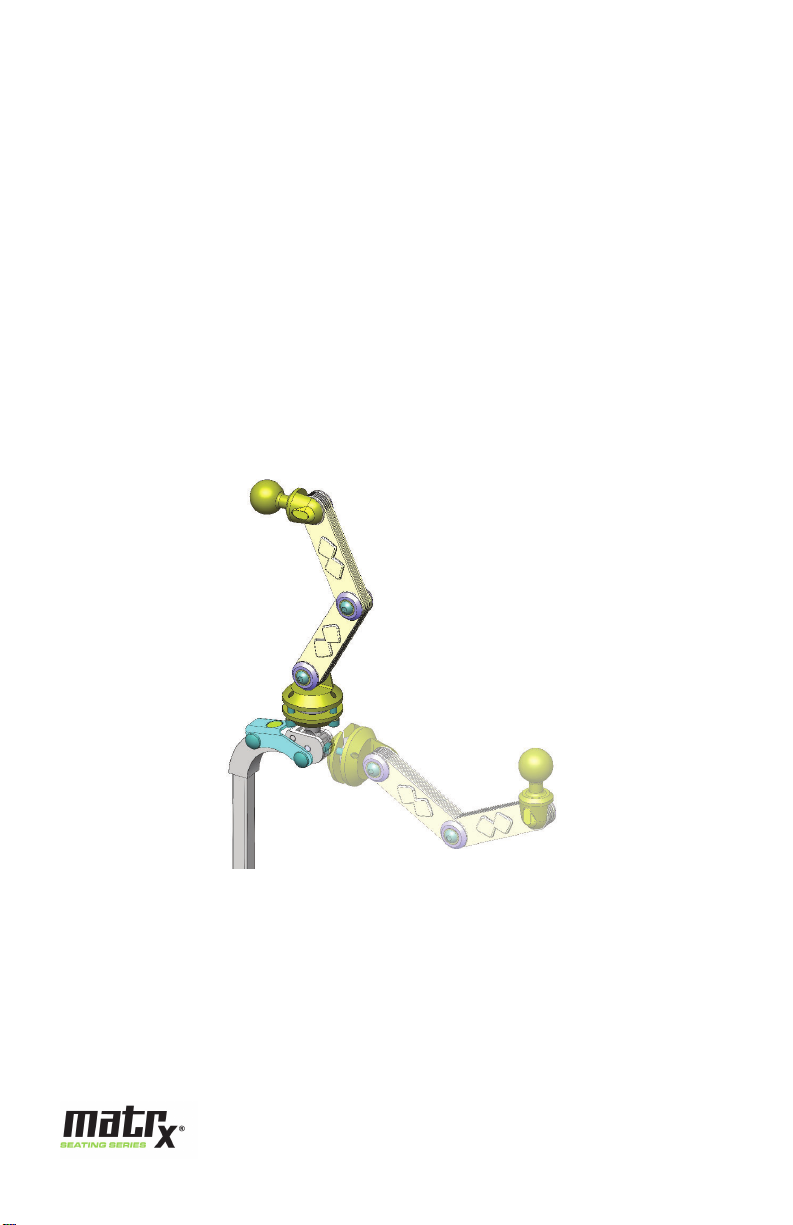

2.2 FLIPP ELAN Hඍඉඌකඍඛග Hඉකඌඟඉකඍ, Aඌඒඝඛගඕඍඖග Oඞඍකඞඑඍඟ
G
D1
D2
H
B
360o
50o50o
Fig. 3
D1
D2
F
1
4
3
E
2
d
d
Fig. 2
e
E
5
2
MINI
15”
(38cm)
11”
(28cm)
F
STANDARD
Fig. 4
STD. EXT.

- 6 -
180o
100o
180o
180o
180o
100o
100o
STD. EXT.





F˒ː. 6. (O඘ගඑ඗ඖඉඔ) Lඍඞඍක Hඉඖඌඔඍ Iඖඛගඉඔඔඉගඑ඗ඖ
Fig. 6a Fig. 6b
AA
A
AA
(4mm)
A
a
b
C
C
A
Fig. 5 Hඍඉඌකඍඛග Lඑඖඓඉඏඍ Aඌඒඝඛගඕඍඖගඛ

- 7 -
( -IC = Infection Control Covers (optional)
A. B. C.
F. G.
E.
D.
Description Imperial Metric Imperial Metric
A. Elan Standard Pad ESP6 (ESP15) ESP6-IC (ESP15-IC)
B. Elan Standard Pad ESP10 (ESP25) ESP10-IC (ESP25-IC)
C. Elan Standard Pad ESP14 (ESP36) ESP14-IC (ESP36-IC)
D. Elan 4-Point Pad-sm E4PTSM (E4PTSM) E4PTSM-IC (E4PTSM-IC)
E. Elan 4-Point Pad E4POINT (E4POINT) E4POINT-IC (E4POINT-IC)
F. Elan Occipital Pad EOP9 (EOP23) EOP9-IC (EOP23-IC)
G. Elan Occipital Pad EOP12 (EOP31) EOP12-IC (EOP31-IC)
1
2
Fig. 8 Mඉගකච Eඔඉඖ Hඍඉඌකඍඛග Pඉඌ Iඖඛගඉඔඔඉගඑ඗ඖ (S S)
Fig. 7 Fඔඑ඘ Bඉඋඓ L඗උඓ/Rඍඔඍඉඛඍ Mඍඋඐඉඖඑඛඕ
1
2
H

Copyright © 2023 Motion Concepts LP. All rights reserved. Republication,
duplication or modification in whole or in part is prohibited without prior written
permission from Motion Concepts. Trademarks are identified by ™ and ®. All
trademarks are owned by or licensed to Invacare Corporation or its subsidiaries
unless otherwise noted.
TRD0704 Rev A
