Motion CM-17 User manual

MANUAL CM-17
Table remote 4 channel
English

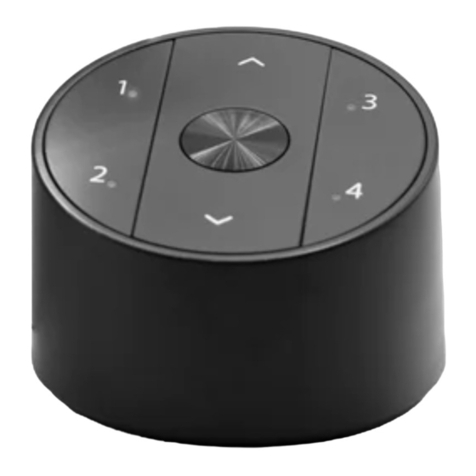

CM-17 is a table remote with 4 channels for operating single blinds or
shading networks at the push of a button. Blinds can be moved to any
desired position or to a preset favourite position. The organic shape
and matte black colour of this remote control perfectly fit the interior
of contemporary homes and buildings.
Safety
WARNING: Important safety
instructions. Follow all instructions,
since incorrect installation can lead to
severe injury.
Do not let children play with the
blind and/or remote control.
Take care that the blind can move
freely and is not blocked by any
objects.
Do not paint the device.
Keep the device dry.
Do not drop, knock, or shake the
device. Rough handling can break
internal circuit boards.
Do not ingest battery, Chemical
Burn Hazard" or equivalent wording
This product contains a coin /
button cell battery. If the coin /
button cell battery is swallowed, it
can cause severe internal burns in
just 2 hours and can lead to death.
Keep new and used batteries
away from children.If the battery
compartment does not close
securely, stop using the product and
keep it away from children. If you
think batteries might have been
swallowed or placed inside any
part of the body, seek immediate
medical attention.
Replacement of a battery with an
incorrect type that can defeat a
safeguard.
Disposal of a battery into fire or a
hot oven, or mechanically crushing
or cutting of a battery, that can
result in an explosion.
Leaving a battery in an extremely
high temperature surrounding
environment that can result in
an explosion or the leakage of
flammable liquid or gas.
A battery subjected to extremely
low air pressure that may result
in an explosion or the leakage of
flammable liquid or gas.
For the latest information and updated manuals, visit rtube.nl/cm-17
Channels Max.
blinds
Frequency Range Frequency
emission
power
Power
supply
4Unlimited 433.925 MHz
30 m with
1 concrete
wall
≤2.32dBm 2 x CR2450
3.0V
Length Width Height Working
temperature
Certificates
70,3 mm 62,7 mm 52,3 mm -10°C~50°C

FCC Manual I FCC ID: ZY4CM17
Regulatory Information
1 FCC Information for User
This product does not contain any user-
serviceable components and is to be used with
approved antennas only. Any product changes
or modifications will invalidate all applicable
regulatory certifications and approvals.
2 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference
received, including interference that may cause
undesired operation.
3 FCC Radio Frequency Interference
Statement
This equipment has been tested and found to
comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses and can radiate radio-
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference, in which case the
user will be required to correct the interference at
their own expense.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the distance separating the equipment
and receiver
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV
technician for help
Cleaning
Follow these general rules when
cleaning the outside of the device and
its components:
Use a damp, soft, lint-free cloth.
Avoid getting moisture in openings.
Do not use aerosol sprays, solvents,
alcohol, or abrasives.
Service & Support
Do not perform repairs yourself. Do
not attempt to open the device or
disassemble it. You run the risk of
electric shock and voiding the limited
warranty. No user-serviceable parts
are inside.
Warranty Service
First follow the advice in this manual.
If the product appears to be damaged
or does not function properly, go to
your local dealer for instructions on
how to obtain warranty service.
Recycle
This marking indicates
that this product should
not be disposed with other
household wastes throughout the
EU. To prevent possible harm to
the environment or human health
from uncontrolled waste disposal,
recycle it responsibly to promote
the sustainable reuse of material
resources. To return your used device,
please use the return and collec-tion
systems or contact the retailer where
the product was purchased. They can
take this product for environmental
safe recycling.
EU Declaration
Hereby, Coulisse declares that the
radio equipment type CM-17 is in
compliance whith directive 2014/53/
EU. The full text of the EU declaration
of conformity is available at the
following internet address: www.
my.coulisse.com

1 3
2 4
Click!
+
-
CR2450 3,0V
1 2
1
3
2
Buttons Changing the battery
The center button has two functions:
press to stop the blind, hold to move
the blind to its favorite position.
1. BUTTONS 2. CHANGING THE BATTERY
Channel 3
Channel 2 Channel 4
Down
Up
Centre
(stop/favourite)
Pair
button
Channel 1

1 3
2 4
3
3.3
3.1
3.2
3. PAIR A REMOTE 3. PAIR A REMOTE
Pair a remote Repeat steps 3.1 - 3.3 to remove a
blind from a channel.
Shortly press the program button on the motor. The blind will start
stepping, indicating that program mode has been activated.
(The blind keeps stepping until the program mode is deactivated)
Press the pair button on the back of the remote control to pair the blind
with the selected channel.
The blind will shortly stop stepping, indicating that the remote has been
paired to the blind.
Select a desired channel for the blind by pressing 1 of the 4 channel buttons
on the remote control.
Pair
button
Channel 1
Channel 3
Channel 2 Channel 4

motion-blinds.com
CM17U-R3
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form, by any means, electronic, mechanical, photocopying,
recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the utmost care, Coulisse b.v. does not
accept any responsibility for damage due to mistakes and/or faults in this manual.
Coulisse b.v. reserves the right to revise the manual and to revise and/or change its
content at any time, without obligation to notify any person or entity of such revisions
or changes.
