Motocaddy M7 REMOTE User manual

EN
REGISTERONLINE
www.motocaddy.com/warranty
Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations
M7 REMOTE Electric Trolley
Instruction Manual
Before using the M7 REMOTE for the rst time, please take a few minutes to
read through this manual to ensure that you get the most out of your trolley

Page 2
Contents
Locating your Serial Number / Information about DHC ........3
Safe use of your Trolley................................................................4
Safety Features..............................................................................5
Trolley Care.....................................................................................6
Battery Care & Advice ...................................................................7
Charging your Lithium Battery / Lithium Battery Care...........8
Lithium Battery Care .....................................................................9
Attaching the Wheels / Inverting the Wheels........................ 10
Attaching the Anti-Tip Wheel.................................................... 11
Setting trolley to run straight............................................ 12 - 13
Unfolding & Folding your Trolley...................................... 14 - 15
Upper & Lower Bag Supports................................................... 16
Adjusting the Bag Supports...................................................... 17
Equipment Overview.................................................................. 18
Remote Control Handset .......................................................... 19
Pairing the Remote Control / Handset Lock function ......... 20
Operating the M7 REMOTE....................................................... 21
Battery Meter / USB Charging Port......................................... 22
Declaration of Conformity......................................................... 23

Page 3
Locating your Serial Number / Information about DHC
Locating your Serial Number

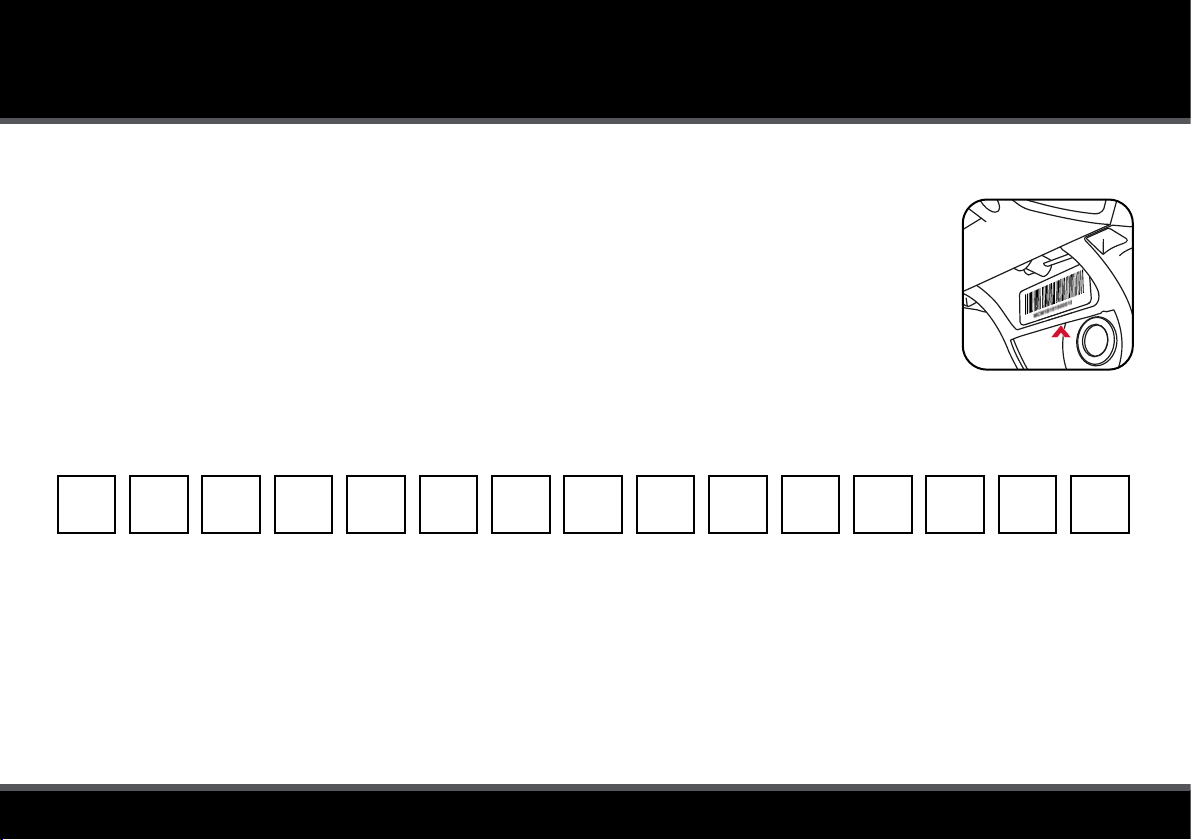

The serial number for this M-Series trolley is located on the trolley underside next to the motor (g. 1).
This number is required when registering your warranty online and should be kept handy for future use.
The same number should also be on the box received with your trolley. Please ensure you keep hold of the
packaging in case you need to return your trolley for any reason. A proof of purchase must also be kept in
case your trolley requires servicing during its warranty period.
Please keep a record of your trolley serial number here for future reference:
MCM
Information about DHC
The letters DHC stand for ‘Downhill Control’ and mean that your M7 REMOTE will maintain a controlled speed whilst travelling
down hills. Whenever you are looking to move the trolley in manual mode, even if just to reposition it ready to use, always put it on
a low speed setting to make it easier to steer.

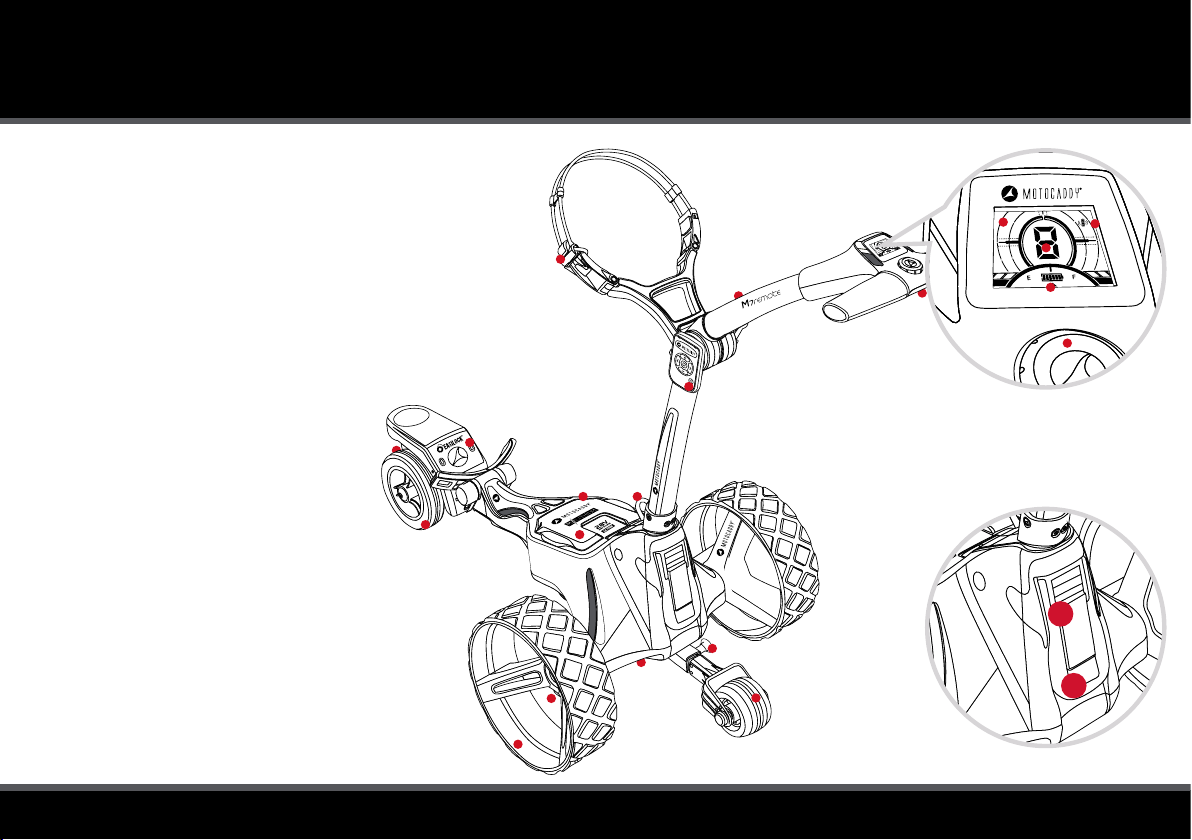

Fig 1

Page 4
Safe use of your Trolley
Safe use of your Trolley
The rst time you use the M7 REMOTE, we would advise using it on an open area of grass. The trolley speeds and steering
characteristics will vary depending on the surface. The M7 REMOTE will turn much quicker on hard, smooth surfaces and will
behave differently on grass. You will also nd that the weight of the golf bag will affect both speed and steering.
Motocaddy trolleys are designed for the transportation of golf bags and clubs contained within. Using the trolley for any other
purpose may cause damage to the trolley and cause harm to the user. The following is not intended to cover all possible
situations. Caution and common sense should always be used when operating the M7 REMOTE.
• Never aim the M7 REMOTE at other people or golf trolleys
• Do not attempt to transport any other equipment
• The trolley is not designed for the transportation of people
• Do not use the trolley to assist you when going up hills
• Submerging the trolley in water (e.g. a lake) is likely to cause damage to the trolley
• Do not operate the trolley whilst under the influence of drugs or excessive amounts of alcohol
• All batteries must be disconnected from the trolley before folding, storage and transportation
• When using the M7 REMOTE in conned spaces (for example car parks) or near water (such as over bridges)
it is advisable to use the ‘Manual’ control mode to ensure that you remain in control of the trolley
• Never let the M7 REMOTE run out of your sight. Always use proper care and control
Motocaddy cannot take responsibility for any damage or injury caused from improper use.

Page 5
Safety Features
Safety Cut-Off
The M7 REMOTE trolley is tted with safety cut off features. Whilst operating the trolley via the remote control, if no command is
sent to the trolley (any buttons pressed) for longer than 120 seconds, the trolley will stop.
Whilst moving, if the trolley travels out of range of the remote control, the trolley will also cut power to the motors.
Whilst operating the trolley in manual mode, if no adjustment to the speed is made via the dial for longer than 10 minutes,
the trolley will stop.
If any of these safety features initiate, pressing the on/off button or the + button of the remote handset will restart the trolley.

Page 6
Trolley Care
Caring for your Trolley
Although your Motocaddy trolley has been weatherproofed, please follow these simple guidelines to help protect your trolley:
• Do not store your trolley outside
• Try to minimise exposure to rain as much as possible with an umbrella during heavy rainfall
• Wipe excess water from the trolley prior to storage
• Never use a pressure washer to clean your trolley. To prevent water damage, wipe down with a damp cloth
• Avoid using high pressure air hoses near moving components
This Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular
checks to ensure:
• There is no build up of excess mud and dirt
• The front wheels are not clogged up and turn freely
Only original Motocaddy parts should be used when repairing your trolley.

Page 7
Battery Care & Advice
Battery Care & Advice
All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will affect
the battery life.
Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are
designed specically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be used
to charge any other battery and is designed for use with Motocaddy Lithium batteries only.
The charger should only be connected to an earthed socket outlet; the battery charger should only be opened and maintained by
authorised personnel. Unauthorised opening will invalidate your warranty.
The battery must be stored and charged on a dry non-carpeted surface and charged at temperatures ranging between 10°C and
30°C. Charging above or below these temperatures is not recommended as it can reduce the battery capacity.
When connecting your battery to the trolley, please ensure that the connections match up black to black and grey to grey.

Page 8
Charging your Lithium Battery / Lithium Battery Care
Charging your Lithium Battery
1. Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage
to the battery and/or trolley
2. Plug the charger into your mains supply
3. Attach the battery cable to the charger matching black to black and grey to grey
4. When the charging LED indicator has turned green, the battery is fully charged and ready to be used
RED - Battery charging GREEN - Battery fully charged and ready to be disconnected
5. The charging process will take between 3 to 5 hours depending on the depth of discharge
(please be aware that this may take longer for the rst few charges)
6. Once charging is complete please disconnect the charger from the mains power supply
7. Finally disconnect the charger from the battery
If you connect the battery to the charger and the LED goes out, this is likely to indicate that the battery is fully charged.
Please double check the battery on the trolley to ensure that it is fully working.
Caring for your Lithium Battery
• Try to avoid getting the battery too wet (i.e. do not submerge the battery, avoid deep puddles and do not clean
your trolley whilst the battery is still in the battery tray)
• Dropping the battery may cause damage to the internal cells
• Do not lift or carry the battery by the cable
• Use a damp cloth to clean off any dirt

Page 9
Recommendations for hibernation of Lithium Batteries during winter months
If for any reason your Lithium battery is not going to be used for lengthy periods, e.g. 3 months over the winter, it is advised to
store the battery half charged. To do this simply use the battery for a round of golf as usual and charge it for 1.5 hours at the end
of the round. Before the battery is used again, recharge it (top it up) prior to use.
We recognise that extended absences are not always planned in advance, however when it is likely that you will not be using your
battery for a period of time it is good practice to follow these steps to extend the life of your Lithium battery. Please ensure that the
charger is ALWAYS disconnected from the battery after charging.
Battery Management System (BMS)
Motocaddy Lithium batteries are tted with a comprehensive battery management system (BMS) to protect the battery from
excessive abuse, high currents, deep discharge and overcharge. When the battery is delivered there may be no output as the BMS
is designed to maximize safety whilst shipping. Please ensure that the battery is fully charged prior to connecting it to your trolley
as this will activate the BMS and effectively ‘switch-on’ the battery. From time to time, at deep discharge or long term storage the
BMS may switch-off the battery. A full battery charge will rectify this problem.
Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is
also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low battery
warning on the trolley, then the BMS may disable the battery to protect it. Again if this occurs please recharge fully. Please be
aware that Lithium batteries tend to ‘drop off’ quickly at the end of the cycle so it is not advisable to attempt to play excessive
holes as the BMS will activate for protection purposes.
Lithium Battery Care

Page 10
Attaching the Wheels / Inverting the Wheels
Attaching the Wheels
The M7 REMOTE trolley does not have a specic left and right wheel.
To attach the rear wheels, follow these simple steps:
1. Push the quick release button in towards the centre of the wheel
2. Slide the wheel onto the trolley axle as far as it will go (onto the inner groove)
3. Once in position, release the button and pull the wheel outwards slightly to lock
4. An audible ‘click’ will conrm the wheel is in the correct position
The outer groove can be used as a “free-wheel” option if you run out of battery power.
To check you have attached the wheels correctly onto the inner groove, you will nd they will not rotate freely in either direction.
Inverting the Wheels
The wheels can be inverted to reduce the trolley width for transportation and storage.
1. Push and hold the quick release button while sliding the wheel off the axle
2. Flip the wheel over, push and hold the button, then slide onto the axle
3. Release the button and pull the wheel out slightly until it engages with the free wheel groove

Page 11
Attaching the Anti-Tip Wheel
Attaching the Anti-Tip Wheel
The Anti-Tip wheel is designed to prevent the trolley from tipping backwards on steeper
inclines and it is recommended that the wheel is ALWAYS tted when navigating using the
remote control handset.
To attach the wheel, simply pull the grey button on the right-hand side out and slide the
wheel attachment into the housing. There will be a ‘click’ when the wheel is tted securely
in place.
To remove the wheel, pull the grey button out and slide the attachment out of the housing.
The Anti-Tip wheel can be removed for cleaning and storage purposes.

Page 12
Setting trolley to run straight
Adjusting the Front Wheel Alignment
If your trolley is not running in a straight line, there are a couple of adjustments that can be made. This problem can be caused by
a number of factors including a slightly loose bag support or an unevenly packed golf bag. The rst thing to alter is the alignment
of the front wheel. This is to be completed on a flat level surface whilst using the trolley in remote mode then follow these steps:

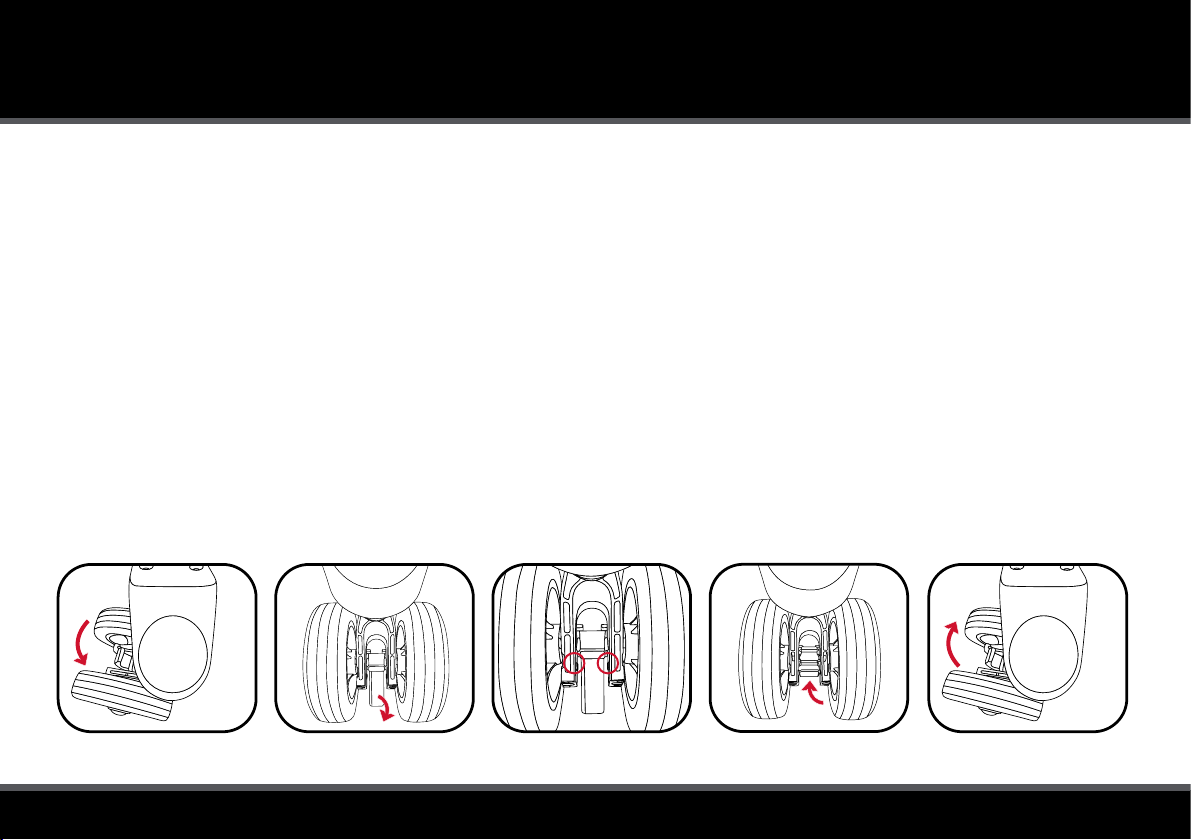

1. Rotate the front wheels 180˚ to allow access to the quick release lever (g. 1)
2. Pull down the quick release lever (g. 2)
3. There are two small metal dials on either side of the housing that are used to realign the wheel (g. 3)
4. If your trolley is veering to the right, you will need to turn the left hand dial clockwise and the right hand dial anti-clockwise
5. If your trolley is veering to the left, you will need to turn the right hand dial clockwise and the left hand dial anti-clockwise
6. Push the quick release lever back up until it rmly clips in to place (g. 4)
7. Rotate the wheel back 180˚ so that it sits underneath the housing (g. 5)
This procedure can be carried out until the trolley is moving in a straight line (you may only need to adjust one dial at a time).
These instructions are based on being in front of the trolley looking at the wheel whilst it is in front of the housing.
Fig 1 Fig 2 Fig 3 Fig 4 Fig 5

Page 13
Setting trolley to run straight
Troubleshooting
If the trolley is now running straight in remote mode but not in manual mode then the motors will need trimming. To do this follow
these steps:
1. The trolley should again be on a flat level ground,
2. Press and hold the On/Off button for 4 seconds, the speed display will show “0”
3. Turning the dial either clockwise or anti-clockwise will then change the display to show 1-9, turning the dial anti-clockwise will
trim the trolley left and turning the dial clockwise will trim the trolley right
4. Start by trimming gradually (1-3). After the value is adjusted, press the button to return to normal operation
5. Then press the button to start the trolley, check to see whether the trolley has been trimmed enough, if it hasn’t and is still not
running straight, repeat the procedure and increase the value the trolley is trimmed to

Page 14
Unfolding your Trolley
Fig 1 Fig 2 Fig 3 Fig 4 Fig 5
Unfolding your Trolley
We recommend unfolding your trolley once the wheels have been un-inverted and reattached (see page 10).

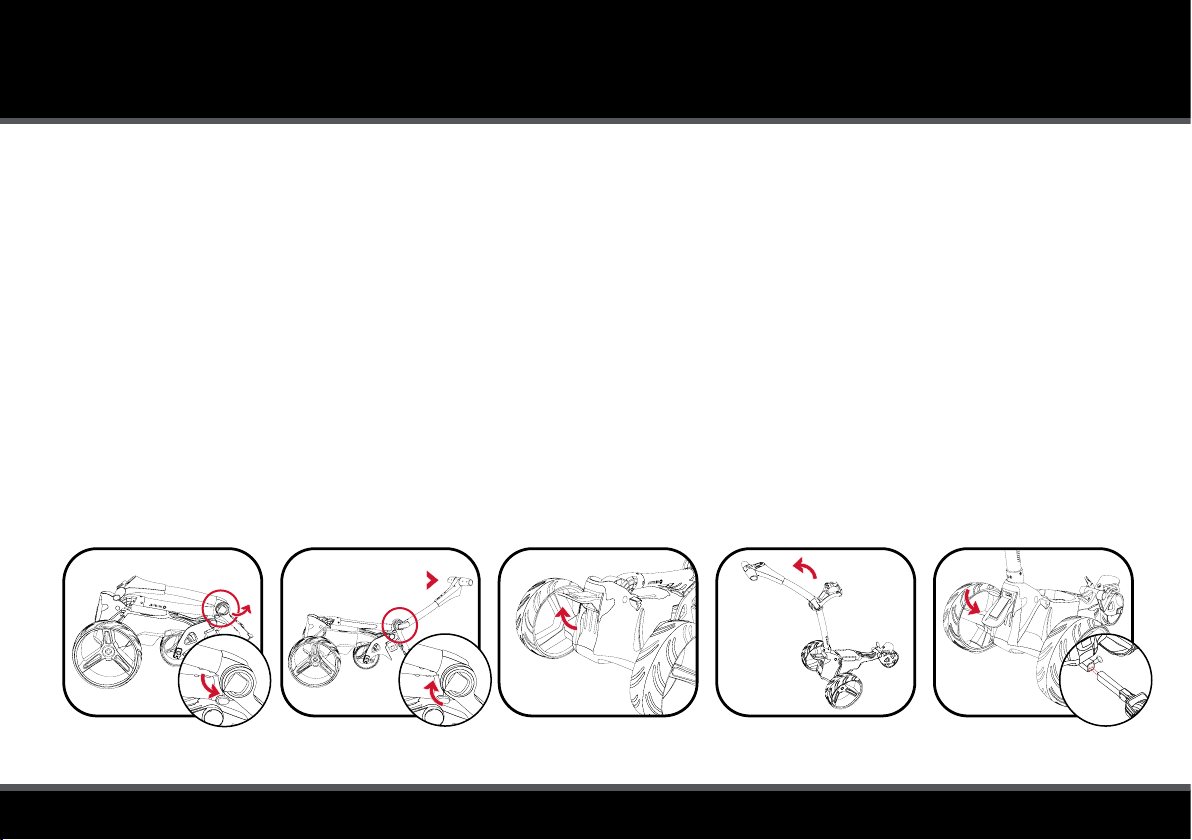

1. Lift the upper bag support slightly and release the upper latch (g. 1)
2. Unfold the handle and re-secure the latch (g. 2)
3. Release the lower latch (g. 3)
4. Lift the trolley handle up into position (g. 4). The front wheel will automatically unfold
5. Re-secure the lower latch and ensure the auto-open stand is folded away (g. 5)
6. Insert anti-tip wheel (see page 11)
The model shown below is a standard M-Series trolley. The folding mechanism is the same despite the design differences.

Page 15
Fig 1 Fig 2 Fig 3 Fig 4 Fig 5
Folding your Trolley
Folding your Trolley
1. Release the lower latch (g. 1). The auto-open stand will also be activated
2. Fold the frame forward until fully extended (g. 2). The front wheel will automatically fold underneath
3. Release the upper latch and fold the handle back until the trolley is fully folded (g. 3)
4. Re-secure both latches. If you wish to stand the trolley upright, leave auto-open stand out. Remember to ensure the
auto-open stand is pushed down if not being used (g. 4)
5. The wheels can be inverted to reduce the trolley width for transportation and storage (g. 5). See page 10 for details
Please ensure the auto-open stand is folded away when not in use to prevent damage. The anti-tip wheel will need to be
removed if you are planning on standing the trolley upright for storage.

Page 16

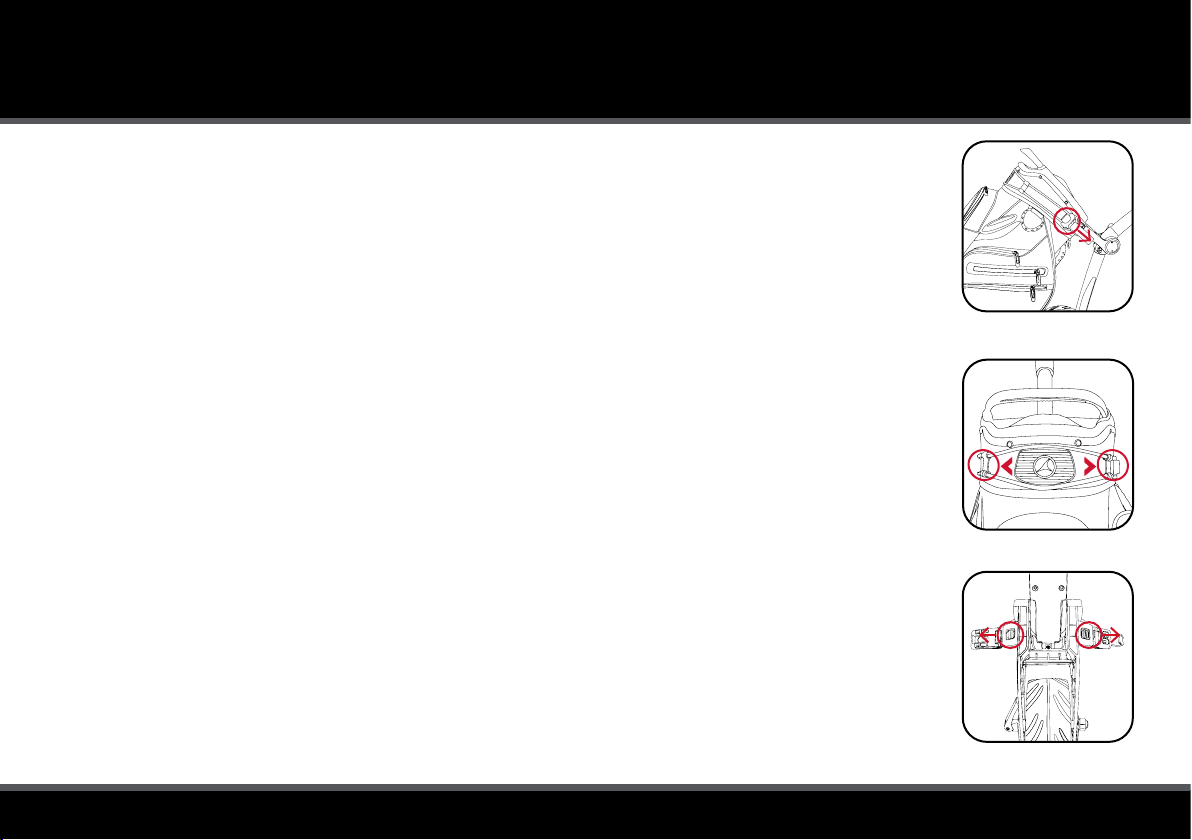

Upper & Lower Bag Supports
Fig 3
Fig 2
Fig 1
Upper Bag Supports
The upper bag support straps are secured using the following steps:
1. Stretch the elasticated strap around the bag & loop the rounded bar underneath the hook (g. 1)
2. Position the two placement straps centrally on your golf bag (g. 2)
Lower Bag Supports
This Motocaddy trolley is tted with the EASILOCK™ bag attachment system.
If you are using an EASILOCK™ compatible golf bag please follow these simple instructions:
1. Remove the two pre-tted lower bag straps by depressing the rear button and sliding (g. 3)
2. Match up the indicating line on the golf bag with the line on the lower bag support
3. Lower the bag until the pins lock in position. You should hear an audible ‘click’
If you are using a non-EASILOCK™ golf bag, please use the following instructions:
1. Stretch the lower bag strap around the bag base & loop the rounded bar underneath the hook
2. Position the two placement straps centrally on the base of your golf bag
Please ensure all straps are hooked securely before releasing. Failure to do so could result in injury.

Page 17
Adjusting the Bag Supports
Adjusting the Bag Supports
The bag support straps are manufactured from elasticated material to allow your golf bag to be held
tightly in position.
The strap should be adjusted to be reasonably tight around the golf bag:

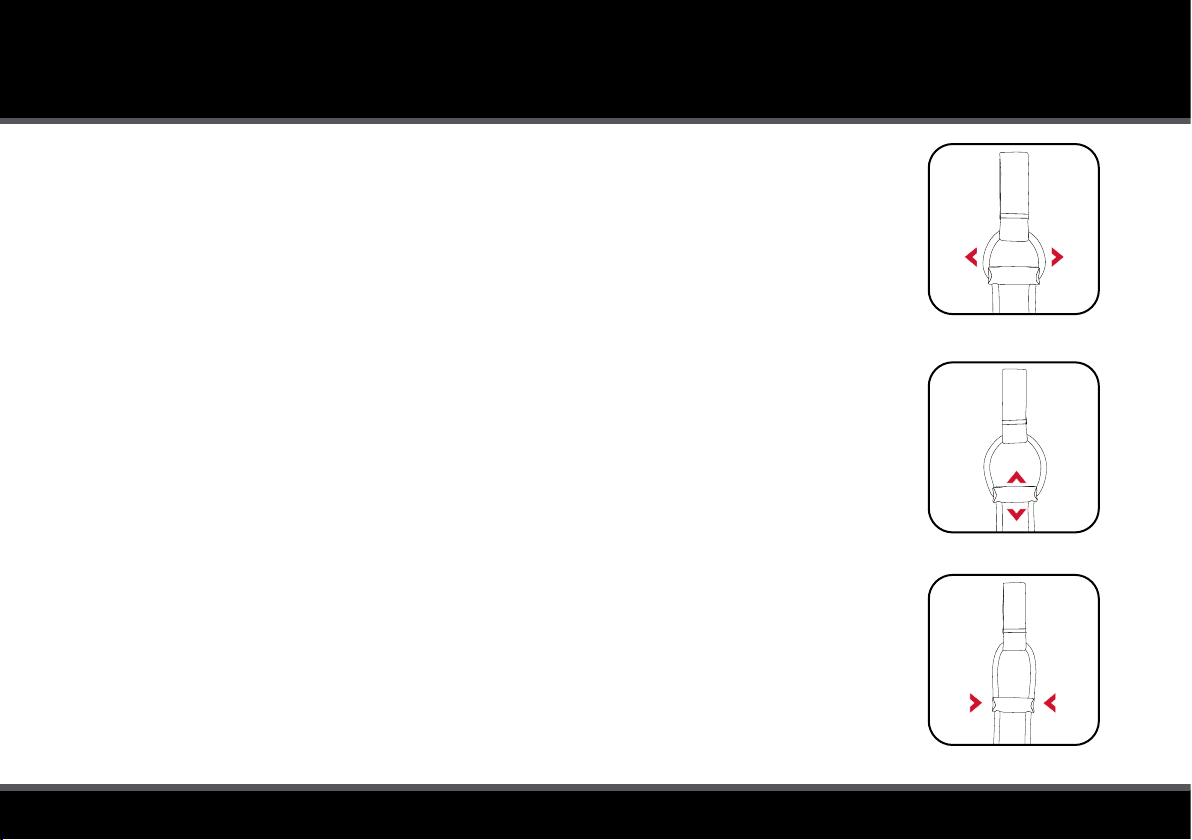

1. Unclip the elasticated straps from the housing by pulling outwards in the direction shown (g. 1)
2. Move the bar as required to tighten or loosen the strap tting. Pulling the bar downwards will
tighten, pushing it upwards will loosen (g. 2)
3. Ensure that the straps are clipped back into the housing before use (g. 3)
Fig 3
Fig 2
Fig 1

Page 18
1. LCD Digital Display
2. Remote Handset Battery Meter
3. Speed Setting
4. Trolley Battery Meter
5. Manual Speed Controller & On/Off Button
6. USB Charging Port (under handle)
7. Remote Control Handset & Cradle
8. Anti-Tip Wheel Release
9. Anti-Tip Wheel
10. Motor (under Battery Tray)
11. Rear Wheel Release Button
12. Rear Wheels
13. Front Wheels
14. Front Wheel Alignment Adjusters
15. EASILOCK™ Lower Bag Support
16. Battery Tray
17. Battery
18. Battery Connector
19. Upper Bag Support
20. Upper Release Latch
21. Auto-Open Stand
22. Lower Release Latch
Equipment Overview
7
13
8
10
11
14
9
12
21
22
18
16
17
15
19
20
1
5
2
3
4
6

Page 19

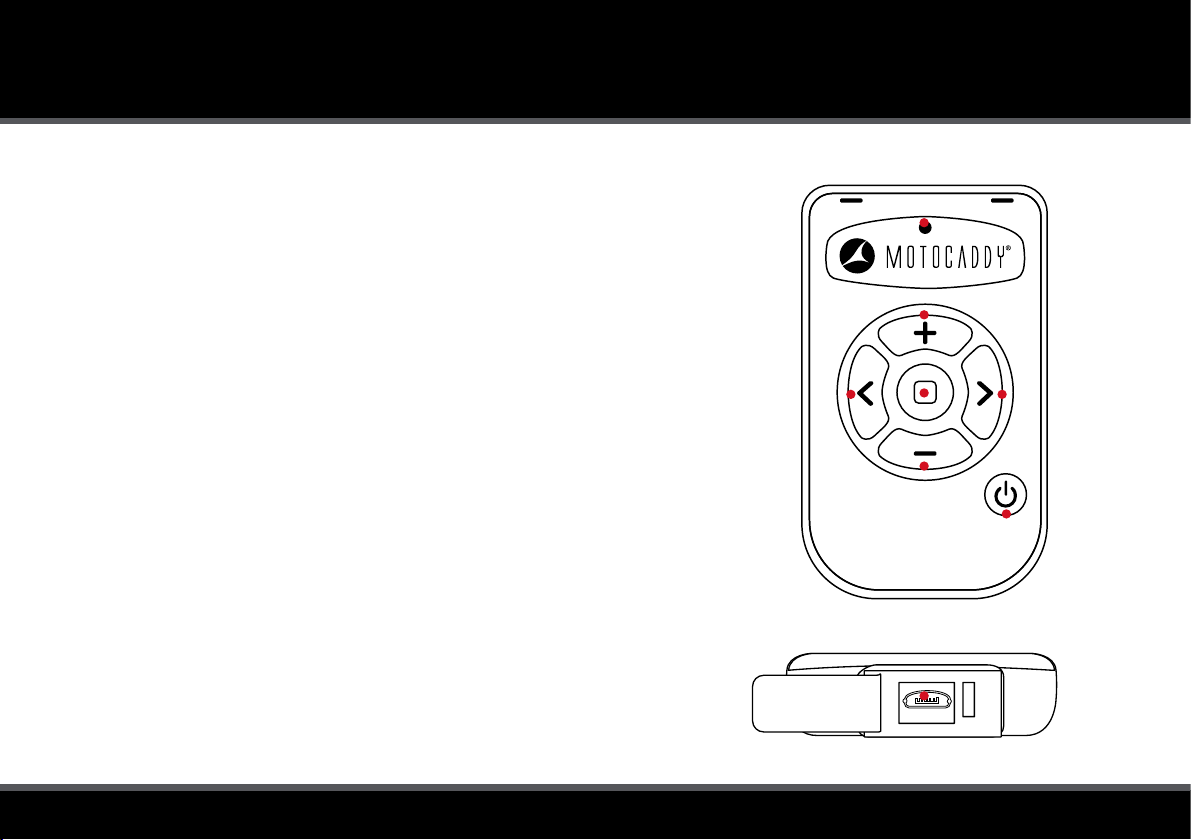

Remote Control Handset
1. Indicator LED
2. Plus (+) Button
3. Stop Button
4. Right (>) Button
5. Minus (-) Button
6. Lock Button
7. Left (<) Button
8. Charging Port
The remote handset contains a rechargeable Lithium battery. The handset can be
recharged using a mini USB cable (supplied), the charging port is located under
the rubber flap at the base of the handset.
The green LED on the handset will flash whilst being charged, once it is fully
charged the green LED will be on and not flashing. This will take around 4-5 hours
to fully charge from flat.
When the handset battery starts to get low, the LED will flash red when pressing a
button. Should the battery go completely flat there will be no LED when pressing
a button. Should this happen, the trolley will stop. You can recharge the handset
using the USB port on the trolley.
Please be aware that charging the remote handset through the USB port will
take power from the main trolley battery and prolonged charging will reduce
the trolley battery capacity between charges.
Remote Control Handset
2
5
3
8
1
4
6
7

Page 20
Pairing the Remote Control / Handset Lock function
Pairing the Remote Control
In the unlikely event that the remote is not responding or you have a new remote handset, it will need to
be paired to the trolley.
To pair the remote to the trolley:

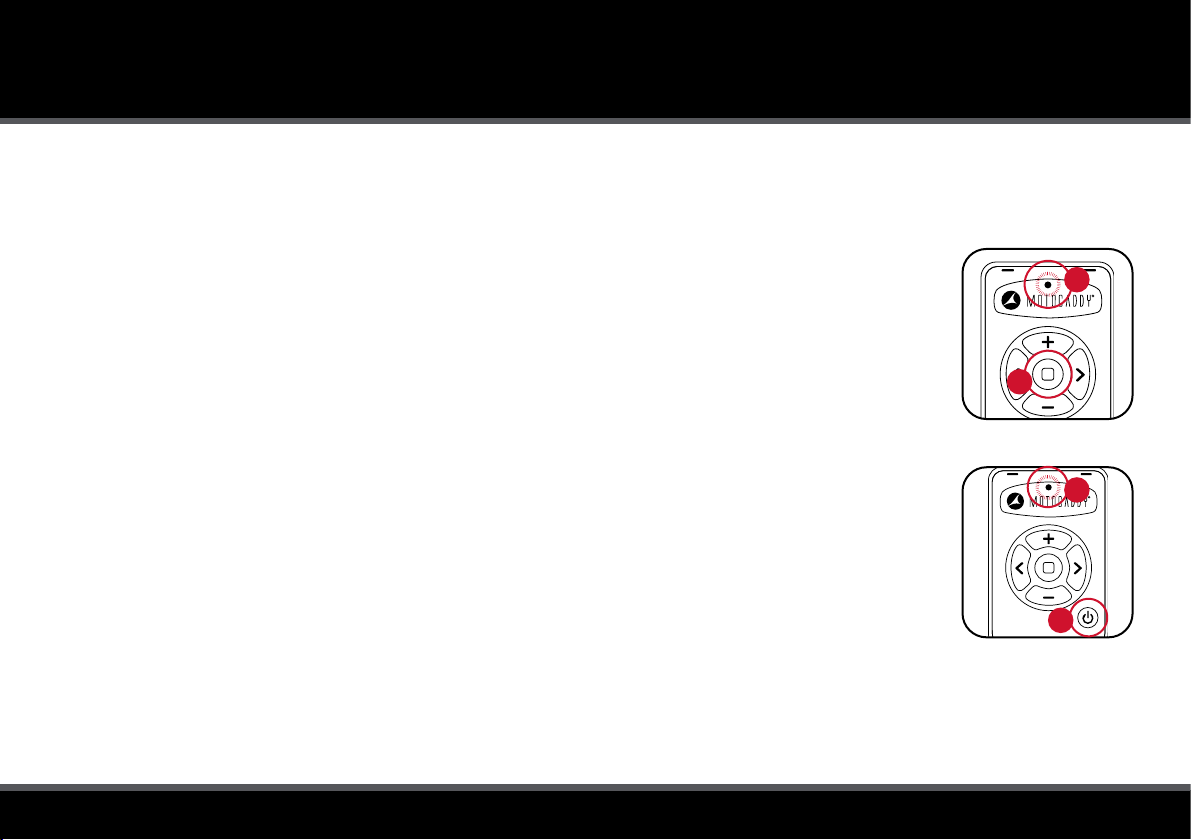

1. Press and hold the stop button on the remote handset for 5 seconds (g. 1a)
2. The LED on the handset will start flashing green (g. 1b), at this point release the button and plug the
battery into the trolley
3. If the trolley is not powered on within 60 seconds, the handset will exit pairing mode
Handset Lock function
The remote handset can be locked by pressing the Lock button (g. 2a), when this is pressed the LED
will either flash Green or Red (g. 2b). Green indicates that the handset is unlocked and Red indicates
that it is locked.
When it is locked the +/-/< & > buttons will be disabled and a Red LED will flash when they are pressed,
the Stop button will still operate and show a Green LED when pressed.
If the handset is locked whilst the trolley is running in remote mode, the trolley will stop after 4 seconds as
the handset will stop sending a signal. If the trolley is in Manual mode it will continue to run but can still
be stopped using the stop button of the handset.
Pressing the Lock button again (g. 2a) so the LED flashes Green (g. 2b), will unlock the handset and all
buttons will be enabled.
Fig 1
Fig 2
A
A
B
B
