Retrofit Motorola V60 / V50 / V3690 / V3688 hand-free kit
MINI (R50 and R53)
he installation time is approx. 2 hours, but this may vary depending on the condition of the car and the
equipment in it.
Retrofit kit No. 84 64 0 139 561
84 64 0 142 861
84 64 0 148 183
84 64 0 148 196
Parts and A essories
Installation Instru tions

EN/2
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
Contents
Section Page
Important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Parts list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Installation and cabling diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Hands-free kit connection overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. o install the hands-free microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. o install and connect the wiring harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7. o install the speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. o install the mobile phone holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. o install the hands-free control module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10. Concluding work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
11. Hands-free kit circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

EN/3
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
Important information
he retrofit kit is only for use within the dealership organisation.
Do not kink or damage the cables during the installation work since otherwise they may cause faults that
can later only be identified by extensive additional work. he costs incurred as a result of this will not be
reimbursed.
If the specified PIN chambers are occupied, bridges, double crimps or twin-lead terminals must be used.
his system does not require coding
Target group
he target group for these installation instructions is specialist personnel trained on MINI cars with
specialist knowledge of vehicle electrical systems.
Work:
All servicing, repair and installation work on MINI cars is completed at your own risk.
All work is to be carried out using current MINI repair manuals and circuit diagrams in a rational order
using the prescribed tools (special tools) and observing current health and safety regulations.
Required spe ial tools
None

EN/4
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
1. Preparations
0
TIS instru tion No.
Conduct a brief test
Disconnect the negative pole of the battery 12 00 ...
The following omponents must be removed first of all:
Oddments box in instrument trim on the passenger side 51 16 390
rim between front centre console and instrument panel 51 16 198
Radio 65 11 030
A pillar trim on the right 51 43 201
Interior mirror 51 16 060
Clock

EN/5
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
2. Parts list
0
Legend
0
1 Mobile phone holder
2 Retaining plate for the mobile phone holder
3 Speaker
4 Hands-free control module
5 Gooseneck
6 Holder for hands-free control module
7 Wiring harness
8 Hands-free microphone
9 Retaining clip
10 Plug contact (4x)
11 Plug casing (4x)
12 Socket contact (4x)
13 Socket casing (4x)
14 Aerial adapter
15 Socket contact (New generation radio only)
16 Foam strip (2x)
2
13
89
45
6
7
10 12 13 1411 15 16
R50 0300 Z

EN/6
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
3. Installation and abling diagram
0
Legend
0
1 Radio plug X18126
2 Wiring harness
3 Hands-free control module
4 Gooseneck with mobile phone holder
5 Hands-free microphone
6 Speaker
5
4
6
3
2
1
R50 0216 Z

EN/7
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
4. Hands-free kit onne tion overview
0
0
0
Item Des ription Signal Cable olour /
Cross-se tion Conne tion lo ation in the ar Abbreviation / Slot
A Wiring harness --- --- --- ---
A1 Cable branch Earth SW
0.5 mm
2
With enclosed socket and plug contact
on radio plug
With new generation radio
Without new generation radio
X18126
PIN 12
PIN 15
A2 Cable branch erminal 30 R
0.5 mm
2
With enclosed socket and plug contact
on radio plug
With new generation radio
Without new generation radio
X18126
PIN 15
PIN 9
A3 Cable branch erminal R GN
0.35 mm
2
With enclosed socket and plug contact
on radio plug
With new generation radio
Without new generation radio
X18126
PIN 16
PIN 5
A4 Cable branch Mute OR
0.35 mm
2
With the enclosed socket contact on the
radio plug
With new generation radio
Without new generation radio
X18126
PIN 10
PIN 4
A5 Cable branch --- GE
0.35 mm
2
Insulate and tie back ---
A6 Cable branch --- BL
0.35 mm
2
Insulate and tie back ---
A1
A2
A4
A5
A6
A7
A
A3
R50 0299 Z

EN/8
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
5. To install the hands-free mi rophone
0
0
0
0

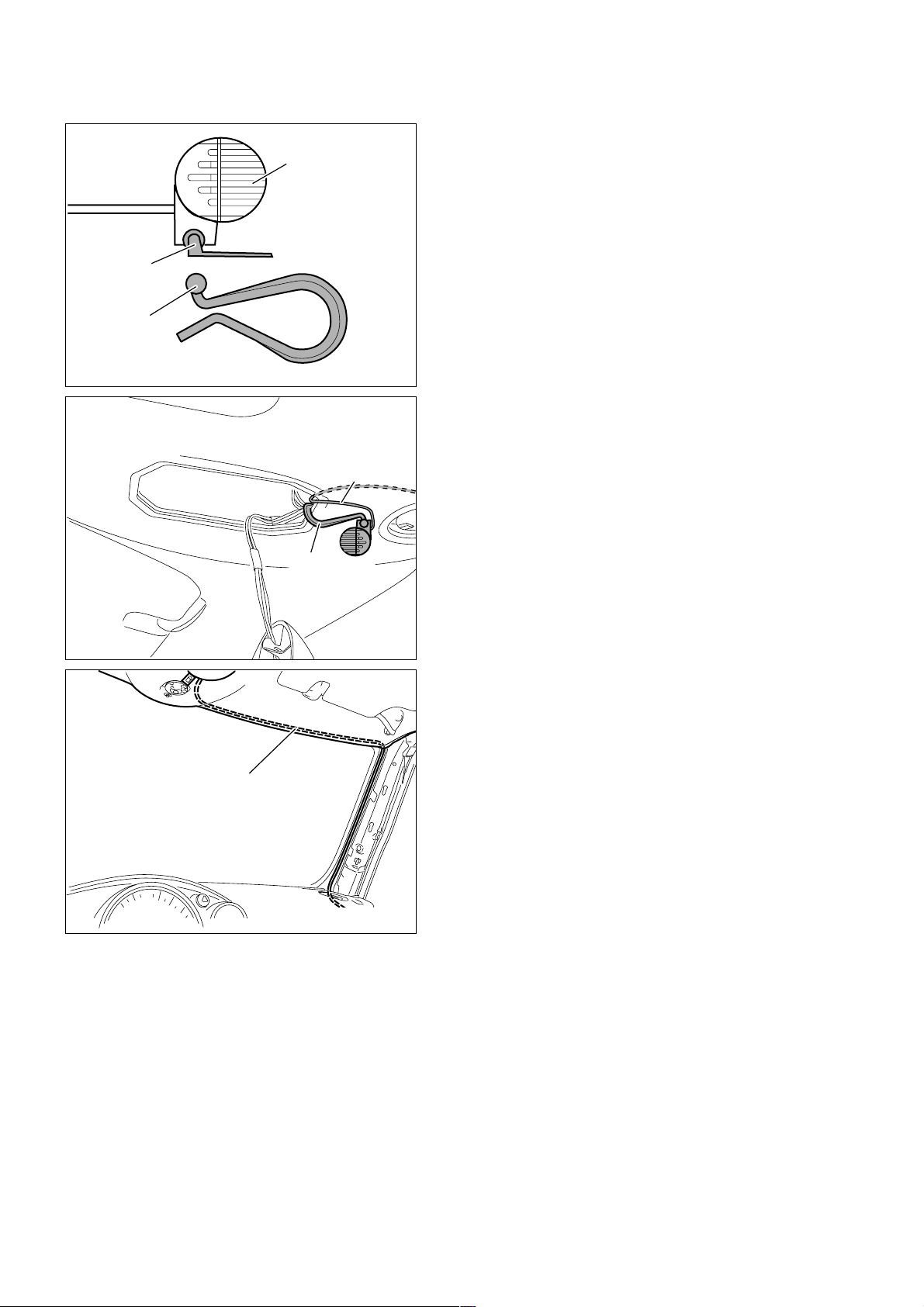

Unclip the mounting (1) from the hands-free
microphone (2) and clip the retaining clip (3) into the
hands-free microphone (2).
0
Attach the retaining clip and hands-free microphone (1)
to the headlining.
Carefully lower the front headlining.
Lay the microphone cable (2) beneath the headlining
towards the A pillar on the passenger side.
0
Lay the microphone cable (1) to the oddments box on
the passenger side.
2
1
3
R50 0306 Z
1
2
R50 0307 Z
1
R50 0219 Z

EN/9
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
6. To install and onne t the wiring harness
0
0
0
0
0
Lay branches A1 – A4 to the radio plug X18126 .
Insulate branches A5 and A6 and tie them back.
Lay branch A7 to the oddments box on the passenger
side.
0
Cars with a new generation radio only
Connect branches A1 – A5 as follows to plug X18126 :
- A1 SW cable to BR cable on PIN 12
- A2 R cable to R /BR cable on PIN 15
- A3 GN cable to VI/GR cable on PIN 16
See figure R50 0248 Z for the procedure
Crimp the socket contact (1) to branch A4 OR cable and
connect it to PIN 10 on plug X18126 .
0
Cars without a new generation radio only
Connect branches A1 – A5 as follows to plug X18126 :
- A1 SW cable to BR cable PIN 15
- A2 R cable to R /BR cable PIN 9
- A3 GN cable to VI/WS cable PIN 10
See figure R50 0248 Z for the procedure
Crimp the socket contact (1) to branch A4 OR cable and
connect it to PIN 4 on plug X18126 .‚
0
All ars
Cut the corresponding cable of the plug X18126 at a
suitable point.
Crimp the socket contact (1) onto the cable end (2) of
the plug and put on the socket casing (3).
Crimp the plug contact (4) onto the open cable end (5),
crimp on the corresponding branch (7) and put on the
plug casing (6).
Connect the socket and plug casings (3+6).
X18126
A1-A4 A5-A6
A7
R50 0310 Z
X18126
A1-A3
1
A4
R50 0250 Z
A4
1
X18126
A1-A3
R50 0249 Z
7
2
5
3
1
6
4
R50 0248 Z

EN/10
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
7. To install the speaker
0
0
0
0
Unscrew both knurled-head bolts (1) and remove the
holder (2) from the speaker (3).
Drill a 5 mm hole in the centre of the holder (2).
0
Screw the holder (1) to the trim (3) using the existing
orx screw (2).
0
Insert the speaker (1) into the holder (2) and secure it
with the knurled-head bolts (3).
Lay the speaker cable (4) to the oddments box on the
passenger side.
2
3
1
R50 0202 Z
3
12
R50 0203 Z
2
4
3
1
R50 0204 Z

EN/11
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
8. To install the mobile phone holder
0
0
0
Remove the right trim as follows:
- Undo front centre console (3)
- Undo the screws (2) in both trims (1)
- Pull the front centre console (3) to the rear
- Pull out the rattle guard (4) (no longer required)
- Pull out the right trim (1)
0
Lay the connection cable (1) of the mobile phone hol-
der to the oddments box on the passenger side.
Connect the aerial adapter (5) to the aerial connection
(4) on the mobile phone holder.
Affix the foam strips (2) into the opening in the front
centre console (3).
0
Screw the mobile phone holder (1) on to the gooseneck
(3) using Philips screws (2).
0
Install the radio.
Install the gooseneck (1) and attach the connection
cable (2) as shown using cable ties (3). Lay it to the
oddments box on the passenger side.
R50 0547 Z
3
4
1
2
1
2
3
45
R50 0552 Z
R50 0547 Z
3
4
1
2
1
2
3
R50 0302 Z
0222
240
km/h
2
1
3
R50 0553 Z

EN/12
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
9. To install the hands-free ontrol module
0
0
0
0
0
Secure the hands-free control module (1) to the holder
(3) using Philips screws (2).
0
Connect the speaker cable plug (1), the microphone
cable plug (2), the mobile phone holder plug (3) and
branch A7 to the hands-free control module (4).
0
Hook the holder (1) into the instrument carrier (2) from
behind and fasten it in place using the bar (3) and a
Philips screw (4).
0
he figure shows the installed holder (1) with the
instrument carrier removed (2).

R50 0305 Z
22
3
1
R50 0210 Z
2
4
1
A7
3
2
1
3
4
R50 0246 Z
R50 0254 Z
2
1

EN/13
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
10. Con luding work
- Connect battery
- Conduct a brief test
- Conduct a function test
- Assemble the car following the instructions to dismantle it in reverse order.

EN/14
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
11. Hands-free kit ir uit diagram
Cars with a new generation radio only
0
MUTE
R
30 31
A1*
12 15 16 10
MUTE
R
MIC-
MIC+
Handy
A2*
A3*
A4*
X1*
LSP-
LSP+
X2* X3* X4*
X5*
X7*
X6*
X18126
Y1*
Y2* Y2*
0.5
SW
0.5
RT
0.35
N
0.35
OR
0.35
E
0.35
BL
2,5
BR
2,5
RT/RB
0.5
VI/ R
0,5 VI/ R
2,5 RT/RB
2,5 BR
R50 0308 Z

EN/15
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
11. Hands-free kit circuit diagram
Cars without a new generation radio only
0
MUTE
R
30 31
A1*
15 9 5 4
MUTE
R
MIC-
MIC+
Handy
A2*
A3*
A4*
X1*
LSP-
LSP+
X2* X3* X4*
X5*
X7*
X6*
X18126
Y1*
Y2* Y2*
0.5
SW
0.5
RT
0.35
N
0.35
OR
0.35
E
0.35
BL
2,5
BR
2,5
RT/RB
0.5
VI/WS
0,5 VI/WS
2,5 RT/RB
2,5 BR
R50 0309 Z

EN/16
Retrofit kit No. 84 64 0 139 561 / 84 64 0 142 861 / 84 64 0 148 183 / 84 64 0 148 196
Installation Instructions No. 01 29 0 142 860 Issue date: 07.2002
11. Hands-free kit circuit diagram
Legend
All designations with an asterisk (*) only apply to these installation instructions and these circuit diagrams.
Cable olours
A1* Hands-free control module
A2* Hands-free microphone
A3* Speaker
A4* Mobile phone holder
X1* SW 2-pin plug
X2* SW 2-pin plug
X3* SW 10-pin plug
X4* SW 6-pin plug
X5* win-lead terminal
X6* win-lead terminal
X7* win-lead terminal
X18126 Radio plug
Y1* o standard wiring harness
Y2* Insulated and tied back
R red
SW black
BR brown
WS white
GN green
GE yellow
BL blue
OR orange
