Motorola TK30 Bluetooth and iPod Car
Kit
User Guide
DRAFT 7 - 10/27/2009

1
congratulations
[tbd]

2
contents
contents
install the harness . . . . . . . . . . . . 4
before you begin . . . . . . . . . . . . . 4
install the vehicle integration kit . 5
connect the ISO cable . . . . . . . . 6
connect the audio cable . . . . . . . 7
mount and connect the user
interface module . . . . . . . . . . . . . 8
install the microphone . . . . . . . . 11
set install preferences. . . . . . . . 12
selective mute feature . . . . . . . 13
basics. . . . . . . . . . . . . . . . . . . . . . 14
buttons and scroll knob. . . . . . . 14

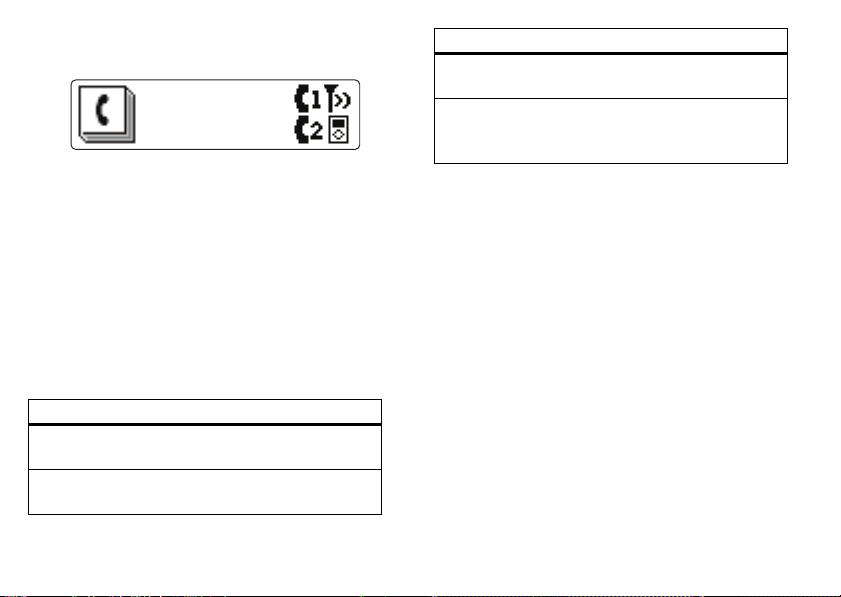

home screen. . . . . . . . . . . . . . . 14

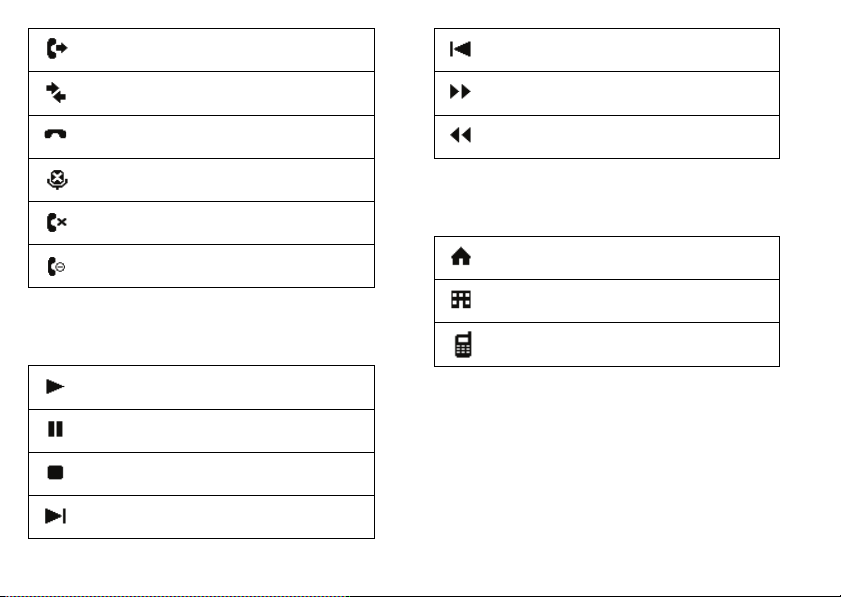

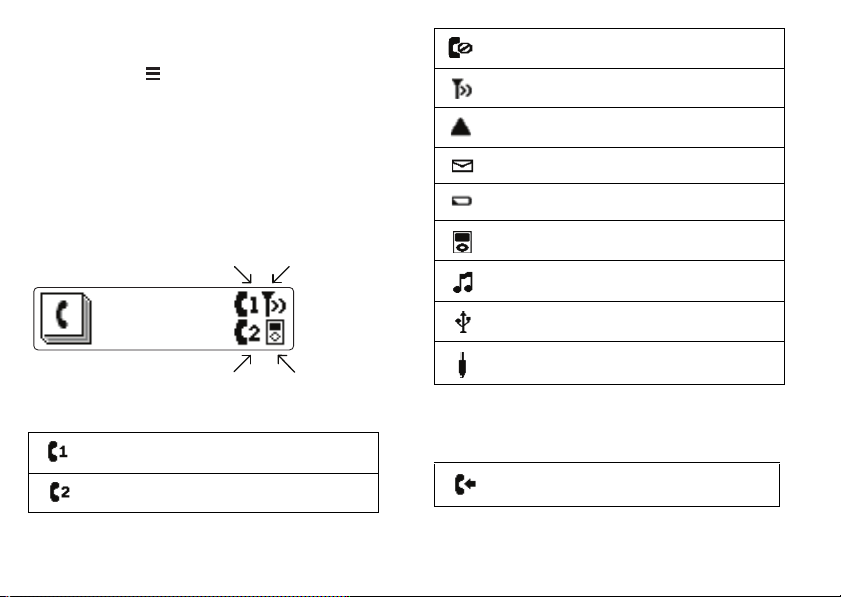

icons . . . . . . . . . . . . . . . . . . . . . 15
pair & connect . . . . . . . . . . . . . . 17
pair to Bluetooth devices . . . . . 17
connect to devices . . . . . . . . . . 17
set Bluetooth device
preferences . . . . . . . . . . . . . . . . 18
calls . . . . . . . . . . . . . . . . . . . . . . . 19
receive a call . . . . . . . . . . . . . . . 19
make a call. . . . . . . . . . . . . . . . . 19
while on a call . . . . . . . . . . . . . . 20
swap phones . . . . . . . . . . . . . . . 22
play music . . . . . . . . . . . . . . . . . . 23
from a Bluetooth device . . . . . . 23
from an iPod/iPhone . . . . . . . . . 23
from a USB storage device . . . . 24
from an auxiliary device. . . . . . . 24
control your music. . . . . . . . . . . 25
volume. . . . . . . . . . . . . . . . . . . . 25
set music preferences. . . . . . . . 25
phonebook. . . . . . . . . . . . . . . . . . 26
manually download contacts from
your phone. . . . . . . . . . . . . . . . . 26
synchronize contacts with phone .
27
messages . . . . . . . . . . . . . . . . . . . 27
read new messages . . . . . . . . . 27
read existing messages. . . . . . . 28
reply to message. . . . . . . . . . . . 28
call message sender . . . . . . . . . 28
settings . . . . . . . . . . . . . . . . . . . . 28
set general preferences. . . . . . . 28
set voice prompt volume . . . . . . 28
set display preferences . . . . . . . 29
Safety, Regulatory & Legal. . . 30

3
install the harness
install the harness
before you begin
Caution: Only qualified personnel should install this car kit.
Because of the wide variety of vehicle types and models, it
may be necessary to contact the vehicle manufacturer for
detailed installation information. If needed, contact the
vehicle manufacturer for air bag information specific to the
vehicle.
Caution: An air bag inflates with great force. Do not place
objects, including communication equipment, in the area
over the air bag or in the air bag deployment area. If the
communication equipment is improperly installed and the
air bag inflates, serious injury could occur.
Please follow these guidelines:
• Mount components securely on strong surfaces to
prevent shifting that could cause injury or interfere with
safe vehicle operation. Use the supplied mounting
hardware as needed.
• Mounted components and attached wires or cables
must not interfere with seating or leg space.
• Route cables so they are protected from pinching, sharp
edges and crushing. Keep all in-line connectors easily
accessible.
• The car kit is intended for use in 12 Volt negative ground
systems only. The car kit draws less than 10 Amps.
Confirm that the vehicle's electrical system can supply
this current.

4
install the harness
install the vehicle integration kit
The vehicle integration kit is the central connection point
for the car kit. Connections to the vehicle, microphone,
audio input device, and user interface module (UIM) are
made from the vehicle integration kit.
The vehicle integration kit should be secured to the vehicle
after the rest of the car kit components are installed and
cables are secured
Mount the vehicle integration kit securely. The best location
for the kit is under the dashboard. The kit should be
protected from dirt and moisture, have adequate space for
cooling, and allow for cable connections.
Caution: The location must not interfere with the vehicle’s
air bag.

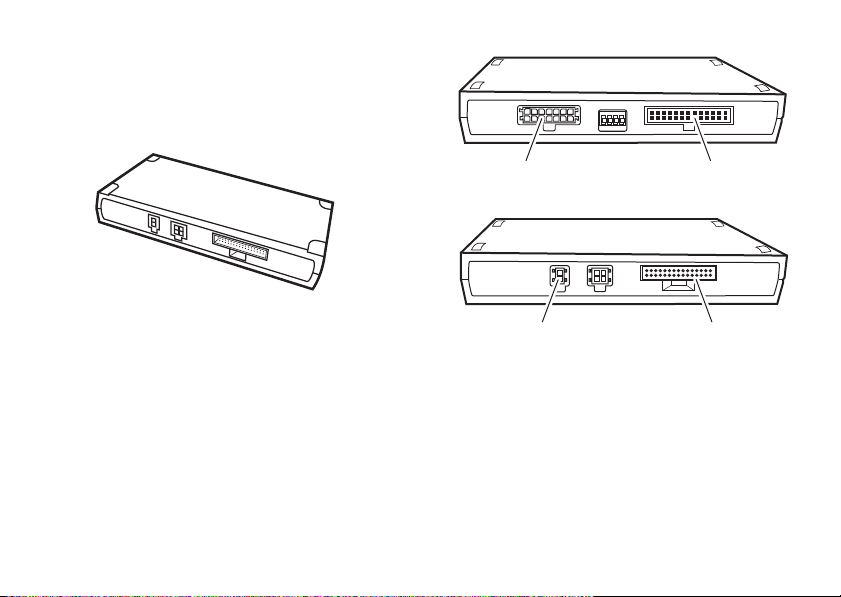

The vehicle integration kit consists of these connectors:
ISO Cable
(connector A)
Audio Cable
(connector D)
User Interface Cable
(connector B)
Microphone
(connector C)

5
install the harness

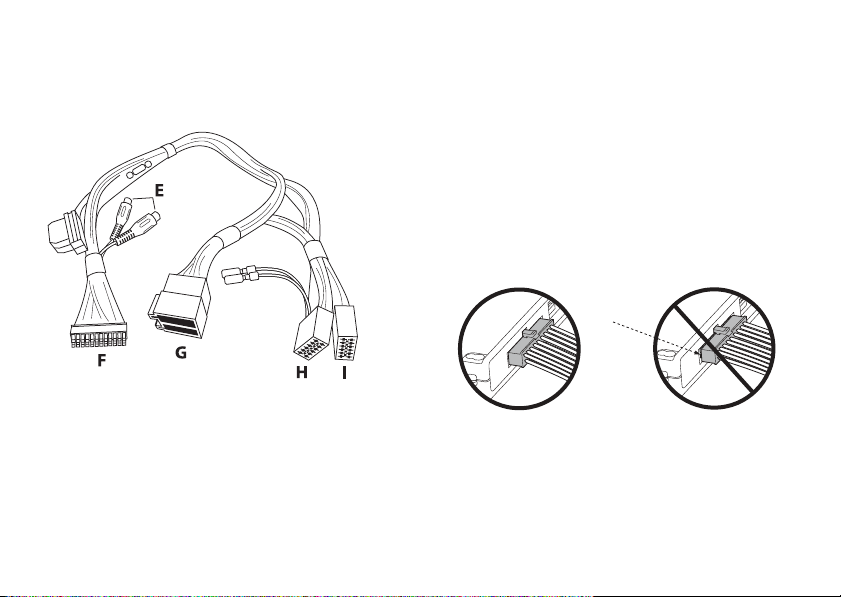

connect the ISO cable
Use the ISO cable to connect the car kit to your vehicle’s
wiring. It connects the vehicle's power, ignition, and
entertainment system to the car kit.
1 Disconnect battery from vehicle.
Caution: Removing battery power may set trouble
codes that can only be reset by a factory diagnostic
tool on some vehicles. Please check with your vehicle
manufacturer if you are unsure how your vehicle may
react.
2 Disconnect appropriate connections on the vehicle
audio system to allow installation of the ISO cable (and
adapters, if needed).
3 Connect cable connectors H and I to the vehicle
entertainment system.
4 Connect cable connector G to the vehicle wiring
harness ISO connectors.
5 Connect cable connector F to vehicle integration kit
connector A (shown on page 4).
Note: Make sure cable connector is plugged all the
way into the vehicle integration kit.
6 Reconnect battery to vehicle.
Failure to follow these steps may cause the harness not to
work properly and could damage the harness.
should be no gap
between connector
and housing

6
install the harness
install with third-party vehicle specific harness
Some vehicles require a vehicle-specific harness (not
supplied) that allows integration of the harness into the
vehicle entertainment system. The connectors on the ISO
cable are designed to connect directly to such a third-party
harness. If you choose to use a vehicle-specific harness,
follow the guidelines provided with that harness.
install to auxiliary input (optional)
If you wish to connect your car kit's music audio output to a
stereo auxiliary input on your vehicle entertainment
system:
Note: Not all vehicle entertainment systems offer a stereo
auxiliary audio input. In some cases, if your system does
not support this input, one may be created using an adapter
from a third-party vendor.
1 Connect an RCA cable (not supplied) to connector E on
the ISO cable.
2 Connect the other connectors on the RCA cable to the
vehicle entertainment system’s Auxiliary input.
3 From the Installer menu, set the Line Out parameter
to ON (see “set install preferences” on page 11 for
details).

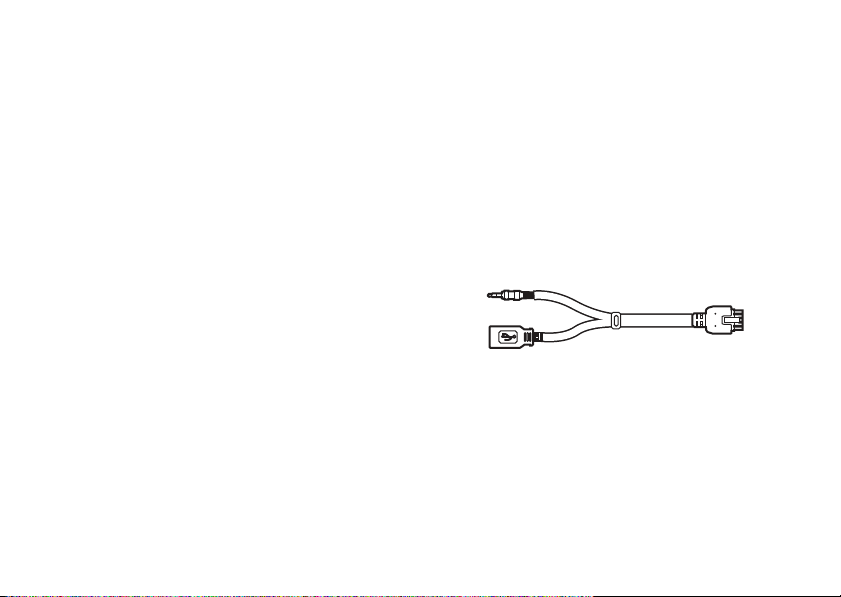

connect the audio cable
Use the audio cable(s) to connect the car kit to your music
input device(s). You can connect:
• one iPod/iPhone
• one USB storage device with music (AAC, M4A, MP3,
and WMA audio files are supported)
• one music device with 3.5mm headphone jack
To connect the audio cable:
1 Connect cable connector J to vehicle integration kit
connector D (shown on page 4).
2 Connect your music device to the audio cable(s):
• To play music from a USB storage device ,
connect cable connector K to the USB storage
device.
Note: Only one USB device at a time can be
connected to your car kit.
J
K
L

7
install the harness
• To play music from an auxiliary device , connect
cable connector L to the 3.5mm headphone jack on
the auxiliary music device.

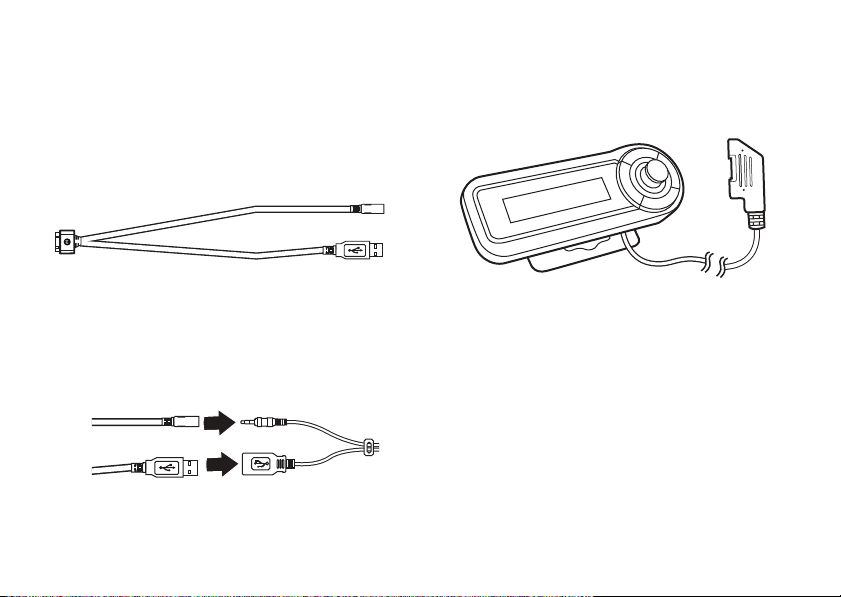

• To play music from an iPod/iPhone , use the
second audio cable (supplied):
1 Connect cable connector O to the iPod/iPhone.
2 Connect cable connectors K and L on first audio
cable to connectors M and N on second audio
cable.
mount and connect the user interface
module
Use the User Interface Module (UIM) to operate your car
kit.
The UIM can be mounted in two different configurations:
• directly on a flat spot within easy reach of the driver
using the supplied mounting tape
• using the supplied mounting bracket.
Caution: Do not mount in a location that obstructs driver’s
vision or interferes with operation of the vehicle.
direct to flat surface
To install the UIM directly on a flat service:
M
N
O
K
L
M
N
P

8
install the harness
Note: It is recommended to install the UIM directly on a
flat surface as a curved surface can cause difficulties in
pushing the buttons, and can cause the UIM to come
loose.
Caution: The location of the UIM must not interfere with
the vehicle's air bag deployment.
1 Clean mounting surface thoroughly with an alcohol
wipe (not supplied).

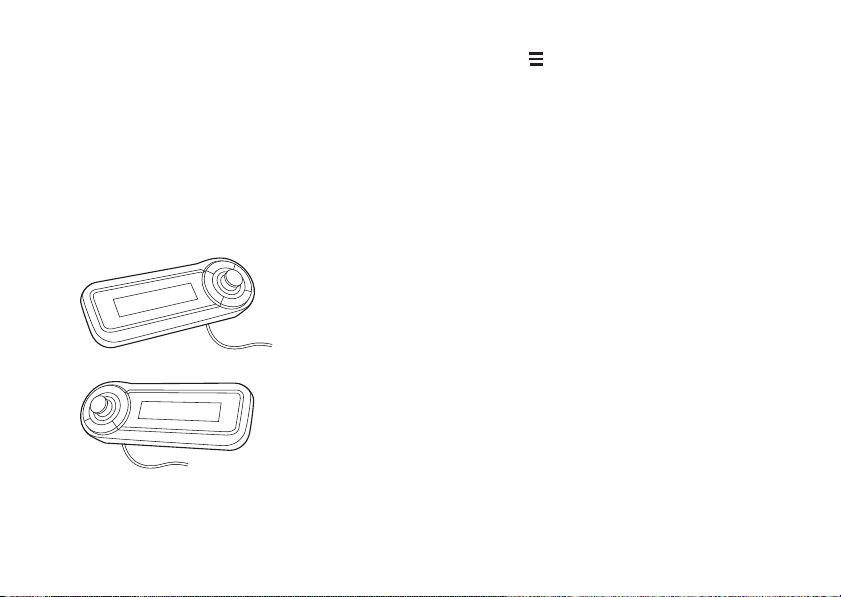

2 Select UIM orientation (controls on left or right of
display).
Note: To change screen display orientation, see “set
install preferences” on page 11.
3 Press key tabs (supplied) onto UIM:
• Place key at top position.
• Place \ key at bottom position.
4 Verify cable is fitted into a groove on the back of the
UIM. The cable must be contained in the slot to
provide a flat surface for mounting.
5 Remove one side of mounting tape (supplied) and
press firmly onto rear of the UIM.
6 Remove other side of mounting tape and attach UIM to
flat spot location on your vehicle.
7 Connect cable connector P (shown on page 7) to the
vehicle integration kit connector B (shown on page 4).
use mounting bracket
To install the UIM using the mounting bracket:
Caution: The location of the UIM must not interfere with
the vehicle's air bag deployment.
1 Clean mounting surface thoroughly with an alcohol
wipe (not supplied).
optimal for
right-handed
operation
optimal for
left-handed
operation

9
install the harness
2 Select UIM orientation (controls on left or right of
display).
Note: To change screen display orientation, see “set
install preferences” on page 11.
3 Press key tabs (supplied) onto UIM:
• Place key at top position.
• Place \ key at bottom position.

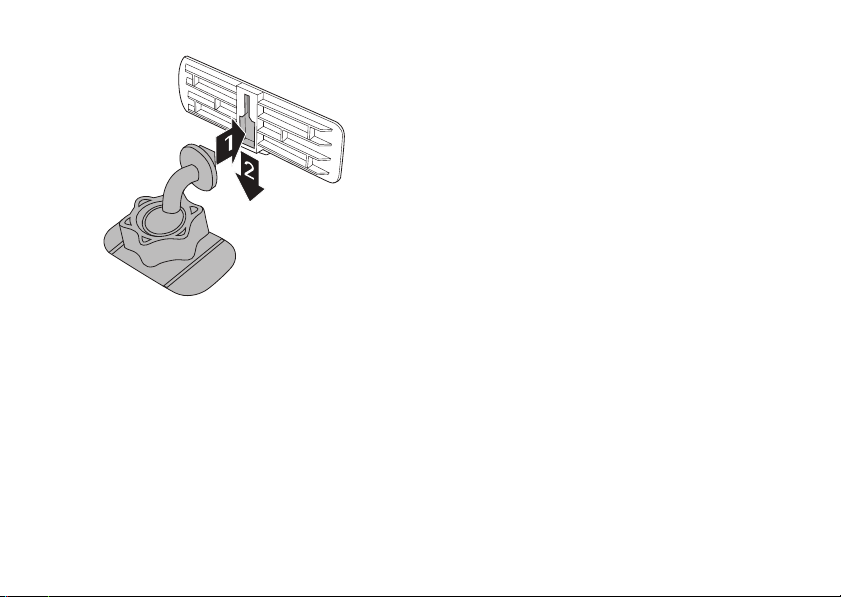

4 Place mounting nut (straight or curved) onto selected
mounting arm.
5 Push arm into mounting base, and fasten onto base
using mounting nut.
optimal for
right-handed
operation
optimal for
left-handed
operation
