Motorola WIRELESS BLUETOOTH CAR KIT CH1324A User manual

HF850
Bluetooth®Hands-free Car Kit
Manuel HF 850 105x150 26/04/2005 09:24 Page 1

Manuel HF 850 105x150 26/04/2005 09:24 Page 2

1

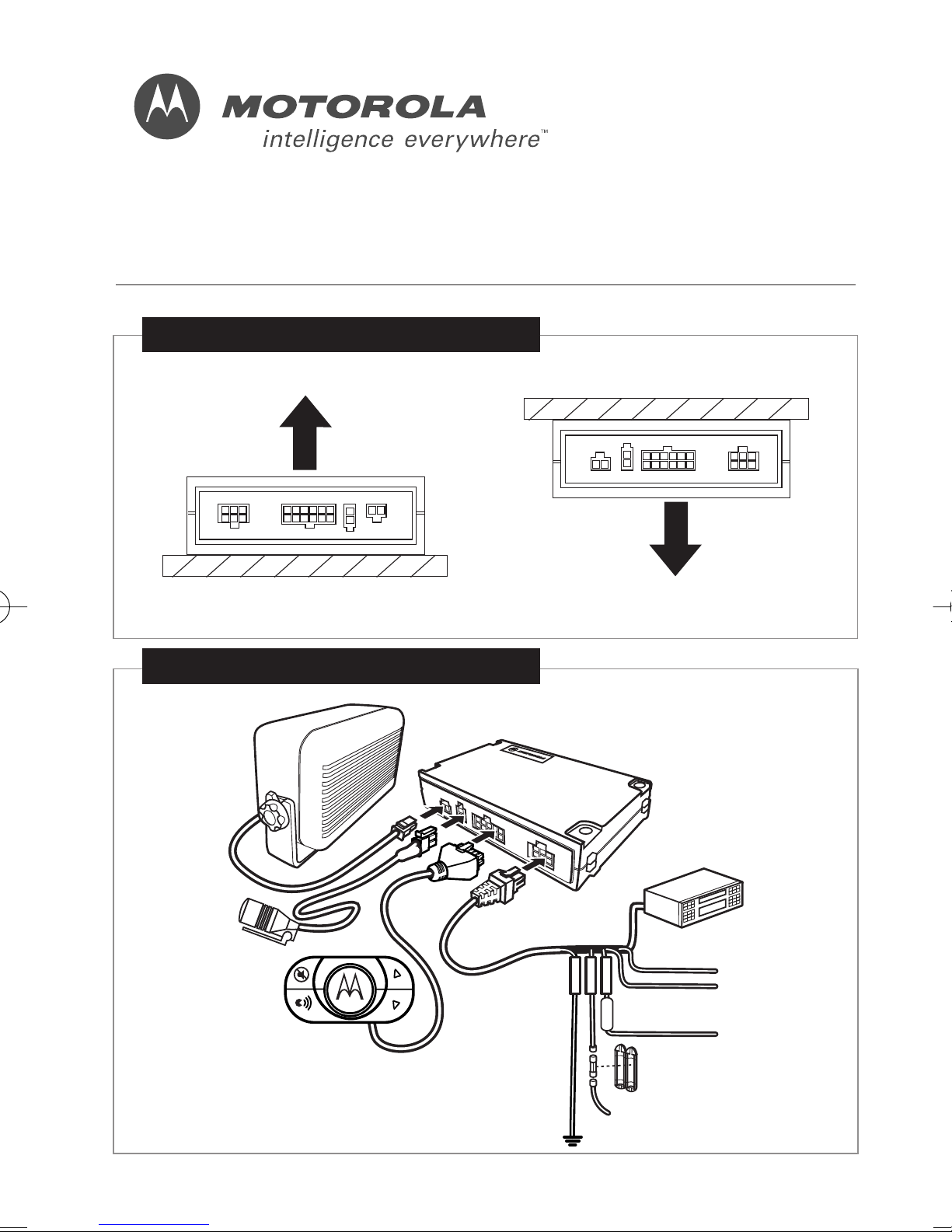

Figure 1
Installation diagrams
Figure 2
Manuel HF 850 105x150 26/04/2005 09:24 Page 3

2

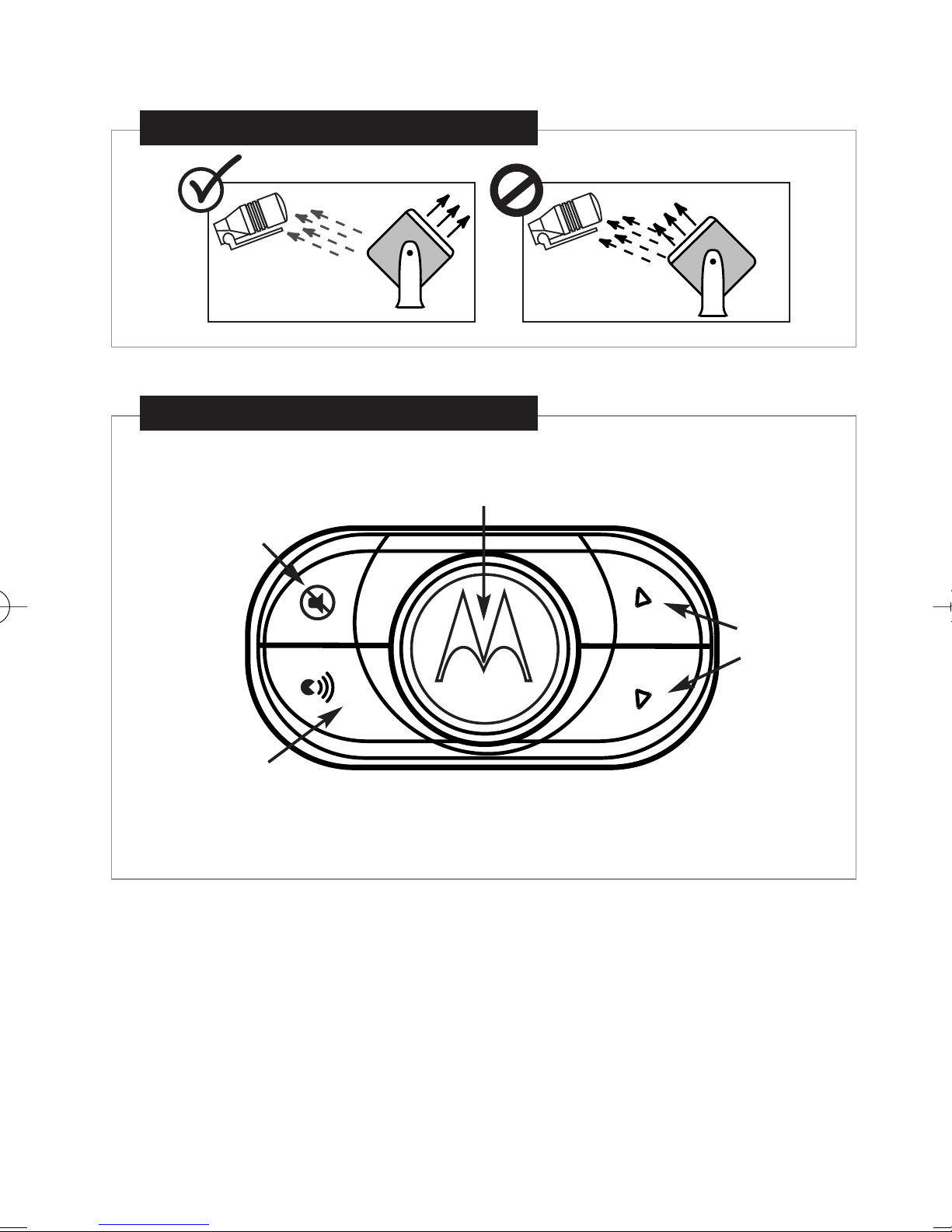

Figure 3
Figure 4
➌
➋
➊
➍
Manuel HF 850 105x150 26/04/2005 09:24 Page 4

English
Welcome
Welcome to Motorola’s “connected” world of Bluetooth® personal area wireless
networking. The Motorola Bluetooth wireless hands-free car kit makes wireless
connection simple and quick.
The advanced, sophisticated Motorola Bluetooth wireless hands-free car kit offers
these features:
• Seamless, wireless hands-free audio through Bluetooth link
• Digital audio interface with high quality, full-duplex, hands free speech
• Uses voice dialing in your phone (if available)
• Entertainment mute—automatically mutes radio during calls
• Noise reduction and acoustic echo cancellation
• Automatic volume control
• Ignition sense—continue an active call after car is turned off
• Compliance with Bluetooth Headset v1.1 & v1.2 and Bluetooth Hands Free 0.96
profiles
Note: the use of wireless devices and their accessories may be prohibited or
restricted in certain areas. Always obey the laws and regulation on the use of these
products.
3
Manuel HF 850 105x150 26/04/2005 09:24 Page 5

English
Safety and general information
Users are not permitted to make changes or modify the device in any way. Changes
or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
European Union Directives Conformance Statement
Hereby, Motorola declares that this product (HF850) is in compliance with :
• The essential requirements and other relevant provisions of Directive
1999/5/EC
You can view your product's Declaration of Conformity (DoC) to Directive
1999/5/EC (the R&TTE Directive) at www.motorola.com/rtte.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic interference (EMI)
if inadequately shielded, designed, or otherwise configured for electromagnetic
compatibility.
4
Manuel HF 850 105x150 26/04/2005 09:24 Page 6

English
Installing the Hands-free Car Kit
Guidelines for installation and connection
Only qualified personnel should install this car kit. If necessary, contact with vehicle
manufacturer for air bag information specific to the vehicle.
Caution: An air bag inflates with great force. DO NOT place objects, including
communication equipment, in the area over the air bag or in the air bag deployment
area. If the communication equipment is improperly installed and the air bag inflates,
serious injury could occur.
• Mount components securely on strong surfaces to prevent shifting that could
cause injury or interfere with safe vehicle operation. Always use the supplied
mounting hardware
• Mounted components and attached wires or cables must not interfere with seating
or leg space.
• Route cables so they are protected from pinching, sharp edges, and crushing. Keep
all in-line connectors easily accessible.
• This car kit is intended for use in 12 volt negative ground systems only. The car kit
draws less than 3 amps. Make sure that the vehicle’s electrical system can supply
this current.
Installation procedure
Caution: This car kit must be connected to a maximum 10A fuse in the car fuse panel
to prevent fire or other damages if a short circuit should occur somewhere in the
Junction Box. Before installation, unpack, assemble, and test all components on a
service bench.
Installing the Bluetooth junction box
Please refer to figure 1 on page 2.
Mount the box using the screws provided.
The best location for the Bluetooth junction box is under the dash. The box must be
protected from dirt and moisture and have adequate space for cooling and to allow
for cable connection.
5
Manuel HF 850 105x150 26/04/2005 09:24 Page 7

English
For optimal Bluetooth performance, mount the junction box so that the side with the
barcode faces away from the mounting surface.
The location MUST NOT interfere with the vehicle’s air bag deployment.
Installing the power cable and fuse kit
Please refer to figure 2 on page 1.
Caution: Failure to follow these steps may cause the accessory not to work properly
and may cause damage to the car kit.
1Remove all fuses and tape them to their respective holders. DO NOT re-insert
fuses until you complete and inspect all connections.
2Connect the fuse kit’s GREEN Ignition Sense wire (3 amp fuse) to an ignition
switched location on the fuse block. When the ignition is off, the ignition sense
line is low.
3Connect the power cable’s ORANGE Entertainment Mute Wire to the vehicle’s
entertainment system.
Note: This feature is only operational if the car radio and/or phone support this
capability. Installation may require an optional relay (not included).
4 Connect the fuse kit’s RED positive primary lead (4 amp fuse) to a point in the
vehicle’s fuse box that is fused at 4 to 10 amp.
5Connect the fuse kit’s BLACK ground wire to the vehicle chassis.
6Inspect all connections.
Note: The Yellow and Blue wires are not used.
7Re-insert all fuses. Do not replace any fuse with a higher amperage fuse.
6
Manuel HF 850 105x150 26/04/2005 09:24 Page 8

English
Installing the microphone
Note: Always use the supplied mounting hardware.
1 Attach one of the three supplied mounting clips to the microphone.
2 Select a suitable location, and mount the microphone.
• Locate the microphone no more than 16 inches (40 cm) from the driver.
• Aim the microphone directly toward the driver.
• Do not allow anything (such as a rear-view mirror or sun visor) to block the path
between the microphone and the driver.
• Mount the microphone firmly so that vibrations do not affect audio quality.
3Connect the microphone to the Bluetooth Junction Box.
Installing the external speaker
Please refer to figure 3 on page 2.
Note: Always use the supplied mounting hardware.
1Mount the speaker to the transmission hump or beneath the dash. Position the
speaker so that it does not directly face the microphone.
Caution: The location of the external speaker MUST NOT interfere with the vehicle’s
air bag deployment.
2Connect the speaker to the Bluetooth Junction Box.
7
Manuel HF 850 105x150 26/04/2005 09:24 Page 9

English
Linking your car kit and phone
The interface module
Please refer to figure 4 on page 2.
The interface module enables you to set up and use the Bluetooth Hands Free Car Kit.
(1) Multifunction button
(2) Voice dial button
(3) Microphone mute button
(4) Volume control buttons
Linking your car kit and phone
Before you can use this car kit, you must link it with your phone.
You establish a Bluetooth link between your car kit and phone with a paired link.
When you set up a paired link, the car kit remembers the phone’s ID. Once the car kit
and phone are paired, your car kit automatically connects to your phone every time
you start your vehicle or power up the car kit.
Initial pairing
With the car kit and phone in close proximity:
1. If the car kit’s multifunction button is flashing: Press and hold it until it stops
flashing.
2. Press and hold the multifunction button until a flash alternates between the
multifunction button and the voice dial button.
3. Perform a discovery device from the phone. For details on device discovery for
your phone, refer to the phone’s user’s guide.
4. Select Motorola HF850 from the list of discovered devices
5. Enter the passkey 0000 when prompted, and confirm
8
Manuel HF 850 105x150 26/04/2005 09:24 Page 10

English
Automatic connection
After initial pairing, every time you start your vehicle, your phone and car kit will
automatically be connected (if your phone’s relevant settings are not changed and it
is in power-on mode).
When the wireless connection is established, the Multifunction button remains lit.
If your phone is powered off when you start your vehicle, the Bluetooth connection
may not be automatically established when you turn on your phone.
To manually establish the connection:
Press the Multifunction Button after you turn on the phone.
The Multifunction Button begins to flash, and the car kit attempts to connect to your
phone.
If the wireless connection is established, the Multifunction Button will stop flashing
and remain lit.
If the connection is not established in 60 seconds, press the multifunction button
again to restart paging.
Disconnecting the car kit from your phone
To disconnect the car kit from your phone, press and hold the Voice dial Button for
more than 3 seconds. The car kit and phone are automatically disconnected when
you turn off the vehicle, unless you are in an active call.
9
Manuel HF 850 105x150 26/04/2005 09:24 Page 11

English
Using your car kit
To use the functions described below, a Bluetooth link must be established between
the car kit and your phone. Most phones automatically activate a Bluetooth connection
when you place a call.
Volume Buttons
Press the volume buttons on the car kit to increase and decrease the volume.
If you press and hold a volume button, the volume is automatically increased or
decreased to the highest or lowest step.
You can also adjust the volume remotely by pressing the phone’s volume buttons, if
your phone supports this feature.
Placing a call
You can place a call with the car kit in these ways:
• Dial a number from the phone
• Press the Voice Dial button and follow the phone’s instructions for voice dialing
• Press and hold the multifunction button for 3 seconds to redial the last number
Answering/rejecting a call
While the phone is ringing, answer the call by briefly pressing the multifunction
button. The Mute button lights during a call. You can reject the call by holding the
multifunction button for 3 seconds.
Ending a call
To end a call, press the multifunction button for 1 second.
10
Manuel HF 850 105x150 26/04/2005 09:24 Page 12

English
Muting and Un-muting a call
To mute the microphone during a call, press the car kit’s mute button. The mute
button will flash, and the other party will not be able to hear you. To un-mute the call,
press the mute button again.
Transferring a Call
From the car kit to your phone:
During a call, press and hold the Voice Dial Button for more than 3 seconds (most
phones prompt you to accept the transfer before completing the transfer).
From your phone to the car kit:
During a call, press and release the Multifunction Button (some phones require you
to press the multifunction button twice. See the user’s guide for your phone for more
information).
Receiving a second call
If you receive a call while you already have a call in progress, you can end the
current call or place it on hold while you answer the second call.
• To reject the second call, hold the Mute button for 3 seconds.
• To end the current call and answer the second call, press the Multifunction button
for 1 second.
• To put the current call on hold and answer the second call, hold the Multifunction
button for 3 seconds. The Voice Dial button flashes when a call is on hold.
• To switch between the active and held calls, hold the multifunction button for
3 seconds. To end a call on hold, press the Voice Dial button for 1 second.
Note: Call waiting is a subscription-dependent feature. Contact your network service
provider for more information.
11
Manuel HF 850 105x150 26/04/2005 09:24 Page 13

English
Using the car kit when the ignition is off
When your car ignition is off, you can connect the car kit to the last phone it used by
pressing the Multifunction button for 1 second.
The Multifunction button flashes as the car kit tries to connect to the phone. When
the car kit connects, the Multifunction button stays lit.
If the car kit does not connect in 1 minute, or connects but does not detect any sound
for 1 hour, it shuts off.
Troubleshooting
If you have additional questions, please call your local hotline or visit us at
www.hellomoto.com
12
You cannot pair your phone
with the car kit.
Turn the phone off and then back on
(you may need to remove the phone’s
battery).
Try pairing the phone and car kit again.
You make a call and the other party
hears too much background noise.
Check the location and placement of
your car kit’s microphone.
(See “Installing the hands free kit” for
details.)
Manuel HF 850 105x150 26/04/2005 09:24 Page 14
