Motorola V195 User manual

motorola.com
V195
GSM
English

1
HELLOMOTO
Introducing your new Motorola V195 GSM wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Navigate menus.
Select menu items.
Read messages.
Open menus.
Volume Keys
Charge up.
Right Soft Key
Turn on & off,
hang up, exit menus.
Go handsfree.
or
Make & answer calls.
Go online.
Smart Key

2
Home Screen Main Menu
Press and hold the
Power Key u for a
few seconds or until
the display lights up to
turn on your phone.
1
Press the Navigation
Key
up, down, left, or
right
( S ) to highlight
a menu feature.
3
Press the Center Key
in ( s ) to select it.
4
Press the Menu M key
to open the
Main Menu .
2
IM Ph.Book
12/31/05
12:00
Exit Select
Messages

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
© Motorola, Inc., 2006.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number: 6809501A17-O

4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 11
turn it on & off . . . . . . . 13
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
store a phone number. 14
call a stored phone
number . . . . . . . . . . . . 14
your phone number. . . 15
main attractions . . . . . . 16
t-zones. . . . . . . . . . . . . 16
Bluetooth
®
wireless . . 17
multimedia messages . 22
cable connections . . . . 24
basics . . . . . . . . . . . . . . . 25
display . . . . . . . . . . . . . 25
text entry . . . . . . . . . . . 28
volume. . . . . . . . . . . . . 32
navigation key . . . . . . . 32
smart key. . . . . . . . . . . 32
external display . . . . . . 33
handsfree speaker. . . . 33
codes & passwords. . . 33
lock & unlock phone . . 34
customize. . . . . . . . . . . . 35
ring style . . . . . . . . . . . 35
ring & event lights . . . . 36
time & date . . . . . . . . . 37
wallpaper . . . . . . . . . . . 37
screen saver . . . . . . . . 38
display appearance . . . 38
answer options . . . . . . 39
calls. . . . . . . . . . . . . . . . . 40
turn off a call alert . . . . 40
recent calls . . . . . . . . . 40
redial . . . . . . . . . . . . . . 41
return a call . . . . . . . . . 41
caller ID . . . . . . . . . . . . 42
emergency calls . . . . . 42
voicemail . . . . . . . . . . . 43
other features . . . . . . . . 44
advanced calling . . . . . 44
phonebook. . . . . . . . . . 48
messages . . . . . . . . . . 52
instant messaging . . . . 54
personalizing . . . . . . . . 55
call times . . . . . . . . . . . 58

contents
5
handsfree . . . . . . . . . . 59
data & fax calls . . . . . . 60
network . . . . . . . . . . . 60
personal organizer . . . 61
security. . . . . . . . . . . . 62
fun & games. . . . . . . . 62
service and repairs . . . . 65
SAR Data. . . . . . . . . . . . 66
EU Conformance . . . . . 68
Safety Information . . . . 70
Warranty . . . . . . . . . . . . 75
Hearing Aid
Compatibility . . . . . . . . 79
WHO Information . . . . . 80
Product Registration . . 80
Export Law Assurances 81
Wireless: The New
Recyclable . . . . . . . . . . 81
Smart Practices While
Driving. . . . . . . . . . . . . . 82
index . . . . . . . . . . . . . . . 84

6
menu map
menu map
main menu
! Voi c e N otes
ã IM
& Help
s Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times *
e Messages
• Create Message
• Message Inbox
•Voicemail
•QuickNotes
• Picture Msg Template
•Drafts
• Outbox
• Browser Msgs *
• Info Services *
n Phonebook
# Get More
h Fun & Apps
• Games & Apps
•Pictures
• Sounds
w Settings
• (see next page)
* optional features
This is the standard main
menu layout.
Your phone’s
menu may be different.

menu map
7
settings menu
É Tools
• SIM Applications *
• Web Access *
• t-zones
• Web Shortcuts
• Stored Pages
•History
•GoToURL
•BrowserSetup
• Calculator
• Datebook
• Shortcuts
•AlarmClock
• Dialing Services
• Fixed Dial *
l Personalize
• Home Screen
• Main Menu
• Color Style
• Greeting
• Wallpaper
• Screen Saver
t Ring Styles
•Style
• style Detail
• Ring Lights
• Event Lights
L Connection
• Bluetooth™ Link
•Sync
H Call Forward *
•VoiceCalls
• Fax Calls *
• Data Calls *
• Cancel All
• Forward Status
U In-Call Setup
• In-Call Timer
• My Caller ID
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• 1-Touch Dial
• Display Timeout
• Backlight
• TTY Setup *
•Scroll
• Language
• Contrast
• Brightness
•DTMF
• Master Reset
• Master Clear
m Phone Status
•MyTel.Numbers
• Active Line *
•BatteryMeter
• Software Update
• Other Information
S Headset
• Auto Answer
• Voice Dial
J Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
j Network
•NewNetwork
•NetworkSetup
• Available Networks
• Call Drop Tone
u Security
• Phone Lock
• Lock Application
• Fixed Dial *
• SIM PIN
• New Passwords
• Certificate Mgmt *
c Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Backlight
* optional features

8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F. To clean your phone, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven. Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: M > sRecent Calls > Dialed Calls
This example shows that, from the home
screen, you press the menu key
M to open
the menu. Scroll to and select
sRecent Calls ,
then scroll to and select
Dialed Calls .
Press the navigation key
S to scroll to a
menu feature. Press the center key
s to
select the highlighted menu feature.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.

10
essentials
SIM card
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
You r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
12
3
Note:
Make sure the
gold SIM card
contacts are facing
down.
4

11
essentials

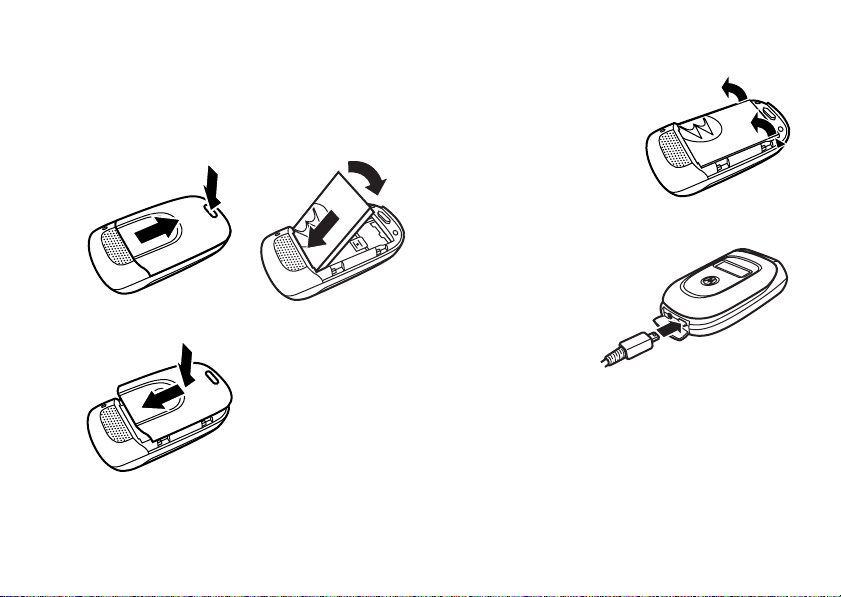

battery
battery installation
battery removal
To r e m ov e t h e b a t te r y ,
remove the battery
cover and pull the
bottom of the battery up
out of the phone.
battery charging
New batteries are
not fully charged.
Plug the battery
charger into your
phone and an
electrical outlet.
Your phone might take several seconds to
start charging the battery. Your display shows
Charge Complete when finished.
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
12
3

12
essentials
Your phone has a light just below the external
display that can pulse when you charge your
battery. To turn this light on or off, see
page 36.
You can charge your battery by
connecting a cable from your
phone's mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging

13
essentials
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in the
gray-edged pages at the back of this guide.
turn it on & off
Caution: Some phones ask for your SIM card
PIN code when you turn them on. If you enter
an incorrect PIN code 3 times in a row, your
SIM card is disabled and your display shows
SIM Blocked . Contact your service provider.

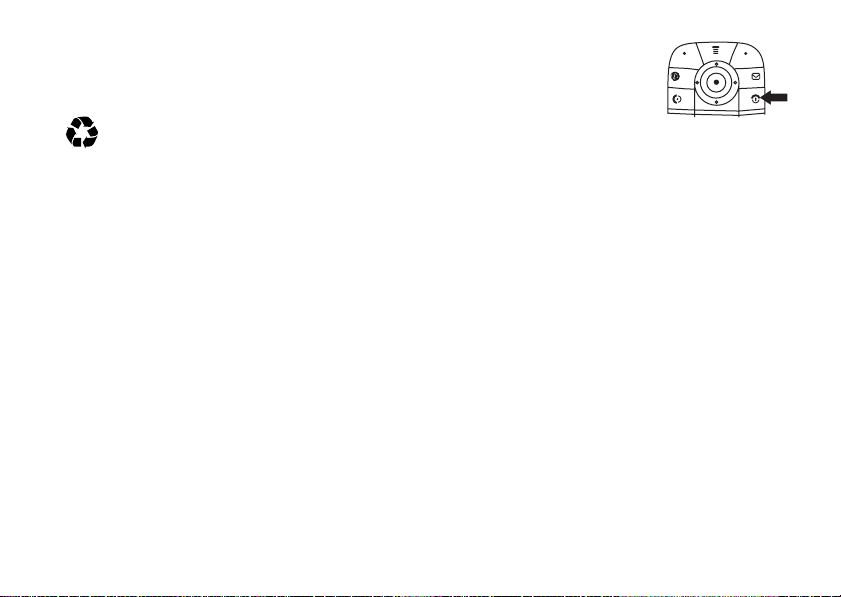

To turn on your phone,
press and hold
O for a
few seconds or until the
display turns on. If
prompted, enter your
6-digit SIM card PIN code and/or 4-digit unlock
code.
To turn off your phone, press and hold
O for
a few seconds.
make a call
Enter a phone number and press N to make
a call.
To “hang up,” close the flip or press
O .
answer a call
When your phone rings and/or vibrates, just
open the flip or press
N to answer.
032375o

14
essentials
To “hang up,” close the flip or press O .
store a phone number
You can store a phone number in your
Phonebook :
1 Enter a phone number in the home
screen.
2 Press the Store key.
3 Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s .
Note: You can store a phonebook entry on
your phone or on your SIM card. In the
entry, select
Store To and choose Phone or
SIM . Entries stored on the SIM card can
only include name and number details.
4 Press the Done key to store the number.
To edit or delete a
Phonebook entry, see
page 48.
To store an email address, press
M
>
nPhonebook , then press
M > New > Email Address
call a stored phone
number
Find it: M > nPhonebook
1 Scroll to the phonebook entry.
Shortcut: In the phonebook, press
keypad keys to enter the first letters of an
entry name, then press the
Search key to
jump to the entry.
2 Press N to call the entry.

15
essentials
your phone number
From the home screen, press M# to see
your number.
Tip: Want to see your phone number while
you’re on a call? Press
M > My Tel. Numbers .
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
M# , select an
entry, press the
View key, and press the Edit
key. If you don’t know your phone number,
contact your service provider.

16
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
t-zones
With t-zones, you can access
information wirelessly from your phone
whenever you want. Instantly check on
information like flight departures, movie
times, a good restaurant, plus up-to-date
information on sports, news, weather or
traffic in you area.
Find it: t > t-zones and choose:
options
Hot Picks Download the latest ringtones,
wallpapers, and more.
Music &
Sounds
Download ring tones, sounds,
music, and voice recordings.
Wallpaper Download new phone display
wallpaper.
StylePaper Download T-Mobile display
wallpaper.
Games Download games to play your
phone.
Messaging Access Text/IM, Pix, along with
Voice Notes.
Web &
Applications
Access My Album or set up alerts.
options

17
main attractions
Note: Normal airtime and/or carrier usage
charges apply.
store Web pages
You can store your favorite Web pages so that
you can get to them faster.
1 Go to a favorite Web page.
2 Press M > Store > Page .
3 Press the Yes softkey to confirm.
When you want to open the page again, press
M > wSettings > Tools > Web Access
>
Stored Pages and select the page name.
Bluetooth®wireless
Your phone supports Bluetooth wireless
connections. You can connect your phone
with a Bluetooth headset or car kit to make
handsfree calls. You can connect your phone
with a phone or computer that supports
Bluetooth connections to exchange files.
Note: The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
Note: Your phone's Bluetooth features and
Bluetooth Class 1 power levels are not
allowed for outdoor operation in France. To
avoid unlawful interference with radio
411 & More Look up phone numbers, movie
times, sport scores, weather,
and more.
options

18
main attractions
signals, do not use the Bluetooth features
in France unless you are indoors.
For maximum Bluetooth security
, you
should always connect Bluetooth devices in a
safe, private environment.
turn Bluetooth power on or off
Find it: M > wSettings > Connections
>
Bluetooth Link > Setup > Power > On
Note: To extend battery life, use this
procedure to set Bluetooth power to
Off when
not in use. Your phone will not connect to
devices until you set Bluetooth power back to
On and connect your phone with the device
again.
use a headset or handsfree car
kit
Before you try to connect your phone with
a handsfree device
, make sure the device is
on and ready in pairing or bonding mode
(see the user’s guide for the device). You can
connect your phone with only one device at a
time.
Find it: M > wSettings > Connections
>
Bluetooth Link > Handsfree > [Look For Devices]
Your phone lists the devices it finds within
range.
1 Scroll to a device in the list and press the
center key
s .
2 Press the Yes or OK key to connect to the
device.
3 If necessary, enter the device passkey
(such as
0000 ) and press the OK key.
