PTT Beta 2 User Guide
PTT Beta 2
User Instructions

2
PTT Beta 2 User Guide
Table of Contents
Section 1: Getting Started
Section 2: Preparing the Phone for a PTT Call
Section 3: Initiating a PTT Barge Call (One-to-One & Group)
Initiating a PTT Alert Call (One-to-One)
Section 4: In a PTT Call
Section 5: Receiving a PTT Call (Barge & Alert)
Section 6: Missed Calls
Section 7: “Sort By” in the PTT Contact List

3
PTT Beta 2 User Guide
Table of Contents
Section 8: “Open To” in the PTT Contact List
Section 9: Switching Speakerphone On and Off
Section 10: PTT Calling States
Section 11: PTT Error Messages
Section 12: V60p –Final Design

4
PTT Beta 2 User Guide
Section 1: Overview
•These are the User Instructions for the PTT BETA 2
Release of the Motorola V60p Push-To-Talk handset.
•This document is intended to support Verizon PTT user
testing of the BETA 2 software.
•These user instructions reflect the most current version of
the V60p PTT handset software and are representative of
the final product except for the following functionality
which will be available when the final PTT server is
installed in the Verizon network:
–Presence functionality for 150 people and 50
groups. Currently, presence is available for the first
16 contacts in the PTT Contact List.
–Alert feedback
–Missed calls while on PTT call

5
PTT Beta 2 User Guide
Section 1: PTT Set-Up
In advance of using your PTT service, the following
activities should be completed and verified:
•Contact your PTT Trial Administrator and confirm that
your PTT handset has been provisioned on the Winphoria
PTT server and you have Express Network service.
•Via the PTT Trial website, set-up your PTT Contact List for
download to your PTT handset.
•Ensure that you have the Speakerphone attachment to
support PTT high audio. (Note: the PTT trial handset is a
modified V60x which requires a speakerphone
attachment. The final PTT handset will have an
integrated speakerphone)

6
PTT Beta 2 User Guide

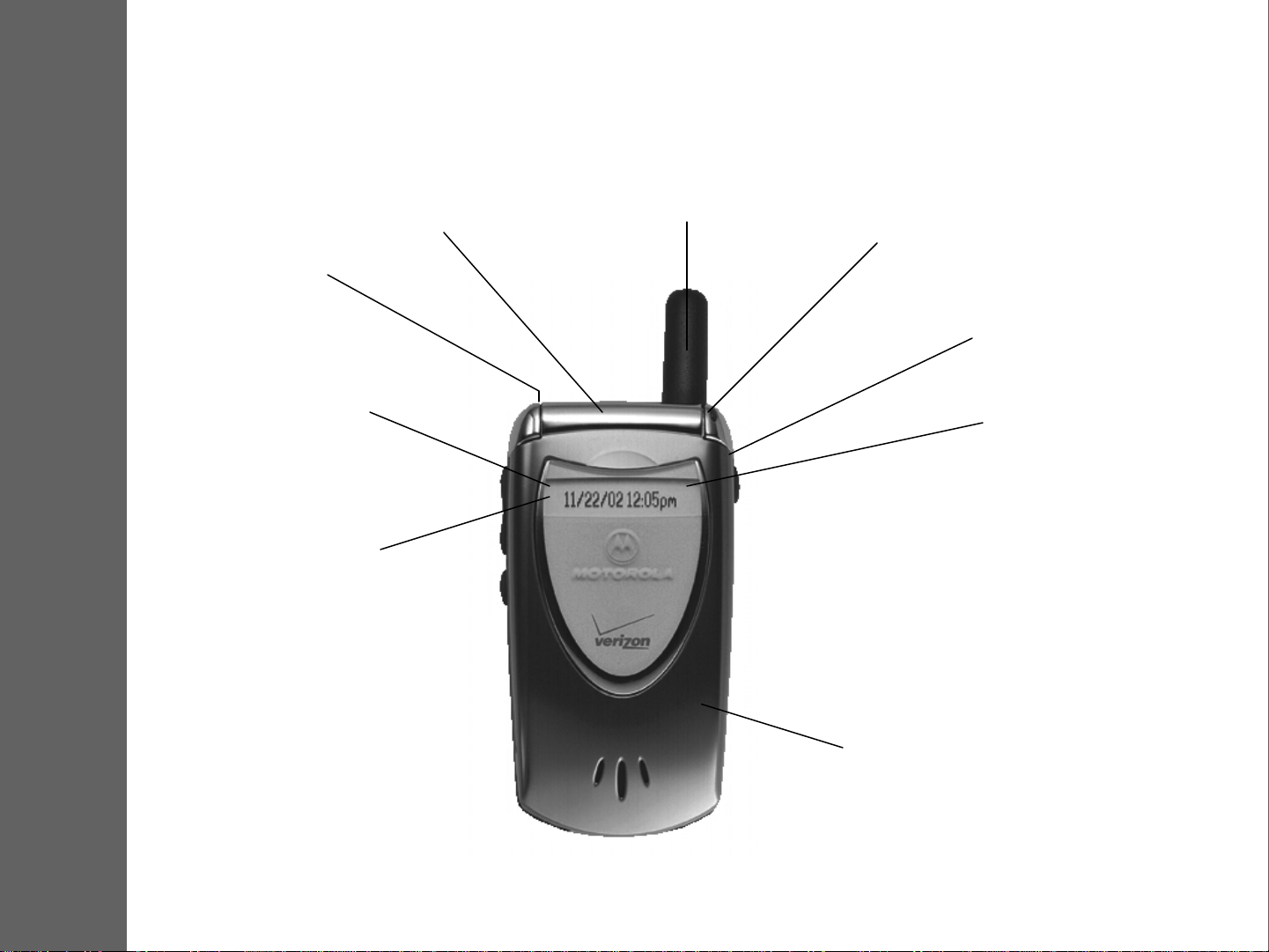

Section 1: PTT Beta Handset Overview
v60X
Headset Port
-For connection to
portable, hands free
headset.
Removeable front
covers/lenses
Metal front cover is
consumer replaceable by
sliding down along y -axis
Barrell Finish
Barrell color and finish
now matches knuckels
(high gloss chrome)
EL Backlighting
TMF (Twisted Mirror Film)
In Call Display
-Phone number is replaced with
inverted Carrier Banner
-Calling Line Identification
displayed on main display
Idle Mode Display
-Date and Time
-Voice Mail indicators
-Messaging indicators
-Event reminder
-Volume keys used for cycling
thru and setting alerts and call
forwarding
External Display
(96 x 16)
-Phone number displayed
-Name is displayed if in
phone book
-Icon indicating Home,
Mobile, Work, etc
Stub
Antenna
Replaceable
Covers
Release
Button
Status Light
Indicator

7
PTT Beta 2 User Guide
Open and Close Phone
-Like the flip on our StarTACTM phones, opening
the phone answers a call and closing it ends a call
(unless Key Answer Only is selected).
Display
-EL Backlighting
-TMF Display Technology
-Easy to read 96 x 64 pixel display with 3 lines of
text, 1 line of icons and 1 line of prompts.
VA / VR Button
-Press this button and speak the pre-recorded
voice tag to access voice dialing and other menu
shortcuts linked with a tag. Also used for
VoiceNotes.
Keypad
-Large, well spaced, tactile keys ensure accuracy
and speed.
Volume Buttons/PTT Button
-Top two buttons adjust keypad, earpiece
and ringer volumes.
-Bottom button is PTT Key
Power Key
-Powers phone on and off
Connector Port
-Gives you the ability to expand the use of
your phone through the many accessories
offered… chargers, vehicle power adapter
and data accessories.
Internal Lens
Minor modification to shape of internal
lens. All other elements and graphics will
be the same as current V60i.
Earpiece
-High quality sound and
a comfortable fit.
Section 1: PTT Beta Handset Overview
v60X

8
PTT Beta 2 User Guide
Section 2: Getting Started
STEP 1.) Turn on your V60x/p by
pressing the “PWR” key
at the bottom left
corner of the keypad.
STEP 2.) Upon power up, the
Main Menu or Idle
Screen will appear.
STEP 3.) The V60x/p will
automatically search for
the CDMA 1X Network
and if located, register
on the PTT server.
STEP 4.) The “1X” icon will
appear at the top of the
display. Once the
V60x/p is registered
with the PTT server, the
inverted 1X icon will
appear signaling that
you are able to make
and receive PTT calls.
Idle Screen
Note: During power-up, the phone automatically
registers on the CDMA 1X and PTT networks.
This process typically requires up to 1 minute.
During the registration process, voice service is
not available.

9
PTT Beta 2 User Guide
Section 3: Initiating a PTT Call
•There are two types of PTT calls: Barge and Alert.
–Barge calls allow you to initiate a PTT call and speak
immediately to the called party.
–Alert calls provide the called party with an Alert
informing them of your incoming PTT call.
•There are 4 options to initiate a PTT call:
–Option 1: Select PTT name from PTT Contact List
–Option 2: Enter PTT number via keypad
–Option 3: Select PTT number (or name) from Dialed
and Received Calls
–Option 4: Select PTT number from Phonebook

10
PTT Beta 2 User Guide
Section 3: Initiating a PTT Call
Initiating PTT
Barge Calls

11
PTT Beta 2 User Guide
Section 3: Initiating a PTT Barge Call
via Contact List (Option 1)

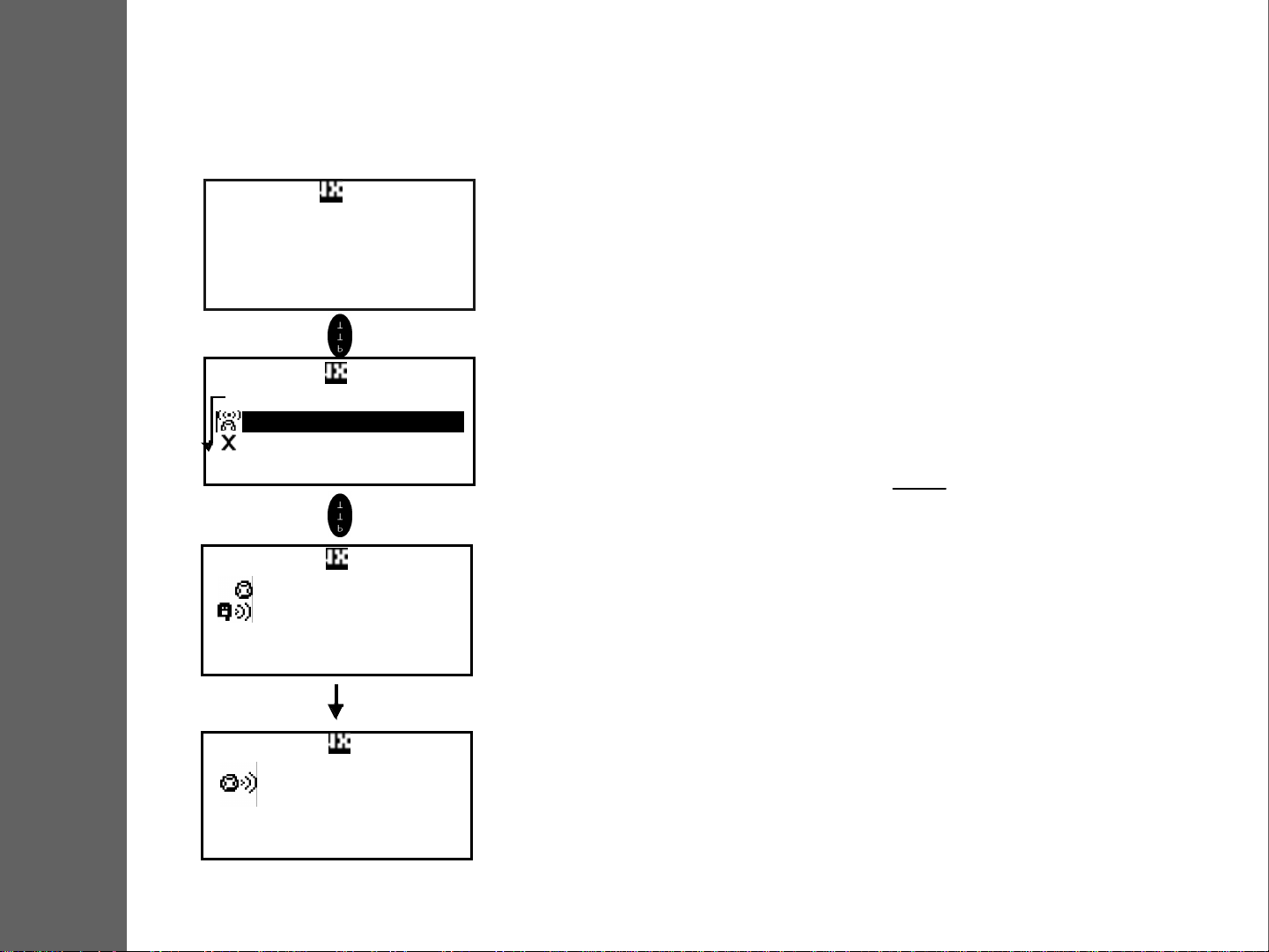

STEP 1.) From Idle, press and release the PTT
button. The PTT Contact List will
appear on the display.
STEP 2.) Use the arrow keys to scroll through
the PTT Contact list and select
(highlight) the person or group to be
Barged.
STEP 3.) Press and hold the PTT button. The
“Connecting …” screen will appear.
STEP 4.) You will hear a tone indicating that you
can speak and the “Talking To” screen
will appear. Begin talking and release
PTT key when done. (Please see
Section 4 “In a PTT Call” for additional
detail on the in-call process).
STEP 5.) If the called party is unavailable (e.g.,
the handset might be turned off or out
of the PTT coverage area), then the
“Unavailable” screen will appear. Refer
to Section 11 for other error conditions.
PH.BOOK MESSAGEM
12:00
Verizon
12/30/02
ALERTM
PTT Contacts
Bill
Justin
EXIT
Connecting...
Bill
EXIT SPEAKER
Talking to
Bill
release PTT Button
user presses and
holds PTT button;
‘Connection to Speak’
tone played

12
PTT Beta 2 User Guide
Section 3: Initiating a PTT Barge Call
via Keypad
STEP 1.) From the main menu, enter the PTT
number via the keypad.
STEP 2.) Press and hold the PTT button. The
“Connecting …” screen will appear.
STEP 3.) If the called party is unavailable (e.g.,
the handset might be turned off or out
of the PTT coverage area), then the
“Unavailable” screen will appear. Refer
to Section 11 for other error conditions.

13
PTT Beta 2 User Guide
Section 3: Initiating a PTT Barge Call
via Dialed & Received Calls

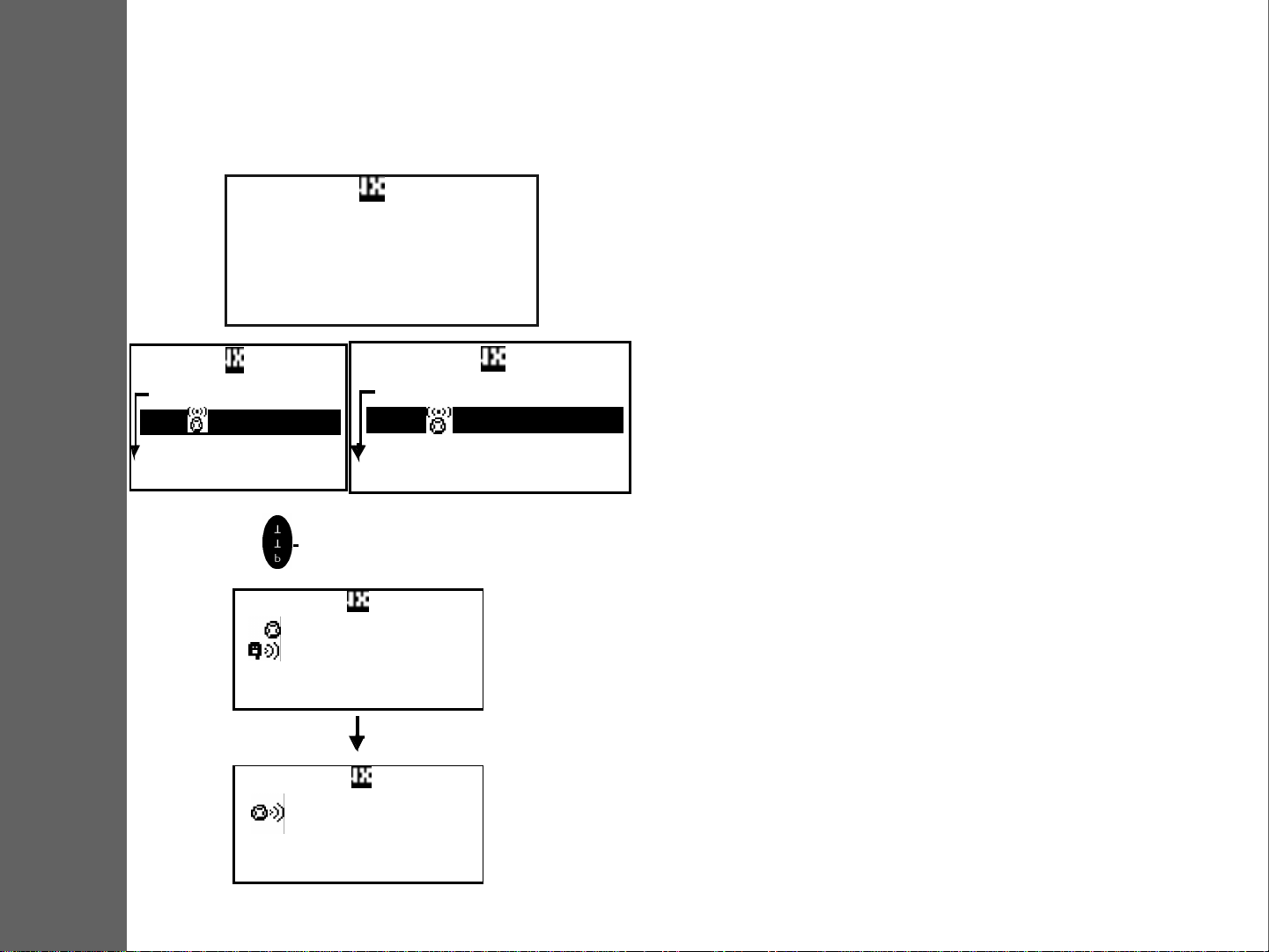

STEP 1.) From the idle screen, press the Menu button.
The Recent Calls option will appear. Press the
“Select” soft key which will appear at the bottom
right corner of the display.
STEP 2.) Use the arrow keys to scroll through the Recent
Calls options and select (highlight) either
Received Calls or Dialed Calls. Press the “Select”
soft key. A list of your last ten calls will appear.
STEP 3.) Use the arrow keys to scroll through the list of
calls (Dialed or Received) and select (highlight)
the person to be Alerted. Presence icons denote a
PTT call.
STEP 4.) Press and hold the PTT button. The “Connecting
…” screen will appear.
STEP 5.) You will hear a tone indicating that you can speak
and the “Talking To” screen will appear. Begin
talking and release PTT key when done. (Please
see Section 4 “In a PTT Call” for additional detail
on the in-call process).
STEP 6.) If the called party is unavailable (e.g., the
handset might be turned off or out of the PTT
coverage area), then the “Unavailable” screen
will appear. Refer to Section 11 for other error
conditions.
Please see Section 4 for
detail on the in-call
process once the Alert
has occurred.
BACK VIEWM
--Dialed Calls--
10) Bill
√9)Justin
PH.BOOK MESSAGEM
12:00
Verizon
12/30/02
BACK VIEWM
-Received Calls-
10) Bill
√9)1-847-438-236
user presses and
holds PTT button;
‘Connection to Speak’
tone played
Connecting...
Bill
EXIT SPEAKER
Talking to
Bill
releasePTTButton

14
PTT Beta 2 User Guide
Section 3: Initiating a PTT Barge Call
via Phonebook

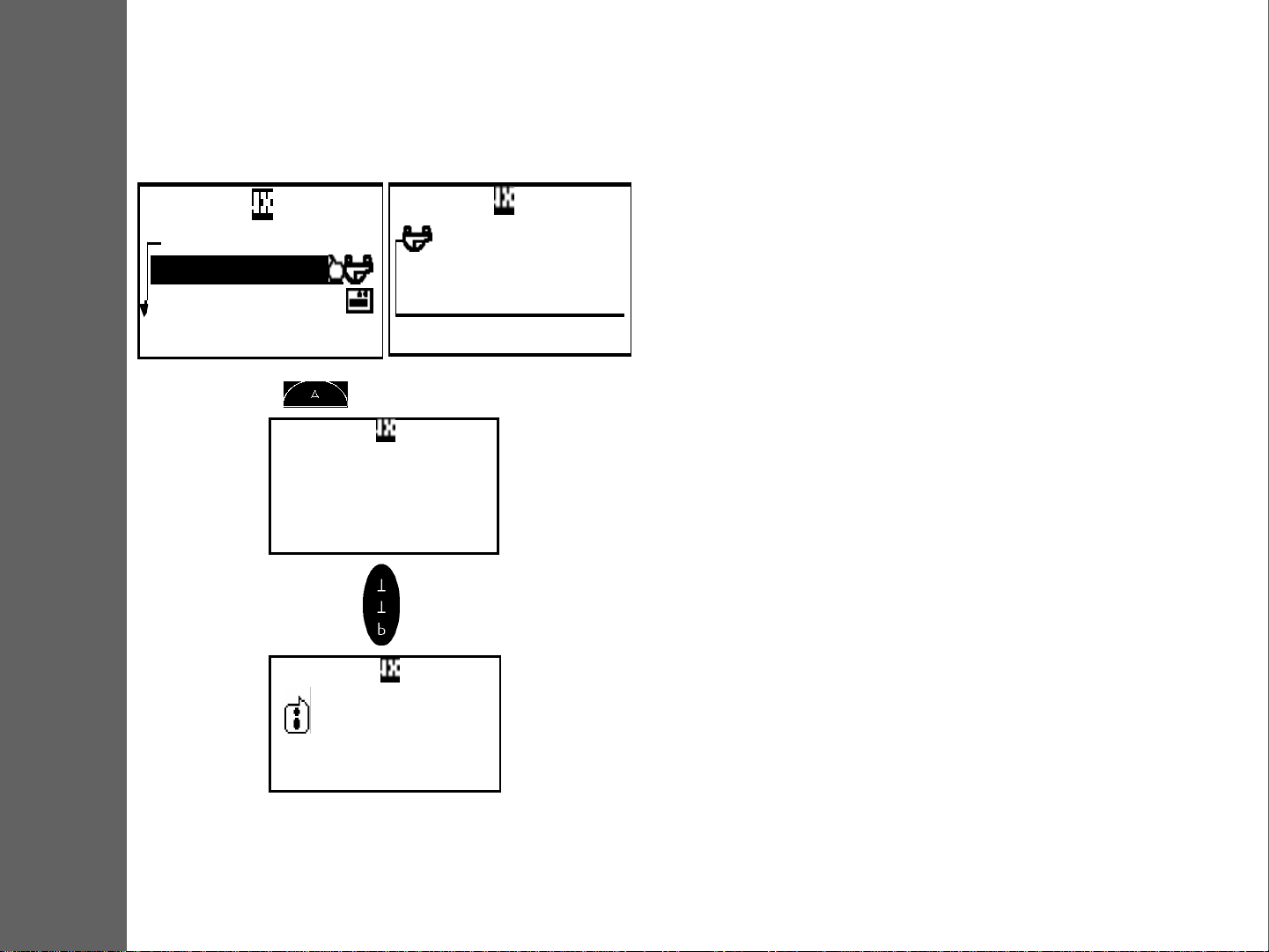

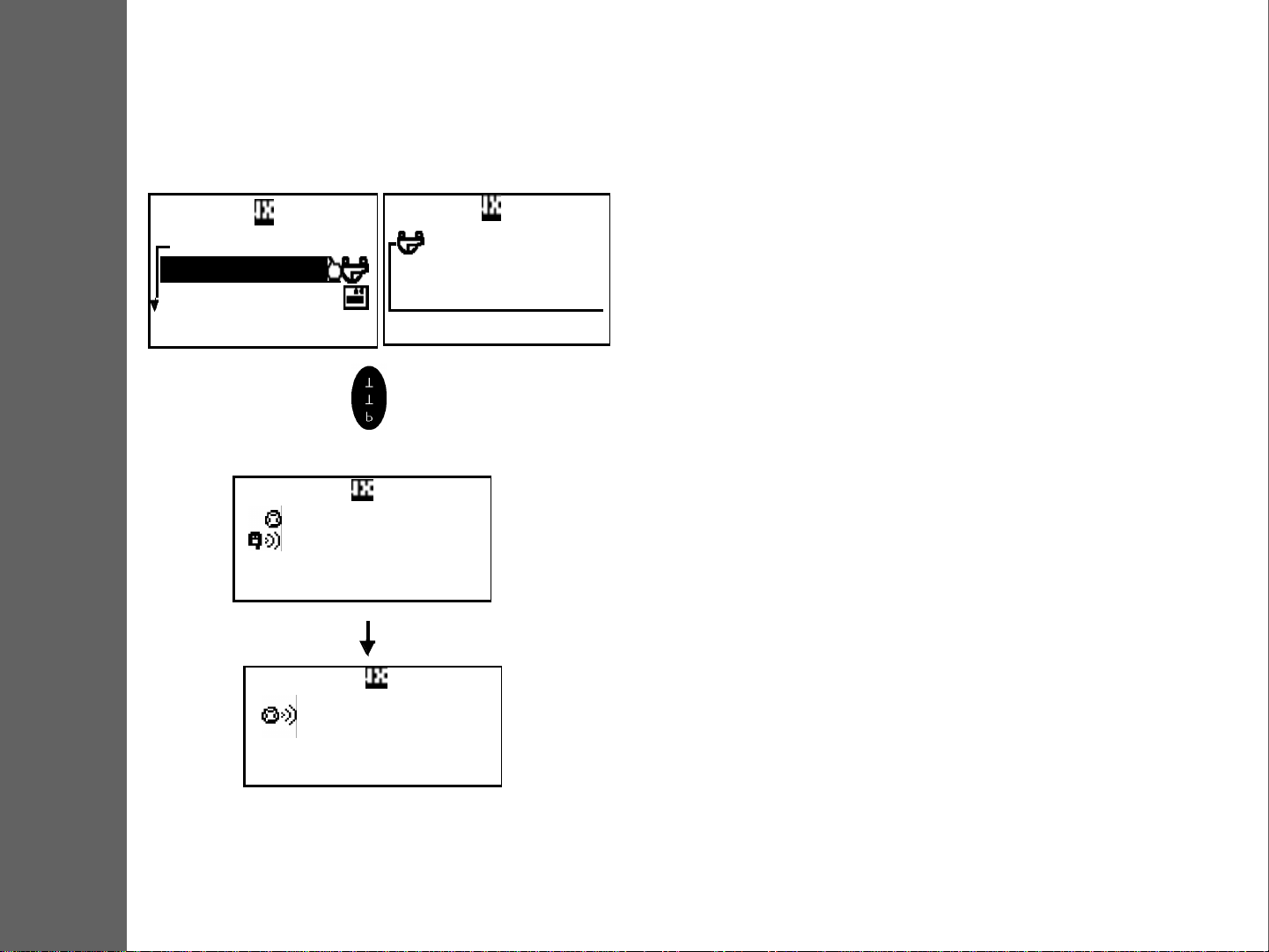

STEP 1.) From the Idle Screen, press the Menu key.
The list of menu items will appear on the
display.
STEP 2.) Use the arrow keys to scroll through the list
and select Phonebook. Scroll through the
Phonebook and select (highlight) the person
or group to be Barged.
STEP 3.) Press and hold the PTT button. The
“Connecting …” screen will appear.
STEP 4.) You will hear a tone indicating that you can
speak and the “Talking To” screen will appear.
Begin talking and release PTT key when done.
(Please see Section 4 “In a PTT Call” for
additional detail on the in-call process).
STEP 5.) If the called party is unavailable (e.g., the
handset might be turned off or out of the PTT
coverage area), then the “Unavailable” screen
will appear. Refer to Section 11 for other error
conditions.
EXIT VIEWM
---Phonebook----
Bill
Justin BACK EDITM
Bill
847-555-3416
Speed No.15#
user presses and
holds PTT button;
‘ConnectiontoSpeak’
tone played
Connecting...
Bill
EXIT SPEAKER
Talking to
Bill
release PTT Button

15
PTT Beta 2 User Guide
Section 3: Initiating a PTT Call
Initiating PTT
Alert Calls

16
PTT Beta 2 User Guide

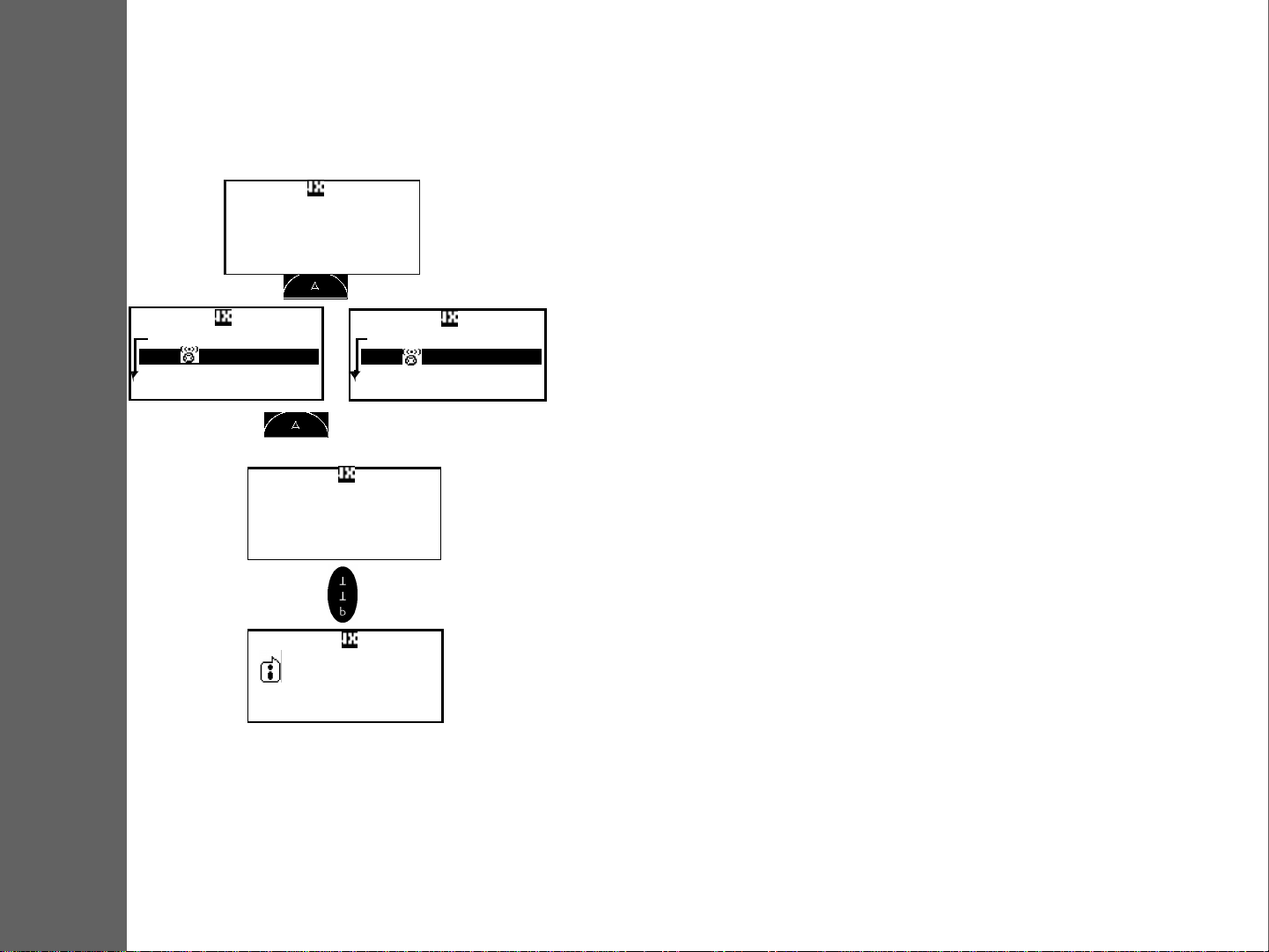

Section 3: Initiating a PTT Alert Call via
Contact List
STEP 1.) From the main menu, press and
release the PTT button. The PTT
Contact List will appear on the display.
STEP 2.) Use the arrow keys to scroll through
the PTT Contact list and select
(highlight) the person to be Alerted.
(Note: Groups can not be Alerted.)
STEP 3.) Select the “Alert” soft key which will
appear at the bottom right corner of
the display.
STEP 4.) Press and release the PTT button. You
will hear a tone indicating the Alert has
been sent. (Please see Section 4 “In a
PTT Call” for additional detail on the
in-call process).
STEP 5.) To end the PTT call, pres the “END”
button on the keypad or the “Exit” key
on the display. Refer to Section 11 for
error conditions that can occur while
Alerting.
Please see Section 4 for
detail on the in-call
process once the Alert
has occurred.
CANCEL
To Alert, Press
and Release PTT
Button
EXIT SPEAKER
Alerting...
Bill
user presses PTT button ‘Ring Back’ tone played
ALERTM
PTT Contacts
Bill
Justin
EXIT

17
PTT Beta 2 User Guide

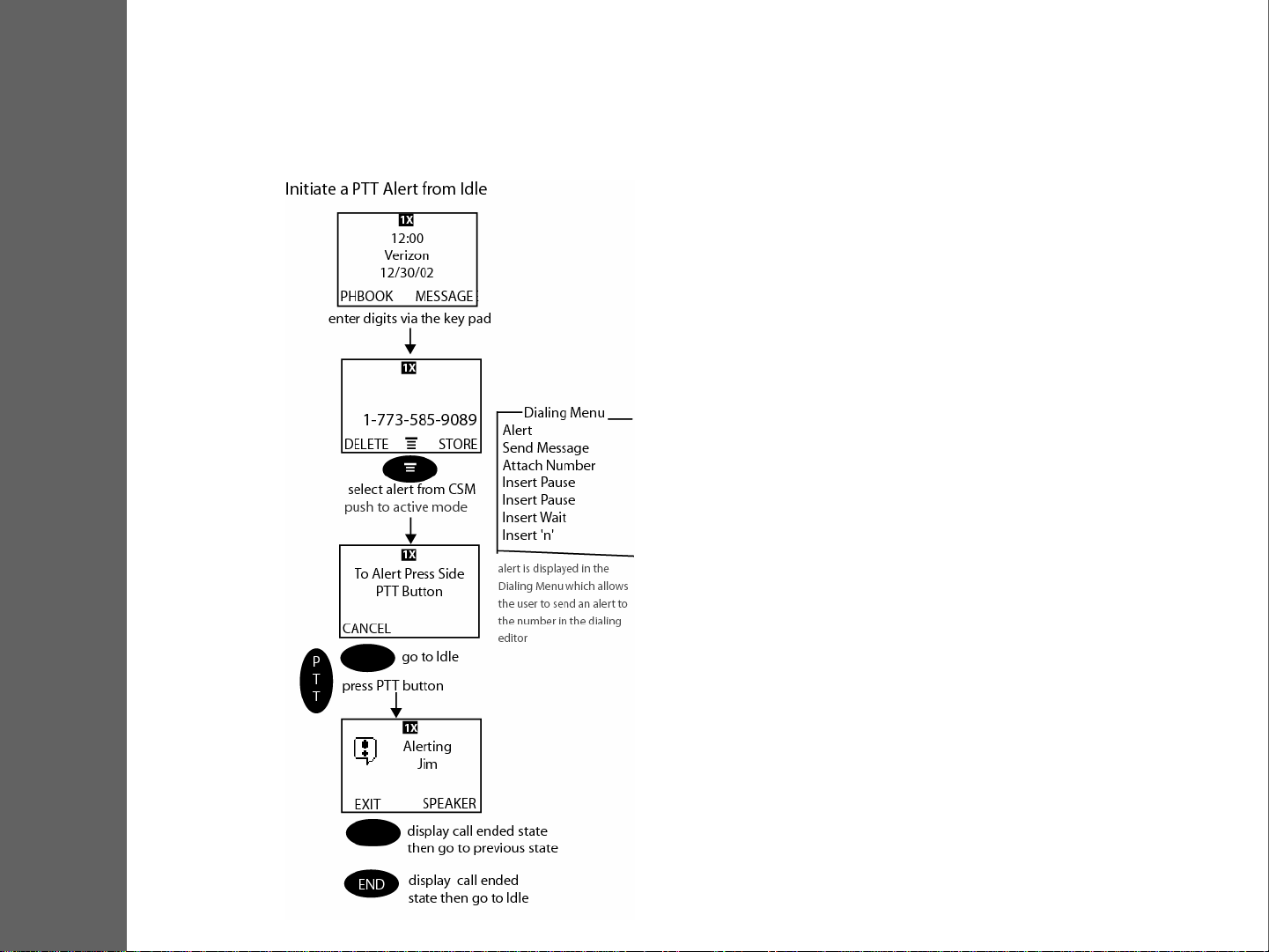

Section 3: Initiating a PTT Alert Call
via Keypad
STEP 1.) From Idle, enter the PTT number via
the keypad.
STEP 2.) Press the menu key on the bottom
center of the display.
STEP 3.) Scroll to the “Alert” option and press
the “SELECT” soft key.
STEP 4.) Press and release the PTT button.
You will hear a tone indicating the
Alert has been sent. (Please see
Section 4 “In a PTT Call” for
additional detail on the in-call
process).
STEP 5.) To end the PTT call, pres the “END”
button on the keypad or the “Exit”
key on the display. Refer to Section
11 for error conditions that can occur
while Alerting.
Please see Section 4 for
detail on the in-call
process once the Alert
has occurred.

18
PTT Beta 2 User Guide
Section 3: Initiating a PTT Alert Call via
Dialed & Received Calls
STEP 1.) From the idle screen, press the Menu button.
The Recent Calls option will appear. Press
the “Select” soft key which will appear at the
bottom right corner of the display.
STEP 2.) Use the arrow keys to scroll through the
Recent Calls options and select (highlight)
either Received Calls or Dialed Calls. Press
the “Select” soft key. A list of your last ten
calls will appear.
STEP 3.) Use the arrow keys to scroll through the list
of calls (Dialed or Received) and select
(highlight) the person to be Alerted. Presence
icons denote a PTT call.
STEP 4.) Press the Menu button and select “Alert”from
the context sensitive menu.
STEP 5.) Press and release the PTT button. You will
hear a tone indicating the Alert has been
sent. (Please see Section 4 “In a PTT Call”
for additional detail on the in-call process).
STEP 6.) To end the PTT call, pres the “END” button
on the keypad or the “Exit” key on the
display. Refer to Section 11 for error
conditions that can occur while Alerting.
Please see Section 4 for
detail on the in-call
process once the Alert
has occurred.
BACK VIEWM
--Dialed Calls--
10) Bill
√9)Justin
PH.BOOK MESSAGEM
12:00
Verizon
12/30/02
BACK VIEWM
-Received Calls-
10) Bill
√9)1-847-438-236
Select ‘Alert’ from the context
sensitive menu
CANCEL
To Alert, Press
and Release PTT
Button
EXIT SPEAKER
Alerting...
Bill
user presses PTT button ‘Ring Back’ tone played

19
PTT Beta 2 User Guide
Section 3: Initiating a PTT Alert Call
via Phonebook
STEP 1.) From the Idle Screen, press the Menu key.
The list of menu items will appear on the
display.
STEP 2.) Use the arrow keys to scroll through the list
and select Phonebook. Scroll through the
Phonebook and select (highlight) the person
or group to be Alerted.
STEP 3.) Press the Menu key and select the “Alert”
option from the context sensitive menu.
STEP 4.) Press and release the PTT button. You will
hear a tone indicating the Alert has been
sent. (Please see Section 4 “In a PTT Call”
for additional detail on the in-call process).
STEP 5.) To end the PTT call, press the “END” button on
the keypad or the “Exit” key on the display.
Refer to Section 11 for error conditions that
can occur while Alerting.
Please see Section 4 for
detail on the in-call
process once the Alert
has occurred.
EXIT VIEWM
---Phonebook----
Bill
Justin BACK EDITM
Bill
847-555-3416
Speed No.15#
CANCEL
To Alert,Press
and Release PTT
Button
EXIT SPEAKER
Alerting...
Bill
user presses PTT button ‘Ring Back’ tone played
Select ‘Alert’ from the context
sensitive menu
