Motorola W510 User manual

MOTOMANUAL
motorola W510
www.motorola.com

1
HELLOMOTO
Introducing your new Motorola W510 GSM wireless phone. Here’s a quick anatomy lesson.
To change your home screen shortcuts and your main menu appearance, see page 57.
For Push to Talk (PTT) details, see page 17.
Left Soft Key
Volume Keys
Charge up or
go handsfree.
Make &
answer calls.
Smart Key
Go online.
Scroll up,
down, left, or
right.
Open menu
and select.
Right Soft Key
Clear/Back Key
Voice
Command Key
Turn on & off,
hang up, exit
menus.

2
Home Screen Main Menu
Press the Navigation Key
up, down, left, or right
(
S ) to highlight a menu
feature.
3

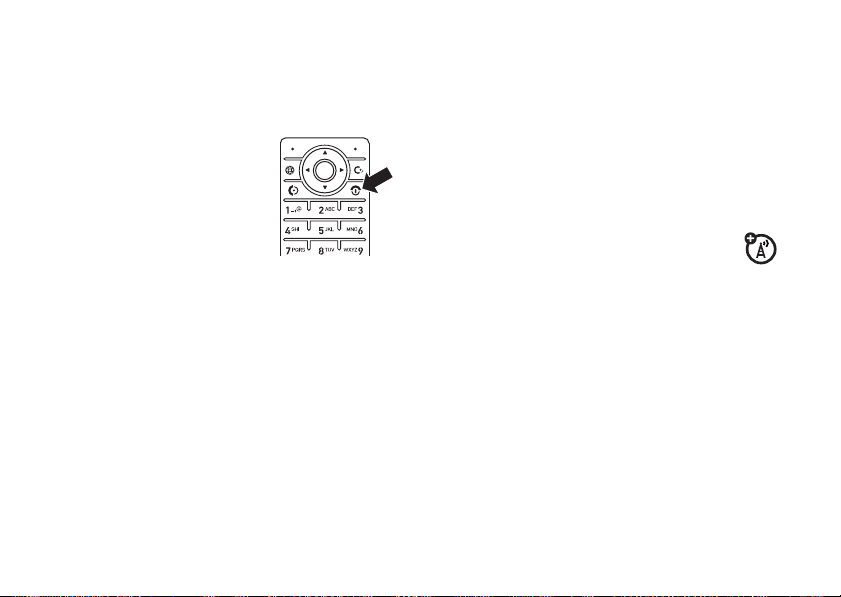

Press the Center Key s
to select it.
4
Press and hold the
Power Key O for a few
seconds or until the
display lights up to turn
on your phone.
1
Press the Center Key s
to open the
Main Menu .
2
Messages Phonebook Select Exit
Games & Apps
Service Provider
12/31/09
12:00

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Motorola Argentina S.A
Suipacha 1111 - Piso 18
C1008AAW Buenos Aires
ARGENTINA
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows and Windows Me are
registered trademarks of Microsoft Corporation; and Windows XP
is a trademark of Microsoft Corporation.
© Motorola, Inc., 2007.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number: 6809513A64-O

4
contents
contents
menu map . . . . . . . . . . . . 6
FCC Notice . . . . . . . . . . . . 8
Use and Care . . . . . . . . . . 9
essentials . . . . . . . . . . . . 10
about this guide. . . . . . 10
SIM card . . . . . . . . . . . 11
battery . . . . . . . . . . . . . 11
turn it on & off . . . . . . . 13
make a call. . . . . . . . . . 14
answer a call . . . . . . . . 14
store a phone number . 14
call a stored phone
number . . . . . . . . . . . . 15
your phone number . . . 16
main attractions . . . . . . 17
push to talk (PTT) . . . . 17
Bluetooth™ wireless . . 22
digital audio player. . . . 26
photos . . . . . . . . . . . . . 28
videos . . . . . . . . . . . . . 31
text messages. . . . . . . 33
memory card . . . . . . . . 35
cable connections . . . . 37
phone updates. . . . . . . 39
basics . . . . . . . . . . . . . . . 40
display . . . . . . . . . . . . . 40
text entry . . . . . . . . . . . 43
volume. . . . . . . . . . . . . 47
navigation key . . . . . . . 48
voice commands . . . . . 48
external display . . . . . . 50
handsfree speaker. . . . 50
codes & passwords. . . 51
lock & unlock phone . . 51
lock & unlock external
keys . . . . . . . . . . . . . . . 52
customize. . . . . . . . . . . . 53
talking phone . . . . . . . . 53
ring style . . . . . . . . . . . 53
time & date . . . . . . . . . 54
wallpaper . . . . . . . . . . . 55
screen saver . . . . . . . . 55
themes . . . . . . . . . . . . 56
display appearance . . . 56
shortcuts and main menu
57
answer options . . . . . . 58
calls. . . . . . . . . . . . . . . . . 59
turn off a call alert . . . . 59
delay answering. . . . . . 59
recent calls . . . . . . . . . 59

contents
5
redial. . . . . . . . . . . . . . 61
return a call. . . . . . . . . 61
caller ID . . . . . . . . . . . 62
emergency calls . . . . . 62
voicemail . . . . . . . . . . 63
other features . . . . . . . . 64
advanced calling . . . . . 64
phonebook . . . . . . . . . 68
messages. . . . . . . . . . 73
instant messaging . . . 77
personalizing. . . . . . . . 78
call times & costs. . . . 79
handsfree . . . . . . . . . . 80
data calls . . . . . . . . . . 81
network . . . . . . . . . . . 83
personal organizer . . . 84
security. . . . . . . . . . . . 86
fun & games. . . . . . . . 87
service and repairs . . . . 91
SAR Data. . . . . . . . . . . . 92
SAR Data . . . . . . . . . . . . 94
EU Conformance . . . . . 95
Safety Information . . . . 98
Warranty (except Mexico) .
103
Warranty (Mexico) . . . 107
index . . . . . . . . . . . . . . 109

6
menu map
menu map
main menu
e Messages
• Create Message
• Message Inbox
• Outbox
•Voicemail
•Drafts
•EmailMsgs
• Browser Msgs
• Info Services *
• Templates
s Recent Calls
• (press the * or # to scroll
through the call lists)
n Phonebook
h Multimedia
• Themes
• Voice Records
•Camera
• Video Camera
•Pictures
• Sounds
• Videos
Q Games & Apps
á Web Access *
•Browser
• Bookmarks
• Stored Pages
•History
•GoToPage
•BrowserSetup
• Web Sessions *
É To o l s
•IM*
• SIM Applications *
• Calculator
• Datebook
•AlarmClock
• Voice Dial
• Dialing Services
• Fixed Dial *
• Voice Dial
• Service Dial *
•QuickDial
• Activation List *
•WorldClock
L Connection
• Bluetooth™ Link
• USB Settings
•MOTOSYNC™*
w Settings
• (see next page)
* optional features
This is the standard main menu layout.
Your phone’s menu may be different.
To change your home screen shortcuts
and your main menu appearance, see
page 57.
Tip:
Press D to exit the current menu, or
O to exit all menus.

menu map
7
settings menu
l Personalize
• Home Screen
• Main Menu
•VoiceDialSetup
•Skin
• Greeting
• Wallpaper
• Screen Saver
• Sound Settings
t Ring Styles
•Style
•(style) Detail
H Call Forward *
•VoiceCalls
• Fax Calls
• Data Calls
• Cancel All
• Forward Status
U In-Call Setup
• In-Call Timer
• Call Cost Setup *
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• Speed Dial
•AutoRedial
• Display Timeout
• Backlight
• TTY Setup *
•Scroll
• Text Marquee
• Language
• Brightness
•DTMF
• Master Reset
• Master Clear
m Phone Status
•MyTel.Numbers
• Credit Info/Available *
• Active Line *
•BatteryMeter
• Download Location
• Storage Devices
• Software Update *
• Other Information
S Headset
• Auto Answer
•VoiceDial
J Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
% Airplane Mode
• Airplane Mode
• Prompt at Power Up
j Network
•NewNetwork
•NetworkSetup
• Available Networks
• My Network List *
• Service Tone *
• Network Jingle *
• Call Drop Tone
u Security
• Phone Lock
• External Key Lock
• Lock PTT Key *
• Lock Application
• Fixed Dial *
• Restrict Calls *
• Call Barring *
• SIM PIN
• New Passwords
• Certificate Mgmt *
c Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Priority *
6 PTT Settings *
• PTT Service
* optional features

8
FCC Notice to Users
FCC Notice
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC
logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the
product label.
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is
otherwise considered a computer peripheral device whereby it can
be connected to a computer for purposes of transferring data, then
it is considered a Class B device and the following statement
applies:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.

Use and Care
9
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.

10
essentials
essentials
about this guide
This guide shows how to open a menu
feature as follows:
Find it: s > eMessages > Create Message
This means that, from the home screen:
1 Press the center key s to open the
menu.
2 Press the navigation key S to scroll to
eMessages , and press the center key s
to select it.
3 Press the navigation key S to scroll to
Create Message , and press the center key s
to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.

11
essentials
SIM card
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
To insert and use a
memory card , see
page 35.
Turn off your phone and remove your
battery before you install or remove a SIM
card.
battery
battery installation
This means a feature requires an
optional accessory.
symbols 12
12

12
essentials
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone and
an electrical
outlet. Your
phone might
take several seconds to start charging the
battery. When finished, your display shows
Charge Complete .
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
You can charge your battery by
connecting a
cable from your
phone's mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
If your battery is completely dead and you
plug in a
cable to charge it, your keypad and
display might not light up. Your battery will still
charge.
3 To replace the
battery door, set the
door against the
phone and then slide
it into place.

13
essentials
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
turn it on & off
Caution: Some phones ask for your SIM card
PIN code when you turn them on. If you enter
032375o

14
essentials
an incorrect PIN code three times before the
correct code, your SIM card is disabled, and
your display shows
SIM Blocked . Contact your
service provider.
To turn on your phone ,
press and hold
O for a few
seconds or until the keypad
or display lights up.
If prompted, enter your
eight-digit SIM card PIN
code and/or four-digit unlock code (for more
about codes, see page 51).
To turn off your phone , press and hold O
for a few seconds.
make a call
To m a k e a c a l l , enter a phone number and
press
N . To “hang up,” close the flip or
press
O .
To use voice commands for calling, see
page 48.
answer a call
To answer a call when your phone rings
and/or vibrates, just open the flip or press
N .
To “hang up,” close the flip or press O .
Note: Your phone cannot receive data
over an EDGE network while it is
playing videos or some sound files. The
EDGE
, status indicator appears at the top of
your display when you can receive data over
an EDGE network.
store a phone number
You can store a phone number in your
Phonebook :

15
essentials
Find it: s > nPhonebook , then press Options
>
Create New > Phone Contact or SIM Contact
Note: You can store new contacts in your
phone’s memory or on your SIM card .
Contacts on the SIM card only include a
Name
and
Number .
1 Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s .
2 Press Done to store the number.
To
edit or delete a Phonebook entry, see
page 69.
To store an
email address from the home
screen, follow the steps above and enter the
new contact’s name and
Email information.
Shortcut: Enter a phone number in the home
screen, then press
Store to create a contact. To
choose whether your phone stores these
contacts in your phone’s memory or on your
SIM card, go back to the home screen and
press
s > nPhonebook , then press Options
>
Setup > Default Storage > Phone or SIM Card .
call a stored phone
number
Find it: s > nPhonebook
1 Scroll to the phonebook entry.
Shortcut: In the phonebook, press
keypad keys to enter the first letters of an
entry you want.
2 Press N to call the entry.
Note: You can show contacts stored in your
phone’s memory or on your SIM card. To
choose which contacts you see, press
s > nPhonebook , then press Options > View .
You can select
Phone &SIM Card , SIM Card , or
Phone Contacts .

16
essentials
To use voice commands for calling, see
page 48.
your phone number
From the home screen, press
the clear key
D then # to see your
number.
Tip: Want to see your phone number while
you’re on a call? Press
Options > My Tel. Number .
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
D# , select an
entry, press
View , press Options , and select Edit .
If you don’t know your phone number, contact
your service provider.

17
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
push to talk (PTT)
Push to Talk (PTT) lets you talk walkie-talkie
style with other PTT subscribers. You can talk
to one person or a group.
PTT and the other related features
indicated are network and subscription
dependent features, and are not available in all
areas. PTT connectivity requires
PTT-compatible phones.
Note: To lock your PTT key or turn PTT on or
off, see page 20.
make a PTT call
When m appears at the top of your home
screen, you can make and receive PTT calls.
To ma k e a P T T:
1 Enter a PTT subscriber’s phone number in
your home screen, or select a contact or
group from a list:
• PTT Contacts (press the PTT key to open
the list)
Note: If you change your Open To setting,
your PTT key does not open the
contacts list (see page 20).
• PTT Quick Group (press the PTT key and
Options > Quick Group ) This lets you select
more than one contact for the call.

18
main attractions
• PTT Groups (press the PTT key and
Options > Filter by > Groups )
2 Hold the PTT key and speak after you hear
the tone. Release the PTT key to let
others speak.
To speak during a PTT call , hold your
PTT key and speak after the tone. Only
one person can speak at a time.
To end the call , press O . If nobody
speaks for 20 seconds, the call ends
(actual timing varies by network).
To send a PTT alert instead of a standard PTT
call, scroll to a PTT contact in
PTT Contacts and
press
Options > PTT Invite . The contact’s phone
rings or vibrates, and the contact can speak
first. If the contact does not respond, the call
ends. You cannot send alerts to groups.
answer a PTT call
When you receive a PTT call , you hear a
tone or alert followed by conversation from
the caller.
•Tospeak when the caller stops
speaking, hold your PTT key and speak
after the tone. Only one person can
speak at a time.
• To end the call , press O .
If you change your
My Answer Mode setting to
Manual , your phone does not automatically
answer as described (see page 20).
When you receive a PTT alert , press the
PTT key and speak after the tone. You can
also press
Ignore to cancel the call.
Your display shows
Missed Call if you miss a PTT
alert. It does not show
Missed Call when you
miss a standard PTT call unless you set
My Answer Mode to Manual (see page 20).
