USER’S GUIDE
LM2000/m370
TableofContents
GETTING STARTED
Welcome ..........................................................................................1
Radio Operations ....................................................................1
Phone Operations ...................................................................1
Message Mail™ ......................................................................1
Programming Menu ...............................................................1
Integrated Multi-Service Mobile ..................................................2
Display ....................................................................................4
Overview of Options ..............................................................5
Turning On/Off Your Mobile Unit ...............................................6
Automatic Turn On/Off .........................................................6
Call-in-Progress Protection ....................................................6
Adjusting Volumes .........................................................................7
Escalert ....................................................................................7
Microphone Mute ...................................................................7
Operating Your Mobile Unit ..........................................................8
Radio Calls ..............................................................................8
Phone Calls .............................................................................8
GROUP CALL
Group Call........................................................................................9

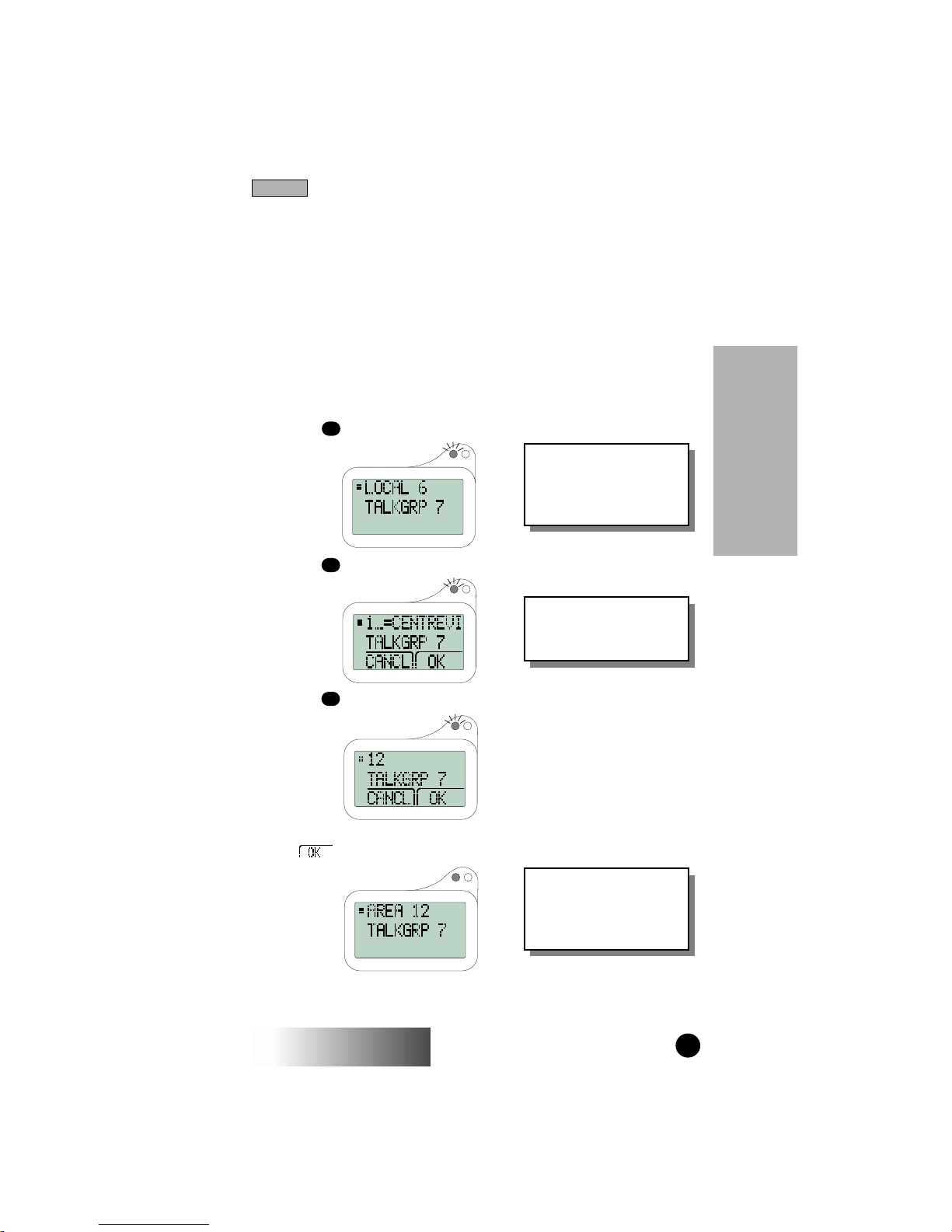

Service Area Selection...................................................................10
Local Area .....................................................................................10
Targeted Area ...............................................................................11
Wide Area ......................................................................................13

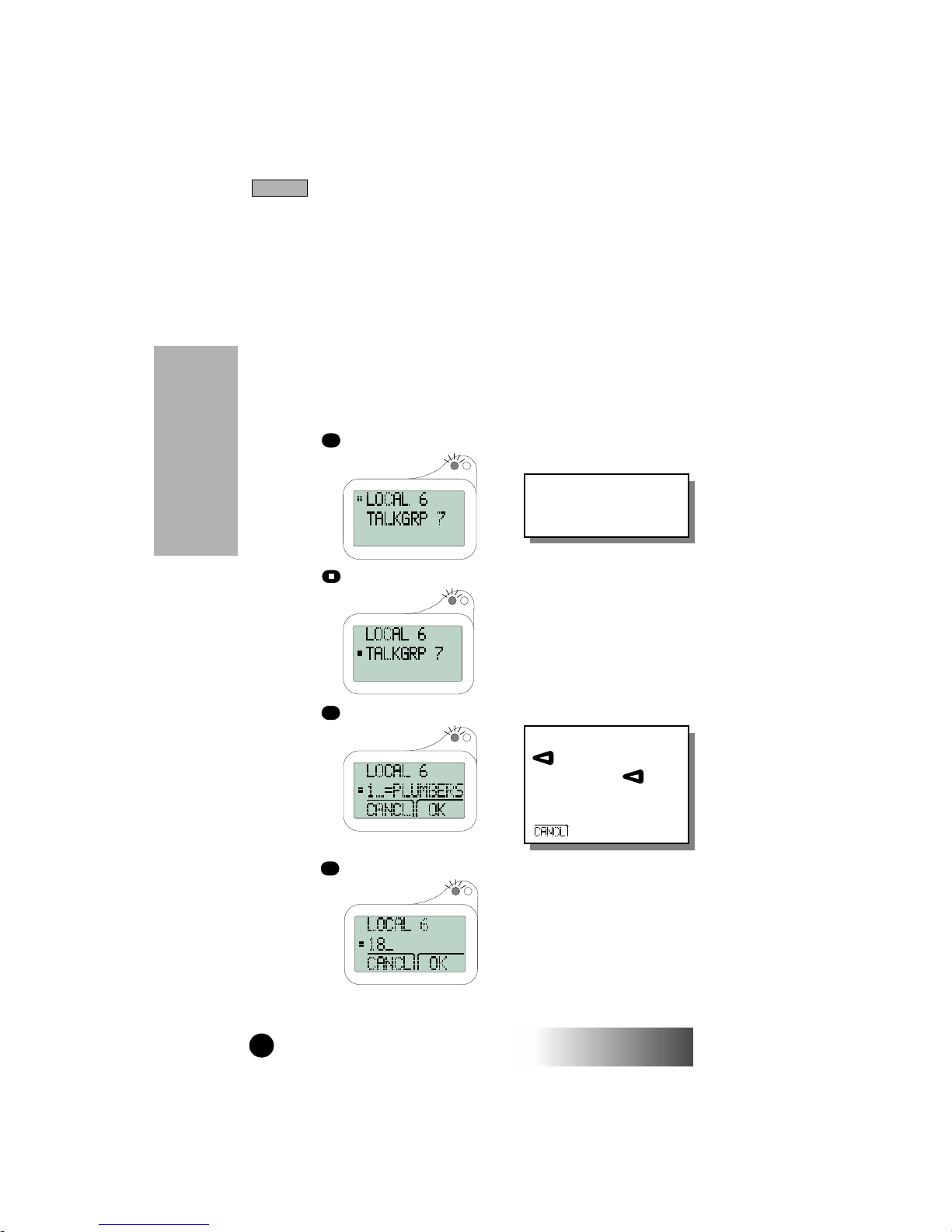

Talkgroup Selection .....................................................................14
Service Area Restriction................................................................16
PTT - ID .......................................................................................16
PRIVATE CALL™
Private Call ....................................................................................17
Making a Private Call ...........................................................17
Receiving a Private Call .......................................................20
Call Alert™ ....................................................................................21
Sending a Call Alert .............................................................21
Receiving a Call Alert ..........................................................23
Call Alert Stacking.........................................................................24
Receiving a Call Alert with Stacking ...................................24
Responding to a Call Alert with Stacking ...........................24

GettingStarted
GettingStarted
USER’S GUIDE
LM2000/m370
PHONE OPERATIONS
Placing a Phone Call .....................................................................25
Receiving a Phone Call ................................................................30
DTMF Tones ...............................................................................30
Burst DTMF Sequence ...............................................................30
Last Number Redial .....................................................................31
Automatic Redial ..........................................................................31
Displaying Your Own Number ....................................................31
Scratchpad .....................................................................................31
Silent Scratchpad ..........................................................................31
Silent Memo Pad ..........................................................................32
Call Forwarding ............................................................................33
Forward All Calls ..........................................................................33
Busy Transfer ................................................................................36
No-Answer Transfer .....................................................................36
No-Reach Transfer .......................................................................36
Call Forwarding Recall .................................................................39
Call Hold .......................................................................................39
Call Waiting ...................................................................................41
MESSAGE MAIL™
Reviewing and Reading Messages ..............................................45
Message Mail Call Back ...............................................................47
Receiving New Mail .....................................................................47
PROGRAMMING MENU
Programming Menu Table ..........................................................49
Programming Menu Examples ....................................................55
ADDITIONAL INFORMATION
FeaturesBenefits ...........................................................................71
Important General Safety Information ........................................73
Cleaning Instructions ...................................................................76
Status Indicator Table...................................................................77
Error Message Table.....................................................................77
Index ..............................................................................................81
, Motorola, Call Alert, Message Mail, and
Fast Access are trademarks of Motorola, Inc.

GettingStarted
GettingStarted
USER’S GUIDE
LM2000/m370 1
WELCOME
The iDEN Integrated Digital Mobile allows you to place and
receive phone calls, make and receive person-to-person or group
radio calls, and receive alphanumeric messages.
The large display and soft key driven interface makes it the most
user-friendly communications product on the market today.
Before operating your unit, take time to read the Important Gen-
eral Safety Information on page 73.
There are four groups of capabilities explained in this guide:
Radio Operations
With Radio Operations, you can communicate with a group of
individuals (Group Call mode) or privately with a single person
(Private Call mode). You can also send a Call Alert™ to an indi-
vidual, indicating that you want to speak with them.
Phone Operations
With Phone Operations, you can place and receive phone calls.
You can place phone calls by dialing the number directly or by
using one of the memory-calling features. A number of optional
features, such as Call Waiting and Call Forwarding, are also avail-
able.
Message Mail™
With Message Mail, you can receive and store up to eight alpha-
numeric messages. You are notified when new messages are
received, which can be read at your convenience. A phone num-
ber included within a message can be called automatically.
Programming Menu
A number of convenience features, such as a Signal Strength
Indicator, Auto Answer, Phone-Call Timers, and Auto Lock are
provided to you in an easy-to-use, self-prompting menu.

GettingStarted
USER’S GUIDE
LM2000/m370
2
GettingStarted
INTEGRATED MULTI-SERVICE MOBILE
12
ABC
3
DEF
6
MNO
5
JKL
4
GHI
7
PRS
8
TUV
9
WXY
QZ
0
1. Status Indicators
2. Mute Key
4. Alphanumeric Display
5. Option Keys
END PWR
PHONE GROUP
PRVT
SEND
3. Volume Control Keys
6. Directional Keys
7. Group Mode Key
8. Private Mode Key
9. Alphanumeric Keypad
10. Power (On/Off) Key
11. Speaker
12. Microphone
13. Phone Control Keys
14. Phone Mode Key
15. Active-Line Key
16. Push-to-Talk
(PTT) Button
17-18. Reserved
19. Earpiece
O
.
K
.
AS
ISS. REVISION
AS
MARKED
LETTERING SIZE:
REQUIRES: O

GettingStarted
GettingStarted
USER’S GUIDE
LM2000/m370 3
1. Status Indicators—Solid or blinking lights indicate different
conditions your unit may be in. (See the Additional Informa-
tion section for Status Indicator Table.)
2. Mute Key—Used to enable and disable the microphone dur-
ing telephone calls so that the other party cannot hear you.
The solid yellow status indicator illuminates when the
microphone is muted.
3. Volume Control Keys—Used to adjust volume levels of the
earpiece, speaker, ringer, keypad, and message notification.
4. Alphanumeric Display—A three-line display, providing up to
11 characters per line. The display is backlit for ease of view-
ing.
5. Option Keys—Used to select the option that appears directly
above the key on the third line of the display.
6. Directional Keys—Used to perform Memory Scrolling,
option scrolling, and editing.
7. Group Mode Key—Used for one-to-many radio communica-
tion.
8. Private Mode Key—Used for one-to-one private radio com-
munication.
9. Alphanumeric Keypad—Used for direct entry of radio IDs,
service area IDs, talkgroup IDs, phone numbers, or names.
All keys on the keypad are backlit for ease of nighttime view-
ing.
10. Power (On/Off) Key—Used to turn the mobile unit on and
off.
11. Speaker—Used for hands-free communication; also produces
ringer tones.
12. Microphone—Used for speaking during handset communi-
cation.
13. Phone Control Keys—Used to place ( ) or terminate
( )telephone calls.
14. Phone Mode Key—Used for telephone communication.
15. Active-Line Key—Used to control the Active-Line Indicator
(
■ ) that appears on the display.
16. Push-to-Talk (PTT) Button—Used to transmit voice during
Group Calls and Private Calls. Also used to send Call Alerts.
17-18. Reserved for future use.
19. Earpiece—Used for listening during handset communica-
tions.
SEND
END

GettingStarted
USER’S GUIDE
LM2000/m370
4
GettingStarted

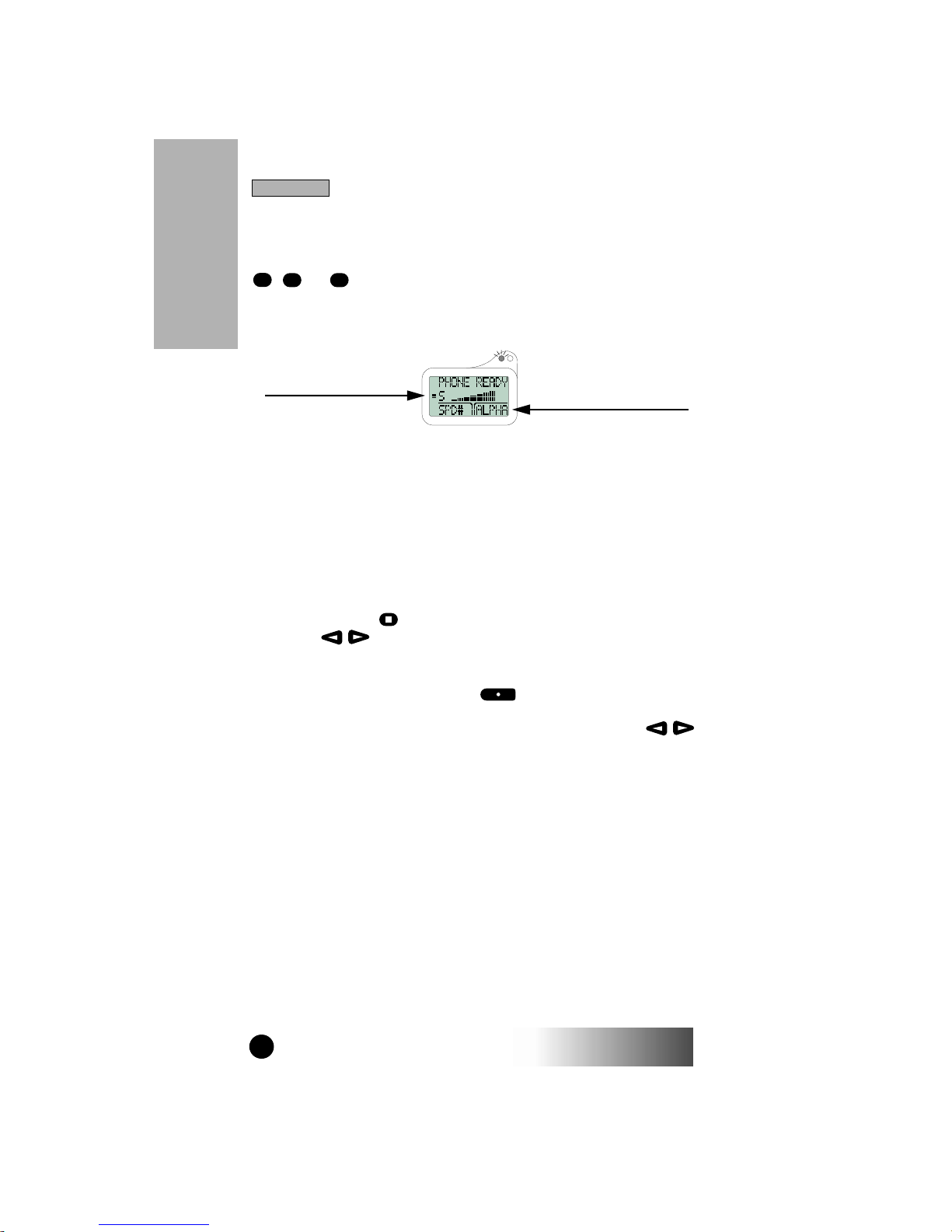

Display
The three-line display provides information to operate your
mobile unit. There are three different modes your unit can be in:
, , or . Each mode has a “home” or default screen. To
help you become familiar with the display operation, shown
below is the “home” screen for the Phone mode.
• Line 1 displays the current mode you are in.
• Line 2 displays the Signal Strength and is also the number
selection line.
• Line 3 displays the first pair of available options.
The Active-Line Indicator (
■ ) points to the line you are work-
ing on. The
■ is always present on the display. The ■ can be
moved up and down among the three lines by pressing the
Active-Line Key ( ). Direct input from the keypad or scrolling
using the keys is available on the line where the
■
appears.
The third line shows the immediately available options. To select
an option, press the Option Key ( ) located directly below it.
When the
■ is moved to the third line, the next pair of options is
automatically presented. At this point, scrolling using the
keys will cause any additional options to appear.
PHONE
GROUP PRVT
Active-Line
Indicator Line 3—Options

GettingStarted
GettingStarted
USER’S GUIDE
LM2000/m370 5

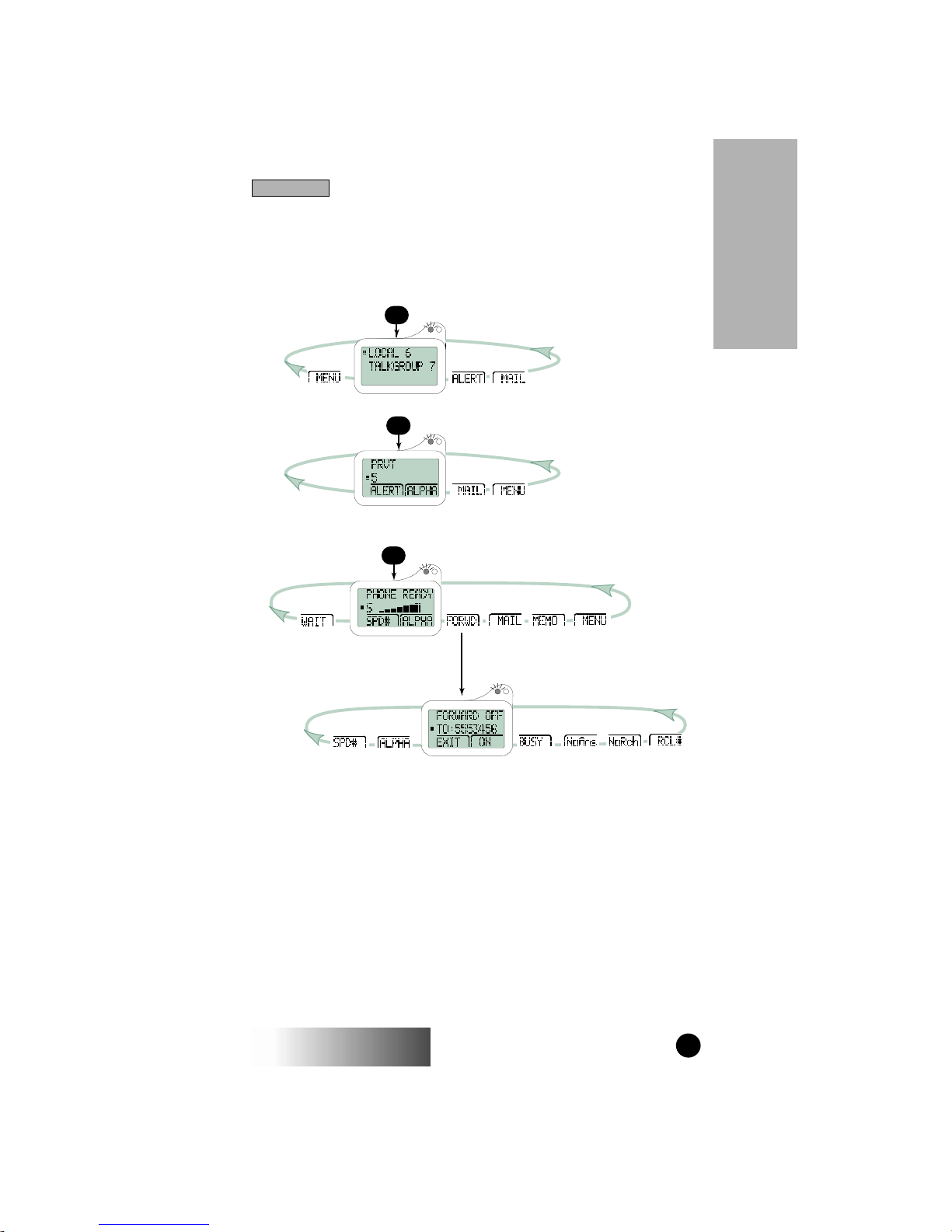

Overview of Options
The options presented on the third line of the display allow easy
access to all of the advanced features. Below is an overview of the
options available from within each mode.
PHONE
PRVT
GROUP

GettingStarted
USER’S GUIDE
LM2000/m370
6
GettingStarted
TURNING ON/OFF
YOUR MOBILE UNIT
The key (located at the bottom
of the handset keypad) turns the
mobile unit both on and off. Press
and hold the key to turn the
unit on or off. You may turn your
mobile on or off at any time.
To prevent unauthorized use, your
unit will automatically Lock when
turned on using the key (using
the ignition switch will not auto-
matically lock your unit). To unlock
your unit, enter your passcode. See
the “Programming Menu” section
for further information on Locks.
Each time the mobile unit is turned
on, it performs a self-check and sys-
tem registration routine. Once com-
pleted, the unit will display the last
mode it was in.
Automatic Turn On/Off
To enable Automatic Turn On/Off,
leave the unit’s power on before
turning the vehicle ignition off.
Now your unit will automatically
turn on every time your vehicle is
turned on. Turning off your vehi-
cle’s ignition automatically turns off
your unit.
Call-in-Progress Protection
This feature allows phone and radio
calls in progress to continue after
the vehicle’s ignition is turned off,
without interrupting your conversa-
tion.
In Group or Private mode,
you must be transmitting in
order for Call-in-Progress
Protection to operate.
The display illuminates dur-
ing the self-check routine to
verify operation. Notify your
service provider if any error
messages are displayed.
When using your mobile unit
while the engine is off, you are
operating on your vehicle’s
battery power, and may
drain the battery.
PWR
PWR
PWR

GettingStarted
GettingStarted
USER’S GUIDE
LM2000/m370 7
ADJUSTING VOLUMES
Press the Volume Control Keys ( ) to adjust:
• Earpiece Volume
When engaged in a call, with
the handset at the ear, pressing
the Volume Control Keys
adjusts the earpiece volume.
• Speaker Volume
When the handset is in the
cradle, pressing the Volume
Control Keys adjusts the
speaker volume. Speaker vol-
ume can also be adjusted
while your unit is idle.
• Ringer Volume
Pressing the Volume Control
Keys while the phone is ring-
ing adjusts the ringer volume.
Escalert
Your unit is equipped with the Escalert feature. Escalert ensures
that alert tones are initially produced at non-intrusive levels.
This feature reduces the initial volume of alert tones and auto-
matically increases the volume to the level you have set.
Microphone Mute
This feature allows you to disable the microphone during phone
calls, preventing the other party from hearing you. Microphone
Mute also allows you to silence the keypad tones or disable send-
ing the Dual-Tone Multi-Frequency (DTMF) tones when enter-
ing numbers during a phone call. After ending your current
phone call, the entered number can be easily dialed by pressing
. To mute the microphone, press the Mute Key ( )
located on the side of your unit. A solid yellow status indicator
lights when the microphone is muted.
V
V
You can also adjust the Ear-
piece, Speaker, and Ringer
volumes through the Pro-
gramming Menu. In addi-
tion, the Keypad and Message
Notification volumes can be
set. Refer to the “Program-
ming Menu” section for
instructions on adjusting
these volumes.
SEND
M

GettingStarted
USER’S GUIDE
LM2000/m370
8
GettingStarted
OPERATING YOUR MOBILE UNIT
You can operate your unit in two ways: Hands-free and handset
operation. Hands-free allows you to safely operate your mobile
unit while driving. Handset operation allows you to privately
make and receive calls with the handset at your ear. Hands-free
and handset operation can be used when making phone calls.
Radio Calls
To make a radio call, after selecting the appropriate ID, lift the
handset to your ear and press the PTT to talk. Wait for the chirp
to begin speaking. Release the PTT to listen.
To respond to a radio call, lift
the handset to your ear and
press the PTT to talk. Wait for
the chirp to begin speaking.
Release the PTT to listen.
Phone Calls
To place a hands-free phone call, select a number and press
while the handset remains in the cradle. Direct your conversation
to the visor microphone. For handset operation, lift the handset
to your ear after selecting a phone number and pressing .
To answer a phone call hands-
free, press while the handset
remains in the cradle. Direct
your conversation to the visor
microphone. For handset opera-
tion, lift the handset to your ear
and begin talking.
To use the Hands-Free
upgrade, you must engage in a
Private or Group Call by
pressing the PTT and waiting
for the chirp to begin speaking.
You can then release the PTT -
and your phone will continue
transmitting until you stop
speaking.
SEND
SEND
Lifting the handset from the
cradle automatically answers
your call. You must press
to terminate a phone call
using hands-free and hand-
set operation.
END
SEND
