MPK VisionStar L pro LED User manual

1 Issue 01.2021
MPK Metall- und
Plastikverarbeitung GmbH & Co. KG
Friedrich-Ebert-Str. 298-300
D-58566 Kierspe
mpk-kierspe.de
Rooflight with pleated blind and net
for installation in caravans and mobile homes
VisionStar L pro LED

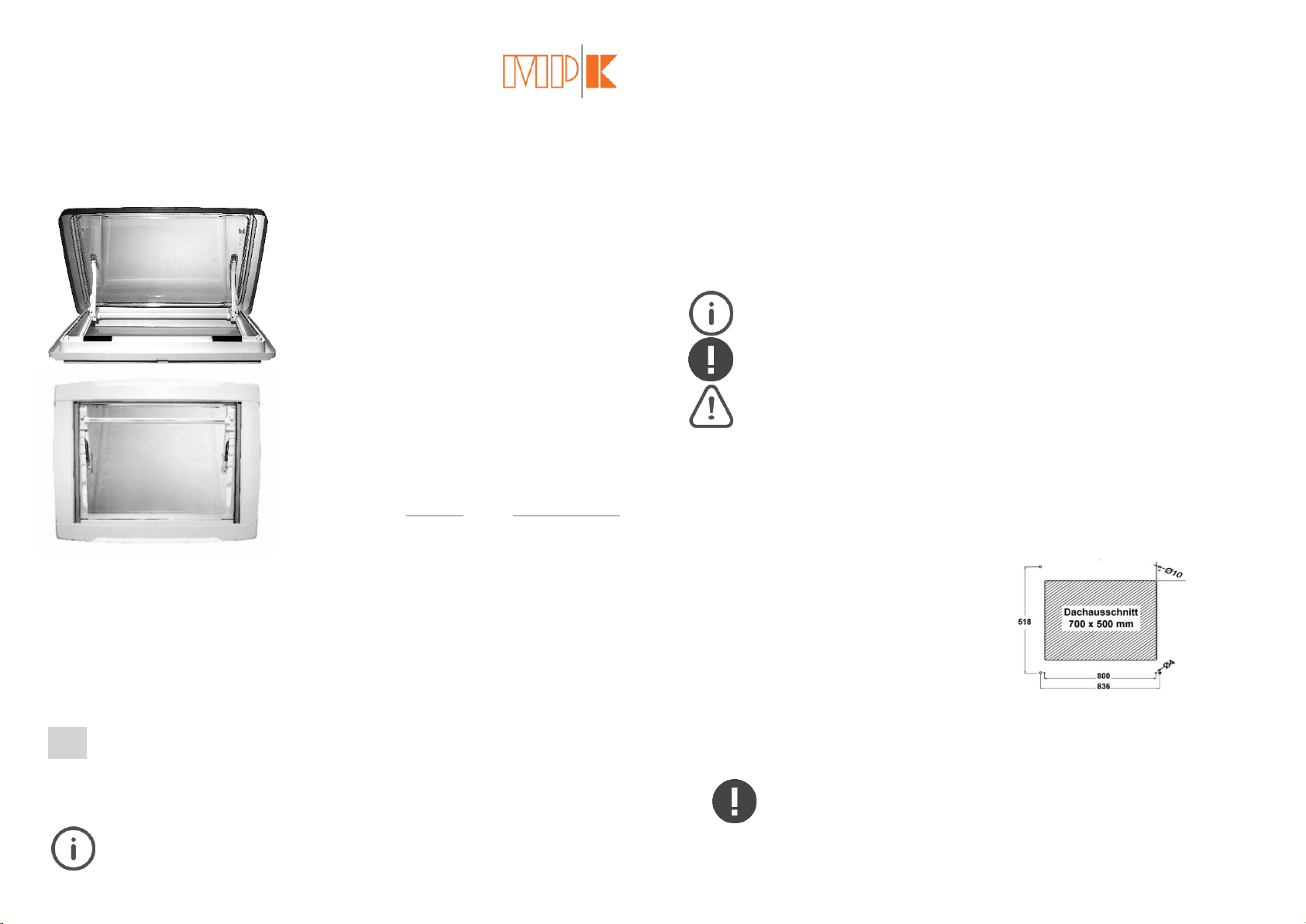

Technical data:
EN Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
Included with delivery
1x Rooflight with outer frame
1x Inner frame with LED, polyswitch fuse, connection cable
1x Fixing parts (14 St. fixing brackets, 4 St. large plastic screw)
Additionally required for installation (not included in delivery)
1x Elastic sealant adhesive, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710
14x Fixing screws for the upper frame
Pan 3,5 mm /head according to DIN ISO7049 (DIN 7981) / The length of thescrew should
be determined by the roof thickness, plus approximately 10 mm for the screw to enter the
upper frame.
With timber support under the roof lining:
4x Fixing screws for the inner frame:
Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981) / length max. 10 mm
Explanation of symbols
Safety and installation instructions
Check the roof thickness of your vehicle before mounting.
The rooflight should only be fitted to a flat roof surface, both internally and
externally.
Choose a fitting position that will not interfere with other roof mounted components
(e.g. roof-racks/antenna's etc.) and avoid internally installed electrical cables and
furniture, which could impede the correct operation of the rooflight.
Inner frame
Make sure that there is a suitable supply line and switch for the lighting in the vehicle.
We recommend installation with the hinge side in the direction of travel. In the
caravan, the rooflight can alternatively be fitted with hinges to the right/left side of the
vehicle, provided the rooflight is not fitted to the front edge of the vehicle roof.
Never stand on the dome of the rooflight!
Do not open the rooflight while driving. The rooflight must be locked down before
traveling.
Do not open the rooflight in strong wind or rain.
Close the rooflight during rain and snowfall.
Aperture
700 x 500 mm
Roof thickness
25 bis 60 mm
Corner radius
23 mm
Site dome
815 x 583 mm
Height over roof
105 mm
Ventilation
0 bis 150 cm²
Weight
8,4 kg
Size inner frame
872 x 610 x 37 mm
Outer frame material
Polypropylene
Dome material
Polycarbonate
Speed limit: inst. transverse
160 km/h
inst. lenghtways
130 km/h
Authorization
ECE R43 -019651
LED-light
575 x 9 x 2,5 mm
Light color
~ 3000 K (warm white)
Energy efficiency class
A+
Nom. useful liminous flux
2 x 500 lm
Voltage
12 -14V DC
Condumption
2 x 5,6 kW/h / 1000h
Nominal lifetime
10.000h
No. of switching cycles
50.000
Warm up time
<1sek.
Nominal beam angle
60°
NOTE
Particulary important information.
ATTENTION!
Failure to observe can lead to material damage.
WARNING!
Safety note: Serious risk of injury.

2 Issue 01.2021
Installation
Please clean the frames carefully before mounting the
sealant.
Follow the instructions of the sealant manufacturer.
Separate the inner and outer frames and fit the outer frame
to the outside of the roof aperture onto a bed of sealant.
Place over the screw holes on the inside of the frame, the
14 fixing brackets.
Secure with screws. Stop as soon as the brackets start to
distort.
Max. Torque 0.5 Nm.
To fit the inner frame, gently pull out the pointed ends of the
cover profiles to release them and reveal the fixing points.
Turn off the power supply in the vehicle before
proceeding with the connection of the LED lighting.
Connect the supplied connection cable to the power supply
installed in the vehicle.
Connect the Polyswitch cable of the inner frame to the power
supply of the vehicle. Then place the inner frame in the center
of the cutout.
.
Version 1: Timber support under the roof lining
Offer up the inner frame into the outer frame. Use the four small
holes to fix the inner frame withstandard screws into the timber
support.
Version 2: Inner lining made of plywood / polyester layer
Offer up the inner frame into the outer frame and mark drill
holes (large screw hole).
Pre-drill the screw holes and screw the inner frame tight with
the supplied plastic screws.
Fix the connector from the inner frame with the connector from
the side panel before inserting the side cover.
Refit the inner frame covers by locating the securing lugs
and keeping the covers parallel against the roof whilst sliding
them carefully onto the frame, ‘clicking’ back into position,
without distorting.
Operation
To open the rooflight, both pleated blinds must be open.
Grip the crossbar in the middle and turn it towards the opening side. Now
the rooflight can be opened by pushing the crossbar. As soon as you
release the crossbar the opening mechanism snaps into this position.
To close the rooflight, turn it again and push it back in the opposite
direction. When the end position is reached, the rooflight is locked
automatically.
Keep the pleated blinds open while driving to avoid driving noise and damage
from the airstream.
To avoid heat accumulation do not close blind completely during the day. Open
both pleats when not using the vehicle.
Var.1
Var. 2

3 Issue 01.2021
mpk-kierspe.de/Downloads

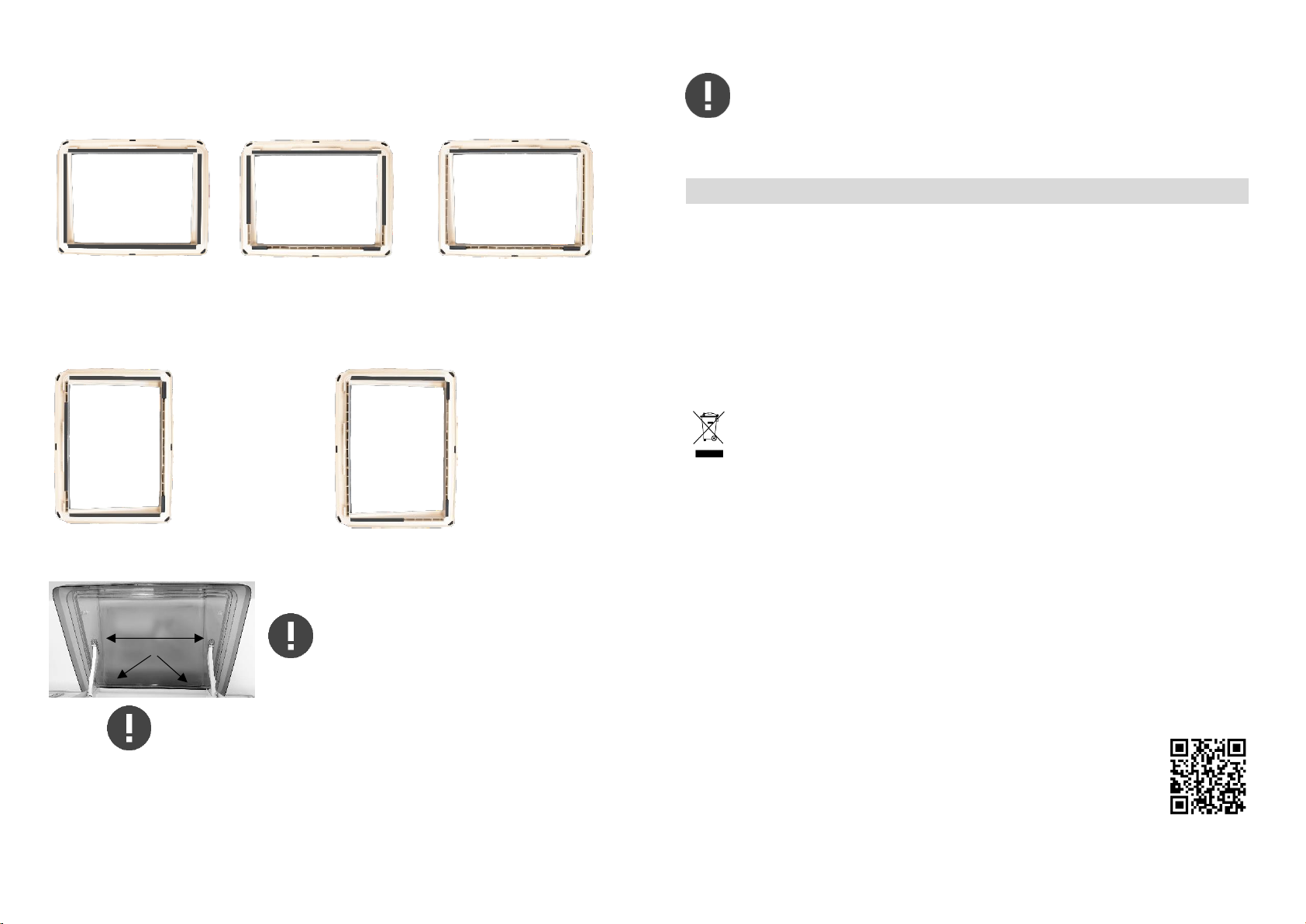

Permanent ventilation
The rooflight is supplied without permanent ventilation. If required, the rooflight can be
converted by shortening the inserted seal.
hinge side
Without free-air-flow
Rubber seal all around
With free-air-flow 75cm²
Side rubber seals shortened
to 34cm.
Rear rubber seal shortened to
two sections each 8,1 cm
With free-air-flow 150 cm²
Side rubber seal removed
Rear rubber seal shortened to
two sections each 8,1 cm
Free-air-flow 75cm²
lenghtways
Rubber seal hinge side
shortened to 45 cm.
Opposite seal shortened
to two sections of 8,1 cm
each.
Free-air-flow 150cm²
lenghtways
Rear rubber seal
shortened to 20cm.
Rubber seal hinge side
removed.
Opposite seal shortened to
two sections of 8,1 cm
each.
Cleaning For easier cleaning , the dome can be removed from the
inner frame by releasing the plastic split pins.
Do not loosen any screws that are used to fasten
the dome or the opening mechanism.
Use only clear water and a soft sponge.
Solvents may attack the plastic and make it brittle.
After cleaning, maintain the sliding surfaces with a thin layer of Vaseline or WD40.
This makes the extension mechanism glide more easily. The rubber seals can be maintained
with talcum powder.
Pay attention that the pins positively click into the locked position when re-installing the dome.
The lever arm pins should be re-installed with the flat side towards the dome.
Clean the pleated blinds with a soft brush, dry cloth or feather duster.
We strongly advise against wet cleaning, as this can damage the insect screen and
blackout pleated blind.
Extras (optional)
Designation
Article No.
Adapter frame for Fiat Ducato, front
7050ARW
Adapter frame for Fiat Ducato, rear
7050ARW1
Rubber seal without permanent ventilation
7503.11
Warranty
The legal warranty applies.
Disposal
Dispose of the appliance and packaging must be effected in accordance with the
corresponding local regulations and requirements for electrical appliances and
packaging.
