INSTALLATION INSTRUCTIONS
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
1
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
WARNING: TO AVOID FIRE, SHOCK OR DEATH
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician, in
compliance with SANS 10142 or corresponding regulations of the country of
installation. On completion of installation, the Certificate of Compliance must
be updated.
Acer
WARNING
Electronic Control Device
Electronic Control Device
WARNING
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : [phone]
www.regentlight.co.za
RE GENT L I GHT ING A D IVIS ION
OF WA HL IND USTR IES.
Insert the wall plugs into the wall before
mounting the back plate to the wall.
Ensure the fitting is level.
2. Open the back of the fitting by
removing the x4 M5 Stainless Steel grubs
screws on the side of the fitting.
Using the back mounting plate, mark and
drill the two mounting holes onto the
mounting surface.
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Save These Instructions for Future Reference
Save These Instructions for Future Reference
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Acer
1. Select required position.
Requirements:
ŸBe sure the electricity to the
system you are working on is
isolated.
ŸIf the main supply power (live)
is on, it will cause damage to
the luminaire.
DO NOT CONNECT THE FITTING LIVE
March 2018
2
– For non-user replaceable light sources:
"The light source contained in this luminaire shall only be replaced by the
manufacturer or his/her service agent or a similar qualied person."
Replaceable
electrical
components
by end user
Back plate
Grub screws

www.regentlight.co.za
www.regentlight.co.za
6
7
8
5
This product should be installed by a competent person i.e. Qualified electrician.
This product requires a constant stable electrical supply 220V - 240V VAC 50Hz - alternating current.
The product must be regularly maintained, including the replacement of lamps/LED timeously.
This product could be HAZARDOUS if not used correctly, it could cause electric shock, serious bodily harm or death.
This product is not a toy, please keep away from children.
This product may contain small parts that can be swallowed.
Use only the correct light bulbs/LED as stipulated on the carton for the product.
Any modifications of this product after supply will result in the guarantee being void.
Spare parts may become unavailable over time.Items can vary slightly from the picture on the carton
Coastal humidity can affect the longevity of the light fitting over time.
Be sure to follow the steps in the order given.
Read instructions carefully.
Important Safety Instructions
4
3
B. Strip the main power supply
cable (Live, neutral and earth),
before connecting. Separately
connect the Live, Neutral and
Earth from the mains power supply
to the electrical cable tail supplied
o n t h e f i t t i n g u s i n g 3 g e l
connectors (Connector: 3M -
J000788) to maintain the IP rating.
Connect the electrical cable from
the potted control gear to the
m a i n s u p p l y u s i n g t h e g e l
connectors (supplied).
C. Inset the two corresponding
c ab le s c om p le t el y int o t he
connectors. Push the button on the
c o n n e c t o r ( i n d i c a t e d i n
red/orange) to release the gel
resin once the electrical cables
are secure.

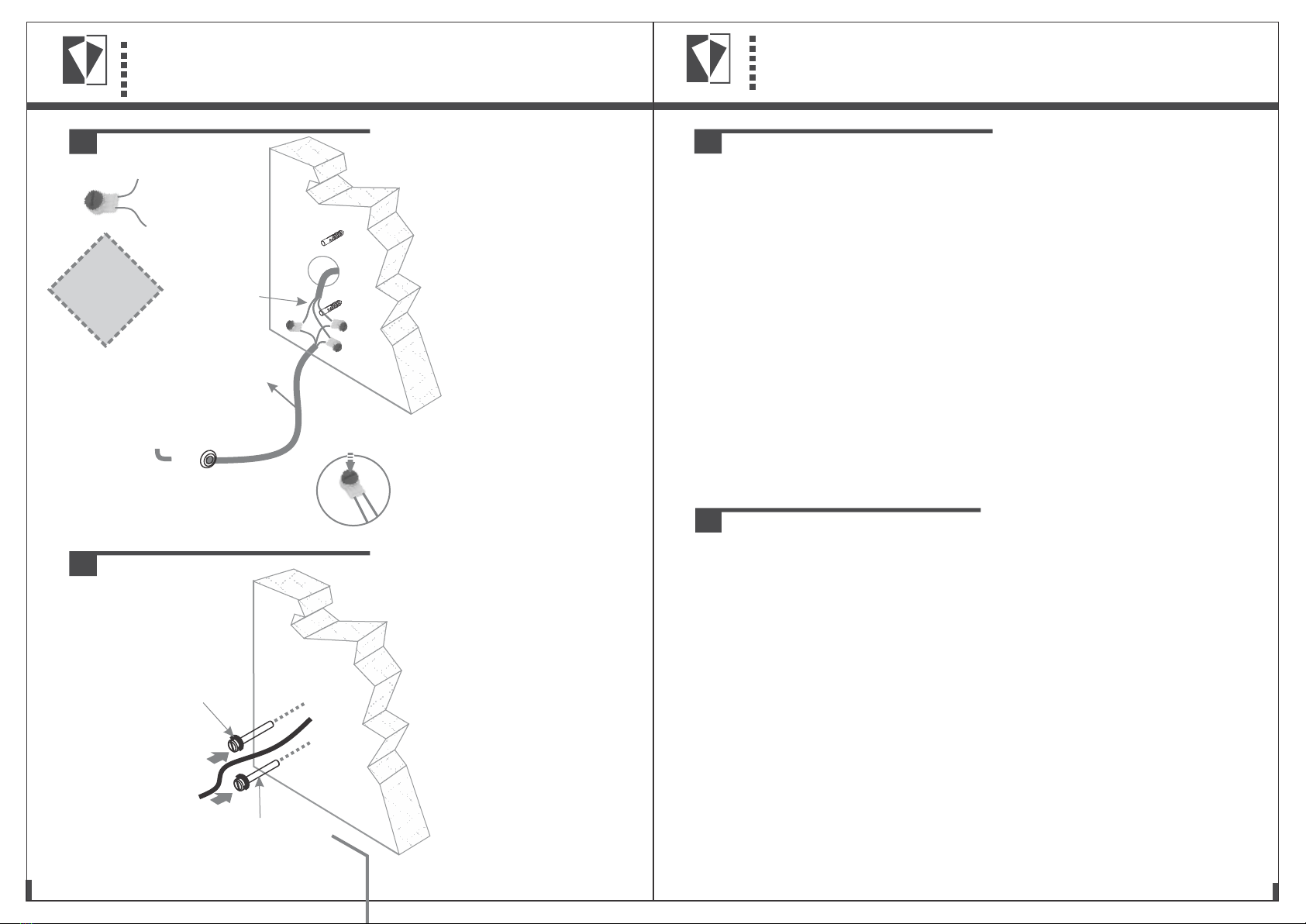

3. Feed the electrical cable
through the cable grommet on the
back mounting plate.
Once complete, neatly place the
gel connectors into the wall,
ensuring that the cables are
secure.
(L) Brown/
(N) Blue/
Main supply
Light source
(E) Green/yellow
(L) Brown/
(N) Blue/
(E) Green/yellow
C
B
Strip the cable
before connecting
Press down to release
the gel resin, to retain the
IP rating once the cables
are securely fastened
into the connector.
Connector: 3M - J000788
x3 per bulkhead
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Supplied electrical
cable tail
Ensure there is no trapped or pinch
electrical insulation when mounting
the back wall plate to the wall.
4. Fasten the back mounting plate
to the wall.
Ensure there is rubber washers on
the wall screws to maintain the IP
rating of the fitting.
Rubber
washer
Wall screw
