mr. steam Broadway W219 User manual

IMPORTANT NOTE: This highlights
information that is especially relevant to a
problem-free installation.
signals a situation where
minor injury or product damage may
occur if you do not follow instructions.
TABLE OF CONTENTS
__________________
General Information .....................2
Specifications ...............................2
Wall Preparation...........................3
Mounting Dimensions ..................3
Installation (brass brackets) ..........4
Installation (plastic brackets) ........5
Electrical Connections...............6-7
Optional Programmable Timer ....7
Using Essential Oils ......................7
Optional Robe Hook ....................8
Warranty .......................................8
W219C W228C W236C W248C
IMPORTANT NOTE: As you follow these instructions, you will notice warning and caution symbols. This
blocked information is important for the safe and efficient installation and operation of this Towel Warmer.
These are types of potential hazards that may occur during this installation and operation:
!CAUTION
states a hazard
may cause serious injury or death if
precautions are not followed.
!WARNING
Installation, Operation and Maintenance Manual
Broadway Collection Electric Towel Warmers
Models: W219, W228, W236, W248
mr
.steam® Feel Good Inc.
pur 100425 rev 6.19
_______________________________________________
Model
_______________________________________________
Serial No.

mr.steam
®
Broadway Collection Towel Warmers Installation, Operation & Maintenance Instructions
_______________________________________________________________
2
INSTALLER:
_____________________________________________________
READ THIS ENTIRE INSTRUCTION MANUAL THOROUGHLY
BEFORE BEGINNING INSTALLATION. LEAVE THESE
INSTRUCTIONS WITH HOMEOWNER.
• BE CERTAIN ELECTRICITY IS SHUT OFF AT MAIN PANEL
BEFORE ATTEMPTING TO WIRE OR SERVICE THE TOWEL
WARMER. Follow instructions to make certain the Towel
Warmer is properly mounted and secured to the wall. FAILURE
TO FOLLOW THESE STEPS COULD RESULT IN HAZARDOUS
CONDITIONS INCLUDING ELECTROCUTION.
• To avoid possible fire hazard, the Towel Warmer must remain in
its intended position. MOUNT THIS UNIT ONLY AS SHOWN IN
THESE INSTRUCTIONS.
• Do Not alter or modify any MrSteam products. Doing so may
result in an inoperable or hazardous installation and will void the
warranty.
1. Install in accordance with
National and local codes.
2. Do not locate in shower
stall, tub or near water
spray.
3. Do not locate within
the shower or tub zone.
See illustration.
4. All models are to be protected by dedicated
and suitably rated GFCI circuit breaker or equal.
TO ENSURE CORRECT OPERATION OF YOUR TOWEL WARMER,
PLEASE FOLLOW ALL INSTRUCTIONS CAREFULLY, OBSERVING
THE “CAUTION” and “WARNING” NOTATIONS FOR EACH STEP.
INSPECT TOWEL WARMER
Unpack the Towel Warmer carefully to avoid any damage or
loss of any part. When opening the box be sure that the parts
are not accidentally discarded. Towel Warmers are shipped in
specially designed shipping cartons. The entire surface of the
Towel Warmer is hand-wrapped to protect the finish. It is your
responsibility to immediately inspect for any damage.
TOWEL WARMER SPECIFICATIONS
______________________________________________________________
Model No. Dimensions (inches) Amps Volts/Phase Weight (lbs.)
W x H x D
______________________________________________________________
W219C 20 x 20 x 4.25 1.67 120/1 24
______________________________________________________________
W228C 20 x 28 x 4.25 3.33 120/1 30
______________________________________________________________
W236C 20 x 36 x 4.25 3.33 120/1 37
______________________________________________________________
W248C 20 x 48 x 4.25 3.33 120/1 45
______________________________________________________________
Note: Dimensions are approximate
HOMEOWNER:
__________________________________________________
THANK YOU for selecting MrSteam Towel Warmer, the
perfect addition to bathrooms, family spas, and exercise
rooms within your home. Our products have been a stan-
dard for quality and comfort, and we are sure that you will
experience continued enjoyment from the Towel Warmer
you have purchased by following these instructions.
TOWEL WARMERS ARE HOT! The
Towel Warmer is an electrical heating appliance, intended
only for indoor residential applications and, as such, should
be installed and used with certain precautions for your
safety.
1. INSTALLATION PROCEDURES FOR PERMANENTLY-
WIRED WALL-MOUNTED UNITS MUST BE
ACCOMPLISHED BY QUALIFIED PERSONNEL IN
STRICT ACCORD WITH APPLICABLE NATIONAL AND
LOCAL BUILDING AND ELECTRICAL CODES.
2. DO NOT place TOWEL WARMER units inside a shower,
sauna or steam room enclosure or any other wet loca-
tion or with elevated temperature because the towel
warmer may be an electrocution hazard.
3. CAUTION is advised when a Towel Warmer is accessible
to children because the towel warmer is hot and repre-
sents a burn hazard.
4. A dedicated wall switch or timer should be used to
control the TOWEL WARMER unit. Contact MrSteam for
an in-wall 24-hour/7day timer (PN 103588DIG) Note: All
switches and control devices must be installed on the
load (black) side of the Towel Warmer circuit in compli-
ance with the National Electrical Code (NEC) and local
code. (see page 7 for installation instructions)
IMPORTANT: The finish of your Towel Warmer can be
protected and maintained by an occasional wiping with a
soft, non-abrasive, damp cloth and lightly polished, there-
after, with a soft dry cloth when the Towel Warmer is cold.
Under no circumstances should abrasive cleaning powders,
metal polish or chlorine-based cleaners be used on any
part of this product.
IMPORTANT: This appliance is for warming towels only.
DO NOT use this appliance to dry wet towels.
IMPORTANT: This appliance is intended for towels
washed in water. Fabrics that contain soap or detergent
residue may show what appears to be scorch marks.
However this may be the discoloration of the residue.
MrSteam is not responsible for discoloring or damage
of any fabrics. Refer to the MrSteam
towel warmer warranty for additional
terms and conditions.
!WARNING
!WARNING
!WARNING

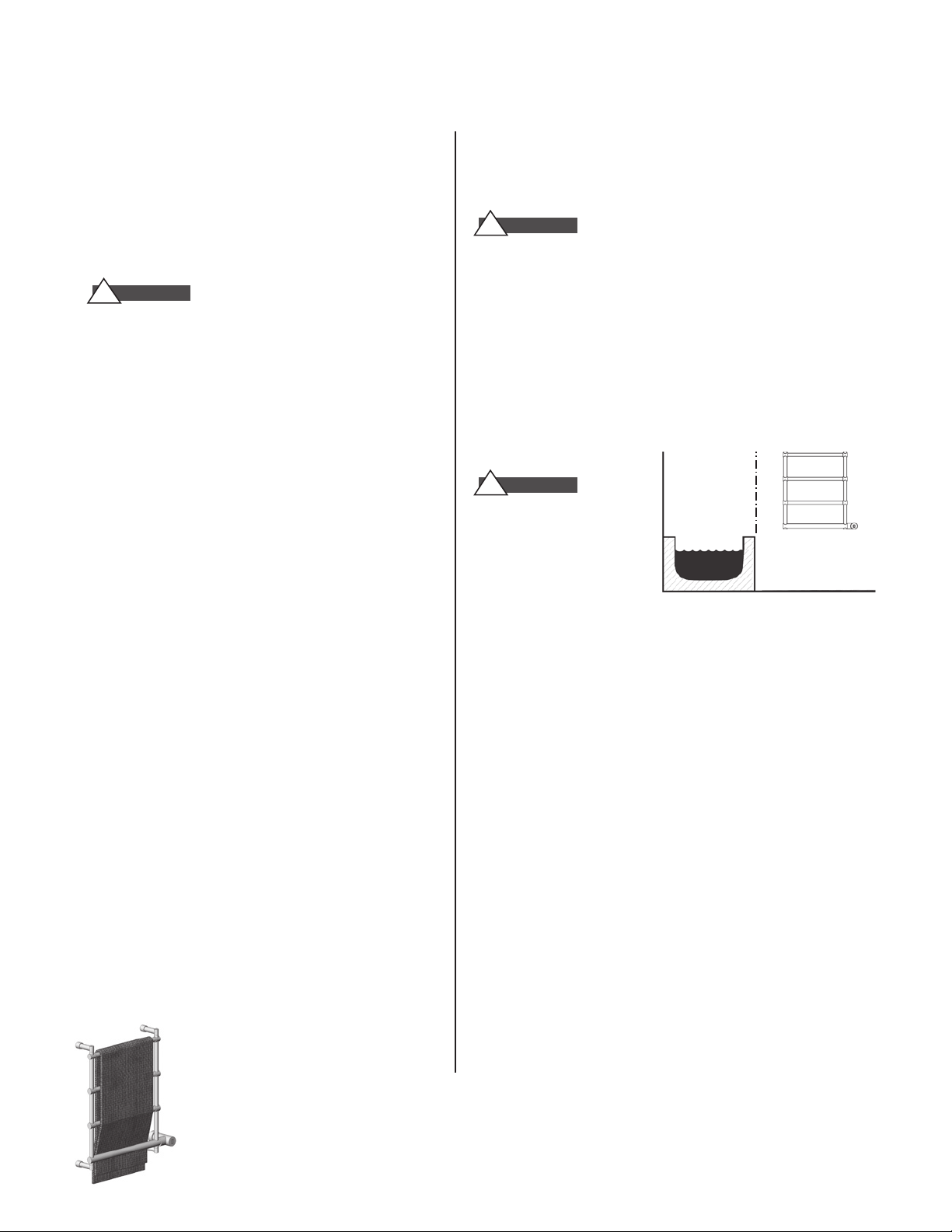

For illustrative purposes only
Shower/Tub
Zone
Do not locate the
towel warmer within
the shower/tub zone
This picture shows the recommended method of draping a towel on a towel warmer. Ensure as
much as possible of the towel’s surface is touching the towel warmer for optimum towel warming.

mr.steam
®
Broadway Collection Towel Warmers Installation, Operation & Maintenance Instructions
_______________________________________________________________
3
Install Towel Warmers in upright position only. Locate wir-
ing box with indicator light on bottom as shown. Failure to
install properly may result in overheating and a hazardous
condition.
IMPORTANT NOTE: Towel Warmers may have small
dimensional variations and must be measured prior to
installation. Do not use dimensions to determine location
of mounting holes.
Locate wiring
box as shown
MOUNTING DIMENSIONS (inches)
MODEL A B C D
W219C 4 5⁄16 1
3⁄815 13 3⁄4
W228C 4 5⁄16 1 3⁄815 21 5⁄8
W236C 4 5⁄16 1 3⁄815 29 1⁄2
W248C 4 5⁄16 1 3⁄815 41 3⁄8
!WARNING
This
End
Up
Upper Header (Z)
Lower Header (Z)
Wiring
Box
Finished
wall surface
Towel Warmer
Y
MOUNTING DIMENSIONS (inches)
MODEL X (min) Y Z (min)
(Header horizontal length) (Header vertical length) (Header size)
W219C 16 13 3⁄42 x 6
W228C 16 215⁄82 x 6
W236C 16 291⁄22 x 6
W248C 16 413⁄82 x 6
For Technical Service Assistance:
East Coast Tel: [phone]
West Coast Tel: [phone]
WALL PREPARATION
• DO NOT mount the Towel Warmer without provid-
ing structurally secure upper and lower headers as
shown.
• DO NOT mount the Towel Warmer directly to
sheet rock or any other non-structural surface.
• Use longer fasteners as required if the finished
wall surface prevents adequate mounting with the
screws provided.
• Provide a clearance hole in the lower header as
required to route field wiring to the Towel Warmer
wiring box.
IMPORTANT NOTE: See electrical rough-in
instructions on page 6.
IMPORTANT NOTE: Towel Warmers may have
small dimensional variations and must be measured
prior to installation. Do not use dimensions to deter-
mine location of mounting holes.
!CAUTION

mr.steam
®
Broadway Collection Towel Warmers Installation, Operation & Maintenance Instructions
_______________________________________________________________
4
INSTALLATION BRASS MOUNTING BRACKETS
BOX CONTENTS:
• Towel Warmer • (4) Threaded Knobs
• (4) Bracket Screws • (4) Brackets
• (3) Wiring Box Screws • Wiring Box Escutcheon
• (6) Set Screws • (2) Allen Keys
• Warranty • Instruction & Operation Manual
TO PREVENT SHOCK HAZARD,
THE ELECTRICITY MUST BE TURNED OFF AT THE
MAIN PANEL BEFORE ANY WIRING IS DONE.
1. Remove Towel Warmer and parts from the packing materials.
LOOSENING OR REMOVING END CAPS
OR HEATING ELEMENT ASSEMBLY WILL CAUSE INTERNAL
LIQUID TO ESCAPE AND CAUSE PRODUCT DAMAGE.
2. Using the allen key provided, loosen the wiring box set
screw. DO NOT remove the wiring box.
3. Gently rotate the wiring box as shown.
4. Locate the brackets on the wall by using the dimensions
given on page 3. The brackets are shown in the most optimal
location for mounting.
5. Using the screws provided secure the brackets to the wall.
6. Gently place the towel warmer on the brackets and screw a
threaded knob into each bracket. Mark the location for the
wiring box escutcheon.
7. Remove the towel warmer and secure the flange to the wall
per instructions.
8. Secure the towel warmer to the bracket by screwing a
threaded knob into each bracket and tightening the set
screws on the bottom of the bracket.
9. Tighten the wiring box set screw.
NOTE: Hand tighten the threaded knobs only. Using tools
will mar or scratch the finish.
IMPORTANT NOTE: See electrical rough-in instructions
on page 6.
Install Towel Warmers in upright position only.
Locate with indicator light on bottom as shown. Failure to install
properly may result in a hazardous condition. See page 3.
Threaded
Knobs
Wiring Box
Escutcheon
Threaded Knobs
Bracket
Bracket
Screw
Bracket
Screw
Bracket Screw
Finished
surface
of wall
Towel Warmer
Bracket
Escutcheons
Set Screw
Threaded
Knob
IMPORTANT:
LOOSENING END CAPS WILL CAUSE
INTERNAL LIQUID TO ESCAPE AND CAUSE PRODUCT DAMAGE.
!WARNING
!WARNING
!CAUTION
Level (not supplied)
Indicator
Light
Wiring Box
Allen
Wrench
Wiring Box
Level (not supplied)
Indicator
Light
Wiring Box
Allen
Wrench
Wiring Box

mr.steam
®
Broadway Collection Towel Warmers Installation, Operation & Maintenance Instructions
_______________________________________________________________
5
Wiring
Box
Bracket
Screw
Mounting
Screw
Finished
surface
of wall
Extension
Bracket
Bracket
Clamp
Set Screw
Mounting
Screw
Clamp Screw
Clamp
Pieces
Clamp Screw
Cover
Wiring Box
Escutcheon
IMPORTANT: LOOSENING END
CAPS WILL CAUSE INTERNAL LIQUID TO
ESCAPE AND CAUSE PRODUCT DAMAGE.
Level (not supplied)
Indicator
Light
Wiring Box
Allen
Wrench
Wiring Box
BOX CONTENTS:
• Towel Warmer • (4) Bracket Assemblies
• (4) Bracket Screws • Wiring Box Escutcheon
• (3) Wiring Box Screws • Allen Key
• (2) Set Screws • Instruction & Operation Manual
TO PREVENT SHOCK HAZARD THE
ELECTRICITY MUST BE TURNED OFF AT THE MAIN
PANEL BEFORE ANY WIRING IS DONE.
1. Remove Towel Warmer and parts from the packing
materials.
LOOSENING OR REMOVING END CAPS
OR HEATING ELEMENT ASSEMBLY WILL CAUSE INTERNAL
LIQUID TO ESCAPE AND CAUSE PRODUCT DAMAGE.
2. Using the allen key provided, loosen the wiring box set
screw. Set screw location varies by model as shown.
DO NOT remove the wiring box.
3. Gently rotate the wiring box as shown.
4. Locate the bracket on the wall by using the dimensions
given on page 3. The brackets are shown in the most
optimal location for mounting.
5. Using the screws provided secure the brackets to the wall.
6. Assemble the clamps and bracket extensions between
the top two and bottom two cross bars in each corner
as shown in the picture on the bottom of page 3 using
the clamp screw. Do not tighten the clamp screw, so the
clamps are free to slide for alignment purposes.
7. Align the bracket extensions with the wall mounted brack-
ets. Slide the towel warmer into place. Mark the location
for the wiring box escutcheon
8. Remove the towel warmer and secure the wiring box
escutcheon to the wall in the proper location.
9. Place the towel warmer on the brackets. Tighten the
4 bracket screws to secure the towel warmer in place.
Tighten the 4 clamp screws and place the 4 covers over
the clamps. Tighten the set screw on the bottom of the
wiring box escutcheon.
10. Tighten the wiring box set screw.
NOTE: The clamp pieces should be assembled so the
grooves fit the curve of the cross bars.
IMPORTANT NOTE: See electrical rough-in
instructions on page 6.
Install Towel Warmers in upright
position only. Locate with indicator light on bottom as
shown. Failure to install properly may result in a hazardous
condition. See page 3.
!WARNING
!WARNING
!CAUTION
INSTALLATION PLASTIC MOUNTING BRACKETS
