MSI 11M-218EU User manual

Modern Series
All-in-one PC
Modern AM241 (MS-AE01)
Modern AM241T (MS-AE01)
Modern AM241P (MS-AE01)
Modern AM241TP (MS-AE01)
Modern AM271 (MS-AF81)
Modern AM271P (MS-AF81)
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI Modern
AM241P 11M 11M-218EU o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation

2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Connecting the Power ............................................................................................ 9
Adjusting the Monitor ........................................................................................... 10
OSD Setup............................................................................................................. 11
Component Replacement & Upgrade .................................................................. 15
System Operations ..................................................................................................... 16
Power Management ............................................................................................. 16
Network Connection (Windows 10) ...................................................................... 18
System Recovery (Windows 10)............................................................................ 21
System Recovery (F3 Hotkey Recovery) (Optional) .............................................. 25
Troubleshooting.......................................................................................................... 26
Safety Instructions...................................................................................................... 28
TÜV Rheinland Certification....................................................................................... 30
Regulatory Notices..................................................................................................... 31
Revision
V1.0, 2021/02

3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-one PC Modern AM241, Modern AM241T, Modern AM241P,
Modern AM241TP, Modern AM271, Modern AM271P
Documentation
User Manual (Optional)
Quick Guide (Optional)
Warranty Card & Warranty Book
Accessories
Mouse (Optional)
Keyboard (Optional)
AC/DC Adapter
Power Cord
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.

4Getting Started
System Overview
Front View
1
1Touch Screen (For Modern AM241T / Modern AM241TP)

5
Getting Started

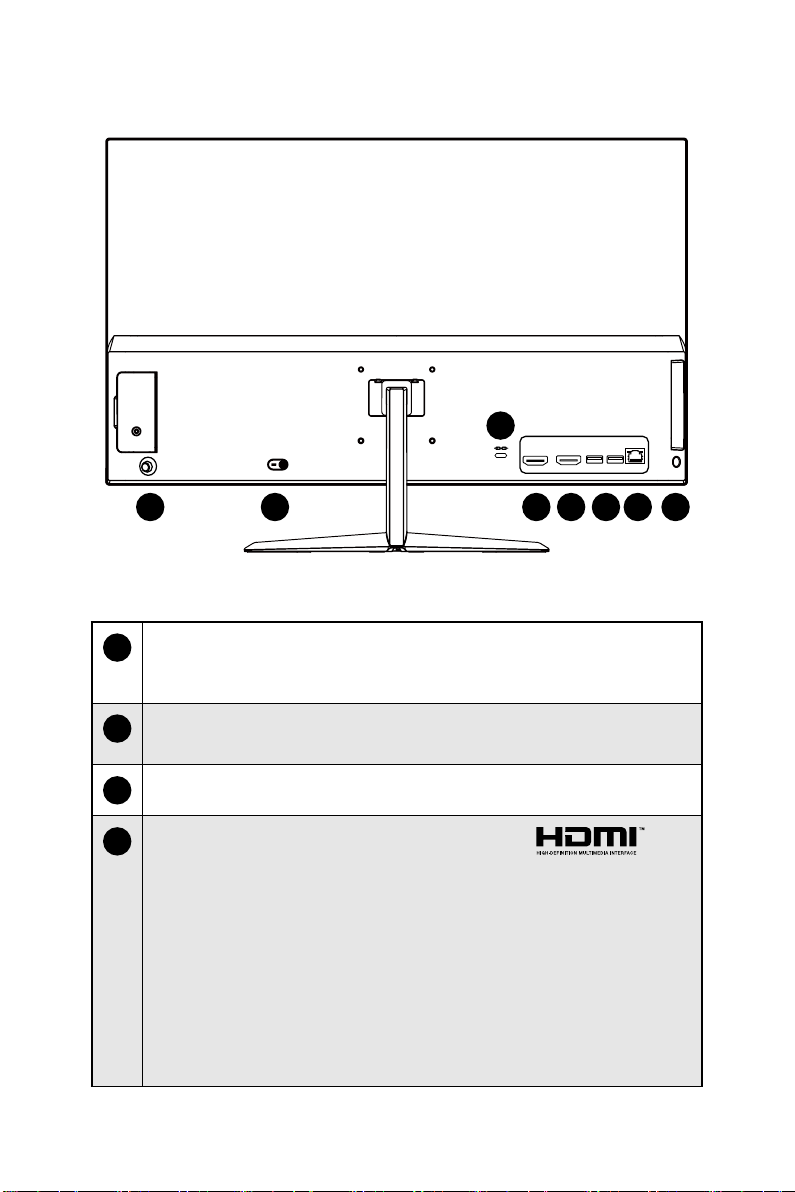

Rear View
1 2
3
4 6 7 85
1Navi Key
The AIO PC comes with a Navi Key, a multi-directional control that helps
navigate the On-Screen Display (OSD) menu.
2Power Jack
Power supplied through this jack supplies power to your system.
3Kensington Lock
4HDMI-In Port (with MSI Instant Display Technology)
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced, or high-definition video, plus
multi-channel digital audio on a single cable.
With MSI Instant Display Technology, when you connect power to the AIO PC
successfully, the monitor will automatically enter “standby” mode without
pressing the power button. When devices are connected to the HDMI-in
port, the monitor will be turned on immediately. You can also switch the
modes through the Monitor Power/ Mode Button on the side panel if you
have already turned on your AIO PC. This technology helps to save more
energy for your system.

6Getting Started
5HDMI-Out Port
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced, or high-definition video, plus
multi-channel digital audio on a single cable.
6USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
7LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Yellow Off LAN link is not established.
On (steady state) LAN link is established.
On (blinking) The computer is communicating with
another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
8Power Button
Press the power button to turn the system on and off.

7
Getting Started
Side View
7
1
2
3
4
5
6
1USB 3.2 Gen 2 Port (Type-C)
This connector is provided for USB peripheral devices. This connector can
provide up to 5V 3A of power. (Speed up to 10 Gbps)
2USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
3Combo Audio Jack
This connector is provided for headphones or speakers or microphones.
4Monitor LED
5Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.

8Getting Started
6System Power Button/ LED
Press the system power button to turn the system on or off.The power LED
glows when the system is turned on and goes offwhen the system is shut
down. In terms of power saving, the LED blinks in S3 (Suspend to RAM)
mode and goes off in S4 (Suspend to Disk) mode.
72.5” HDD Bay

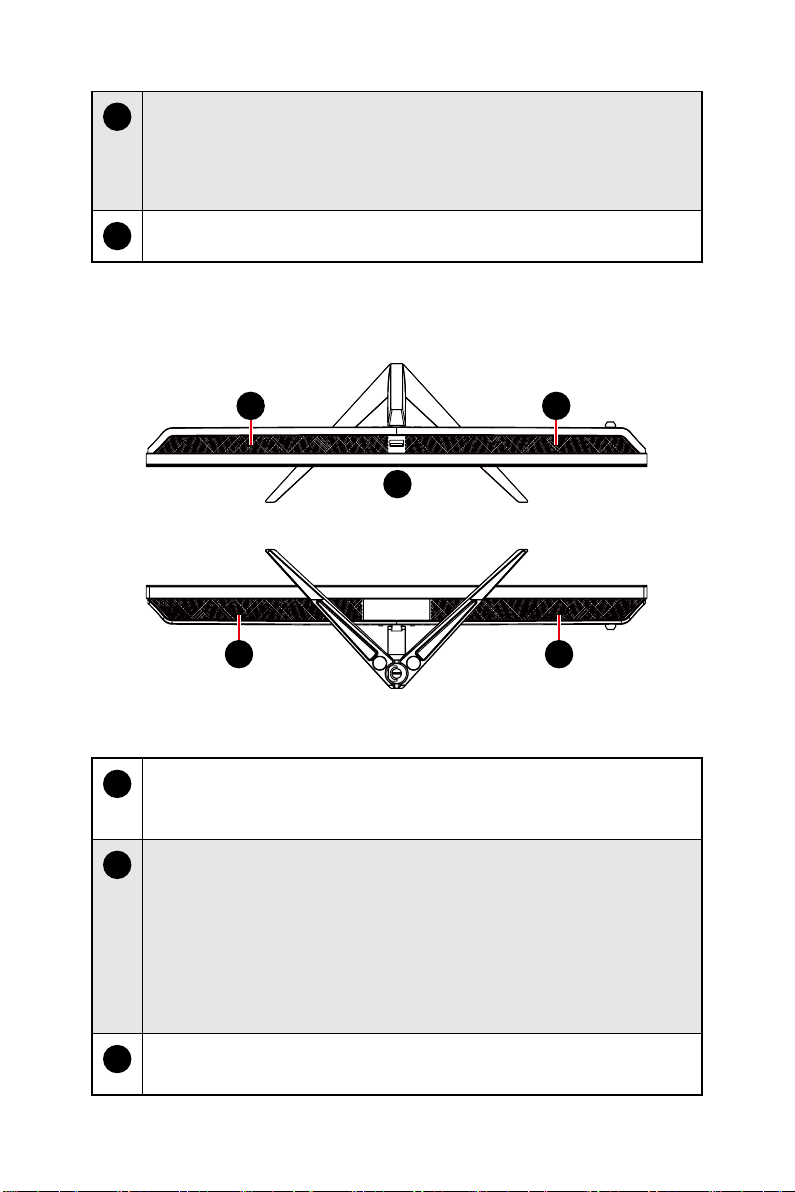

Top & Bottom View
1 1
3 3
2
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
2USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
3Stereo Speakers
The built-in stereo speakers deliver high quality sound with stereo system.

9
Getting Started
Connecting the Power
Connect the adapter to the AIO PC and plug in the power cord.
•(Option 1) 100-240V, 19.5V 6.15A
•(Option 2) 100-240V, 19V 4.74A
1
2
3
1
3
2
Press the power button to power on the AIO PC.

10 Getting Started

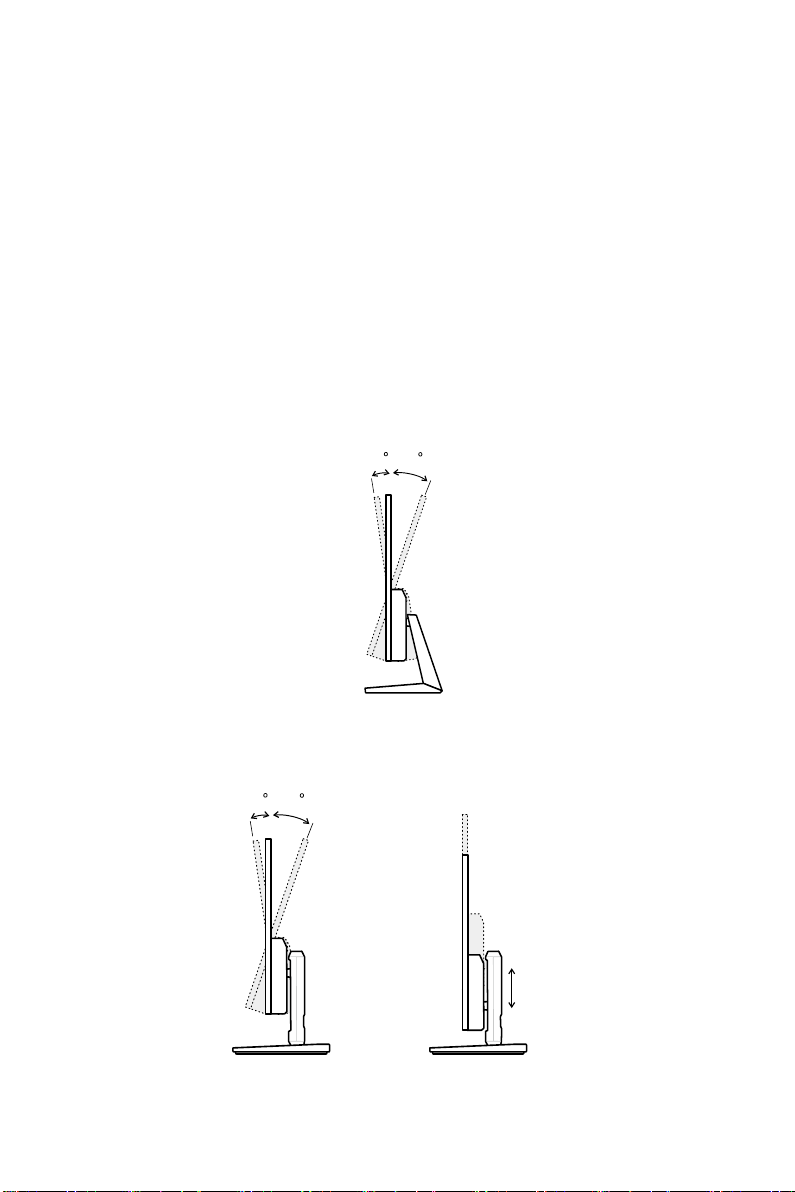

Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙ The illustrations are for reference only. Your AIO PC may vary in appearance.
∙ Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.
∙ Do not use any sharp objects on the display panel.
∙ Avoid pressing the display panel when adjusting.
Modern AM241 / Modern AM241T / Modern AM271
-4
O
20
O
Modern AM241P / Modern AM241TP / Modern AM271P
-4
O
20
O
130mm

11
Getting Started
OSD Setup
This chapter provides you with essential information on OSD Setup.
⚠
Important
All information is subject to change without prior notice.
Navi Key
The AIO comes with a Navi Key, a multi-directional control that helps navigate the On-
Screen Display (OSD) menu.
Up/Down/Left/Right:
∙selecting function menus and items
∙adjusting function values
∙entering into/exiting from function menus
Press (Menu):
∙launching the On-Screen Display (OSD)
∙entering submenus
∙confirming a selection or setting
Hot Key
∙Users may enter into Volume, Brightness, Mode and Input Source function menus by
moving the Navi Key up, down, left or right when the OSD menu is inactive.

12 Getting Started
OSD Setup via Navi Key
Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main
menu. Use the Up, Down, Left, Right buttons to tune the desired function menus to
suit your personal preferences. Press Menu 3 seconds to shut the panel off. Press
Menu again to wake it up.
1st Level Menu 2nd/ 3rd Level Menu Description
Mode User ∙Default is User.
∙While sRGB mode is selected, the
color space will changed to standard
sRGB from original panel gamut.
Reader
Cinema
Designer
sRGB
Brightness 0-100 ∙Default is 80.
∙Brightness has to be gray out in PC
Mode.
Contrast 0-100 ∙Default is 80.

13
Getting Started
1st Level Menu 2nd/ 3rd Level Menu Description
Sharpness 0-5 ∙Default is 0.
Eye Saver OFF ∙Default is OFF.
∙Eye Saver has to be enabled in
Reader Mode.
ON
Color
Temperature
Cool ∙Default is Normal.
∙Cool Mode is 9300K; Normal Mode is
6500K; Warm Mode is 5000K.
∙Customization Mode default R/G/B
are 50/50/50.
∙Color Temperature has to gray out
while sRGB mode is selected.
Normal
Warm
Customization R
(0-100)
G
(0-100)
B
(0-100)
Screen Size 4:3 ∙Default is 16:9.
16:9
Input Source
1st Level Menu Description
PC User can use Navi Key, and OSD Menu to adjust the Input Source
in any Mode.
HDMI

14 Getting Started
Setting
1st Level Menu 2nd Level
Menu
Description
Language English ∙Default is English.
∙Language is an independent setting. User’s
own language setting will override the
factory default. When user sets Reset to Yes,
Language will not be changed.
繁體中文
简体中文
Italiano
Español
Français
Português
Deutsch
日本語
Русский
Transparency 0-5 ∙Default is 0.
OSD Time Out 5-30 ∙Default is 20s.
Audio Volume 0-100 ∙Default is 50.
Reset YES ∙User can Reset the settings to original OSD
default in any Mode.
NO

15
Getting Started
Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.

16 System Operations
System Operations
This chapter provides you with essential information on system operations.
⚠
Important
All information is subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.
Power Management in Windows 10
∙[Power Options] in Windows OS allow you to control the power management
features of your display, hard drive, and battery. Right-click [Start] , select
[Control Panel] from the list and then click [System and Security].
∙Select [Power Options] and choose a power plan that suits your personal needs. You
may also fine-tune the settings by clicking [Change plan settings].
∙The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down
(S5) for rapid and easy management of your system power.
Power Management
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙Turn off the display after 10 minutes
∙Initiate Sleep after 30 minutes

17
System Operations
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙the power button,
∙the network (Wake On LAN),
∙the mouse,
∙the keyboard.
Energy Saving Tips:
∙Turn off the monitor by pressing the monitor power button after a period of user
inactivity.
∙Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙Install power saving software to manage your PC’s energy consumption.
∙Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.

18 System Operations
Network Connection (Windows 10)
Wired Network
1. Right-click [Start] and select [Network Connections] from the list.
2. Select [Ethernet] and then [Network and Sharing Center].
3. Select [Set up a new connection or network].
4. Choose [Connect to the Internet] and click [Next].

19
System Operations
5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user
name and password.
6. Type the information from your Internet Service Provider (ISP) and click [Connect]
to establish your LAN connection.

20 System Operations
Wireless Network
1. Go to [Start] , click [Settings] and select [Network and Internet].
2. A list of available WLAN connections pops up. Choose a connection from the list.
3. To establish a new connection, select [Network and Sharing Center].
4. Select [Set up a new connection or network].
5. Followingly, choose [Manually connect to a wireless network] and click [Next] to
continue.
6. Enter information for the wireless network you intend to add and click [Next] to
proceed.
7. A new WLAN connection has been made.
