MSI Trident B937 User manual

Trident / Creator Series
Personal Computer
Trident B937
Creator B937
User Guide

2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Hardware Setup...................................................................................................... 7
Placing the Device .................................................................................................. 9
System Operations ..................................................................................................... 10
Power Management ............................................................................................. 10
Network Connection (Windows 10) ...................................................................... 12
System Recovery (Windows 10)............................................................................ 15
System Recovery (F3 Hotkey Recovery) (Optional) .............................................. 19
Safety Instructions...................................................................................................... 20
Regulatory Notices..................................................................................................... 22
Revision
V1.1, 2021/06

3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
Personal Computer Trident B937 / Creator B937
Documentation
User Guide (Optional)
Quick Guide (Optional)
Warranty Card & Warranty Book (Optional)
Accessories
AC/DC Adapter
Power Cord
Mouse (Optional)
Keyboard (Optional)
Cable Management Sleeve (Optional)
Stand
Gamepad (Optional)
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.

4Getting Started
System Overview
12
14
13
10
13 4 52 6
9
8
78 11

5
Getting Started
1Power Button
2Hard Disk Drive LED
3Thunderbolt™ 4 Port (USB Type-C) (Optional)
∙Support up to 40Gbps transfer rate with Thunderbolt devices.
∙Support up to 20Gbps transfer rate with USB 4 devices.
∙Support up to 10Gbps transfer rate with USB 3.2 devices.
∙Support up to 5V/3A,15W power charging.
∙Each port can daisy-chain up to three Thunderbolt 4 devices or five
Thunderbolt 3 devices.
∙Support up to 8K display.
4Headphone Jack
5Microphone Jack
6USB 3.2 Gen 1 Port (Type-A)
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
7Power Jack
8USB 3.2 Gen 2 Port (Type-A)
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
9USB 3.2 Gen 2x2 Port (Type-C)
This connector is provided for USB peripheral devices. This connector can
provide up to 5V/3A of power. (Speed up to 20 Gbps)
10 Kensington Lock
11 2.5 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps

6Getting Started
12 Line-In
13 Line-Out
14 Mic

7
Getting Started
Hardware Setup
Connect your peripheral devices to suitable ports.
⚠
Important
∙ For detailed instructions on how to connect, please refer to the manuals of your
peripheral devices.
∙ Reference image only. Appearance will vary.
Connecting Thunderbolt Devices via Daisy-chain (Optional)
Daisy-chain is a method of connecting multiple devices to a PC with only one output
terminal.
Daisy-chain allows you to connect multiple Thunderbolt devices to a single
Thunderbolt port on the front IO panel.
You can also daisy-chain monitors on the rear IO panel. Please note that monitors
should be the last devices on the chain.
If you want to connect USB devices, please place them at the end of the chain.

8Getting Started

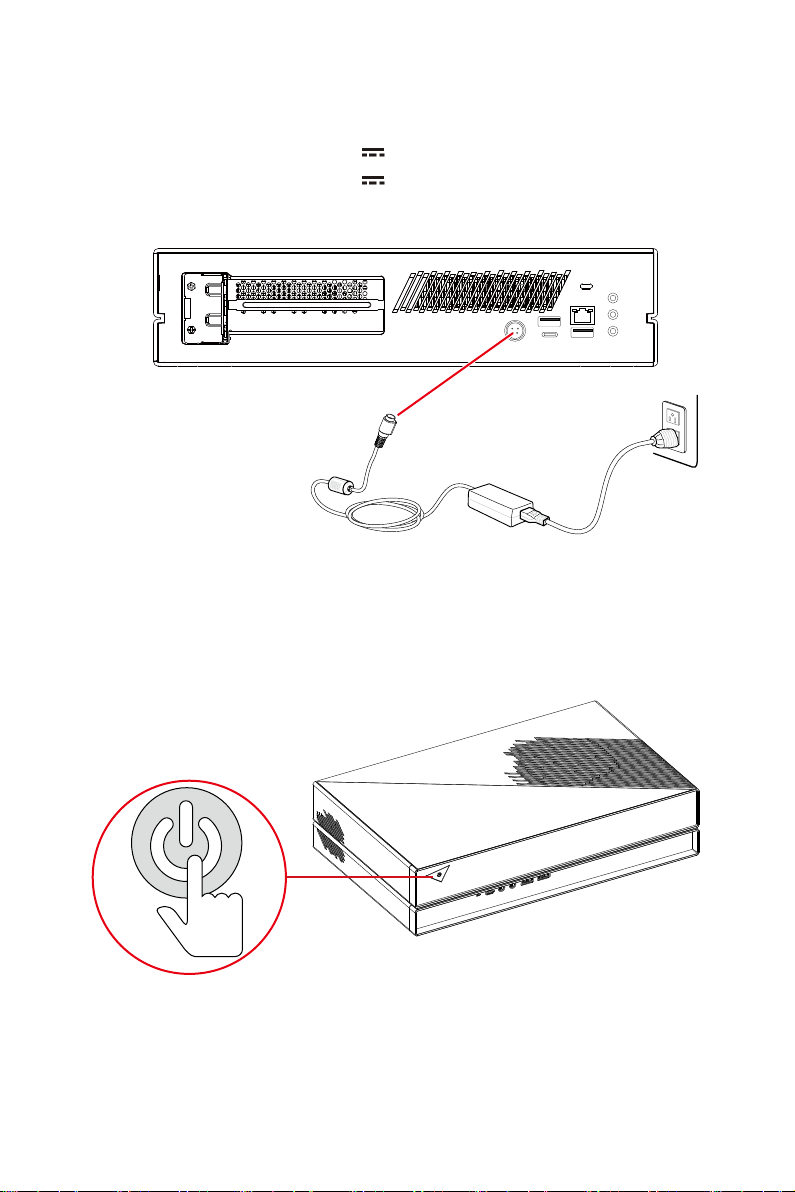

Connect the power cord to the system and electrical outlet.
Power Rating
•230W: 100-240V~, 50-60Hz, 19.5V 11.8A
•330W: 100-240V~, 50-60Hz, 19.5V 16.9A
Press the power button to power on the system.
⚠
Important
When unplugging the AC
power cord, always hold the
connector part of the cord.
Never pull the cord directly.

9
Getting Started
Placing the Device
You can place the device as the following ways.
If you want to place the system vertically, please follow the steps below to install the
stand:
1. Place the stand on a stable surface, such as a computer desk or a TV cabinet.
2. Make certain the system is in power off mode. Ensure correct orientation and
install the system to the stand.
3. Handle with extra care when relocating the system.

10 System Operations
System Operations
This chapter provides you with essential information on system operations.
⚠
Important
All information is subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.
Power Management in Windows 10
∙[Power Options] in Windows OS allow you to control the power management
features of your display, hard drive, and battery. Right-click [Start] , select
[Control Panel] from the list and then click [System and Security].
∙Select [Power Options] and choose a power plan that suits your personal needs. You
may also fine-tune the settings by clicking [Change plan settings].
∙The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down
(S5) for rapid and easy management of your system power.
Power Management
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙Turn off the display after 10 minutes
∙Initiate Sleep after 30 minutes

11
System Operations
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙the power button,
∙the network (Wake On LAN),
∙the mouse,
∙the keyboard.
Energy Saving Tips:
∙Turn off the monitor by pressing the monitor power button after a period of user
inactivity.
∙Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙Install power saving software to manage your PC’s energy consumption.
∙Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.

12 System Operations
Network Connection (Windows 10)
Wired Network
1. Right-click [Start] and select [Network Connections] from the list.
2. Select [Ethernet] and then [Network and Sharing Center].
3. Select [Set up a new connection or network].
4. Choose [Connect to the Internet] and click [Next].

13
System Operations
5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user
name and password.
6. Type the information from your Internet Service Provider (ISP) and click [Connect]
to establish your LAN connection.

14 System Operations
Wireless Network
1. Go to [Start] , click [Settings] and select [Network and Internet].
2. A list of available WLAN connections pops up. Choose a connection from the list.
3. To establish a new connection, select [Network and Sharing Center].
4. Select [Set up a new connection or network].
5. Followingly, choose [Manually connect to a wireless network] and click [Next] to
continue.
6. Enter information for the wireless network you intend to add and click [Next] to
proceed.
7. A new WLAN connection has been made.

15
System Operations
System Recovery (Windows 10)
The purposes for using the System Recovery Function may include:
∙Restore the system back to the initial status of original manufacturer’s default
settings.
∙When some errors have occurred to the operating system in use.
∙When the operating system is affected by virus and is not able to work normally.
∙When you want to install the OS with other built-in languages.
Before using the System Recovery Function, please back up the important data saved
on your system drive to other storage devices.
If the following solution fails to recover your system, please contact the authorized
local distributor or service center for further assistance.

16 System Operations
Reset this PC
1. Go to [Start] , click [Settings] and select [Update and security].
2. Select [Recovery] and click [Get started] under [Reset this PC] to start the system
recovery.
3. The [Choose an option] screen pops up. Choose between [Keep my files] and
[Remove everything].
Reset this PC Keep my files
Remove
everything
Only the drive
where Windows is
installed
Just remove my files
Remove files and clean the
drive
All drives Just remove my files
Remove files and clean the
drive

17
System Operations
Keep my files
1. Select [Keep my files].
2. The [Your apps will be removed] screen shows a list of apps that will need to be
reinstalled from the web or installation discs. Click [Next] to continue.
3. The next screen will show the changes to be made during the process. Click
[Reset] to start the system reset.

18 System Operations
Remove everything
1. Select [Remove everything].
2. If you have multiple hard drives, a screen will pop up, asking you to choose
between [Only the drive where Windows is installed] and [All drives].
3. Then select between [Just remove my files] and [Remove files and clean the drive].
4. The next screen will show the changes to be made during the process. Click
[Reset] to start the system reset.

19
System Operations
System Recovery (F3 Hotkey Recovery) (Optional)
Precautions for Using the System Recovery Function
1. If your hard drive and system encountered non-recoverable problems, please use
the F3 Hotkey recovery from the Hard Drive first to perform the System Recover
Function.
2. Before using the System Recovery Function, please backup the important data
saved on your system drive to other storage devices.
Recovering the system with the F3 Hotkey
Follow the instructions below to continue:
1. Restart the PC.
2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on
the display.
3. On the [Choose an Option] screen, select [Troubleshoot].
4. On the [Troubleshoot] screen, select [Restore MSI factory] to reset the system to
the default settings.
5. On the [RECOVERY SYSTEM] screen, select [System Partition Recovery].
6. Follow the on-screen instructions to continue and complete the Recovery Function.

20 Safety Instructions
Safety Instructions
∙Read the safety instructions carefully and thoroughly.
∙All cautions and warnings on the device or User Guide should be noted.
∙Refer servicing to qualified personnel only.
Power
∙Make sure that the power voltage is within its safety range and has been adjusted
properly to the value of 100~240V before connecting the device to the power outlet.
∙If the power cord comes with a 3-pin plug, do not disable the protective earth pin
from the plug. The device must be connected to an earthed mains socket-outlet.
∙Please confirm the power distribution system in the installation site shall provide
the circuit breaker rated 120/240V, 20A (maximum).
∙Always unplug the power cord before installing any add-on card or module to the
device.
∙Always disconnect the power cord or switch the wall socket off if the device would
be left unused for a certain time to achieve zero energy consumption.
∙Place the power cord in a way that people are unlikely to step on it. Do not place
anything on the power cord.
∙If this device comes with an adapter, use only the MSI provided AC adapter approved
for use with this device.
Battery
Please take special precautions if this device comes with a battery.
∙Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
∙Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, which can result in an explosion.
∙Avoid leaving a battery in an extremely high temperature or extremely low air
pressure environment that can result in an explosion or the leakage of flammable
liquid or gas.
∙Do not ingest battery. If the coin/button cell battery is swallowed, it can cause
severe internal burns and can lead to death. Keep new and used batteries away
from children.
European Union:
Batteries, battery packs, and accumulators should not be disposed of as
unsorted household waste. Please use the public collection system to
return, recycle, or treat them in compliance with the local regulations.
Taiwan:
廢電池請回收
For better environmental protection, waste batteries should be collected
separately for recycling or special disposal.
