MSI PRO AP222T 13M User manual

PRO Series
All-in-One PC
PRO AP222T 13M (MS-AC01)
User Guide

2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Hardware Setup...................................................................................................... 8
OSD Setup............................................................................................................. 11
Component Replacement & Upgrade .................................................................. 15
Windows 11 System Operations................................................................................ 16
Power Management ............................................................................................. 16
Network Connections........................................................................................... 20
System Recovery .................................................................................................. 28
F3 Hotkey Recovery (Optional) .................................................................................. 30
Troubleshooting.......................................................................................................... 31
Safety Instructions...................................................................................................... 33
TÜV Rheinland Certification....................................................................................... 35
ENERGY STAR Certification....................................................................................... 35
Regulatory Notices..................................................................................................... 36
Revision
V1.0, 2023/01

3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-One PC PRO AP222T 13M
Documentation
User Guide (Optional)
Quick Start Guide (Optional)
Warranty Card & Warranty Book (Optional)
Accessories
Mouse (Optional)
Keyboard (Optional)
External Power Adapter
Power Cord
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.

4Getting Started

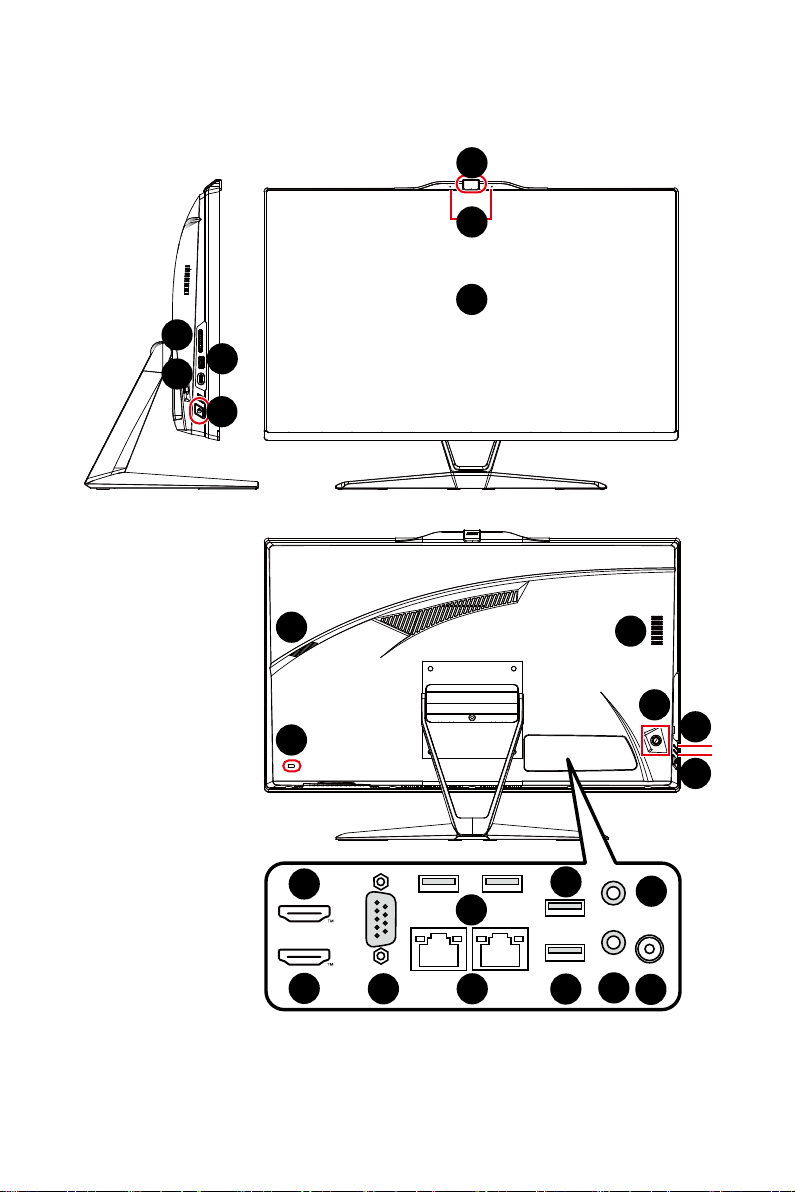

System Overview
2
1
4
3
6
5
7
911
12
13
14 15
16
17
18 19
20 21
18
8
10
8

5
Getting Started
1Webcam
2Digital Microphone
3Touch Screen
4Card Reader
5USB 3.2 Gen 1 Type-C Port
This connector is provided for USB peripheral devices. This connector can
provide up to 5V/3A of power. (Speed up to 5 Gbps)
6USB 3.2 Gen 1 Port
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
7Power Button
8Stereo Speaker
9Kensington Lock
10 Navi Key
The AIO PC comes with a Navi Key, a multi-directional control that helps
navigate the On-Screen Display (OSD) menu.
11 Power LED
The power LED glows when the system is turned on and goes off when
the system is shut down. In terms of power saving, the LED blinks in S3
(Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.
12 Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.

6Getting Started
13 HDMI™ Connector
Supports 4K@60Hz as specified in HDMI™ 2.1.
⚠
Important
∙ Available for the processor with integrated graphics.
∙ Graphics specifications may vary depending on the installed CPU.
14 HDMI™ Connector
This input port comes with MSI Instant Display Technology. When you
connect power to the AIO PC successfully, the monitor will automatically
enter “standby” mode without pressing the power button. When devices are
connected to the HDMI™ port, the monitor will be turned on immediately.
You can also switch the modes through the Monitor Power/ Mode Button on
the side panel if you have already turned on your AIO PC. This technology
helps to save more energy for your system.
15 Serial Port
The serial port supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.
16
USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
17
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
18
USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.

7
Getting Started
19 Line-Out Jack
20 Mic-In Jack
21 Power Jack

8Getting Started
Hardware Setup

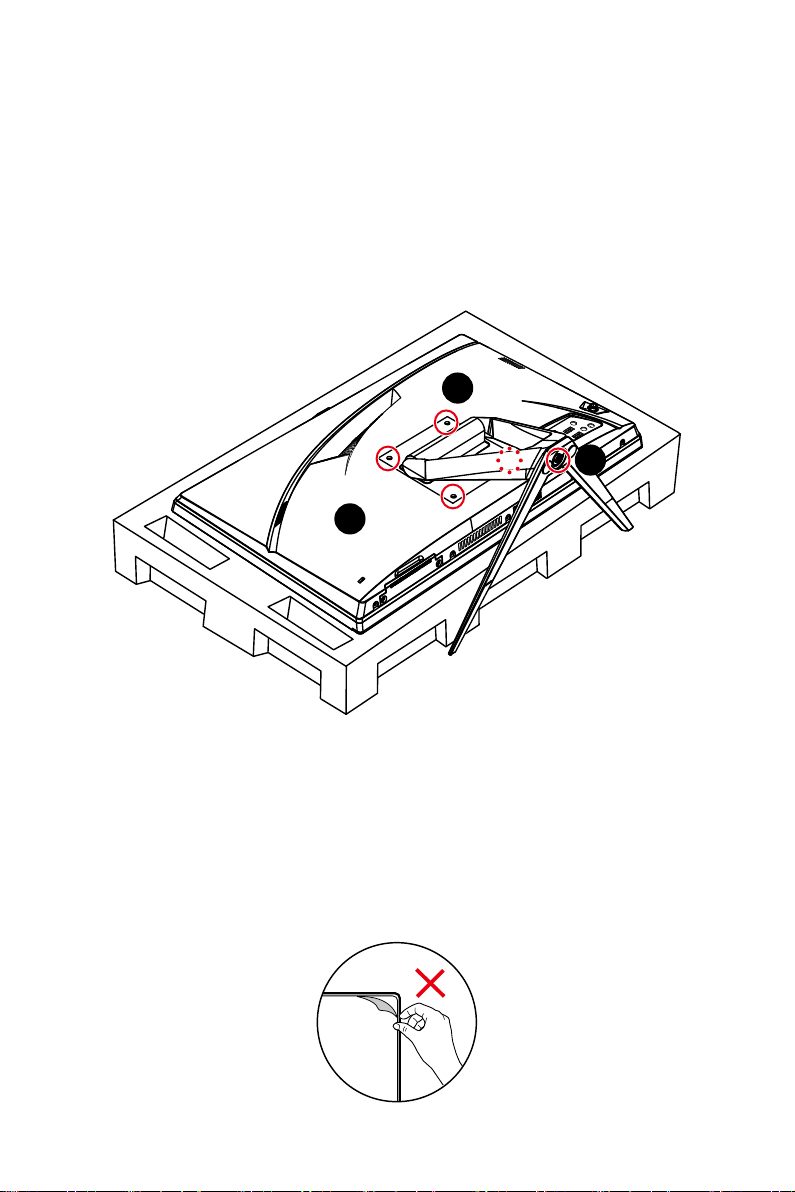

Installing the Stand
1. Leave the AIO PC in its protective foam packaging. Align the stand bracket to the
rear groove.
2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Make sure the stand assembly is properly installed before setting the AIO PC
upright.
2
1
3
⚠
Important
∙ Place the AIO PC on a soft, protected surface to avoid scratching the display panel.
∙ Do not use any sharp objects on the panel.
∙ The groove for installing the stand bracket can also be used for wall mount. Please
contact your dealer for proper wall mount kit.
∙ This product comes with NO protective film to be removed by the user! Any
mechanical damages to the product including removal of the polarizing film may
affect the warranty!

9
Getting Started
Connecting the Power
Connect the external power supply to the AIO PC and plug in the power cord. Press the
power button to power on the AIO PC.
120W External Power Supply
• Input: 100-240V~, 50-60Hz
• Output: 19.5V 6.15A

10 Getting Started

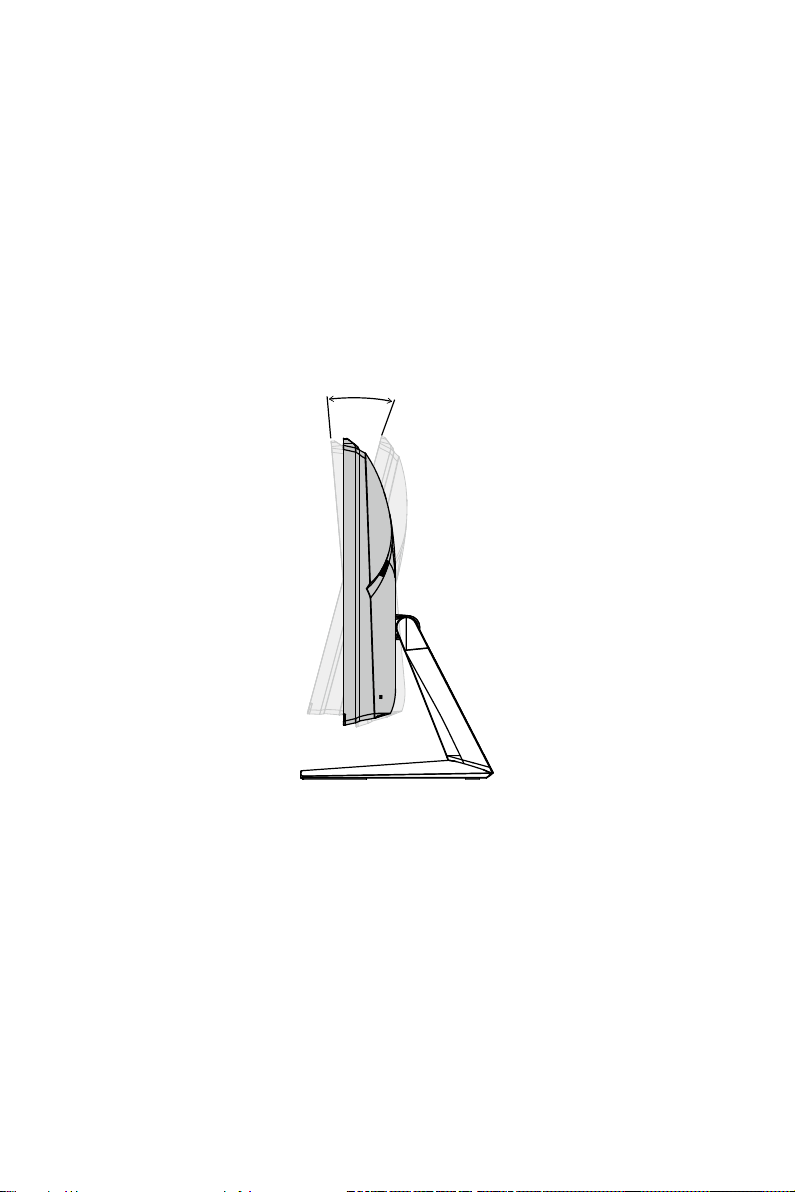

Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙ The illustrations are for reference only. Your AIO PC may vary in appearance.
∙ Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.
∙ Do not use any sharp objects on the display panel.
∙ Avoid touching the display panel when adjusting the monitor.
-5° 15°

11
Getting Started
OSD Setup
This chapter provides you with essential information on OSD Setup.
⚠
Important
All information is subject to change without prior notice.
Navi Key
The AIO comes with a Navi Key, a multi-directional control that helps navigate the On-
Screen Display (OSD) menu.
Up/Down/Left/Right:
∙selecting function menus and items
∙adjusting function values
∙entering into/exiting from function menus
Press (Menu):
∙launching the On-Screen Display (OSD)
∙entering submenus
∙confirming a selection or setting
Hot Key
∙Users may enter into Volume, Brightness, Mode and Input Source function menus by
moving the Navi Key up, down, left or right when the OSD menu is inactive.
∙Users may customize their own Hot Keys to enter into different function menus.

12 Getting Started
OSD Setup via Navi Key
Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main
menu. Use the Up, Down, Left, Right buttons to tune the desired function menus to
suit your personal preferences. Press Menu 3 seconds to shut the panel off. Press
Menu again to wake it up.
1st Level
Menu
2nd/ 3rd Level Menu Description
Mode User ∙Default is User.
∙While sRGB mode is selected, the
color space will changed to standard
sRGB from original panel gamut.
Reader
Cinema
Designer
sRGB
Brightness 0-100 ∙Default is 80.
∙Brightness has to be gray out in PC
Mode.
Contrast 0-100 ∙Default is 80.
Sharpness 0-5 ∙Default is 0.
Eye Saver OFF ∙Default is OFF.
∙Eye Saver has to be enabled in
Reader Mode.
ON

13
Getting Started
1st Level
Menu
2nd/ 3rd Level Menu Description
Color
Temperature
Cool ∙Default is Normal.
∙Cool Mode is 9300K; Normal Mode
is 6500K; Warm Mode is 5000K.
∙Customization Mode default R/G/B
are 50/50/50.
∙Color Temperature has to gray out
while sRGB mode is selected.
Normal
Warm
Customization R
(0-100)
G
(0-100)
B
(0-100)
Screen Size 4:3 ∙Default is 16:9.
16:9
Input Source
1st Level Menu Description
PC User can use Navi Key, and OSD Menu to adjust the Input Source
in any Mode.
HDMI™
Setting
1st Level Menu 2nd Level
Menu
Description
Language English ∙Default is English.
∙Language is an independent setting. User’s
own language setting will override the
factory default. When user sets Reset to Yes,
Language will not be changed.
繁體中文
简体中文
Italiano
Español
Français
Português
Deutsch
日本語
Русский

14 Getting Started
1st Level Menu 2nd Level
Menu
Description
Transparency 0-5 ∙Default is 0.
OSD Time Out 5-30 ∙Default is 20s.
Audio Volume 0-100 ∙Default is 50.
Reset YES ∙User can Reset the settings to original OSD
default in any Mode.
NO

15
Getting Started
Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.

16 Windows 11 System Operations
Windows 11 System Operations
⚠
Important
All information and Windows screenshots are subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.
1. Right-click [Start] and select [Power Options] from the list.
2. Adjust [Screen and sleep] settings and select a power mode from the list.
3. To choose or customize a power plan, type control panel in the search box and
select [Control Panel].
4. Open up [All Control Panel Items] window. Select [Large icons] under [View by]
drop-down menu.
5. Select [Power Options] to continue.
6. Select a power plan and fine-tune the settings by clicking [Change plan settings].
7. To create your own power plan, select (Create a power plan).
8. Select an existing plan and give it a new name.
9. Adjust settings for your new power plan.
10.The [Shut down or sign out] menu also presents power saving options for rapid and
easy management of your system power.
Energy Savings
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙Turn off the display after 10 minutes
∙Initiate Sleep after 30 minutes
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙the power button,
∙the network (Wake On LAN),
∙the mouse,
∙the keyboard.
Energy Saving Tips:
∙Turn off the monitor by pressing the monitor power button after a period of user
inactivity.

17
Windows 11 System Operations
∙Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙Install power saving software to manage your PC’s energy consumption.
∙Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.
2
3
1

18 Windows 11 System Operations
7
4
5
6

19
Windows 11 System Operations
10
8
9

20 Windows 11 System Operations
Network Connections
Wi-Fi
1. Right-click [Start] and select [Network Connections] from the list.
2. Select and turn on [Wi-Fi].
3. Select [Show available networks]. A list of available wireless networks pops up.
Choose a connection from the list.
4. To establish a new connection, select [Manage known networks].
5. Select [Add network].
6. Enter information for the wireless network you intend to add and click [Save] to
establish a new connection.
1
2
