MSI IMMERSE GH50 WIRELESS User manual

WIRELESS
GH50
IMMERSE
GAMING HEADSET


1
INDEX
01 English������������������������������������������������������������������������������2
02 繁體中文���������������������������������������������������������������������������6
03 中文简体�������������������������������������������������������������������������10
04 日本語�����������������������������������������������������������������������������14
05 한국어�����������������������������������������������������������������������������18
06 Bahasa Indonesia�����������������������������������������������������������22
07 Tiếng Việt �����������������������������������������������������������������������26
08 Français��������������������������������������������������������������������������30
09 Español ��������������������������������������������������������������������������34
10 Türkçe ���������������������������������������������������������������������������38
11 Polski������������������������������������������������������������������������������42
12 Italiano����������������������������������������������������������������������������46
13 Português�����������������������������������������������������������������������50
14 Nederlands ���������������������������������������������������������������������54
15 Deutsch ��������������������������������������������������������������������������58
16 Русский��������������������������������������������������������������������������62
17 Български����������������������������������������������������������������������66
18 Dansk �����������������������������������������������������������������������������70
19 Suomi �����������������������������������������������������������������������������74
20 Magyar ��������������������������������������������������������������������������78
21 Norsk ������������������������������������������������������������������������������82
22 Română �������������������������������������������������������������������������86
23 Slovenčina����������������������������������������������������������������������90
24 Svenska��������������������������������������������������������������������������94
25 Čeština ���������������������������������������������������������������������������98
26 Українська ������������������������������������������������������������������102
27 Ελληνικά�����������������������������������������������������������������������106

2

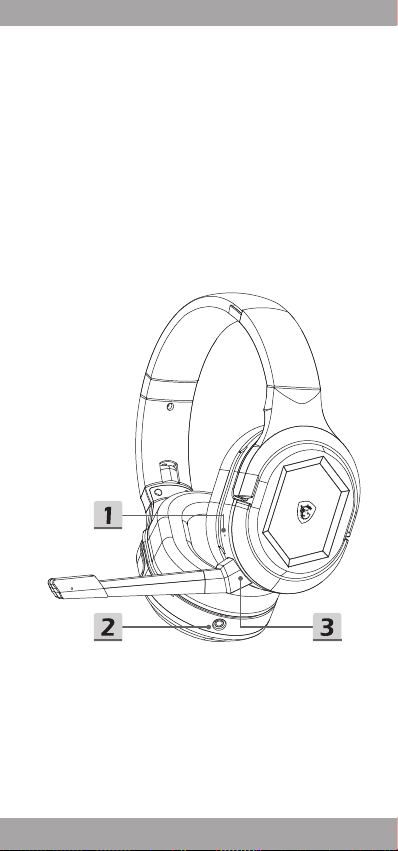

1� Reset Button
2� 3.5mm Port
3� Mic Connector
(Detachable Microphone)
01 English
Introduction
Thank you for choosing the MSI IMMERSE GH50 WIRELESS.
Get ready to enjoy an astonishing audio and gaming experience
like none other. This guide provides instructions and illustrations
to help you get the most out of this product as well as step by
step instructions for first time setup.
During your first time connecting the headset to any PC, the
operating system will automatically install the device driver. It is
recommended to reboot the PC after the driver is installed.

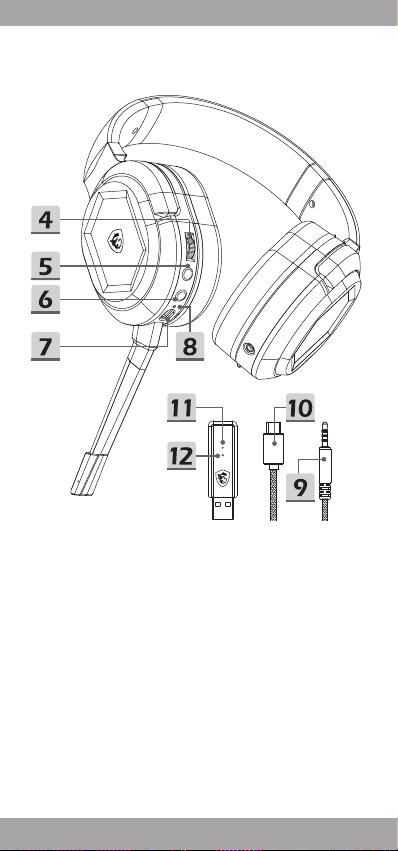

Overview

2 3
4� Volume Control
5� Mic Mute / Pairing Button
6� Power Button
7� Charging Port (USB-C)
8� Charging Status Indicator
9� 3.5mm Audio Cable
10� Charging Cable
11� Transmitter Status Indicator
12� Transmitter Pairing Button

4 5
Setup
Wireless mode
Connect the Wireless USB Transmitter to the PC, and turn
on the headset.
The Transmitter Status Indicator will illuminate when the
Wireless USB Transmitter is plugged in.
If the white light stays on: the headset is connected.
If the white light flashes slowly: the headset is
disconnected.
If the white light flashes quickly: the headset and the
transmitter are pairing.
Wired mode (3.5mm)
By plugging the 3.5mm audio cable into the port, the headset
will automatically power off and switch to wired mode.
Controls
Power Button
To power on: press and hold for 3 seconds.
To power off: press and hold for 2 seconds.
The Power Button will illuminate when the headset is turned
on:
The white light stays on: the headset is connected to the
transmitter.
The white light flashes slowly: the headset is
disconnected from the transmitter.
The white light flashes quickly: the headset is pairing.
Mic Mute / Pairing Button
Press to mute the microphone. If the red light is on, the mic
is muted.
Press to unmute the microphone. If the red light is off, the
mic is not muted.
Volume Control
To turn up the volume: scroll up on the control wheel.
To turn down the volume: scroll down on the control wheel.
A beep will sound when the volume is adjusted to the
maximum or minimum.
Reset Button
To reset the headset: insert a pointed object such as a pin
into the hole and push the button. The headset will then be
forced to shutdown.
Power button, mic mute/pairing button, volume control, and reset button
are unavailable when the headset is in wired mode with a 3.5mm
connection.

4 5
Re-pairing
Press and hold the power button for 3 seconds to turn on
the headset.
Press and hold the mute button for 3 seconds until the white
light on the power button starts flashing quickly.
Connect the Wireless USB Transmitter to the PC until its
white light flashes slowly.
Insert a pointed object such as a pin into the hole on the
transmitter and push the button for 2 seconds until the white
light flashes quickly.
The headset will make a sound to indicate that pairing mode
has been entered.
When successfully paired, the white lights on the headset
and Wireless USB Transmitter will stay as a steady white
light.
Battery Life & Charging
To charge the headset: connect the USB-C cable to the
charging port and the other end to a power source.
Charging Status Indicator:
When fully charged, the red light turns off.
When charging, the red light breathes.
When the battery is low, the red light flashes.
Important
1� The maximum input voltage is 5.5V.
2� Chargers labeled with 5V voltage and 500mA current
purchased from official channels are recommended.
3� When the battery is exhausted, please recharge the
headset as soon as possible.
4� It is recommended to fully charge the headset if it is not in
use for a long time.
5� It is recommended to connect the microphone gently to
prevent damage to the connector.
6� Please do not disassemble the product since it may cause
damages.
7� It is recommended to install Nahimic for Headset to
enjoy the best experience with full functionality and
synchronization to the operating system.

6
1� 重置按鍵
2� 3.5mm 連接埠
3� 麥克風連接埠
(可拆卸式麥克風)
02 繁體中文
簡介
感謝選用MSI IMMERSE GH50 WIRELESS無線耳機。即刻享
受前所未有的驚豔音效與電競體驗。本說明書提供使用說明及圖
示,幫助您認識產品,以及首次使用設定說明。
首次將此耳機連接到任一電腦時,作業系統將自動安裝此裝置的
驅動程式。建議於驅動程式安裝完成後重新啟動電腦。

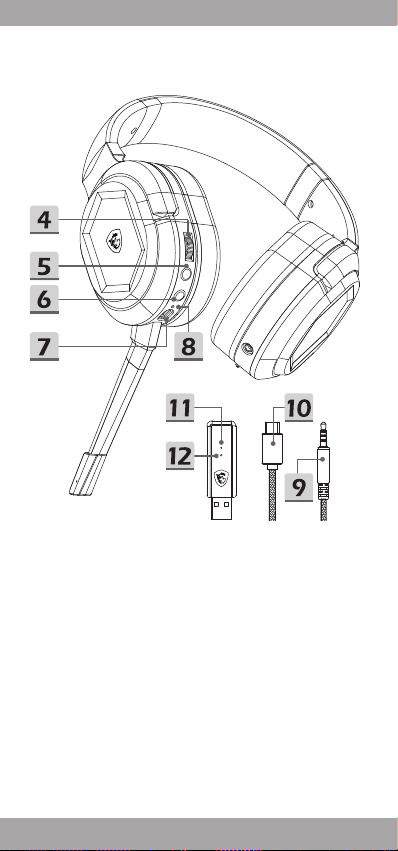

概述

6 7
4� 音量控制
5� 麥克風靜音/配對按鍵
6� 電源按鍵
7� 充電埠 (USB-C)
8� 充電狀態指示燈
9� 3.5mm音源線
10� 充電線
11� 發射器狀態指示燈
12� 發射器配對按鍵

8
設定
無線模式
將無線 USB 發射器連接到電腦,然後啟動耳機電源。
當無線 USB 發射器插入電腦時,發射器狀態指示燈將亮起
白色燈號:
如果白燈恆亮:耳機與發射器已連線。
如果白燈緩慢閃爍:耳機與發射器尚未連線。
如果白燈快速閃爍:耳機與發射器正在配對。
有線模式 (3.5mm)
將 3.5mm 音源線插入3�5mm連接埠,耳機將自動關機並切
換到有線模式。
控制說明
電源按鍵及指示燈
啟動耳機電源:按住3秒。
關閉耳機電源:按住2秒。
啟動耳機時電源按鍵指示燈會亮起白色燈號:
白燈恆亮:耳機與無線 USB 發射器已連線。
白燈緩慢閃爍:耳機與無線 USB 發射器尚未連線。
白燈快速閃爍:耳機與無線 USB 發射器正在配對。
麥克風靜音/配對按鍵及指示燈
按下此按鍵可將麥克風靜音。如果此按鍵的紅色指示燈恆
亮,則麥克風已靜音。
按下此按鍵可取消麥克風靜音。如果此按鍵的紅色指示燈熄
滅,則麥克風取消靜音。
音量控制
調高音量:向上滾動控制滾輪。
調低音量:向下滾動控制滾輪 。
嗶聲提示:當音量已調整至最大或最小值 。
重置按鍵
重置耳機:以尖頭狀的物體(如別針)插入孔洞中並推觸按
鍵,可將耳機強制關機。
當耳機使用3.5mm音源線切換到有線模式時,電源按鍵、麥克風靜音/配
對按鍵、音量控制、及重置按鍵將無法使用。
重新配對
按住電源按鍵3秒來啟動耳機。
按住耳機的麥克風靜音/配對按鍵3秒,電源按鍵白色燈號快速
閃爍,表示耳機與無線USB發射器正在配對。
連接無線USB發射器至電腦上,此時發射器上的白色燈號持
續緩慢閃爍。

8 9
以尖頭狀的物體(如別針)插入無線USB發射器上的孔洞
中,推觸內部的按鍵2秒,發射器上的白色燈號快速閃爍。
耳機會發出提示音,表示已經進入配對模式。
耳機與無線USB發射器連接成功後,耳機電源鍵和發射器上
的白色燈號同時保持恆亮。
電池使用與充電
耳機充電:以USB-C線連接充電埠和另一端的電力來源。
充電狀態指示燈號:
充電完成:紅色燈號熄滅。
充電中:紅色燈號呼吸閃爍。
低電量:紅色燈號閃爍。
重要提示
1� 最大輸入電壓為5.5V。
2� 建議使用經官方認證且標有電壓值5V和電流500mA的充電
插頭。
3� 當電力耗盡,請盡速為耳機充電 。
4� 如長時間未使用耳機,建議於完全充滿電力後再行使用。
5� 建議以較為溫和力道插拔麥克風上的連接埠,避免對連接
埠造成損傷。
6� 請勿自行拆卸產品,避免造成損傷。
7� 建議安裝Nahimic for Headset,以充分享有耳機所有功能與
系統同步的最佳體驗。

10
1� 重置按钮
2� 3.5mm 端口
3� 麦克风接口
(可拆卸式麦克风)
03 中文简体
简介
感谢选择MSI IMMERSE GH50 WIRELESS无线耳机。即刻享受前
所未有的惊艳音效与电竞体验。本指南提供使用说明及图示,帮助
您认识产品,以及首次使用设置说明。
首次将此耳机连接到任一电脑时,操作系统将自动安装此设备的驱
动程序。建议于驱动程序安装完成后重新启动电脑。
概述

10 11
4� 音量控制
5� 麦克风静音 / 配对按钮
6� 电源按钮
7� 充电端口 (USB-C)
8� 充电状态指示灯
9� 3.5mm 音效线
10� 充电线
11� 接收器状态指示灯
12� 接收器配对按钮

12
设置
无线模式
将无线 USB 接收器连接到电脑,然后打开耳机。
插入无线 USB 接收器,接收器状态指示灯将亮起。
如果白灯常亮:耳机与接收器已连接。
如果白灯慢闪:耳机与接收器已断开连接。
如果白灯快速闪烁:耳机和接收器正在配对。
有线模式 (3.5mm)
通过将 3.5mm 音效线插入端口,耳机将自动关机并切换到
有线模式。
控件
电源按钮
开机:按住 3 秒。
关机:按住 2 秒。
耳机打开时电源按钮会亮起:
白灯常亮:耳机已连接到接收器。
白灯慢闪:耳机与接收器断开。
白灯快速闪烁:耳机正在配对。
麦克风静音/配对按钮
按下可将麦克风静音。如果红灯亮,则麦克风静音。
按下可取消麦克风静音。如果红灯熄灭,则麦克风未静音。
音量控制
调高音量:向上滚动控制轮。
调低音量:向下滚动控制轮。
音量调到最大或最小时会发出哔声。
重置按钮
重置耳机:将尖头物体(如针)插入孔中并按下按钮。然后
耳机将被强制关闭。
当耳机使用3.5mm音效线切换到有线模式时,电源按钮键、麦克风静音/
配对按钮、音量控制、及重置按钮将无法使用。
重新配对
按住电源按钮 3 秒钟以打开耳机。
按住静音按钮 3 秒钟,直到电源按钮上的白灯开始快速闪
烁。
将无线 USB 接收器连接到电脑,直到接收器的白灯缓慢闪
烁。
将尖头物体(如针)插入接收器上的孔中,按住按钮 2 秒
钟,直到接收器的白光快速闪烁。
耳机会发出提示音,表示已进入配对模式。
成功配对后,耳机和无线 USB 接收器上的白灯将保持稳定
的白灯。

12 13
电池寿命和充电
为耳机充电:将 USB-C 数据线连接到充电端口,将另一端
连接到电源。
充电状态指示灯:
充满电后,红灯熄灭。
充电时:红灯呼吸。
电量低时,红灯闪烁。
注意
1� 最大输入电压为 5.5V。
2� 推荐使用从官方渠道购买的标有 5V 电压和 500mA 电流的
充电器。
3� 当电池电量耗尽时,请尽快给耳机充电。
4� 如果长时间不使用耳机,建议给耳机充满电。
5� 建议以较为温和力道插拔麦克风上的接口,以免损坏接口。
6� 请不要自行拆卸产品,以免造成损坏。
7� 建议安装 Nahimic for Headset 软件,以享受完整功能和与
操作系统同步的最佳体验。

14
1.
2.
3.
04 日本語
はじめに
概要

14 15
4.
5.
6.
7.
8.
9.
11.
12.

16
設定
コントロール

16 17
再ペアリング
バッテリ駆動時間 & 充電
注意
1.
2.
3.
4.
5.
6.
7.

18
1� 리셋 버튼
2� 3.5mm 포트
3� 마이크 커넥터
(분리형 마이크)
05 한국어
소개
MSI IMMERSE GH50 WIRELESS를 선택해 주셔서 감사합니다.
다른 무엇과도 비교할 수 없는 놀라운 오디오 및 게임 경험을 즐길
준비 하십시오. 이 가이드는 이 제품을 최대한 활용하는 데 도움이
되는 지침과 그림을 제공하여 처음 설정을 위한 단계별 지침을
제공합니다.
헤드셋을 PC에 처음 연결하는 동안 운영 체제가 자동으로
장치 드라이버를 설치합니다. 드라이버 설치 후 PC 재부팅을
권장합니다.
개요
