MSI MEG X570S ACE MAX User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI® MEG X570S ACE MAX
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI® MEG X570S ACE MAX Motherboard
gewählt haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo
zur Installation Ihres Computers. Manche Installationen bieten
auch die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI® MEG X570S ACE MAX.
Ce manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI® MEG X570S
ACE MAX. В этом разделе представлена информация, которая
поможет вам при сборке комьютера. Для некоторых этапов сборки
имеются видеоинструкции. Для просмотра видео, необходимо
открыть соответствующую ссылку в веб-браузере на вашем
телефоне или планшете. Вы также можете выполнить переход по
ссылке, путем сканирования QR-кода.

II Quick Start
1
2
3
6
4
5
7
8
9
Youtube
https://youtu.be/Xv89nhFk1vc
CPU_FAN1

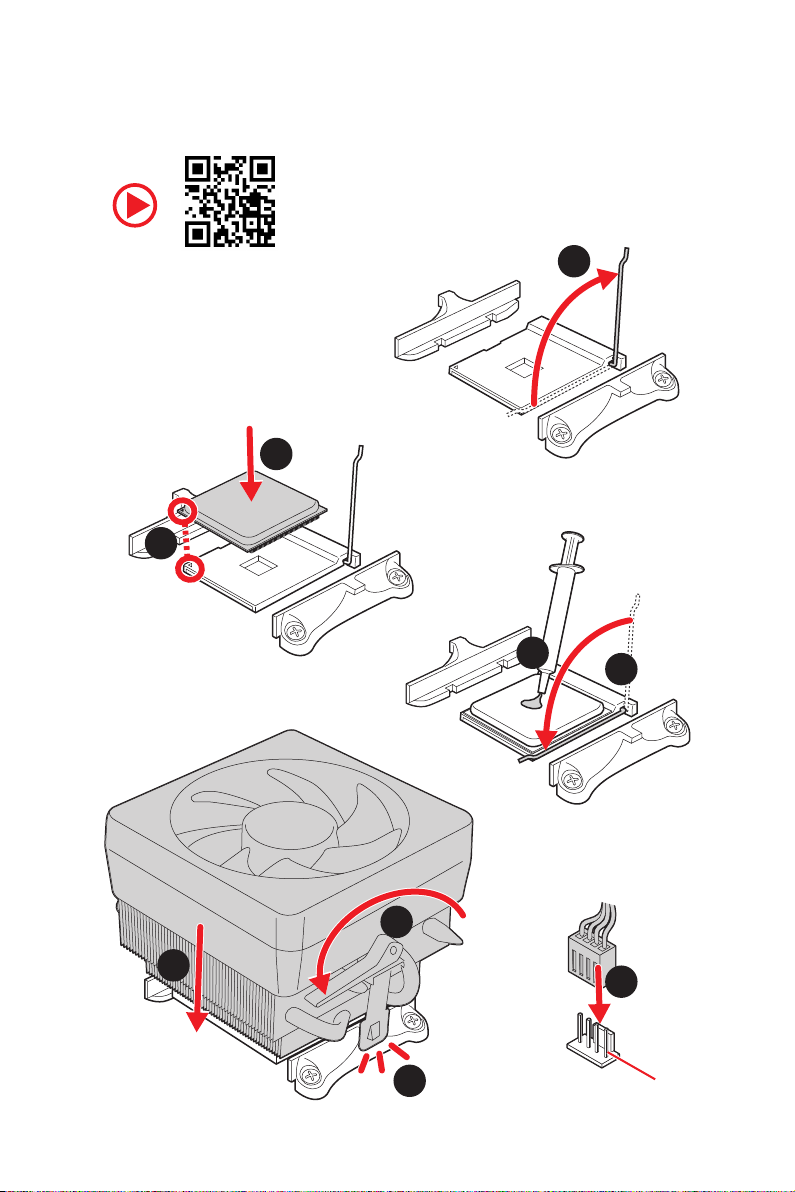

Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора

III
Quick Start
1
23
⚠
Important
If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.
Wenn Sie einen CPU-Kühler mit Schraubenbefestigung einsetzen, folgen Sie bitte
den Anweisungen unten um das Retention-Modul zu entfernen und den Kühler zu
installieren.
Si vous voulez installer un ventirad pour processeur à vis, veuillez suivre les
instructions ci-dessous pour d’abord retirer le module de rétention puis installer le
ventirad.




IV Quick Start
http://youtu.be/T03aDrJPyQs
Youtube
⚽
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4

V
Quick Start
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
http://youtu.be/DPELIdVNZUI
Youtube
⚽

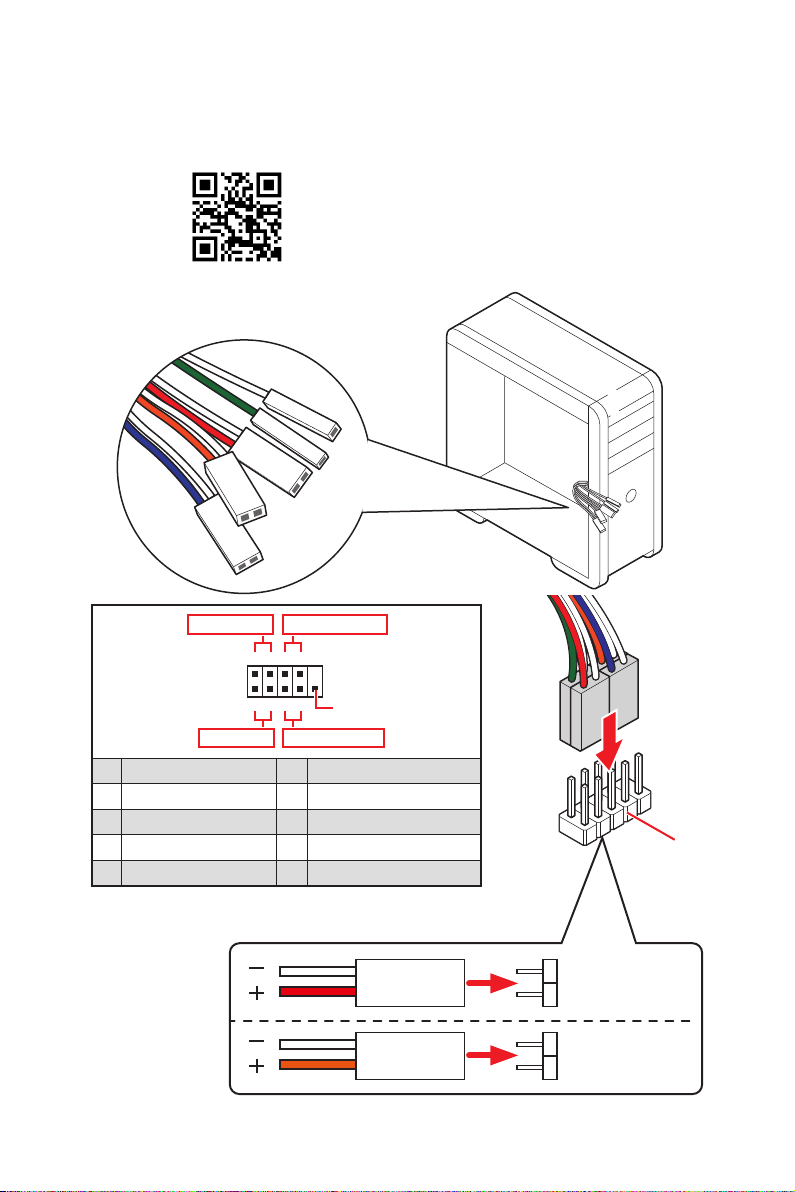

Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели

VI Quick Start
https://youtu.be/wWI6Qt51Wnc
⚽
Youtube
BAT1
1
2
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in
Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы

VII
Quick Start
http://youtu.be/gkDYyR_83I4
Youtube
⚽
ATX_PWR1
CPU_PWR1 CPU_PWR2
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания

VIII Quick Start
http://youtu.be/RZsMpqxythc
Youtube
1
23
4
5
⚽
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA

IX
Quick Start
http://youtu.be/mG0GZpr9w_A
Youtube
1
2
3
4
5
6
⚽
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты

XQuick Start

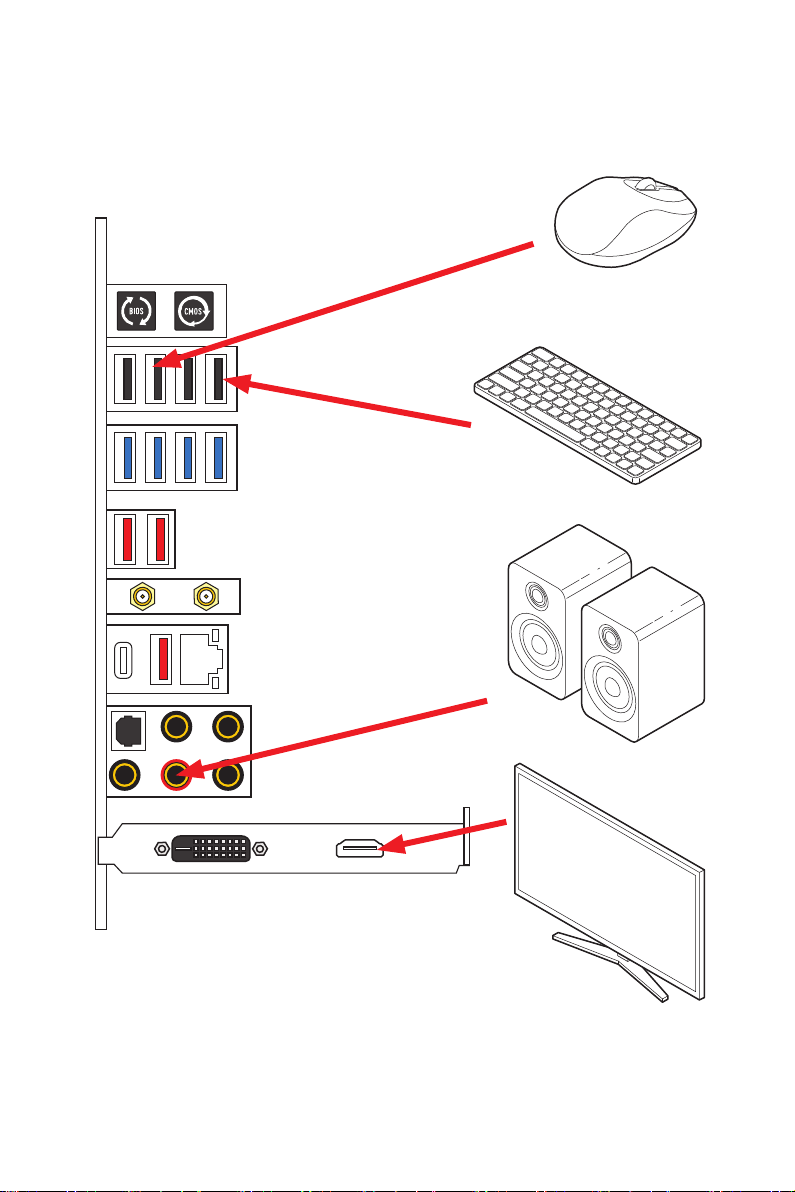

Connecting Peripheral Devices/ Peripheriegeräte/ Connecter
un périphérique anschliessen/ Подключение периферийных
устройств

XI
Quick Start
4
3
12
Power On/ Einschalten/ Mettre sous-tension/ Включение питания

XII Quick Start
NOTE

1
Contents
Contents
Safety Information................................................................................................. 3
Case stand-off notification ..................................................................................... 4
Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5
JCORSAIR1 Connector Specification .................................................................. 12
Package contents ................................................................................................ 13
Rear I/O Panel ..................................................................................................... 14
LAN Port LED Status Table .................................................................................. 14
Audio Ports Configuration.................................................................................... 14
Realtek Audio Console ......................................................................................... 15
Installing Antennas............................................................................................... 17
Overview of Components .................................................................................... 18
Processor Socket ................................................................................................. 19
DIMM Slots............................................................................................................ 20
PCI_E1~4: PCIe Expansion Slots.......................................................................... 21
PCIe bandwidth table............................................................................................ 21
Bandwidth share table ......................................................................................... 22
M2_1~4: M.2 Slots (Key M) ................................................................................... 23
Installing M.2 XPANDER-Z Gen4 S card .............................................................. 25
SATA1~8: SATA 6Gb/s Connectors....................................................................... 27
JFP1, JFP2: Front Panel Connectors................................................................... 27
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 28
JOC_FS1: Safe Boot Jumper................................................................................ 29
T_SEN1~2: Thermal Sensor Connectors ............................................................. 29
W_FLOW1: Water Flow Meter Connector ............................................................ 29
JLN1: Low Temperature Booting Jumper ........................................................... 30
JAUD1: Front Audio Connector ............................................................................ 30
JUSB1: USB 3.2 Gen 2 Type-C Connector............................................................ 31
JUSB2~3: USB 3.2 Gen1 Connector ..................................................................... 31
JUSB4~5: USB 2.0 Connectors............................................................................. 32
JTPM1: TPM Module Connector........................................................................... 32
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors.................................. 33
JCI1: Chassis Intrusion Connector....................................................................... 34
JDASH1 : Tuning Controller connector................................................................ 34
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 35
POWER1, RESET1: Power Button, Reset Button ................................................. 35

2Contents
JRGB1: RGB LED connector................................................................................. 36
JRAINBOW1~2: Addressable RGB LED connectors ............................................ 37
JCORSAIR1: CORSAIR Connector ........................................................................ 38
Onboard LEDs...................................................................................................... 39
EZ Debug LED....................................................................................................... 39
JPWRLED1: LED power input............................................................................... 39
LED_SW1: EZ LED Control................................................................................... 39
Debug Code LED................................................................................................... 40
Hexadecimal Character Table.............................................................................. 40
Boot Phases.......................................................................................................... 40
Debug Code LED Table......................................................................................... 40
ACPI States Codes................................................................................................ 44
Installing OS, Drivers & MSI Center.................................................................... 45
Installing Windows® 10......................................................................................... 45
Installing Drivers .................................................................................................. 45
MSI Center............................................................................................................ 45
UEFI BIOS............................................................................................................. 46
BIOS Setup........................................................................................................... 47
Entering BIOS Setup............................................................................................. 47
BIOS User Guide ................................................................................................... 47
Resetting BIOS...................................................................................................... 48
Updating BIOS....................................................................................................... 48

3
Safety Information
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
∙Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
▪Liquid has penetrated into the computer.
▪The motherboard has been exposed to moisture.
▪The motherboard does not work well or you can not get it work according to user
guide.
▪The motherboard has been dropped and damaged.
▪The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Contents
Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.

5
Specifications
Specifications
CPU
∙Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000
G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000
G-Series desktop processors*
∙Supports Socket AM4
* Please go to msi.com to get the newest support status as new processors are
released.
Chipset AMD X570 Chipset
Memory
∙4x DDR4 memory slots, support up to 128GB
∙Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/
3200 MHz by JEDEC*
∙Max frequency by A-XMP OC mode:
▪For Ryzen™ 5000 G-Series & 4000 G-Series
processors
▫1DPC 1R Max speed up to 5300 MHz (support
overclocking up to 5500+ MHz)
▫1DPC 2R Max speed up to 4266 MHz
▫2DPC 1R Max speed up to 4400 MHz
▫2DPC 2R Max speed up to 3600 MHz
▪For Ryzen™ 5000 Series & 3000 Series processors
▫1DPC 1R Max speed up to 5100 MHz
▫1DPC 2R Max speed up to 4000 MHz
▫2DPC 1R Max speed up to 4000 MHz
▫2DPC 2R Max speed up to 3600 MHz
∙Supports Dual-Channel mode
∙Supports non-ECC, un-buffered memory
*Please refer to www.msi.com for more information on compatible memory
Continued on next page

6Specifications
Continued from previous page
Expansion Slots
∙Supports PCIe 4.0 / PCIe 3.0
▪PCIe 4.0 is available only on AMD Ryzen™ 5000 Series
and 3000 Series desktop processors
∙2x PCIe x16 slots (From processor)
▪PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD
Ryzen™ 5000 Series,5000 G-Series,4000 G-Series,
3000 Series and 2000 Series desktop processors
▪PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™
2000 G-Series and 3000 G-Series desktop processors
∙1x PCIe x16 slot (From X570 chipset)
▪PCI_E4 supports x8*
∙1x PCIe x1 slot (From X570 chipset)**
* PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth. Please see the
page 22 for more details.
** The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you
can not use both of them simultaneously, and the default setting is the Wi-Fi
module for the system. Please disable the Onboard Wi-Fi Module Control in
BIOS if you want to use the PCIe x1 slot.
Multi-GPU ∙Supports NVIDIA® SLI® Technology
∙Supports AMD CrossFire™ Technology
LAN 1x Realtek® RTL8125B 2.5 Gbps LAN controller
Wireless LAN &
Bluetooth®
Intel® Wi-Fi 6E AX210
∙The Wireless module is pre-installed in the M.2 (Key-E)
slot
∙Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*
(160MHz) up to 2.4Gbps
∙Supports 802.11 a/ b/ g/ n/ ac/ ax
∙Supports Bluetooth® 5.2**, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
WIN10 21H1.
** Bluetooth 5.2 will be ready in WIN10 21H1.
Audio
Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo
DAC/HPA
∙7.1-Channel High Definition Audio
∙Supports S/PDIF output
Continued on next page

7
Specifications
Continued from previous page
Storage
∙8x SATA 6Gb/s ports (From X570 chipset)*
∙4x M.2 slots (Key M)*
▪Supports PCIe 4.0 / PCIe 3.0
▫PCIe 4.0 is available only on AMD Ryzen™ 5000
Series and 3000 Series desktop processors
▪Support SATA 6Gbps (For M2_1, M2_3 & M2_4)
▪M2_1 (From processor)
▫Supports 2280/ 22110 storage devices
▪M2_2 (From X570 chipset)
▫Supports 2260/ 2280 storage devices
▪M2_3* (From X570 chipset)
▫Supports 2280/ 22110 storage devices
▪M2_4* (From X570 chipset)
▫Supports 2260/ 2280 storage devices
* PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth. Please see the
page 22 for more details.
RAID AMD X570 Chipset
∙Supports RAID 0, RAID 1 and RAID 10
USB
AMD X570 Chipset
∙1x USB 3.2 Gen 2 10Gbps Type-C internal connector
∙4x USB 3.2 Gen 1 5Gbps ports available through internal
USB connectors)
∙1x USB 2.0 port on the back panel
∙Asmedia® 3241 Chipset
▪1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back
panel
∙USB 3.0 Hub
▪4x USB 3.2 Gen 1 5Gbps Type-A ports on the back
panel
∙USB 2.0 Hub
▪7x USB 2.0 ports (3 Type-A ports on the back panel, 4
ports available through the internal USB connectors)
AMD Processor
∙3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
Continued on next page

8Specifications
Continued from previous page
Back Panel
Connectors
∙1x Clear CMOS Button
∙1x Flash BIOS Button
∙4x USB 2.0 ports
∙4x USB 3.2 Gen 1 5Gbps Type-A ports
∙1x LAN(RJ45) port
∙3x USB 3.2 Gen 2 10Gbps Type-A ports
∙1x USB 3.2 Gen 2x2 20Gbps Type-C port
∙2x Wi-Fi Antenna connectors
∙5x OFC audio jacks
∙1x Optical S/PDIF Out connector
Internal Connectors
∙1x 24-pin ATX main power connector
∙2x 8-pin ATX 12V power connectors
∙8x SATA 6Gb/s connectors
∙4x M.2 slots (M-Key)
∙2x USB 2.0 connectors (support additional 4 USB ports)
∙2x USB 3.2 Gen 1 5Gbps connectors (support additional 4
USB ports)
∙1x USB 3.2 Gen 2 10Gbps Type-C connector
∙1x 4-pin CPU fan connector
∙1x 4-pin water-pump connector
∙6x 4-pin system fan connectors
∙1x Front panel audio connector
∙2x System panel connectors
∙1x TPM module connector
∙1x Chassis Intrusion connector
∙2x 2-pin Thermal sensors connectors
∙1x Water Flow Meter connector
∙1x Tuning Controller connector
Buttons ∙1x Power button
∙1x Reset button
Continued on next page
