MTP 8010 User manual

MTP 8010
3 PHASE TESTER & MOTOR
ROTATION TESTER
INSTRUCTION MANUAL

INDEX Page
1. INTRODUCTION ............................. 1
2. SAFETY NOTES .............................. 2
3. FEATURES ...................................... 3
4. MEASURING METHODS ................ 4--5
5. SPECIFICATIONS ........................... 6
6. MAINTENANCE ............................... 7

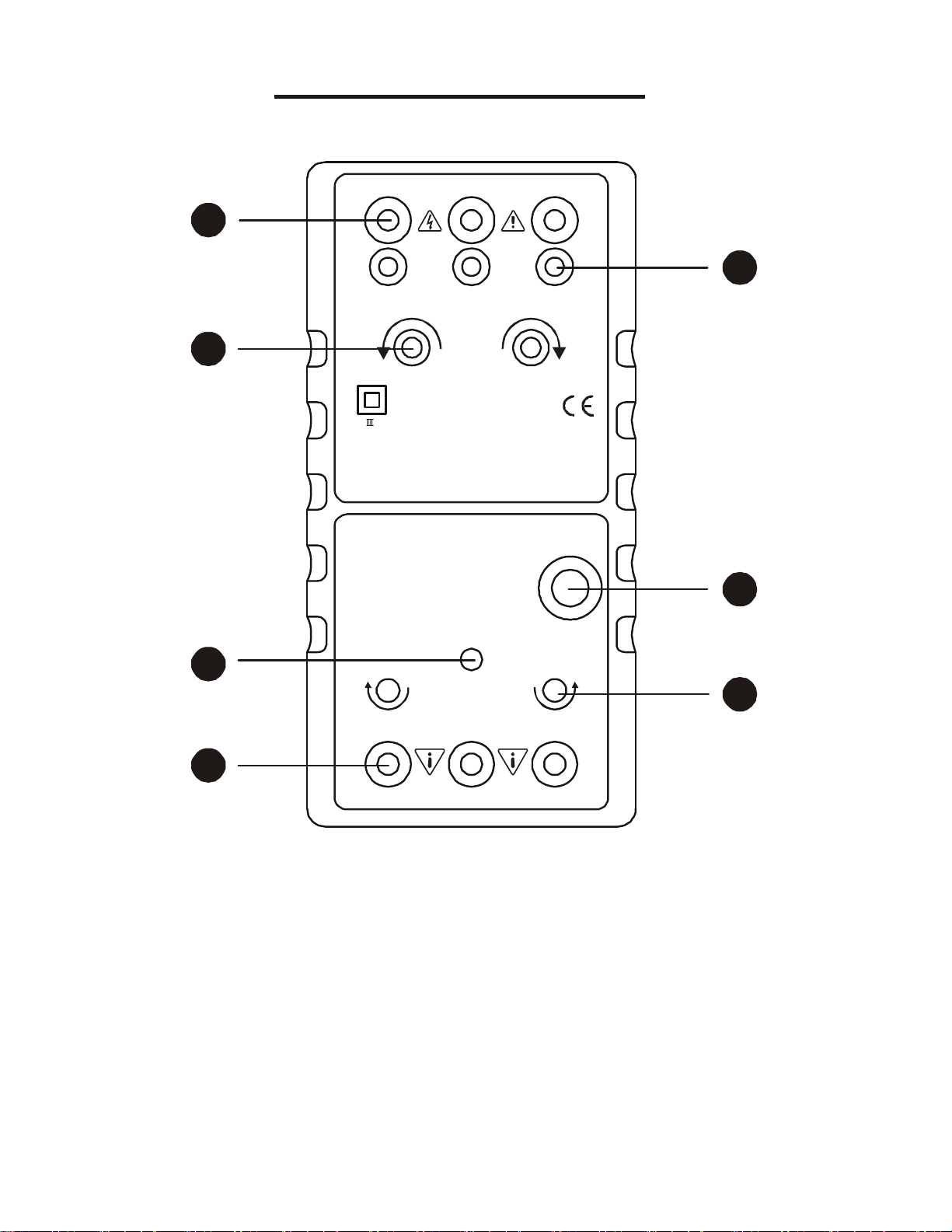

Parts and Functions
2
2
4
6
7
5
3
1
Red Black White
ABC
MOTORROTATION
FACINGMOTORSHAFT
DETERMINEDWHILE
MOTORROTATIONTESTER
DONOTCONNTECTTOLIVEVOLTAGE!
L2L1L3
POWER
L1L2L3
L1L2L3
3 PHASE TESTER
CAT 600V
(1) PHASE ROTATION INPUT TERMINAL
(2) OPEN PHASE INDICATOR
(3) PHASE ROTATION INDICATOR
(4) MOTOR TESTER POWER SWITCH
(5) MOTOR TESTER POWER INDICATOR
(6) MOTOR ROTATION INDICATOR
(7) MOTOR ROTATION INPUT TERMINAL

1. INTRODUCTION
NOTE
This meter has been designed and tested
according to IEC Publication 348, Safety
Requirements for Electronic Measuring
Apparatus, IEC/EN 61010-1 and other safety
standards. Follow all warnings to ensure safe
operation.
WARNING
READ "SAFETY NOTES" (NEXT PAGE)
BEFORE USING THE METER.
1

2.SAFETY NOTES
Read the following safety information carefully
before attempting to operate or service the
meter.
Use the meter only as specified in this
manual：
otherwise the protection provided by the
meter may be impaired.
Rated environmental conditions：
(1) Indoor use.
(2) Installation Category lll.
(3) Pollution Degree 2.
(4) Altitude up to 2000 Meter.
(5) Relative Humidity 80% Max.
(6) Ambient Temperature 0~40°C.
Observe the International Electrical Symbols
Iisted below.
Meter is protected throughout by double
insulation or reinforced insulation.
Warning ! Risk of electric shock.
Caution ! Refer to this manual before
using the meter.

2

3.FEATURES
Three functions in one unit, including open
phase, phase sequence and motor rotation
indication.
This model is ideal for installing conveyor lines,
pump systems and interconnected drivers.
Identifies 3-phase sequence and open phase
check.
Battery operated.
Comply with three large alligator clips.
Meets UL requirement.
Meets IEC/EN 61010-1 CATⅢ600V
EN 61326 EN 55011
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
3

4.MEASURING METHODS
Operation of 3 Phase Rotation Tester：
(1) Connect the test lead to 3-phase input
terminals by A-B-C.
(2) Connect color alligator clips to the terminals
of a 3-phase power source. Connecting
order may be optional.
(3) Make sure that all of the three lamps for
open phase Check are on. If so, there is no
open phase. When any of the three lamps is
not on, there is open phase.
(4) Check the rotating direction of the rotation
indicator. If lamp of counter clockwise is lit,
alternate the connection of the two of the
three alligator clips. If lamp of clockwise is
lit, phase sequence is A, B, and C in order
of the power source terminals where the
RED, BLACK AND WHITE alligator clips are
connected.
4
Open phase on terminal
where RED alligator clip
is connected
Open phase
check lamp
"A" is not on
Open phase on terminal
where
alligator clip is connected
BLACK
Open phase
check lamp
"B" is not on
Open phase on terminal
where WHITE alligator
clip is connected
Open phase
check lamp
"C" is not on

 Operation of Motor Rotation Tester：
(1) Make sure there is no voltage present.
(2) Connect the test lead to motor input terminal
by L1-L2-L3, and press the power button
(Fig1). The power indicator green lamp is lit.
(If red lamp of clockwise or counter-
clockwise is lit before rotating the motor
shaft, it means there is voltage present.
Please stop measuring, take off the test
leads and turn off the external power).
Rotation the motor shaft in clockwise.
If red lamp of clock-wise is lit, it means
3-phase motor connection to the power
supply by L1-L2-L3, the 3-phase motor
should be rotate clockwise.
(3) Connect the lead to 3-phase motor by
L1-L2-L3, and press the power button. The
power indicator green lamp is lit. Rotating
the motor shaft in counterclockwise. If Red
lamp of Counter clockwise is lit, it means 3-
phase motor connection to the power supply
by L1-L2-L3, the 3-phase motor should be
rotate clockwise.
(4) If you require the motor rotate counter
clockwise, you should change connection to
L1-L2-L3, the motor should be rotate counter
clockwise.
5

5.PECIFICATIONS
Input Voltage：
100Vac up to 600Vac.
Frequency：
45 to 70 Hz.
Circuit Structure：
All electronic (not mechanical).
Power Requirement：
DC9V battery.
Power Consumption：
Consumption current approx.
14mA of motor rotation field of tester.
AC power consumption approx.
7mA per phase rotation field of indicator.
Installation Category：
IEC/EN 61010-1 CATⅢ600V.
Dimension：
153(L)x72(W)x35(D)mm(6.02x2.83x1.37 inch).
Weight：
Approx. 215g (Including battery)
Accessories：
Test Leads (white, red, black)
Soft Vinyl Case
Instruction Manual
Battery

6

6.MAINTENANCE
Battery Replacement：
(1) It is necessary to replace battery, when
green lamp is dull lit.
(2) Use a screwdriver to unscrew the screws on
the back then open the case (Fig.2), take
out the battery and replace with new battery
type (DC 9V).
(3) Reinstall the case.
Fuse Replacement：
(1) It is necessary to replace fuse, when lamp
indicator A or C show no connection, and
change A-B-C is the same.
(2) Use a screwdriver to unscrew the screws on
the back then open the case (Fig.2), take
out the broken fuse and replace with new
fuse (200mA, 250V).
(3) Reinstall the case.
Cleaning and Storage：
Periodically wipe the case with a damp cloth
and detergent；do not use abrasives or
solvents.
If the meter is not to be used for periods of
longer than 60 days, remove the battery and
store them separately.
Due to our policy of constant improvement and
development, we reserve the right to change
WARNING
To avoid electrical shock or damage to the
meter, do not get water inside the case.

specifications without notice.
7
