MULTISPAN MFM 14DC User manual

MFM 14DC
DC MULTIFUNCTION METER
TECHNICAL SPECIFICATION
ENVIRONMENTAL CONDITION
Working Temperature
Storage Temperature
Relative Humidity
0 to 55°C
0 to 55°C
95 % RH Non-
Condensing
ACCURACY
96 (H) x 96 (W) x 54 (D) mm
92 (H) x 92 (W) mm
TERMINAL CONNECTION
IP-65 (Front side As per
IS/IEC 60529 : 2001)
Protection Level
Class 1.0 (Standard)
( As per Request )
96
92
92
96
Outline Dimension (mm) Panel Cutout
Dimension (mm)
MECHANICAL INSTALLATION
MFM 14DC
PRG
RESET
12347 8 9
12
13
14
10
11
5
16
17
1819
20
6
15
LN
GND
Voltage: 0 To 1000V DC
Current: 0 To 9999 Amp DC
(Through Shunt)
Input: 0 To 75mV
Accuracy: Class 1.0
24-270V
AC/DC
50/60Hz
+ -
NC
NC C CNO NO
RELAY-1 RELAY-2
D+
-
D
O/P
RS-485
Made in India www.multispanindia.com
+V DC +T DC GND
+V DC Shunt
54
3
DIMENSION :
Size (mm)
Panel Cutout
24 to 270V AC/DC
Approx 4VA @ 230V AC
AUXILIARY POWER SUPPLY :
DISPLAY & KEYS :
Display
Key
Power Supply
Burden
Direct voltage DC
Input Current
Shunt Selectable
0 to 1000V DC
Through external shunt (0-75mV DC)
0000 - 9999 A DC
0000 - 9999 KW
6 Digit, 6 Line 7 seg. 0.40" RED
4 Digit, 4 Line 7 seg. 0.40" RED
0.00 - 19.99 V DC 1 % OF 19.99V
1 % OF 49.99V
1 % OF 199.9V
1 % OF 1000 V
1 % OF FSD
20.0 - 49.99 V DC
50.0 - 199.9 V DC
200.0 - 1000 V DC
0 to 9999 Amp
CALCULATED PARAMETERS :
DC Voltage
DC Current
WATT
INPUT SPECIFICATION :
Voltage
Current
Parameter Range Accuracy
RESET, PRG, INC, DEC
0 - 999999 KWH
KWH
OUTPUT SPECIFICATION:
Relay
Relay Type
Rating
2 Nos
1C/O (NO-C-NC)
10A, 230V AC / 28V DC (Reg. Load)
Relay Output
Page 1

To enter in parameter setting
To Reset the Fault
PRESS KEYFUNCTION
OPERATOR MODE
PARAMETER SETTING MODE
To set parameter value
To increment parameter value.
To decrement parameter value.
Set parameter to be save & exit.
Press
5 sec
PRG
RESET
PRG
PRG

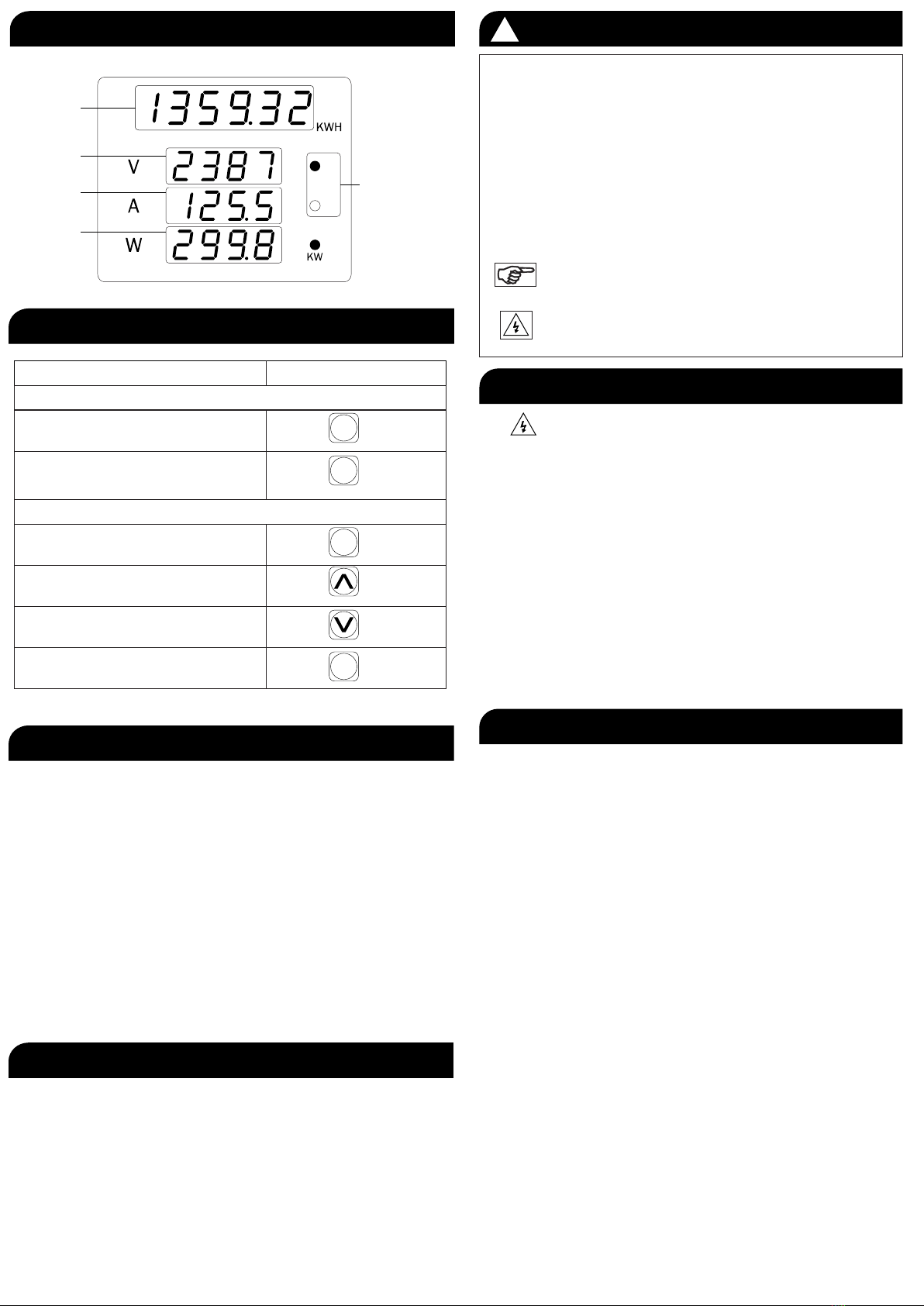

DISPLAY INDICATION
DC POWER METER
R1
R2
KWH Value
DC Volt
DC Amp
DC Watt
Relay For
Over Voltage
& Under Voltage
Tripping
Page 2
KEY OPERATION
1. Prepare the panel cutout with proper dimensions as shown
above.
2. Fit the unit into the panel with the help of clamp given.
3. The equipment in its installed state must not come in close
proximity to any heating source, caustic vapors, oil steam,
or other unwanted process byproducts.
4. Use the specified size of crimp terminal (M3.5 screws) to
wire the terminal block. Tightening the screws on the
terminal block using the tightening torque of the range of
1.2 N.m.
5. Do not connect anything to unused terminals.
1. The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
2. Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.
MAINTENANCE
MECHANICAL INSTALLATION
MAINTENANCE
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
SAFETY PRECAUTION
!
Please read the "Safety Warnings" in the instruction
manual supplied with the instrument thoroughly and
completely for correct use. Failure to follow the safety rules
can cause fire, trouble, electrical shock, etc. Therefore, make
sure to operate the instrument on a correct power supply
and voltage rating marked on each instrument.
If all the equipment is not handled in a manner specified
by the manufacturer, it might impair the protection provided
by the equipment.
WARNING GUIDELINES
WARNING : Risk of electric shock.
1) To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2) To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4) A better anti-noise effect can be expected by using
standard power supply cable for the instrument.
1) Do not allow pieces of metal, wire clippings, or fine
metallic fillings from installation to enter the product or
else it may lead to a safety hazard that may in turn
endanger life or cause electrical shock to the operator.
2) Circuit breaker or mains switch must be installed
between power source and supply terminal to facilitate
power ‘ON’ or ‘OFF’ function. However this mains switch
or circuit breaker must be installed at convenient place
normally accessible to the operator.
INSTALLATION GUIDELINES
3) Use and store the instrument within the specified ambient
temperature and humidity ranges as mentioned in this
manual.

PARAMETER SETTING
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
Press Key to Save & Exit
PRG
Press Key
PRG
Press Key
PRG
Press Key
PRG
Press Key
PRG
Press Key
PRG
Set Point 1
For Relay 1
Range:
0 to 1000V
Set Point 2
For Relay 2
Range:
0 to 1000V
Trip Delay For
Relay 1
Range:
0 to 100 sec
Trip Delay For
Relay 2
Range:
0 to 100 sec
Shunt Selectable
Range:
0 to 9999Amp
Press Key For 5 Sec. To Enter in Parameter Setting
PRG
KWH RESET
To Reset KWH Long Press Key
RESET
R1
R2
R1
R2
Press Key
PRG
To Reset KWH Press Key
RESET
PRG
For Exit Without Reset Press Key
Page 3
