Murdock A132 8-VR-BF3 Series Installation and operating instructions

NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
A132.8-VR-BF3 and A132.8-VR-BF4 Series
Barrier Free, Bi-Level, Vandal Resistant, Bi-Level, Wall Mounted Chilled Drinking Fountain
with Semi-Recessed Sensor Operated and Pushbutton
Operated Bottle Filler and 32” Trim Panel
COMPLIES WITH
7021-019-001 Date: 03/17/2023 D
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A132408F-VR-BF3 / A132408S-VR-BF3 / A132408F-VR-BF4 / A132408S-VR-BF4 &
A132408F-VR-BF3-RBL / A132408S-VR-BF3-RBL / A132408F-VR-BF4-RBL / A132408S-VR-BF4-RBL
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance E-Mail: [email protected]
A132408F-VR-BF3 A132408F-VR-BF4
Federal
Public Law
111-380
(No Lead)
ANSI/ASHRAE 18
(220V Compressor Only)
NSF/ANSI/CAN 61
Member of 15125 Proctor Ave,
City of Industry, CA
91746 U.S.A.
Phone [phone]
626-333-2543
www.murdockmfg.com

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.
A132.8-VR-BF
Page 2 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
IMPORTANT
This fixture is intended to dispense water that has been lowered in temperature, but otherwise remains
unchanged by the materials in the water cooler. It is common for electrical equipment to be grounded
to water lines either within a structure or away from it. Every attempt should be made to prevent this
kind of grounding from generating electrical feedback into the water cooler creating electrolysis.
Electrolysis will cause a metallic taste or cause water metal content to increase.
NOTICE
A dielectric coupling must be used to connect the water cooler to the water supply. A nonmetallic
coupler is furnished with this water cooler to meet this requirement.

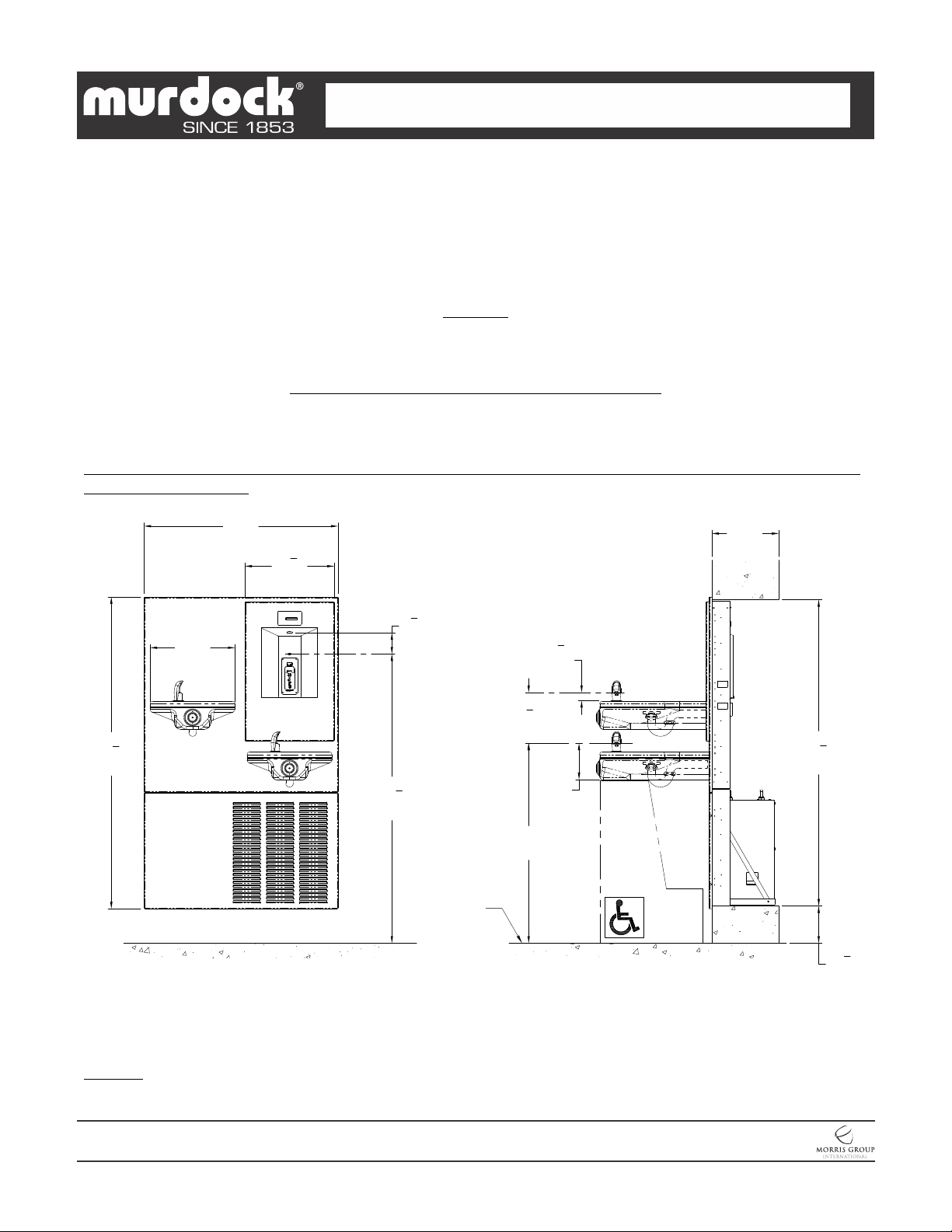

ROUGHING-IN AND DIMENSIONAL DRAWING
Prior to roughing consult with local, state, and federal codes for proper mounting height.
A152408S-VR-BF3 Refrigerated Bi-Level Wall Mounted Drinking Fountain with Sensor Operated
Bottle Filler , Shown
FINISHED
FLOOR
*33"
(838)
511
2"
(1308)
32"
(813)
143
4"
(375)
13
8"
(35)
Typ
6"
(152)
14"
(356)
11"
(279)
83
8"
(213)
*475
8"
(1210)
31
2"
(89)
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES (MM).
*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL DIMENSIONS AS NECESSARY
TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES
3. WATER LINE FROM CHILLER TO FOUNTAIN SHOULD BE COVERED WITH SPONGE FOAM RUBBER OR ICE WATER
TYPE INSULATION OF ADEQUATE THICKNESS
*61
8"
(156)
501
2"
(1283)

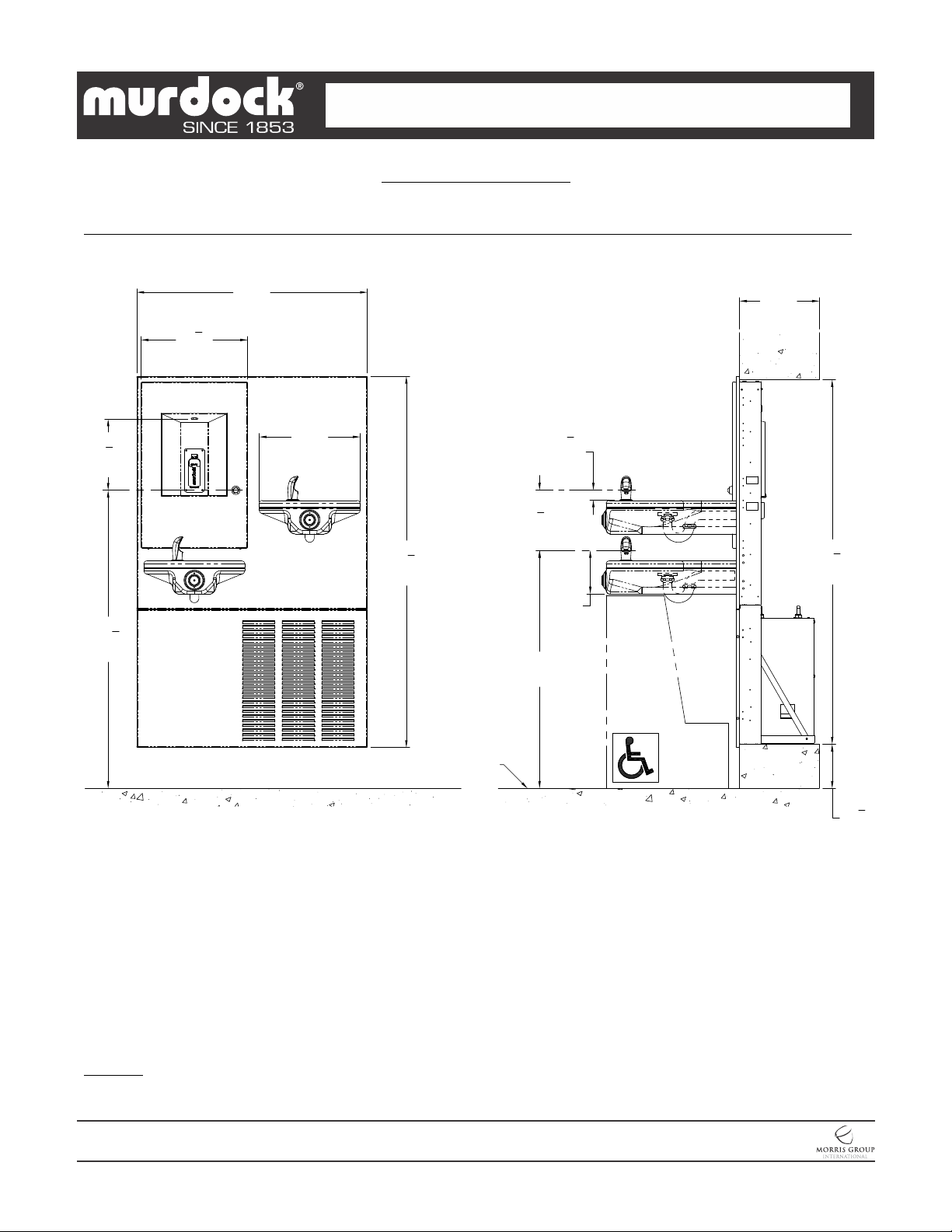

DIMENSIONAL DRAWING
Prior to roughing in, consult with local, state, and federal codes for proper mounting height.
A132408S-VR-BF3-RBL Refrigerated Reverse Bi-Level Wall Mounted Drinking Fountain with Bottle Filler
NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.
A132.8-VR-BF
Page 3 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
FINISHED
FLOOR
*33"
(838)
511
2"
(1308)
32"
(813)
143
4"
(375)
13
8"
(35)
TYP
6"
(152)
14"
(356)
11"
(273)
83
8"
(213)
*411
4"
(1048)
97
8"
(251)
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES (MM).
*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL DIMENSIONS AS NECESSARY
TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES
3. WATER LINE FROM CHILLER TO FOUNTAIN SHOULD BE COVERED WITH SPONGE FOAM RUBBER OR ICE WATER
TYPE INSULATION OF ADEQUATE THICKNESS
*61
8"
(156)
501
2"
(1283)

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.
A132.8-VR-BF
Page 4 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
A132408S-VR-BF Refrigerated Wall Mounted Drinking Fountain Inlet & Outlet Rough-Ins
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
4
General Notes:
1. Dimension indicated with (*) is for
33" drinking fountain discharge
height. if discharge height differs,
adjust accordingly.
2. Standard Bi-Level rough-ins
shown. For -RBL Reverse
Bi-Level, -RBL Mounting Frame
rough-ins opposite.
1-1/4" O.D. Drinking Fountain Waste Outlet
3/8" NCT Drinking Fountain Supply Inlet
Alternate 1-1/4" O.D. Bottle Filler Waste Outlet
Electrical Service Rough (Bottle Filler -BF4 Only)1
2
3
4
16"
(406)
8"
(203)
*38"
(965)
2
1
2"
(51)
TYP.
*35"
(889)
*295
8"
(752)
3
8"
(10)
TYP.
501
2"
(1283)
BLOCKOUT
*561
4"
(1429)
301
4"
(768)
BLOCKOUT
31
2"
(89)
1
2
3
15"
(381)
11
4"
(32)
81
8"
(206)
115
8"
(295) 5
3/8" NCT Chiller Supply Inlet5
11"
(279)
BLOCKOUT

DIMENSIONAL DRAWING
Prior to roughing in, consult with local, state, and federal codes for proper mounting height.
A132.8-VR-BF
Page 5 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
ANCHORING CLIP DETAIL
4
6
3
301
4"
(768)
WALL
OPENING
501
2"
(1283)
WALL
OPENING
3
FINISHED
FLOOR
1
5
2
Notes:
1-Standard Bi-Level rough-ins shown. For -RBL
Reverse Bi-Level, -RBL Mounting Frame rough-ins
opposite
2-Chiller installation is always on the right-hand side
of the shelf
INSTALLATION INSTRUCTIONS :
A-PROVIDE 30-1/4" (768) WIDE x 50-1/2" (1283) TALL WALL OPENING AT
APPROPRIATE HEIGHT. PROVIDE STRUCTURAL SUPPORT AROUND
INSIDE OF THE OPENING FOR FRAME ANCHORING.
B-CAREFULLY REMOVE BI-LEVEL MOUNTING FRAME 1 , CHILLER
MOUNTING FRAME 2 , PANEL, ANCHORING CLIPS 3 , AND SCREWS
4 FROM PACKAGING, PREVENTING DAMAGE.
C-CENTER BOTH FRAMES WITHIN WALL OPENING WITH SIDE, TOP
AND BOTTOM LIPS OVERLAPPING OUTSIDE THE OPENING AND UP
AGAINST FINISHED WALL FACE. SET CHILLER SHELVE IN PLACE,
ALIGNING ANCHORING HOLES WITH HOLES IN FRAME BOTTOM.
SECURE TO WALL THROUGH THE SIDES, TOP AND BOTTOM USING
HARDWARE 5 BY OTHERS, ENSURING 16" (406) CENTERLINE
DIMENSIONS LEFT-TO-RIGHT.
D-INSTALL TWO ANCHORING CLIPS 3 AT BOTTOM ON OUTER SIDES
OF CHILLER MOUNTING FRAME 2 ALIGN HOLES IN CLIPS WITH
HOLES 6 IN FRAME AND USE SHEET METAL SCREWS 4 PROVIDED.
SEE ANCHORING CLIP DETAIL.
6"
(152)

A132.8-VR-BF
Page 6 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
IMPORTANT:
1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by installer
in accordance with local codes.
2. Provide 4” minimum clear space in front of bottom trim panel and above in-wall chiller to allow for proper
ventilation.
3. Waste is 1-1/4” Outer Diameter. Chiller water inlet is 3/8” Outer Diameter copper tube. Chiller water outlet is
3/8” Outer Diameter copper tube. Drinking Fountain water inlet is 3/8” Outer Diameter copper tube. Bottle
Filler water inlet is 3/8” Outer Diameter copper tube. Water line by installer from in-wall chiller to drinking
fountain must have adequate insulation.
4. Completely flush supply lines of all foreign debris before connecting to fixture. Water cooler designed to not
cause problems with taste, odor, color, or sediment. Optional Water Filter (WF1), is available should any of
these problems arise from the water supply.
5. DO NOT solder tubes inserted into the chiller, bottle filler or the fountain strainer as damage to the o-rings on
the push-in fittings may result.
6. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.
7. Power supply must be identical in voltage, cycle and phase to that specified on the chiller data plate. Refer to
submittal.
8. This unit must be grounded per the requirements of applicable electrical codes.
9. WARNING: Warranty is voided if installation is not made following current Murdock Mfg. installation
instructions and if components are assembled to the fixture that are not approved by Murdock Mfg.
10. Fixture is to operate within a water pressure range of 20 PSIG (138 kPa) to 105 PSIG (724 kPa).
Warranty is void if the unit is allowed to operate outside the range of 20 PSIG (138 kPa) to 105
PSIG (724 kPa). Consult with UPC and local codes for maximum allowable water pressures.
11. Due to cold waste water, Murdock Mfg. recommends that waste piping supplied by installer be insulated
appropriately to prevent excessive condensation.
12. 09.10 Water Hammer. Building water supply systems where quick-acting valves are installed shall
be provided with water hammer arrester(s) to absorb high pressures resulting from the quick
closing of these valves. Water hammer arresters shall be approved mechanical devices that
comply with ASSE 1010 or PDI-WH 201 and shall be installed as close as possible to quick-acting
valves.
13. 609.10.1 Mechanical Devices. Where listed mechanical devices are used, the manufacturer’s
specifications as to location and method of installation shall be followed.
PRIOR TO INSTALLATION:
1. Read all installation instructions carefully, before proceeding.
2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture
and all parts from damages and all parts that are bolted on.
3. Provide mounting surface, adequate to support the fixture and loads on the fixture.
4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe
and gravel drain well. (See rough-in details)
5. It is common for electrical equipment to be grounded to water lines either within a structure or away;
otherwise, remains unchanged by the materials in the water cooler. Every attempt should be made to
prevent this kind of grounding from generating feedback into the water cooler creating electrolysis.
Electrolysis will cause a metallic taste or cause water content to increase.
6. Electrical Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC
(National Electrical Code).
7. Completely flush water supply lines of all foreign debris, before connecting to the fixture.

A132.8-VR-BF
Page 7 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
DRINKING FOUNTAIN INSTALLATION:
1. Insert mounting frame into the rough-in block out and secure using 1/4” mounting hardware (Provided by Installer).
2. Place the Chiller Unit onto the base pan of the frame assembly.
3. Hang upper trim panel on mounting frame. NOTE: The included 1” brackets do not get used with this installation
and the plastic spacers are typically not required and can be discarded.
4. Install the four threaded studs into the Wall Mounting Frame.
5. Remove the drinking fountain top by taking out the drain screw and lifting at the front while pulling forward.
Disconnect bubbler tube. Set top aside in a safe place where it will not be damaged. Place the screw in a secure
location where it will not be lost.
6. Slide Fixture over studs and secure with nuts and washers.
7. Assemble P-trap to drain adapter and then assemble to unit with Phillips head screws.
8. Make-up 1-1/4” outer diameter waste connection.
9. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to in-wall chiller and provide
connection from chiller to ‘the multi-line “Y” strainer assembly. From multi-line “Y” strainer assembly, connect to
drinking fountain bubbler.
10. Place drain gasket on drain adapter. Reconnect bubbler tube. Reassemble top to unit by engaging back clip and
securing with screw.
BOTTLE FILLER INSTALLATION:
1. With drinking fountain installed, connect water supply line from multi-line “Y” strainer assembly to bottle filler.
2. Loosen slip nuts to orientate P-trap to desired direction then tighten slip nuts and make up 1-1/4” O.D. waste
connection.
3. FOR -BF4 ONLY Make up power connections to the ground, neutral & hot within the electrical box.
NOTE: BEFORE PERFORMING STEP 4, REFER TO ELECTRICAL INSTALLATION.
4. Test for leaks and proper operation, and then install the bottle filler panel using the water filler bracket and secure
the bottle filler by tightening the screws under the bottle filler.
DRINKING FOUNTAIN START UP:
1. Before connecting power supply, but after thoroughly flushing the supply line and connecting it to the cooler, turn
on building water supply and check all connections for leaks.
2. Air within the drinking fountain system or the structure supply piping will cause an irregular bubbler outlet stream
until purged out by incoming water. Covering the bubbler with a clean cup (or similar object) is recommended
when first activating drinking fountain to prevent excessive splashing.
3. Depress front pushbutton until steady water stream is achieved.
4. If water flow requires adjustment, insert a slotted narrow blade screwdriver in the hole centered on the underside
of the fixture in the knee clearance area up to the flow regulator. Turning clockwise will increase flow and turning
counterclockwise will decrease flow.
5. Recheck all water connections with water flowing through system.
6. With power still NOT connected, carefully manually rotate cooling fan to ensure proper clearance and free fan
action
7. Provide power to water chiller and make sure unit begins to function.
8. Assemble louvered bottom trim panel with screws provided to brackets on either side of wall mounting frame.
BOTTLE FILLER START UP:
1. Air within the bottle filler system or the structure supply piping will cause an irregular spout outlet stream until
purged out by incoming water. Press and hold pushbutton until steady water stream is achieved.
Ÿ SENSOR OPERATED: Hold container to be filled just below the sensor in the center of the filler spout and then
move the container upward and water flow will start automatically. When the container is almost filled, lower the
container below the sensor until the water stops flowing.
Ÿ PUSHBUTTON OPERATED: Hold container to be filled just below the center of the filler spout then press the
pushbutton. When the container is almost filled release the pushbutton and lower the container below the until
the water stops flowing.

A132.8-VR-BF
Page 8 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
WATER TUBING CONNECTIONS:
NOTE: Insulation on all water tubes not shown (all PE water tubes are insulated).
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
3
8" O.D. Copper Inlet
3
8" O.D. Copper Outlet
Electrical
Knockout
Chiller Assembly Detail
Thermal
Adjustment
PE Tubing
PE Tubing
Fill
Spout
9-12VDC Solenoid Valve
Solenoid Valve Outlet
Elbow w/ Flow Control
Solenoid Valve
Inlet Fitting
3-Way Divider
Assembly

OPTIONAL -WF1 WATER FILTER
Page for models with -WF1 Water Filter (A132.8-VR-BF4-WF1)
A132.8-VR-BF
Page 9 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

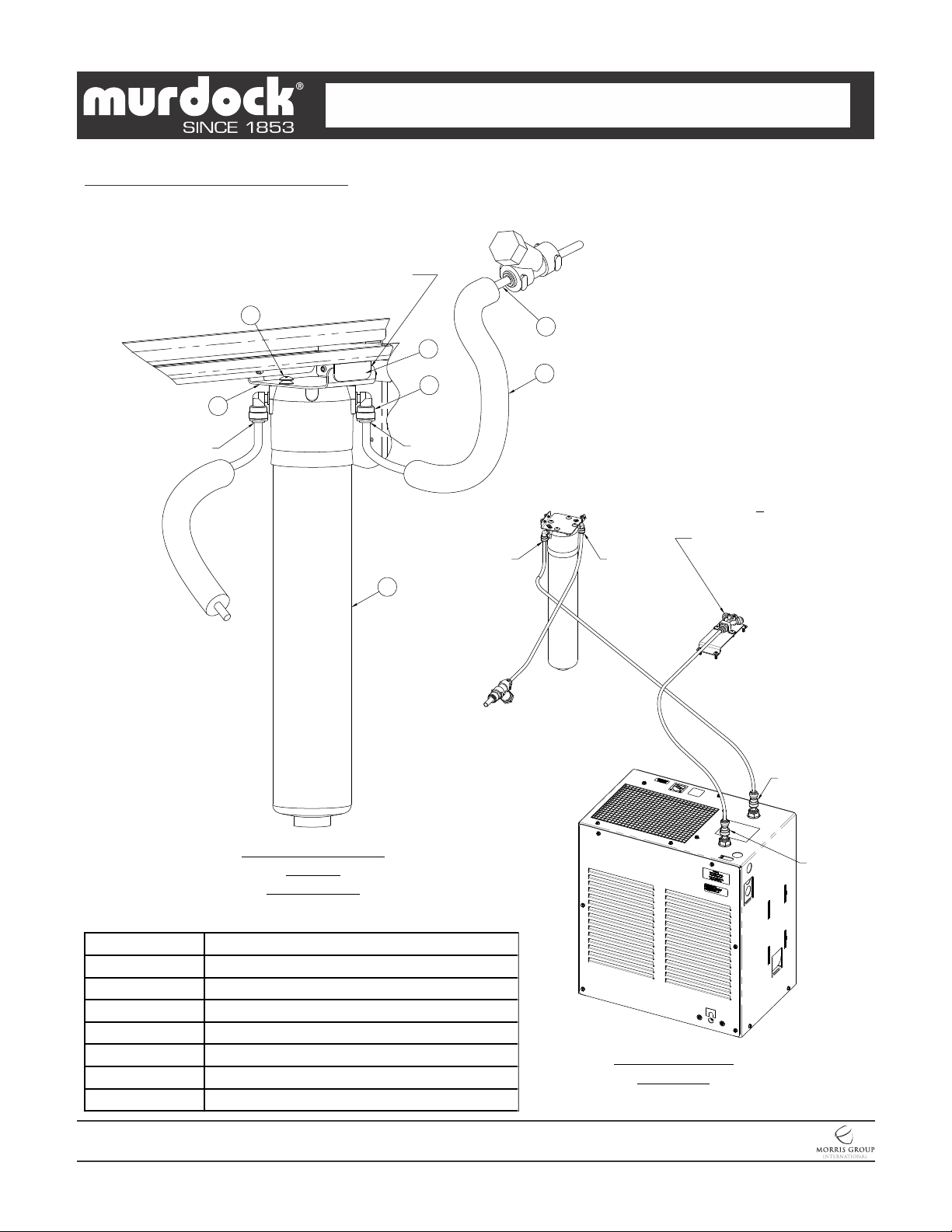

FILTER MOUNTING
DETAIL
(BACKVIEW)
Out In
Mount Filter Bracket to
Corner of Mounting
Frame
4
3
5
2
1
WATER TUBING
DIAGRAM
In
Out
7
6
Connect 1
4" Tubings
to Drinking Fountains
and Bottle Filler Valve
In
Out
PART NUMBER DESCRIPTION
7012-311-000 WF1 Filter 1500 Gallon
1895-709-000 Elbow , 1/4" Push-In x 1/4" Stem
7014-035-199 Water Filter Bracket
0250-006-000 #10 x 5/8" Phillips Truss Head Screw
0124-031-000 #8 x 3/8" Hex Washer Head Screw
2169-000-000 Tubing, 1/4" O.D. LLDPE, (Blue)
7012-055-000 Foam Pipe Insulation
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

A132.8-VR-BF
Page 10 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
OPTIONAL -WF1 WATER FILTER INSTALLATION
FILTER CARTRIDGE REPLACEMENT:
1. Remove panel assembly, this allows access to the
filter and the inlet valve (provided by others). Turn
valve knob 1/4 turn clockwise to close.
2. With the filter assembly secured on the unit, hold
the cap firmly, turn the replaceable cartridge filter
counterclockwise to remove.
3. Remove and replace the cartridge turning
clockwise to secure.
4. Turn inlet 1/4 turn knob 1/4 turn counterclockwise
to open and test for leaks and proper operation
before re-mounting panel assembly to fixture.
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
Panel Assembly
Replacement
Cartridge
Water Inlet
Valve Closed
Water Inlet
Valve Open

A132.8-VR-BF
Page 11 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ELECTRICAL INSTALLATION:
NOTE: Plug in power is a standard feature.
1A. Plug-In Operation: Plug transformer provided into GFCI protected electrical service, used by the semi-
recessed bottle filler. Plug in transformer to power supply and connect to red sensor wire.
1B. For Reverse Bi-Level, unit will be reversed.
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
9-12VDC
Solenoid Valve
Plug-In Transformer
Sensor
Junction Box
Provided
Red Wire
Blue Wire

A132.8-VR-BF
Page 12 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
OPTIONAL -BCD BOTTLE COUNTER DISPLAY
BOTTLE COUNTER ADJUSTING & RESETTING INSTRUCTIONS:
NOTE: Bottle Counter Has Multiple Functions
Reset/ Mode Button
• Counts refilled bottles, otherwise purchased
• Adjustable for Units with and without filters
• “REPLACEMENT FILTER” alert function
• Alert reset, when filter is replaced
Description
Illuminated LCD display, counts bottles, and has a filter replacement alert function
Bottle Counting Function
The software applies a flow volume of approximately 16.9 fl oz (volume in standard size plastic water
bottle) to each bottle counted. If the flow volume is less than 16.9 fl oz there will be no count but the
volume will accumulate, so that part way through the next cycle the total bottle count will change.
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
ILLUMINATED LCD DISPLAY

A132.8-VR-BF
Page 13 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
OPTIONAL -BCD BOTTLE COUNTER DISPLAY
FILTER REPLACEMENT FUNCTIONS:
NOTE: When the volume accumulates to 1500 gallons (recommended maximum filter flow volume) the
“REPLACE FILTER” alert will appear on the display every time the bottle filler is activated.
Counter Modes
Located on the back of the display you will find the reset button for the mode settings. The Reset/Mode
selection button is accessible by removing the bottle filler panel assembly, then locate the large hole in the
back of the display mounting bracket. Use your finger or nonconductive implement to depress the
Reset/Mode Selection Button.
!!!DO NOT USE SHARP OR METAL IMPLEMENTS!!!
With this reset button, you are able to indicate whether or not the unit has a filter or does not have a filter.
The reset button will also take away the “REPLACE FILTER” alert once the filter has been replaced.
Systems With or Without Filter
• Depress the Reset/Mode selection button for 6
Seconds, the number of seconds will count up on the
display.
• At the end of the 6 seconds, “FLTR YES” or “FLTR NO”
WILL APPEAR on the display.
• “FLTR YES” means that there is a filter in the system
and a “REPLACE FILTER” alert WILL APPEAR on the
display when the maximum filter flow volume is reached.
• “FLTR NO” means that there is no filter in the system
and a “REPLACE FILTER” alert WILL NOT APPEAR
on the display.
• Release button when the option required is on the
display (Filter Yes or No)
CLEARING “REPLACE FILTER” ALERT:
NOTE: This Function only applies if the system as a filter
• Replace old filter with new filter.
• Depress the Reset/Mode selection button for 2 SECONDS
• The “REPLACE FILTER” will no longer appear on the display
• Test by actuating the bottle filler, alert will not appear.

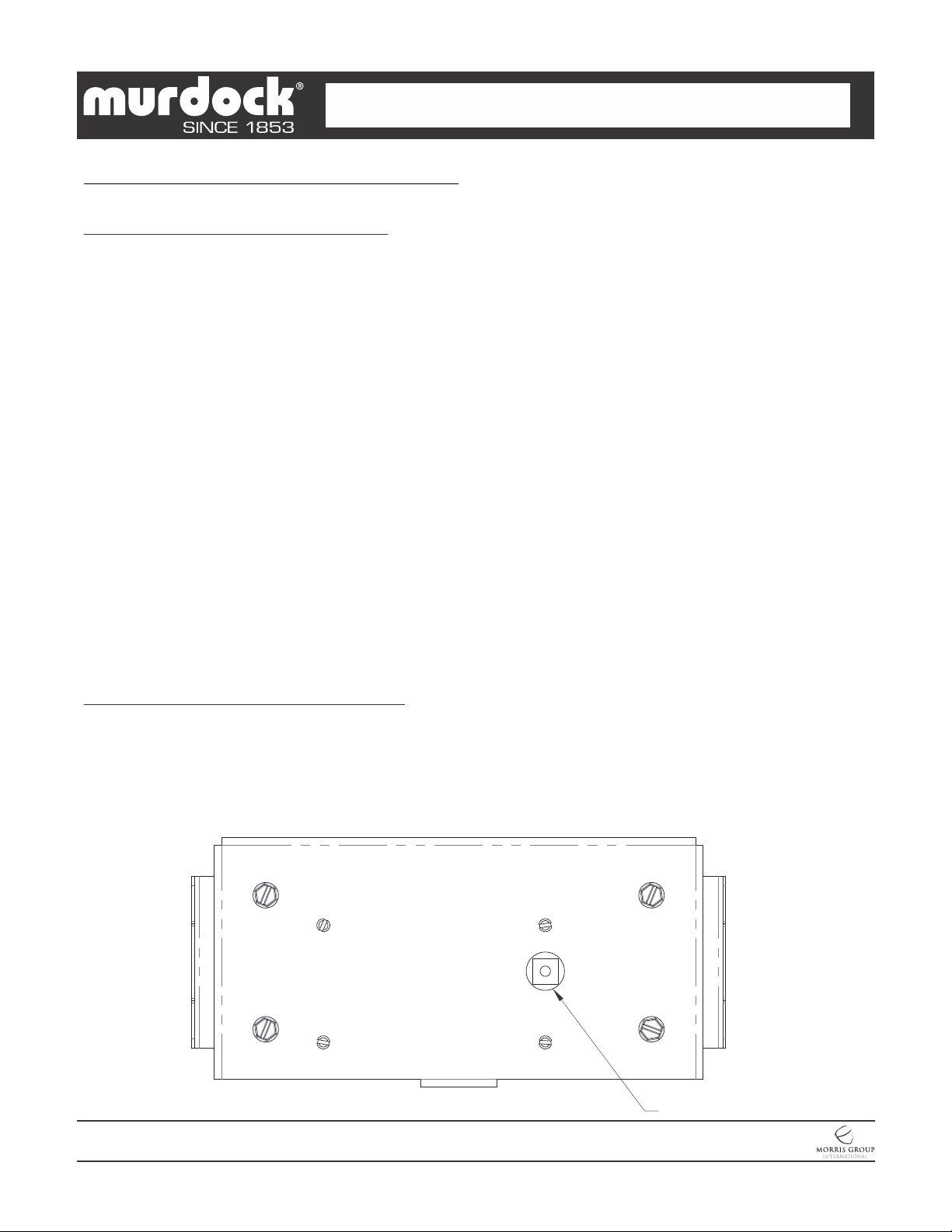

Reset/Mode Button
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

A132.8-VR-BF
Page 14 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
Solenoid
Connection
Power Supply Connection
(Black Cables)
Sensor Connection
(Black & Red Cables)
Sensor Connection Transformer
Solenoid Valve
Bottle Count Display
Sensor
OPTIONAL -BCD BOTTLE COUNTER DISPLAY
BOTTLE FILLER & BOTTLE COUNTER CONNECTIONS:
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

A132.8-VR-BF
Page 15 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
PUSH-IN FITTING INSTALLATION
NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR
TO INSTALLATION.
2. Pull on the fitted tubing to ensure it is secure.
Tube should not come free from the fitting. Water
test the connection assembly prior to leaving the
site to ensure there are no leaks.
DISCONNECTING THE TUBE:
To disconnect the tube from the fitting ensure that
the water line is depressurized. Push collet square
towards the push-in fitting body and hold. While
holding the collet in, pull on the PE tubing to remove
from the push-in fitting.
TO CUT TUBE:
Cut to fit length of 1/4” PE tubing and remove any
burrs or sharp edges. Ensure that the outside
diameter is free from score marks. Tube ends
should be square.
INSERTING THE TUBE:
1. Firmly and fully insert the tubing end into the
push-in fitting up to the tube stop located
approximately ½” deep.
COLLET
COLLET
O-RING
O-RING
TUBE STOP
COLLET
COLLET
COLLET
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

TROUBLE SHOOTING:
IMPORTANT: BEFORE MAKING ANY OF THE REPAIRS LISTED, MAKE SURE THE WATER CHILLER IS
DISCONNECTED FROM THE ELECTRICAL SUPPLY AND THEWATER SUPPLY VALVE IS SHUT OFF.
1. ADJUSTMENTS:
a. Cartridge – The water flow can be adjusted using a slotted narrow blade screwdriver and turning
clockwise to increase flow and counterclockwise to decrease flow.
b. Cold Water Thermostat – The water temperature can be adjusted using a slotted screwdriver and turning
clockwise to make colder and counterclockwise to make warmer.
c. Bubbler Stream - Bubbler can be rotated slightly to direct the stream backwards or forwards. Adjust the
stream to minimize splashing. Splashing may occur from bubbler stream if the unit is not level. Shim lower
mounting point, if necessary, to level chiller.
2. COMPRESSOR DOES NOT RUN:
a. Check the electrical supply for power and correct voltage. The incoming voltage must be within 10% of
the rated voltage on the serial nameplate.
b. If the cold thermostat capillary bulb loses its charge or becomes kinked, it will fail in the open position
causing a disruption of power to the compressor. Disconnect electrical supply to the water chiller and
using an ohm meter check, for continuity across the two electrical terminals on the thermostat. Install a
new thermostat if there is no continuity.
c. Check for loose wires within the compressor box. The incoming power leads must be connected to the
overload and relay.
d. If all components check positive for continuity, then test the wiring harness plug for continuity to see if
there is a broken wire within the wiring harness insulation.
3. COMPRESSOR RUNS - WATER IS WARM:
a. The most common cause for a water chiller to run without producing cold water is a loss of refrigerant.
The water chiller must be taken to a certified refrigerant technician for repairs.
b. Make sure the condenser fan motor is operative. The fan blade must turn freely to help remove the heat
of compression.
c. An incorrect refrigerant charge, restriction or defective compressor (not pumping) will also cause the
compressor to run without producing cold water. All these signs indicate a problem within the refrigeration
system and the water chiller must be checked by an authorized service company.
4. COMPRESSOR CYCLING ON OVERLOAD PROTECTOR:
a. A dirty condenser or a blocked fan will cause a high head pressure and frequent cycling of the overload
protector.
b. Check the incoming voltage to make sure it is within 10% of the serial nameplate rating.
c. A restriction or moisture in the system will also cause intermittent cycling. A certified refrigeration
mechanic should be contacted in this situation.
d. Change the overload or relay if defective.
5. NOISY OPERATION:
a. Check to make sure the fan blade is rotating freely.
b. Check the compressor mounting to make sure the pins and clips are not rattling. If the compressor
appears to be noisy internally, it must be replaced.
6. RESTRICTED OR NO WATER FLOW:
a. Ensure water supply service stop valve is fully open.
b. Verify minimum 20 psig supply line flow pressure.
c. Check for twists or kinks in outlet tubing.
d. Check the water inlet “Y” strainer. Sediment from the main supply can get trapped in the screen along
with installation materials such as pipe dope and flux. The screen should be cleaned and checked on a
regular basis and replace if needed.
e. The cartridge valve located in the water control assembly or bubbler can also become clogged with
foreign material. The cartridge valve can only be replaced and not repaired.
f. Check flow adjustment. See start up note #3.
g. Flow control in solenoid valve outlet elbow clogged remove & clean.
A132.8-VR-BF
Page 16 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

h. The water chiller may also develop a freezing condition in which the water will become frozen inside the
evaporator coil. This indicates a refrigeration problem or thermostat failure; in which case, the water
chiller needs to be checked by a qualified technician.
I. No power to transformer connections, loose or wires cut.
7. WATER DRIPS OR WILL NOT SHUT OFF:
a. Open fixture. Loosen nuts holding valve bracket assembly to bottom of fixture but, do not remove. Move
complete valve bracket assembly further back from the front push pad and tighten to lock in place.
b. Replace valve cartridge.
CLEANING & MAINTENANCE GUIDE:
1. Motors have lifetime lubrication and do not require scheduled maintenance.
2. Excess dirt or poor ventilation will cause the compressor overload protector to turn the compressor off and it
will cycle on and off with no cold water coming out of bubbler. Periodically clean with vacuum cleaner, air
hose or brush the condenser fins and cabinet ventilation louvers. In environments where dirt and dust is
more prevalent, clean more frequently.
3. Periodically remove fountain top and clean out in-line strainer.
4. Periodically remove access panel of cooler and clean out inline “Y’’ strainer
For Stainless steel units:
1. To Remove water spots or rust spots, stainless steel cleaner/polish on a cloth is recommended.
2. If there are stubborn spots or if you wish to treat a scratch, using synthetic abrasive general
purpose pads, such as Scotch-Brite™, are recommended.
3. Apply stainless steel cleaner/ polish to the synthetic abrasive pads and carefully rub the panel with the grain.
4. DO NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Murdock
warranty.
5. Stainless steel should be kept clean at all times. If a coating of stainless steel cleaner/ polish is maintained,
stainless steel surfaces will retain their new, clean, polished appearance indefinitely.
A132.8-VR-BF
Page 17 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CARTRIDGE VALVE PARTS BREAKDOWN
CARTRIDGE REPLACEMENT/ STRAINER MAINTENANCE
Note: Use the Universal Maintenance Tool to perform the following:
1. Strainer Plug must be removed before Cartridge replacement and Strainer maintenance (no need to turn the
water off at the Angle Stop). Some residual water will drainduring Plug removal.
2. Clean Strainer as needed using clean water.
3. Cartridge Replacement - insert diamond end of the Universal Tool into Pushbutton, rotate 90 degrees and pull
firmly to remove the Button. Remove Cartridge Retaining Nut . Remove and replace Cartridge. When replacing
Cartridge, be sure to align the inlet and outlet Ports on the Cartridge with the Ports in the Valve Body.
— NOTE: STRAINER SCREEN MUST BE IN PLACE FOR WATER TO FLOW.
ITEM # PART NUMBER DESCRIPTION
1 7003-095-000 Valve Body Sub Assembly
2 7000-060-000 Valve Cartridge
3 7000-052-000 Retaining Nut
4 7003-864-000 Strainer, Auto Stop
5 7003-097-001 Strainer Cap
6 7003-194-199 Maintenance Tool
3
2
1
5
4Universal Maintenance Tool
-Button Removal
-Cartridge Retaining Nut
-Strainer Plug
-Removal of P.E. Tubing from
Push-in Fittings
6
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS

A132.8-VR-BF
Page 18 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
NOTE:
** Flow Restrictor Only Available
With Low Flow Bubbler.
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
ITEM # PART NUMBER DESCRIPTION ITEM # PART NUMBER DESCRIPTION
1 7000-005-199 Drain Adapter 9 7003-193-000 Spring, Pushbutton Return
2 0116-016-000 #10-32 x 3/8" Phillips Truss Head Screw 10 7003-196-199 Pushbutton, Chrome
3 7000-006-000 Flat Drain Adapter Gasket 11 7003-197-199 Escutcheon, Chrome
4 7000-015-000 1-1/4" OD P-Trap 12 0161-062-000 #6-32 x 1/2" Phillips, Flat Head Screw
5 0152-010-000 #10-32 x 1" Hex Flat Head Screw 13 0124-055-000 #8 x 3/4" Phillips, Round Head Screw
6A 7000-012-001 Stainless Steel Bubbler Assembly 14 7003-198-199 Mounting Sleeve
6B 7000-099-002 Flexible Gray Bubbler Assembly 15 7003-095-001 Valve Body Sub Assembly
7 1895-123-000 1/4" x 3/8" OD Tube Union Push-In 16 7003-093-001 Flow Restrictor - Low-Flow Bubbler Only
8 7003-195-000 Spring, Overtravel

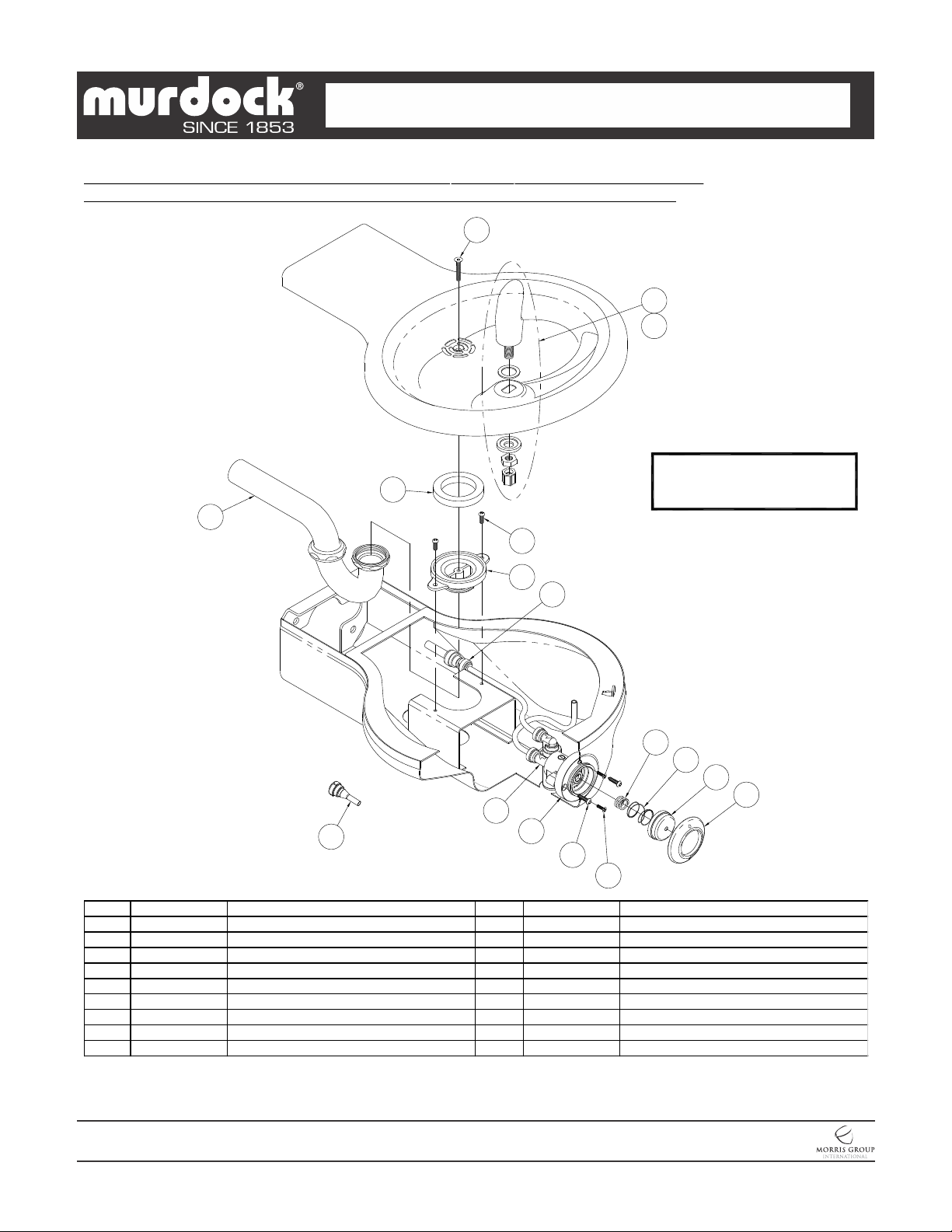

VANDAL RESISTANT DRINKING FOUNTAIN PARTS BREAKDOWN DRAWING
Shown is the 18” long unit, however the parts are the same for the 14” long unit.
6A
6B
5
4
3
2
1
7
16
15
14
13
12
10
11
9
8

A132.8-VR-BF
Page 19 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

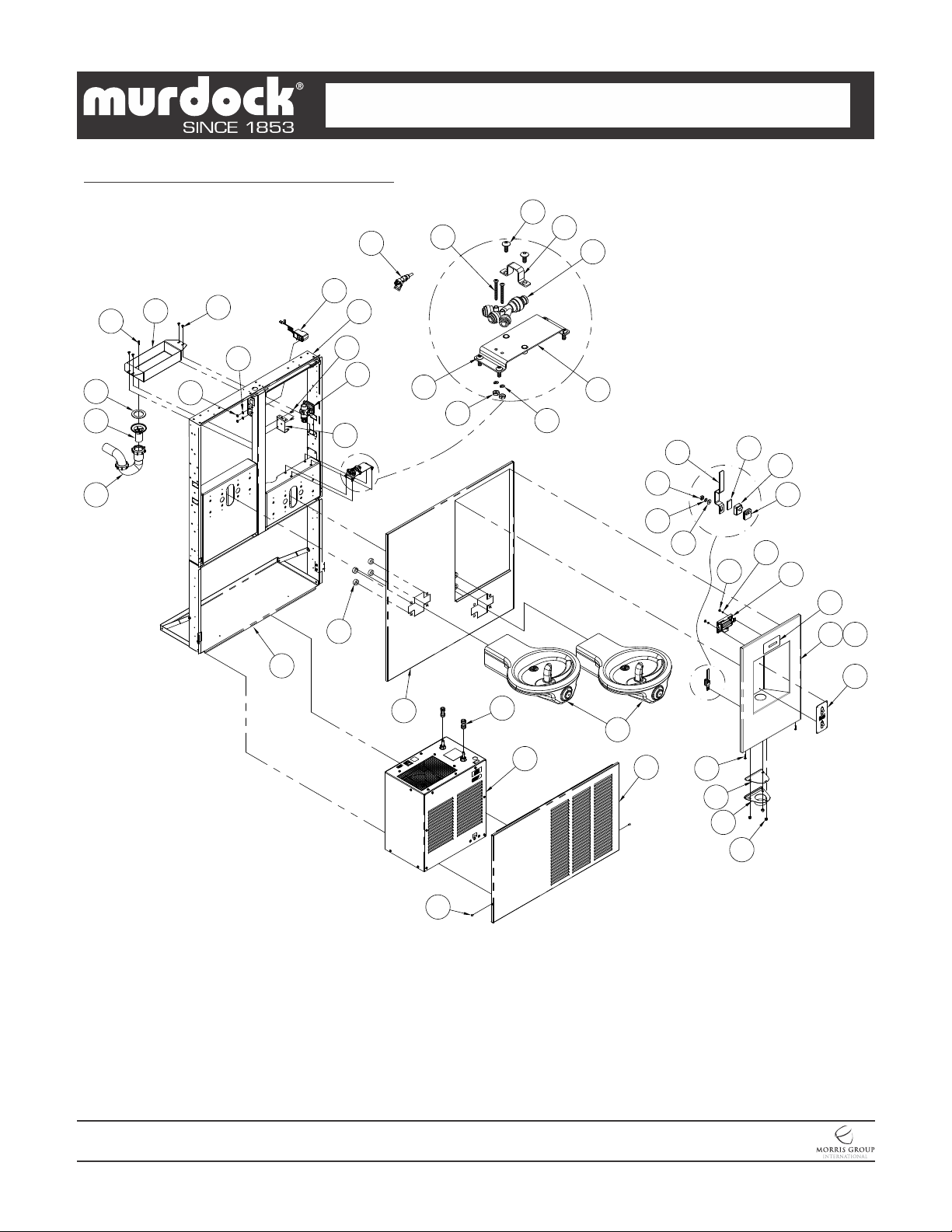

A132.8-VR-BF4 SERIES BREAKDOWN
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
36A
44
31
32
33
34
45
46
40
43
42
41
40
38
39
37
35
10
11
12
13
24
19
17
16
22 21
20
18
15
3
4
6
1
5
27 30
29
26
28
9
23
25
2
7
8
36B
14

A132.8-VR-BF
Page 20 of 22
Date: 03/17/2023 D
7021-019-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
NOTE:
Items with (*) are for
units with -BCD option
only.
A132.8-VR-BF4 SERIES BREAKDOWN
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
ITEM # PART NUMBER DESCRIPTION
1 0110-004-000 #8-3/4" Phillips Pan Head Screw
2 7014-034-199 Drain Tray, BF4
3 0124-031-000 #8-3/8" Hex Washer Head Screw
4 7000-006-000 Flat Drain Adapter Gasket
5 7003-186-199 1-1/4" x 2-3/4" Plastic Drain Tube
6 4970-265-000 1-1/2" x 1-1/4" P-Trap, White Poly
7 0302-004-000 #10-32 UNF Hex Nut Stainless Steel
8 0321-011-000 #10 Stainless Steel External Tooth Lockwasher
9 0710-730-001 9V Plug-In Transformer
7014-110-001 Mount Frame Assembly R.H. Bottle Filler, W32
7014-041-001 Mount Frame Assembly L.H. Bottle Filler, W32-RBL
11 6502-070-000 #10-32 x 1/2" Slotted Pan Head Screw
7013-133-001 LH, 9-12VDC Solenoid Op Valve Assembly
7013-134-001 RH, 9-12VDC Solenoid Op Valve Assembly (For RBL)
13 7014-036-199 Solenoid Bracket
14 7000-021-001 "Y" Strainer Assembly, 1/4" NPT
15 0110-010-000 #6-32 x 1-1/4" Phillips Head Screw
16 0116-010-000 #10-32 x 1/2" Stainless Steel Truss Head Screw
17 7013-238-199 "Y" Strainer Clamp
18 7013-235-001 3-Way Divider Assembly, 1/4" x 1/4"
19 0112-021-000 #10-32 x 1/2" Stainless Steel Button Head Hex Screw
20 7013-231-199 3-Way Divider Bracket Assembly, 1/4" x 1/4"
21 0331-042-000 #6 Helical Spring Lock Washer
22 0302-011-000 #6-32 UNC Stainless Steel Hex Nut
23 7000-245-000 Back Panel Spacer
24 7014-150-001 Frame Assembly, Chiller Mount, W32
7014-032-199 Trim Panel, Bi-Level W32-BF, Upper, #4 Finish
7014-052-199 Trim Panel, RBL-BF, Upper, #4 Finish
26 1895-123-000 1/4" x 3/8" O.D. Tube Union Push-In
27 7008-010-001 Chiller Assembly
28 18" Drinking Fountian See Page 15 for Drinking Fountain Repair Parts
29 0124-056-000 #8 X 3/8 Phillip Stainless Steel Sheet Metal Screw
30 7014-033-199 Bottom Trim Panel, Bi-Lvl W32 w/ Chiller
31 0116-013-000 #10-32 x 3/4" Phillips Round Head Screw
32 7013-103-199 Mesh Screen
33 7013-114-001 Weldment, Screen Plate, BF
34 0302-005-000 1/4-20 UNC Stainless Steel Hex Nut
35 7013-032-000 Bottle Filler Graphic Plate, Murdock
36 7014-020-003 Weldment, Panel, BF4-BCD
37A 7014-019-003 Weldment, Panel, BF4, less BCD
*37B 0331-023-000 #8 Stainless Steel Flat Washer
38 6527-108-000 #8 Internal Tooth Lockwasher
39 0302-003-000 #8-32 Stainless steel Hex Nut
40 7013-014-199 Nano Sensor Bracket
41 7013-019-199 Foam Tape
42 2563-380-001 Nano Sensor Assembly
43 7013-009-001 Nano Sensor Spacer Assembly
*44 7013-034-000 Nameplate, Outdoor Bottle Filler (Green)
*45 7014-022-001 BCD, Bottle Filler Counter Bracket Assembly
*46 0331-003-000 #8 Helical Spring Lock Washer
10
12
25
