MuxLab 500462 User manual

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: [phone] Fax: [phone]
Toll Free (North America): [phone]
E-mail: [e-mail] URL: www.muxlab.com
Specifications
Environment
HDMI 1.3a and DVI-D
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission
Unidirectional. Transparent to the user
Bandwidth
340 MHz
Signals
HDMI 1.3a protocol
Copy Protection
Do NOT Support HDCP protected content.
Connectors
TX Side: One (1) HDMI receptacle.
One (1) LC Fiber connector (output only).
One (1) 2.1mm power connector.
TX Side: One (1) HDMI receptacle.
One(1) LC Fiberconnector (input only).
One (1) 2.1mm power connector.
Note: HDMI and Fiber cables not included.
Maximum Distance
Based on a maximum
length of 6.6 ft (2 m) of
HDMI cable per end.
480i/p: 984ft (300m)
720p, 1080i: 984ft (300m)
1080p 8-bit: 984ft (300m)
1080p 12-bit deep-color: 984ft (300m)
4K @ 24,25, 30Hz 984ft (300m)
Cable
One (1) Multimode fiber 50/125 μm OM3 cable required
Power Supply
Two (2) 110-240V/5VDC power supply with interchangeable blades
Power Consumption
Transmitter: 1.35 Watt Receiver: 1.15 Watt
Temperature
Operating: 0° to 55°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Aluminium
Dimensions
3.27” x 1.97” x 0.75” (83 x 50 x 19 mm)
Weight
1.0 lb (0.45 kg)
Compliance
Regulatory: FCC Class A, CE, RoHS
Warranty
2 years
Order Information
500462 HDMI Optical Isolator Kit
HDMI Optical Isolator Kit
500462
Quick Installation Guide
Overview

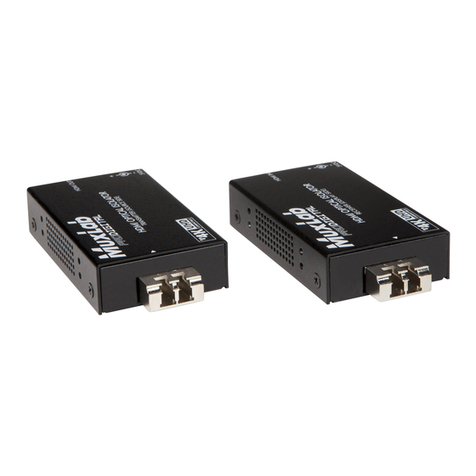

The HDMI Optical Isolator (500462) allows HDMI equipment to be completely isolated
and connected up to 984ft (300m), while allowing a unidirectional communication (with
no return signaling) via one (1) LC 50/125 μm OM3 multimode fiber cable in a point-to-
point configuration at 1080p resolution.
The HDMI Optical Isolator establishes a high separation between the source computer
and the display devices preventing any potential leakage between the source and the
peripheral equipment; removing the vulnerability of shared display equipment to cyber-
attacks.
The kit comes with one (1) Transmitter, one (1) Receiver and two (2) power supply.
Applications
Commercial and residential AV systems, classroom projector systems, digital signage,
boardroom systems, collaborative PC systems, and medical information systems, high
security applications.
Key Features
•Complete optical isolation between source and display.
•Unidirectional HDMI communication.
•No return signaling.
•Fixed EDID configuration.
•Up to 984ft (300m) @ 1080p via one (1) LC multimode fiber.
© MuxLab Inc. 94-000776-A SE-000776-A
All manuals and user guides at all-guides.com
all-guides.com

Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
2. Verify that the distance between the HDMI Optical Isolator Transmitter and
Receiver is within MuxLab specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of multi-mode fiber cable to the LC Fiber connector on the
Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
4b. Connect the one (1) length of multi-mode fiber cable to the LC Fiber connector on
the Receiver.
5. Connect the 5 VDC power supply to the Receiver first, and then plug the power
supply into an AC power outlet. Connect the 5 VDC power supply to the
Transmitter first, and then plug the power supply into an AC power outlet.
Note: Power the HDMI Optical Isolator only after all connections are made.
6. Power on the HDMI equipment and verify the image quality.
7. The following diagram shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in respect to the installation of the HDMI Optical Isolator Kit:
Symptom Probable
Cause Possible Solutions
No Image
No power
• Check power connections
No Image
Fiber Cable
• Check the Fiber cables.
No Image
HDMI Cable
• Check the HDMI Cable.
No Image
Synchronization
• Check cable length.
Flickering Image
Synchronization
• Check cable length
• Check the HDMI Cable Quality.
Choppy sound
Synchronization
• Check cable length
• Check the HDMI Cable Quality.
Green or pink hue
DDC communication
• Cycle power of the HDMI Optical Isolator.
Image flickers
when powering up
nearby equipment
Interference
• Move HDMI Optical Isolator away from the
source of the interference.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or ([phone] (International).
© MuxLab Inc. 2015
