MuxLab 3G-SDI ST2110 User manual

©MuxLab Inc. 2022 94-000989-A/SE-000989-A
(Multimode version shown)
3G-SDI ST2110 Over IP
Gateway Converter
Operation Manual
500767-2110

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 2
Copyright Notice:
Copyright © 2022 MuxLab Inc. All rights reserved.
Printed in Canada. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or
otherwise without prior written permission of the author.
Trademarks:
MuxLab Broadcast is a registered trademark of MuxLab Inc.

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 3
Table of Contents
1. Product Overview............................................4
1.1 Introduction.................................................... 4
1.2 Applications.................................................... 6
1.3 Key Features.................................................. 6
1.4 Specifications................................................. 7
1.5 Currently Supported Resolutions.................... 9
2. Managing the 500767-2110...........................10
2.1 Web interface............................................... 10
2.1.1 Configuring the 500767-2110 as a TX.......... 11
2.1.2 TX Media Page............................................. 11
2.1.3 TX System Info Page.................................... 14
2.1.4 TX PTP Page ............................................... 15
2.1.5 TX Settings Page ......................................... 16
2.1.6 Configuring the 500767-2110 as a RX.......... 19
2.1.7 RX Media Page............................................ 19
2.1.8 RX System Info Page................................... 22
2.1.9 RX PTP Page............................................... 24
2.1.10 RX Settings Page....................................... 25
2.2 500767-2110 API (NMOS and RestAPI) ...... 28
3. Frequently Asked Questions........................39
4. Product Warranty Policy...............................42

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 4
1. Product Overview
1.1 Introduction
The 3G-SDI/ST2110 over IP Uncompressed Gateway Converter allows HD-SDI
and 3G-SDI equipment to be extended up to 100ft (30m) via UTP Cat 6a/7 cable
(model 500767-2110-UTP), or up to 1300ft (400m) via duplex multimode OM4
fiber with LC connectors (model 500767-2110-MM), at up to 1080p resolution @
60Hz uncompressed, in a point-to-point configuration. A second Media/Data port
is provided and can be used to support ST-2022-7 Redundancy (Seamless
Protection Switching). Thus a second MuxLab SFP module (model: 500970-UTP
for UTP model, or 500970-MM for multimode fiber model) is pre-installed and
included.
Point-to-multipoint and multipoint-to-multipoint configurations are also possible by
connecting several units to a 10G Ethernet network. The unit provides a 1G
Ethernet Switch port for unit management via a RestAPI or NMOS, and an
RS232 port for remote control of end devices (for future implementation).
The following diagrams illustrate typical multipoint-to-multipoint LAN
configuration.

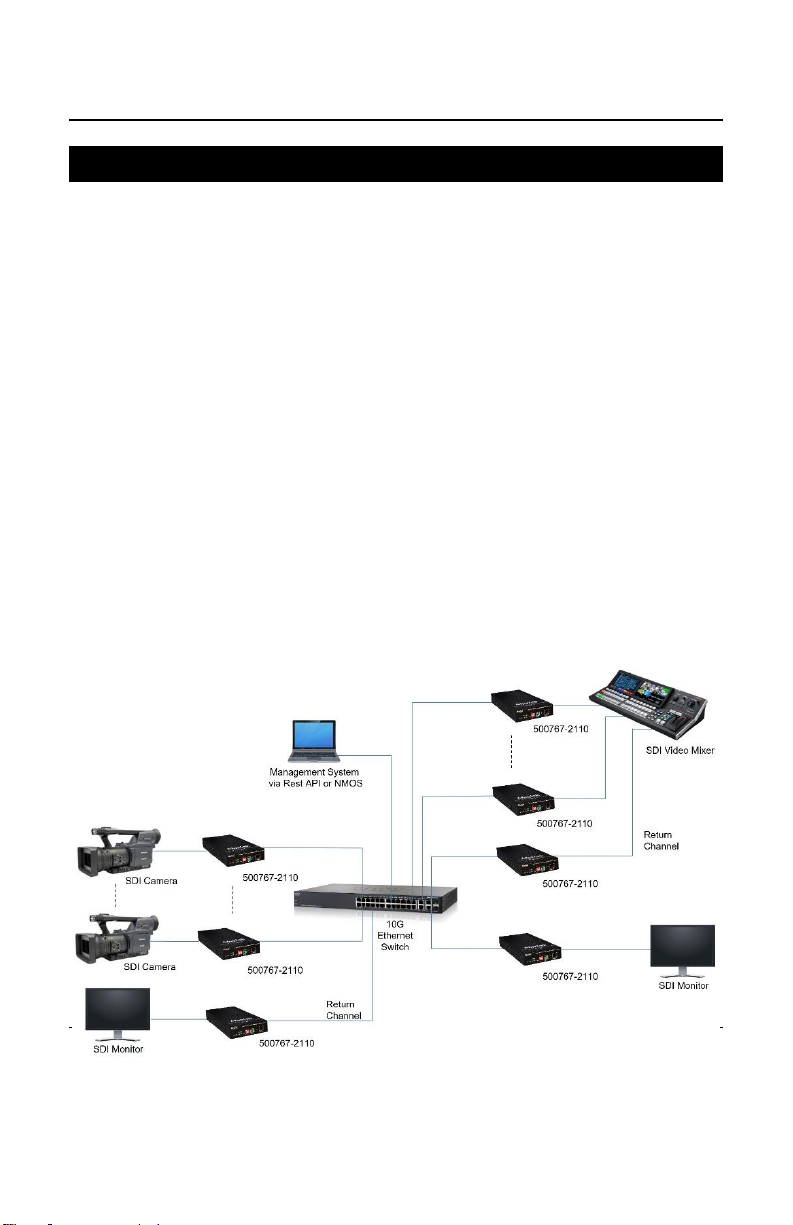

Figure 1a: Application Diagram

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 5
Figure 1b: Application Diagram with redundancy (without Fault)

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 6
1.2 Applications
The 500767-2110 is an ideal solution for SDI/IP hybrid environments. It
allows broadcasters the ability to have a single IP infrastructure rather
than two different ones. The 500767-2110 applications include
commercial broadcast AV systems, news/sports/TV stations and movie
networks.
1.3 Key Features
The following are the 500767-2110 key features.

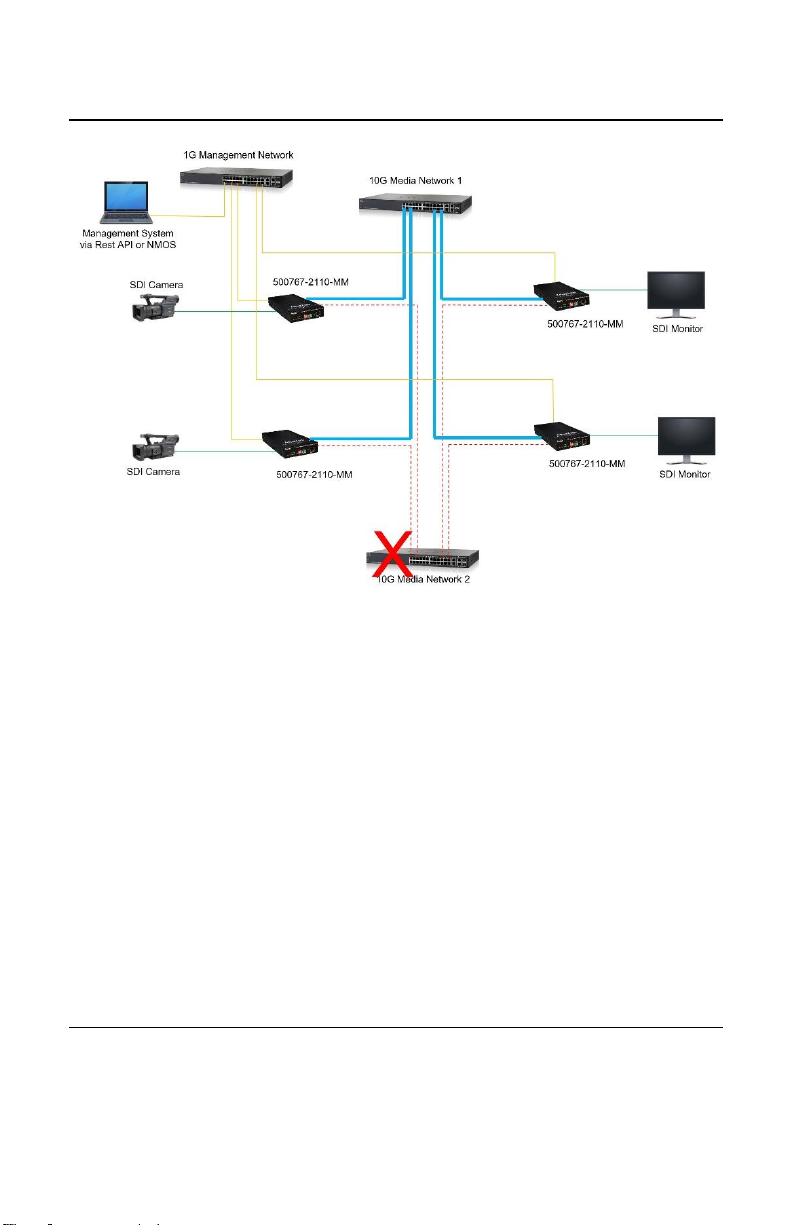

Figure 1c: Application Diagram with redundancy (with Fault)

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 7
•Supports SMPTE ST-2110 uncompressed SDI video up to 1080@ 60Hz
•Supports SMPTE ST-2022-7 (Class D, supporting up to 150usec delay
with no frame lose) AV signal Redundancy (Seamless Protection
Switching)
•Extend SDI audio/video over an IP network at up to 100ft (30m) over
CAT 6a/7 UTP cable (for 500767-2110-UTP model), or 1300ft (400m)
over duplex OM4 fiber (for 500767-2110-MM model) - Note that OM3
fiber may also be used at up to 985ft (300m) on the MM Fiber model.
•This device is a Transceiver and can be configured as a Transmitter
(Encoder), or Receiver (Decoder)
•Supports many Transmitters and Receivers depending on network
bandwidth
•Supports point-to-point, point-to-multipoint and multipoint-to-multipoint
applications
•Supports two (2) 10G Ethernet ports (labelled as: Media 1 & Media 2)
for AV Media/Data transmission, and a 1G Ethernet port (labelled as:
Console LAN) for device management & control via a RestAPI or NMOS
based management platform
•RS232 port in included for future use, to manage end devices
•Audio 3.5mm port is included for future use, for audio insert/extract
•May be managed via a Web interface and third-party control software
platforms supporting a RestAPI or NMOS
1.4 Specifications
The following are the 500767-2110 specifications.
Environment
Up to 3G-SDI
Devices
Cameras, mixers, media players, monitors, TVs,PCs, laptops, servers
supporting up to 3G-SDI
Signals
Up to 3G-SDI (1080p @ 60Hz), supporting ST-2110
Connectors/Switches
Two (2) BNC connectors for SDI
Two (2) SFP Connectors for 10G Ethernet ports for redundant AV
transmission
One (1) RJ45S Connector for 1G Ethernet port for unit control
One (1) 3-position Phoenix Connector for RS232 (for future use)
One (1) 3.5mm audio connector (for future use)
One (1) 2.1mm locking power connector
Max Distance
OM4: 1300ft (400m), for model 500767-2110-MM
OM3: 985ft (300m), formodel 500767-2110-MM

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 8
UTP: 100ft (30m), for model 500767-2110-UTP
Latency
Zero latency
Compression
None (uncompressed)
Network Bandwidth
Up to 3 Gbps
Network Requirement
10G Ethernet LAN for AV transmission, and 1G LAN for 3rd party
management platforms
3rd Party Control
Via RestAPI and NMOS (IS-04 for discovery & IS-05 for connectivity
management)
Cable
Two (2) Dual multi-mode fiber cables (for MM Fiber version) or Two (2)
CAT 6a/7 UTP cables (for UTP version) for AV media/data transmission,
and CAT 5e/6 UTP cable for control
Power Consumption
12 Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Aluminum (color: black)
Dimensions
4.4” x 9.9” x 1.3” (11.1 x 25.0 x 3.3 cm)
Weight
1.75 lbs ( 0.8 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500767-2110-MM:
3G-SDI/ST2110 over IP Uncompressed Gateway Converter
(Transceiver), MM fiber
(UPC: 627699007679)
500767-2110-UTP:
3G-SDI/ST2110 over IP Uncompressed Gateway Converter
(Transceiver), UTP
(UPC: 627699017678)
Accessories
(Sold separately)
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500970-MM Multimode 10G SFP Module, 850m (for 2nd Media/Data Port)
500970-UTP UTP 10G SFP Module, (for 2nd Media/Data Port)

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 9
1.5 Currently Supported Resolutions
The following are the currently supported 500767-2110 video resolutions and
frame rates.
Color
Depth
Color
Space
1080p
60
59.94
50
30
29.97
25
24
23.976
10 Bit
YCbCr 422
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Color
Depth
Color
Space
1080i
720p
60
59.94
50
60
59.94
50
10 Bit
YCbCr 422
Yes
Yes
Yes
Yes
Yes
Yes

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 10
2. Managing the 500767-2110
The 3G-SDI/ST2110 over IP Uncompressed Gateway can be managed through
its Web interface and API. The system supports the ST-2110 protocol, and ST-
2022-7 Redundancy for critical applications. This section describes how to set up
the 500767-2110 parameters using both the Web interface and the API.
2.1Web interface
Configuring the 500767-2110 from the Webinterface requiresa TCP/IP connection
from the unit 1G Ethernet port to your network. The 500767-2110 default IP
address is set to DHCP. If no DHCP is available on your network, as a TX,
“Console LAN” port / “Media 1” port / “Media 2” port will be 192.168.168.64/65/66
addresses respectively. As a RX, “Console LAN” port / “Media 1” port / “Media 2”
port will be 192.168.168.67/68/69 addresses respectively. To be able to log in to
the 500767-2110 Web interface, your computer has to be in the same subnet.
The Console LAN port and Media 1 andMedia 2 media/data ports are shownbelow
(media ports are shown without the included SFP module).

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 11
2.1.1 Configuring the 500767-2110 as a TX
This section will describe how to configure theunit as a TX using the Web interface.
Since the 500767-2110 is a Transceiver, it may be set as a Transmitter (TX) or
Receiver (RX). To set the unit as a TX, setDip Switch Pin #1 to the DOWN position.
The 4-Pin Dip Switch is located on the front panel as shown below.
2.1.2 TX Media Page
To connect into the TX, you may open a Web browser and type its IP address.
Once connected, the Media page opens. This page contains both the video and
audio settings. See example below:

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 12
Figure 2: 500767-2110 TX Media Settings

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 13
Clicking on the Submit button will allow you to apply the new changes
while clicking on Cancel will discard any changes.
The following table describes the Media settings
Settings
Description
SDP Video
SDP File for Video
SDP Audio
SDP File for Audio
Name
Host Name
Video Address
Multicast address for video
Audio Address
Multicast address for audio
ANC Address
Multicast address for ancillary data
Video port
Port number for video
Audio port
Port number for audio
ANC port
Port number for ancillary data
Media
Detected video resolution
Color depth
Detected color depth
Color space
Detected color space
Audio channels
Number of audio channels detected
Audio rate
Detected audio rate
Audio PKT size
Audio packet size detected

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 14
2.1.3 TX System Info Page
The System Info page displays general product information such model number,
firmware and FPGA version, MAC and IP address, RS232 settings (for future use),
etc.

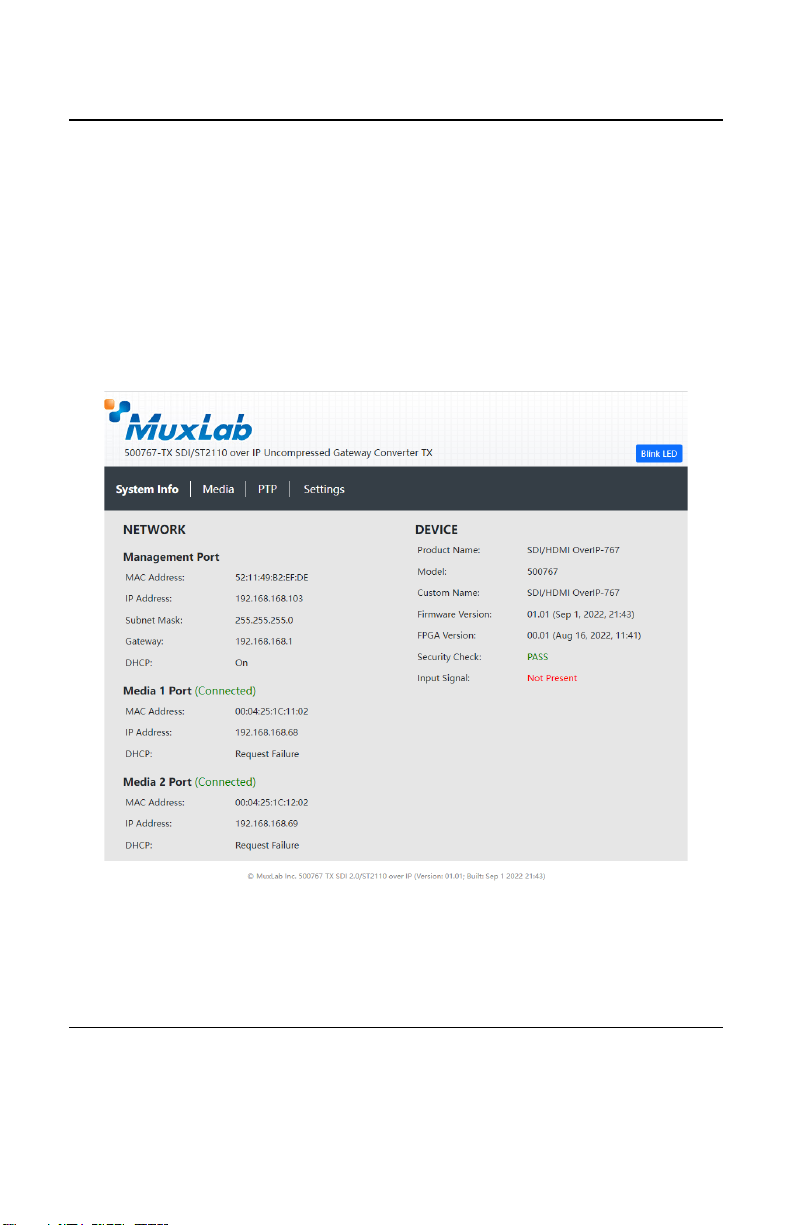

Figure 3: 500767-2110 TX System Info Page

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 15
2.1.4 TX PTP Page

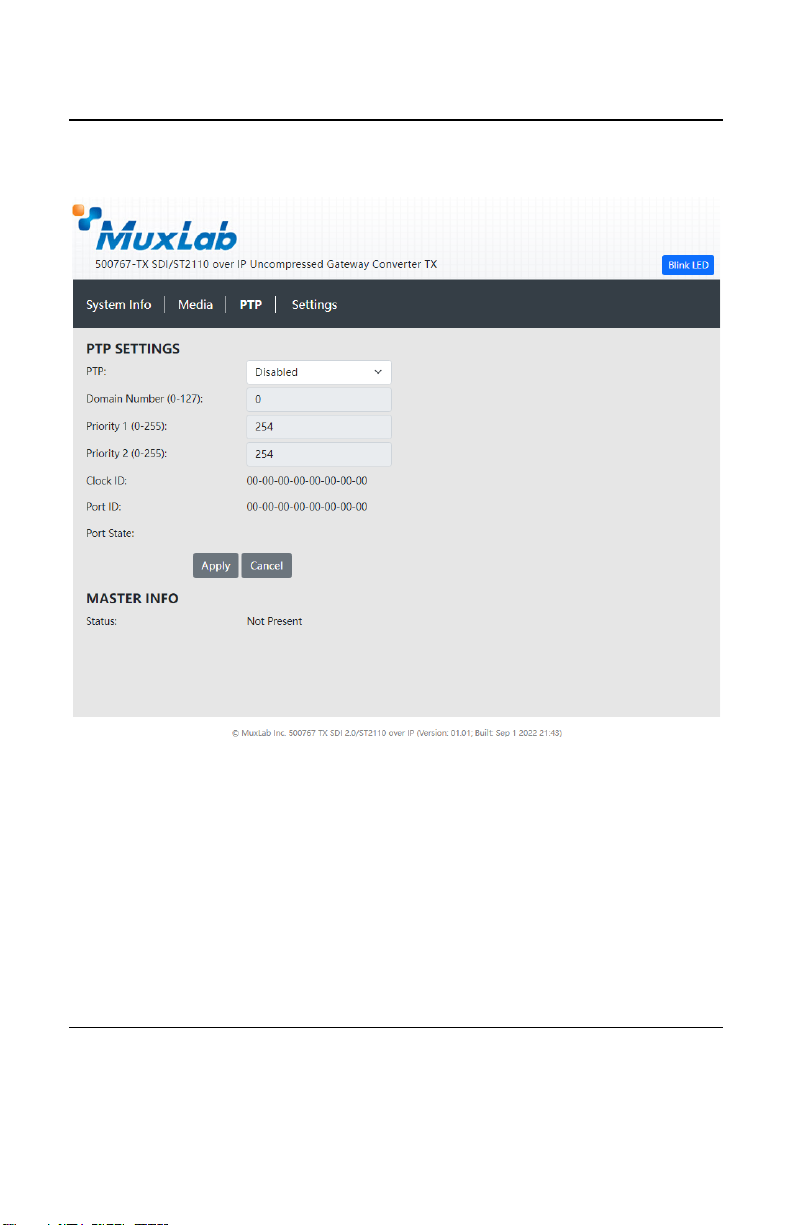

Figure 5: 500767-2110 TX PTP Page

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 16

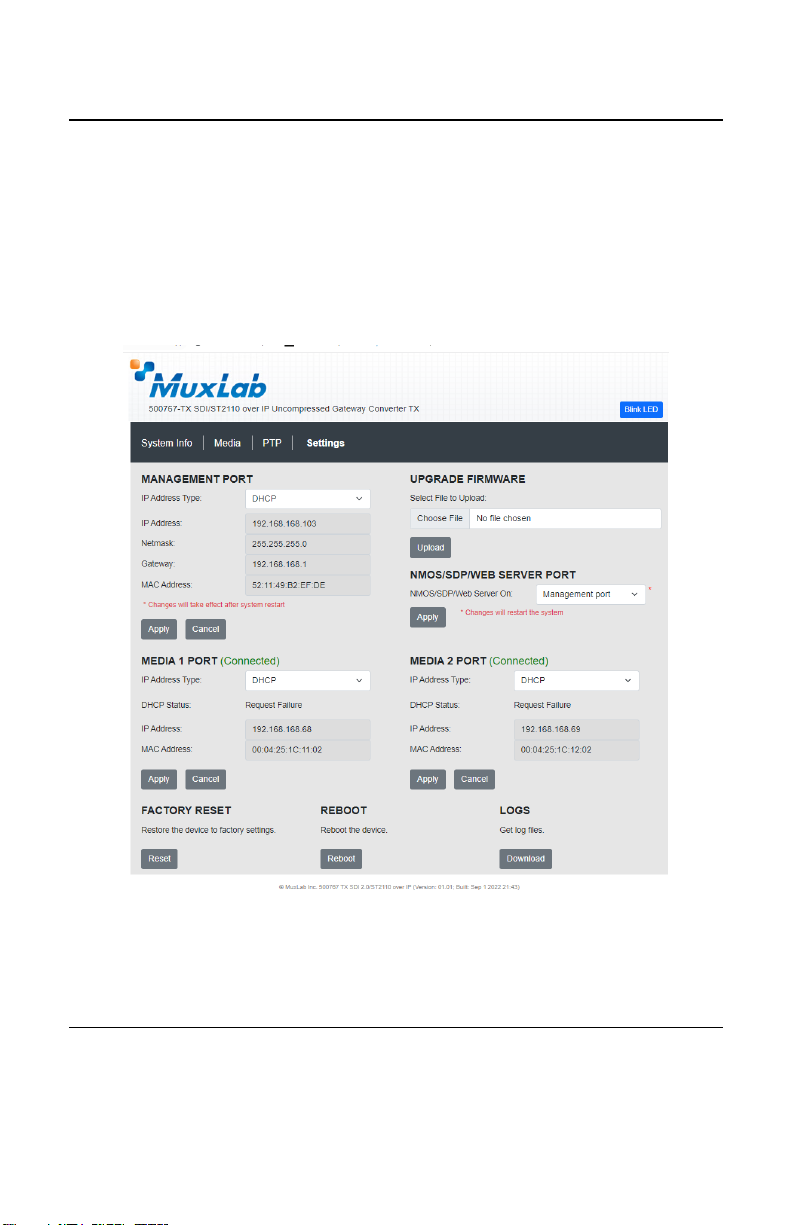

2.1.5 TX Settings Page
The Settings page allows the user to configure both the network and the RS232
settings (RS232 is for future use). Additionally, you may load the factory
configuration by clicking on the Reset button while the Reboot button will reboot
the unit. Note that performinga Reset will overwrite the unit settings and reset
them to their factory default, while performing a Reboot will interrupt any
active connection.
Figure 6: 500767-2110 TX Settings Page

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 17
Firmware Upgrade
The 500767-2110 comes with the firmware pre-installed, please check the
MuxLab Web site to verify if a newer version is available. You may go to our
support software/firmware page of our Web site to download the required files:
https://muxlab.com/support?section=software-and-firmware
Important Note: Use the 1G Port (port: Console LAN) to upgrade the unit
Firmware.
The 500767-2110 TX has both an FPGA and MCO (Micro-Controller Unit), and
each has its own firmware. The user may upgrade the FPGA and MCU firmware
from this page as follows:
1. Download the upgrade 500767-2110 firmware file (which includes the
FPGA and MCU code) from the MuxLab website (found under the
Support Software/Firmware page).
2. Go to the Setting page on the unit Web interface.
3. In the Upgrade Firmware section press on the “Browse” button and
locate and select the file you downloaded, and click on the “Chose File”
button. It may take 30 seconds or more to install the new version. Allow
the process to complete without interruption.
Network Settings (TX)
The user may set the network parameters of the 500767-2110 TX for the two (2)
10G Media/Data ports (ports: Media 1 & Media 2 is installed) and the one (1) 1G
Management/Control port (port: Console LAN), including enabling or disabling
DHCP, setting a static IP Address, Netmask Address, and Gateway Address,
and then pressing on “Apply”.
The 500767-2110 TX default IP addresses are set to DHCP. If no DHCP server
is available on your network the TX will default to the following static IP
Addresses:
•1G Management/Control port (Console LAN): 192.168.168.64
•Media/Data 1 port (Media 1): 192.168.168.65
•Media/Data 2 port (Media 2): 192.168.168.66

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 18
Note: If the user changes the static IP addresses from their default values, then
the user defined static IP Addresses will be used when do DHCP server is
present. However, if the unit is Factory Reset then the default static IP Addresses
above will apply.
Factory Reset
The user may perform a factory reset, by pressing on the “Reset” button. This will
return the unit to the original MuxLab factory settings, and all user settings and
data will be lost. Allow the process to complete without interruption.
Reboot
The user may reboot the unit (equivalent to a power cycle), by pressing on the
“Reboot” button. This will temporarily interrupt normal operation and the unit
connection. Allow the process to complete without interruption.
Logs
The user may get logs for his unit by pressing on the “Download” button. This
may help identify the source of a possible issue you may be having, or to simply
get info on the unit operation.

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 19
2.1.6 Configuring the 500767-2110 as a RX
The following will explain how to configure the 500767-2110 as a RX from the Web
interface.
Since the 500767-2110 is a Transceiver, it may be set as a Transmitter (TX) or
Receiver (RX). To set the unit as a RX, set Dip Switch Pin #1 to the UP position.
The 4-Pin Dip Switch is located on the front panel as shown below.
2.1.7 RX Media Page
To connect into the RX, you may open a Web browser and type its IP address.
Once connected, the Media page appears. This page contains the main settings
to properly receive audio, video and ANC data signals from the 500767-2110 TX.
There are different ways of configuring the unit: Manual SDP and NMOS.
Additionally, when using Manual configuration, the Media settings can be
either ANC Data or Manual.
The following example shows settings for Manual input type and ANC Data Media
Settings.

3G-SDI ST2110 Over IP Gateway Converter Operation Manual
© MuxLab Inc. 2022 20
Figure 7: 500767-2110 RX Manual Input Type and ANC Data Settings
